PEUGEOT 4007 2011.5 Owners Manual

11
AUDIO EQUIPMENT and TELEMATICS

Time and date, language, unit,
picture size
E - Choose the size of the DVD picture for:

E1 - normal 4/3,
E2 - extends the picture evenly to the right
and to the left in wide screen mode,
E3 - extends the right and left parts only
leaving the centre as it stands in
wide screen mode,
E4 -
enlarges the picture in 4/3 format. The top
and the bottom are outside the frame.

D - Choose the base settings of the
system for:
D1 - setting of the time by the RDS signal,
time zone, summer time,
D2 - the language (English, Français,
Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the dis-
tances (km or miles and °C or °F),
D4 - other settings such as:


- the voice guidance volume,

- the type of voice guidance voice
(female or male),

- the volume of the operation
bleeps (1 to 3 and 0=no bleep),

- the type of inputting keypad
(alphabet or PC),

- the range of menu colours (red or
blue),

- the displaying or not of the audio
playing icons on the map screen,

- the reinitialisation of the vehicle
sensor,

- the interruption or not of the dis-
play when the air conditioning is
used.
E1E2E3E4
D1D2
D3D4
DE

11
AUDIO EQUIPMENT and TELEMATICS

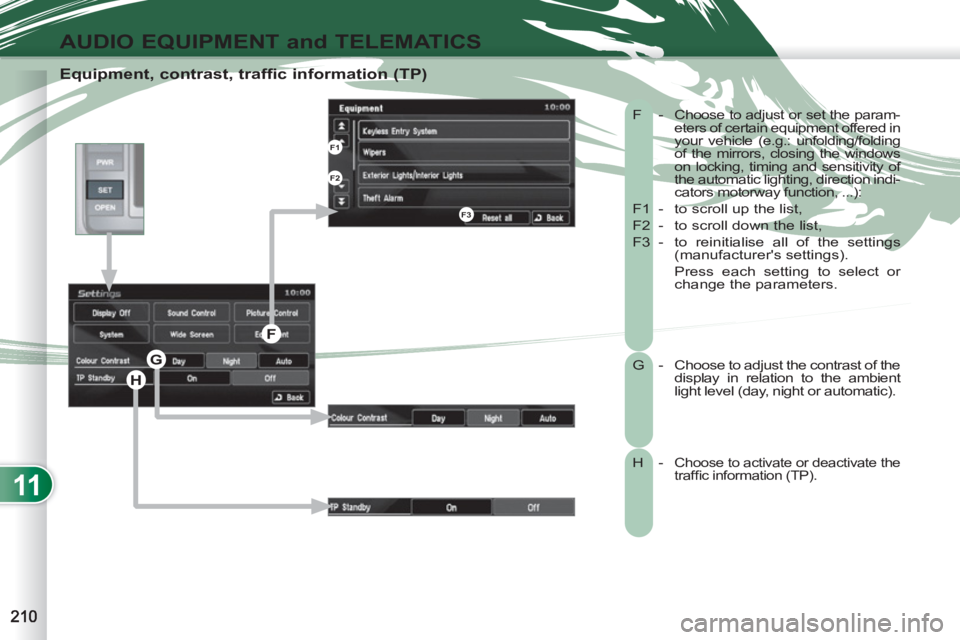

Equipment, contrast, traffic information (TP)

F - Choose to adjust or set the param-
eters of certain equipment offered in
your vehicle (e.g.: unfolding/folding
of the mirrors, closing the windows
on locking, timing and sensitivity of
the automatic lighting, direction indi-
cators motorway function, ...):
F1 - to scroll up the list,
F2 - to scroll down the list,
F3 - to reinitialise all of the settings
(manufacturer's settings).
Press each setting to select or
change the parameters.
G - Choose to adjust the contrast of the
display in relation to the ambient
light level (day, night or automatic).
H - Choose to activate or deactivate the
traffi c information (TP).
H
G
F
F1
F2
F3

11
AUDIO EQUIPMENT and TELEMATICS

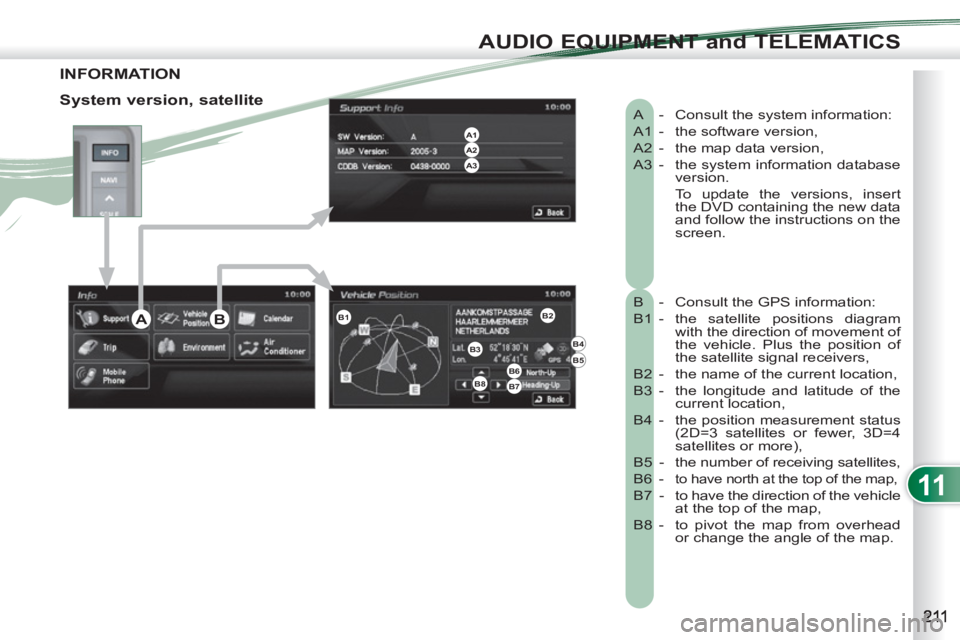

INFORMATION
A - Consult the system information:
A1 - the software version,
A2 - the map data version,
A3 - the system information database
version.
To update the versions, insert
the DVD containing the new data
and follow the instructions on the
screen.
B - Consult the GPS information:
B1 - the satellite positions diagram
with the direction of movement of
the vehicle. Plus the position of
the satellite signal receivers,
B2 - the name of the current location,
B3 - the longitude and latitude of the
current location,
B4 - the position measurement status
(2D=3 satellites or fewer, 3D=4
satellites or more),
B5 - the number of receiving satellites,
B6 -
to have north at the top of the map,

B7 - to have the direction of the vehicle
at the top of the map,
B8 - to pivot the map from overhead
or change the angle of the map.


System version, satellite
A2A1
A3
B1B2
B3B4
B5B6B7B8
AB

11
AUDIO EQUIPMENT and TELEMATICS

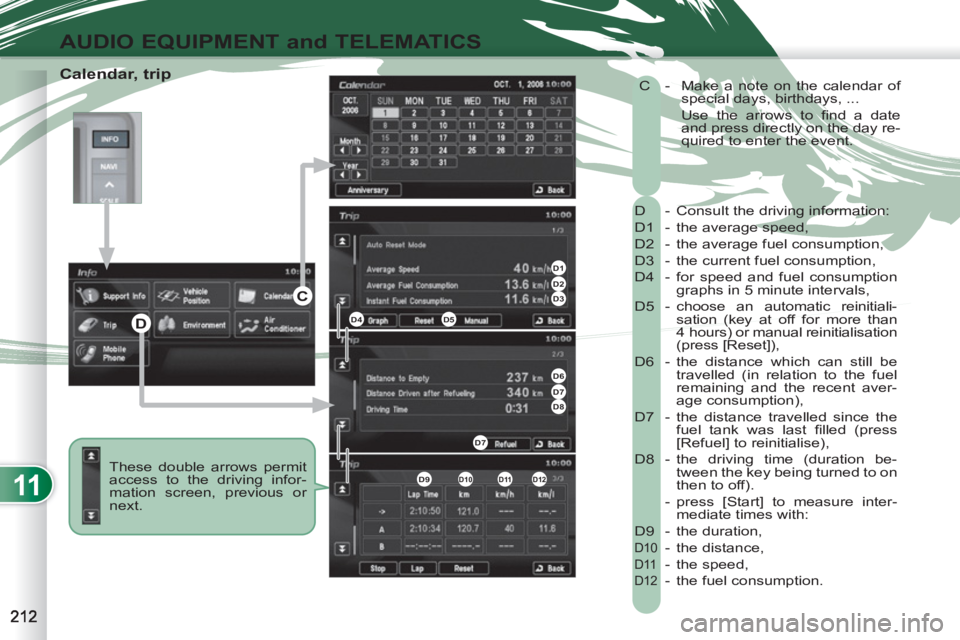

Calendar, trip

These double arrows permit
access to the driving infor-
mation screen, previous or
next. D - Consult the driving information:
D1 - the average speed,
D2 - the average fuel consumption,
D3 - the current fuel consumption,
D4 - for speed and fuel consumption
graphs in 5 minute intervals,
D5 - choose an automatic reinitiali-
sation (key at off for more than
4 hours) or manual reinitialisation
(press [Reset]),
D6 - the distance which can still be
travelled (in relation to the fuel
remaining and the recent aver-
age consumption),
D7 - the distance travelled since the
fuel tank was last fi lled (press
[Refuel] to reinitialise),
D8 - the driving time (duration be-
tween the key being turned to on
then to off).
- press [Start] to measure inter-
mediate times with:
D9 - the duration,

D10 - the distance,

D11 - the speed,

D12 - the fuel consumption. C - Make a note on the calendar of
special days, birthdays, ...
Use the arrows to fi nd a date
and press directly on the day re-
quired to enter the event.
D1D2D3
D4D5
D6D7D8
D7
D9D10D11D12
D
C

11
AUDIO EQUIPMENT and TELEMATICS

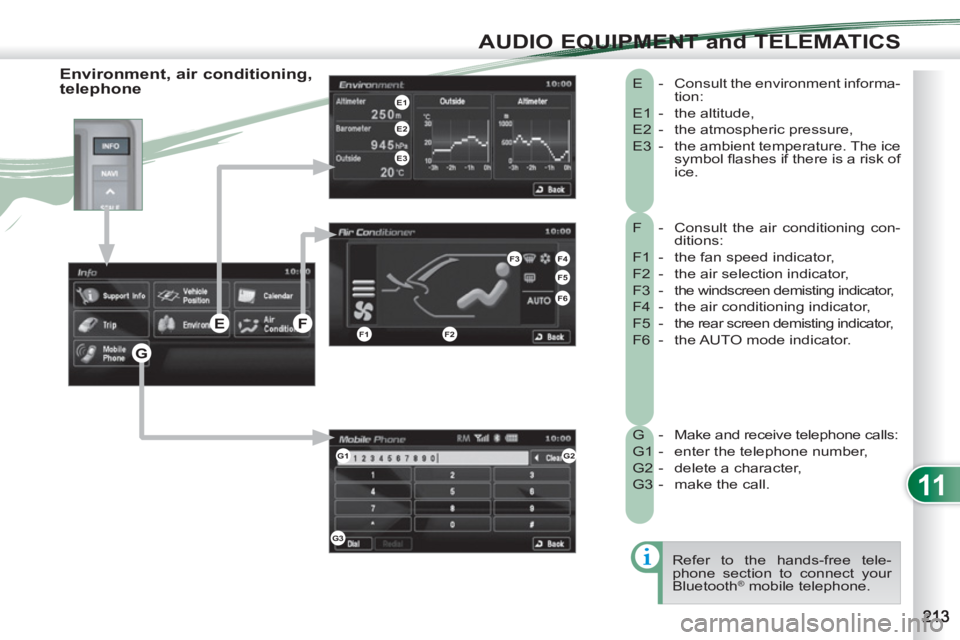

F - Consult the air conditioning con-
ditions:
F1 - the fan speed indicator,
F2 - the air selection indicator,
F3 - the windscreen demisting indicator,
F4 - the air conditioning indicator,
F5 - the rear screen demisting indicator,
F6 - the AUTO mode indicator. E - Consult the environment informa-
tion:
E1 - the altitude,
E2 - the atmospheric pressure,
E3 - the ambient temperature. The ice
symbol fl ashes if there is a risk of
ice.
G - Make and receive telephone calls:
G1 - enter the telephone number,
G2 - delete a character,
G3 - make the call.
Refer to the hands-free tele-
phone section to connect your
Bluetooth
® mobile telephone.


Environment, air conditioning,
telephone
F1F2
F3F4
F5
F6
E1
E2
E3
G1G2
G3
G
EF

11
AUDIO EQUIPMENT and TELEMATICS
HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE

What is the Bluetooth® hands-free telephone with voice recognition?
SPEAK
Pressing activates the voice recognition ("Listening" is displayed).
During voice recognition, a brief press pauses this recognition.
An extended press deactivates the recognition.
A brief press will activate the recognition even if a telephone call is
progress.
Decrease audio volume.
PICK UP
Press to answer an incoming
call.
If a second incoming call is re-
ceived, press this button to place
the fi rst call on hold and speak to
the second caller.
In this case, a brief press switch-
es between callers.
To establish a three-way conver-
sation, press the SPEAK button
to switch to voice recognition
mode and say "Incorporate the
call".
HANG UP
Press to reject an incoming call.
During a call, pressing ends this call.


General notes

Increase audio volume.
Audio system on/off. The system uses wireless communication technology referred to as
Bluetooth
® which allows you to make hands-free telephone calls in
your vehicle via your Bluetooth® compatible mobile telephone. You can make telephone calls using
a microphone, located in the cour-
tesy lamp making use of the steer-
ing mounted controls or by the voice
recognition function using voice com-
mands. Five languages are available:
English (by default), Spanish, French,
German and Italian.

11
AUDIO EQUIPMENT and TELEMATICS

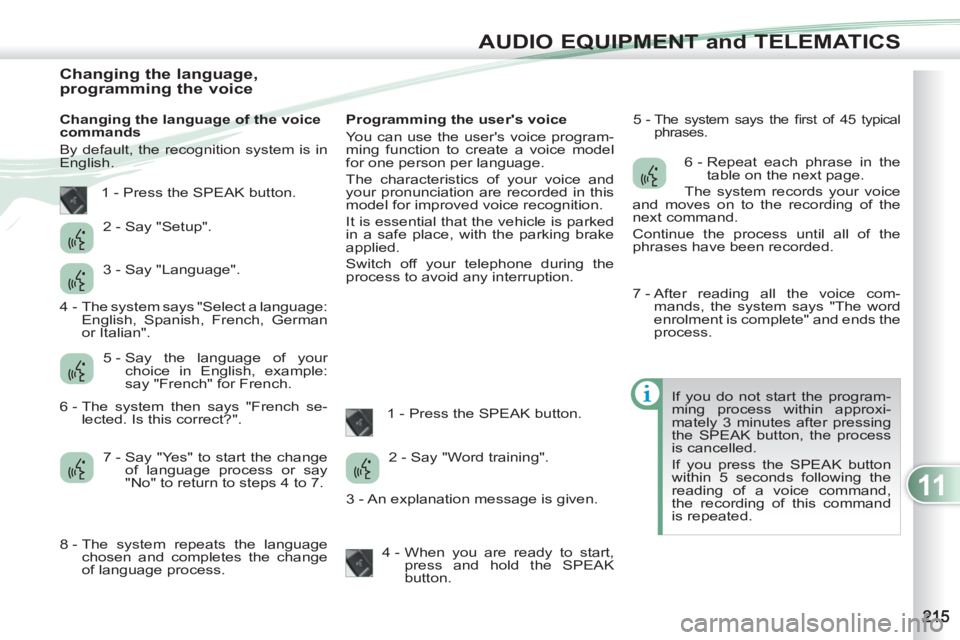

Changing the language,
programming the voice

Changing the language of the voice
commands
By default, the recognition system is in
English.
Programming the user's voice
You can use the user's voice program-
ming function to create a voice model
for one person per language.
The characteristics of your voice and
your pronunciation are recorded in this
model for improved voice recognition.
It is essential that the vehicle is parked
in a safe place, with the parking brake
applied.
Switch off your telephone during the
process to avoid any interruption.
1 - Press the SPEAK button. 5 - The system says the fi rst of 45 typical
phrases.
If you do not start the program-
ming process within approxi-
mately 3 minutes after pressing
the SPEAK button, the process
is cancelled.
If you press the SPEAK button
within 5 seconds following the
reading of a voice command,
the recording of this command
is repeated.
1 - Press the SPEAK button.
2 - Say "Setup".
3 - Say "Language".
5 - Say the language of your
choice in English, example:
say "French" for French.
7 - Say "Yes" to start the change
of language process or say
"No" to return to steps 4 to 7. 2 - Say "Word training".
4 - When you are ready to start,
press and hold the SPEAK
button. 6 - Repeat each phrase in the
table on the next page.
The system records your voice
and moves on to the recording of the
next command.
Continue the process until all of the
phrases have been recorded.
4 - The system says "Select a language:
English, Spanish, French, German
or Italian".
6 - The system then says "French se-
lected. Is this correct?" .
8 - The system repeats the language
chosen and completes the change
of language process. 3 - An explanation message is given. 7 - After reading all the voice com-
mands, the system says "The word
enrolment is complete" and ends the
process.

11
AUDIO EQUIPMENT and TELEMATICS

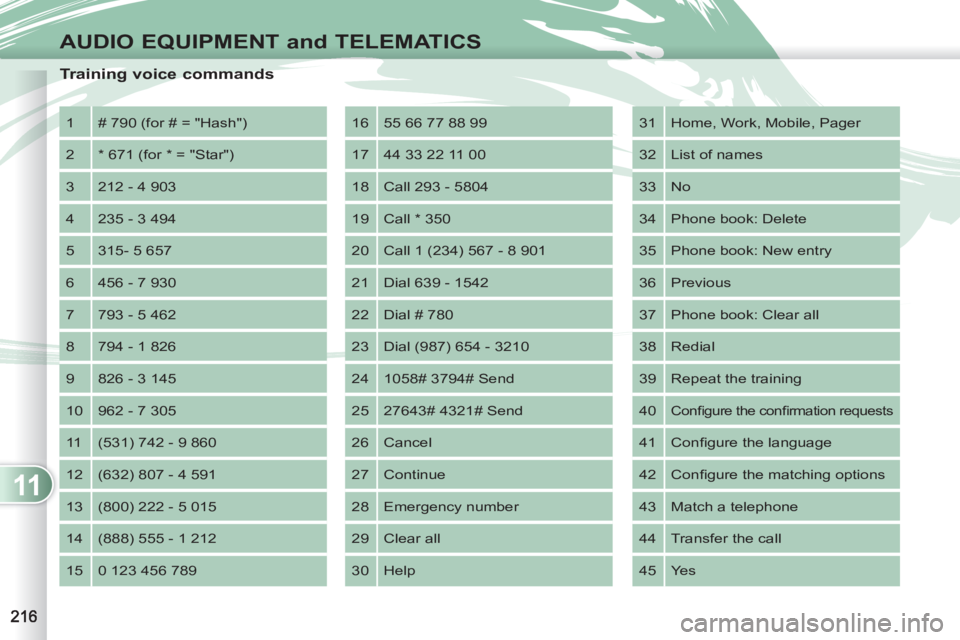

Training voice commands

1 # 790 (for # = "Hash")
2 * 671 (for * = "Star")
3 212 - 4 903
4 235 - 3 494
5 315- 5 657
6 456 - 7 930
7 793 - 5 462
8 794 - 1 826
9 826 - 3 145
10 962 - 7 305
11 (531) 742 - 9 860
12 (632) 807 - 4 591
13 (800) 222 - 5 015
14 (888) 555 - 1 212
15 0 123 456 789 16 55 66 77 88 99
17 44 33 22 11 00
18 Call 293 - 5804
19 Call * 350
20 Call 1 (234) 567 - 8 901
21 Dial 639 - 1542
22 Dial # 780
23 Dial (987) 654 - 3210
24 1058# 3794# Send
25 27643# 4321# Send
26 Cancel
27 Continue
28 Emergency number
29 Clear all
30 Help 31 Home, Work, Mobile, Pager
32 List of names
33 No
34 Phone book: Delete

35 Phone book: New entry
36 Previous
37 Phone book: Clear all
38 Redial
39 Repeat the training
40
Confi gure the confi rmation requests

41 Confi gure the language
42 Confi gure the matching options
43 Match a telephone
44 Transfer the call
45 Ye s

11
AUDIO EQUIPMENT and TELEMATICS

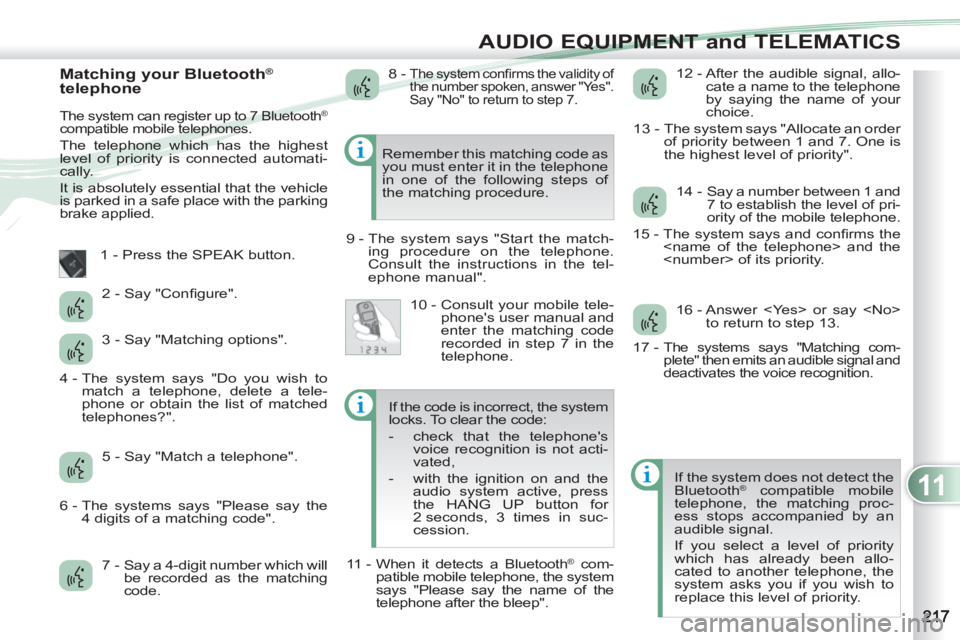

Matching your Bluetooth®
telephone
The system can register up to 7 Bluetooth®
compatible mobile telephones.
The telephone which has the highest
level of priority is connected automati-
cally.
It is absolutely essential that the vehicle
is parked in a safe place with the parking
brake applied.
1 - Press the SPEAK button.
7 - Say a 4-digit number which will
be recorded as the matching
code. 12 - After the audible signal, allo-
cate a name to the telephone
by saying the name of your
choice.
13 - The system says "Allocate an order
of priority between 1 and 7. One is
the highest level of priority".
If the system does not detect the
Bluetooth
® compatible mobile
telephone, the matching proc-
ess stops accompanied by an
audible signal.
If you select a level of priority
which has already been allo-
cated to another telephone, the
system asks you if you wish to
replace this level of priority. Remember this matching code as
you must enter it in the telephone
in one of the following steps of
the matching procedure.
9 - The system says "Start the match-
ing procedure on the telephone.
Consult the instructions in the tel-
ephone manual".
2 - Say "Confi gure".
3 - Say "Matching options".
5 - Say "Match a telephone". 8 -
The system confi rms the validity of
the number spoken, answer "Yes".
Say "No" to return to step 7.

10 - Consult your mobile tele-
phone's user manual and
enter the matching code
recorded in step 7 in the
telephone. 14 - Say a number between 1 and
7 to establish the level of pri-
ority of the mobile telephone.
15 - The system says and confi rms the
and the
of its priority.
16 - Answer or say
to return to step 13.
17 -
The systems says "Matching com-
plete" then emits an audible signal and
deactivates the voice recognition
.
4 - The system says "Do you wish to
match a telephone, delete a tele-
phone or obtain the list of matched
telephones?".
6 - The systems says "Please say the
4 digits of a matching code". If the code is incorrect, the system
locks. To clear the code:


- check that the telephone's
voice recognition is not acti-
vated,

- with the ignition on and the
audio system active, press
the HANG UP button for
2 seconds, 3 times in suc-
cession.
11 - When it detects a Bluetooth
® com-
patible mobile telephone, the system
says "Please say the name of the
telephone after the bleep".

11

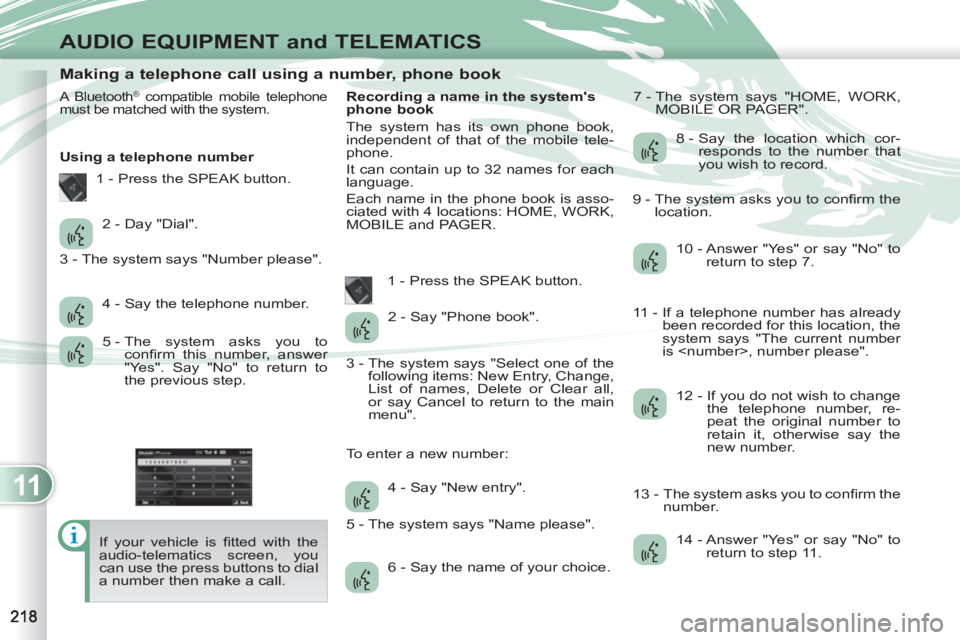

AUDIO EQUIPMENT and TELEMATICS





















Making a telephone call using a number, phone book
A Bluetooth® compatible mobile telephone
must be matched with the system.

Using a telephone number
If your vehicle is fi tted with the
audio-telematics screen, you
can use the press buttons to dial
a number then make a call.
Recording a name in the system's
phone book
The system has its own phone book,
independent of that of the mobile tele-
phone.
It can contain up to 32 names for each
language.
Each name in the phone book is asso-
ciated with 4 locations: HOME, WORK,
MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says "HOME, WORK,
MOBILE OR PAGER".
2 - Day "Dial".
4 - Say the telephone number.
5 - The system asks you to
confi rm this number, answer
"Yes". Say "No" to return to
the previous step. 2 - Say "Phone book".
4 - Say "New entry".
6 - Say the name of your choice. 8 - Say the location which cor-
responds to the number that
you wish to record.
10 - Answer "Yes" or say "No" to
return to step 7.
12 - If you do not wish to change
the telephone number, re-
peat the original number to
retain it, otherwise say the
new number.
14 - Answer "Yes" or say "No" to
return to step 11.
1 - Press the SPEAK button.
3 - The system says "Number please".
3 - The system says "Select one of the
following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu".
5 - The system says "Name please". To enter a new number: 9 - The system asks you to confi rm the
location.
11 - If a telephone number has already
been recorded for this location, the
system says "The current number
is , number please".
13 - The system asks you to confi rm the
number.
