CHILD SAFETY
114
Passenger airbag OFF

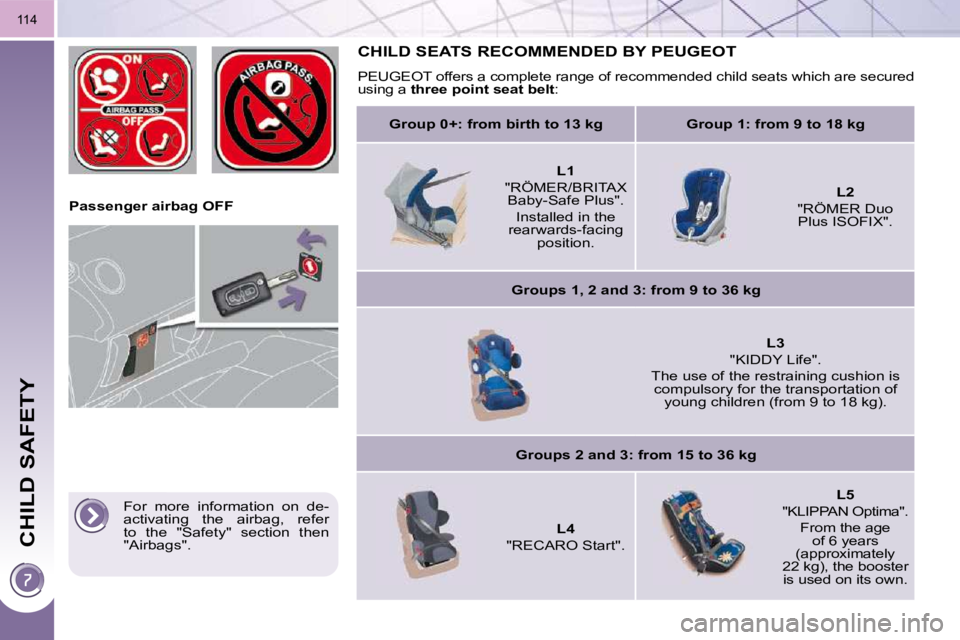

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg
L1
" R Ö M E R / B R I T A X B a b y - S a f e P l u s " .
Installed in the
rearwards-facing position.
L2
" R Ö M E R D u o Plus ISOFIX".
Groups 1, 2 and 3: from 9 to 36 kg
L3
" K I D D Y L i f e " .
The use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4
" R E C A R O S t a r t ' ' .
L5
" K L I P P A N O p t i m a " . From the age of 6 years
(approximately
22 kg), the booster is used on its own.
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
Page 142 of 331
CHILD SAFETY
115
INSTALLING CHILD SEATS USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved (a) in accordance with the weight of the child and the seat in the vehicle.
Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 ( b )
and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( c ) with
height adjuster
U (R) U (R) U (R) U (R)
Front passenger
seat (c) without
height adjuster
- - - -
5 seats (2 rows)
Outer rear seats
U U U U
C e n t r e r e a r s e a t
U U U U
T o i n s t a l l a c h i l d s e a t i n a r e a r s e a t , f a c i n g f o r w a r d s o r b a c k w a r d s , s l i d e t h e r e a r s e a t b a c k w a r d s s u f fi c i e n t l y s o t h a t f r o n t s e a t
backrest is not in the way.
Page 143 of 331
CHILD SAFETY
116
a: universal child seat, child seat that can be installed in all vehicles using a seat belt.
b: group 0, from birth to 10 kg. Shells seats and baby carriers cann ot be installed in the front passenger seat.
c: consult the legislation in force in your country before insta lling your child on this seat.
U: seat suitable for the installation of a child seat secure d using a seat belt and universally approved, "rearwards-facing"
a n d / o r " f o r w a r d s - f a c i n g " .
U (R): idem U , with the vehicle's seat adjusted to the highest positio n.
L: only the child seats indicated can be installed on the se at concerned (according to country).
X: seat position not suitable for installation of a child seat for the weight class indicated.
D o n o t i n s t a l l a c h i l d s e a t w i t h a stay i f y o u r v e h i c l e i s fi t t e d w i t h s t o r a g e c o m p a r t m e n t fl a p s u n d e r t h e f o o t w e l l s .

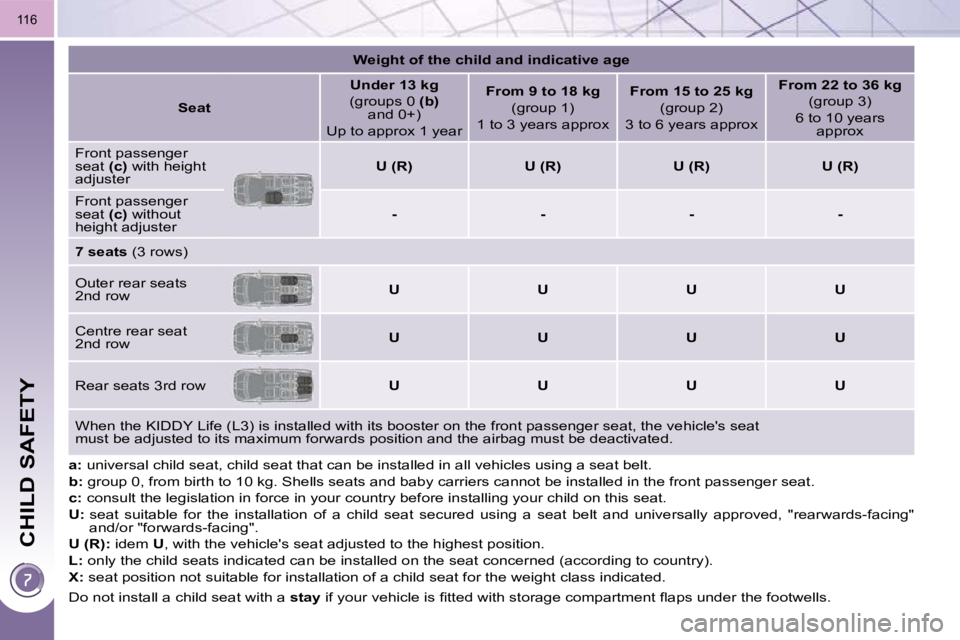

Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 (b)
and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat (c) with height
adjuster
U (R) U (R) U (R) U (R)
Front passenger
seat (c) without
height adjuster
- - - -
7 seats (3 rows)
Outer rear seats
2nd row
U U U U
C e n t r e r e a r s e a t
2nd row
U U U U
R e a r s e a t s 3 r d r o w
U U U U
W h e n t h e K I D D Y L i f e ( L 3 ) i s i n s t a l l e d w i t h i t s b o o s t e r o n t h e f r o n t p a s s e n g e r s e a t , t h e v e h i c l e ' s s e a t
must be adjusted to its maximum forwards position and the airbag must be deactivated.
Page 144 of 331
CHILD SAFETY
117

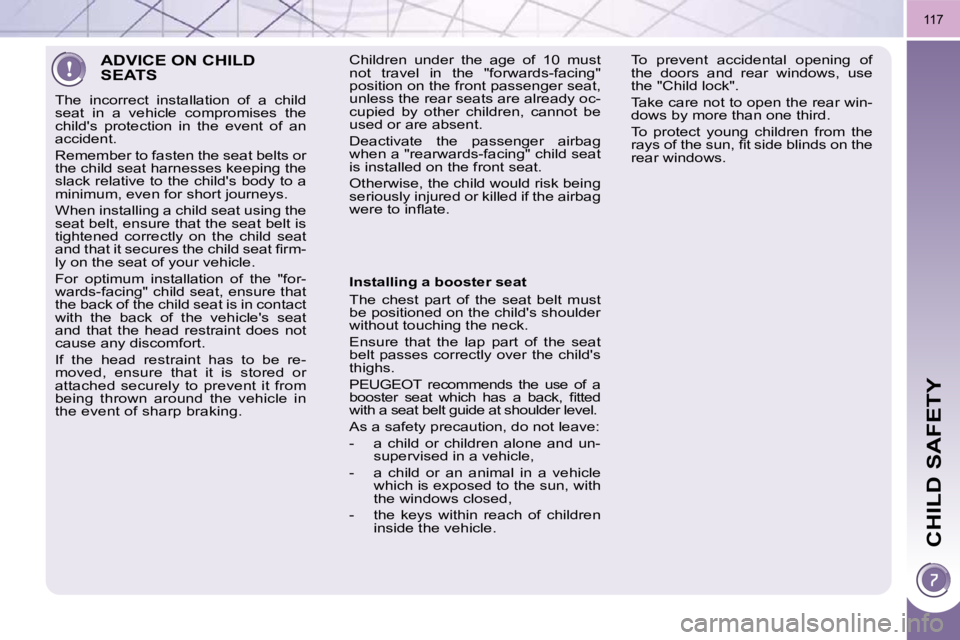

ADVICE ON CHILD SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
R e m e m b e r t o f a s t e n t h e s e a t b e l t s o r
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
a n d t h a t i t s e c u r e s t h e c h i l d s e a t fi r m -
ly on the seat of your vehicle.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , fi t t e d
with a seat belt guide at shoulder level.
As a safety precaution, do not leave:
- a child or children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. To prevent accidental opening of
the doors and rear windows, use
t h e " C h i l d l o c k " .
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
C h i l d r e n u n d e r t h e a g e o f 1 0 m u s t
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
D e a c t i v a t e t h e p a s s e n g e r a i r b a g
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
w e r e t o i n fl a t e .
Page 145 of 331
CHILD SAFETY
118
"ISOFIX" MOUNTINGS
Y o u r v e h i c l e h a s b e e n a p p r o v e d i n
accordance with the new ISOFIX regu-
lation .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d
with regulation ISOFIX mountings: There are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , behind the seat, referred to
as the TOP TETHER f o r fi x i n g t h e
upper strap. This ISOFIX mounting system guarantees
y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f t h e c h i l d
seat in your vehicle.
The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary ta-
ble for the location of the ISOFIX child
seats.
5 seats
7 seats
Page 146 of 331
CHILD SAFETY
119

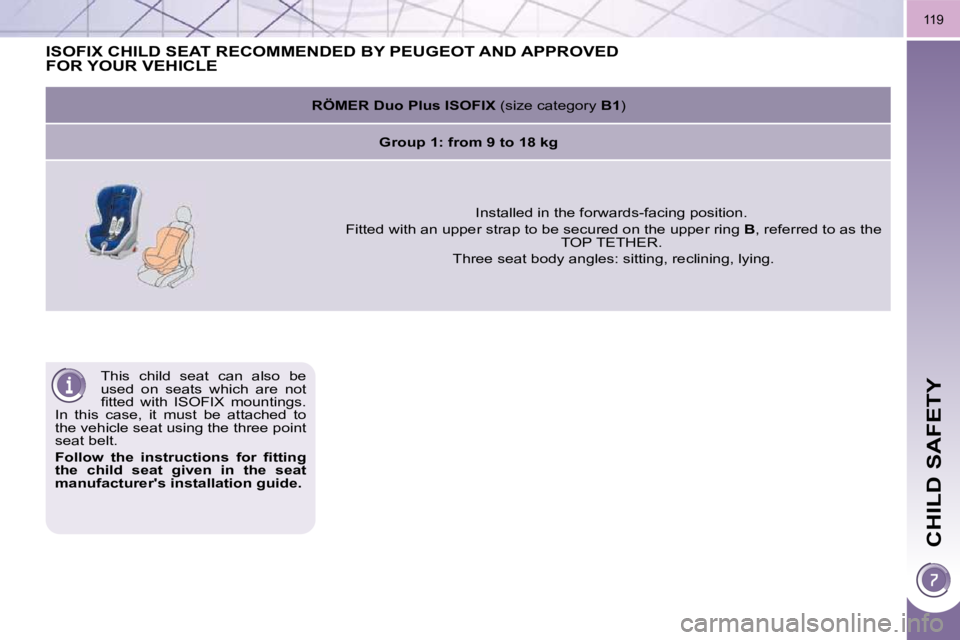

This child seat can also be
used on seats which are not
fi t t e d w i t h I S O F I X m o u n t i n g s .
In this case, it must be attached to
the vehicle seat using the three point
seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g
the child seat given in the seat
manufacturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B , referred to as the
T O P T E T H E R .
Three seat body angles: sitting, reclining, lying.
Page 147 of 331
./..
CHILD SAFETY

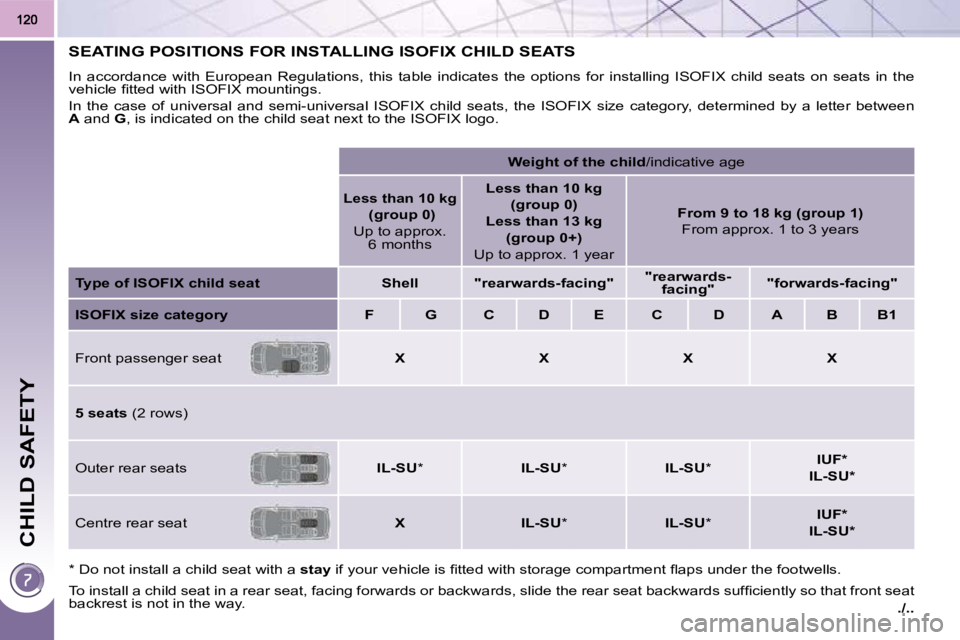

SEATING POSITIONS FOR INSTALLING ISOFIX CHILD SEATS
I n a c c o r d a n c e w i t h E u r o p e a n R e g u l a t i o n s , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r i n s t a l l i n g I S O F I X c h i l d s e a t s o n s e a t s i n t h e
v e h i c l e fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter between
A and G , is indicated on the child seat next to the ISOFIX logo.
Weight of the child / i n d i c a t i v e a g e
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Shell "rearwards-facing"
"rearwards-
facing"
"forwards-facing"
ISOFIX size category F G C D E C D A B B1
Front passenger seat
X X X X
5 seats (2 rows)
Outer rear seats
IL-SU * IL-SU * IL-SU *
IUF
*
IL-SU *
C e n t r e r e a r s e a t
X IL-SU* IL-SU*
IUF
*
IL-SU *
* D o n o t i n s t a l l a c h i l d s e a t w i t h a stay i f y o u r v e h i c l e i s fi t t e d w i t h s t o r a g e c o m p a r t m e n t fl a p s u n d e r t h e f o o t w e l l s .
T o i n s t a l l a c h i l d s e a t i n a r e a r s e a t , f a c i n g f o r w a r d s o r b a c k w a r d s , s l i d e t h e r e a r s e a t b a c k w a r d s s u f fi c i e n t l y s o t h a t f r o n t s e a t
backrest is not in the way.
Page 148 of 331
CHILD SAFETY
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orwards-facing" secured using the top belt.
IL-SU: seat suitable for the installation of an I s o fi x S emi- U niversal seat either:
- " r e a r w a r d s - f a c i n g " fi t t e d w i t h a t o p b e l t o r a s t a y ,
- " f o r w a r d s - f a c i n g " fi t t e d w i t h a s t a y ,
- a s h e l l s e a t fi t t e d w i t h a n u p p e r s t r a p o r a s t a y .
F o r a d v i c e o n s e c u r i n g o f t h e t o p b e l t , r e f e r t o t h e p a r a g r a p h " I s o fi x m o u n t i n g s " .
X: seat not suitable for the installation of a child seat or shell for the weight group indicated.

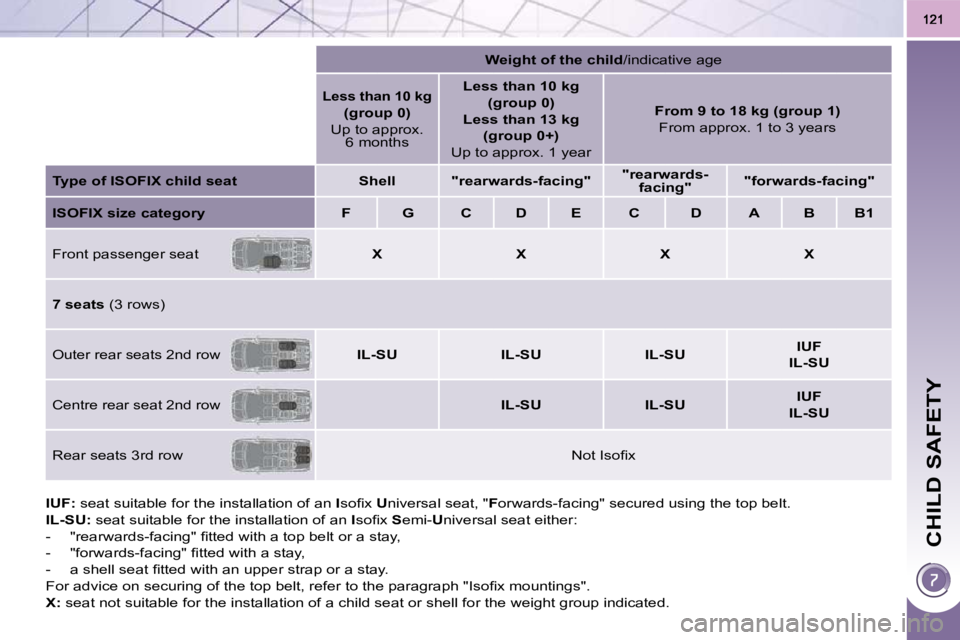

Weight of the child / i n d i c a t i v e a g e
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years
Type of ISOFIX child seat Shell "rearwards-facing"
"rearwards-
facing"
"forwards-facing"
ISOFIX size category F G C D E C D A B B1
Front passenger seat
X X X X
7 seats (3 rows)
Outer rear seats 2nd row
IL-SU IL-SU IL-SU
IUF
IL-SU
C e n t r e r e a r s e a t 2 n d r o w IL-SU IL-SU
IUF
IL-SU
R e a r s e a t s 3 r d r o w
N o t I s o fi x
Page 149 of 331
CHILD SAFETY
122
This system is independent
and in no circumstances does
it take the place of the central
locking control.
C h e c k t h e s t a t u s o f t h e c h i l d l o c k
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact, the
electric child lock is deactivated auto-
matically to permit the exit of the rear
passengers.
MANUAL CHILD LOCK
M e c h a n i c a l s y s t e m t o p r e v e n t o p e n i n g
of the rear door using its interior control.
The control is located on the edge of
each rear door.
Turn the red control one eighth of
a turn to the left using the ignition
key.
ELECTRIC CHILD LOCK
R e m o t e c o n t r o l s y s t e m t o p r e v e n t o p e n i n g
of the rear doors using their interior con-
trols and use of the rear electric windows.
With the ignition on, press button A .
The indicator lamp on button A comes on.
This indicator lamp remains on until the
child lock is deactivated.
It is still possible to open the doors from
the outside and operate the rear electric
windows from the driver's control pad.
Locking
Unlocking
Turn the red control one eighth of
a turn to the right using the ignition
key. Activation
Deactivation
With the ignition on, press button A
again.
The indicator lamp on button A switches off.
This indicator lamp remains off until the
child lock is activated.
Any other status of the indica-
tor lamp indicates a malfunc-
tion of the electric child lock.
Have it checked by a PEUGEOT
dealer.
Page 150 of 331
123
DIRECTION INDICATORS
Selection of the left or right direction
indicators to signal a change of direction
of the vehicle. If you forget to cancel the
direction indicators for more
than twenty seconds, the
volume of the audible signal will
increase if the speed is above 40 mph
(60 km/h).
Lower the lighting control stalk fully
when moving to the left.
Raise the lighting control stalk fully
when moving to the right.
HAZARD WARNING LAMPS
A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
As a safety precaution in a
t r a f fi c j a m , s w i t c h o n t h e h a z -
ard warning lamps if you are
the last in the queue.
Tilt or press button A , the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition off.
Automatic operation of hazard warning lamps
When braking in an emergency, de-
p e n d i n g o n t h e d e c e l e r a t i o n , t h e h a z a r d
warning lamps come on.
They will switch off automatically the
fi r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off.
HORN
Press one of the spokes of the steering
wheel.
Use the horn moderately and
only in the following cases:
- immediate danger,
- overtaking a cyclist or pedestrian
- when approaching an area where there is no visibility.
Audible warning to alert other road users
to an imminent danger.
"Motorway" function
M o v e t h e s t a l k b r i e fl y u p w a r d s o r d o w n -
wards, without going beyond the point of
resistance; the corresponding direction
i n d i c a t o r s w i l l fl a s h 3 t i m e s .
