Peugeot 508 Dag 2010.5 User Guide
Manufacturer: PEUGEOT, Model Year: 2010.5, Model line: 508 Dag, Model: Peugeot 508 Dag 2010.5Pages: 330, PDF Size: 11.59 MB
Page 11 of 330
14
Familiarisation
Seeing clearly
Lighting
Ring A
Ring B
Wipers
130
Control stalk A: windscreen wipers
2. Fast wipe. 1. Normal wipe. Int. Intermittent wipe. 0. Park. AUTO Automatic wiping. Single wipe: Brief pull on the stalk towards. Screenwash: Long pull on stalk towards you.
140
Switching on "AUTO" mode
Briefly push the stalk downwards.
Switching off "AUTO" mode
Briefly push the stalk downwards or place the stalk in another position: Int, 1 or 2.
Ring B: rear wiper
142
141
Lighting off.
Automatic illumination of headlamps.
Sidelamps.
Dipped/main beam headlamps.
Front and rear foglamps. Park. Intermittent wipe. Screenwash.
Page 12 of 330
.
15
Familiarisation
I would like...

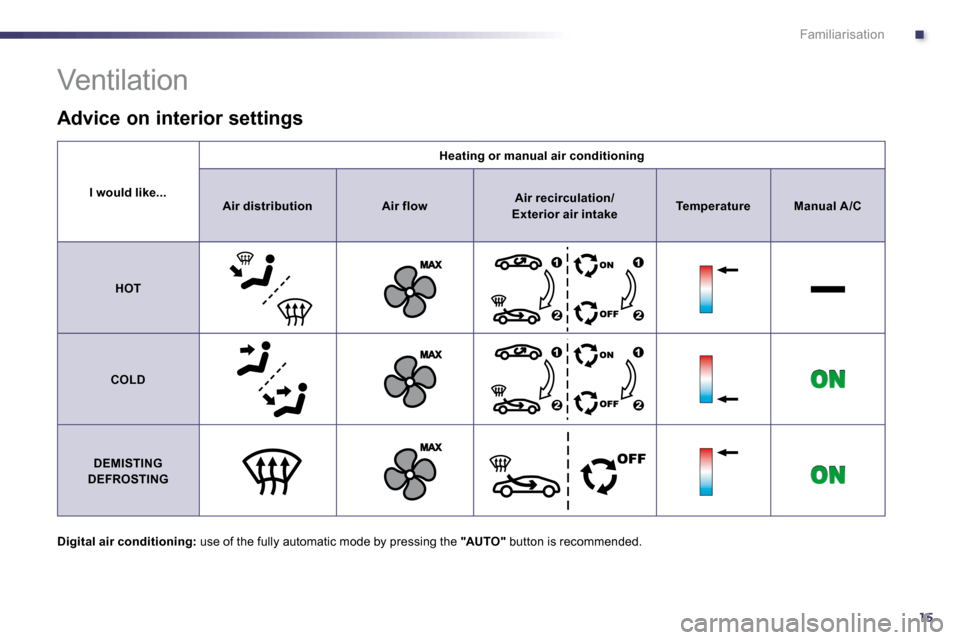

Heating or manual air conditioning
AirdistributionAir flowAir recirculation/ Exterior air intakeTemperatureManualA /C
HOT
COLD
DEMISTING
DEFROSTING
Ventilation
Digital air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.
Advice on interior settings
Page 13 of 330
16
Familiarisation

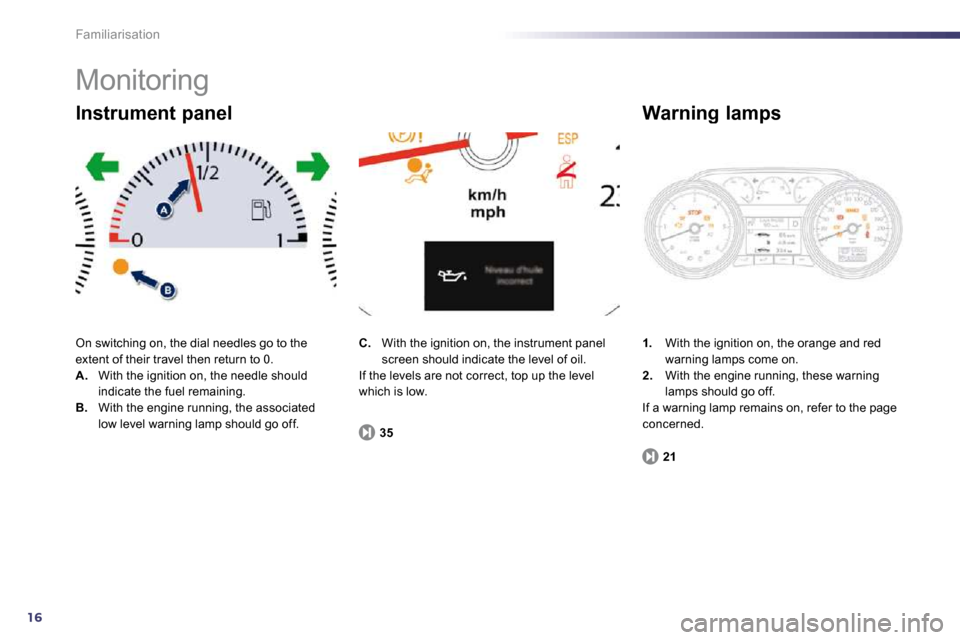

Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0. A. With the ignition on, the needle should indicate the fuel remaining. B. With the engine running, the associated low level warning lamp should go off.
Instrument panel
1. With the ignition on, the orange and red warning lamps come on. 2. With the engine running, these warning lamps should go off. If a warning lamp remains on, refer to the page concerned.
Warning lamps
21
C. With the ignition on, the instrument panel screen should indicate the level of oil. If the levels are not correct, top up the level which is low.
35
Page 14 of 330
.
17
Familiarisation

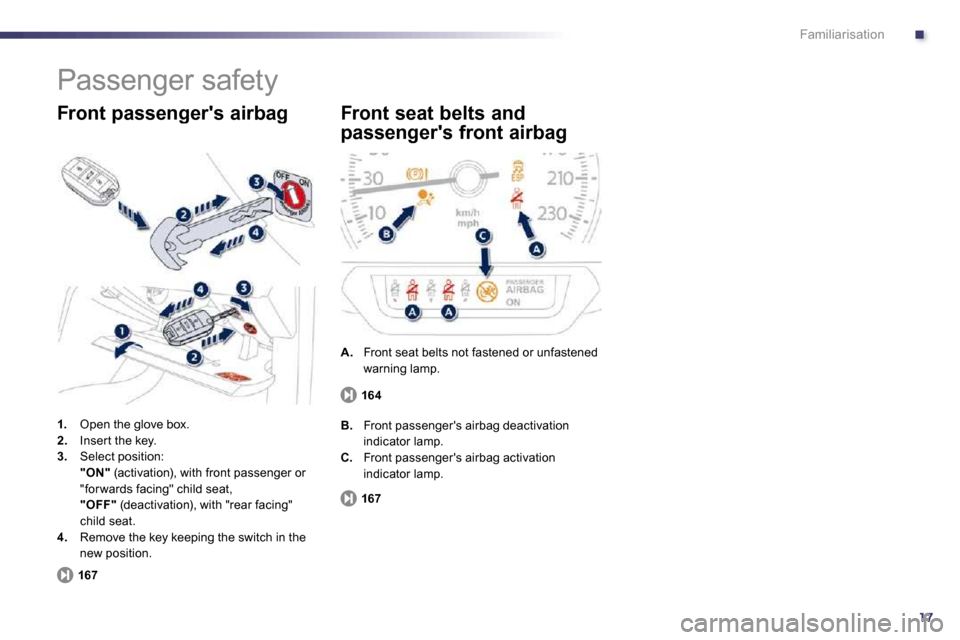

Passenger safety
1. Open the glove box. 2. Inser t the key. 3. Select position: "ON" (activation), with front passenger or "for wards facing" child seat, "OFF" (deactivation), with "rear facing" child seat. 4. Remove the key keeping the switch in the new position.
Front passenger's airbag
167
A. Front seat belts not fastened or unfastened warning lamp.
Front seat belts and
passenger's front airbag
167
B. Front passenger's airbag deactivation
indicator lamp. C. Front passenger's airbag activation indicator lamp.
164
Page 15 of 330
18
i
!
Familiarisation

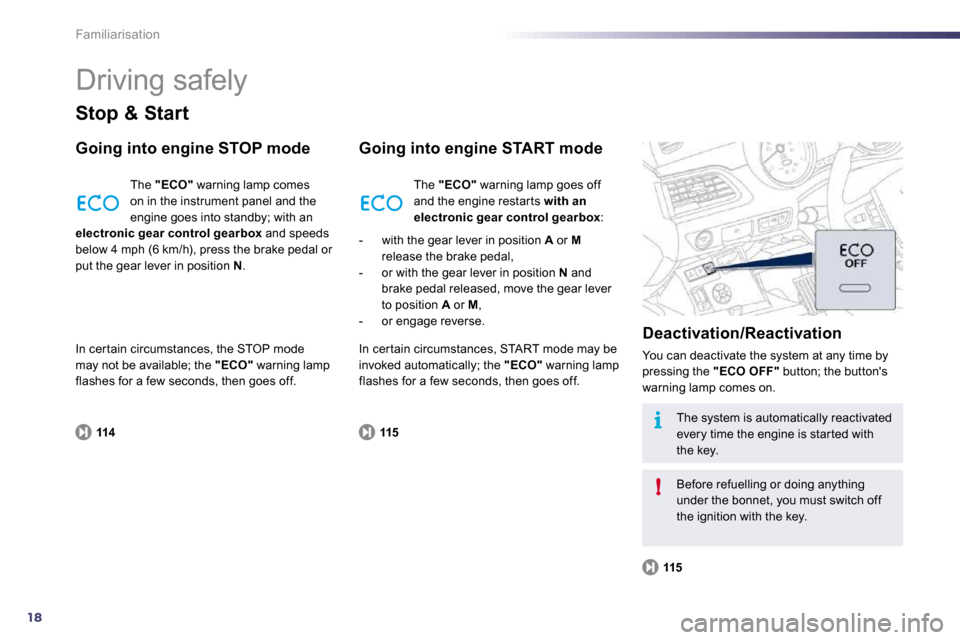

Driving safely
Stop & Start
Going into engine STOP mode
114
The "ECO" warning lamp comes on in the instrument panel and the engine goes into standby; with an electronic gear control gearbox and speeds below 4 mph (6 km/h), press the brake pedal or put the gear lever in position N .
Going into engine START mode
Deactivation/Reactivation
You can deactivate the system at any time by pressing the "ECO OFF" button; the button's warning lamp comes on.
115
115
The system is automatically reactivated every time the engine is star ted with the key.
Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key.
The "ECO" warning lamp goes off and the engine restar ts with an electronic gear control gearbox :
- with the gear lever in position A or M or release the brake pedal, - or with the gear lever in position N and brake pedal released, move the gear lever to position A or M , - or engage reverse.
In cer tain circumstances, the STOP mode may not be available; the "ECO" warning lamp flashes for a few seconds, then goes off.
In cer tain circumstances, START mode may be invoked automatically; the "ECO" warning lamp flashes for a few seconds, then goes off.
Page 16 of 330
.
19
Familiarisation

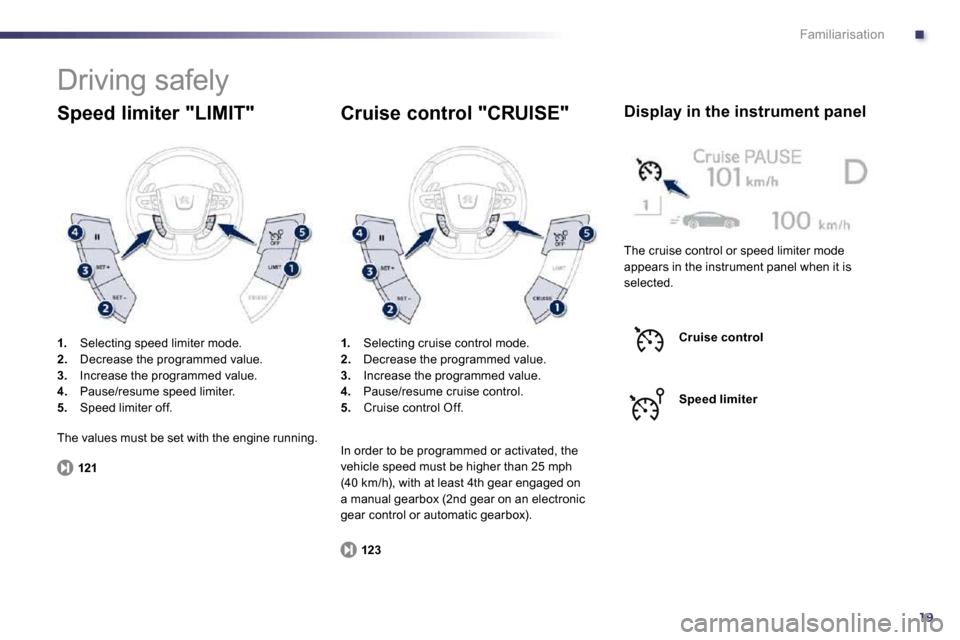

Driving safely
1. Selecting speed limiter mode. 2. Decrease the programmed value. 3. Increase the programmed value. 4. Pause/resume speed limiter. 5. Speed limiter off.
Speed limiter "LIMIT"
121
1. Selecting cruise control mode. 2. Decrease the programmed value. 3. Increase the programmed value. 4. Pause/resume cruise control. 5. Cruise control Off.
Cruise control "CRUISE"
123
The cruise control or speed limiter mode appears in the instrument panel when it is selected.
Display in the instrument panel
Cruise control
Speed limiter
The values must be set with the engine running. In order to be programmed or activated, the vehicle speed must be higher than 25 mph
(40 km/h), with at least 4th gear engaged on a manual gearbox (2nd gear on an electronic gear control or automatic gearbox).
Page 17 of 330
20
Instruments and controls
Petrol-Diesel instrument panel
1. Rev counter (x 1 000 tr/min or rpm), graduation according to engine (petrol or Diesel). 2. Engine oil temperature gauge.
3. Fuel gauge. 4. Engine coolant temperature gauge. 5. Speedometer (mph or km/h). 6. Cruise control or speed limiter settings. 7. Gear shift indicator for a manual gearbox or gear lever position and gear for an electronic gear control or automatic gearbox.
A. Main lighting dimmer. B. Display of aler t log. C. Recall of the ser vice information. Reset the selected function to zero (ser vice
indicator or trip distance recorder).
8. Display zone: aler t messages or state of functions, trip computer. 9. Trip distance recorder (miles or km). 10. Automatic wipers
Ser vice indicator (miles or km) then, total distance recorder. These two functions are displayed successively when switching on the ignition.
Dials and screens Control buttons
Page 18 of 330
121
!
Instruments and controls
Indicator and warning lamps
Visual indicators informing the driver that a system is in operation, switched off or has a fault.
When the ignition is switched on
Cer tain warning lamps come on for a few
seconds in the instrument panel and/or instrument panel screen when the vehicle's ignition is switched on. When the engine is star ted, these same warning lamps should switch off. If they remain on, before moving off, refer to the information on the warning lamp concerned.
Associated warnings
The switching on of cer tain warning lamps may be accompanied by an audible signal and a message in the instrument panel screen. The warning lamps may come on continuously (fixed) or flash.
Cer tain warning lamps may come on in one of two modes. Only by relating the type of lighting to the operating status of the vehicle can it be ascer tained whether the situation is normal or whether a fault has occurred.
1
2
2
2
3
3
3
2
3
3

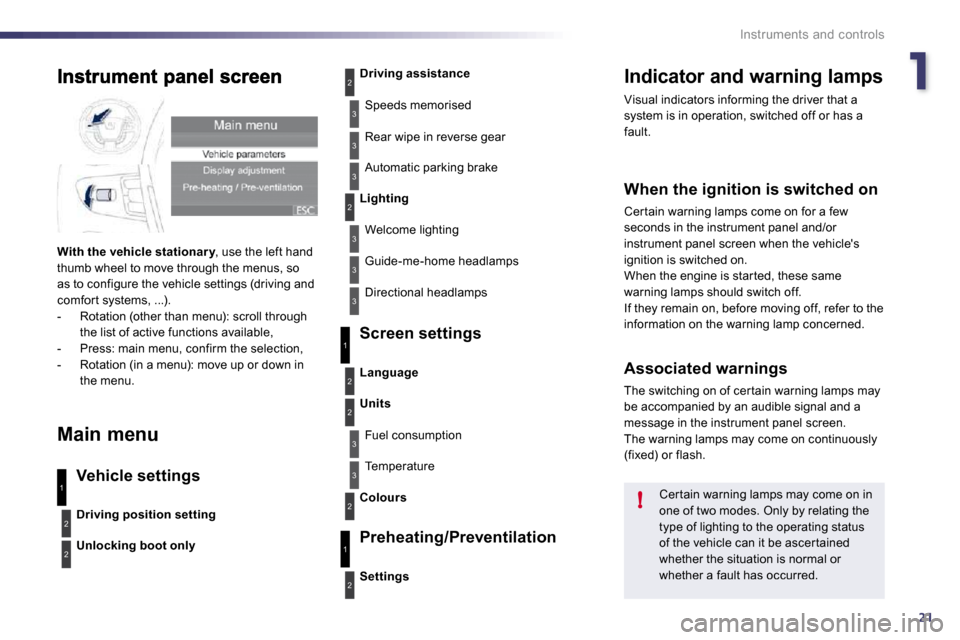

With the vehicle stationar y , use the left hand ar ythumb wheel to move through the menus, so as to configure the vehicle settings (driving and comfor t systems, ...). - Rotation (other than menu): scroll through the list of active functions available, - Press: main menu, confirm the selection, - Rotation (in a menu): move up or down in the menu.
Main menu
Vehicle settings
Screen settings
Preheating/Preventilation
Driving position setting
Unlocking boot only
Driving assistance
Speeds memorised
Rear wipe in reverse gear
Automatic parking brake
Lighting
Welcome lighting
Guide-me-home headlamps
Directional headlamps
Settings
Language
Units
Fuel consumption
Temperature
Colours
3
1
2
2
3
2
3
1
2
Page 19 of 330
121
!
Instruments and controls
Indicator and warning lamps
Visual indicators informing the driver that a system is in operation, switched off or has a fault.
When the ignition is switched on
Cer tain warning lamps come on for a few
seconds in the instrument panel and/or instrument panel screen when the vehicle's ignition is switched on. When the engine is star ted, these same warning lamps should switch off. If they remain on, before moving off, refer to the information on the warning lamp concerned.
Associated warnings
The switching on of cer tain warning lamps may be accompanied by an audible signal and a message in the instrument panel screen. The warning lamps may come on continuously (fixed) or flash.
Cer tain warning lamps may come on in one of two modes. Only by relating the type of lighting to the operating status of the vehicle can it be ascer tained whether the situation is normal or whether a fault has occurred.
1
2
2
2
3
3
3
2
3
3
With the vehicle stationar y , use the left hand ar ythumb wheel to move through the menus, so as to configure the vehicle settings (driving and comfor t systems, ...). - Rotation (other than menu): scroll through the list of active functions available, - Press: main menu, confirm the selection, - Rotation (in a menu): move up or down in the menu.
Main menu
Vehicle settings
Screen settings
Preheating/Preventilation
Driving position setting
Unlocking boot only
Driving assistance
Speeds memorised
Rear wipe in reverse gear
Automatic parking brake
Lighting
Welcome lighting
Guide-me-home headlamps
Directional headlamps
Settings
Language
Units
Fuel consumption
Temperature
Colours
3
1
2
2
3
2
3
1
2
Page 20 of 330
22
i
Instruments and controls
Operation indicator lamps If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.
Warning lampis onCauseAction/Obser vations
Left-hand direction indicator flashing with buzzer. The lighting stalk is pushed down.
Right-hand direction indicator flashing with buzzer. The lighting stalk is pushed up.
Sidelamps fixed. The lighting stalk is in the "Sidelamps" position. Turn the stalk to the desired position.
Dipped beam headlamps fixed. The lighting stalk is in the "Dipped beam headlamps" position. Turn the stalk to the desired position.
Main beam headlamps fixed. The lighting stalk is pulled towards you. Pull the stalk to return to dipped beam headlamps.
Front foglamps fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off the front foglamps.
Rear foglamps fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the rear foglamps.
For more information on the lighting controls, refer to the "Visibility" section.
