INSTRUMENTS AND CONTROLS
34
Water in diesel filter warning light (according to country) Display of this warning light is accompanied by an audible signal and the message 'Water in diesel filter'on the
multi-function display.There is a risk of damage to the injection system.
Contact a PEUGEOT dealer as soon as possible.Front brake pad wear warning lightDisplay of this warning light is accompanied by an audible signal and the message 'Brake pads worn'on the multi-
function display.
For your safety, have the pads replaced by a PEUGEOT dealer as soon as the warning light comes on.Low fuel level warning lightDisplay of this warning light is accompanied by an audible signal and the message 'Fuel level low'on the multi-
function display.
When the warning light comes on, you have enough fuel to drive approximately 30 miles (50 km). The tank capac- ity is approximately 80 litres. Fuel cap warning lightDisplay of this warning light is accompanied by an audible signal and the message 'Fuel cap open'on the multi-
function display.It comes on if the fuel tank cap is not correctly screwed on or is missing. Door/bonnet/boot open warning light Display of this warning light with the engine running is accompanied by an audible signal and an illustration on the
multi-function display, showing which opening has not been correctly closed. Air bag warning light Display of this warning light is accompanied by an audible signal and the message 'Air bag faulty'on the multi-
function display.
Contact your PEUGEOT dealer.

15-07-2002
INSTRUMENTS AND CONTROLS35
Engine diagnostics warning light This is linked to the warning light on the instrument panel.Display of this warning light is accompanied by an audible signal and the message
'Engine emission control sys-
tem faulty' on the multi-function display.
If it flashes when the engine is running, this indicates a malfunction in the injection, ignition or emission control system. Th ere
is a risk of damage to the catalytic converter (petrol engine only).
Contact a PEUGEOT dealer as soon as possible.
Bulb blown warning lightDisplay of this indicator light is accompanied by an audible signal and the message 'Bulb... faulty' on the multi-func-
tion display, indicating the faulty bulb: a bulb in the dipped beam lights, the side lights, the direction indicator lights (except side repeaters) or the brake lights (except the central brake light).
Change the faulty bulb.
Windscreen/headlamp wash reservoir warning light Display of this warning light is accompanied by an audible signal and the message 'Screenwash low'on the multi-
function display.Fill the windscreen/headlamp wash reservoir the next time you stop. Particulate emission filter saturation warning light (diesel engine) Display of this warning light is accompanied by an audible signal. When it occurs with the engine running, this indicates the start of saturation of the particulate emission filter (excep- tionally long periods of town type driving conditions: reduced speed, long tailbacks...).
To regenerate the filter, you are advised to drive as soon as possible and when traffic conditions permit at a speed of 35 mph(60 km/h) or more for at least five minutes (until the warning light goes out).
If the light remains on, contact a PEUGEOT dealer.Note: After prolonged operation of the vehicle at a very low speed or at idle, you may sometimes notice steam coming from
the exhaust during acceleration. This has no effect on the performance of the vehicle or on the environment.

15-07-2002
INSTRUMENTS AND CONTROLS
36
Anti-lock braking system (ABS) warning light This is linked to the warning light on the instrument panel .
Display of this warning light is accompanied by an audible signal and the message 'ABS faulty' on the multi-func-
tion display.
If the warning light remains on, or comes on at over 8 mph (12 km/h), this indicates a malfunction of the ABS.
However, the vehicle retains conventional servo-assisted braking.
Contact a PEUGEOT dealer.
Automatic headlamp adjustment warning light Display of this warning light is accompanied by an audible signal and the message 'Automatic adjustment of
headlamps faulty' on the multi-function display.
It comes on if there is a malfunction of the system.
Contact a PEUGEOT dealer. Automatic gearbox fault warning light Display of this warning light is accompanied by an audible signal and the message 'Automatic gearbox faulty'on
the multi-function display. It comes on if there is an abnormality in the automatic gearbox.
The gearbox will continue to operate in downgrade mode (locked in 3rd gear).
Contact a PEUGEOT dealer. Tyre under-inflation detector battery flat / remote control battery flat / impact sensor fault / wheel(s) miss- ing warning light Display of this warning light is accompanied by an audible signal and a message on the multi-function display show- ing the cause of the warning:
Ð 'Tyre pressure sensor battery charge low',
Ð 'Remote control battery charge low',
Ð 'Impact sensor faulty',
Ð 'X tyre pressure sensor(s) missing'.
Contact a PEUGEOT dealer.

15-07-2002
INSTRUMENTS AND CONTROLS37
List of status indicator lights SPORT suspension indicator light Display of this indicator light is accompanied by an audible signal. The indicator light comes on when the SPORTfunction is switched on.
Dynamic stability control (ESP/ASR) system disarming indicator light
Display of this indicator light when the system is disarmed is accompanied by an audible signal and the message
'ASR/ESP systems de-activated' on the multi-function display.
Dynamic stability control (ESP) system operation indicator light This comes on when the system starts to function. Diesel engine pre-heat indicator light
If the temperature is high enough, the indicator light does not come on and you can start the engine immediately.
If the indicator light does come on, wait for it to go out before operating the starter.
Air bag disarming indicator light* Display of this light is accompanied by an audible signal and the message 'Passenger air bag disarmed' on the
multi-function display.If the passenger air bag is disarmed, the indicator light comes on when the ignition is switched on (2nd notch).
In all cases, if the indicator light flashes, contact a PEUGEOT dealer. *According to country

15-07-2002
INSTRUMENTS AND CONTROLS
38
Automatic headlamps disarming indicator light Display of this light is accompanied by an audible signal.The light comes on when the function is disarmed. Automatic headlamps indicator light Display of this light is accompanied by an audible signal.The indicator light comes on when the function is activated. Automatic windscreen wiper disarming indicator light Display of this light is accompanied by an audible signal.The indicator light comes on when the function is disarmed. Automatic windscreen wiper indicator light Display of this light is accompanied by an audible signal.The indicator light comes on when the function is activated. Cruise control indicator light Display of this light is accompanied by an audible signal.The indicator light comes on when the function is activated.
AUTO suspension indicator light Display of this light is accompanied by an audible signal.The indicator light comes on when the
SPORTfunction is disarmed.

15-07-2002
INSTRUMENTS AND CONTROLS
40

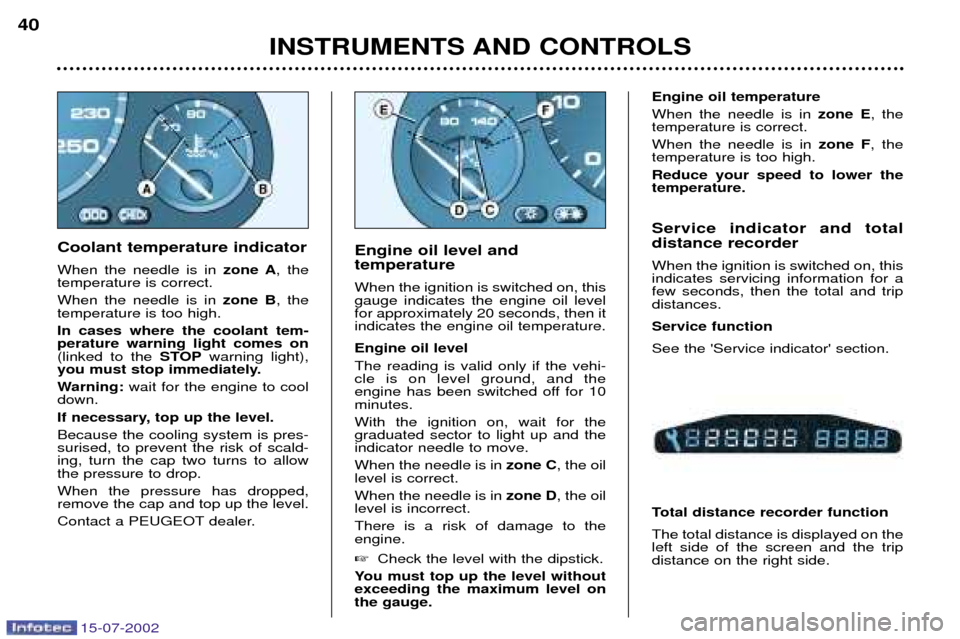

Coolant temperature indicator When the needle is in zone A, the
temperature is correct. When the needle is in zone B, the
temperature is too high.In cases where the coolant tem- perature warning light comes on(linked to the STOPwarning light),
you must stop immediately.
Warning: wait for the engine to cool
down.
If necessary, top up the level.Because the cooling system is pres- surised, to prevent the risk of scald-ing, turn the cap two turns to allowthe pressure to drop. When the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Engine oil level and temperature When the ignition is switched on, this gauge indicates the engine oil levelfor approximately 20 seconds, then itindicates the engine oil temperature. Engine oil level The reading is valid only if the vehi- cle is on level ground, and the
engine has been switched off for 10minutes. With the ignition on, wait for the graduated sector to light up and theindicator needle to move. When the needle is in zone C, the oil
level is correct.When the needle is in zone D, the oil
level is incorrect.There is a risk of damage to the engine.
 Check the level with the dipstick.
You must top up the level withoutexceeding the maximum level onthe gauge.
Engine oil temperature When the needle is in zone E, the
temperature is correct.When the needle is in zone F, the
temperature is too high.Reduce your speed to lower the temperature.
Service indicator and total distance recorder When the ignition is switched on, this indicates servicing information for afew seconds, then the total and tripdistances. Service functionSee the 'Service indicator' section.
Total distance recorder function The total distance is displayed on the left side of the screen and the tripdistance on the right side.

15-07-2002
YOUR 607 IN DETAIL
42
THE MULTI-FUNCTION
DISPLAY GeneralThe multifunction, monochrome C or colour display shows the following:
Ð the time,
Ð the date,
Ð the outside temperature (symbol¡C flashes if there is a risk of ice),
Ð the audio system displays,
Ð the telephone displays,
Ð status of the openings,
Ð warning messages (e.g. 'Fuel level low') and vehicle function status
messages, displayed temporarily,
Ð trip computer display (see corre- sponding section),
Ð satellite navigation system dis- plays* (see corresponding sec-tion),
Ð video images. It is controlled by a keypad. Superimposed display When the status of a function (audio
system, telephone, trip computer,satellite navigation system,....)changes while the display has been
showing a different function, a win-dow opens to announce the modifi-cation (information / warning mes-sage), then disappears.
* According to country The control pad This enables the functions, controls and parameters displayed to be selected
and validated. It is located next to the display.
Dial; This has two functions: ÐRotation of the dial: This allows you to move around the screen and thus select a
function.
It also allows you :
Ð after selection of a 'setting' type parameter, to increase or
decrease the value,
Ð with a 'list'type parameter, to open the list and scroll through
the values.
Ð Pressing the dial: This allows: Ð confirmation of the selected function or the modified value.
Ð selection of a 'setting' or 'list' type parameter in order to
modify it.
Ð cancelling of a superimposed display.
'MENU' button:This allows access at any time to the general menu.
'MODE' button:Ð brief press: Ð monochrome screen C: selection of functions (audio system,
navigation / guidance...),
Ð colour screen: access to the list of controls (context menu) of
the function being displayed.
Ð Press for more than two seconds: putting the screen on standby. 'ESC' button:
Ð brief press: cancelling of the operation in progress and a return to the previous screen or erasing of a superimposed display.
Ð press for more than two seconds: return to the start-up screen.

15-07-2002
YOUR 607 IN DETAIL43
Setting the parameters From the
'general menu' , the
'Display configuration' menu
allows you to access the following parameters:
Ð setting the video brightness and display,
Ð setting the date and time,
Ð choosing the language in which information is heard and displayed (German, Spanish, French, Eng-lish, Italian), setting the formats
and the units. These settings allowyou to choose a display in km/h ormph, the temperature in Celsius orin Fahrenheit, and to modify thehour (12 or 24 hour) and date format.
Monochrome screen C General menu Press the 'Menu' button to select
one of the following functions:
Ð navigation/guidance* (see Section on 'Satellite naviga- tion system'),
Ð display configuration (see paragraph on 'Setting theparameters', below),
Ð navigation options* (see Section on 'Satellite naviga-tion system'),
Ð telephone phone books (see 'RT2 audio equipment' section).
* According to destination.The colour screen General menu From the general menu , select one
of the following functions by turning the dial then press the dial to confirm:
¥ general information,
¥ navigation/guidance*,
¥ map*,
¥ trip computer,
¥ settings,
¥ video.
Note: to enable you to make full use
of all the system functions, you have two CD-Roms: one contains the soft-
ware and the different languages ofthe voice synthesis, the other con-tains the "Satellite navigation sys-
tem" map data. The latter must be inthe drive for the "Navigation/Guid-ance" and "Map" functions to beactive.

15-07-2002
YOUR 607 IN DETAIL43
Setting the parameters From the
'general menu' , the
'Display configuration' menu
allows you to access the following parameters:
Ð setting the video brightness and display,
Ð setting the date and time,
Ð choosing the language in which information is heard and displayed (German, Spanish, French, Eng-lish, Italian), setting the formats
and the units. These settings allowyou to choose a display in km/h ormph, the temperature in Celsius orin Fahrenheit, and to modify thehour (12 or 24 hour) and date format.
Monochrome screen C General menu Press the 'Menu' button to select
one of the following functions:
Ð navigation/guidance* (see Section on 'Satellite naviga- tion system'),
Ð display configuration (see paragraph on 'Setting theparameters', below),
Ð navigation options* (see Section on 'Satellite naviga-tion system'),
Ð telephone phone books (see 'RT2 audio equipment' section).
* According to destination.The colour screen General menu From the general menu , select one
of the following functions by turning the dial then press the dial to confirm:
¥ general information,
¥ navigation/guidance*,
¥ map*,
¥ trip computer,
¥ settings,
¥ video.
Note: to enable you to make full use
of all the system functions, you have two CD-Roms: one contains the soft-
ware and the different languages ofthe voice synthesis, the other con-tains the "Satellite navigation sys-
tem" map data. The latter must be inthe drive for the "Navigation/Guid-ance" and "Map" functions to beactive.

15-07-2002
Language Select the required language, then confirm and record the modification. The system then asks you to load the language inn the navigation system. Select "YES" then confirm.
YOUR 607 IN DETAIL
44
General information The
'General information' function
displays an information summary on the following items:
Ð the time, outside temperature, date or telephone status,
Ð the audio equipment and the tele- phone,
Ð the range (see Section on 'Trip computer'),
Ð Navigation/guidance details* not covered by the map (see Section on 'Satellite navigation system').
The context menu for this functionenables you to access:
Ð the parameters to adjust for opti- mum use of the screen,
Ð the telephone directories (SIM, BIS, and TEL).
* According to destination. Setting the parametersTo modify a parameter, press the dial or the mode button.The
'Settings' function displays a sum-
mary of the settings used.The context menu allows you to changethese settings:
Ð language used for vocal messages or
visual displays (French, English, Ger- man, Spanish, Italian, Dutch),
Ð colour (blue, green, grey, beige /
auto),
Ð brightness,
Ð frame (horizontal, vertical),
Ð time / date,
Ð units (km-litres, miles-gallons, ¡C, ¡F).
To confirm modification of a setting, select 'OK', then confirm
by pressing the dial.
Carry out this operation with the engine running to prevent activa-
tion of the vehicle's energy econo-
my mode and therefore cutting offof the electrical supplies during loa-ding of the data.
