Familiarisation
68
VENTILATION

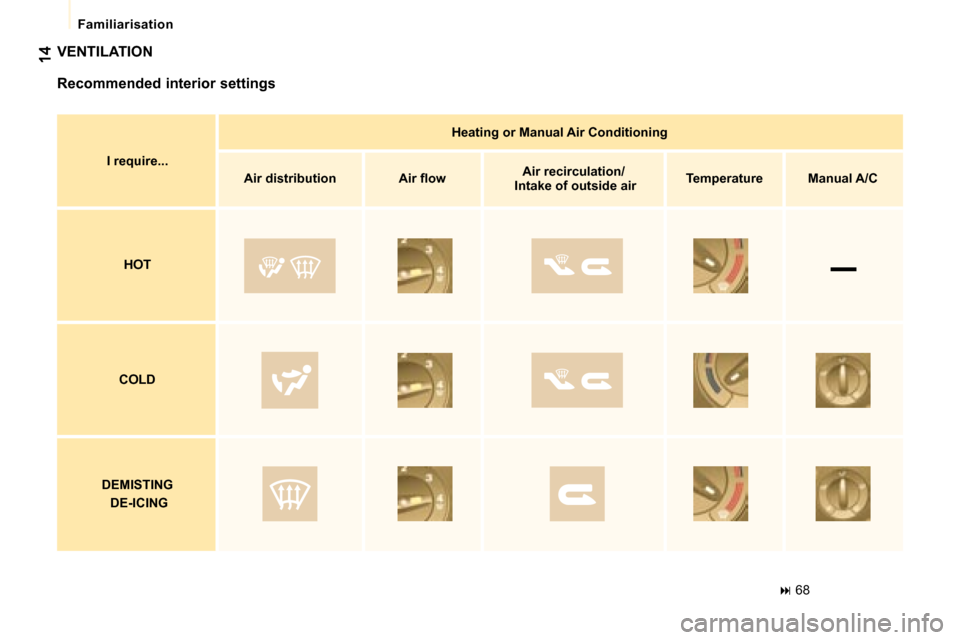

Recommended interior settings
I require...
Heating or Manual Air Conditioning
Air distribution A i r fl o w
Air recirculation/
Intake of outside air
Temperature Manual A/C
HOT
COLD
DEMISTING
DE-ICING
Page 12 of 131
15
FAMILIARISATION
Familiarisation
MONITOR THOROUGHLY
Instrument panel Controls bar
A. With the ignition on, the needle indicates
the level of fuel remaining.
With the engine running, its associated
warning light switches off. If it remains on,
this indicates that you have reached the
minimum level in the tank.
B. With the ignition on, the needle indicates
the coolant temperature.
With the engine running, its associated
warning light switches off.
C. With the ignition on, the oil level warning
light does not remain on.
If the levels are not correct, top up the levels
which are low.
A. Hands-free kit.
61
B. Hazard warning lights.
78
C. Rear screen and mirrors de-icing.
68
D. Locking/Unlocking of the load space
(Light van).
32
1. With the ignition on, the orange and red
warning lights come on.
2. With the engine running, these warning
lights should switch off.
If warning lights remain on, refer to the section
concerned.
Warning lights
19
25
Page 13 of 131
16
Familiarisation
KEEP YOUR PASSENGERS SAFE
Passenger's front air bag
The passenger's front air bag is disarmed by
means of the MENU button, located to the right
of the steering wheel.
1. Press the MENU button.
2. S e l e c t " B a g " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
3. S e l e c t " O F F " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
4. S e l e c t " Y E S " a n d c o n fi r m b y p r e s s i n g t h e
MENU button.
Seat belt not fastened
A. Driver's seat belt not fastened warning
light.
80
84 Ladder type vertical partition
(Light van)
A ladder type vertical partition protects the
driver against the risk of load movement.
74
Page 14 of 131
17
FAMILIARISATION
Familiarisation
DRIVE SAFELY

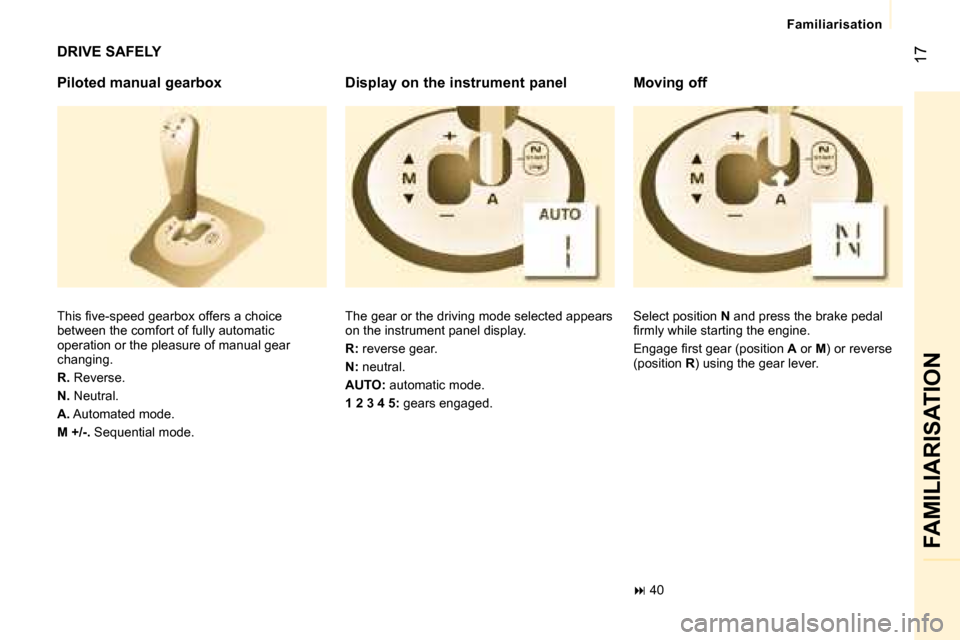

Piloted manual gearbox
T h i s fi v e - s p e e d g e a r b o x o f f e r s a c h o i c e
between the comfort of fully automatic
operation or the pleasure of manual gear
changing.
R. Reverse.
N. Neutral.
A. Automated mode.
M +/-. Sequential mode. Display on the instrument panel
The gear or the driving mode selected appears
on the instrument panel display.
R: reverse gear.
N: neutral.
AUTO: automatic mode.
1 2 3 4 5: gears engaged. Moving off
Select position
N and press the brake pedal
fi r m l y w h i l e s t a r t i n g t h e e n g i n e .
E n g a g e fi r s t g e a r ( p o s i t i o n A or M ) or reverse
(position R ) using the gear lever.
40
Page 15 of 131
18
Instruments and controls
INSTRUMENT PANELS

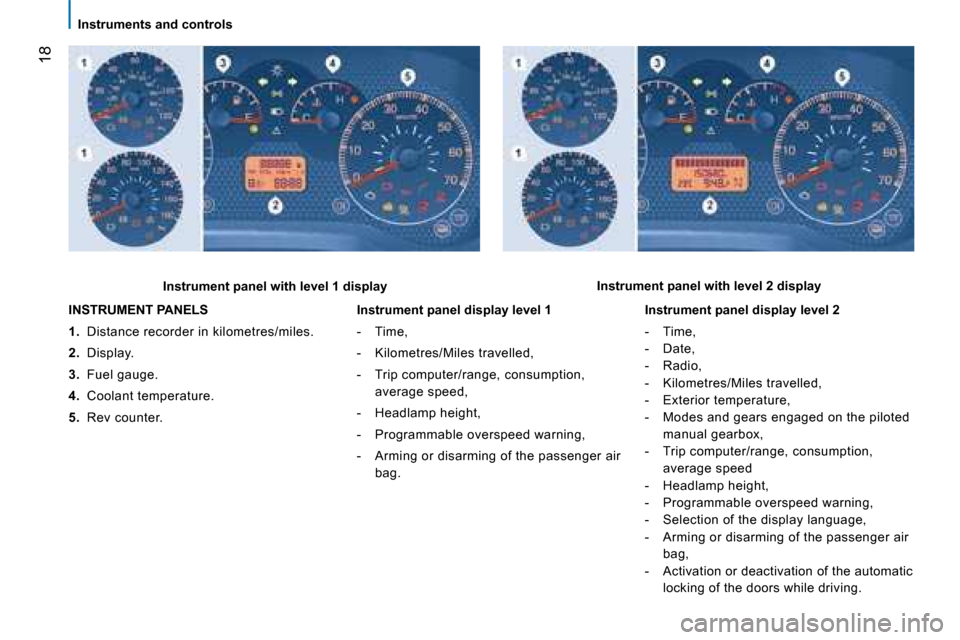

1. Distance recorder in kilometres/miles.
2. Display.
3. Fuel gauge.
4. Coolant temperature.
5. Rev counter.
Instrument panel with level 1 display Instrument panel with level 2 display
Instrument panel display level 1
- Time,
- Kilometres/Miles travelled,
- Trip computer/range, consumption,
average speed,
- Headlamp height,
- Programmable overspeed warning,
- Arming or disarming of the passenger air bag.
Instrument panel display level 2
- Time,
- Date,
- Radio,
- Kilometres/Miles travelled,
- Exterior temperature,
- Modes and gears engaged on the piloted manual gearbox,
- Trip computer/range, consumption, average speed
- Headlamp height,
- Programmable overspeed warning,
- Selection of the display language,
- Arming or disarming of the passenger air bag,
- Activation or deactivation of the automatic locking of the doors while driving.
Page 16 of 131
19
1
READY TO SET OFF
Instruments and controls
WARNING LIGHTS
Each time the engine is started: a series of warning lights comes on applying a self-checking test. T hey switch off almost immediately.
When the engine is running: the warning light becom es a warning sign if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message on t he display. "Do not ignore these warnings".
Warning light
is indicates Solution - action
Service on temporarily. minor faults. Consult a PEUGEOT
dealer .
continuously on,
accompanied by a
message on the display. major faults.
Make a note of the warning message and contact
a PEUGEOT dealer .
Handbrake
Brake fluid level on.
that the handbrake is applied or
has not been released correctly. Releasing the handbrake switches off the
warning light.
on. that the fluid level is too
low. Top up with a fluid recommended by a
PEUGEOT dealer .
continuously on, even
though the level is
correct.
Stop immediately, park, switch off the ignition
and contact a PEUGEOT dealer .
Low engine oil level on.
that the level of oil in the
engine is too low. Check the engine oil level and contact a
PEUGEOT dealer .
continuously on, even
though the level is
correct.
Stop immediately, park, switch off the ignition
and contact a PEUGEOT dealer .
Coolant temperature on with the needle in
the red zone.
an abnormal increase. Park and switch off the ignition, allow the circui
t
to cool. Visually check the level.
on H in the red zone. an abnormal increase in
the coolant temperature. Refer to the "Levels" section of chapter 7.
Consult a PEUGEOT dealer .
Page 17 of 131
20
Instruments and controls
Warning light
is indicates Solution - action
Engine oil pressure on while driving.
that the pressure is too
low. Park and switch off the ignition, allow the
lubrication circuit to cool in order to check its
level. Refer to the "Levels" section of chapter 7.
continuously on, even
though the level is
correct. a major fault. Contact a PEUGEOT dealer .
fl a s h i n g , f o r a f e w
seconds, with a
message on the display. that a service will soon
be due.
Refer to the list of checks in the servicing bookl
et
then carry out the PEUGEOT service.
Battery charge on.
a fault in the charging
circuit. Check the battery terminals… Refer to the
"Battery" section of chapter 7.
continuously on, in
spite of the checks. a circuit fault, an ignition
or injection malfunction.
Contact a PEUGEOT dealer .
Door open detection on.
that a door is not closed
correctly. Check that the front, rear and side doors are
closed.
accompanied by
a message on the
display.
Seat belt not fastened on then flashes.
that the driver has not
fastened his seat belt. Pull the strap then insert the tongue in the
buckle.
accompanied by an
audible signal then
remains on. that the vehicle is moving
with the driver ’s seat belt
unfastened. Check that the seat belt is fastened correctly
by pulling the strap. Refer to the "Seat belts"
section of chapter 5.
Page 18 of 131
21
1
READY TO SET OFF
Instruments and controls
Warning light
is indicates Solution - action
Front air bag flashing or
continuously on. the failure of an air bag. Have the system checked by a PEUGEOT
dealer without delay. Refer to the "Air bags"
section of chapter 5.
Side air bag flashing or
continuously on. the failure of an air bag. Have the system checked by a PEUGEOT
dealer without delay. Refer to the "Air bags"
section of chapter 5.
Disarming of the
passenger ’s front air
bag on. that this air bag has been
disarmed intentionally in
the presence of a rear
facing child seat. Configure via the trip computer MENU menu.
Refer to the "Menu" section of chapter 3.
ABS continuously on. failure of the system. The vehicle retains conventional braking without
assistance. However, you are advised to stop
and contact a PEUGEOT dealer .
Emission control
system flashing or
continuously on.
failure of the system. Have the system checked by a PEUGEOT
dealer without delay.
Electronic immobiliser on. the ignition key inserted is
not recognised.
The vehicle cannot be
started. Use another key and have the faulty key
checked by a PEUGEOT dealer . Refer to the
"Access" section of chapter 1.
Front brake pads on. brake pad wear. Have the pa ds replaced by a PEUGEOT dealer .
Page 19 of 131
22
Instruments and controls
Warning light
is indicates Solution - action
Water in diesel filter on, accompanied by
a message on the
display. that there is water in the
diesel fuel filter.
Have the filter bled by a PEUGEOT dealer .
Refer to the "Checks" section of chapter 7.
Low fuel level on with the gauge
needle in zone E. that the fuel reserve is
being used. Fill up with fuel without delay. The evaluation
of the fuel reserve is a parameter which is
sensitive to the style of driving, the profile of
the road, the time elapsed and the distance
travelled since the warning light first came on.
Diesel pre-heating on. that the weather
conditions impose
pre-heating. Wait for the warning light to switch off before
operating the starter.
Side lights on. manual selection. Turn the ring on the lights stalk to the first
position.
Dipped headlamps on. manual selection.
Turn the ring on the lights stalk to the second
position.
Main beam headlamps pulling of the stalk towards
you. Pull the lights stalk to return to dipped
headlamps.
Page 20 of 131
23
1
READY TO SET OFF
Instruments and controls
Warning light
is indicates Solution - action
Direction indicators flashing with buzzer. a change of direction
using the lights stalk, to
the left of the steering
wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front fog lamps on. that the button on the
fascia panel has been
pressed. Manual selection.
The fog lamps only operate if the side lights or
dipped headlamps are on.
Rear fog lamps on. that the button on the
fascia panel has been
pressed. Manual selection. The fog lamps only operate if
the dipped headlamps are on.
When visibility is normal, please switch the fog
lamps off on penalty of being booked.
"This light is a dazzling red."
Faulty bulb on, accompanied by
a message on the
display. that one or more bulbs
have blown. Have the bulb changed.
Refer to the "Changing a bulb" section of
chapter 7 or consult a PEUGEOT dealer .
