Peugeot M59 2011 Owner's Guide

19 INSTRUMENTS, CONTROLS and DISPLAYS
-
WARNING LAMPS AND
INDICATORS
A warning lamp on fi xed or fl ashing,
with the engine running, indicates an
fault in the operation of the unit con-
cerned. The illumination of certain
warning lamps may be accompanied
by an audible signal and a message
in the screen. Do not ignore this
warning: consult a
PEUGEOT
dealer
as soon as possible.


If the central STOP warning lamp
comes on when you are driving,
stop your vehicle immediately,
where it is safe to do so.



Central (STOP)
warning lamp
Linked to the warning lamps for:


- ''engine oil pressure and temper-
ature'',

- ''low coolant level'',

- "parking brake'',

- ''low brake fl uid level'',

- ''electronic brake force distribu-
tion system fault''.
Linked with the "coolant tempera-
ture" gauge.

You must stop if the lamp fl ashes
with the engine running.

Consult a PEUGEOT dealer.


Engine oil pressure
and temperature
warning lamp
Linked to the central (STOP) warning
lamp.

You must stop.

This warning lamp indicates one of
the following:


- low oil pressure indicated by the
message "Oil pressure insuffi -
cient"
in the screen.

- low engine oil level. Top up the
level.

- oil temperature too high. To lower
the oil temperature, reduce your
speed.
Illumination of the warning lamp is
accompanied by an audible signal.
Consult a PEUGEOT dealer.


Low engine coolant
level warning lamp
Linked to the central (STOP)
warning lamp.
This comes on for a few seconds
when the ignition is switched on.
Illumination of this warning lamp is
accompanied by an audible signal
and the message "Top up engine
fl uid level"
in the screen.

You must stop as soon as it is safe
to do so.

Wait for the engine to cool before
topping up the level.
The cooling system is pressurised.



Parking brake, low
brake fluid level and
Electronic Brake Force
Distribution system
fault warning lamp
Linked to the central (STOP) warning
lamp.
This comes on each time the ignition
is switched on.
Illumination of this warning lamp is
accompanied by an audible signal
and a message in the screen indicat-
ing the cause of the warning:


- "Handbrake on",
if the parking
brake is applied or not fully re-
leased.

- "Brake fl uid level low"
if there is
an excessive drop in brake fl uid
level (if the warning lamp remains
on even when the parking brake
is released).

- "Braking fault"
is displayed to-
gether with the ABS warning
lamp, indicating a fault with the
Electronic Brake Force Distribu-
tion system. You must stop as
soon as it is safe to do so.


Consult a PEUGEOT dealer. If a check is required, to prevent
any risk of burns
unscrew the cap
by two turns to allow the pressure to
drop.
When the pressure has dropped, re-
move the cap and top up the level.
Consult a PEUGEOT dealer.

INSTRUMENTS, CONTROLS and DISPLAYS
20 -

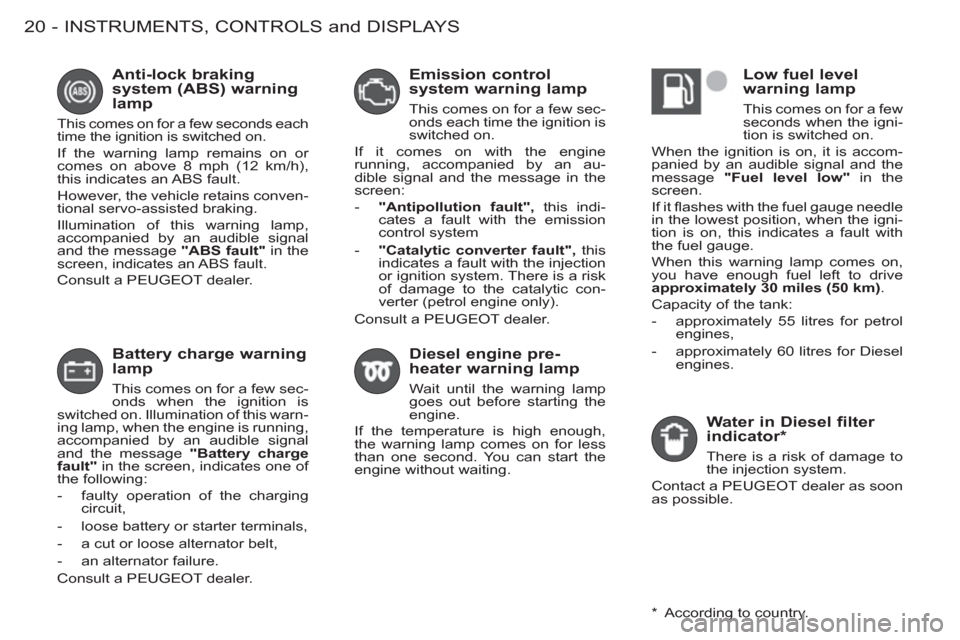

Battery charge warning
lamp
This comes on for a few sec-
onds when the ignition is
switched on. Illumination of this warn-
ing lamp, when the engine is running,
accompanied by an audible signal
and the message "Battery charge
fault"
in the screen, indicates one of
the following:


- faulty operation of the charging
circuit,

- loose battery or starter terminals,

- a cut or loose alternator belt,

- an alternator failure.
Consult a PEUGEOT dealer.


Emission control
system warning lamp
This comes on for a few sec-
onds each time the ignition is
switched on.
If it comes on with the engine
running, accompanied by an au-
dible signal and the message in the
screen:


- "Antipollution fault",
this indi-
cates a fault with the emission
control system

- "Catalytic converter fault",
this
indicates a fault with the injection
or ignition system. There is a risk
of damage to the catalytic con-
verter (petrol engine only).
Consult a PEUGEOT dealer.


Diesel engine pre-
heater warning lamp

Wait until the warning lamp
goes out before starting the
engine.
If the temperature is high enough,
the warning lamp comes on for less
than one second. You can start the
engine without waiting.


Low fuel level
warning lamp
This comes on for a few
seconds when the igni-
tion is switched on.
When the ignition is on, it is accom-
panied by an audible signal and the
message "Fuel level low"
in the
screen.
If it fl ashes with the fuel gauge needle
in the lowest position, when the igni-
tion is on, this indicates a fault with
the fuel gauge.
When this warning lamp comes on,
you have enough fuel left to drive
approximately 30 miles (50 km)
.
Capacity of the tank:


- approximately 55 litres for petrol
engines,

- approximately 60 litres for Diesel
engines.



Water in Diesel filter
indicator *

There is a risk of damage to
the injection system.
Contact a PEUGEOT dealer as soon
as possible.


Anti-lock braking
system (ABS) warning
lamp
This comes on for a few seconds each
time the ignition is switched on.
If the warning lamp remains on or
comes on above 8 mph (12 km/h),
this indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Illumination of this warning lamp,
accompanied by an audible signal
and the message "ABS fault"
in the
screen, indicates an ABS fault.
Consult a PEUGEOT dealer.

*
According to country.

21 INSTRUMENTS, CONTROLS and DISPLAYS
-

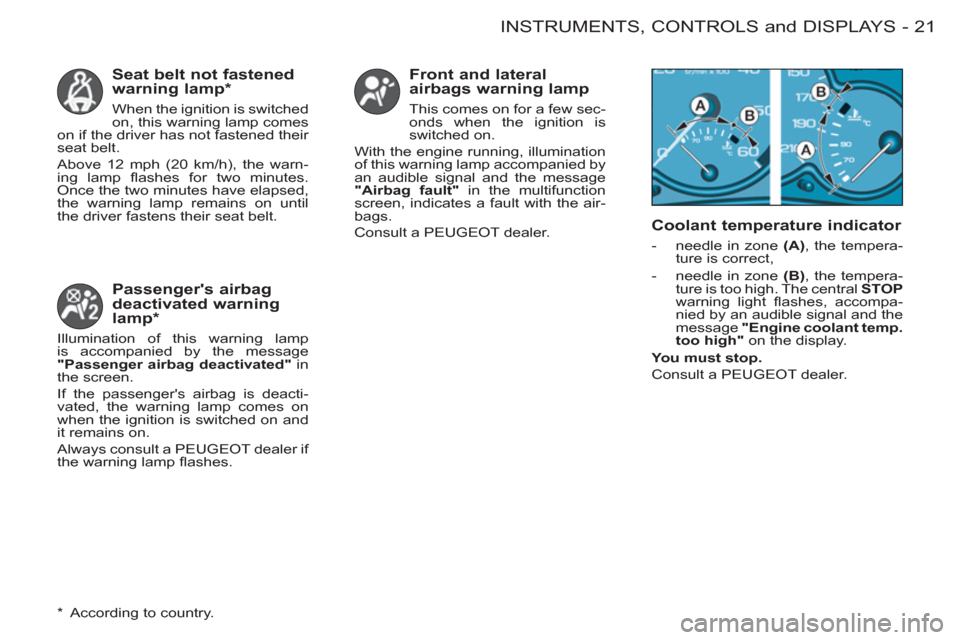

Seat belt not fastened
warning lamp *

When the ignition is switched
on, this warning lamp comes
on if the driver has not fastened their
seat belt.
Above 12 mph (20 km/h), the warn-
ing lamp fl ashes for two minutes.
Once the two minutes have elapsed,
the warning lamp remains on until
the driver fastens their seat belt.


Coolant temperature indicator



- needle in zone (A)
, the tempera-
ture is correct,

- needle in zone (B)
, the tempera-
ture is too high. The central STOP

warning light fl ashes, accompa-
nied by an audible signal and the
message "Engine coolant temp.
too high"
on the display.

You must stop.


Consult a PEUGEOT dealer.


* According to country.


Passenger's airbag
deactivated warning
lamp *

Illumination of this warning lamp
is accompanied by the message
"Passenger airbag deactivated"
in
the screen.
If the passenger's airbag is deacti-
vated, the warning lamp comes on
when the ignition is switched on and
it remains on.
Always consult a PEUGEOT dealer if
the warning lamp fl ashes.


Front and lateral
airbags warning lamp
This comes on for a few sec-
onds when the ignition is
switched on.
With the engine running, illumination
of this warning lamp accompanied by
an audible signal and the message
"Airbag fault"
in the multifunction
screen, indicates a fault with the air-
bags.
Consult a PEUGEOT dealer.

INSTRUMENTS, CONTROLS and DISPLAYS
22 -

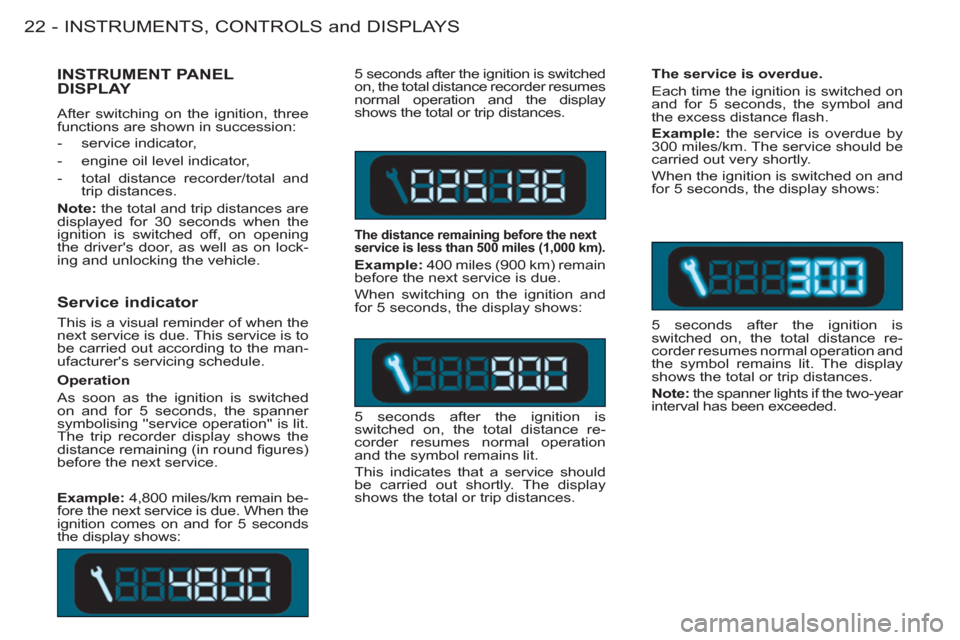

Service indicator

This is a visual reminder of when the
next service is due. This service is to
be carried out according to the man-
ufacturer's servicing schedule. 5 seconds after the ignition is switched
on, the total distance recorder resumes
normal operation and the display
shows the total or trip distances.


The distance remaining before the next
service is less than 500 miles (1,000 km).

Example:
400 miles (900 km) remain
before the next service is due.
When switching on the ignition and
for 5 seconds, the display shows:
5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation
and the symbol remains lit.
This indicates that a service should
be carried out shortly. The display
shows the total or trip distances.
The service is overdue.
Each time the ignition is switched on
and for 5 seconds, the symbol and
the excess distance fl ash.

Example:
the service is overdue by
300 miles/km. The service should be
carried out very shortly.
When the ignition is switched on and
for 5 seconds, the display shows:
5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation and
the symbol remains lit. The display
shows the total or trip distances.

Note:
the spanner lights if the two-year
interval has been exceeded.


INSTRUMENT PANEL DISPLAY

After switching on the ignition, three
functions are shown in succession:


- service indicator,

- engine oil level indicator,

- total distance recorder/total and
trip distances.

Note
: the total and trip distances are
displayed for 30 seconds when the
ignition is switched off, on opening
the driver's door, as well as on lock-
ing and unlocking the vehicle.

Example:
4,800 miles/km remain be-
fore the next service is due. When the
ignition comes on and for 5 seconds
the display shows:
Operation
As soon as the ignition is switched
on and for 5 seconds, the spanner
symbolising ''service operation'' is lit.
The trip recorder display shows the
distance remaining (in round fi gures)
before the next service.

23 INSTRUMENTS, CONTROLS and DISPLAYS
-

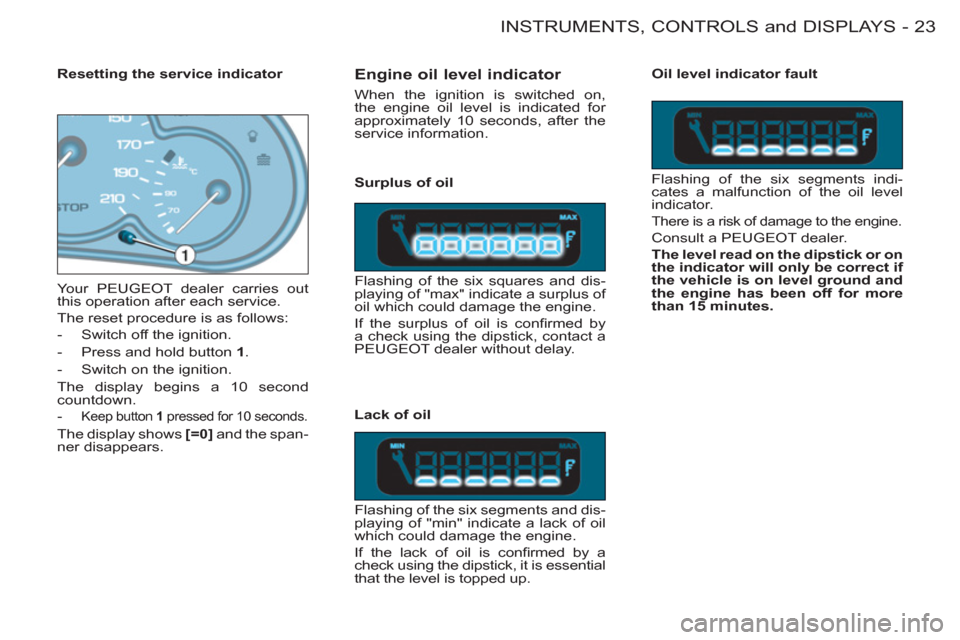

Engine oil level indicator

When the ignition is switched on,
the engine oil level is indicated for
approximately 10 seconds, after the
service information.
Flashing of the six squares and dis-
playing of "max" indicate a surplus of
oil which could damage the engine.
If the surplus of oil is confi rmed by
a check using the dipstick, contact a
PEUGEOT dealer without delay. Your PEUGEOT dealer carries out
this operation after each service.
The reset procedure is as follows:


- Switch off the ignition.

- Press and hold button 1
.

- Switch on the ignition.
The display begins a 10 second
countdown.


-
Keep button 1
pressed for 10 seconds.

The display shows [=0]
and the span-
ner disappears.

Flashing of the six segments and dis-
playing of "min" indicate a lack of oil
which could damage the engine.
If the lack of oil is confi rmed by a
check using the dipstick, it is essential
that the level is topped up. Flashing of the six segments indi-
cates a malfunction of the oil level
indicator.
There is a risk of damage to the engine.


Consult a PEUGEOT dealer.

The level read on the dipstick or on
the indicator will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.








Resetting the service indicator

Surplus of oil

Lack of oil
Oil level indicator fault

INSTRUMENTS, CONTROLS and DISPLAYS
24 -

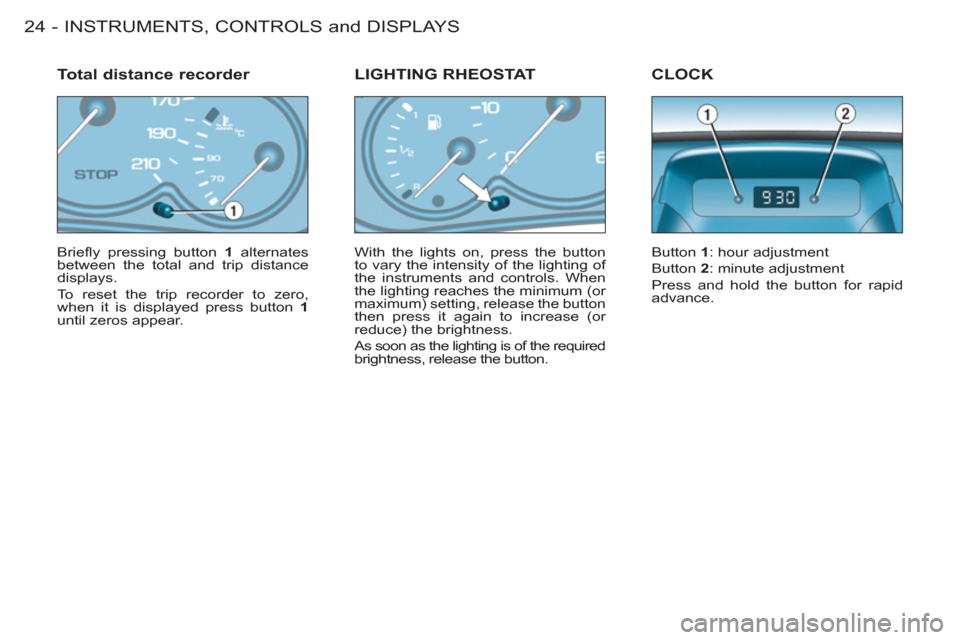

Briefl y pressing button 1
alternates
between the total and trip distance
displays.
To reset the trip recorder to zero,
when it is displayed press button 1

until zeros appear.


Total distance recorder

With the lights on, press the button
to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum (or
maximum) setting, release the button
then press it again to increase (or
reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
LIGHTING RHEOSTAT CLOCK
Button 1
: hour adjustment
Button 2
: minute adjustment
Press and hold the button for rapid
advance.

25 INSTRUMENTS, CONTROLS and DISPLAYS
-

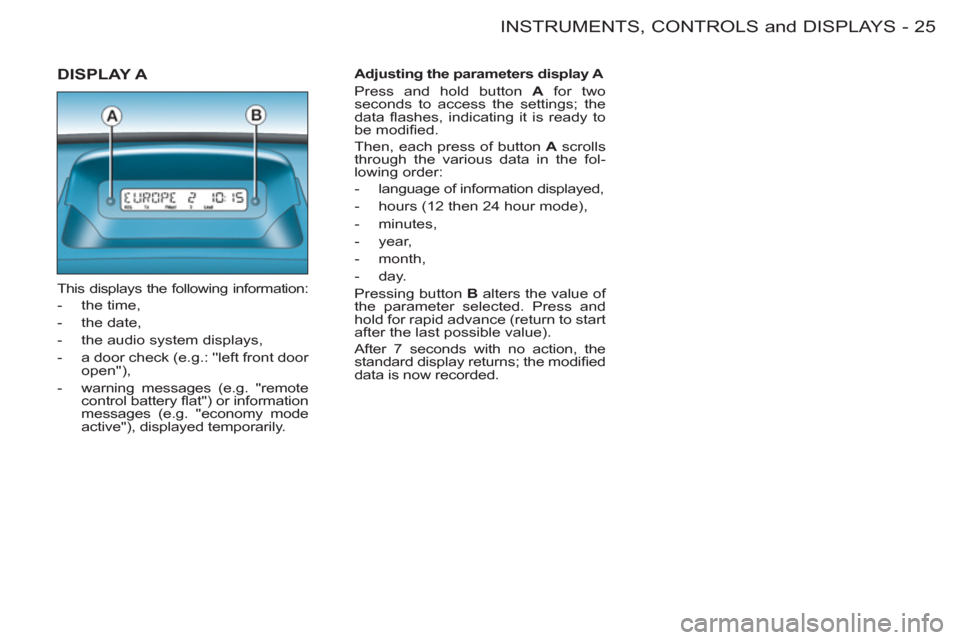

DISPLAY A

This displays the following information:


- the time,

- the date,

- the audio system displays,

- a door check (e.g.: ''left front door
open''),

- warning messages (e.g. ''remote
control battery fl at'') or information
messages (e.g. ''economy mode
active''), displayed temporarily.

Adjusting the parameters display A
Press and hold button A
for two
seconds to access the settings; the
data fl ashes, indicating it is ready to
be modifi ed.
Then, each press of button A
scrolls
through the various data in the fol-
lowing order:


- language of information displayed,

- hours (12 then 24 hour mode),

- minutes,

- year,

- month,

- day.
Pressing button B
alters the value of
the parameter selected. Press and
hold for rapid advance (return to start
after the last possible value).
After 7 seconds with no action, the
standard display returns; the modifi ed
data is now recorded.

COMFORT26 -

27COMFORT-

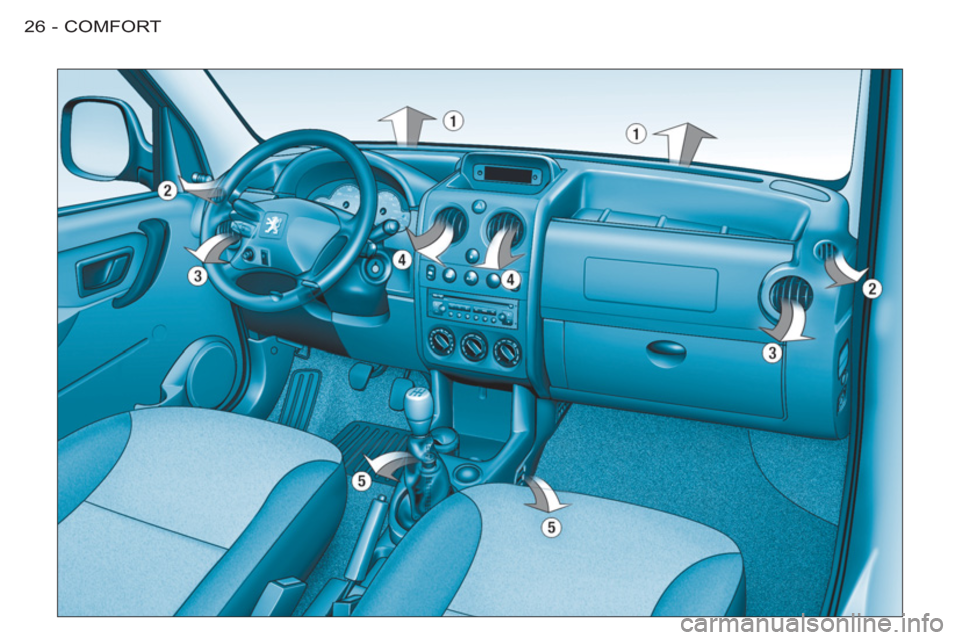

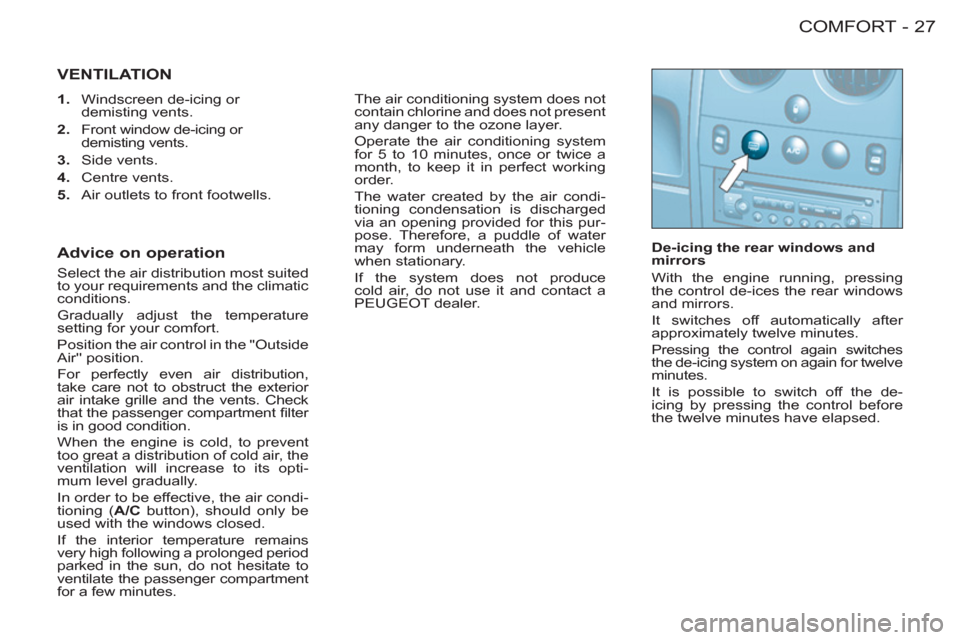

VENTILATION


1.
Windscreen de-icing or
demisting vents.

2.
Front window de-icing or
demisting vents.

3.
Side vents.

4.
Centre vents.

5.
Air outlets to front footwells. The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
The water created by the air condi-
tioning condensation is discharged
via an opening provided for this pur-
pose. Therefore, a puddle of water
may form underneath the vehicle
when stationary.
If the system does not produce
cold air, do not use it and contact a
PEUGEOT dealer.

De-icing the rear windows and
mirrors
With the engine running, pressing
the control de-ices the rear windows
and mirrors.
It switches off automatically after
approximately twelve minutes.
Pressing the control again switches
the de-icing system on again for twelve
minutes.
It is possible to switch off the de-
icing by pressing the control before
the twelve minutes have elapsed.



Advice on operation

Select the air distribution most suited
to your requirements and the climatic
conditions.
Gradually adjust the temperature
setting for your comfort.
Position the air control in the ''Outside
Air'' position.
For perfectly even air distribution,
take care not to obstruct the exterior
air intake grille and the vents. Check
that the passenger compartment fi lter
is in good condition.
When the engine is cold, to prevent
too great a distribution of cold air, the
ventilation will increase to its opti-
mum level gradually.
In order to be effective, the air condi-
tioning ( A/C
button), should only be
used with the windows closed.
If the interior temperature remains
very high following a prolonged period
parked in the sun, do not hesitate to
ventilate the passenger compartment
for a few minutes.

COMFORT28 -
Intake of exterior air.

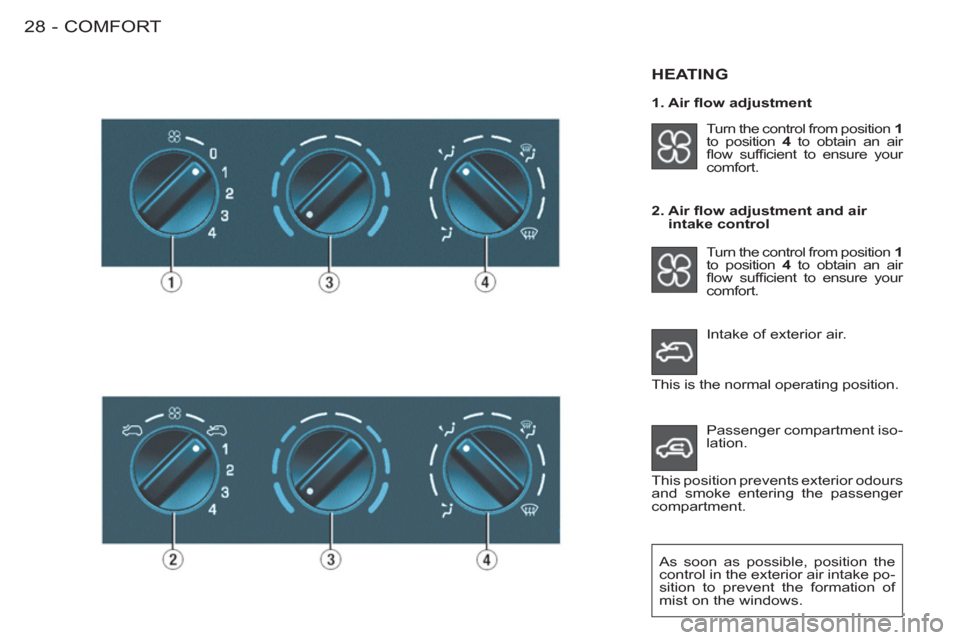

HEATING

Turn the control from position 1

to position 4
to obtain an air
fl ow suffi cient to ensure your
comfort.

2. Air fl ow adjustment and air
intake control
Turn the control from position 1

to position 4
to obtain an air
fl ow suffi cient to ensure your
comfort.
As soon as possible, position the
control in the exterior air intake po-
sition to prevent the formation of
mist on the windows.

This is the normal operating position.
Passenger compartment iso-
lation.
This position prevents exterior odours
and smoke entering the passenger
compartment.
1. Air fl ow adjustment
