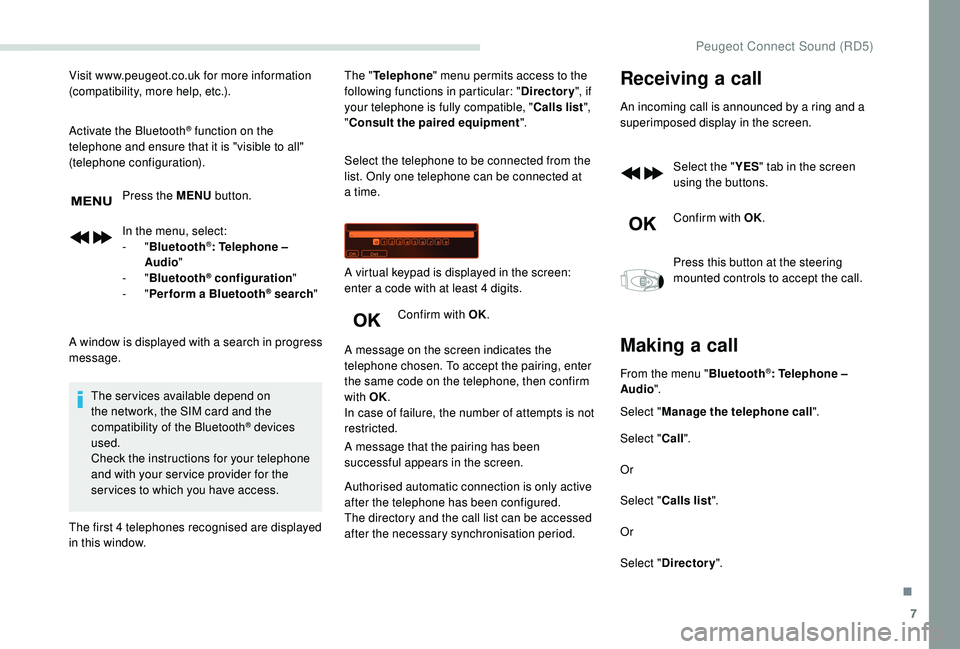

7
Visit www.peugeot.co.uk for more information
(compatibility, more help, etc.).
Activate the Bluetooth
® function on the
telephone and ensure that it is "visible to all"
(telephone configuration).
Press the MENU button.
In the menu, select:
-

" Bluetooth
®: Telephone –
Audio "
-

" Bluetooth
® configuration "
-

" Perform a Bluetooth® search "
A window is displayed with a search in progress
message. The services available depend on
the network, the SIM card and the
compatibility of the Bluetooth
® devices
used.
Check the instructions for your telephone
and with your ser vice provider for the
ser vices to which you have access.
The first 4 telephones recognised are displayed
in this window. The "
Telephone " menu permits access to the
following functions in particular: " Directory", if
your telephone is fully compatible, " Calls list",
" Consult the paired equipment ".
Select the telephone to be connected from the
list. Only one telephone can be connected at
a time.
Confirm with OK.
A message on the screen indicates the
telephone chosen. To accept the pairing, enter
the same code on the telephone, then confirm
with OK.
In case of failure, the number of attempts is not
restricted.
A message that the pairing has been
successful appears in the screen. A virtual keypad is displayed in the screen:
enter a code with at least 4 digits.
Authorised automatic connection is only active
after the telephone has been configured.
The directory and the call list can be accessed
after the necessary synchronisation period.
Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen.
Select the " YES" tab in the screen
using the buttons.
Confirm with OK.
Press this button at the steering
mounted controls to accept the call.
Making a call
From the menu " Bluetooth®: Telephone –
Audio ".
Select " Manage the telephone call".
Select " Call".
Or
Select " Calls list ".
Or
Select " Directory ".
.
Peugeot Connect Sound (RD5)

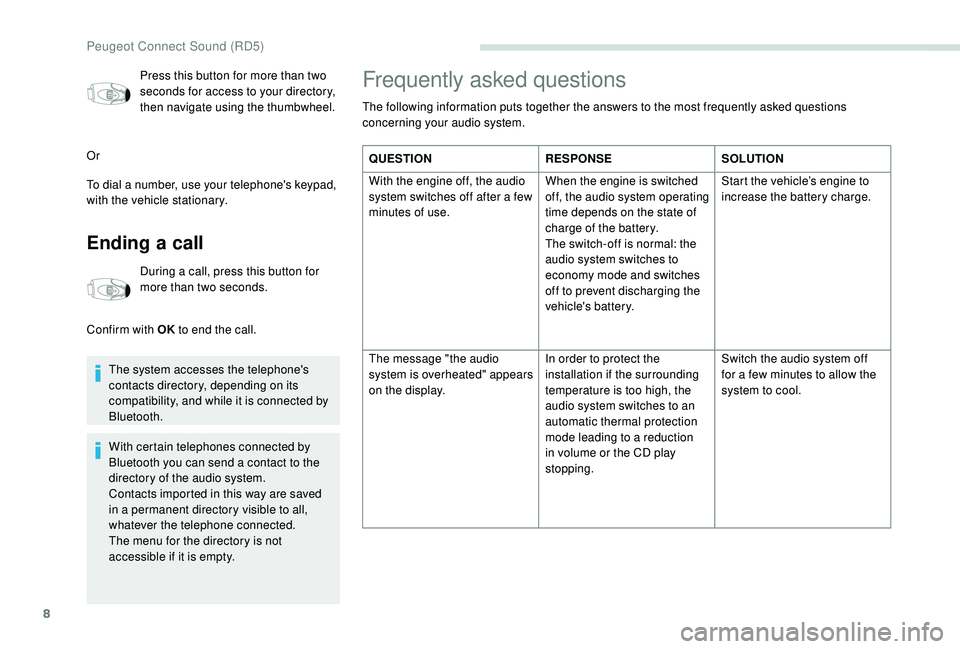

8
Press this button for more than two
seconds for access to your directory,
then navigate using the thumbwheel.
Or
To dial a number, use your telephone's keypad,
with the vehicle stationary.
Ending a call
During a call, press this button for
more than two seconds.
Confirm with OK to end the call.
The system accesses the telephone's
contacts directory, depending on its
compatibility, and while it is connected by
Bluetooth.
With certain telephones connected by
Bluetooth you can send a contact to the
directory of the audio system.
Contacts imported in this way are saved
in a permanent directory visible to all,
whatever the telephone connected.
The menu for the directory is not
accessible if it is empty.
Frequently asked questions
The following information puts together the answers to the most frequently asked questions
concerning your audio system. QUESTION RESPONSESOLUTION
With the engine off, the audio
system switches off after a few
minutes of use. When the engine is switched
off, the audio system operating
time depends on the state of
charge of the battery.
The switch-off is normal: the
audio system switches to
economy mode and switches
off to prevent discharging the
vehicle's battery.Start the vehicle’s engine to
increase the battery charge.
The message "the audio
system is overheated" appears
on the display. In order to protect the
installation if the surrounding
temperature is too high, the
audio system switches to an
automatic thermal protection
mode leading to a reduction
in volume or the CD play
stopping.Switch the audio system off
for a few minutes to allow the
system to cool.
Peugeot Connect Sound (RD5)

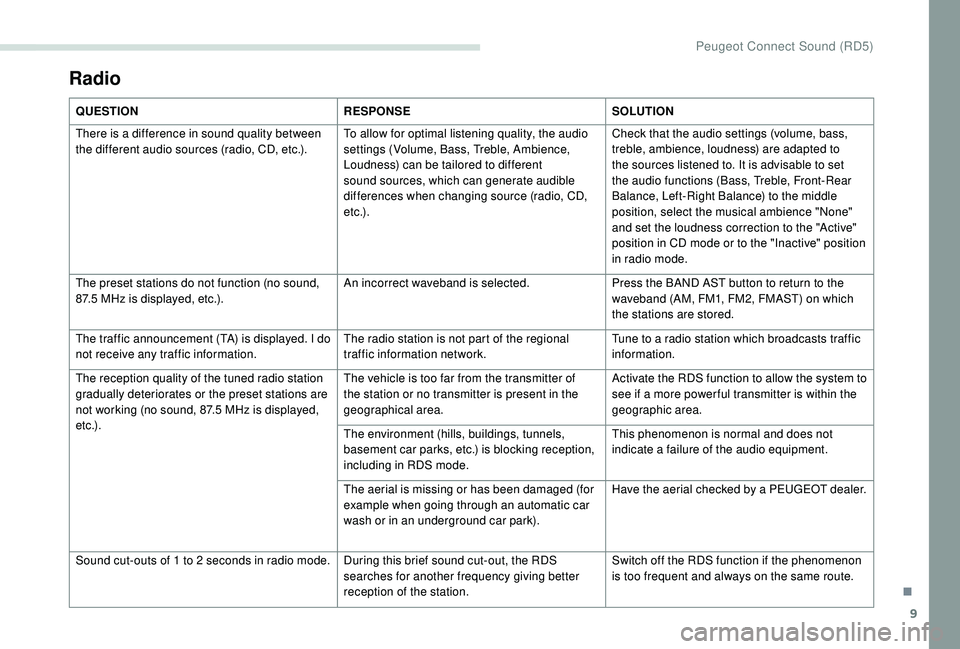

9
QUESTIONRESPONSESOLUTION
There is a difference in sound quality between
the different audio sources (radio, CD, etc.). To allow for optimal listening quality, the audio
settings (Volume, Bass, Treble, Ambience,
Loudness) can be tailored to different
sound sources, which can generate audible
differences when changing source (radio, CD,
e t c .) .Check that the audio settings (volume, bass,
treble, ambience, loudness) are adapted to
the sources listened to. It is advisable to set
the audio functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive" position
in radio mode.
The preset stations do not function (no sound,
87.5
MHz is displayed, etc.). An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which
the stations are stored.
The traffic announcement (TA) is displayed. I do
not receive any traffic information. The radio station is not part of the regional
traffic information network.Tune to a radio station which broadcasts traffic
information.
The reception quality of the tuned radio station
gradually deteriorates or the preset stations are
not working (no sound, 87.5
MHz is displayed,
e t c .) . The vehicle is too far from the transmitter of
the station or no transmitter is present in the
geographical area.
Activate the RDS function to allow the system to
see if a more power ful transmitter is within the
geographic area.
The environment (hills, buildings, tunnels,
basement car parks, etc.) is blocking reception,
including in RDS mode. This phenomenon is normal and does not
indicate a failure of the audio equipment.
The aerial is missing or has been damaged (for
example when going through an automatic car
wash or in an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2
seconds in radio mode. During this brief sound cut-out, the RDS searches for another frequency giving better
reception of the station. Switch off the RDS function if the phenomenon
is too frequent and always on the same route.
Radio
.
Peugeot Connect Sound (RD5)

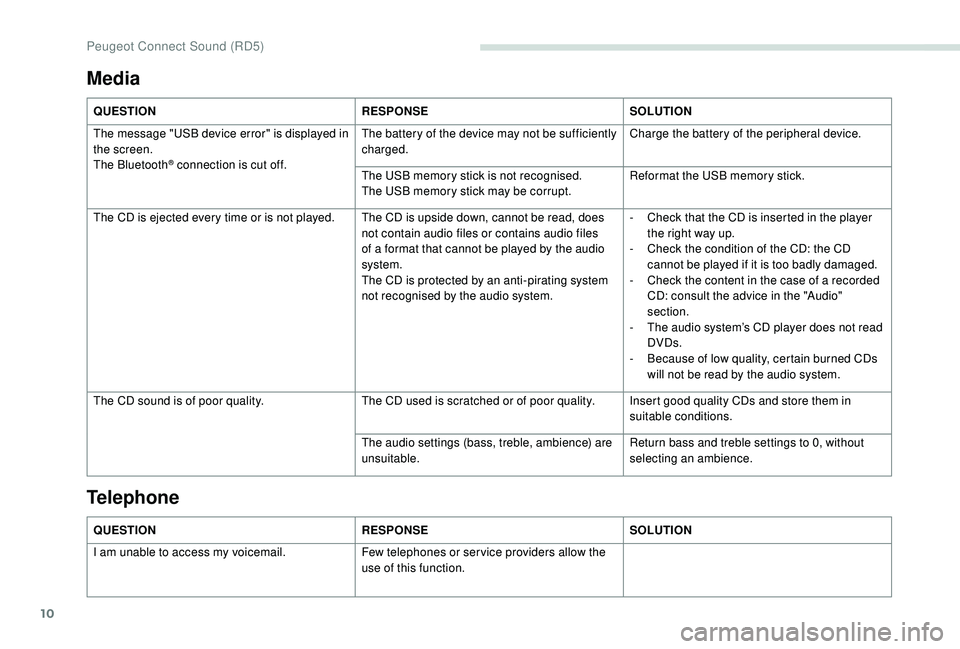

10
Media
QUESTIONRESPONSESOLUTION
The message "USB device error" is displayed in
the screen.
The Bluetooth
® connection is cut off. The battery of the device may not be sufficiently
charged.
Charge the battery of the peripheral device.
The USB memory stick is not recognised.
The USB memory stick may be corrupt. Reformat the USB memory stick.
The CD is ejected every time or is not played. The CD is upside down, cannot be read, does not contain audio files or contains audio files
of a format that cannot be played by the audio
system.
The CD is protected by an anti-pirating system
not recognised by the audio system.-

C
heck that the CD is inserted in the player
the right way up.
-

C
heck the condition of the CD: the CD
cannot be played if it is too badly damaged.
-

C
heck the content in the case of a recorded
CD: consult the advice in the "Audio"
section.
-

T
he audio system’s CD player does not read
DVDs.
-

B
ecause of low quality, certain burned CDs
will not be read by the audio system.
The CD sound is of poor quality. The CD used is scratched or of poor quality. Insert good quality CDs and store them in
suitable conditions.
The audio settings (bass, treble, ambience) are
unsuitable. Return bass and treble settings to 0, without
selecting an ambience.
QUESTION RESPONSESOLUTION
I am unable to access my voicemail. Few telephones or ser vice providers allow the
use of this function.
Telephone
Peugeot Connect Sound (RD5)

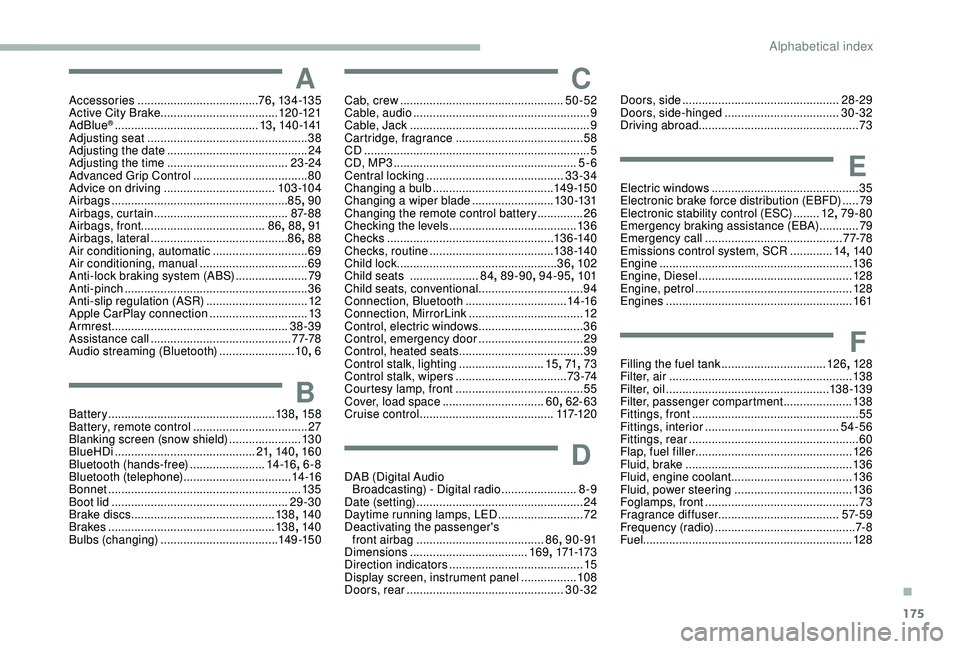

175
AAccessories ..................................... 76, 13 4 -13 5
Active City Brake ............................... .....120 -121
AdBlue
® ............................................ 13, 140 -141
Adjusting seat ................................................. 38
Adjusting the date


........................................... 24
Adjusting the time


..................................... 23 -24
Advanced Grip Control


................................... 80
Advice on driving


.................................. 103 -104
Airbags
...............................

.......................85, 90
Airbags, curtain


......................................... 87- 8 8
Airbags, front ...................................... 86, 88 , 91
Airbags, lateral


.......................................... 86, 88
Air conditioning, automatic


.............................69
Air conditioning, manual
................................. 69
A

nti-lock braking system (ABS) ......................79
Anti-pinch
........................................................ 36
A

nti-slip regulation (ASR)

............................... 12
Apple CarPlay connection


.............................. 13
Armrest
................

...................................... 38-39
Assistance call
...............................

............7 7-78
Audio streaming (Bluetooth)


.......................10, 6
BBattery ................................................... 13 8, 15 8
Battery, remote control ...................................27
Blanking screen (snow shield)


......................13 0
BlueHDi


........................................... 21, 140 , 160
Bluetooth (hands-free)
....................... 1

4 -16, 6-8
Bluetooth (telephone)
................................. 1

4 -16
Bonnet


........................................................... 13 5
Boot lid


...................................................... 29-30
Brake discs


............................................ 13 8, 140
Brakes


................................................... 13 8, 140
Bulbs (changing)


.................................... 14 9 -15 0
CCab, crew ............................... ...................50-52
Cable, audio ...................................................... 9
Cable, Jack


....................................................... 9
Cartridge, fragrance
....................................... 58
CD

..................................................................... 5
CD, MP3


........................................................ 5-6
Central locking
.......................................... 33

-34
Changing a bulb
..................................... 1

4 9 -15 0
Changing a wiper blade
......................... 13

0 -131
Changing the remote control battery


..............26
Checking the levels


....................................... 13 6
Checks


................................................... 13 6 -14 0
Checks, routine


...................................... 13 8 -14 0
Child lock


................................................. 36, 102
Child seats

..................... 84,

89-90, 94-95 , 101
Child seats, conventional


................................94
Connection, Bluetooth
............................... 1

4 -16
Connection, MirrorLink


...................................12
Control, electric windows


................................36
Control, emergency door
................................ 29
C

ontrol, heated seats

...................................... 39
Control stalk, lighting


..........................15, 71 , 73
Control stalk, wipers

.................................. 7

3 -74
Courtesy lamp, front
....................................... 55
Cover, load space
............................... 60, 62- 63
Cruise control


......................................... 117-12 0
DDAB (Digital Audio
Broadcasting) - Digital radio ....................... 8
-9
Date (setting)


................................................... 24
Daytime running lamps, LED


..........................72
Deactivating the passenger's front airbag


....................................... 86, 90 -91
Dimensions
..............................

......169, 171-173
Direction indicators


......................................... 15
Display screen, instrument panel


.................108
Doors, rear
................................................ 30-32
Doors, side ............................... .................28-29
Doors, side-hinged ................................... 3
0-32
Driving abroad ................................................. 73
EElectric windows ............................................. 35
Electronic brake force distribution (EBFD) .....79
Electronic stability control (ESC)

........12,

79-80
Emergency braking assistance (EBA)


............79
Emergency call


.......................................... 7 7-78
Emissions control system, SCR
.............14, 140
Engine


........................................................... 13 6
Engine, Diesel


............................................... 128
Engine, petrol
...............................

.................128
Engines


......................................................... 161
FFilling the fuel tank ................................12 6, 128
Filter, air ........................................................ 13 8
Filter, oil
................

.................................. 13 8 -13 9
Filter, passenger compartment


.....................13 8
Fittings, front


................................................... 55
Fittings, interior
......................................... 5

4-56
Fittings, rear


.................................................... 60
Flap, fuel filler


................................................ 126
Fluid, brake


................................................... 13 6
Fluid, engine coolant


..................................... 13 6
Fluid, power steering
.................................... 13

6
Foglamps, front


............................................... 73
Fragrance diffuser ..................................... 57- 5 9
Frequency (radio)


........................................... 7- 8
Fuel ................................................................ 128
.

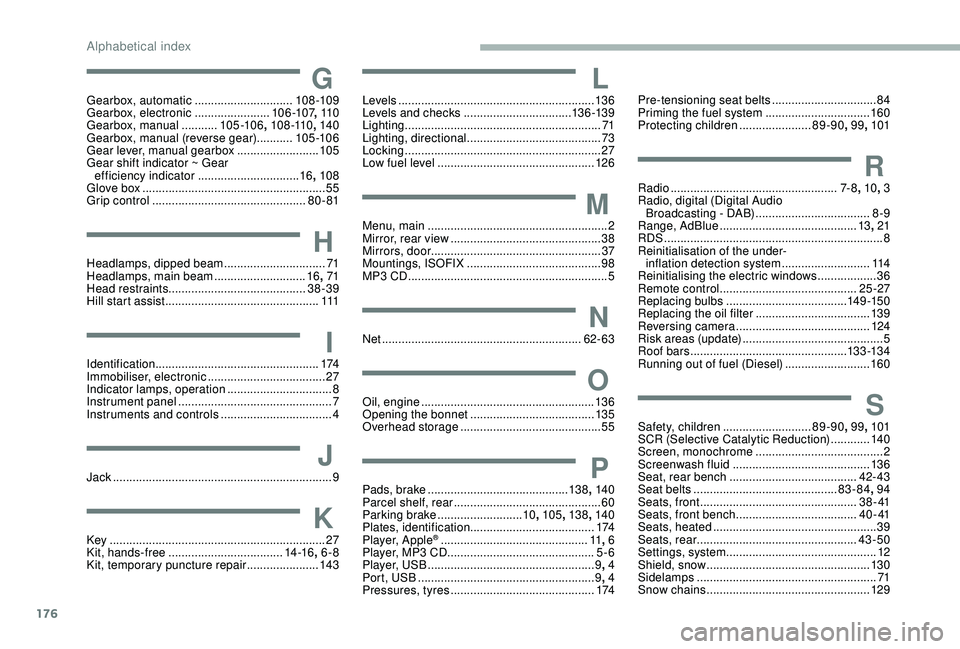

Alphabetical index

176
GGearbox, automatic ..............................108 -109
Gearbox, electronic .......................10 6 -107, 11 0
Gearbox, manual


...........105 -10 6 , 108 -110 , 140
Gearbox, manual (reverse gear) ...........105 -10 6
Gear lever, manual gearbox


.........................105
Gear shift indicator ~ Gear efficiency indicator


...............................16, 108
Glove box
........................................................ 55
Grip control
............................................... 80 - 81
HHeadlamps, dipped beam ...............................71
Headlamps, main beam ............................16, 71
Head restraints .......................................... 38-39
Hill start assist
............................................... 111
IIdentification.................................................. 174
Immobiliser, electronic ....................................27
Indicator lamps, operation
................................ 8
I

nstrument panel

............................................... 7
Instruments and controls
..................................4
JJack ............................... ....................................9
KKey .................................................................. 27
Kit, hands-free ................................... 1
4 -16, 6-8
Kit, temporary puncture repair
...................... 14

3
LLevels ............................................................ 13 6
Levels and checks .............................. ...13 6 -13 9
Lighting


............................................................ 71
Lighting, directional


......................................... 73
Locking
...............................

.............................27
Low fuel level

................................................ 12

6
MMenu, main .......................................................2
M irror, rear view .............................................. 38
Mirrors, door .................................................... 37
Mountings, ISOFIX


......................................... 98
MP3 CD
............................................................. 5
NNet ............................................................. 62- 63
OOil, engine ..................................................... 13 6
Opening the bonnet ...................................... 13 5
Overhead storage
........................................... 55
PPads, brake ........................................... 13 8, 140
Parcel shelf, rear ............................................. 60
Parking brake


.......................... 10, 105 , 13 8, 140
Plates, identification ...................................... 174
Player, Apple
® ............................................. 11, 6
Player, MP3 CD ............................... ..............5-6
Player, USB

................................................... 9, 4
Port, USB

...................................................... 9, 4
Pressures, tyres


............................................ 174
Pre-tensioning seat belts ................................84
Priming the fuel system ................................160
Protecting children


......................89-90, 99, 101
RRadio ................................................... 7- 8, 10 , 3
Radio, digital (Digital Audio Broadcasting - DAB)

...................................8

-9
Range, AdBlue


.......................................... 13, 21
RDS
................

................................................... 8
Reinitialisation of the under- inflation detection system


...........................114
Reinitialising the electric windows
.................. 36
R

emote control

.......................................... 25 -27
Replacing bulbs
..................................... 1

4 9 -15 0
Replacing the oil filter
................................... 13

9
Reversing camera
...............................

..........124
Risk areas (update)
........................................... 5
Roof bars


................................................13 3 -13 4
Running out of fuel (Diesel)
..........................160
SSafety, children ........................... 89-90, 99, 101
SCR (Selective Catalytic Reduction) ............140
Screen, monochrome


....................................... 2
Screenwash fluid


.......................................... 13 6
Seat, rear bench


....................................... 42- 43
Seat belts


............................................ 83-84, 94
Seats, front
...............................

.................3 8 - 41
Seats, front bench


..................................... 4 0 - 41
Seats, heated


.................................................. 39
Seats, rear


................................................. 43-50
Settings, system


.............................................. 12
Shield, snow
.................................................. 13

0
Sidelamps
....................................................... 71
S

now chains

.................................................. 12 9

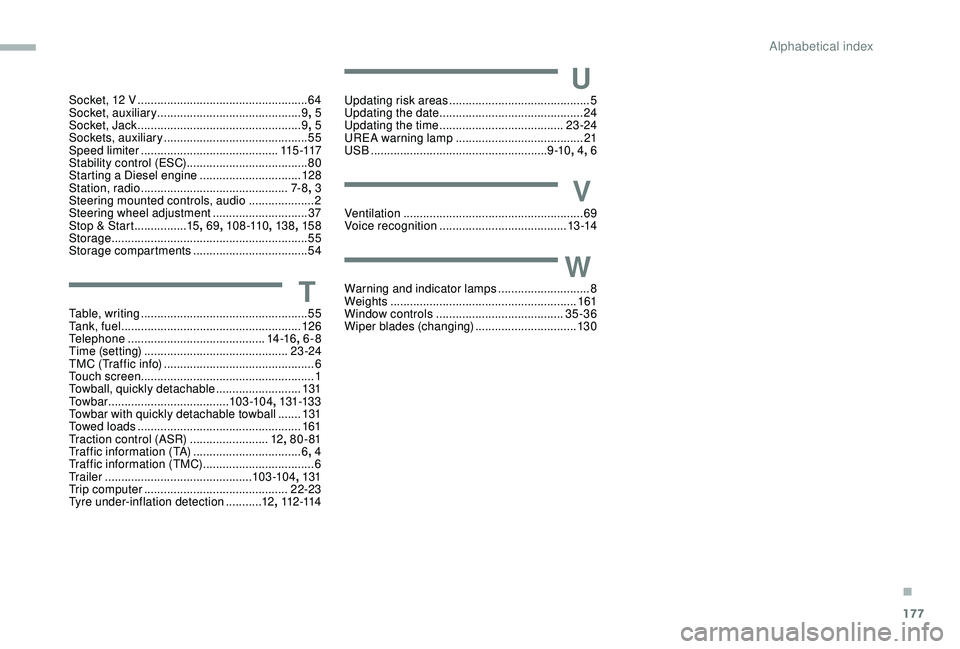

Alphabetical index

177
Socket, 12 V ....................................................64
S ocket, auxiliary ............................................ 9,
5
Socket, Jack


.................................................. 9, 5
Sockets, auxiliary
...............................

.............55
Speed limiter
.......................................... 11

5 -117
Stability control (ESC)..................................... 80
Starting a Diesel engine
............................... 12

8
Station, radio
...............................

..............7- 8, 3
Steering mounted controls, audio
.................... 2
S

teering wheel adjustment

.............................37
Stop & Start


................15, 69 , 108 -110 , 13 8, 15 8
Storage


............................................................ 55
Storage compartments


...................................54
TTable, writing ................................................... 55
Ta n k , f u e l ....................................................... 126
Telephone
..............................

............14 -16, 6-8
Time (setting)


............................................ 23 -24
TMC (Traffic info)

.............................................. 6
T

ouch screen ..................................................... 1
Towball, quickly detachable


..........................131
To w b a r
...............................

......103 -104 , 131-13 3
Towbar with quickly detachable towball
....... 13

1
Towed loads


.................................................. 161
Traction control (ASR)


........................12, 80 - 81
Traffic information (TA)


.................................6, 4
Traffic information (TMC)


..................................6
Tr a i l e r
...............

.............................. 103 -104, 131
Trip computer


............................................ 22-23
Tyre under-inflation detection


...........12, 112 -114
UUpdating risk areas ........................................... 5
Updating the date ............................................ 24
U
pdating the time
...............................
.......23 -24
UREA warning lamp


....................................... 21
USB


...................................................... 9 -10, 4, 6
VVentilation ....................................................... 69
Voice recognition ....................................... 13 -14
WWarning and indicator lamps ............................8
We ights ............... .......................................... 161
Window controls


....................................... 35-36
Wiper blades (changing)


...............................13 0
.
Alphabetical index
