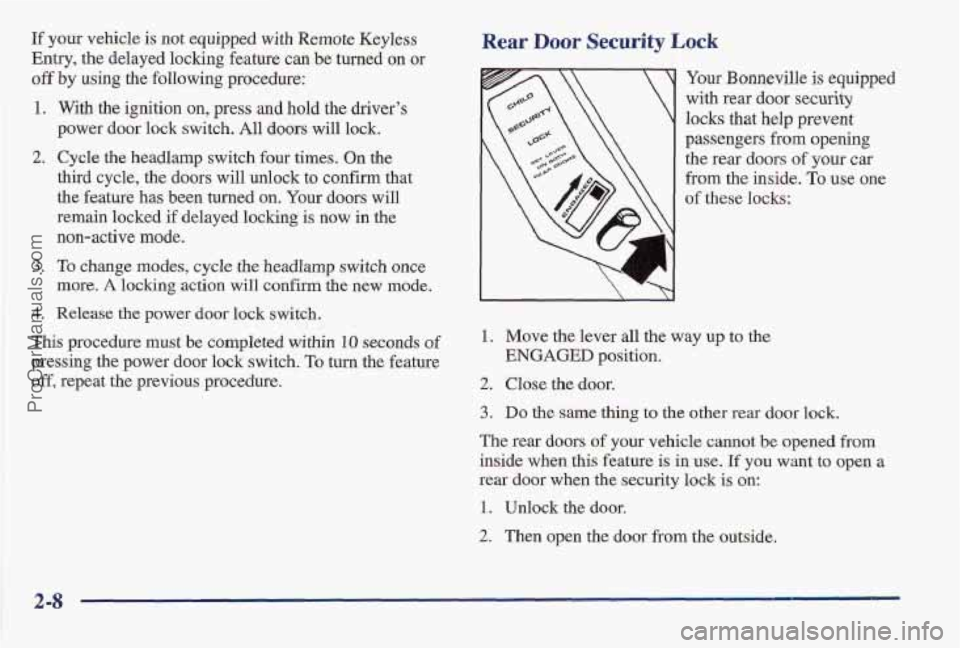

If your vehicle is not equipped with Remote Keyless
Entry, the delayed locking feature can be turned on or
off by using the following procedure:
1. With the ignition on, press and hold the driver’s
power door lock switch. All
doors will lock.
2. Cycle the headlamp switch four times. On the
third cycle, the doors will unlock to confirm that
the feature has been turned
on. Your doors will
remain locked if delayed locking is now in the
non-active mode.
3. To change modes, cycle the headlamp switch once
4. Release the power door lock switch.
This procedure must
be completed within 10 seconds of
pressing the power door lock switch. To turn the feature
off, repeat the previous procedure.
more.
A locking action will
confirm the new mode.
Rear Door Security Lock
i
Your Bonneville is equipped
with rear door
security
locks that help prevent
passengers from opening
the rear doors
of your car
from the inside. To use one
of these locks:
1. Move the lever all the way up to the
2. Close the door.
ENGAGED position.
3. Do the same thing to the other rear door lock.
The rear doors of your vehicle cannot
be opened from
inside when this feature is in use, If you want to open
a
rear door when the security lock is on:
1. Unlock the door.
2. Then open the door from the outside.
2-8
ProCarManuals.com

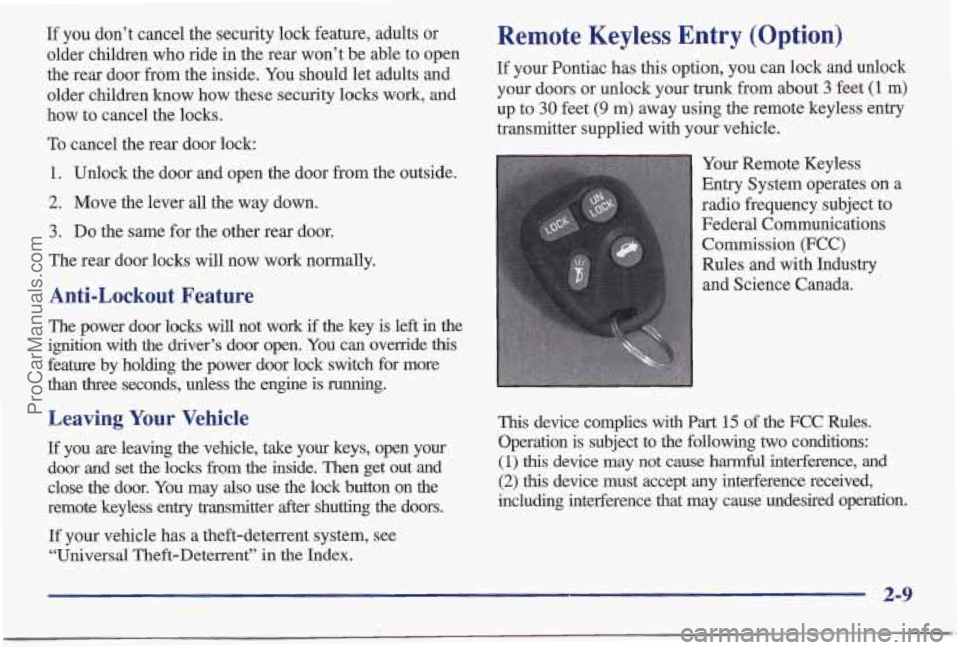

If you don’t cancel the security lock feature, adults or
older children who ride in the rear won’t be able to open
the rear door from the inside. You should let adults and
older children know how these security locks work, and
how
to cancel the locks.
To cancel the rear door lock:
1. Unlock the door and open the door from the outside.
2. Move the lever all the way down.
3. D’o the same for the other rear door.
The rear door locks will now work normally.
Anti-Lockout Feature
The power door locks will not work if the key is left in the
ignition with
the driver’s door open. You can override this
feature by holding the power door lock switch for more than three seconds, unless the engine is running.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set
the locks from the inside. Then get out and
close the door. You may also use the lock button on the
remote keyless entry transmitter after shutting the doors.
If your vehicle
has a theft-deterrent system, see
“Universal Theft-Deterrent” in the Index.
Remote Keyless Entry (Option)
If your Pontiac has this option, you can lock and unlock
your doors or unlock your trunk from about
3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your Remote Keyless
Entry System operates
on a
radio frequency subject to
Federal Communications Commission
(FCC)
Rules and with Industry
and Science Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
2-9
ProCarManuals.com

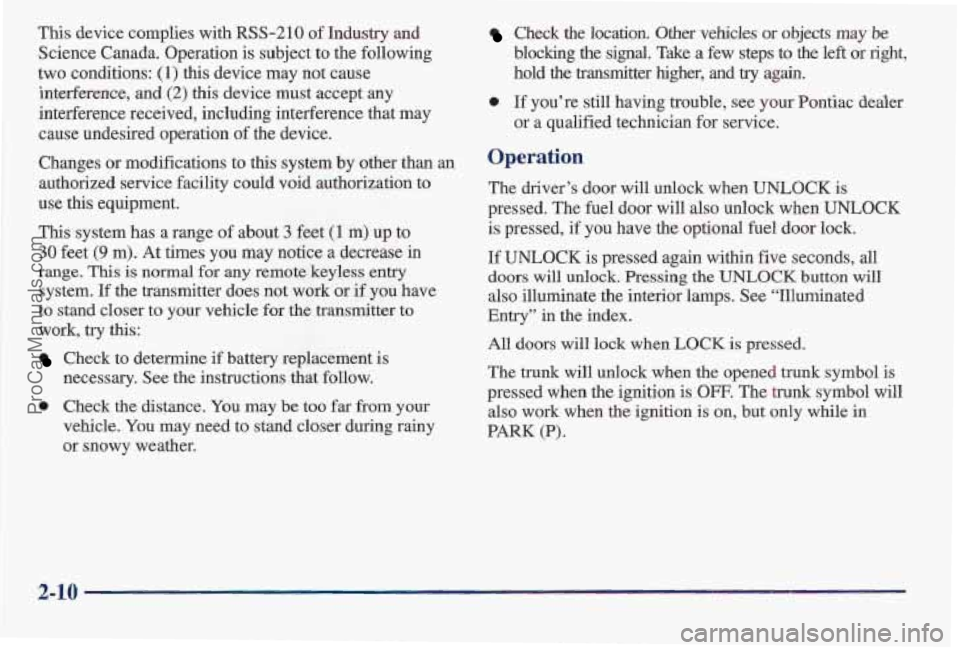

This device complies with RSS-210 of Industry and
Science Canada. Operation
is subject to the following
two conditions:
(1) this device may not cause
interference,
and (2) this device must accept any
intederence received, including interference that may
cause undesired operation
of the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
This system has a range of about 3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range.
This is normal for any remoste keyless entry
system. If the transmitter does not work or if you have
to stand closer to your vehicle for
the transmitter to
work, try this:
Check to determine if battery replacement is
necessary. See the instructions that follow.
0 Check the distance. You may be too far from your
vehicle.
You may need to stand closer during r’ainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or right,
hold the transmitter higher, and
try again.
0 If you’re still having trouble, see your Pontiac dealer
or a qualified technician for service.
Operation
The driver’s door will unlock when UNLOCK is
pressed. The fuel door will
also unlock when UNLOCK
is pressed, if
you have the optional fuel door lock.
If UNLOCK is pressed again within five seconds, all
doors
will unlock. Pressing the UNLOCK button will
also illuminate the interior lamps. See “Illuminated
Entry” in the index.
All doors will lock when
LOCK is pressed.
ProCarManuals.com

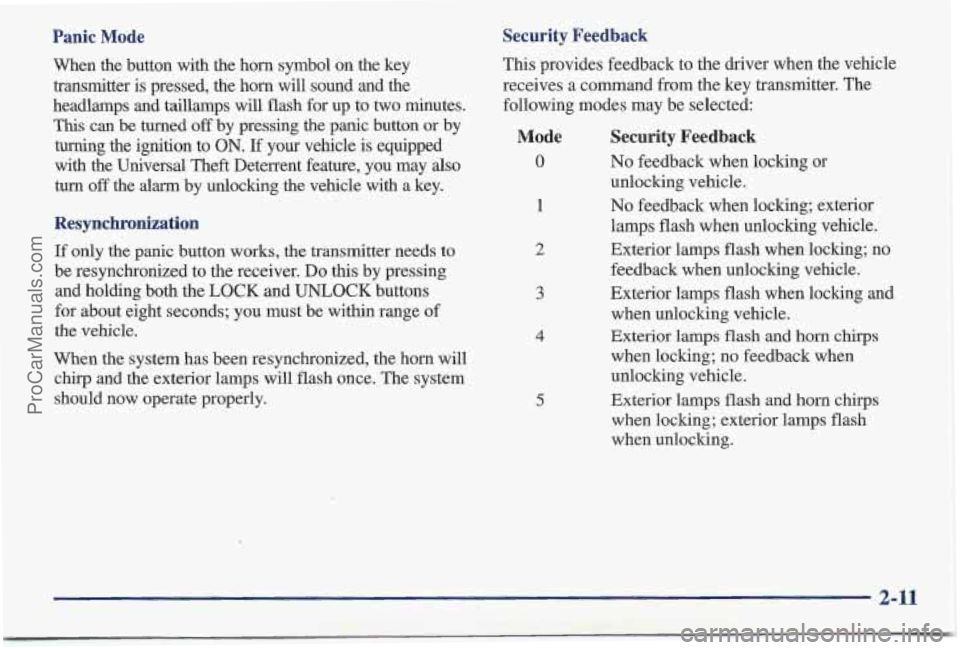

Panic Mode Security Feedback
This
provides feedback to the driver when the vehicle
receives a command from the key transmitter. The
following modes may be selected:
When the button with the horn symbol
on the key
transmitter is pressed, the horn will sound and the
headlamps and taillamps will flash for up to two minutes.
This can be turned off by pressing the panic button or by
turning
the ignition to ON. If your vehicle is equipped
with the Universal Theft Deterrent feature, you may also
turn off the alarm by unlocking the vehicle with a key.
Resynchronization
If only the panic button works, the transmitter needs to
be resynchronized to the receiver. Do this by pressing
and holding both the
LOCK and UNLOCK buttons
for about eight seconds; you must be within range of
the vehicle.
When the system has been resynchronized, the horn will
chirp and the exterior lamps will flash once. The system
should now operate properly.
Mode
0
1
2
3
4
5
Security Feedback
No feedback when locking or
unlocking vehicle.
No feedback when locking; exterior
lamps flash when unlocking vehicle.
Exterior lamps flash when locking; no
feedback when unlocking vehicle.
Exterior
lamps flash when locking and
when unlocking vehicle.
Exterior lamps
flash and horn chirps
when locking; no feedback when
unlocking vehicle.
Exterior lamps flash and horn chirps
when locking; exterior lamps flash
when unlocking.
2-11
ProCarManuals.com

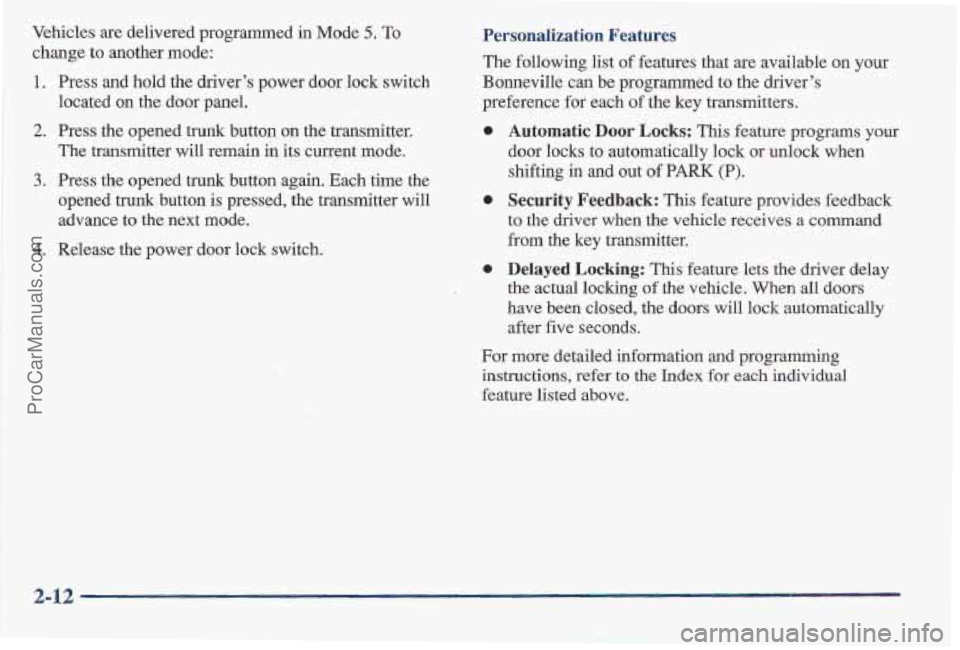

Vehicles are delivered programmed in Mode 5. To
change to another m'ode:
Personalization Features
The following list of features that are available on your
1.
2.
3.
4.
Press and hold the driver's power door lock switch
Bonneville can be programmed to the driver's
located on the door panel. preference for each of the key transmitters.
Press the opened trunk button
on the transmitter.
The transmitter will remain
in its current mode.
Press the opened trunk button again. Each time the
opened trunk button is pressed, the transmitter will
advance to the next mode.
Release the power door lock switch.
a
0
Automatic Door Locks: This feature programs your
door locks to automatically lock or unlock when
shifting
in and out of PARK (P).
Security Feedback: This feature provides feedback
to the driver when the vehicle receives
a command
from the key transmitter.
Delayed
Locking: This feature lets the driver delay
the actual locking
of the vehicle. When all doors
have been closed, the doors will lock automatically
after five seconds.
For more detailed information and programming instructions, refer
to the Index for each individual
feature listed above.
242
ProCarManuals.com

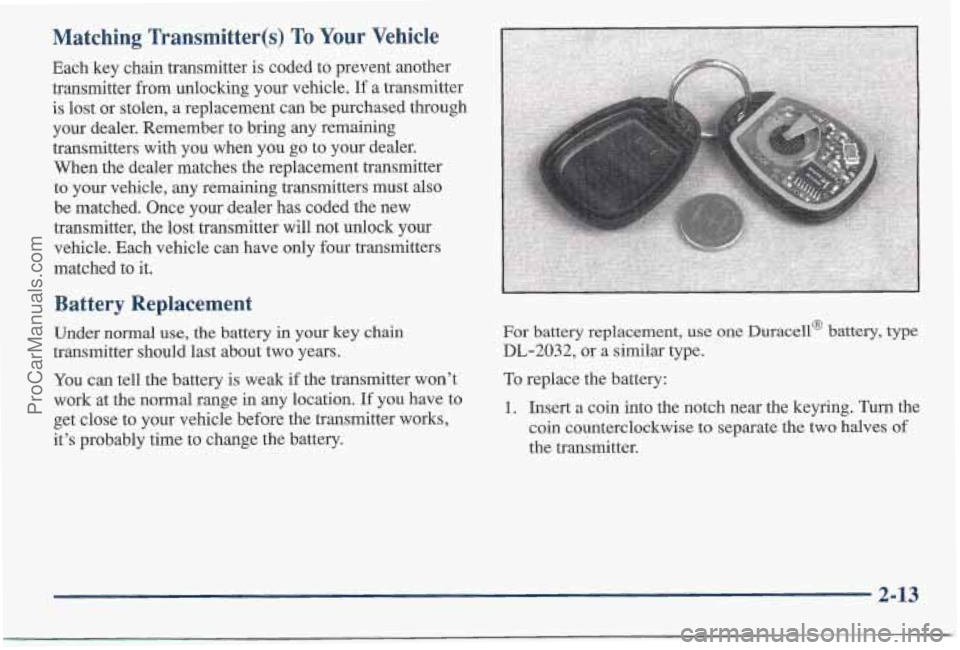

Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle.
If a transmitter
is lost or stolen,
a replacement can be purchased through
your dealer. Remember to bring any remaining
transmitters with you when you
go to your dealer.
When the dealer matches the replacement transmitter
to your vehicle, any remaining transmitters must also
be matched. Once your dealer has coded the new
transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
Battery Replacement
Under normal use, the battery in your key chain
transmitter should last about two years.
You can tell the battery is weak if the transmitter won’t
work at the
normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery. For
battery replacement, use one Duracell@ battery, type
DL-2032, or
a similar type.
To replace the battery:
1. Insert a coin into the notch near the keyring. Turn the
coin counterclockwise to separate
the two halves of
the transmitter.
2-13
ProCarManuals.com

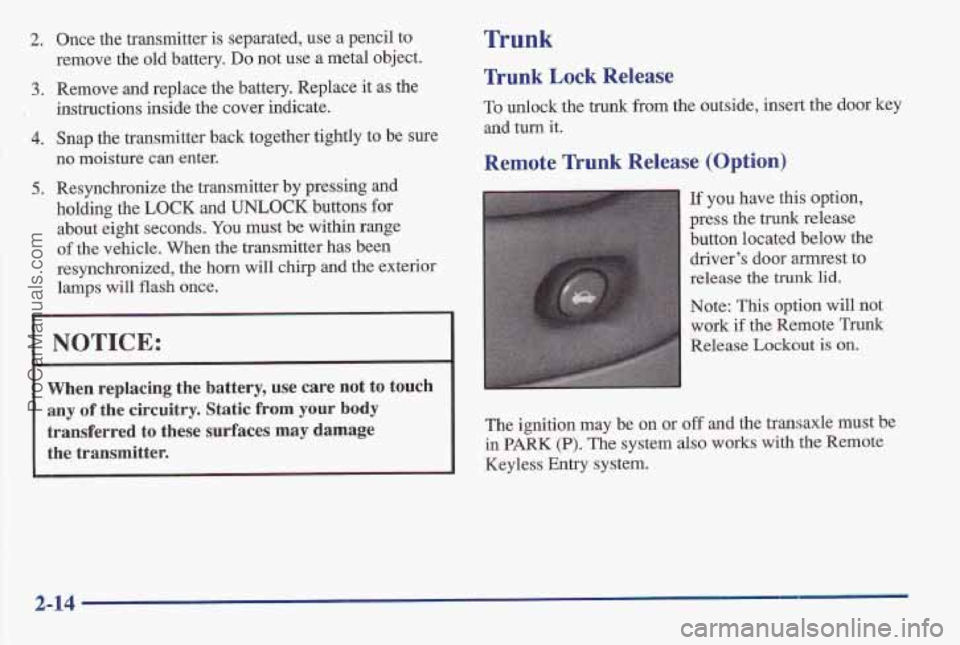

2. Once the transmitter is separated, use a pencil to
remove the old b,attery.
Do not use a metal object.
3. Remove and replace the battery. Replace it as the
4. Snap the transmitter back together tightly to be sure
instructions inside the cover indicate.
no moisture can enter.
5. Resynchronize the transmitter by pressing and
holding the
LOCK and UNLOCK buttons for
about eight seconds.
You must be within range
of the vehicle, When the transmitter has been
resynchronized, the horn will churp and the exterior
lamps will flash once.
NOTICE:
hen replacing the battery, use care notto touch I
Trunk
Trunk Lock Release
To unlock the trunk from the outside, insert the door key
and turn it.
Remote Trunk Release (Option)
If you have this option,
press the trunk release button located below the driver's door armrest
to
release the trunk lid.
Note: This option will not work
if the Remote Trunk
Release Lockout is on.
any of the circuitry. Static from your body
transferred to these surfaces may damage
in PARK (P). The system also works with the Remote the transmitter.
The ignition may be on or off and the transaxle must be
Keyl'ess Entry system.
2-14
ProCarManuals.com

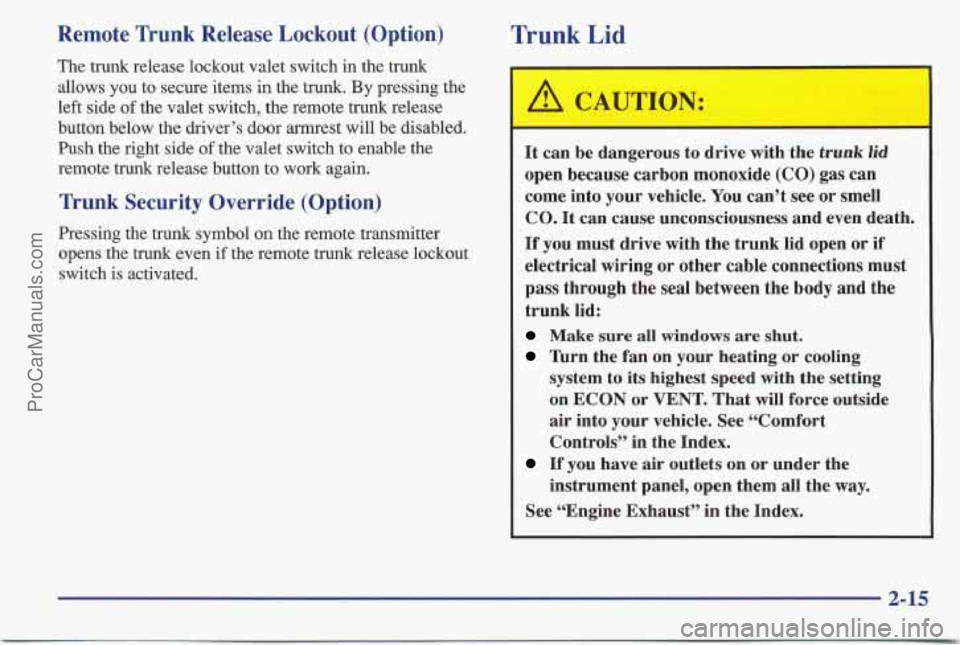

Remote Trunk Release Lockout (Option)
The trunk release lockout valet switch in the trunk
allows you to secure items
in the trunk. By pressing the
left side
of the valet switch, the remote trunk release
button below the driver’s door armrest will be disabled.
Push the right side
of the valet switch to enable the
remote trunk release button to work again.
Trunk Security Override (Option)
Pressing the trunk symbol on the remote transmitter
opens the trunk even if the remote
trunk release lockout
switch is activated.
Trunk Lid
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle.
You can’t see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:
Make sure all windows are shut.
”urn the fan on your heating or cooling
system to its highest speed with the setting
on
ECON or VENT. That will force outside
air into your vehicle. See “Comfort
Controls” in the Index.
If you have air outlets on or under the
instrument panel, open them all the way.
See “Engine Exhaust’’ in the Index.
ProCarManuals.com

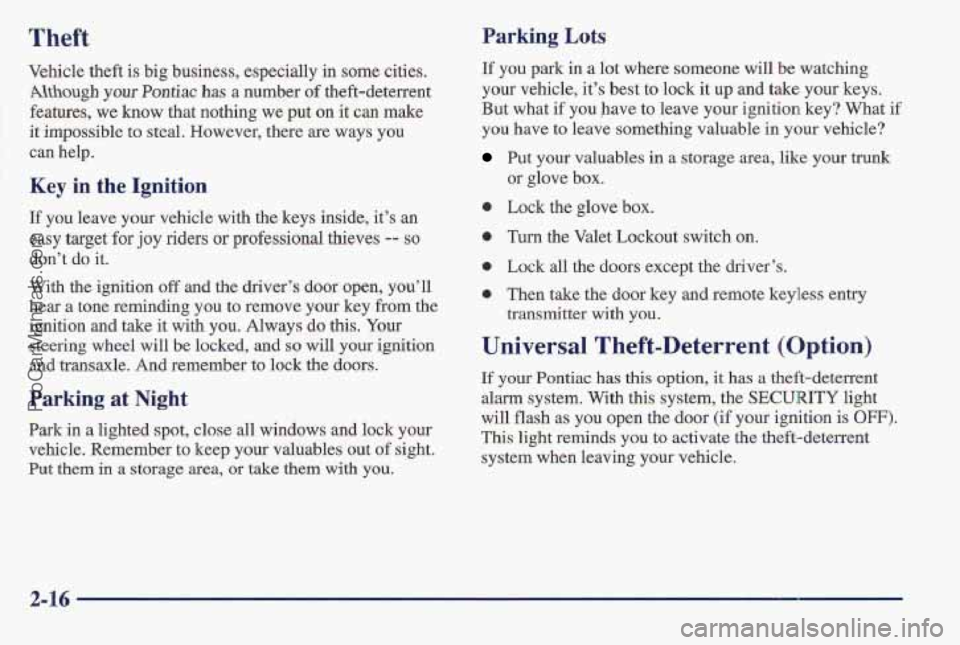

Theft Parking Lots
Vehicle theft is big b’usiness, especially in some cities.
Although
your Pontiac has a number of theft-deterrent
features, we know that nothing we put
on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it’s an
easy target for
joy riders or professional thieves -- so
don’t do it.
With the ignition
off and the driver’s door open, you’ll
hear
a tone reminding you to remove your key from the
igniti’on and take it with you. Always do this. Your
steering wheel will be locked, and
so will your ignition
and transaxle. And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember
to keep your valuables out of sight.
Put
them in a storage area, or take them with you. If you
park in
a lot where someone will be watching
your vehicle, it’s best to lock it up and take your keys.
But what
if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle?
Put your valuables in a storage area, like your trunk
or glove box.
0 Lock the glove box.
0 Turn the Valet Lockout switch on.
0 Lock all the doors except the driver’s.
0 Then take the door key and remote keyless entry
transmitter with you.
Universal Theft-Deterrent (Option)
If your Pontiac has this option, it has a theft-deterrent
alarm system. With this system, the SECURITY light
will flash as you open the door (if your ignition
is OFF).
This light reminds you to activate the theft-deterrent
system when leaving your vehicle.
2-16
ProCarManuals.com

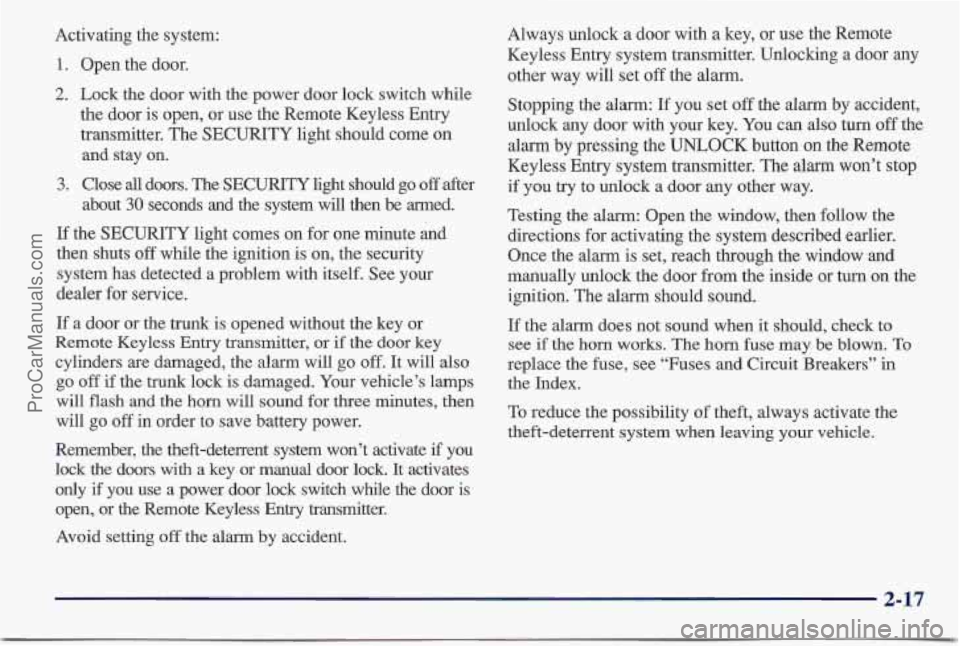

Activating the system:
1. Open the door.
2. Lock the door with the power door lock switch while
the door is open, or use the Remote Keyless Entry
transmitter. The SECURITY light should come
on
and stay on.
3. Close all doors. The SECURITY light should go off after
about
30 seconds and the system will then be armed.
If the SECURITY light comes on for one minute and
then shuts
off while the ignition is on, the security
system has detected a problem with itself. See your
dealer for service.
If a door or the trunk is opened without the key or
Remote Keyless Entry transmitter, or
if the door key
cylinders
are damaged, the alarm will go off. It will also
go off if the trunk lock is damaged. Your vehicle’s lamps
will flash and the horn will sound
for three minutes, then
will go
off in order to save battery power.
Remember, the theft-deterrent system won’t activate
if you
lock the doors with a key or manual door lock. It activates
only
if you use a power door lock switch while the door is
open, or the Remote Keyless Entry transmitter.
Avoid setting
off the alarrn by accident. Always unlock
a door
with a key, or use the Remote
Keyless Entry system transmitter. Unlocking a door any
other way will set off the alarm.
Stopping the alarm: If you set
off the alarm by accident,
unlock any door with your key. You can also turn
off the
alarm
by pressing the UNLOCK button on the Remote
Keyless Entry system transmitter. The alarm won’t stop
if you try to unlock a door any other way.
Testing the alarm: Open the window, then follow the
directions for activating the system described earlier.
Once the alarm is set, reach through the window and
manually unlock the door from the inside or turn on the
ignition. The alarm should sound.
If the alarm does not sound when it should, check to
see if the horn works. The horn fuse may be blown. To
replace the fuse, see “Fuses and Circuit Breakers”
in
the Index.
To reduce the possibility of theft, always activate the
theft-deterrent system when leaving your vehicle.
2-17
ProCarManuals.com
