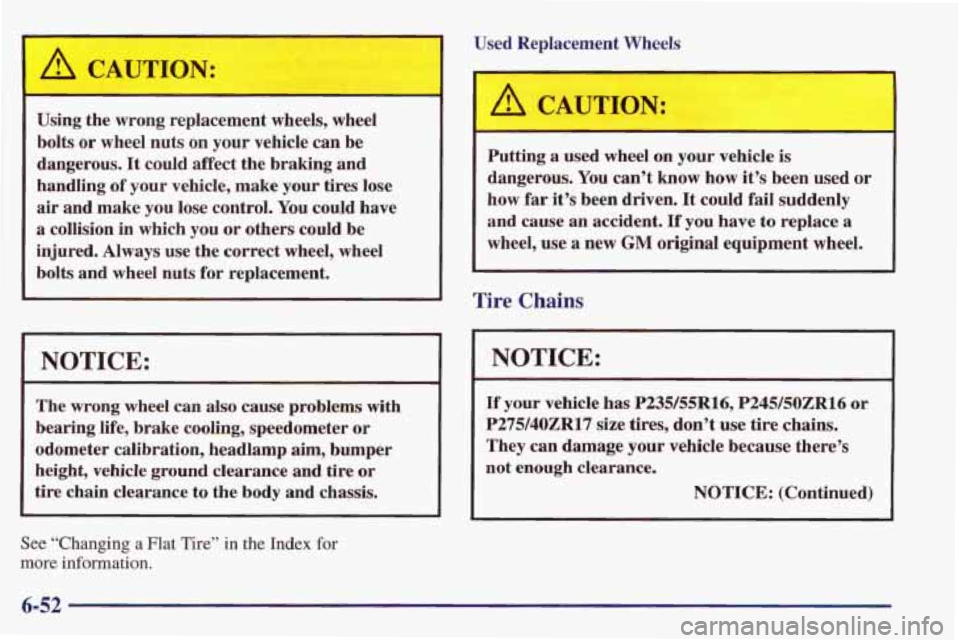

Used Replacement Wheels
Using the wrong replacement wheels, wheel
bolts or wheel nuts on your vehicle can be
dangerous.
It could affect the braking and
handling
of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured.
Always use the correct wheel, wheel
bolts and wheel nuts for replacement.
I NOTICE:
~
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or
tire chain clearance to the body and chassis.
See “Changing a Flat Tire” in the Index for
more information.
Putting a used wheel on your vehicle is
dangerous. You can’t know how it’s been used or
how far it’s been driven. It could fail suddenly
and cause an accident.
If you have to replace a
wheel, use
a new GM original equipment wheel.
Tire Chains
I NOTICE:
If your vehicle has P235/55R16, P245/50ZR16 or
P275/40ZR17 size tires, don’t use tire chains.
They can damage your vehicle because there’s
not enough clearance.
NOTICE: (Continued)
6-52 1

Headlamps
The headlamp wiring is protected by a circuit breaker.
An electrical overload will cause the lamps to go on and
off, or in some cases to remain off. If this happens, have
your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens
and closes, protecting the
circuit until the problem
is fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses, circuit
breakers and fusible thermal links in the wiring itself.
This greatly reduces the chance
of fires caused by
electrical problems.
There are three fuse centers on your vehicle. One is in
the left side of your instrument panel.
6-63

TAIL LPS HVAC
PWR ACCY
COURTESY
GAUGES
Fuse Usage
RADIO ACCY Delco Monsoon Radio Amplifier, Power Antenna, Remote CD
Player (trunk)
Daytime Running Lamps (DRL)
Module, Headlamp Switch
HVAC Selector Switch, Rear
Defogger Switch/Timer
Park Lamp Relay, Hatch
Release Relay, Power Mirror Switch, Radio,
Shock Sensor,
Instrument Cluster
Body Control Module (BCM)
Body Control Module (BCM),
Brake Switch Assembly
(BTSI),
Instrument Cluster, Daytime
Running Lamps (DRL) Module
AIR BAG Air Bag, Dual Pole Arming Sensor
CIGAFUACCY Cigar Lighter, Data Link
Connector (DLC), Auxiliary
Accessory Wire
Defogger Timermelay, Power Seats
DEFOGBEATS Rear Defogger Switch/Timer, Rear WINDOWS
I/p DIMMER
RADIO
Usage
Steering Wheel Controls
Fuse
STG WHEEL
CNTRL
WIPEWASH Wiper Motor Assembly,
Wiper/Washer Switch
Power Windows Switch
(RH, LH),
Express-Down Module, Coolant
Level Latching Module, Convertible Top Switch
Door Illumination Lamp
(RH,
LH), Headlamp Switch, Fog Lamp
Switch, Instrument Cluster,
HVAC
Control Assembly, PRNDL
Illumination Lamp, Ashtray Lamp,
Radio, Steering Wheel
Controls-Radio, Rear Window
Defogger Switch/Timer, Traction
Control Switch
(TCS) and 2nd
Gear Start Switch
Body Control Module (BCM),
Radio, Amplifier, Steering
Wheel
Controls-Radio
6-65

Underhood Electrical Center
PCM BAT FUEL PUMP AIR WMP
000 LnHDLPDR RH HDLPDR HORN
u-
4
11 r;
15305529 A
Fuse and Relay Center 1
Fuse Usage
ABS BAT SOL Anti-Lock Brake System
TCS
BAT Traction Control System
COOL FAN
PCM BAT
Cooling Fan Control
Powertrain Control Module
Fuse
FUEL PUMP
AIRPUMP
LH HDLP DR
RH HDLP DR
HORN
ABS BAT-1
WL DR HORN
ABS BAT-2
COOL FAN
Relay
FOG LAMP
HORN
FAN #3
FAN #2
FAN #1
Usage
Fuel Pump
AIR Pump Relay and Bleed Valve
Headlamp
Door Module
Headlamp
Door Module
Horn Relay
Anti-Lock Brake System Module
Horn and
Headlamp Doors
Anti-Lock Brake and Traction
Control System
Cooling
Fan Relays
6-66

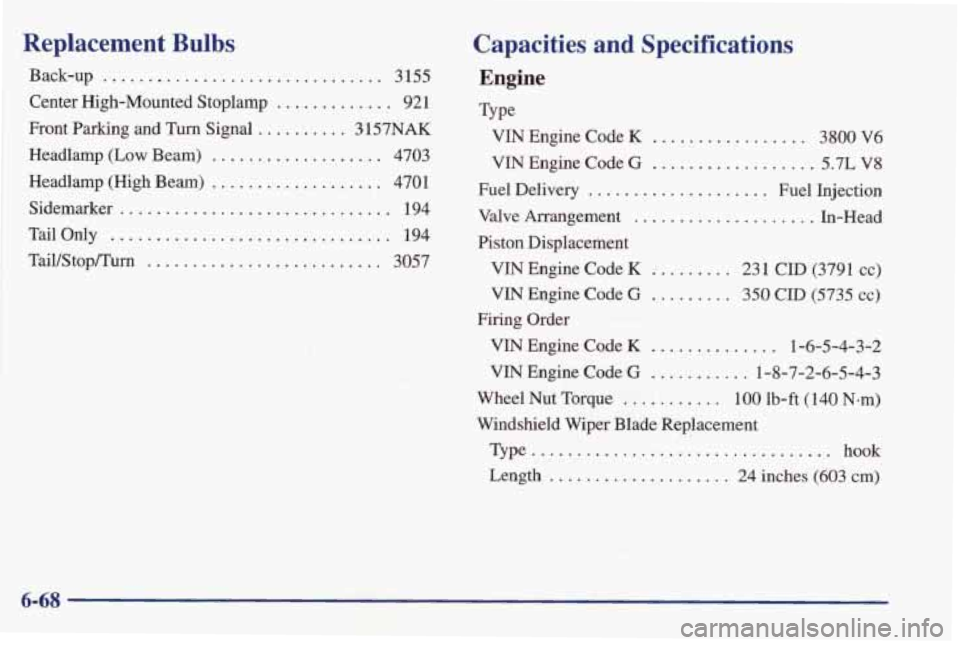

Replacement Bulbs
Center High-Mounted Stoplamp ............. 921
Front Parking and Turn Signal
.......... 3 157NAK
Headlamp
(Low Beam) ................... 4703
Back-up
............................... 3155
Headlamp (High Beam)
................... 4701
Sidemarker .............................. 194
Tail Only
............................. 194
Tail/Stop/Turn ........................ 3057
Capacities and Specifications
Engine
Type VIN Engine Code
K ............. . . 3800 V6
VIN Engine Code
G .................. 5.7L V8
Fuel Delivery
.................... Fuel Injection
Valve Arrangement
.................... In-Head
VIN Engine Code
K ......... 231 CID (3791 cc)
VIN Engine Code
G ......... 350 CID (5735 cc)
VIN Engine Code
K .............. 1-6-5-4-3-2
Piston Displacement
Firing Order VIN Engine Code
G ........... 1-8-7-2-6-5-4-3
Wheel Nut Torque
........... 100 lb-ft (140 N-m)
Windshield Wiper Blade Replacement Type
................................. hook
Length .................... 24 inches (603 cm)
6-68

At Least Twice a Year Automatic Transmission Check
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also see “Wiper Blades,
Cleaning” in the Index.
Manual Transmission Check
Check the transmission fluid level; add if needed. See
‘‘Manual Transmission” in the Index. Check for leaks. A
fluid loss may indicate a problem. Have the system
inspected and repaired if needed. Check the transmission
fluid level; add
if needed. See
“Automatic Transmission” in the Index. A fluid
loss
may indicate a problem. Check the system and repair
if needed.
Hydraulic Clutch System Check
Check the fluid level in the clutch reservoir. See
“Hydraulic Clutch Fluid” in the Index.
A fluid loss in
this system could indicate a problem. Have the system
inspected and repaired at once.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in
Part D.
Body Lubrication Service
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those for the hood, headlamp door
assemblies, rear compartment, console doors and any
folding seat hardware.
Part D tells you what to use.
More frequent lubrication may
be required when
exposed to a corrosive environment.
7-33
