PONTIAC GRAND-AM 1995 Owners Manual

Appearance Care and Maintenance Materials
You can get these from your GM Parts Department.
PART
NUMBER SIZE DESCRIPTION USAGE
I
12345343 16 02. (0.473L) GoodwrenchB Liquid Wax Exterior polish I I 1052277 12 oz. (0.354L)
1052863
1 oz. (0.028kg)
1050172 16
oz. (0.473L) Tar and Road Oil Remover Also removes old waxes, polishes
Spray-A-Squeak Silicone Grease Weatherstrips, Stops squeaks
I
* Not recommended for pigskin suede leather.
See your General Motors Parts Departments for these products.
I
See your Maintenance Schedule for other products. 1
ProCarManuals.com

Vehicle Identification Number (VIN)
1.
SAMPLE4UXSM072675
I
ENGINE ,/ 1k5 ASSEMBLY
CODE MODEL YEAR PLANT
This is the legal identifier for your Pontiac. It appears on
a plate in the front corner of the instrument panel, on the
driver’s side. You can see it if you
look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code will help you identify your engine,
specifications, and replacement parts.
Service Parts Identification Label
You’ll find this label on your spare tire cover. It’s very
helpful if you ever need to order parts.
On this label is:
your VIN,
the model designation,
paint information, and
a list of all production options and special
Be sure that this label is not removed from the vehicle.
equipment.
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Pontiac
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can
keep other components from working
as they
should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Pontiac,
see “Servicing
Your Air Bag-Equipped Pontiac” in the Index.
6-51
ProCarManuals.com

Fuses & Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers.
The main fuse panel is located on the left side of the
instrument panel.
To access the fuses, open the fuse
panel door.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse.
Be sure
you replace a bad fuse with a new one of the
correct size.
I NOTICE:
I
Never install a higher rated fuse. Damage to your
vehicle wiring may result with an incorrect fuse.
6-52
ProCarManuals.com

I Fuse
PRNDL
F/P INJ
STOP
HAZ
CTSY
AIR BAG
- CIRCUIT PWR WDO
BREAKER
PWR ACC
BREAKER - CIRCUIT
Circuitry
Electronic PRNDL Display (Automatic Trans-
axle only)
Fuel Pump, Injectors
Stop/Hazard Lamps
Door Locks, Power Mirrors, Cigar Lighter
Sumlemental Inflatable Restraint
Fuse - ~~
INST LPS
GAUGES
HORN
ALARM
HTR-A/C
RDO
TURN
DR LK
TAIL LPS
WDO
WIPER
ERLS
DR UNLK
FTP
ACC
AIR BAG
PCM
CRUISE
HDLP
Circuitry
Interior Lamps Dimming
Gauges, Warning Lights, Rear Defog
Horns, Fog Lamps
Interior Lamps, Chime,
Auto Door Locks, Re-
mote Keyless Entry
Heater,
Air Conditioning, Anti-Lock Brakes,
Daytime Running Lamps (Canada)
Radio Power
Turn Signal Lamps
Auto Door Locks
Tail Lamps, Marker Lamps, License Lamp
Power Windows
Windshield Wipers/Washers
Engine Controls, Back-up Lamps
Auto Door Unlock (Remove to Disable)
Flash-to-pass
(U.S.)
Rear Window Defogger, Power Seats, Power
Sunroof (Circuit Breaker)
Supplemental Inflatable Restraint
Powertrain Control Module, Ignition System
Cruise Control
Headlamps (Circuit Breaker)
6-53
ProCarManuals.com

Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the fuse block. An electrical overload will cause the
lights to go on and off or, in some cases, to remain
off.
If this happens, have your headlamp system checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem
is fixed.
6-54
ProCarManuals.com

Capacities and Specifications
Engine Crankcase (All Models) ..................................
Automatic Transaxle, 3-Speed
Pan Removal and Replacement ...................................
When draining or replacing torque convertel; more fluid may be needed.
Pan Removal and Replacement ...................................
When draining or replacing torque convertel; more fluid may be needed.
After Complete Overhaul .......................................
Automatic Transaxle, 4-Speed
After Complete Overhaul .......................................
Manual Transaxle, 5-Speed
Cooling System
Complete Drain and Refill ......................................
2.3LQuad4 ..................................................
3.1LV6 .....................................................
4.5 quarts
4 quarts
7 quarts
6.0 quarts
8.0 quarts
2.0 quarts
4.3 L
3.8 L
6.6 L
5.7 L
7.6 L
1.9 L
10.4 quarts 9.8 L
13.1 quarts 12.4 L
Refrigerant, Air Conditioning .................................... See refrigerant charge label under hood.
Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs refrigerant, be sure
the proper refi-igerant is used.
If you’re not sure, ask your Pontiac dealel: For additional information, see your “Warranty
and Owner Assistance Information
” booklet.
FuelTank .................................................... 15.2gallons 57.5 L
Power Steering
Pumponly ................................................... 1.00 pint 0.50 L
Complete System .............................................. 2.25 pints 1.25 L
Tire Pressures, Sizes ............................................ See Tire-Loading Information label on
driver’s door.
WheelNutTorque ............................................. 100pound-feet (140 N-m)
NOTE: All capacities are approximate. When adding, be sure to fill to the appropriate level or as recommended in this manual.
6-55
ProCarManuals.com

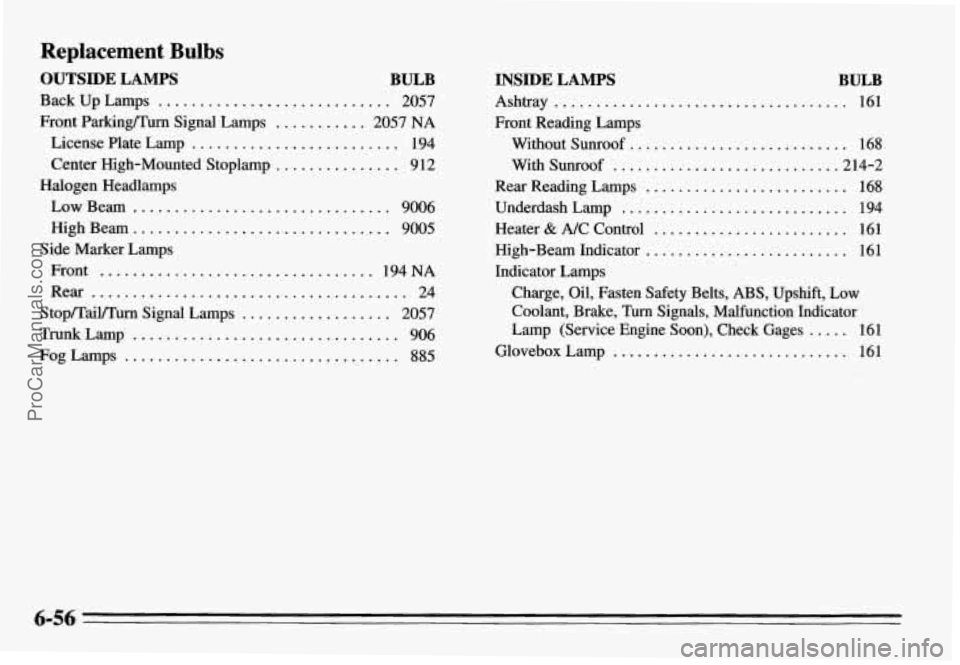

Replacement Bulbs
Back Up Lamps ............................ 2057
Front Parking/Turn Signal Lamps
........... 2057 NA
License Plate Lamp
......................... 194
Center High-Mounted Stoplamp
............... 912
OUTSIDE LAMPS BULB
Halogen Headlamps
LowBeam ............................... 9006
High Beam ............................... 9005
Side Marker Lamps
Front ................................. 194NA
Rear
...................................... 24
TrunkLamp
................................ 906
Stop/Tail/Turn Signal Lamps .................. 2057
Fog Lamps ................................. 885
INSIDE LAMPS BULB
Ashtray .................................... 161
Without Sunroof ........................... 168
With Sunroof
............................ 214-2
Rear Reading Lamps
......................... 168
Underdash Lamp
............................ 194
Heater
& AK Control ........................ 161
High-Beam Indicator
......................... 161
Front Reading Lamps
Indicator Lamps
Charge. Oil. Fasten Safety Belts. ABS. Upshift. Low
Coolant. Brake.
Turn Signals. Malfunction Indicator
Lamp (Service Engine Soon). Check Gages
..... 161
Glovebox Lamp ............................. 161
6-56
ProCarManuals.com

Engine Specifications
Quad 4 2.3L DOHC
VINEngineCode ................................... D
Type ............................................. L4
Displacement
...................................... 2.3 Liters
Compression Ratio
.................................. 9.5: 1
Firing Order ....................................... 1-3-4-2
Thermostat Temperature
............................. 195 OF (9 1 O C)
3.1L V6
M
V6
3.1 Liters
9.5: 1
1-2-3-4-5-6
195°F (91 "C)
Normal Maintenance Replacement Parts
Air Cleaner Element
2.3L Quad 4 ....................................... AC Type A- 1233C
3.1L V6
.......................................... AC Type A-1233C
2.3LQuad4
....................................... ACTypePF-1225
Engine Oil Filter
3.1LV6 .......................................... ACTypePF-47
PCV Valve .........................................
3.1L V6 .......................................... AC Type CV-892C
2.3L Quad DOHC
.................................. AC Type m41-910 (Platinum Plug)
3.1L V6
.......................................... AC Type R44 LT SM6
Sparkplugs ........................................
Gap: 0.060 inch (1.52 mm)
Gap: 0.060 inch (1.52 mm)
6-57
ProCarManuals.com

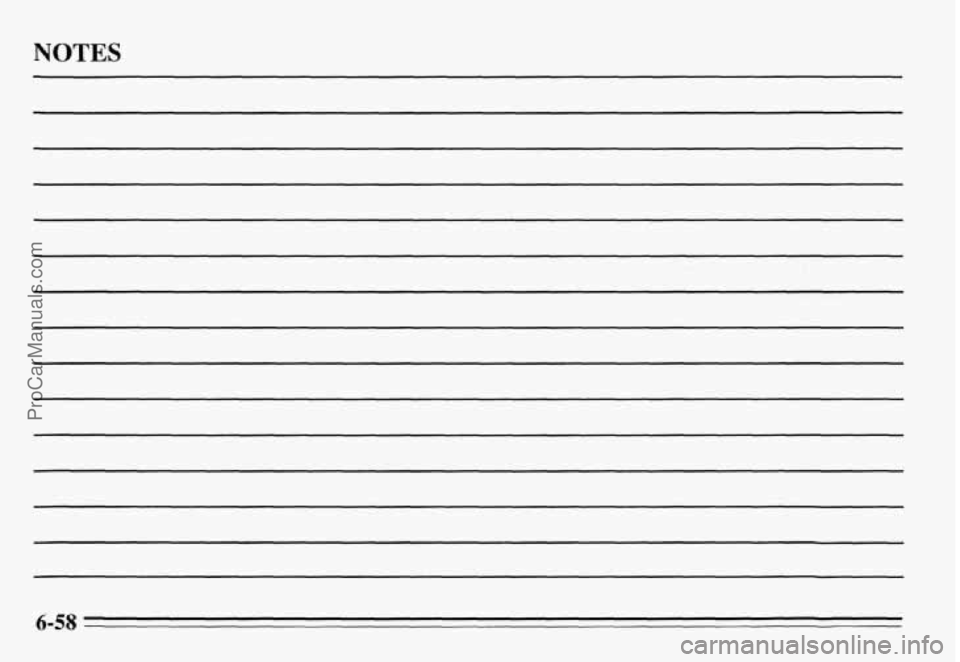

NOTES
ProCarManuals.com

Section 7 Maintenance Schedule
IMPORTANT:
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS
RECOMMENDED
This section covers the maintenance required for your
Pontiac. Your vehicle needs these services to retain its
safety, dependability and emission control performance. ~~
1
Protection I
Have you purchased the GM Protection Plan? The Plan
supplements
your new vehicle warranties. See your
Pontiac dealer for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance or the
removal
of important components can significantly
affect the quality of the air we breathe. Improper fluid
levels or even the wrong tire inflation can increase the
level of emissions from your vehicle.
To help protect our
environment, and to help keep your vehicle
in good
condition, please maintain your vehicle properly.
