PONTIAC GRAND AM 1997 Owners Manual

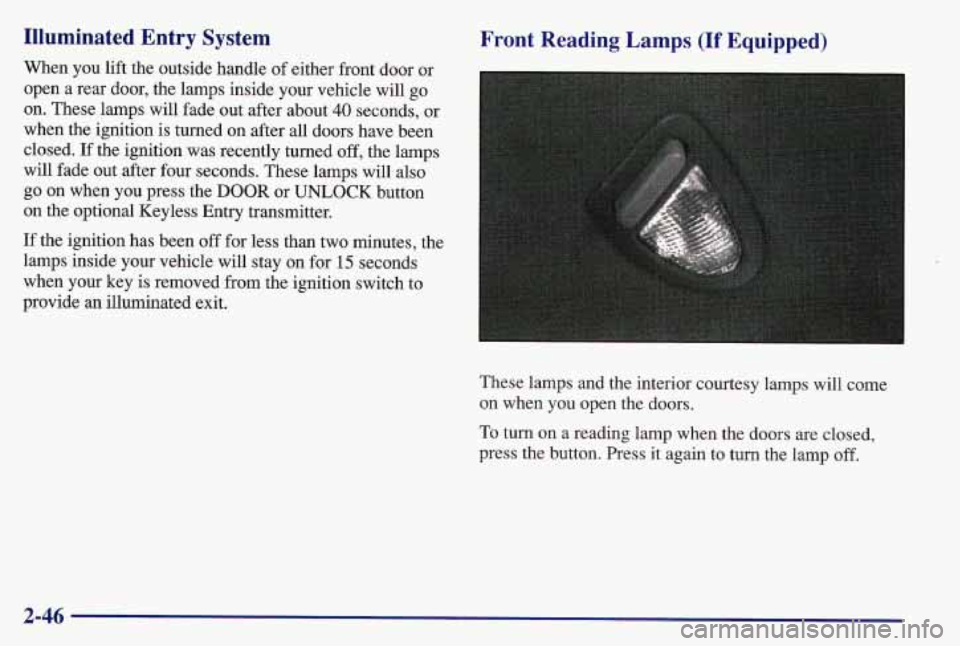

Illuminated Entry System
When you lift the outside handle of either front door or
open
a rear door, the lamps inside your vehicle will go
on. These lamps will fade out after about
40 seconds, or
when the ignition
is turned on after all doors have been
closed.
If the ignition was recently turned off, the lamps
will fade out after four seconds. These lamps will also
go on when you press the DOOR or UNLOCK button
on the optional Keyless Entry transmitter.
Front Reading Lamps (If Equipped)
If the ignition has been off for less than two minutes, the
lamps inside your vehicle will stay on
for 15 seconds
when your key is removed from the ignition switch to
provide an illuminated exit.
These lamps and the interior courtesy lamps will come on when you open the doors.
To turn on a reading lamp when the doors are closed,
press the button. Press it again to turn the lamp off.
2-46

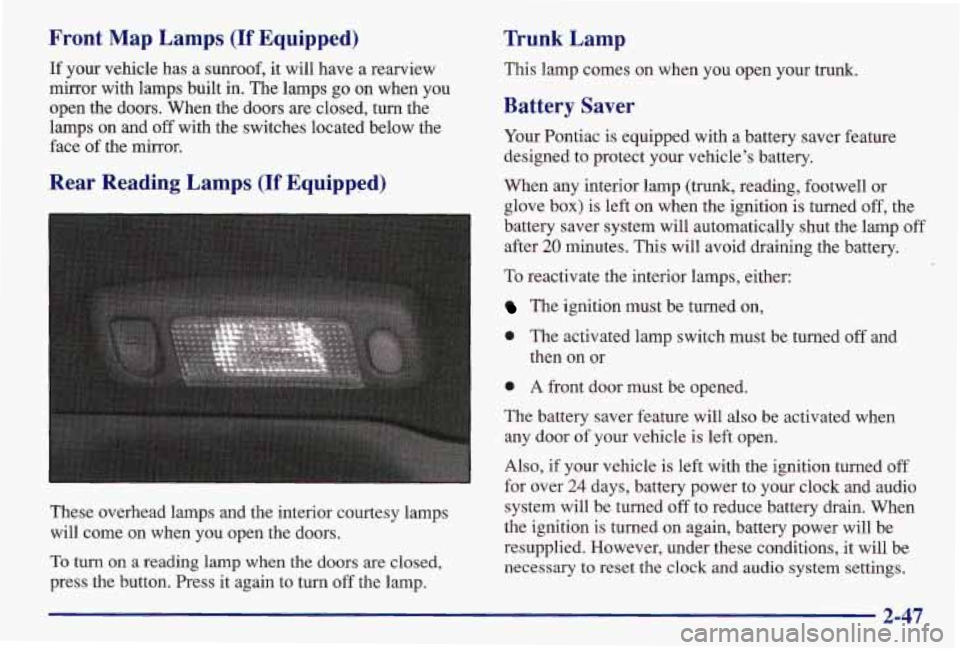

Front Map Lamps (If Equipped)
If your vehicle has a sunroof, it will have a rearview
mirror with lamps built in. The lamps go on when you
open the doors. When the
doors are closed, turn the
lamps on and off with the switches located below the
face of the mirror.
Rear Reading Lamps (If Equipped)
These overhead lamps and the interior courtesy lamps
will come on when you open the doors.
To turn on a reading lamp when the doors are closed,
press the button. Press it again to turn off the lamp.
Trunk Lamp
This lamp comes on when you open your trunk.
Battery Saver
Your Pontiac is equipped with a battery saver feature
designed to protect your vehicle’s battery.
When any interior lamp (trunk, reading, footwell or
glove box) is left on when the ignition is turned off, the
battery saver system will automatically shut the lamp off
after
20 minutes. This will avoid draining the battery.
To reactivate the interior lamps, either:
The ignition must be turned on,
0 The activated lamp switch must be turned off and
then on or
0 A front door must be opened.
The battery saver feature will also be activated when
any door of your vehicle is left open.
Also, if your vehicle is left with the ignition turned off
for over
24 days, battery power to your clock and audio
system will be turned off to reduce battery drain. When
the ignition
is turned on again, battery power will be
resupplied. However, under these conditions, it will be
necessary to reset the clock and audio system settings.
2-47

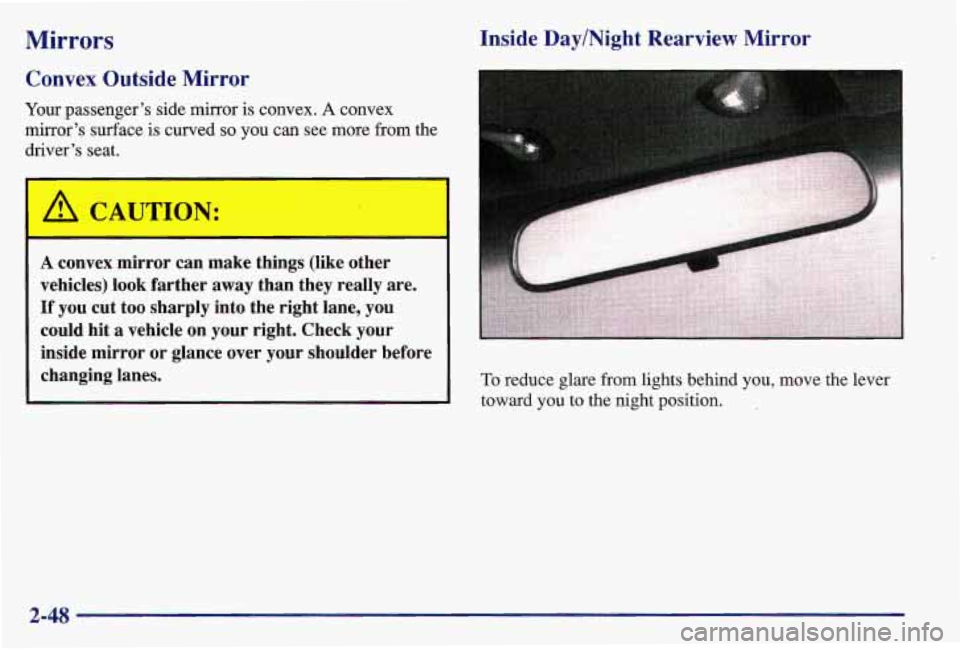

Mirrors
Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved
so you can see more from the
driver's seat.
I
'
A CAUTION:
Inside Day/Night Rearview Mirror
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before
changing lanes.
C
To reduce glare from lights behind you, move the lever
toward you
to the night position.
2-48

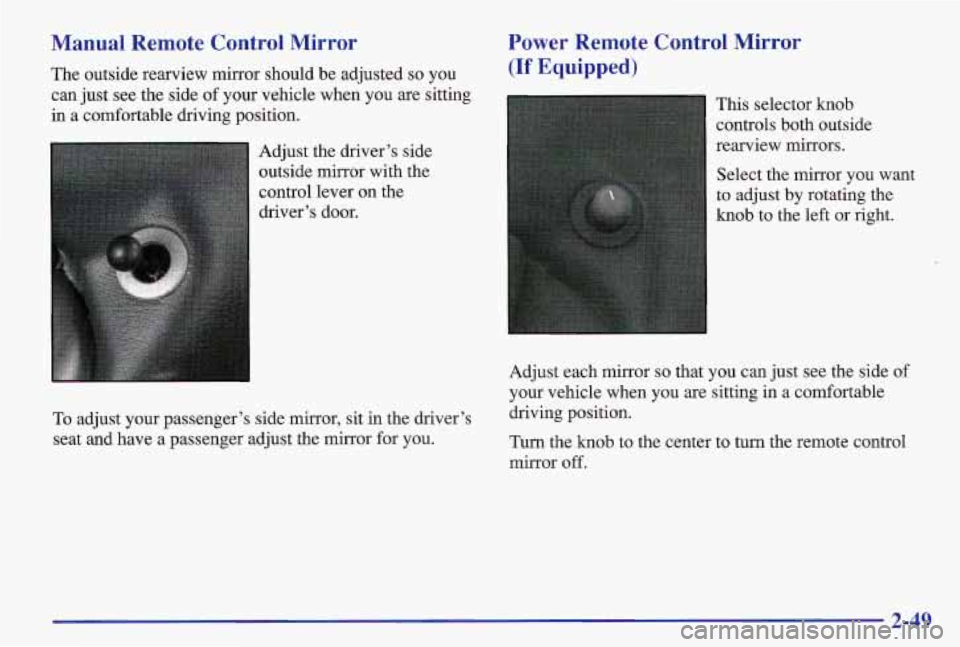

Manual Remote Control Mirror Power Remote Control Mirror
The outside
rearview mirror should be adjusted so you (If Equipped)
can just see the side of your vehicle when you are sitting
in a comfortable driving position. This selector knob
controls both outside
rearview mirrors.
. ,, . . . ..
Adjust the driver’s side
outside mirror with the
control lever on the
driver’s door.
To adjust your passenger’s side mirror, sit in the driver’s
seat and have a passenger adjust the mirror for you. Select the mirror
you want
to adjust by rotating the
knob to the left or right.
Adjust each mirror
so that you can just see the side of
your vehicle when you are sitting in a comfortable
driving position.
Turn the knob to the center to turn the remote control
mirror off.
2-49

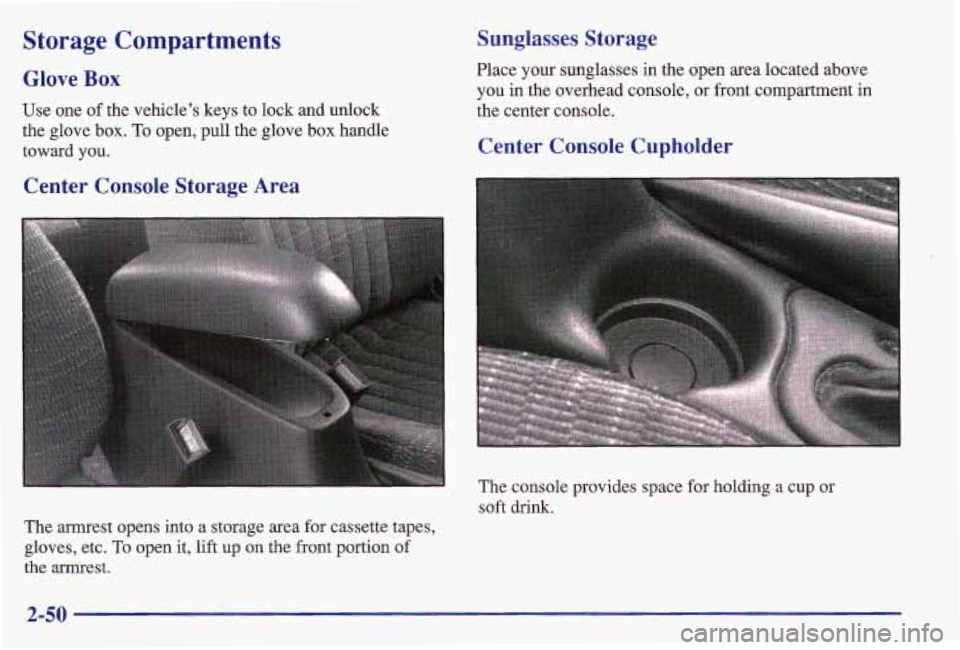

Storage Compartments
Glove Box
Use one of the vehicle’s keys to lock and unlock
the glove box.
To open, pull the glove box handle
toward you.
Center Console Storage Area Sunglasses
Storage
Place your sunglasses in the open area located above
you in the overhead console, or front compartment in
the center console.
Center Console Cupholder
The armrest opens into a storage area for cassette tapes,
gloves, etc.
To open it, lift up on the front portion of
the armrest. The console provides space
for holding a cup or
soft drink.
2-50

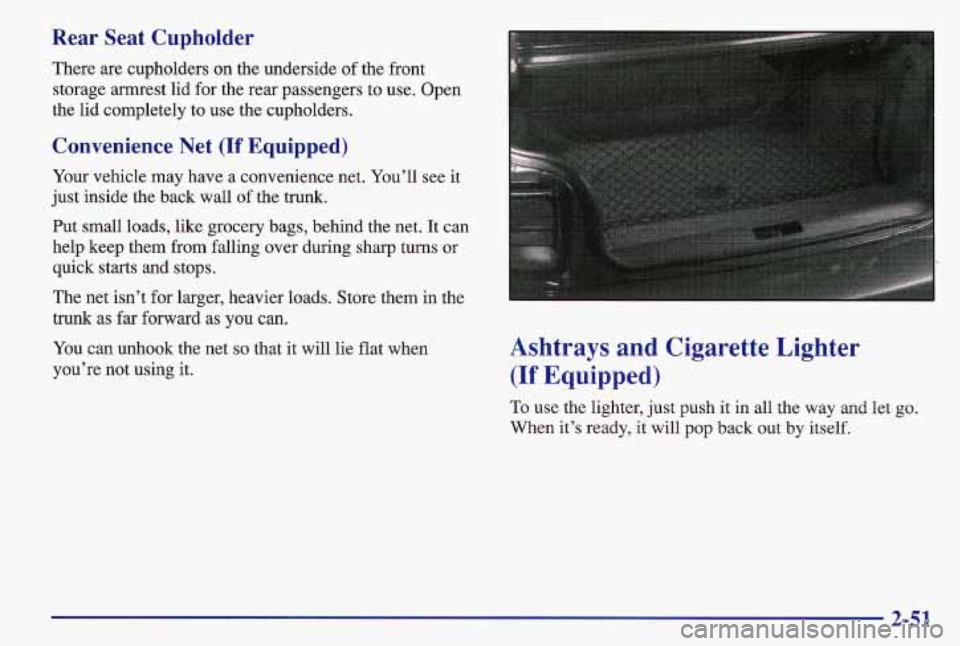

Rear Seat Cupholder
There are cupholders on the underside of the front
storage armrest lid
for the rear passengers to use. Open
the lid completely to use the cupholders.
Convenience Net (If Equipped)
Your vehicle may have a convenience net. You’ll see it
just inside the back wall
of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp turns
or
quick starts and stops.
The net isn’t for larger, heavier loads. Store them
in the
trunk as far forward as you can.
You can unhook the net
so that it will lie flat when
you’re not using it. Ashtrays and Cigarette Lighter
(If Equipped)
To use the lighter, just push it in all the way and let go.
When it’s ready, it will pop back
out by itself.
2-51

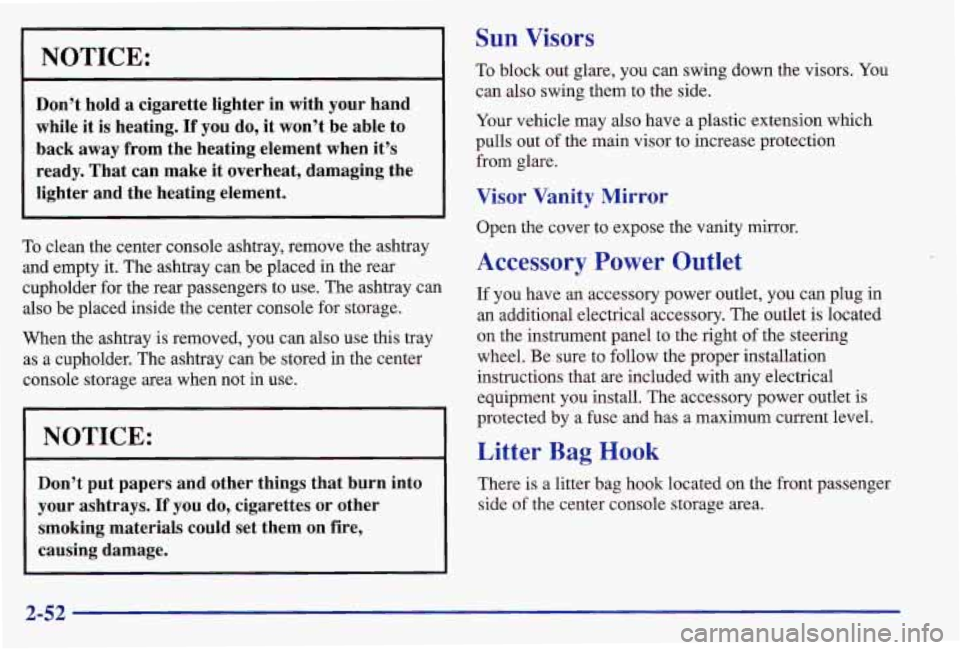

NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating, If you do, it won’t be able to
back away from the heating element when it’s ready. That can make it overheat, damaging the
lighter and the heating element.
To clean the center console ashtray, remove the ashtray
and empty it. The ashtray can be placed
in the rear
cupholder for the rear passengers to use. The ashtray can
also be placed inside the center console for storage.
When the ashtray
is removed, you can also use this tray
as a cupholder. The ashtray can be stored in the center
console storage area when not in use.
NOTICE:
Don’t put papers and other things that burn into
your ashtrays. If
you do, cigarettes or other
smoking materials could set them
on fire,
causing damage.
Sun Visors
To block out glare, you can swing down the visors. You
can also swing them to the side.
Your vehicle may also have a plastic extension which
pulls out of the main visor to increase protection
from glare.
Visor Vanity Mirror
Open the cover to expose the vanity mirror.
Accessory Power Outlet
If you have an accessory power outlet, you can plug in
an additional electrical accessory. The outlet is located
on the instrument panel to the right of the steering
wheel. Be sure to follow the proper installation
instructions that are included with any electrical
equipment you install. The accessory power outlet is
protected by a fuse and has a maximum current level.
Litter Bag Hook
There is a litter bag hook located on the front passenger
side
of the center console storage area.
2-52

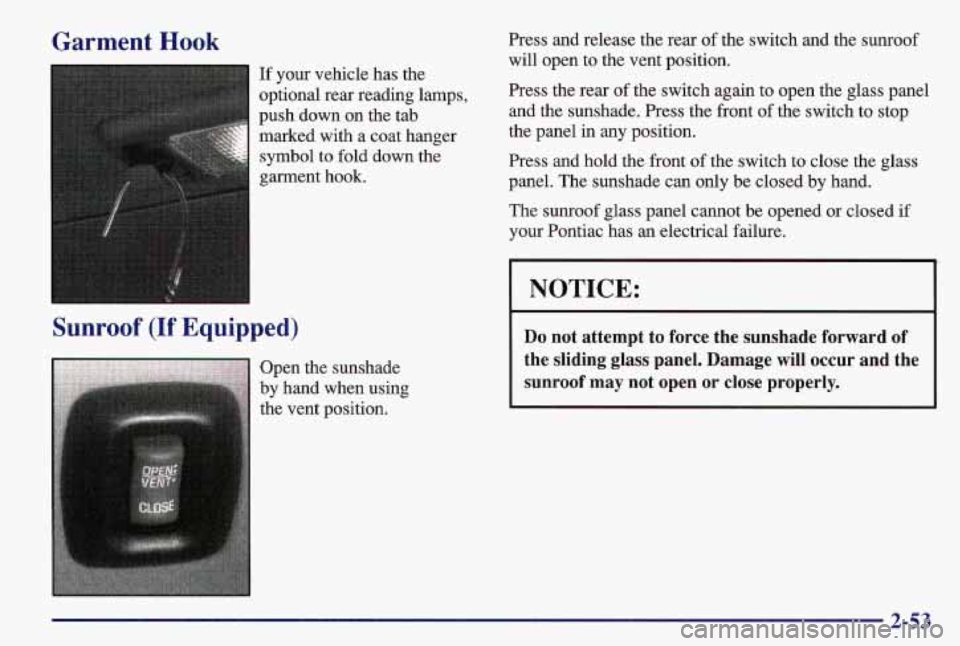

Garment Hook
If your vehicle has the
optional rear reading lamps,
push down on the tab
marked with a coat hanger
symbol to fold down the
garment
hook.
Sunroof (If Equipped)
Open the sunshade
by hand when using
the vent position. Press
and release the rear of the switch and the
sunroof
will open to the vent position.
Press the rear
of the switch again to open the glass panel
and the sunshade. Press the front of
the switch to stop
the panel in any position.
Press and hold the front of the switch to close the glass
panel. The sunshade can only be closed
by hand.
The
sunroof glass panel cannot be opened or closed if
your Pontiac has an electrical failure.
I NOTICE:
Do not attempt to force the sunshade forward of
the sliding glass panel. Damage will occur and the
sunroof may not open or close properly.
2-53

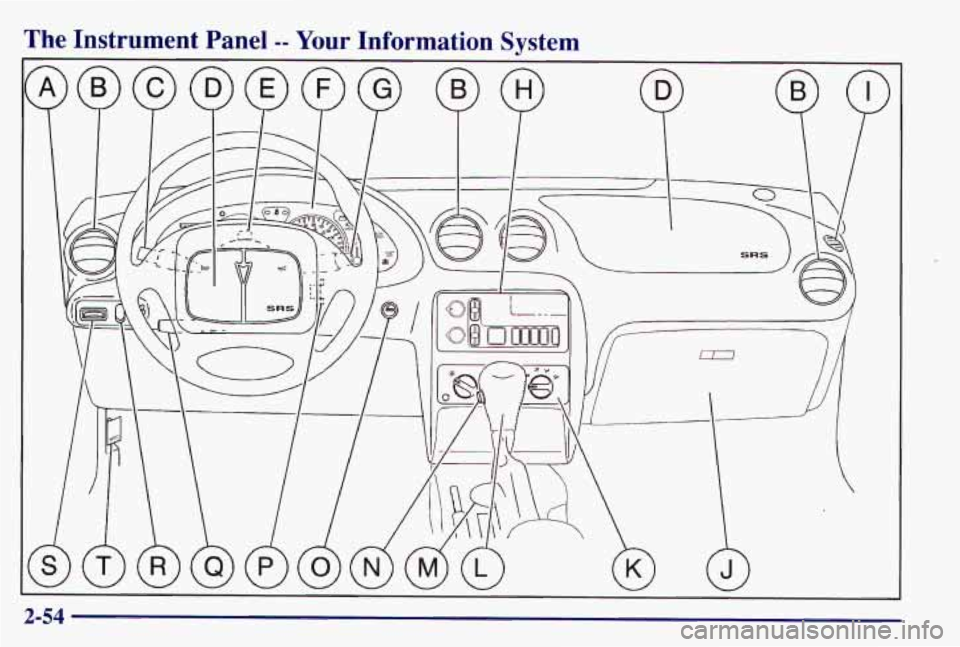

The Instrument Panel -- Your Information Svstem
'I
2-54

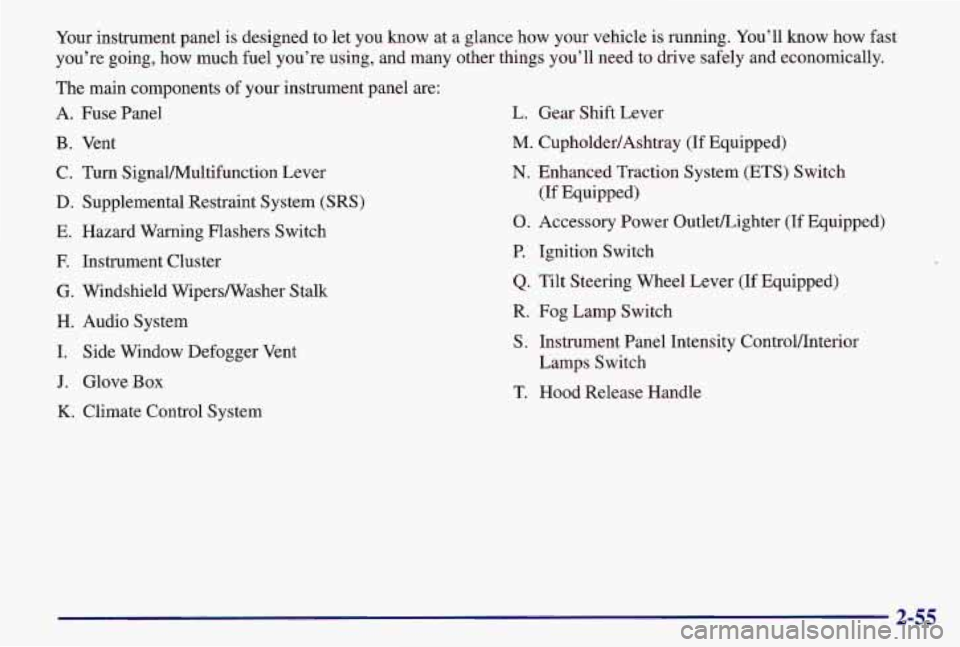

Your instrument panel is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, how much fuel you’re using, and many other things you’ll need to drive safely and economically.
The main components
of your instrument panel are:
A. Fuse Panel
B. Vent
C. Turn SignalMultifunction Lever
D. Supplemental Restraint System (SRS)
E. Hazard Warning Flashers Switch
E Instrument Cluster
G. Windshield WipersNasher Stalk
H. Audio System
I. Side Window Defogger Vent
J. Glove Box
K. Climate Control System L. Gear Shift Lever
M. Cupholder/Ashtray
(If Equipped)
N. Enhanced Traction System (ETS) Switch
0. Accessory Power Outleaighter (If Equipped)
(If Equipped)
P. Ignition Switch
Q. Tilt Steering Wheel Lever (If Equipped)
R. Fog Lamp Switch
S. Instrument Panel Intensity Controlhterior
Lamps Switch
T. Hood Release Handle
2-55
