PONTIAC GRAND AM 1998 Owners Manual

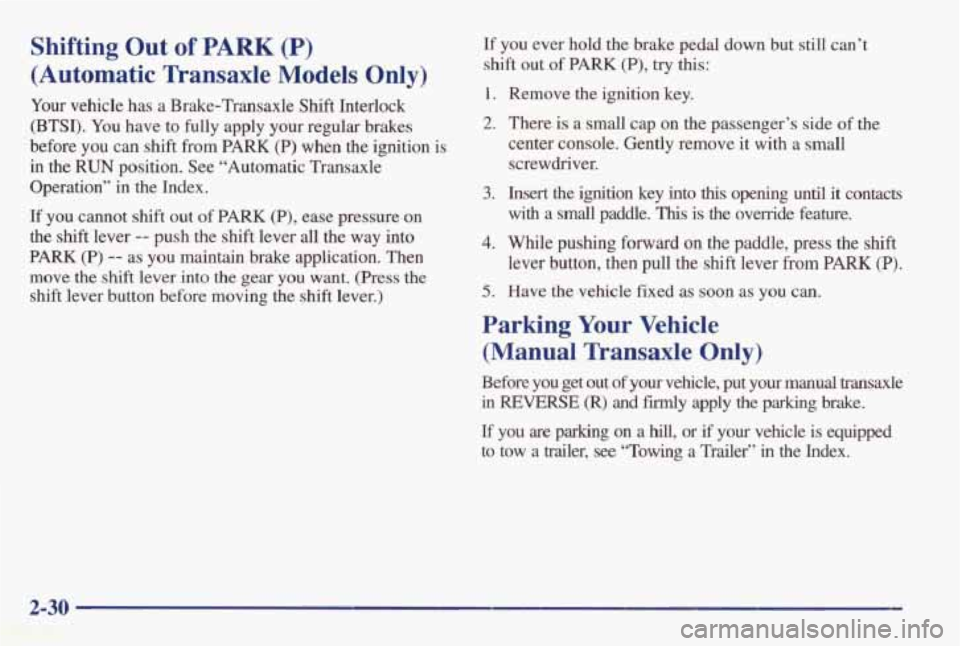

Shifting Out of PARK (P)
(Automatic Transaxle Models Only)
Your vehicle has a Brake-Transaxle Shift Interlock
(BTSI). You have to
fully apply your regular brakes
before you can shift from PARK
(P) when the ignition is
in the
RUN position. See “Automatic Transaxle
Operation” in the Index.
If you cannot shift out of PARK (P), ease pressure on
the
shift lever -- push the shift lever all the way into
PARK (P) -- as you maintain brake application. Then
move the shift lever into the gear you want. (Press the
shift lever button before moving the shift lever.) If you
ever hold the brake pedal down
but still can’t
shift out of
PARK (P), try this:
1. Remove the ignition key.
2. There is a small cap on the passenger’s side of the
center console. Gently remove it
with a small
screwdriver.
3. Insert the ignition key into this opening until it contacts
with a small paddle. This is the override feature.
4. While pushing forward on the paddle, press the shift
lever button, then pull the shift lever from PARK (P).
5. Have the vehicle fixed as soon as you can.
Parking Your Vehicle
(Manual Transaxle Only)
Before you get out of your vehicle, put your manual transaxle
in REVERSE (R) and firmly apply the parking brake.
If you are parking on a hill, or if your vehicle is equipped
to tow a trailer, see “Towing a Trailer’’ in the Index.
2-30

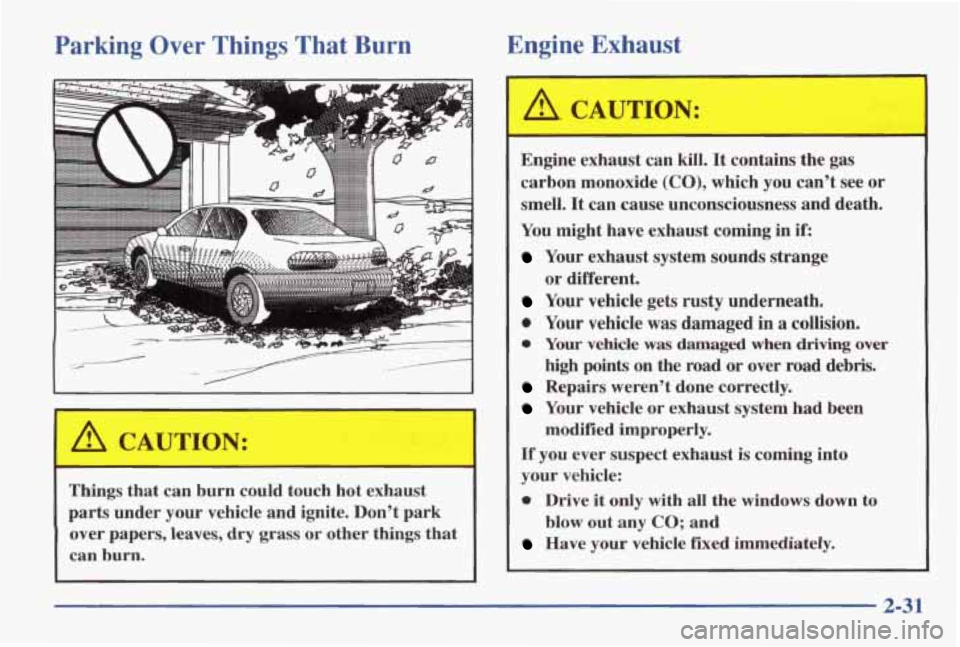

Parking Over Things That Burn Engine
Exhaust
Things that can burn could touch hot exhaust
parts under your vehicle and ignite. Don't park
over papers,
leaves, dry grass or other things that
can burn. 1
Engine exhaust can kill. It contains the gas
carbon monoxide
(CO), which you can't see or
smell.
It can cause unconsciousness and death.
You might have exhaust coming in
if:
Your exhaust system sounds strange
Your vehicle gets rusty underneath.
0 Your vehicle was damaged in a collision.
0 Your vehicle was damaged when driving over
high points on the road or over road debris.
Repairs weren't done correctly.
Your vehicle or exhaust system had been
or
different.
modified improperly.
If you ever suspect exhaust is coming into
your vehicle:
0 Drive it only with all the windows down to
Have your vehicle fixed immediately.
blow
out any
CO; and
2-31

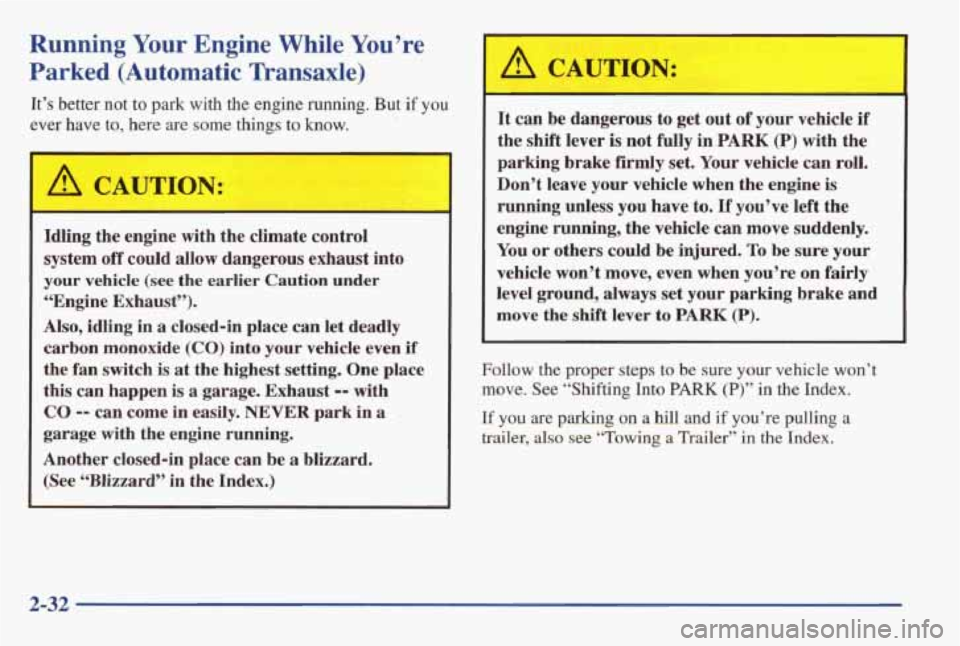

Running Your Engine While You’re
Parked (Automatic Transaxle)
It’s better not to park with the engine running. But if you
ever have to, here are some things to know.
I-
A CAUTION:
-
Idling the engine with the climate control
system
off could allow dangerous exhaust into
your vehicle (see the earlier Caution under
“Engine Exhaust”).
Also, idling in
a closed-in place can let deadly
carbon monoxide
(CO) into your vehicle even if
the fan switch is at the highest setting. One place
this can happen is a garage. Exhaust -- with
CO -- can come in easily. NEVER park in a .
garage with the engine running.
Another closed-in place can be
a blizzard.
(See “Blizzard” in the Index.)
A CAUTION:
-1
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly
set. Your vehicle can roll.
Don’t leave your vehicle when the engine
is
running unless you have to. If you’ve left the
engine running, the vehicle can move suddenly.
You
or others could be injured. To be sure your
vehicle won’t move, even when you’re
on fairly
level ground, always set your parking brake and
move the shift lever
to PARK (P).
Follow the proper steps to be sure your vehicle won’t
move. See “Shifting Into
PARK (P)” in the Index.
If you are parking on a hill and if you’re pulling a
trailer,
also see “Towing a Trailer” in the Index.
2-32

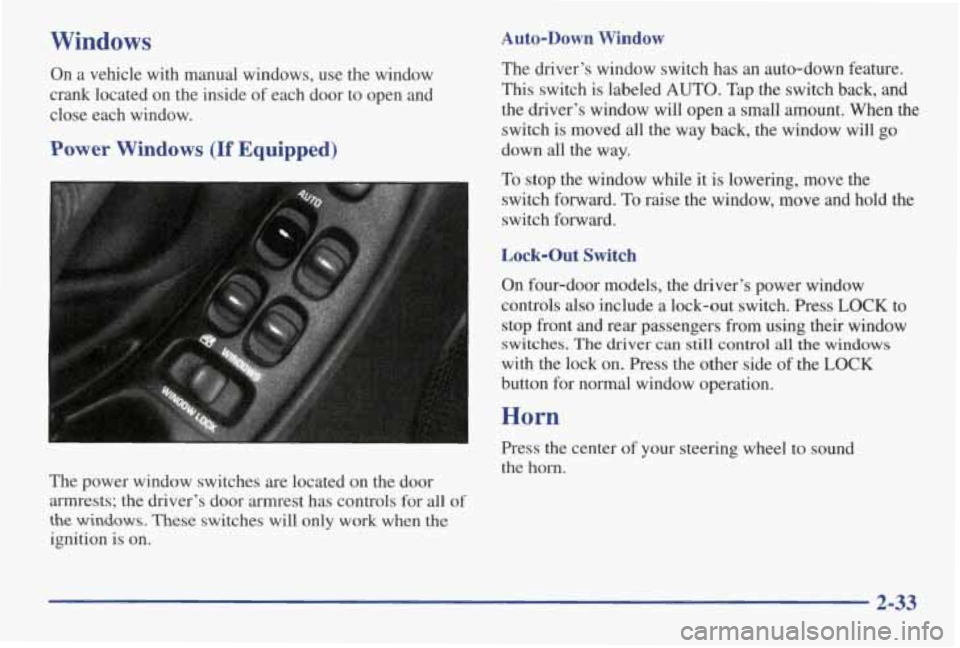

Windows
On a vehicle with manual windows, use the window
crank located on the inside of each door to open and
close each window.
Power Windows (If Equipped)
The power window switches are located on the door armrests; the driver’s door armrest has controls for all
of
the windows, These switches will only work when the
ignition is on.
Auto-Down Window
The driver’s window switch has an auto-down feature.
This switch is labeled
AUTO. Tap the switch back, and
the driver’s window will open a small amount. When the
switch is moved all the way back, the window will go
down all the way.
To stop the window while it is lowering, move the
switch forward.
To raise the window, move and hold the
switch forward.
On four-door models, the driver’s power window
controls
also include a lock-out switch. Press LOCK to
stop front
and rear passengers from using their window
switches.
The driver can still control all the windows
with the lock on. Press the other side of the LOCK
button for normal window operation.
Horn
Press the center of your steering wheel to sound
the
horn.
2-33

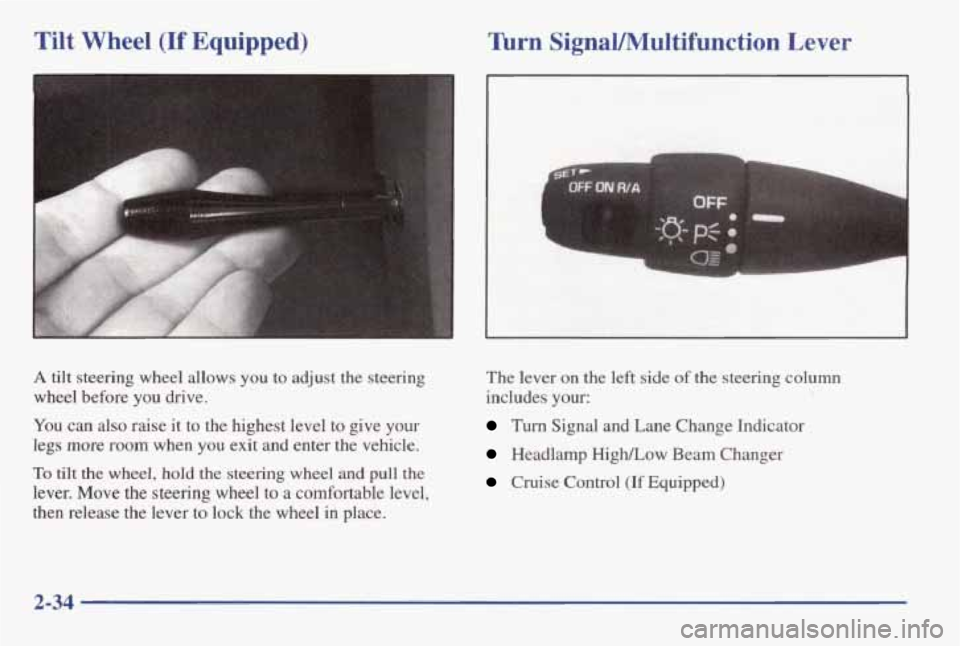

Tilt Wheel (If Equipped) lhrn SignaVMultifunction Lever
A tilt steering wheel allows you to adjust the steering
wheel before you drive.
You can also raise it to the highest level to give your
legs
more room when you exit and enter the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever. Move the steering wheel to
a comfortable level,
then release the lever
to lock the wheel in place. The lever
on the
left side of the steering column
includes your:
Turn Signal and Lane Change Indicator
Headlamp High/Low Beam Changer
Cruise Control (If Equipped)
2-34

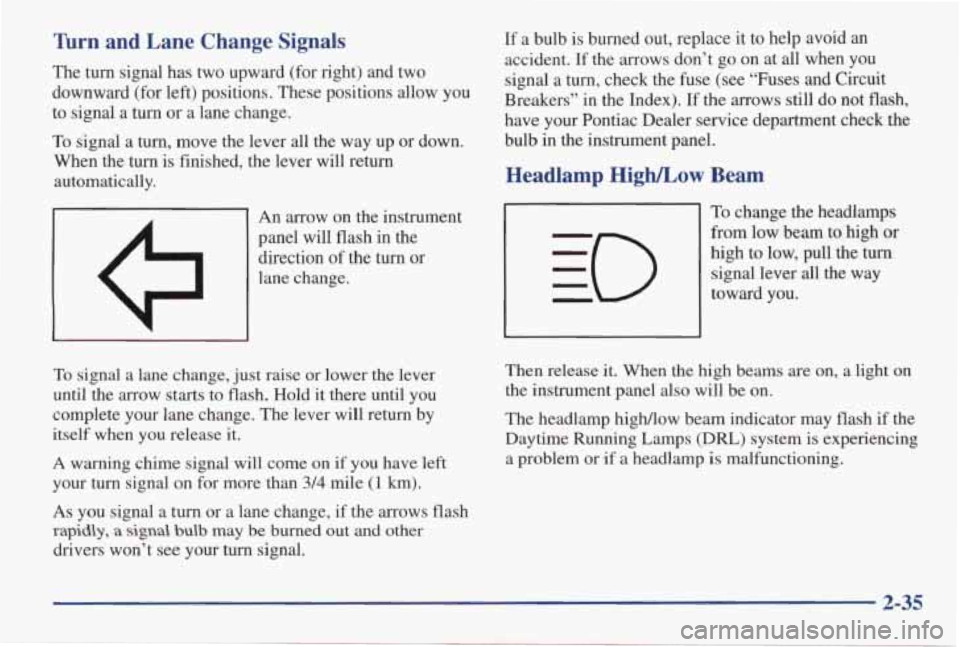

’hrn and Lane Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn
or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is finished, the lever will return
automatically.
An arrow on the instrument
panel will flash in the direction of the turn
or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold
it there until you
complete your lane change. The lever will return by
itself when you release it.
A warning chime signal will come on if you have left
your turn signal on for more than 3/4 mile
(1 km).
As you signal a turn or a lane change, if the arrows flash
rapidly, a signal bulb may be burned out and other
drivers won’t see your turn signal. If
a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t
go on at all when you
signal a turn, check the fuse (see “Fuses
and Circuit
Breakers’’ in the Index).
If the arrows still do not flash,
have your Pontiac Dealer service department check
the
bulb in the instrument panel.
Headlamp Highhow Beam
To change the headlamps
from low beam to high
or
high to low, pull the turn
signal lever all the way
toward
you.
Then release it. When the high beams are on, a light on
the instrument panel also will be on.
The headlamp higMow beam indicator may flash if the
Daytime Running Lamps
(Dm) system is experiencing
a problem or
if a headlamp is malfunctioning.
2-35

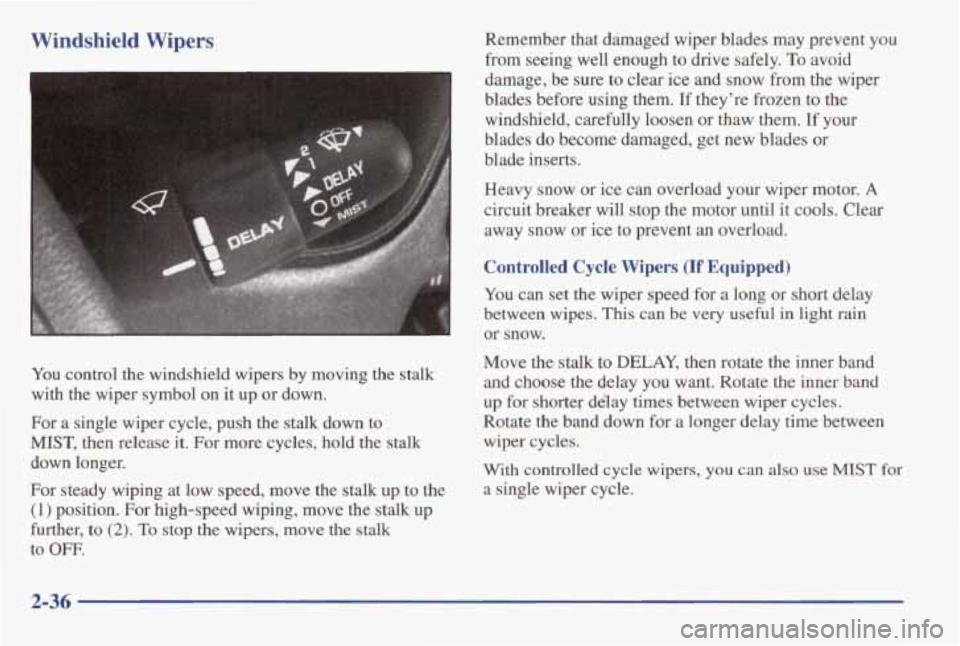

Windshield Wipers Remember that damaged wiper blades may prevent you
from seeing well enough to drive safely.
To avoid
damage, be sure to clear
ice and snow from the wiper
blades before using them. If they’re frozen to the
windshield, carefully loosen or thaw them.
If your
blades do become damaged, get new blades or
blade inserts.
Heavy snow or
ice can overload your wiper motor. A
circuit breaker will stop the motor until it cools. Clear
away snow or
ice to prevent an overload.
Controlled Cycle Wipers (If Equipped)
You can set the wiper speed for a long or short delay
between wipes.
This can be very useful in light rain
or snow.
You control the windshield wipers by moving the stalk
with the wiper symbol on it up
or down.
For a single wiper cycle, push the stalk down to
MIST, then release it. For more cycles, hold the stalk
down longer.
For steady wiping at low speed, move the stalk up to the
(1) position. For high-speed wiping, move the stalk up
further, to
(2). To stop the wipers, move the stalk
to OFF.
Move the stalk to DELAY, then rotate the inner band
and choose the delay you want. Rotate the inner band
up
for shorter delay times between wiper cycles.
Rotate the band down for
a longer delay time between
wiper cycles.
With
controlled cycle wipers, you can also use MIST for
a single wiper cycle.
2-36

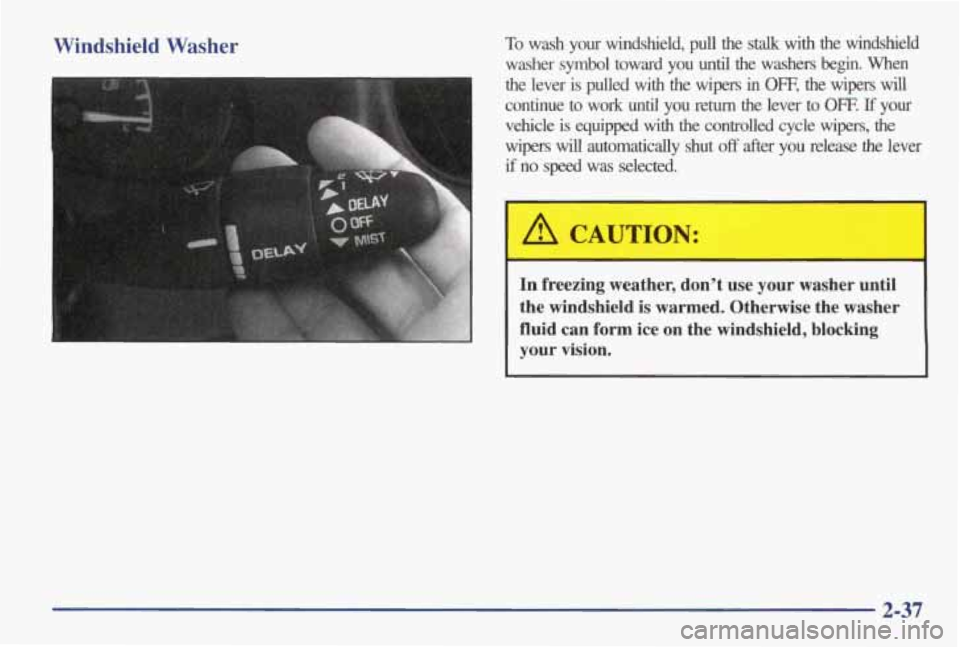

Windshield Washer To wash your windshield, pull the stalk with the windshield
washer symbol toward you until the washers
begin. When
the lever is pulled with the wipers in Om, the wipers will
continue to work until you return the lever to OFF. If your
vehicle
is equipped with the controlled cycle wipers, the
wipers will automatically shut off after you release the lever
if no speed was selected.
A CAUTION:
I
In freezing weather, don’t use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
2-37

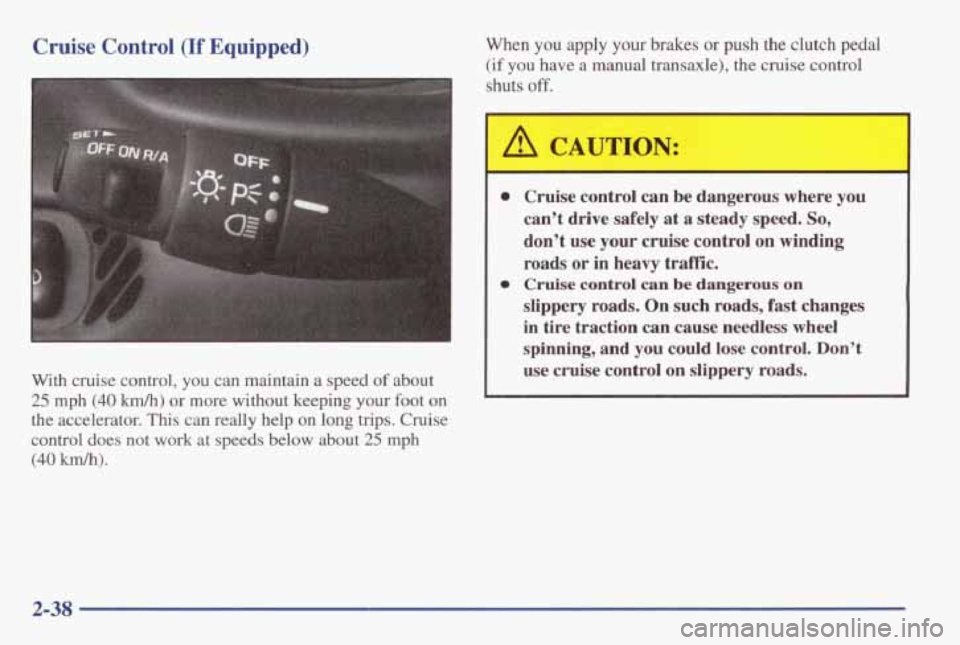

Cruise Control (If Equipped)
With cruise control, you can maintain a speed of about
25 mph (40 km/h) or more without keeping your foot on
the accelerator. This can really help on long
trips. Cruise
control
does not work at speeds below about 25 mph
(40 km/h).
When you apply your brakes or push the clutch pedal
(if you have a manual transaxle), the cruise control
shuts off.
A CAUTION:
0
0
Cruise control can be dangerous where you
can’t drive safely at a steady speed. So,
don’t use your cruise control on winding
roads or in heavy traffic.
Cruise control can be dangerous on
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and
you could lose control. Don’t
use cruise control on slippery roads.
2-38

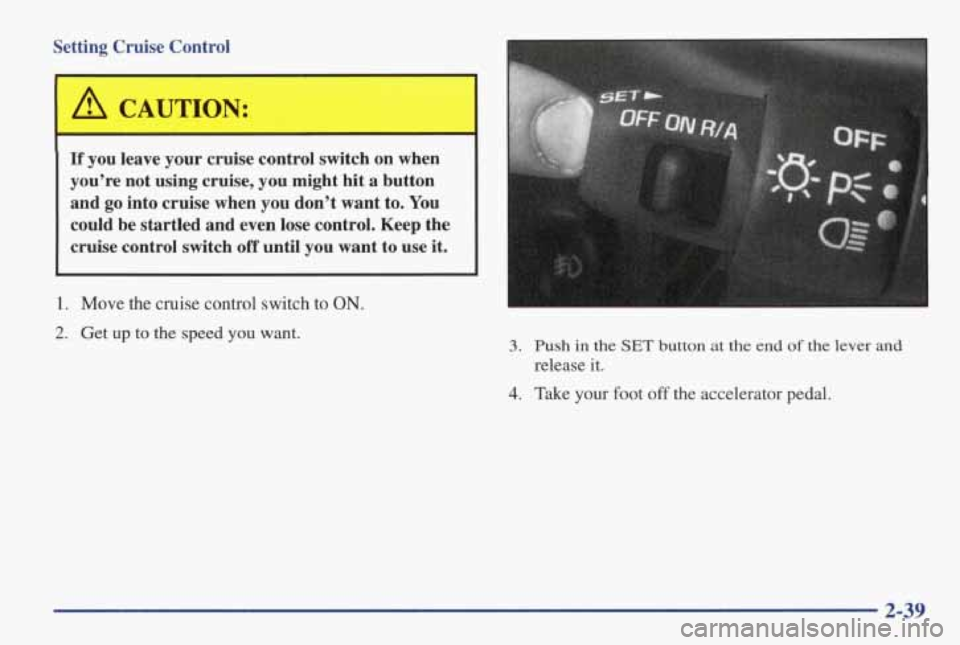

Setting Cruise Control
A CAUTION:
If you leave your cruise control switch on when
you’re not using cruise, you might hit
a button
and go into cruise when you don’t want to. You
could be startled and even lose control.
Keep the
cruise control switch
off until you want to use it.
1. Move the cruise control switch to ON.
2. Get up to the speed you want. 3. Push in the SET button at the end sf the lever and
release it.
4. Take your foot off the accelerator pedal.
2-39
