trunk release PONTIAC GRAND AM 2003 Owners Manual

Rear Seats
Rear Seat Operation
Folding the Seatback
If your vehicle has this feature, do the following:
2. Fold the seatback down from the inside of the
vehicle.
To raise the seatback, push the seatback up
to return it
to its original position.
Push and pull on the seatback
to make sure it is latched
securely in the fully upright position.
1. Pull the release straps
located in the trunk.
The right strap operates
the passenger’s side
rear split seat. The left
strap operates the
driver’s side rear
split seat.
1-8

gf (Unlock): The driver's door will unlock
automatically when this button on the transmitter is
pressed. If the button
is pressed again within five
seconds, all remaining doors will unlock. The interior
lamps will stay on for
10 seconds or until the ignition is
turned on. The parking lamps will flash twice to
indicate unlocking has occurred.
(Remote Trunk Release): The trunk will unlock
when the vehicle symbol on the transmitter is pressed,
as long as the trunk lockout is not engaged. You
can open the trunk with the transmitter when the vehicle
speed is less than
2 mph (3 km/h), when the parking
brake is engaged, or when the ignition is
off. The interior
lamps will come on for
10 seconds or until the ignition
switch is turned to
ON.
& (Horn): The horn will sound and the headlamps
and the parking lamps will flash for up to two minutes
when the horn symbol on the transmitter is pressed. The
interior lamps will come on and remain on while the
horn is sounding and the lamps are flashing. The horn
and lamps can be turned
off by pressing the horn
symbol button again or by turning the ignition to
ON.
Programmable Horn Chirp
When you use the remote keyless entry transmitter to
lock the doors or use the delayed locking feature
the parking lamps will flash and the horn will chirp.
The programmable horn chirp can be disabled by
pressing and holding either of the door lock switches in
the unlock position for
10 seconds with the ignition
ON and all of the doors closed. When you hear the horn
chirp, programming is complete.
To reactivate the horn chirp feature, repeat the above
procedure.
Matching Transmitter(s) to Your
Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
-n rnrn-ininm tmncmittnrc with \In1 I wh@n \In[ 1 nn 10 ully IUIII~ll'llly La-, lY I,,,.. .,.- ..., , I-- I--' J-
2-5

Remote Trunk Release
Remote Trunk Release Lockout
Your remote trunk release has a lockout feature. The
switch is located on the inside of the trunk lid, mounted
on the trunk lid latch.
Press the remote trunk release button, located on the
driver’s door, to release the trunk lid.
Make sure the remote trunk release lockout feature is
not activated.
Also, the remote trunk release will
only work when either the ignition is
off, the parking
brake is engaged or the vehicle speed is less than
2 mph (3 km/h).
T5 k!T the !ccknnt nn, S!kk ?he s?nli?nh e!! the way tn
the left (ON). To turn the lockout off, slide the switch all
the way to the right
(OFF).
When the lockout is on, the remote trunk release switch
on the instrument panel
will not release the trunk lid.
Hcwever, the trunk lid can stil! he opened with the keyj
but not with the remote keyless entry transmitter.
2-1 3

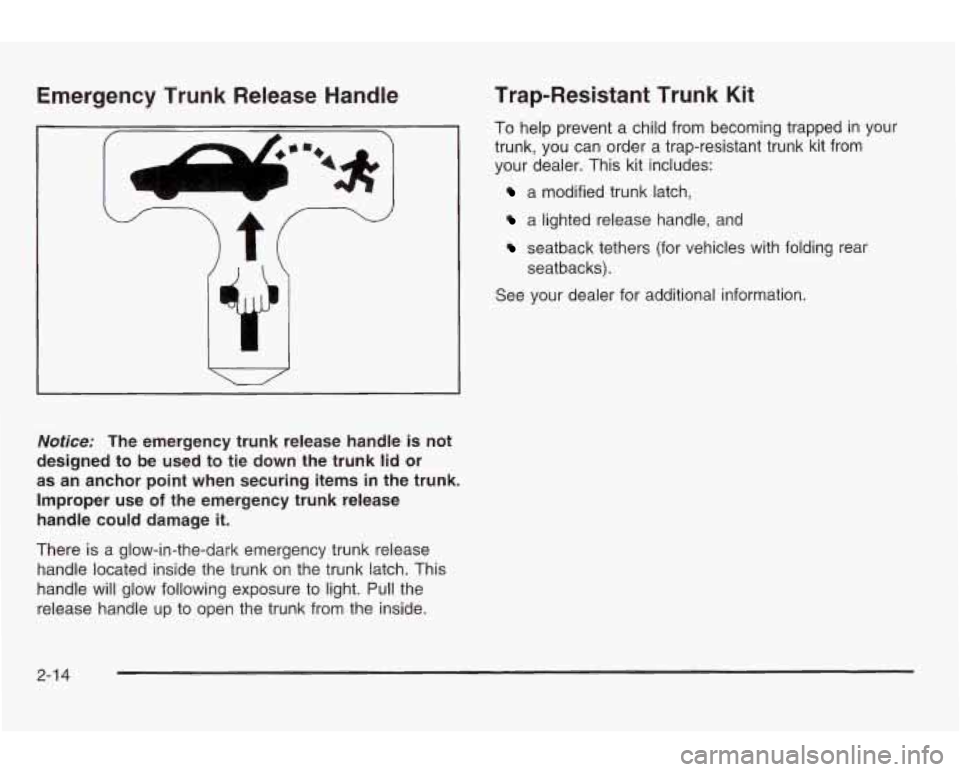

Emergency Trunk Release Handle
Notice: The emergency trunk release handle is not
designed to be used to tie down the trunk lid or
as an anchor point when securing items in the trunk.
Improper use
of the emergency trunk release
handle could damage it.
There is a glow-in-the-dark emergency trunk release
handle located inside the trunk on the trunk latch. This
handle will glow following exposure
to light. Pull the
release handle up
to open the trunk from the inside.
Trap-Resistant Trunk Kit
To help prevent a child from becoming trapped in your
trunk, you can order a trap-resistant trunk kit from
your dealer. This kit includes:
a modified trunk latch,
a lighted release handle, and
seatback tethers (for vehicles with folding rear
seatbacks).
See your dealer for additional information.
2-1 4

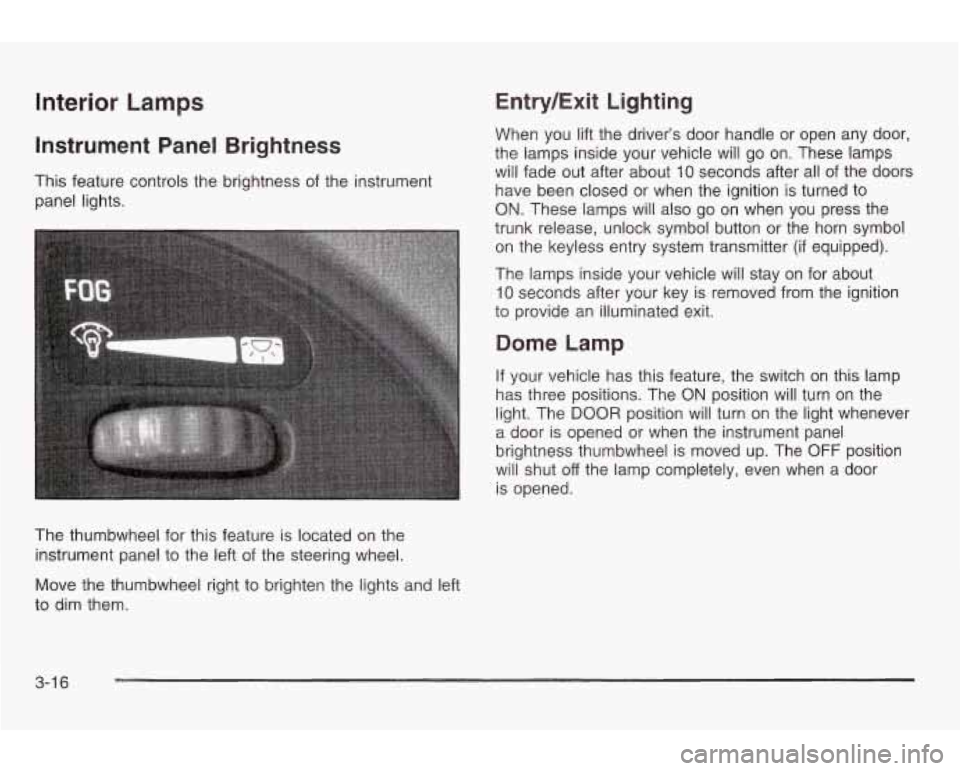

Interior Lamps
Instrument Panel Brightness
This feature controls the brightness of the instrument
panel lights.
The thumbwheel for this feature
is located on the
instrument panel
to the left of the steering wheel.
Entry/Exit Lighting
When you lift the driver’s door handle or open any door,
the lamps inside your vehicle will go on. These lamps
will fade out after about
10 seconds after all of the doors
have been closed or when the ignition is turned to
ON. These lamps will also go on when you press the
trunk release, unlock symbol button or the horn symbol on the keyless entry system transmitter (if equipped).
The lamps inside your vehicle will stay on for about
10 seconds after your key is removed from the ignition
to provide an illuminated exit.
Dome Lamp
If your vehicle has this feature, the switch on this lamp
has three positions. The
ON position will turn on the
light. The
DOOR position will turn on the light whenever
a door is opened or when the instrument panel
brightness thumbwheel is moved up. The OFF position
will shut
off the lamp completely, even when a door
is opened.
Move the thumbwheel right
to brighten the lights and left
to dim them.
3-1 6

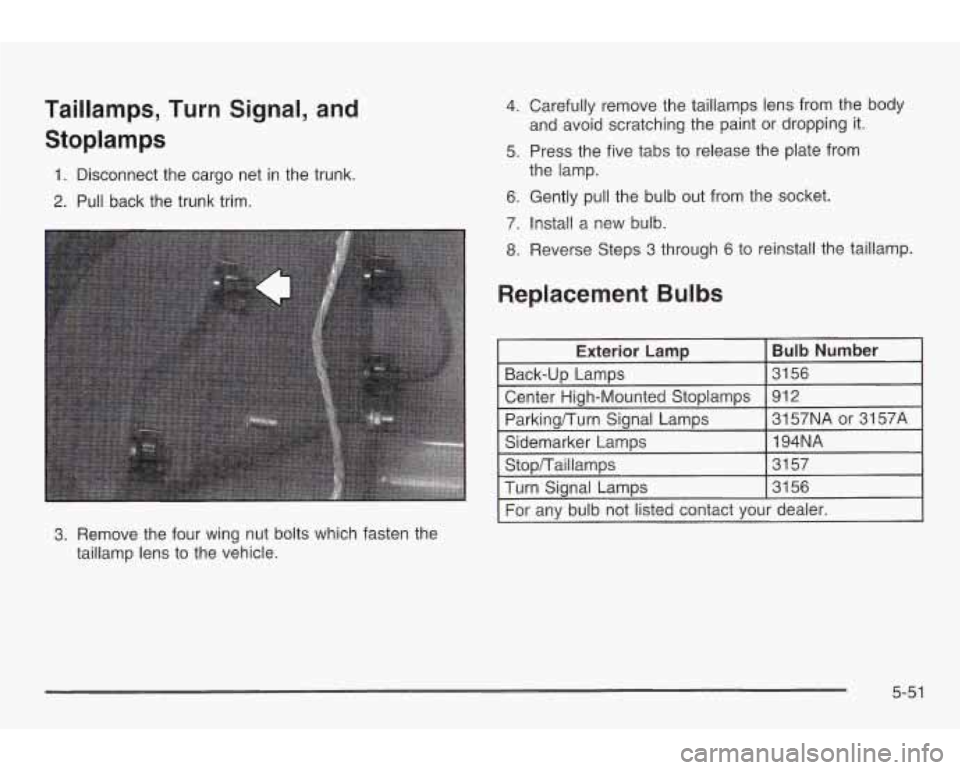

Taillamps, Turn Signal, and
Stoplamps
1. Disconnect the cargo net in the trunk.
2. Pull back the trunk trim.
3. Remove the four wing nut bolts which fasten the
taillamp lens to the vehicle.
4. Carefully remove the taillamps lens from the body
and avoid scratching the paint or dropping it.
5. Press the five tabs to release the plate from
the lamp.
6. Gently pull the bulb out from the socket.
7. Install a new bulb.
8. Reverse Steps 3 through 6 to reinstall the taillamp.
Replacement Bulbs
Stop/Taillamps 31 57
Turn Siunal Lamps 31 56 " -
For any bulb not listed contact your dealer.
5-51

Instrument Panel Fuse Block
(Driver’s Side)
f
A) WIPER E) TRUNKREL RADIO AMP C) TURN LPS D) PWR MIRROR E) AIR BAG
G) PCMACC F) BFCBATT
H)
DRLOCK I) IPC/ BFC ACC J) STOP LPS
L) IPC / HVAC BATT
OIL
= H)n?I DR UNLOCK
El pq DR UNLOCK
Fuses Usage
WIPER Windshield Wiper Motor,
TRUNK REU Trunk Release
Relay/Motor,
RADIO AMP Audio AmplifiedRFA
TURN LPS Turn
Signal Lamps
Washer Pump Fuses
PWR MIRROR
AIR BAG
BFC BATT
PCM ACC
DR LOCK
I PC/BFC ACC
STOP LPS
HAZARD LPS
I PC/HVAC
BATT
Circuit Breakers
PWR SEAT
Relay
TRUNK REL
DR UNLOCK DR LOCK
DRIVER DR
UNLOCK Usage
Power Mirrors
Air Bags Body Computer (BFC)
Power Control Module (PCM)
Door Lock Motors
Cluster, Body Computer (BFC)
Stop Lamps Hazard Lamps HVAC Head, Cluster, Data Link
Connector
Usage Power Seats
Usage
Trunk Relay
Door Unlock Relay Door Lock Relay
Driver’s Door Unlock Relay
5-82

Engine Compartment Fuse Block
The engine compartment fuse block is located on the
driver’s side
of the engine compartment, near the
battery.
.
Fuse
1
2
Usage
Ignition Switch
Right Electrical Center-Fog Lamps,
Radio, Body Function Control
Module, Interior Lamps Fuse
3
4
5
6
7
8
Relays
9
10
11
12
13
14
15 Usage
Left Electrical Center-Stop Lamps,
Hazard Lamps, Body Function
Control Module, Cluster, Climate
Control System
Anti-Lock Brakes
Left Electrical Center-Power Seats,
Power Mirrors, Door Locks, Trunk
Release, Audio Amplifier, Remote
Keyless Entry
Not Used Ignition Switch
Cooling Fan
#I
Usage
Rear Defog
Not Used
Starter
Cooling Fan #1
HVAC Blower (Climate Control)
Cooling Fan #2
Cooling Fan
5-84
