PONTIAC SOLSTICE 2009 Owners Manual

{CAUTION:
Fuel can spray out on you if you open the fuel cap
too quickly. If you spill fuel and then something
ignites it, you could be badly burned. This spray
can happen if the tank is nearly full, and is more
likely in hot weather. Open the fuel cap slowly and
wait for any hiss noise to stop. Then unscrew the
cap all the way.
Be careful not to spill fuel. Do not top off or overll the
tank and wait a few seconds after you have nished
pumping before removing the nozzle. Clean fuel
from painted surfaces as soon as possible. See
Washing Your Vehicle on page 5-93.
When replacing the fuel cap, turn it clockwise until it
clicks. Make sure the cap is fully installed. The
diagnostic system can determine if the fuel cap has
been left off or improperly installed. This would allow fuel
to evaporate into the atmosphere. SeeMalfunction
Indicator Lamp on page 3-29.The vehicle has a Driver Information Center (DIC). The
CHECK GAS CAP message displays if the fuel cap
is not properly installed. SeeDIC Warnings and
Messages on page 3-37for more information.
{CAUTION:
If a re starts while you are refueling, do not
remove the nozzle. Shut off the ow of fuel by
shutting off the pump or by notifying the station
attendant. Leave the area immediately.
Notice:If you need a new fuel cap, be sure to get
the right type. Your dealer/retailer can get one
for you. If you get the wrong type, it may not t
properly. This may cause the malfunction indicator
lamp to light and may damage the fuel tank and
emissions system. SeeMalfunction Indicator Lamp
on page 3-29.
5-9

Filling a Portable Fuel Container
{CAUTION:
Never ll a portable fuel container while it is in the
vehicle. Static electricity discharge from the
container can ignite the fuel vapor. You can be
badly burned and the vehicle damaged if this
occurs. To help avoid injury to you and others:
Dispense fuel only into approved containers.
Do not ll a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed, or on
any surface other than the ground.
Bring the ll nozzle in contact with the inside
of the ll opening before operating the nozzle.
Contact should be maintained until the lling
is complete.
Do not smoke while pumping fuel.
Do not use a cellular phone while
pumping fuel.
Checking Things Under
the Hood
{CAUTION:
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing, and tools away from any
underhood electric fan.
{CAUTION:
Things that burn can get on hot engine parts and
start a re. These include liquids like fuel, oil,
coolant, brake uid, windshield washer and other
uids, and plastic or rubber. You or others could
be burned. Be careful not to drop or spill things
that will burn onto a hot engine.
5-10

Hood Release
To open the hood, do the following:
1. Locate the interior
hood release lever. It is
located below the
instrument panel on
the driver’s side of the
vehicle.2. Pull down on the rear
edge of the lever to
release the hood latch.
3. Go to the side of the vehicle and pull up on the
rear edge of the hood, near the windshield to
open the hood.
Notice:Closing the hood with the doors open may
damage the hood and/or doors. Always close the
doors before closing the hood.
Before closing the hood, be sure all the ller caps are
on properly. Then, pull the hood down and close it rmly.
5-11

Engine Compartment Overview
When you open the hood on the 2.4L L4 engine, this is what you will see:
5-12

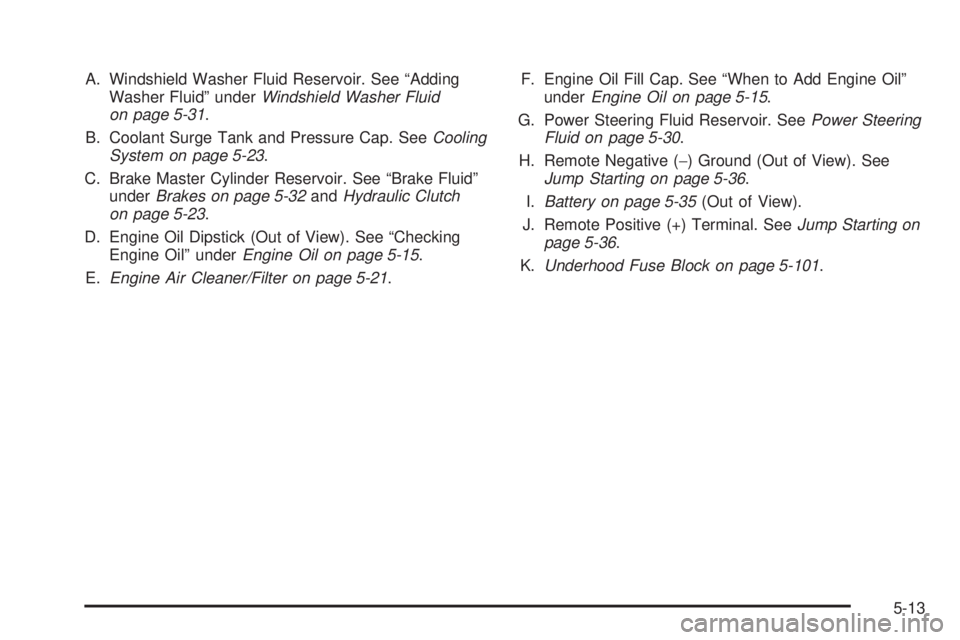

A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-31.
B. Coolant Surge Tank and Pressure Cap. SeeCooling
System on page 5-23.
C. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-32andHydraulic Clutch
on page 5-23.
D. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-15.
E.Engine Air Cleaner/Filter on page 5-21.F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-15.
G. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-30.
H. Remote Negative (−) Ground (Out of View). See
Jump Starting on page 5-36.
I.Battery on page 5-35(Out of View).
J. Remote Positive (+) Terminal. SeeJump Starting on
page 5-36.
K.Underhood Fuse Block on page 5-101.
5-13

When you open the hood on the 2.0L L4 engine, this is what you will see:
5-14

A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-31.
B. Coolant Surge Tank and Pressure Cap. SeeCooling
System on page 5-23.
C. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-32andHydraulic Clutch
on page 5-23.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-15.
E.Engine Air Cleaner/Filter on page 5-21.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-15.
G. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-30.
H. Remote Negative (−) Ground (Out of View). See
Jump Starting on page 5-36.
I.Battery on page 5-35(Out of View).
J. Remote Positive (+) Terminal. SeeJump Starting on
page 5-36.
K.Underhood Fuse Block on page 5-101.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop. See
Engine Compartment Overview on page 5-12for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it
again, keeping the tip down and check the level.
5-15

When to Add Engine Oil
If the oil is below the MIN (minimum) mark, add at least
one quart/liter of the recommended oil. This section
explains what kind of oil to use. For engine oil crankcase
capacity, seeCapacities and Specifications on
page 5-104.
Notice:Do not add too much oil. If the engine has
so much oil that the oil level gets above the
upper mark that shows the proper operating range,
the engine could be damaged.SeeEngine Compartment Overview on page 5-12for
the location of the engine oil ll cap.
Add enough oil to put the level somewhere in the proper
operating range. Push the dipstick all the way back in
when you are through.2.4L L4 Engine2.0L L4 Engine
5-16

What Kind of Engine Oil to Use
For Vehicles With the 2.0L L4 Engine
Look for three things:
GM4718M
This vehicle’s engine requires a special oil meeting
GM Standard GM4718M, such as Mobil 1
®or
equivalent. Oils meeting this standard may be
identied as synthetic. However, not all synthetic oils
will meet this GM standard. Use only an oil that
meets GM Standard GM4718M.Notice:Using oils that do not have the GM4718M
Standard designation can cause engine damage not
covered by the vehicle warranty.
SAE 5W-30
SAE 5W-30 is best for the vehicle. These numbers
on an oil container show its viscosity, or thickness.
Do not use other viscosity oils such as SAE 20W-50.
American Petroleum Institute (API) starburst
symbol
Oils meeting these
requirements should have
the starburst symbol on
the container. This symbol
indicates that the oil
has been certied by the
American Petroleum
Institute (API).
This vehicle’s engine was lled at the factory with a
synthetic oil meeting all requirements for this vehicle.
Substitute Engine Oil: When adding oil to maintain
engine oil level, oil meeting GM Standard GM4718M
might not be available. You can add substitute oil
designated SAE 5W-30 with the starburst symbol at all
temperatures. Substitute oil not meeting GM Standard
GM4718M should not be used for an oil change.
5-17

For Vehicles With the 2.4L L4 Engine
Look for three things:
GM6094M
Use only an oil that meets GM Standard GM6094M.
SAE 5W-30
SAE 5W-30 is best for the vehicle. These numbers
on an oil container show its viscosity, or thickness.
Do not use other viscosity oils such as SAE 20W-50.
American Petroleum Institute (API) starburst symbol
Oils meeting these
requirements should have
the starburst symbol on
the container. This symbol
indicates that the oil
has been certied by the
American Petroleum
Institute (API).
Notice:Use only engine oil identied as meeting
GM Standard GM6094M and showing the American
Petroleum Institute Certied For Gasoline Engines
starburst symbol. Failure to use the recommended
oil can result in engine damage not covered by
the vehicle warranty.
5-18
