display Ram 1500 2016 Owner's Guide

If your vehicle is not equipped with a touchscreen, this
feature can be programmed through the Electronic Ve-
hicle Information Center (EVIC) or Driver Information
Display (DID). Refer to “Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID)” in
“Understanding Your Instrument Panel” for further in-
formation.

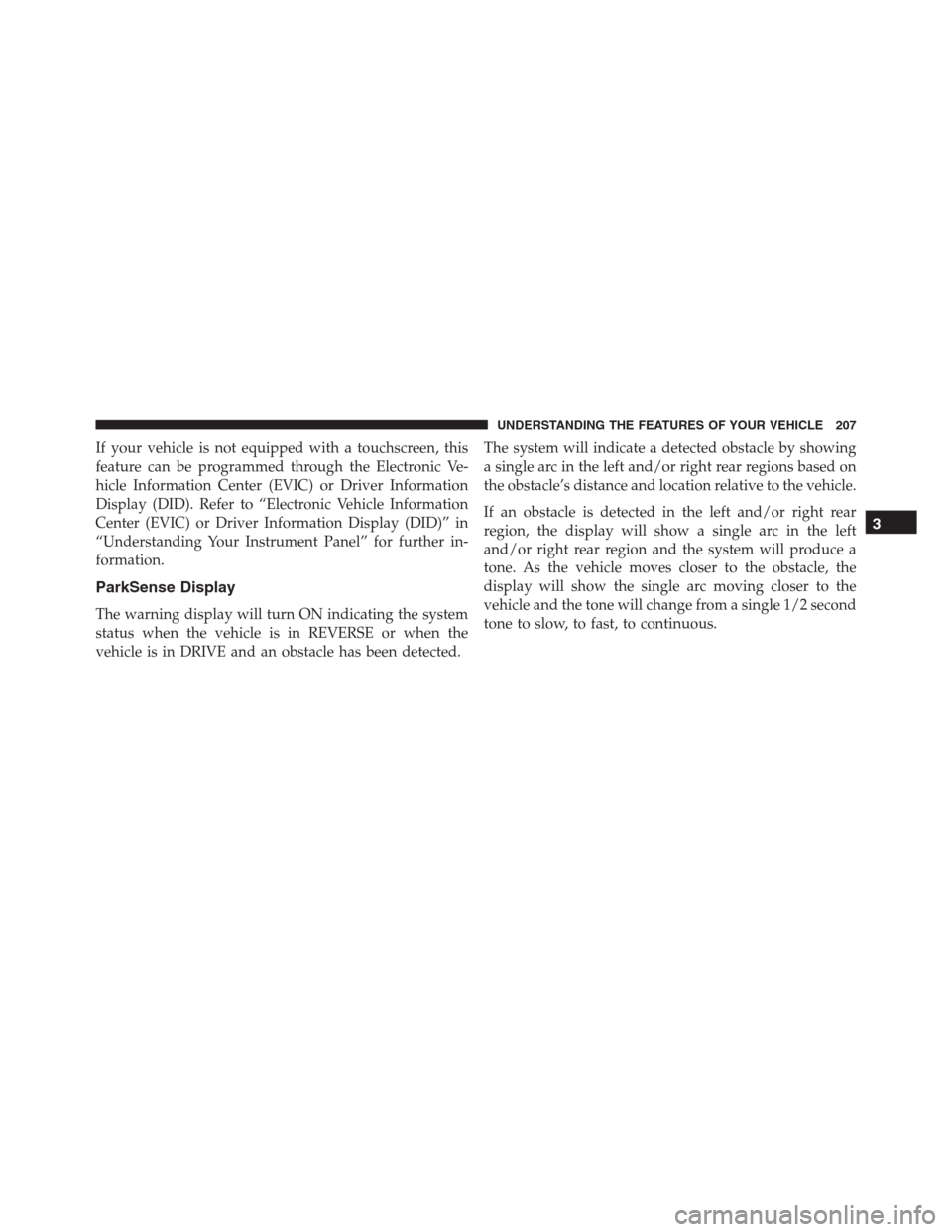

ParkSense Display
The warning display will turn ON indicating the system
status when the vehicle is in REVERSE or when the
vehicle is in DRIVE and an obstacle has been detected.The system will indicate a detected obstacle by showing
a single arc in the left and/or right rear regions based on
the obstacle’s distance and location relative to the vehicle.
If an obstacle is detected in the left and/or right rear
region, the display will show a single arc in the left
and/or right rear region and the system will produce a
tone. As the vehicle moves closer to the obstacle, the
display will show the single arc moving closer to the
vehicle and the tone will change from a single 1/2 second
tone to slow, to fast, to continuous.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207

The vehicle is close to the obstacle when the display
shows one flashing arc and sounds a continuous tone.

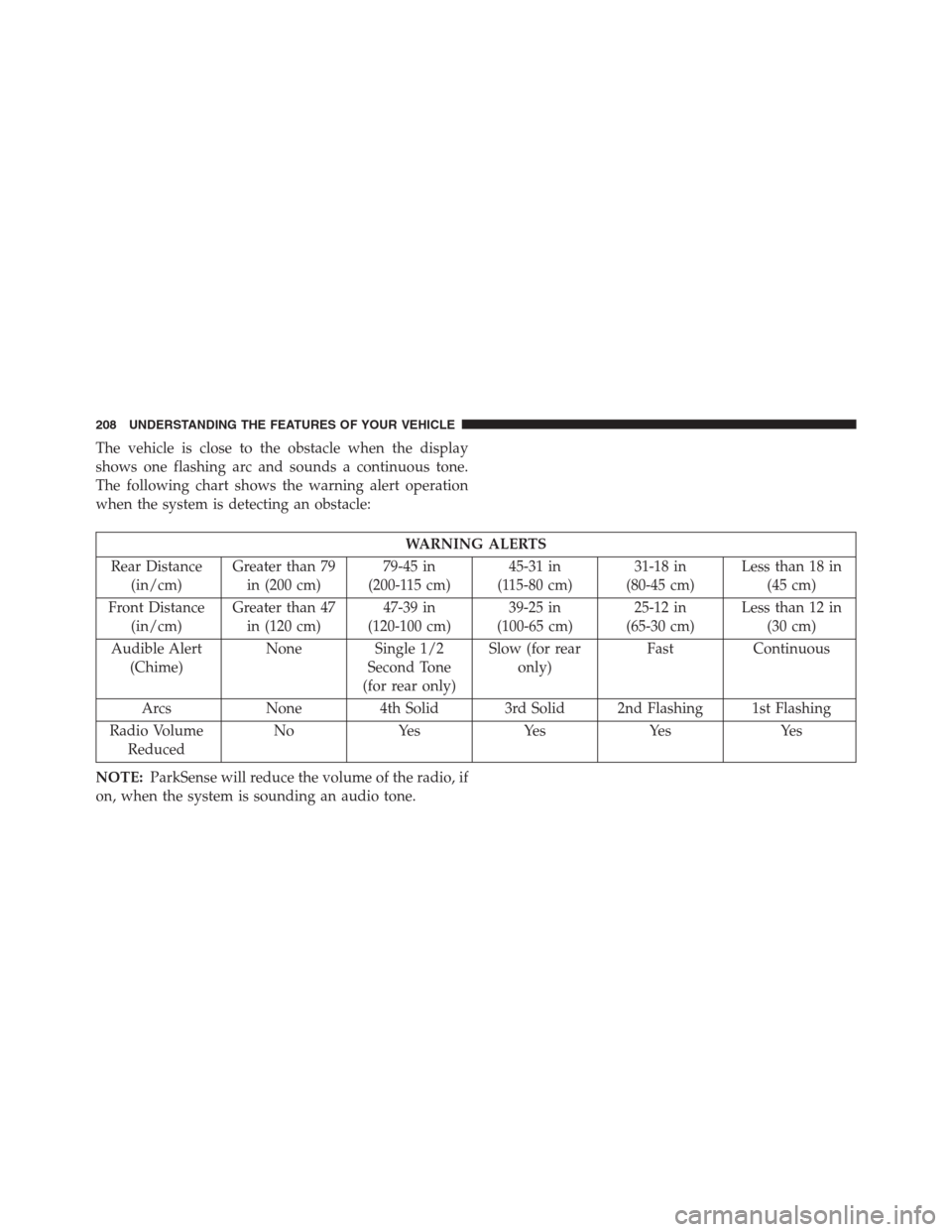

The following chart shows the warning alert operation
when the system is detecting an obstacle:
WARNING ALERTS
Rear Distance
(in/cm)Greater than 79
in (200 cm)79-45 in
(200-115 cm)45-31 in
(115-80 cm)31-18 in
(80-45 cm)Less than 18 in
(45 cm)
Front Distance
(in/cm)Greater than 47
in (120 cm)47-39 in
(120-100 cm)39-25 in
(100-65 cm)25-12 in
(65-30 cm)Less than 12 in
(30 cm)
Audible Alert
(Chime)None Single 1/2
Second Tone
(for rear only)Slow (for rear
only)Fast Continuous
Arcs None 4th Solid 3rd Solid 2nd Flashing 1st Flashing
Radio Volume
ReducedNo Yes Yes Yes Yes
NOTE:ParkSense will reduce the volume of the radio, if
on, when the system is sounding an audio tone.
208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Front Park Assist Audible Alerts
ParkSense will turn off the Front Park Assist audible alert
(chime) after approximately three seconds when an ob-
stacle has been detected, the vehicle is stationary, and
brake pedal is applied.
Adjustable Chime Volume Settings
The Front and Rear chime volume settings are program-
mable.
•If your vehicle is equipped with a touchscreen, the
settings may be programmed through the Uconnect
System. Refer to “Uconnect Settings ” in “Understand-
ing Your Instrument Panel” for further information.
•If your vehicle is not equipped with a touchscreen, the
settings may be programmed through the ElectronicVehicle Information Center (EVIC) or Driver Informa-
tion Display (DID). Refer to “Electronic Vehicle Infor-
mation Center (EVIC)” or “Driver Information Display
(DID)” in “Understanding Your Instrument Panel” for
further information.
Enabling And Disabling Front And/Or Rear
ParkSense
Front ParkSense can be enabled and disabled with the
Front ParkSense switch.
Rear ParkSense can be enabled and disabled with the
Rear ParkSense switch.
When the Front or Rear ParkSense switch is
pushed to disable the system, the Electronic
Vehicle Information Center (EVIC) or Driver
Information Display (DID) will display the
“PARKSENSE OFF” message for approximately five sec-
onds. Refer to “Electronic Vehicle Information Center
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209

(EVIC) or Driver Information Display (DID)” in “Under-
standing Your Instrument Panel” for further information.
When the shift lever is moved to REVERSE and the Front
or Rear system is disabled, the EVIC/DID will display
theFRONT PARKSENSE OFForREAR PARKSENSE
OFFmessage for five seconds, followed by a car graphic
withOFFin the corresponding side. This car graphic
will be displayed for as long as the vehicle is in RE-
VERSE.
NOTE:Arc alerts from the enabled ParkSense system,
will interrupt the five second messages, and the EVIC/
DID will display the car graphic with the corresponding
arcs andOFFmessage.
The Front or Rear ParkSense switch LED will be ON
when Front or Rear ParkSense is disabled or requires
service. The Front or Rear ParkSense switch LED will be
OFF when the Front or Rear system is enabled. If the
Front or Rear ParkSense switch is pushed, and the systemrequires service, the Front or Rear ParkSense switch LED
will blink momentarily, and then the LED will be ON.
Service The ParkSense Park Assist System
During vehicle start up, when the ParkSense System has
detected a faulted condition, the instrument cluster will
actuate a single chime, once per ignition cycle, and it will
display thePARKSENSE UNAVAILABLE WIPE REAR
SENSORS,PARKSENSE UNAVAILABLE WIPE
FRONT SENSORS,orthePARKSENSE UNAVAIL-
ABLE SERVICE REQUIREDmessage for five seconds.
When the shift lever/gear selector is moved to Reverse
and the system has detected a faulted condition, the
Electronic Vehicle Information Center (EVIC) or Driver
Information Display (DID) will display aPARKSENSE
UNAVAILABLE WIPE REAR SENSORS,PARKSENSE
UNAVAILABLE WIPE FRONT SENSORSor
PARKSENSE UNAVAILABLE SERVICE REQUIRED
pop up message for five seconds. After five seconds, a car
210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

graphic will be displayed withUNAVAILABLEat ei-
ther the front or rear sensor location depending on where
the fault is detected. The system will continue to provide
arc alerts for the side that is functioning properly. These
arc alerts will interrupt thePARKSENSE UNAVAIL-
ABLE WIPE REAR SENSORS,PARKSENSE UNAVAIL-
ABLE WIPE FRONT SENSORS,orPARKSENSE UN-
AVAILABLE SERVICE REQUIREDmessages if an object
is detected within the five second pop-up duration. The
car graphic will remain displayed for as long as the
vehicle is in REVERSE. Refer to “Electronic Vehicle
Information Center (EVIC) orDriver Information Dis-
play (DID)” for further information.
IfPARKSENSE UNAVAILABLE WIPE REAR SENSORS
orPARKSENSE UNAVAILABLE WIPE FRONT SEN-
SORSappears in the Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID) make
sure the outer surface and the underside of the rear
fascia/bumper and/or front fascia/bumper is clean andclear of snow, ice, mud, dirt or other obstruction and then
cycle the ignition. If the message continues to appear see
an authorized dealer.
If thePARKSENSE UNAVAILABLE SERVICE RE-
QUIREDmessage appears in the EVIC/DID, see an
authorized dealer.
Cleaning The ParkSense System
Clean the ParkSense sensors with water, car wash soap
and a soft cloth. Do not use rough or hard cloths. Do not
scratch or poke the sensors. Otherwise, you could dam-
age the sensors.
ParkSense System Usage Precautions
NOTE:
•Ensure that the front and rear bumper are free of snow,
ice, mud, dirt and debris to keep the ParkSense system
operating properly.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

•Jackhammers, large trucks, and other vibrations could
affect the performance of ParkSense.
•When you turn Front or Rear ParkSense off, the
instrument cluster will display “FRONT PARKSENSE
OFF” or “REAR PARKSENSE OFF.” Furthermore,
once you turn Front or Rear ParkSense off, it remains
off until you turn it on again, even if you cycle the
ignition key.
•When you move the shift lever to the REVERSE
position and Front or Rear ParkSense is turned off, the
instrument cluster will displayFRONT PARKSENSE
OFForREAR PARKSENSE OFFmessage for five
seconds, followed by a car graphic withOFFin the
corresponding side. This car graphic will be displayed
for as long as the vehicle is in REVERSE.
•ParkSense, when on, will reduce the volume of the
radio when it is sounding a tone.•Clean the ParkSense sensors regularly, taking care not
to scratch or damage them. The sensors must not be
covered with ice, snow, slush, mud, dirt or debris.
Failure to do so can result in the system not working
properly. The ParkSense system might not detect an
obstacle behind or in front of the fascia/bumper, or it
could provide a false indication that an obstacle is
behind or in front of the fascia/bumper.
•Use the ParkSense switch to turn the ParkSense system
off if obstacles such as bicycle carriers, trailer hitches,
etc. are placed within 18 in (45 cm) from the rear
fascia/bumper. Failure to do so can result in the
system misinterpreting a close obstacle as a sensor
problem, causing the “PARKSENSE UNAVAILABLE
SERVICE REQUIRED” message to be displayed in the
instrument cluster.
•On vehicles equipped with a tailgate, ParkSense
should be disabled when the tailgate is in the lowered
212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!(Continued)
could detect the ball mount and hitch ball assem-
bly, depending on its size and shape, giving a false
indication that an obstacle is behind the vehicle.
PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED
Your vehicle may be equipped with the ParkView Rear
Back Up Camera that allows you to see a image of the
rear surroundings of your vehicle whenever the shift
lever is put into REVERSE or whenever it is initiated
throughBackup Camerabutton in theControlsmenu.
Whenever the shift lever is put into REVERSE, the image
will be displayed in the rearview mirror display (if
equipped) or Uconnect screen (if equipped) along with a
caution note to “check entire surroundings” across the
top of the screen. After five seconds this note will
disappear.The ParkView camera is located to the left of the tailgate
handle.
When the vehicle is shifted out of REVERSE (with camera
delay turned OFF), the rear camera mode is exited and
the navigation or audio screen appears again.
When the vehicle is shifted out of REVERSE (with camera
delay turned ON), The rear camera image will be dis-
played for up to 10 seconds after shifting out ofRE-
VERSEunless the forward vehicle speed exceeds 8 mph
(13 km/h), the transmission is shifted intoPARKor the
ignition is switched to the OFF position.
Whenever the Rear View Camera image is activated
throughBackup Camerabutton in theControlsmenu,
a display timer for the image is initiated. The image will
continue to be displayed until the display timer exceeds
10 seconds and the vehicle speed is above 8 mph (13
km/h) or the touchscreen buttonXto disable display of
the Rear View camera image is pressed.
214 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:If the vehicle speed remains below 8 mph
(13 km/h), the Rear View camera image will be displayed
continuously until deactivated via. the touchscreen but-
tonX.

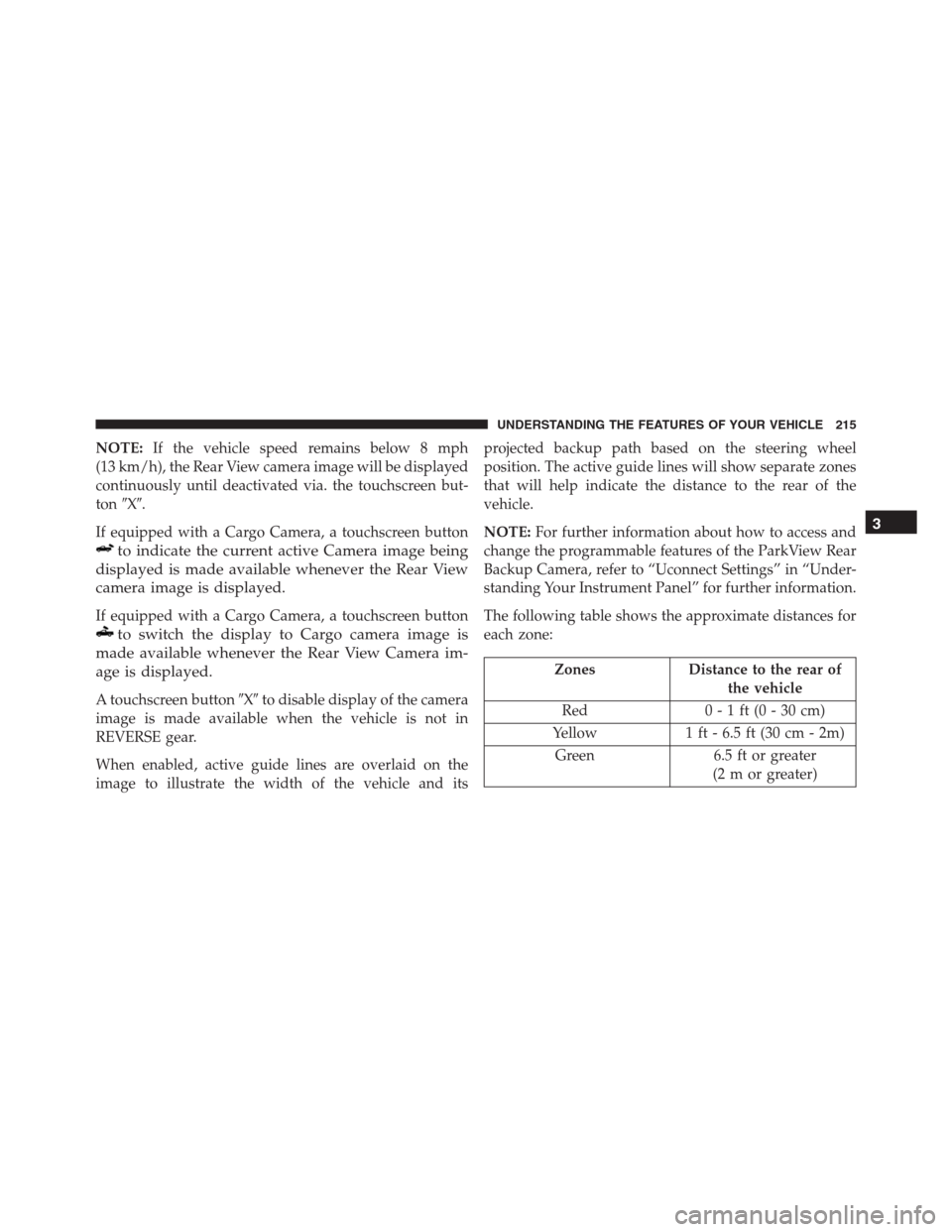

If equipped with a Cargo Camera, a touchscreen button
to indicate the current active Camera image being
displayed is made available whenever the Rear View
camera image is displayed.
If equipped with a Cargo Camera, a touchscreen button
to switch the display to Cargo camera image is
made available whenever the Rear View Camera im-
age is displayed.
A touchscreen buttonXto disable display of the camera
image is made available when the vehicle is not in
REVERSE gear.
When enabled, active guide lines are overlaid on the
image to illustrate the width of the vehicle and itsprojected backup path based on the steering wheel
position. The active guide lines will show separate zones
that will help indicate the distance to the rear of the
vehicle.
NOTE:For further information about how to access and
change the programmable features of the ParkView Rear
Backup Camera, refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further information.
The following table shows the approximate distances for
each zone:
Zones Distance to the rear of
the vehicle
Red 0 - 1 ft (0 - 30 cm)
Yellow 1 ft - 6.5 ft (30 cm - 2m)
Green 6.5 ft or greater
(2 m or greater)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 215

CAUTION!
•To avoid vehicle damage, ParkView should only be
used as a parking aid. The ParkView camera is
unable to view every obstacle or object in your
drive path.
•To avoid vehicle damage, the vehicle must be
driven slowly when using ParkView to be able to
stop in time when an obstacle is seen. It is recom-
mended that the driver look frequently over his/her
shoulder when using ParkView.
WARNING!
Drivers must be careful when backing up even when
using the ParkView Rear Back Up Camera. Always
check carefully behind your vehicle, and be sure to
(Continued)
WARNING!(Continued)
check for pedestrians, animals, other vehicles, ob-
structions, or blind spots before backing up. You are
responsible for the safety of your surroundings and
must continue to pay attention while backing up.
Failure to do so can result in serious injury or death.
NOTE:If snow, ice, mud, or any foreign substance builds
up on the camera lens, clean the lens, rinse with water,
and dry with a soft cloth. Do not cover the lens.
Turning Rear View Camera image On:
1. Press theControlsbutton located on the bottom of
the Uconnect display.
2. Press theBackup Camerabutton
to turn the Rear
View Camera system ON.
216 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

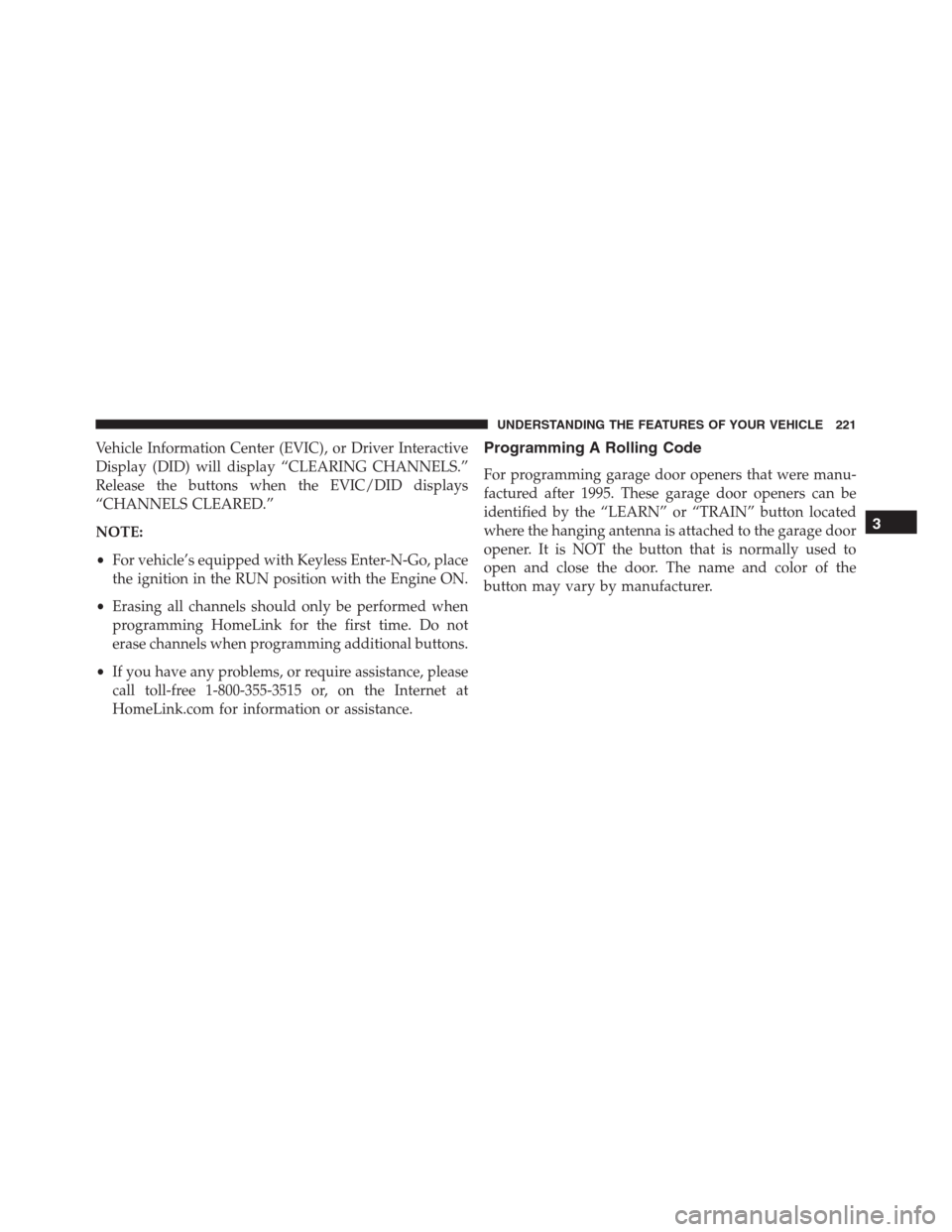

Vehicle Information Center (EVIC), or Driver Interactive
Display (DID) will display “CLEARING CHANNELS.”
Release the buttons when the EVIC/DID displays
“CHANNELS CLEARED.”
NOTE:
•For vehicle’s equipped with Keyless Enter-N-Go, place
the ignition in the RUN position with the Engine ON.
•Erasing all channels should only be performed when
programming HomeLink for the first time. Do not
erase channels when programming additional buttons.
•If you have any problems, or require assistance, please
call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.Programming A Rolling Code
For programming garage door openers that were manu-
factured after 1995. These garage door openers can be
identified by the “LEARN” or “TRAIN” button located
where the hanging antenna is attached to the garage door
opener. It is NOT the button that is normally used to
open and close the door. The name and color of the
button may vary by manufacturer.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 221
