The Diesel Particulate Filter (DPF) reduces the
amount of materials that affect the environment by
collecting particulate matter included in exhaust
gases. Normally, particulate matter accumulated in
the DPF is automatically burned and converted to
harmless substances during driving. However, par-
ticulate matter collected in the DPF cannot be
burned under the following conditions:
• When vehicle speed remains below 15 km/h (10
MPH) for
along period of time.
• When the engine is frequently stopped and re-
started within 10 minutes.
• When the vehicle is frequently used for short
journeys of 10 minutes or less.
• When the engine is frequently stopped before it
has warmed up.
In these cases, it becomes difficult to burn particu-
late matter that has accumulated in the DPF auto-
matically. As aresult, the DPF warning light in the
meter will illuminate and the indicator light on the
DPF regeneration switch will blink. This is not amal-
function.
If the DPF warning light comes on, perform the DPF
regeneration process.
CAUTION
If the vehicle continues to be driven with the DPF
warning light illuminated and without doing the
regeneration process, the fail-safe will limit the
engine revolutions and/or torque. In this case, the engine oil must be replaced and the process
of service regeneration must be carried out by an
approved dealer or qualified workshop.
The service regeneration is not covered by the
warranty.
AUTOMATIC REGENERATION
If the DPF warning light comes on, it indicates that
particulate matter has accumulated in the DPF to
the specified limit. Particulate matter collected in the
DPF cannot be burned under low speed driving con-
ditions.
As soon as safely possible, drive the vehicle at a
high speed (more than approximately 80 km/h (50
MPH)) until the DPF warning light turns off. Always
conform to local regulations.
When the accumulated particulate matter has been
completely burned, the DPF warning light will turn
off. Pick-up vehicles have
asignificantly higher roll-
over rate than other types of vehicles.
They have higher ground clearance than passenger
cars to make them capable of performing in awide
variety of on-pavement and off-road applications.
This gives them ahigher centre of gravity than ordi-
nary cars. An advantage of higher ground clearance
is ab etter view of the road, allowing you to antici-
pate problems. However, they are not designed for
cornering at the same speeds as conventional pas-
senger cars any more than low-slung sports cars
are designed to perform satisfactorily under off-road
conditions. If at all possible, avoid sharp turns or
abrupt manoeuvres, particularly at high speeds. As
with other vehicles of this type, failure to operate
this vehicle correctly may result in loss of control or
vehicle rollover.
For information about driving using Four-Wheel
Drive (4WD) (where fitted), see “Four-Wheel Drive
(4WD) (where fitted)” later in this section.
DRIVING SAFETY PRECAUTIONS
Please observe the following precautions: WARNING
• Drive carefully when off the road and avoid
dangerous areas. Every person who drives or
rides in this vehicle should be seated with
their seat belt fastened. This will keep you
and your passengers in position when driving
over rough terrain.
ON-ROAD AND OFF-ROAD
DRIVING PRECAUTIONS
5-6 Starting and driving

When the ABS senses that one or more wheels are
close to locking up, the actuator rapidly applies and
releases hydraulic pressure. This action is similar to
pumping the brakes very quickly. You may feel a
pulsation in the brake pedal and hear anoise from
under the bonnet or feel avibration from the actua-
tor when it is operating. This is normal and indicates
that the ABS is operating properly. However, the
pulsation may indicate that road conditions are haz-
ardous and extra care is required while driving.
When the differential lock (where fitted) is engaged,
the ABS warning light illuminates. This indicates that
the anti-lock function is not fully operating. (See
“Rear differential locking system (where fitted)” ear-
lier in this section for the rear differential lock func-
tion.) WARNING
• Whatever the condition, drive with caution.
Accelerate and decelerate with great care. If
accelerating or decelerating too fast, the drive
wheels will lose even more traction.
• Allow more stopping distance in cold weather
driving. Braking should be started sooner than
on dry pavement.
• Keep at
agreater distance from the vehicle in
front of you on slippery roads.
• Wet ice (0°C, 32°F and freezing rain), very cold
snow and ice can be slick and very difficult to
drive on. The vehicle will have
alot less trac-
tion or grip under these conditions. Try to
avoid driving on wet ice until the road is salted
or sanded.
• Watch for slippery spots (glaring ice). These
may appear on an otherwise clear road in
shaded areas. If
apatch of ice is seen ahead,
brake before reaching it. Try not to brake while
actually on the ice, and avoid any sudden
steering manoeuvres.
• Do not use cruise control on slippery roads.
• Snow can trap dangerous exhaust gas under
your vehicle. Keep snow clear of the exhaust
pipe and from around your vehicle. BATTERY
If the battery is not fully charged during extremely
cold weather conditions, the battery fluid may freeze
and damage the battery. To maintain maximum effi-
ciency, the battery should be checked regularly. For
details, see “Battery” in the “8. Maintenance and
do-it-yourself” section of this manual.
ENGINE COOLANT
If the vehicle is to be left outside without anti-freeze,
drain the cooling system, including the engine block.
Refill before operating the vehicle. For details, see
“Engine cooling system” in the “8. Maintenance and
do-it-yourself” section of this manual.
TYRE EQUIPMENT
1. If you have snow tyres installed on the front/rear
wheels of your vehicle, they should be of the
same size, loading range, construction and type
(bias, bias-belted or radial) as the rear/front tyres.
2. If the vehicle is to be operated in severe winter conditions, snow tyres should be installed on all
four wheels.
3. For additional traction on icy roads, studded tyres may be used. However, some countries, prov-
inces and states prohibit their use. Check local,
state and provincial laws before installing stud-
ded tyres.
Skid and traction capabilities of studded snow
tyres, on wet or dry surfaces, may be poorer
than that of non-studded snow tyres.
COLD WEATHER DRIVING
Starting and driving5-51

Replacing halogen headlight bulb
The halogen headlight is asemi-sealed beam type
which uses replaceable headlight (halogen) bulbs.
They can be replaced from inside the engine com-
partment without removing the headlight assembly.
CAUTION
High-pressure halogen gas is sealed inside the
bulb. The bulb may break if the glass envelope is
scratched or the bulb is dropped.
1. Disconnect the battery negative cable.
2. Disconnect the electrical connector from the
rear end of the bulb.
3. Pull off the rubber cap
➀.
4. Push and turn the retaining pin
➁to loosen it.
5. Remove the headlight bulb. Do not shake or
rotate the bulb when removing it.
6. Install the new bulb in the reverse order of
removal.
CAUTION
• When handling the bulb, do not touch the
glass envelope.
• Use the same number and wattage as origi-
nally installed:
Halogen headlight model
High/low beam bulb: 60W/55W (H4)
• Do not leave the bulb out of the headlight
reflector for
along period of time as dust, moisture and smoke may enter the headlight
body and affect the performance of the head-
light.
Aiming adjustment is not necessary if only the bulbs
are replaced. When aiming adjustment is neces-
sary, contact an approved dealer or qualified work-
shop.
EXTERIOR LIGHTS Item
Wattage (W)
Front turn signal 21
Clearance light (Halogen
headlight models) 5
Clearance light and daytime
running light (LED headlight
models)* LED
Front fog light (where fitted) 55
Daytime running light (where
fitted for halogen headlight
models) 19
Side turn signal light (on the
front wing) (where fitted) 5
Rear combination light Turn signal 21
Stop/tail 21/5
Reverse 21
Number plate light 5
High-mounted stop light (where fitted)* LED
*: See an approved dealer or qualified workshop
for replacement. JVM0470XZ
Maintenance and do-it-yourself
8-21

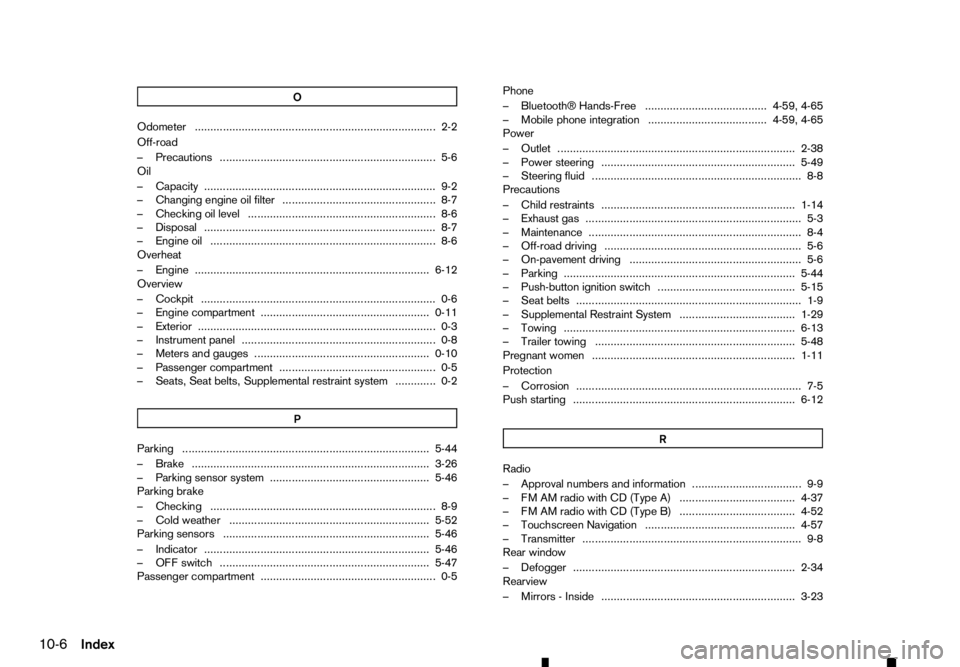

O
Odometer ........................................................................V
..... 2-2
Off-road
–P recautions ..................................................................... 5-6
Oil
–C apacity ........................................................................V
.. 9-2
–C hanging engine oil filter ................................................. 8-7
–C hecking oil level ............................................................ 8-6
–D isposal ........................................................................V
.. 8-7
–E ngine oil ........................................................................V
8-6
Overheat
–E ngine ........................................................................V
... 6-12
Overview
–C ockpit ........................................................................V
... 0-6
–E ngine compartment ...................................................... 0-11
–E xterior ........................................................................V
.... 0-3
–I nstrument panel .............................................................. 0-8
–M eters and gauges ........................................................ 0-10
–P assenger compartment .................................................. 0-5
–S eats, Seat belts, Supplemental restraint system ............. 0-2
P Parking ........................................................................V
....... 5-44
–B rake ........................................................................V
.... 3-26
–P arking sensor system ................................................... 5-46
Parking brake
–C hecking ........................................................................V
8-9
–C old weather ................................................................ 5-52
Parking sensors .................................................................. 5-46
–I ndicator ........................................................................V
5-46
–O FF switch ................................................................... 5-47
Passenger compartment ........................................................ 0-5 Phone
–B luetooth® Hands-Free ....................................... 4-59, 4-65
–M obile phone integration ...................................... 4-59, 4-65
Power
–O utlet ........................................................................V
.... 2-38
–P ower steering .............................................................. 5-49
–S teering fluid ................................................................... 8-8
Precautions
–C hild restraints .............................................................. 1-14
–E xhaust gas ..................................................................... 5-3
–M aintenance .................................................................... 8-4
–O ff-road driving ............................................................... 5-6
–O n-pavement driving ....................................................... 5-6
–P arking ........................................................................V
.. 5-44
–P ush-button ignition switch ............................................ 5-15
–S eat belts ........................................................................V
1-9
–S upplemental Restraint System ..................................... 1-29
–T owing ........................................................................V
.. 6-13
–T railer towing ................................................................ 5-48
Pregnant women ................................................................. 1-11
Protection
–C orrosion ........................................................................V
7-5
Push starting ....................................................................... 6-12
R Radio
–A
pproval numbers and information ................................... 9-9
–F MAMr adio with CD (Type A) ..................................... 4-37
–F MAMr adio with CD (Type B) ..................................... 4-52
–T ouchscreen Navigation ................................................ 4-57
–T ransmitter ...................................................................... 9-8
Rear window
–D efogger ....................................................................... 2-34
Rearview
–M irrors
-Inside .............................................................. 3-23
10-6 Index
