RENAULT ESPACE 2012 J81 / 4.G Owners Manual

5.1
ENG_UD25604_4
Sommaire 5 (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_5
Section 5: Practical advice
Puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2
Emergency spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2
Tyre inflation kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.4
Tool kit (jack, wheelbrace) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.7
Wheel trims – Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.8
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.9
Tyres (tyre and wheel safety, use in winter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.11
Headlights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.14
Rear lights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.18
Indicator lights (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.21
Interior lighting (changing bulbs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.22
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.26
RENAULT card: battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.28
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.29
Wipers (replacing blades) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.32
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.33
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.34
Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.37

practical advice ..................................... (up to the end of the DU)
puncture ................................................ (up to the end of the DU)
emergency spare wheel ....................... (up to the end of the DU)
wheels (safety) ..................................... (up to the end of the DU)
5.2
ENG_UD24346_2
Roue de secours (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_5
Jaune NoirNoir texte
Puncture
Emergency spare wheel
Puncture/eMerGencY SPAre WHeeL (1/2)
In the event of a puncture,
depending on the vehicle,
you will have:
An emergency spare wheel or tyre in -
flation kit (refer to the information on the
following pages).
If you have an emergency spare wheel,
you need to use tool A comprising
ratchet spanner 2 and end-piece 1.
nB: using other tools could damage the
mechanism)
These components are stored in the
tool kit in the luggage compartment
(refer to the information on the “Took
kit” in Section 5). Ensure that the end piece 1 is securely
attached to the ratchet spanner
2.
The ratchet spanner has one direction
for tightening and another for loosen -
ing. Reverse the direction of the oper -
ation when moving from loosening to
tightening and vice versa.
emergency spare wheel B
It is located under the vehicle.
– In the luggage compartment, lift
cover 3;
– remove the blanking cover;
– use tool A and turn it until the wheel
retaining cable unwinds and the
wheel drops to the ground; –
stand the wheel up outside the vehi-
cle;
– press on lock 4 and turn it a quarter
of a turn
– run the retaining cable across the
wheel rim and release the wheel;
– depending on the vehicle, take out
the shim from inside the wheel rim.
n ote: depending on the vehicle, the
shim on the top of the emergency spare
wheel should only be repositioned with
this emergency spare wheel; it should
not be used with the punctured wheel.
12
3
B
4
A
4

JauneNoirNoir texte

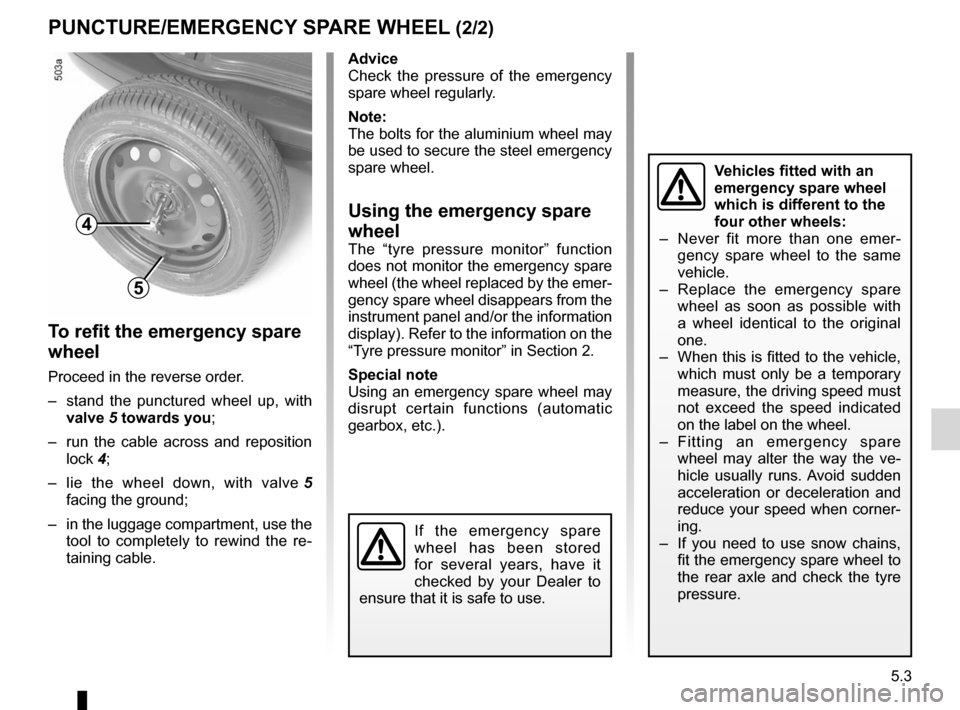

5.3
ENG_UD24346_2
Roue de secours (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_5
Puncture/eMerGencY SPAre WHeeL (2/2)
t o refit the emergency spare
wheel
Proceed in the reverse order.
– stand the punctured wheel up, with
valve 5 towards you;
– run the cable across and reposition
lock 4;
– lie the wheel down, with valve 5
facing the ground;
– in the luggage compartment, use the
tool to completely to rewind the re -
taining cable. Advice
Check the pressure of the emergency
spare wheel regularly.
note:
The bolts for the aluminium wheel may
be used to secure the steel emergency
spare wheel.
using the emergency spare
wheel
The “tyre pressure monitor” function
does not monitor the emergency spare
wheel (the wheel replaced by the emer-
gency spare wheel disappears from the
instrument panel and/or the information
display). Refer to the information on the
“Tyre pressure monitor” in Section 2.
Special note
Using an emergency spare wheel may
disrupt certain functions (automatic
gearbox, etc.).
If the emergency spare
wheel has been stored
for several years, have it
checked by your Dealer to
ensure that it is safe to use.
4
5
Vehicles fitted with an
emergency spare wheel
which is different to the
four other wheels:
– Never fit more than one emer -
gency spare wheel to the same
vehicle.
– Replace the emergency spare
wheel as soon as possible with
a wheel identical to the original
one.
– When this is fitted to the vehicle,
which must only be a temporary
measure, the driving speed must
not exceed the speed indicated
on the label on the wheel.
– Fitting an emergency spare
wheel may alter the way the ve -
hicle usually runs. Avoid sudden
acceleration or deceleration and
reduce your speed when corner-
ing.
– If you need to use snow chains,
fit the emergency spare wheel to
the rear axle and check the tyre
pressure.

tyre inflation kit...................................... (up to the end of the DU)
5.4
ENG_UD24347_2
Add J81 kit de gonflage (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_5
Jaune NoirNoir texte
Tyre inflation kit
tYre InFLA tIOn KIt
Do not attempt to use the
inflation kit if the tyre has
been damaged as a result
of driving with a puncture.
You should therefore carefully check
the condition of the tyre sidewalls
before any operation.
Driving with underinflated, flat or
punctured tyres can be dangerous
and may make the tyre impossible
to repair.
this repair is temporary
A tyre which has been punctured
should always be inspected (and re-
paired, where possible) as soon as
possible by a specialist.
Contact an approved dealer to re -
place the inflation tube and repair
product bottle.
When taking a tyre which has been
repaired using this kit to be replaced,
you must inform the specialist.When driving, vibration may
be felt due to the presence
of the repair product in -
jected into the tyre.
The kit is only approved for inflat -
ing the tyres of the vehicle originally
equipped with the kit.
It must never be used to inflate
the tyres of another vehicle, or any
other inflatable object (rubber ring,
rubber boat, etc.).
Avoid spillage on skin when hand -
ling the repair liquid bottle. If drop -
lets do leak out, rinse them off with
plenty of water.
Keep the repair kit away from chil -
dren.
Do not dispose of the empty bottle
in the countryside. Return it to an
approved dealer or to a recycling or-
ganisation.
The bottle has a limited service
life which is indicated on its label.
Check the expiry date regularly.
The kit repairs tyres with
tread A damaged by ob -
jects smaller than 4 mm. It
cannot repair all types of
puncture, such as cuts more than
4 mm, or cuts in the tyre sidewall B
etc.
Ensure also that the wheel rim is in
good condition.
Do not pull out the foreign body
causing the puncture if it is still in
the tyre.
A
B

JauneNoirNoir texte
5.5
ENG_UD24347_2
Add J81 kit de gonflage (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_5
tYre InFLA tIOn KIt (continued)
Depending on the vehicle, in the event
of a puncture, use the tyre inflation kit.– Retrieve compressor 4 and bottle 1
from rear storage compartment C (in
vehicles with a normal chassis) or D
(in vehicles with a long chassis);
– unroll inflation hose 8 and lead 9 lo-
cated under the compressor and in-
flation hose 10 . Attach the bottle to
its mounting 3 and screw inflation
hose 8 onto end piece 2.With the engine running and the
parking brake applied,
–
unscrew the valve cap of the wheel
concerned and screw the inflation
hose 10 onto the valve;
– connect end piece 9 to one of the ve-
hicle’s accessories sockets (refer to
the information on the “Accessories
socket” in Section 3) then press
switch 7 to inflate the tyre to the rec-
ommended pressure (refer to the
label located on the edge of the driv-
er’s door);
– After a maximum of 5 minutes, stop
inflating and read the pressure on
pressure gauge 6 . To adjust the
pressure if necessary: continue in -
flating to increase the pressure or
press button 5 to decrease it.
If a minimum pressure of 1.8 bar is
not reached after 15 minutes, repair
is not possible; do not drive the ve-
hicle but contact an approved dealer.
Before using this kit, park
the vehicle at a sufficient
distance from traffic, switch
on the hazard warning
lights, apply the handbrake, ask all
passengers to leave the vehicle and
keep them away from traffic.
1
23456
7
8
9
10
cD

5.6
ENG_UD24347_2
Add J81 kit de gonflage (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_5
tYre InFLA tIOn KIt (continued)
Once the tyre is inflated correctly:
– stop using the kit;
– slowly unscrew the two inflation
adapters 8 and 10 and screw end -
piece 10 onto the bottle to prevent
the product from spraying;
– affix the driving recommendation
label, located under bottle 1 , to the
dashboard where it can easily be
seen by the driver;
– store the kit;
– after the first inflation procedure the
tyre will still be leaking; it is vital to
drive in order to plug the hole;
– Start immediately and drive at be -
tween 12 and 36 mph (20 and
60 km/h) to distribute the product
evenly throughout the tyre, stopping
after a distance of 2 miles (3 kilome-
tres) to check the pressure; –
If the pressure is above 1.3 bar but
lower than the recommended pres -
sure, readjust it (refer to the label
affixed to the edge of the driver ’s
door), otherwise contact an ap -
proved dealer: repair is not possible.
n ote: after using the inflation kit, you
should visit an approved dealer to re -
place the inflation hose and the bottle
of repair product.
Precautions when using the
kit
The kit should not be operated for more
than 15 consecutive minutes.
Following repair with the kit,
do not travel further than
120 miles (200 km). In addi -
tion, reduce your speed and
under no circumstances exceed
48 mph (80 km/h). The sticker,
which you must affix in a prominent
position on the dashboard, reminds
you of this.
Depending on the country or local
legislation, a tyre repaired with the
inflation kit may need to be replaced.
Nothing should be placed
around the driver ’s feet
as such objects may slide
under the pedals during
sudden braking manoeuvres and
obstruct their use.
Please be aware that a
poorly tightened or miss -
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
1
8
10

tool kit ................................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
puncture ................................................ (up to the end of the DU)
jack ....................................................... (up to the end of the DU)
5.7
ENG_UD20692_3
Bloc outil (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_5
Tool kit (Jack - Wheelbrace)
t OOL KIt (1/2)
Tool kit A is located in the luggage com-
partment.
The tools included in the tool kit depend
on the vehicle.
To access it, open the flap and loosen
nut 1.
Remove the kit.Some of the tools are stored inside the
kit and others are stored on lid 2 or on
base 3.
To open the kit, release tabs 4.
1
A4
A
2
4
3
Jack 5
t owing hitch 6
For methods of use refer to the informa-
tion on “Towing” in Section 5.
extension piece 7
Ratchet spanner extension piece.
5
6
7
The jack is designed for
wheel changing purposes
only. It should never be
used for repairs or gaining
access to the underside of the ve -
hicle.
Do not leave the tools unsecured inside the vehicle as they may come
loose under braking. After use, check that all the tools are correctly
clipped into the tool kit, then position it correctly in its housing: risk of
injury.
If wheel bolts are supplied in the tool kit, only use these bolts for the emergency
spare wheel: refer to the label affixed to the emergency spare wheel.
The jack is designed for wheel changing purposes only. Under no circumstances
should it be used for carrying out repairs underneath the vehicle or to gain access
to the underside of the vehicle.

hubcap tool ............................................................ (current page)
wheelbrace ............................................................ (current page)
tyres ....................................................................... (current page)
wheels (safety) ...................................................... (current page)
trims ....................................................................... (current page)
tyres ....................................................................... (current page)
5.8
ENG_UD20692_3
Bloc outil (X81 - Renault)
ENG_NU_932-3_X81ph3_Renault_5
Wheel trim - Wheel
t OOL KIt (2/2)/WHeeL trIM - WHeeL
Screwdriver handle 8
two screwdriver heads 9
Comprising four different tips.
ratchet spanner 10
Jack extension piece 11
Hubcap tool 12Assembling the wheelbrace
Use jack extension piece 11 , ratchet
spanner 10 and its extension piece 7.
Screw extension piece 7 into the
handle of the ratchet spanner until the
extension piece tabs click securely into
position.
12
11
10
98
7
1110
7
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Wheel trim
Remove the wheel trim using hubcap
tool 3 (located in the tool kit) by fit -
ting the hook into one of the openings
around the edge of the wheel trim.
To refit it, align it with valve 2. Push the
retaining hooks in fully, starting with
side A near the valve, followed by B
and C, finishing at D opposite the valve.
D3
c
A
2
B
1

changing a wheel................................................... (current page)
practical advice ...................................................... (current page)
tyres ....................................................................... (current page)
wheels (safety) ...................................................... (current page)
lifting the vehicle changing a wheel ............................ (up to the end of the DU)
5.9
ENG_UD20419_1
Changement de roue (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_5
Changing a wheel
cHAnGInG A WHeeL (1/2)
Switch on the hazard warn-
ing lights.
Keep the vehicle away from
traffic and on a level sur -
face where it will not slip (if neces -
sary, place a solid support under the
jack base).
Apply the parking brake and engage
a gear (first or reverse, or P for auto-
matic transmissions).
Ask all the passengers to leave the
vehicle and keep them away from
traffic.Vehicles equipped with a jack
and wheelbrace
Put together wheelbrace 1 using the
tools stored in the tool kit: refer to the
information on the “Tool kit” on the pre-
vious pages.
Use wheelbrace 1 to loosen the wheel
bolts. Fit it so that you press down -
wards rather than pulling upwards.
1
2
3
1
To prevent any risk of injury
or damage to the vehicle,
only crank the jack until the
wheel you are replacing is
a maximum of 3 centimetres off the
ground.
Position the jack horizontally, with the
jack head positioned at the same height
as support 2 provided in the lower sec-
tion of the bodywork, closest to the
wheel concerned.
Start cranking up jack 3 by hand to
align the base plate (which should be
pushed slightly under the vehicle).
Place a plank of wood under the base
plate if on soft ground.
Turn the wheelbrace to lift the wheel off
the ground.
If the vehicle is not equipped with a
jack or wheelbrace, you can obtain
these from your approved dealer.

5.10
ENG_UD20419_1
Changement de roue (X81 - J81 - Renault)
ENG_NU_932-3_X81ph3_Renault_5
cHAnGInG A WHeeL (2/2)
If you have a puncture, re -
place the wheel as soon as
possible.
A tyre which has been punc-
tured should always be inspected
(and repaired, where possible) by a
specialist.
Anti-theft bolt
If you use anti-theft bolts, fit these
nearest the valve (wheel embel -
lisher may not be able to fit).
If the vehicle is parked on
the hard shoulder, you must
warn other road users of
your vehicle’s presence
with a warning triangle or with other
devices as per the legislation apply-
ing to the country you are in.
Undo the bolts and take off the wheel.
Fit the emergency spare wheel on the
central hub and turn it to locate the
mounting holes in the wheel and the
hub.
Tighten the bolts and lower the jack.
With the wheels on the ground, tighten
the bolts as fully as possible and check
the tightness as soon as possible (tight-
ening torque 130 Nm).
