RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Workshop Manual 8Electrical equipment
V1 MR-376-X76-83A000$TOC.mif
V1
83A
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The

Page 2 of 59

RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Workshop Manual 83A-2
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$010.mif
83A
1. SCOPE OF THIS DOCUMENT
This document presents the fault finding method applicable to all computers with the following

Page 3 of 59

RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Workshop Manual 83A-3
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$010.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Introduction83A
4. FAULT FINDING PROCEDURE
Check the battery charge and the

Page 4 of 59

RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Workshop Manual 83A-4
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$010.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Introduction83A
4. FAULT FINDING PROCEDURE (continued)
Wiring check
Fault fin

Page 5 of 59

RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Workshop Manual 83A-5
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$010.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Introduction83A
5. SAFETY INSTRUCTIONS
Safety rules must be observed during a

Page 6 of 59

RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Workshop Manual 83A-6
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$010.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Introduction83A

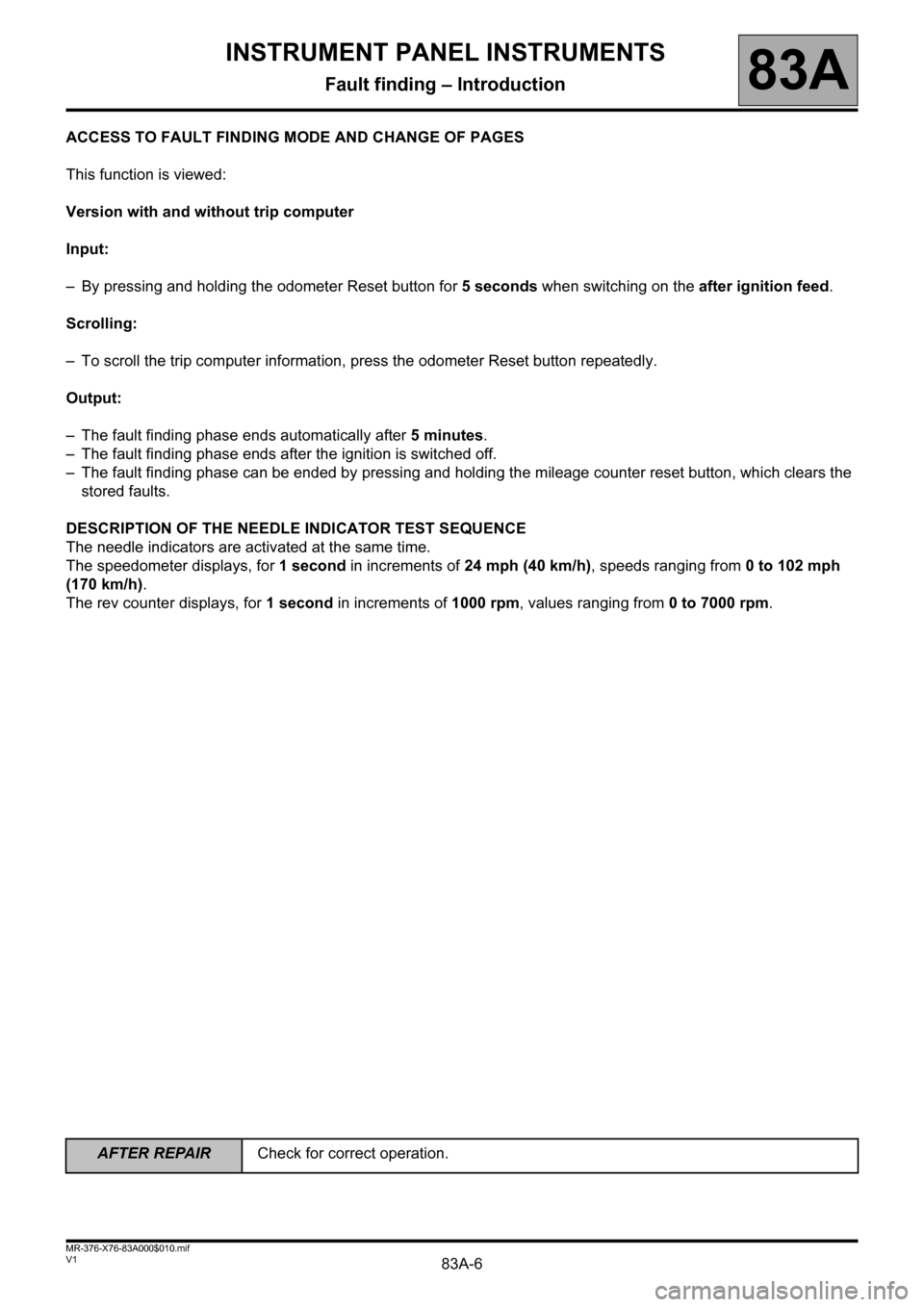

ACCESS TO FAULT FINDING MODE AND CHANGE OF PAGES
This functio

Page 7 of 59

RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Workshop Manual 83A-7
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$010.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Introduction83A

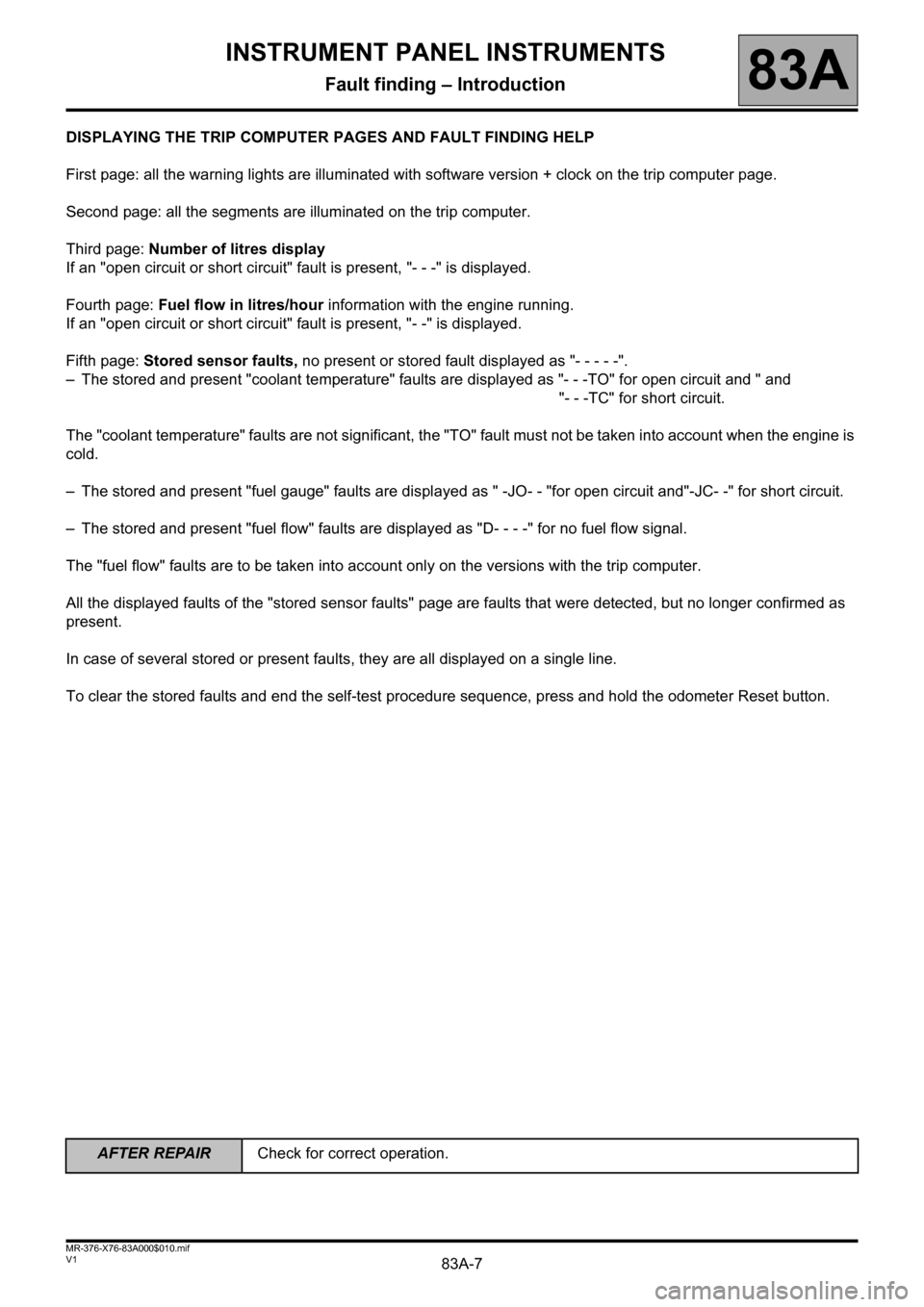

DISPLAYING THE TRIP COMPUTER PAGES AND FAULT FINDING HELP
Fir

Page 8 of 59

RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Workshop Manual 83A-8
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$020.mif
83A
1. OPERATION OF THE NEEDLE INDICATORS
Speedometer
The vehicle speed signal is transmitted to the instrument panel by a w

Page 9 of 59

RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Workshop Manual 83A-9
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$020.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – System operation83A
Oil pressure warning light
When the ignition is switched

Page 10 of 59

RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Workshop Manual 83A-10
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$020.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – System operation83A
Estimated range with remaining fuel (in km).
This is onl
