RENAULT KANGOO 2013 X61 / 2.G Instrument Panel Instruments Repair Manual

83A-51
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$070.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A
ALP21
CONTINUED 1
Disconnect the handbrake switch connector.
Check that there is no earth with the switch in the rest position, and check for earth with the switch depressed.
Replace the switch if necessary.
Check the insulation, continuity and the absence of interference resistance on the following connection:
–H1 between components 247 and 156.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.

83A-52
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$070.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A
ALP21
CONTINUED 2
The brake warning light remains off even with the handbrake applied.
Disconnect the handbrake switch connector.
Check that there is no earth with the switch in the rest position, and check for earth with the switch depressed.
Replace the switch if necessary.
Check the insulation, continuity and the absence of interference resistance on the following connection:
–H1 between components 247 and 156.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.

83A-53
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$070.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A
ALP22The handbrake applied and fault detected on braking circuit
warning light and the electronic braking distribution fault
warning
light operate inconsistently (WITH ABS)
NOTESSee Wiring Diagrams Technical Note for Kangoo VLL.
The brake warning light remains illuminated even with the handbrake released.
Run fault finding on the ABS.
Deal with any other faults.
Check the brake fluid level.
Top up if necessary.
Check that there are no leaks in the brake circuit.
Disconnect the brake fluid minimum level switch, component code 207.
Make sure that the brake fluid minimum level switch is working correctly.
– With the switch inserted in the fluid, no continuity between connections H1 and MB.
– With the switch out of the fluid, continuity between connections H1 and MB.
Replace the switch if necessary.
Check the insulation, continuity and the absence of interference resistance on the following connection:
–H1 between components 247 and 207,
–MB between earth and component 207.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.

83A-54
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$070.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A
ALP22
CONTINUED
Check the insulation, continuity and the absence of interference resistance on the following connection:
–4Y between components 247 and 118.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Disconnect the connector of the handbrake switch, component code 156.
Check that there is no earth with the switch in the rest position, and check for earth with the switch depressed.
Replace the switch if necessary.
Check the insulation, continuity and the absence of interference resistance on the following connection:
–H1 between components 247 and 156.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.

83A-55
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$070.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A
ALP23The heated rear screen warning light does not light up
Message transmitted by: UCH
NOTESSee Wiring Diagrams Technical Note for Kangoo VLL.
Run fault finding on the UCH, component code 645.
Deal with any other faults.
Check for +12 V on connection 15A of the instrument panel, component code 247, with the switch depressed.
If there is no +12 V, check the insulation, continuity and the absence of interference resistance on the
following connection:
–15A between components 247 and 128.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.

83A-56
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$070.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A
ALP24There is no instrument panel display when the ignition is
switched on
NOTESSee Wiring Diagrams Technical Note for Kangoo VLL.
Check the condition of fuses F6 and F16 in the passenger compartment fuse box, component code 260.
Check for +12 V on connection BP10 and for + after ignition on connection AP10 of the instrument panel,
component code 247.
Check for earth on connection MK of the instrument panel, component code 247.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.

83A-57
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$070.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A

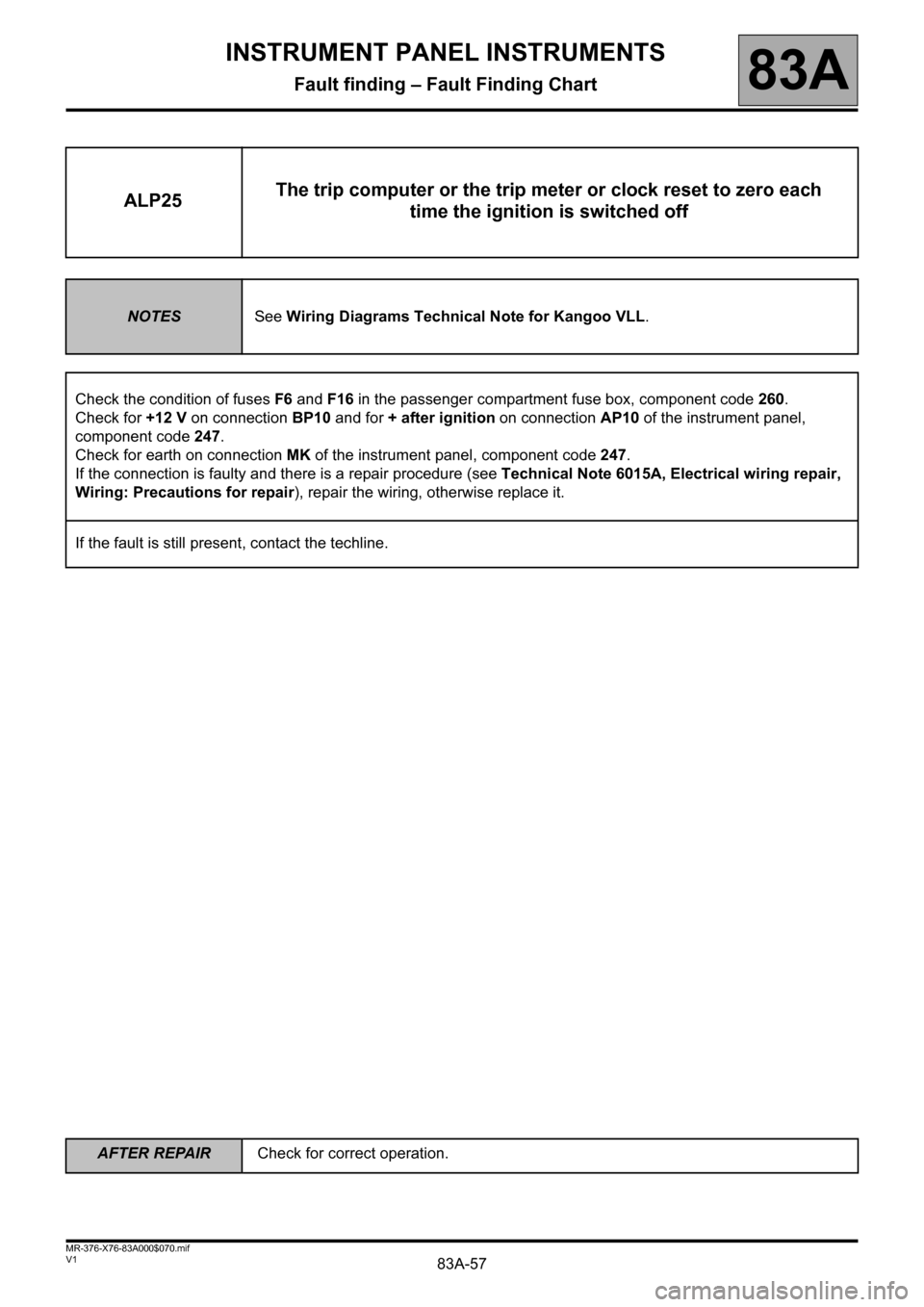

ALP25The trip computer or the trip meter or clock reset to zero each
time the ignition is switched off
NOTESSee Wiring Diagrams Technical Note for Kangoo VLL.
Check the condition of fuses F6 and F16 in the passenger compartment fuse box, component code 260.
Check for +12 V on connection BP10 and for + after ignition on connection AP10 of the instrument panel,
component code 247.
Check for earth on connection MK of the instrument panel, component code 247.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.

83A-58
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$070.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A
*CPE: Electric central door locking
ALP26The opening elements warning light does not illuminate (without
electric central door locking*)
Message transmitted by: UCH
NOTESSee Wiring Diagrams Technical Note for Kangoo VLL.
Run fault finding on the UCH, component code 645.
Deal with any other faults.
Check that when the rear doors or the luggage compartment are opened, status ET551 Rear doors or luggage
compartment is OPEN and that when the rear doors or the luggage compartment are closed, status ET551 is
CLOSED.

Check that when each front door is opened, status ET489 Front doors is OPEN, and that when the rear doors or
the luggage compartment are closed, status ET551 is CLOSED.
If this is not the case (see87A, Passenger compartment connection unit, Interpretation of statuses).
If the fault is still present, check the insulation, continuity and the absence of interference resistance on the
following connection:
–13A between components 247 and 645.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.

83A-59
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$070.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart83A
*CPE: Electric central door locking
ALP27The opening elements warning light does not illuminate (with
electric central door locking*)
Message transmitted by: UCH
NOTESSee Wiring Diagrams Technical Note for Kangoo VLL.
Run fault finding on the UCH, component code 645.
Deal with any other faults.
Check that when the rear doors or the luggage compartment are opened, status ET551 Rear doors or luggage
compartment is OPEN and that when the rear doors or the luggage compartment are closed, status ET551 is
CLOSED.

Check that when each front door is opened, status ET489 Front doors is OPEN, and that when the rear doors or
the luggage compartment are closed, status ET551 is CLOSED.
If this is not the case (see87A, Passenger compartment connection unit, Interpretation of statuses).
If the fault is still present, check the insulation, continuity and the absence of interference resistance on the
following connection:
–87H between components 247 and 645.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the techline.
