3.15

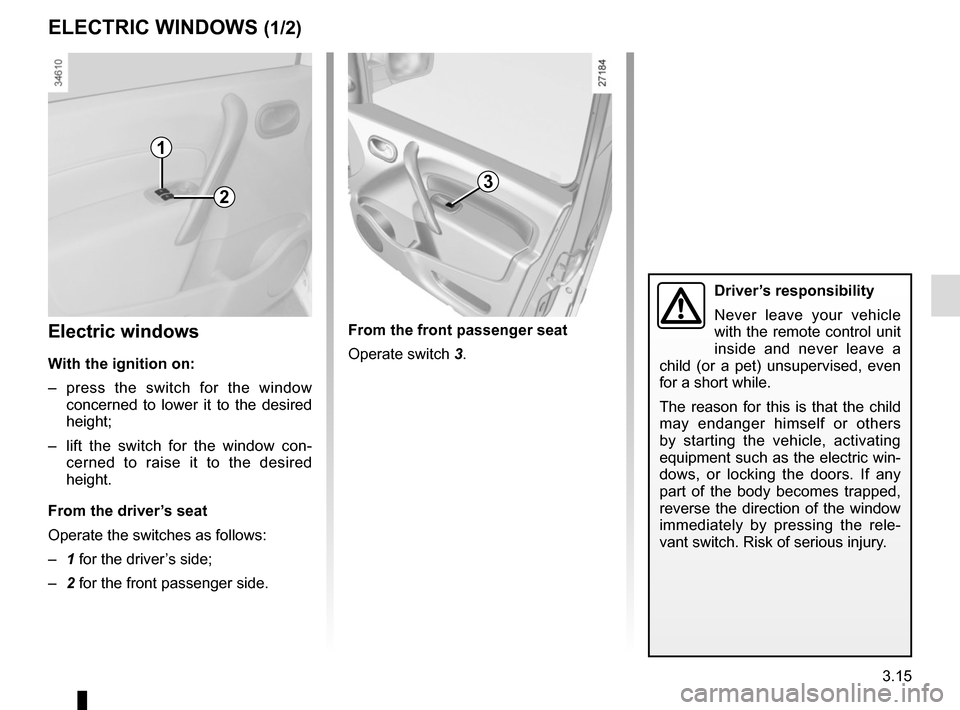

Electric windows
With the ignition on:
– press the switch for the window concerned to lower it to the desired
height;
– lift the switch for the window con- cerned to raise it to the desired
height.
From the driver’s seat
Operate the switches as follows:
– 1 for the driver’s side;
– 2 for the front passenger side.
ELECTRIC WINDOWS (1/2)
From the front passenger seat
Operate switch 3.
1
23
Driver’s responsibility
Never leave your vehicle
with the remote control unit
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child
may endanger himself or others
by starting the vehicle, activating
equipment such as the electric win-
dows, or locking the doors. If any
part of the body becomes trapped,
reverse the direction of the window
immediately by pressing the rele-
vant switch. Risk of serious injury.
Page 132 of 220
3.16

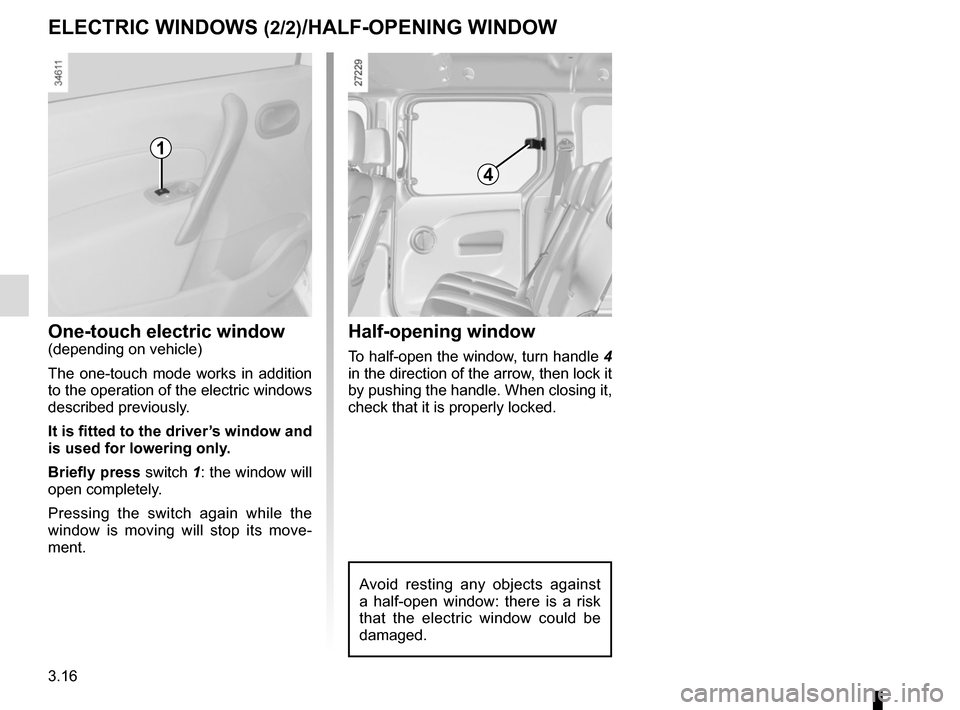

One-touch electric window(depending on vehicle)
The one-touch mode works in addition
to the operation of the electric windows
described previously.
It is fitted to the driver’s window and
is used for lowering only.
Briefly press switch 1: the window will
open completely.
Pressing the switch again while the
window is moving will stop its move-
ment.
ELECTRIC WINDOWS (2/2)/HALF-OPENING WINDOW
4
Half-opening window
To half-open the window, turn handle 4
in the direction of the arrow, then lock it
by pushing the handle. When closing it,
check that it is properly locked.
1
Avoid resting any objects against
a half-open window: there is a risk
that the electric window could be
damaged.
Page 133 of 220
3.17

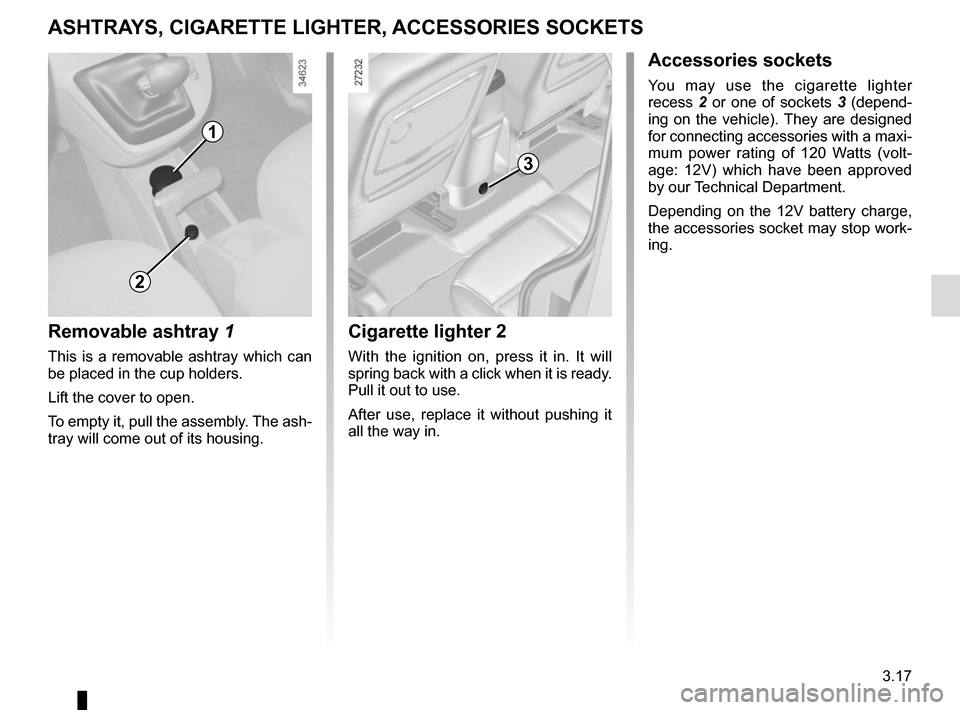

Removable ashtray 1
This is a removable ashtray which can
be placed in the cup holders.
Lift the cover to open.
To empty it, pull the assembly. The ash-
tray will come out of its housing.
ASHTRAYS, CIGARETTE LIGHTER, ACCESSORIES SOCKETS
1
3
Accessories sockets
You may use the cigarette lighter
recess 2 or one of sockets 3 (depend-
ing on the vehicle). They are designed
for connecting accessories with a maxi-
mum power rating of 120 Watts (volt-
age: 12V) which have been approved
by our Technical Department.
Depending on the 12V battery charge,
the accessories socket may stop work-
ing.
Cigarette lighter 2
With the ignition on, press it in. It will
spring back with a click when it is ready.
Pull it out to use.
After use, replace it without pushing it
all the way in.
2
Page 134 of 220
3.18

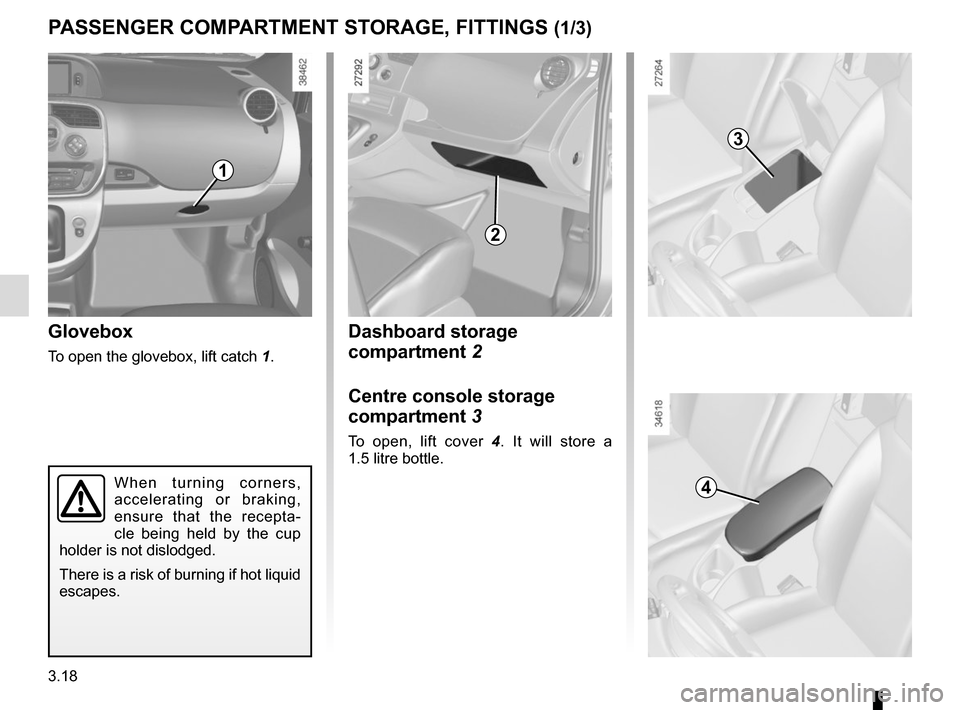

Dashboard storage
compartment 2
Centre console storage
compartment 3
To open, lift cover 4. It will store a
1.5 litre bottle.
Glovebox
To open the glovebox, lift catch 1.
PASSENGER COMPARTMENT STORAGE, FITTINGS (1/3)
1
2
4
3
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
Page 135 of 220
3.19

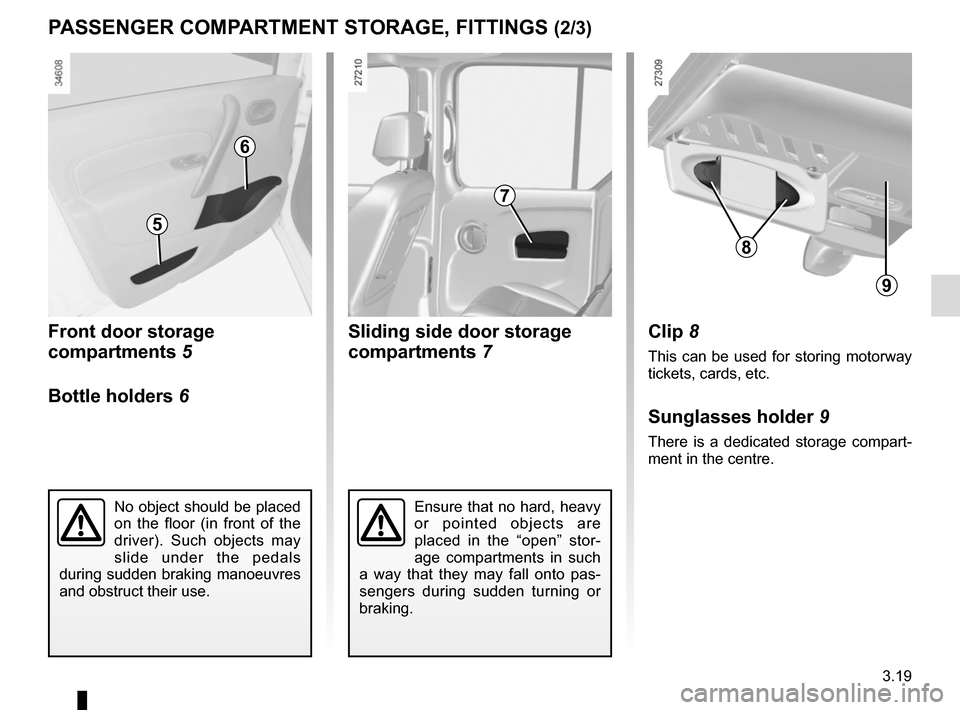

Sliding side door storage
compartments 7
Front door storage
compartments 5
Bottle holders
6
PASSENGER COMPARTMENT STORAGE, FITTINGS (2/3)
No object should be placed
on the floor (in front of the
driver). Such objects may
slide under the pedals
during sudden braking manoeuvres
and obstruct their use.
Clip 8
This can be used for storing motorway
tickets, cards, etc.
Sunglasses holder 9
There is a dedicated storage compart-
ment in the centre.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” stor-
age compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
5
6
7
8
9
Page 136 of 220
3.20
PASSENGER COMPARTMENT STORAGE, FITTINGS (3/3)
10

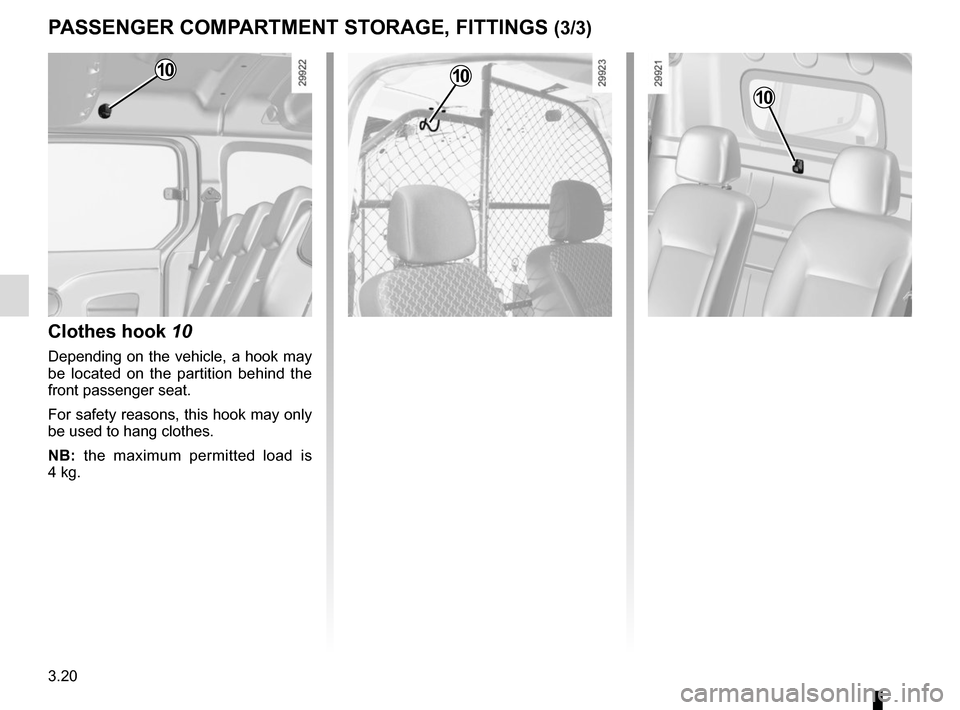

Clothes hook 10
Depending on the vehicle, a hook may
be located on the partition behind the
front passenger seat.
For safety reasons, this hook may only
be used to hang clothes.
NB: the maximum permitted load is
4 kg.
10
10
Page 137 of 220
3.21
To raise the seatback
Before raising the seatback, make sure
there are no objects (water bottle, tool
box etc.) which will prevent it from lock-
ing properly.
Raise the seatback and click it into po-
sition. Check that it is correctly locked.
To fold down the seatback
Before moving the bench seat, make
sure the front seats are pushed forward
enough, that the rear seat belts are un-
fastened and that nothing will obstruct
the manoeuvre.
Lower the rear headrests to storage po-
sition.
Pull lever 1 of the seatback you wish to
fold down (on the right or left-hand side
of the bench seat), and bring the seat-
back down.
REAR BENCH SEAT: functions (1/2)
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
When moving the rear
bench seat, make sure
the bench seat anchor-
age points are clean (they
should be free from grit, cloths etc.).
When refitting the seatback,
make sure it is correctly
locked.
If using seat covers, make
sure they do not prevent the seat-
back and seat base latches from
locking in. Ensure that the seat belts
and seat belt fasteners are correctly
positioned.
Reposition the headrests.
Max. weight: 300 kg, evenly distrib-
uted.
1
Page 138 of 220
3.22
REAR BENCH SEAT: functions (2/2)

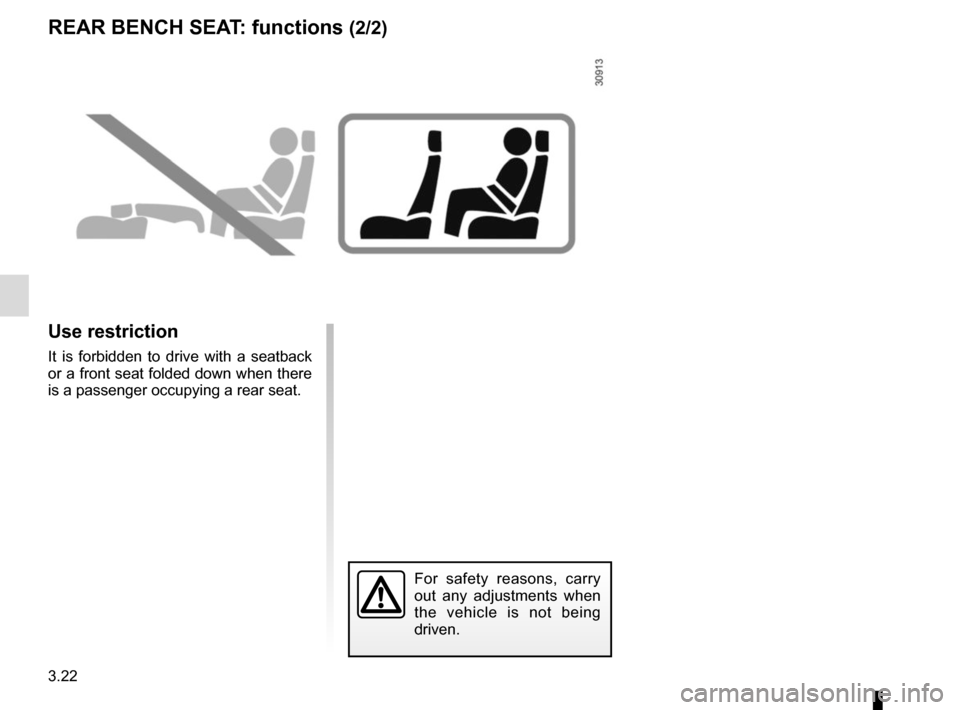

Use restriction
It is forbidden to drive with a seatback
or a front seat folded down when there
is a passenger occupying a rear seat.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Page 139 of 220
3.23
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition.

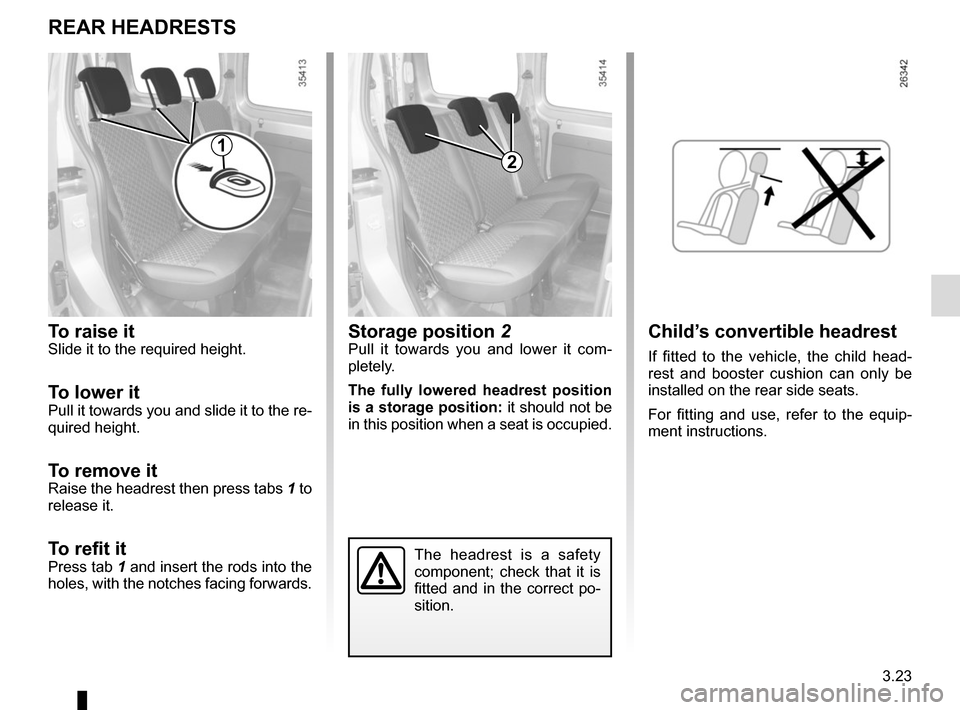

Storage position 2Pull it towards you and lower it com-
pletely.
The fully lowered headrest position
is a storage position: it should not be
in this position when a seat is occupied.To raise itSlide it to the required height.
To lower itPull it towards you and slide it to the re-
quired height.
To remove itRaise the headrest then press tabs 1 to
release it.
To refit itPress tab 1 and insert the rods into the holes, with the notches facing forwards.
REAR HEADRESTS
Child’s convertible headrest
If fitted to the vehicle, the child head-
rest and booster cushion can only be
installed on the rear side seats.
For fitting and use, refer to the equip-
ment instructions.
12
Page 140 of 220
3.24
Always position the hea-
viest items directly on the
floor.
Use the lashing points on
the floor of the luggage compart-
ment, if these are fitted to the vehi-
cle.
The luggage should be loaded in
such a way that no items will be
thrown forward and strike the occu-
pants if the driver has to brake sud-
denly.
Fasten the rear seat belts, even if
the seats are not occupied.

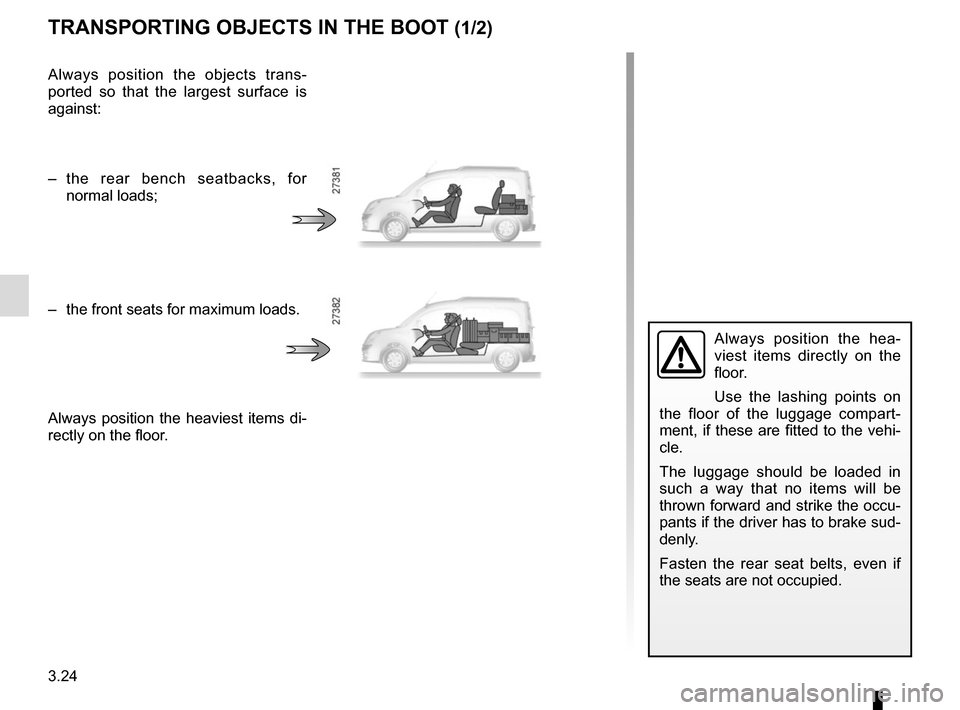

TRANSPORTING OBJECTS IN THE BOOT (1/2)
Always position the objects trans-
ported so that the largest surface is
against:
– the rear bench seatbacks, for normal loads;
– the front seats for maximum loads.
Always position the heaviest items di-
rectly on the floor.
