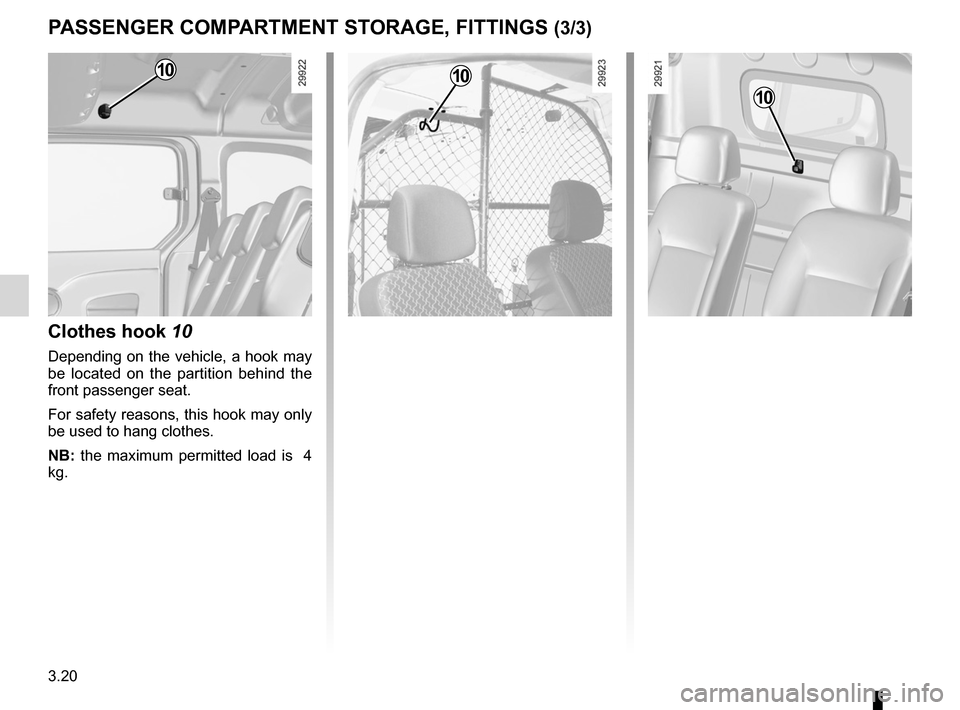

P AssenGer CoMPArtMent storAGe, FittinGs (3/3)
10
Clothes hook 10
Depending on the vehicle, a hook may
be located on the partition behind the
front passenger seat.
For safety reasons, this hook may only
be used to hang clothes.
nB: the maximum permitted load is 4
kg.
10
10

rear bench seat..................................... (up to the end of the DU)
rear seats functions ......................................... (up to the end of the DU)
3.21
ENG_UD26786_3
Banquette arrière : fonctionnalité (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_3
Rear bench seat
t o raise the seatback
Before raising the seatback, make sure
there are no objects (water bottle, tool
box etc.) which will prevent it from lock-
ing properly.
Raise the seatback and click it into po-
sition. Check that it is correctly locked.
to fold down the seatback
Before moving the bench seat, make
sure the front seats are pushed forward
enough, that the rear seat belts are un-
fastened and that nothing will obstruct
the manoeuvre.
Lower the rear headrests to storage po-
sition.
Pull lever 1 of the seatback you wish to
fold down (on the right or left-hand side
of the bench seat), and bring the seat-
back down.
reAr BenCH seA t: functions (1/2)
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
When moving the rear
bench seat, make sure
the bench seat anchor -
age points are clean (they
should be free from grit, cloths etc.).
When refitting the seatback,
make sure it is correctly
locked.
If using seat covers, make
sure they do not prevent the seat -
back and seat base latches from
locking in. Ensure that the seat belts
and seat belt fasteners are correctly
positioned.
Reposition the headrests.
Max. weight: 300 kg, evenly distrib-
uted.
1

3.22
ENG_UD26786_3
Banquette arrière : fonctionnalité (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_3

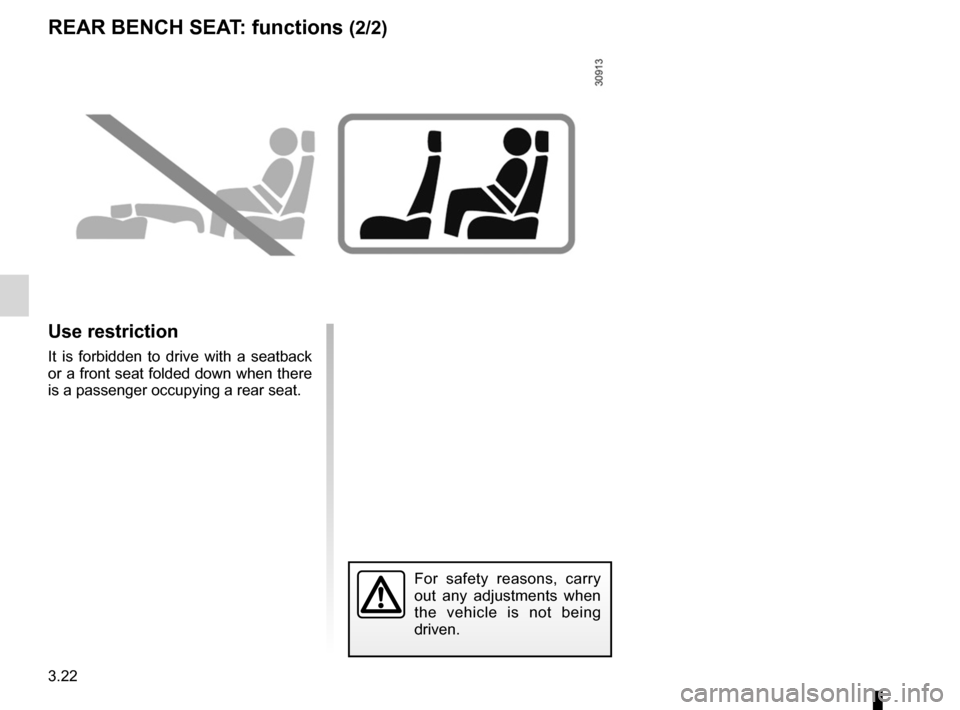

reAr BenCH seA t: functions (2/2)
use restriction
It is forbidden to drive with a seatback
or a front seat folded down when there
is a passenger occupying a rear seat.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.

headrest................................................ (up to the end of the DU)
3.23
ENG_UD26787_3
Appuis-tête arrière (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_3
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition.
storage position 2Pull it towards you and lower it com -
pletely.
t he fully lowered headrest position
is a storage position: it should not be
in this position when a seat is occupied.t o raise itSlide it to the required height.
to lower itPull it towards you and slide it to the re-
quired height.
to remove it
Raise the headrest then press tabs 1 to
release it.
t o refit itPress tab 1 and insert the rods into the
holes, with the notches facing forwards.
reAr HeAdrests
Child’s convertible headrest
If fitted to the vehicle, the child head -
rest and booster cushion can only be
installed on the rear side seats.
For fitting and use, refer to the equip -
ment instructions.
12

transporting objectsin the luggage compartment ........... (up to the end of the DU)
tailgate .................................................. (up to the end of the DU)
3.24
ENG_UD21474_3
Transports d’objets dans le coffre (X61 - F61 - K61 - Renault)
ENG_NU_911-4_F61e_Renault_3
Transporting objects in the boot
Always position the heavi -
est items directly on the
floor.
Use the lashing points on
the floor of the luggage compart -
ment, if these are fitted to the vehi-
cle.
The luggage should be loaded in
such a way that no items will be
thrown forward and strike the occu-
pants if the driver has to brake sud-
denly.
Fasten the rear seat belts, even if
the seats are not occupied.
trAnsPortinG oBjeCts in tHe luGGAGe CoMPArtMent
Always position the objects trans -
ported so that the largest surface is
against:
– the rear bench seatbacks, for
normal loads;
– the front seats for maximum loads.
Always position the heaviest items di-
rectly on the floor.

towingtowing equipment ............................ (up to the end of the DU)
towing equipment fitting ............................................... (up to the end of the DU)
3.25
ENG_UD29274_3
Remorquage : attelage (X61 - F61 - K61 - Renault)
ENG_NU_911-4_F61e_Renault_3
A = 776.5 mm.
Towbar
Permissible nose weight, maxi -
mum permissible towing weight,
braked and unbraked : refer to
Section 6 “Weights”.
Refer to the manufacturer’s instruc-
tions for information on how to fit
and operate the towing equipment.
Please keep these instructions with
the rest of the vehicle documenta -
tion.

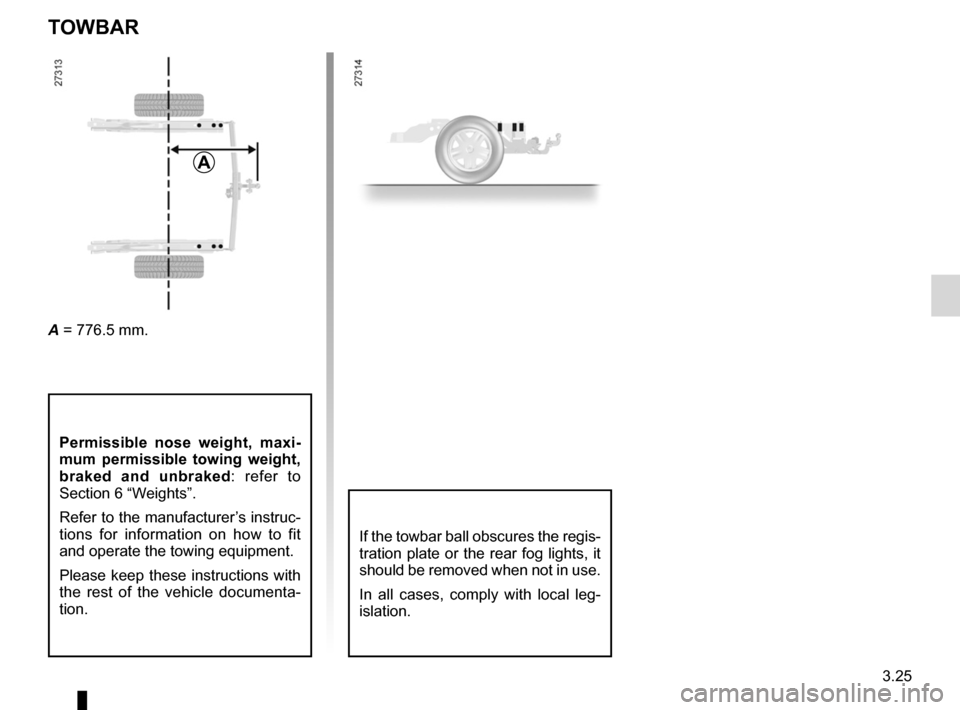

t oWBAr
A
If the towbar ball obscures the regis-
tration plate or the rear fog lights, it
should be removed when not in use.
In all cases, comply with local leg -
islation.

luggage retaining net ............................................. (current page)
3.26
ENG_UD12999_2
Filet de retenue de bagages (X61 - F61 - K61 - Renault)
ENG_NU_911-4_F61e_Renault_3
Luggage net
the luggage net(depending on vehicle)
This is located in the luggage compart-
ment.
It may be attached behind the front
seats or behind the rear bench seat.
Hooks 1 may also be used to hang
clothes.

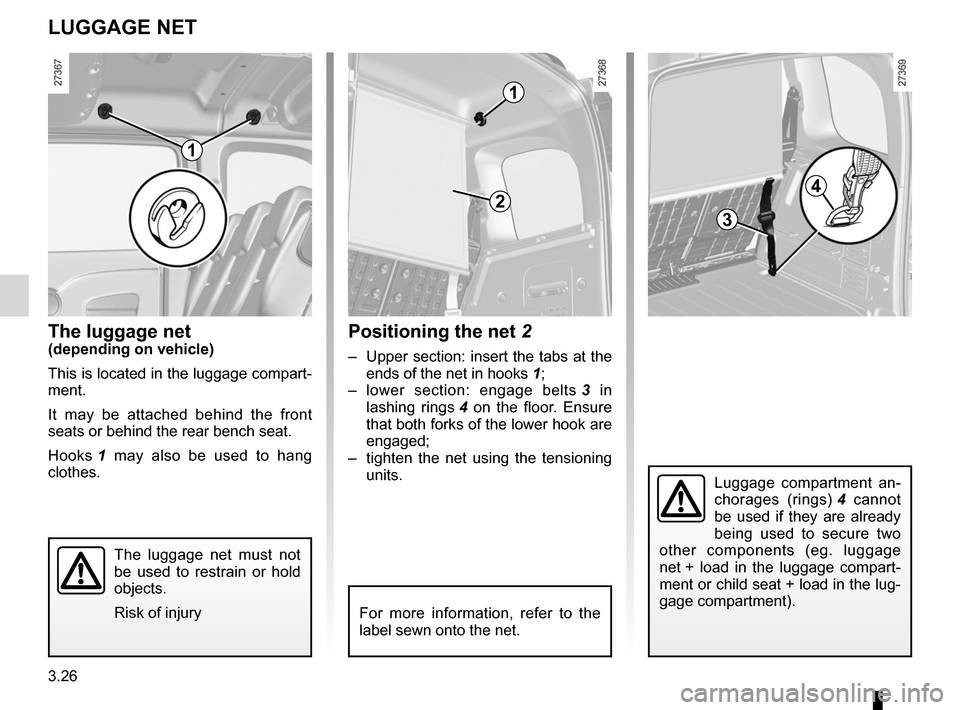

luGGAGe net
For more information, refer to the
label sewn onto the net.
1
1
3
4
Positioning the net 2
– Upper section: insert the tabs at the
ends of the net in hooks 1;
– lower section: engage belts 3 in
lashing rings 4 on the floor. Ensure
that both forks of the lower hook are
engaged;
– tighten the net using the tensioning
units.
Luggage compartment an -
chorages (rings) 4 cannot
be used if they are already
being used to secure two
other components (eg. luggage
net + load in the luggage compart -
ment or child seat + load in the lug-
gage compartment).
2
The luggage net must not
be used to restrain or hold
objects.
Risk of injury

4.1
ENG_UD29095_4
Sommaire 4 (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_4

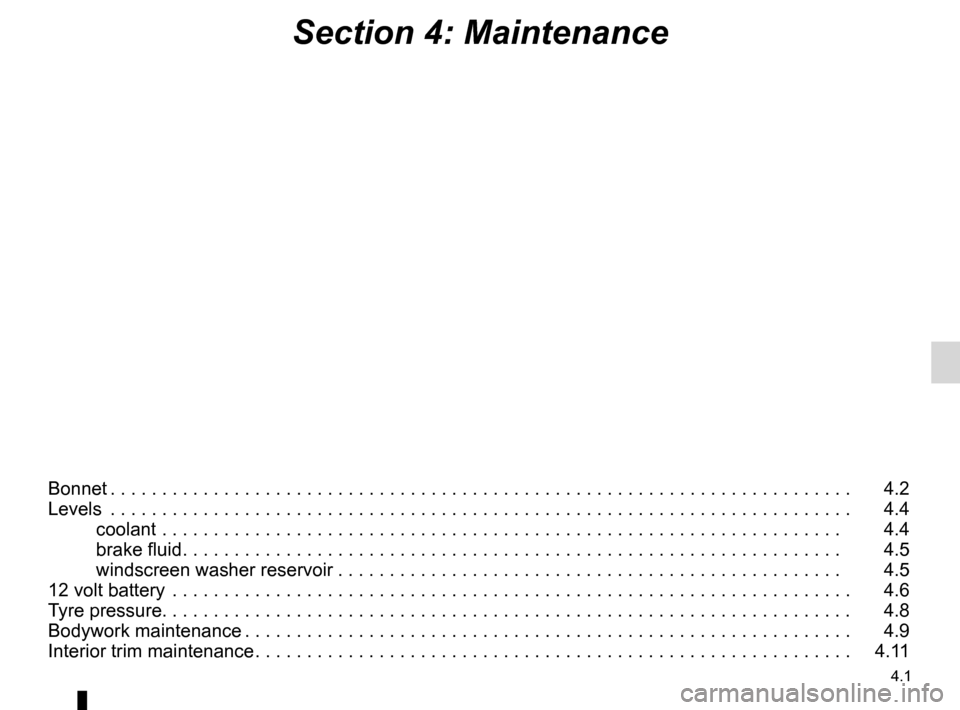

Section 4: Maintenance
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2
Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5
windscreen washer reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5
12 volt battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6
Tyre pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
Bodywork maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
Interior trim maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.11

bonnet................................................... (up to the end of the DU)
maintenance: mechanical ...................................... (up to the end of the DU)
4.2
ENG_UD20963_2
Capot moteur (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_4
Jaune NoirNoir texte
Bonnet
Opening
Pull control 1 towards you.
Lift the bonnet by several centimetres
and push lever 2 to the left.
Lift the bonnet up and release stay 4
from its holder 5. For your own safety,
it is very important to fit the stay into
its retainer 3. Check that it is correctly
locked.
BOnnet (1/2)
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
1
2
In the event of an impact,
even slight, against the ra -
diator grille or bonnet, have
the bonnet catch checked
by an approved dealer as soon as
possible.
After carrying out any work
in the engine compart -
ment, check that nothing
has been left behind (cloth,
tools, etc.).
Otherwise, this may lead to engine
damage.
Do not do any work under
the bonnet when the vehicle
is charging or when the igni -
tion is switched on.

JauneNoirNoir texte
4.3
ENG_UD20963_2
Capot moteur (X61 - F61 - Renault)
ENG_NU_911-4_F61e_Renault_4
4
5
3
Closing
Check that nothing has been left in the
engine compartment.
Release the stay and replace it in its
holder 5.
Lower the bonnet and release it when it
is approximately 20 cm from the closed
position. It will latch automatically under
its own weight.
Ensure that the bonnet is
properly locked.
Check that nothing is pre -
venting the catch from lock-
ing (gravel, cloth, etc.).

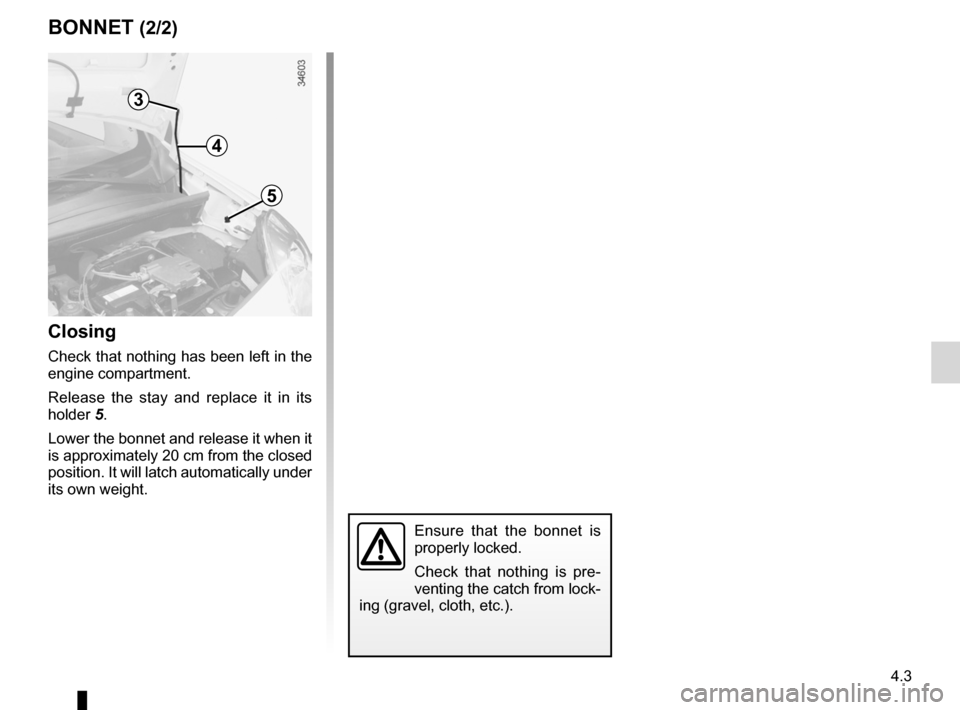

BOnnet (2/2)
