Section 1: Getting to know your vehicle
RENAULT cards: general information, use, deadlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Automatic locking of opening elements when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Front headrests/Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
to the rear seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Additional methods of restraint: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
to the rear seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
side protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Child safety: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
choosing a child seat mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
deactivating/activating the front passenger airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Clock and exterior temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
trip computer and warning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Rear-view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Electric beam height adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Front windscreen wash/wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Rear windscreen wash/wiper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Page 6 of 232
JauneNoir Noir texte
6
ENG_UD27274_4
Carte RENAULT : g n ralit s (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
RENAULT CARDS: general information (1/2)
1 Unlocking the doors and the tailgate;
2 Locking the doors and the tailgate;
3 Switching on the lighting remotely;
4 Unlocking/locking the tailgate;
5 Integrated key.
The RENAULT card is used
for:
– locking and unlocking the doors and
tailgate (refer to the following pages);
– depending on the vehicle, automati-
cally closing the electric windows
and sunroof remotely (see the in-
formation on "Electric windows" and
"Electric sunroof" in Section 3);
– switching on the vehicle lighting re-
motely (refer to the following pages);
– starting the engine (refer to the in-
formation on "Starting the engine" in
Section 2).
Battery lifeMake sure that the correct battery type
is being used, and that the battery is in
good condition and inserted correctly.
Its service life is approximately two
years: replace it when the message
"Replace card battery" appears on the
instrument panel (refer to the informa-
tion on the "RENAULT card: Battery" in
Section 5).
4
5
1
23
RENAULT card operating
range
This varies according to the surround-
ings: It is important to make sure when
handling the RENAULT card that you
do not lock or unlock the doors by inad-
vertently pressing the buttons.
Driver’s responsibility
Never leave your vehicle
with the Renault card inside
and never leave a child
(or a pet) unsupervised, even for a
short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Risk of serious injury.
When the battery is flat, you can
still lock/unlock and start your ve-
hicle. Refer to the information on
“Locking/unlocking the doors” in
Section 1 and “Starting the engine”
in Section 2.
Page 7 of 232
JauneNoir Noir texte
7
ENG_UD27274_4
Carte RENAULT : g n ralit s (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1

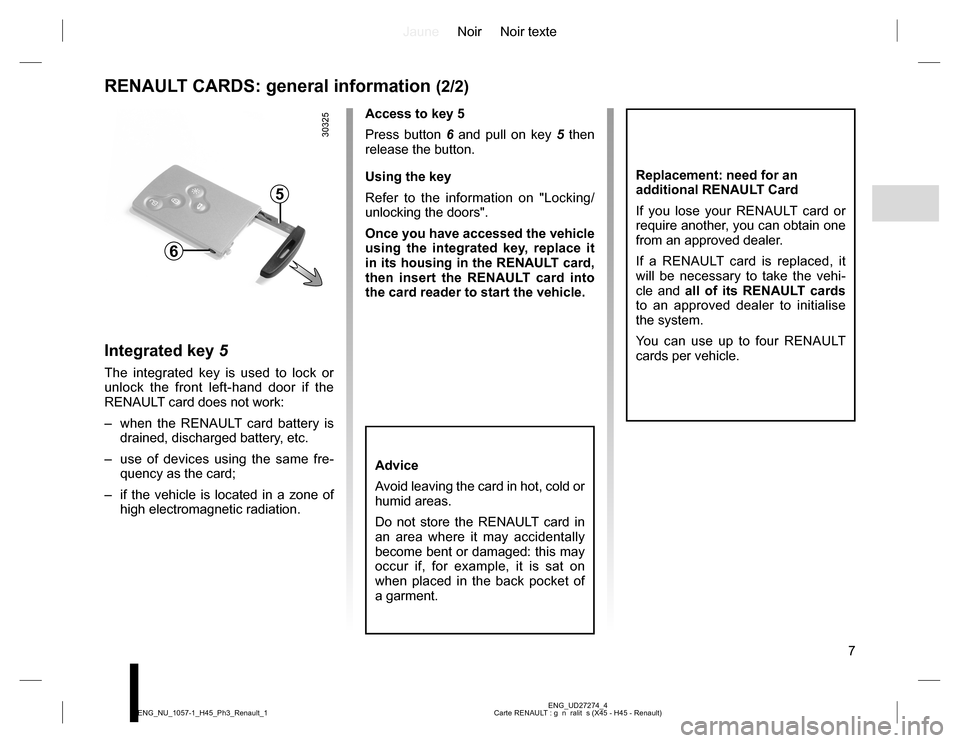

RENAULT CARDS: general information (2/2)
6
5
Replacement: need for an
additional RENAULT Card
If you lose your RENAULT card or
require another, you can obtain one
from an approved dealer.
If a RENAULT card is replaced, it
will be necessary to take the vehi-
cle and all of its RENAULT cards
to an approved dealer to initialise
the system.
You can use up to four RENAULT
cards per vehicle.
Advice
Avoid leaving the card in hot, cold or
humid areas.
Do not store the RENAULT card in
an area where it may accidentally
become bent or damaged: this may
occur if, for example, it is sat on
when placed in the back pocket of
a garment.
Access to key 5
Press button 6 and pull on key 5 then
release the button.
Using the key
Refer to the information on "Locking/
unlocking the doors".
Once you have accessed the vehicle
using the integrated key, replace it
in its housing in the RENAULT card,
then insert the RENAULT card into
the card reader to start the vehicle.
Integrated key 5
The integrated key is used to lock or
unlock the front left-hand door if the
RENAULT card does not work:
– when the RENAULT card battery is
drained, discharged battery, etc.
– use of devices using the same fre-
quency as the card;
– if the vehicle is located in a zone of
high electromagnetic radiation.
Page 8 of 232
JauneNoir Noir texte
8
ENG_UD27275_4
Cartes RENAULT t l commande : utilisation (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
REMOTE CONTROL RENAULT CARDS: use
Locking the doors
Press the locking button 2.
The hazard warning lights flash twice
to indicate that the doors have locked:
if a door or the boot is open or not prop-
erly shut, or if a RENAULT card is still in
the reader, the doors and boot quickly
lock then unlock and the hazard warn-
ing lights and indicator lights do not
flash.
Unlocking/locking the tailgate
only
Press button 4 to unlock or lock the
boot.Unlocking the doors
Press unlocking button 1.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
1
23
4
The card buttons are deactivated
when the engine is running.
Distance lighting function
This can, for example, identify the ve-
hicle from a distance when parked in a
car park.
The dipped beam headlights, indicator
lights and interior lights come on for ap-
proximately 30 seconds when button 3
is pressed.
Note: pressing button 3 again switches
off the lighting.
RENAULT card non-detection
alarm
The message “Keycard not detected”
and a beep will warn you if you open
a door with the engine running and the
card is not in the reader. The warning
disappears when the card is inserted in
the reader again.
The flashing status of the hazard
warning lights informs you of the ve-
hicle status:
– one flash indicates that the vehi-
cle is unlocked;
– two flashes indicates that the
vehicle is locked.
Page 9 of 232
JauneNoir Noir texte
9
ENG_UD27276_6
Carte RENAULT en mode mains libres : utilisation (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1
UseFor vehicles with a hands-free
RENAULT card, this allows the vehicle
to be locked/unlocked automatically (in
addition to the functions of the remote
control RENAULT card) if a card is
present in access zone 1.
Note: ensure that the RENAULT card
is not in contact with other electronic
equipment (computer, PDA, phone,
etc.) as this could hinder its operation.
RENAULT "HANDS-FREE" CARD: use (1/3)
Unlocking the vehicleWith the RENAULT card in zone 1,
place your hand on a door handle 2: the
vehicle will unlock (in some cases, you
may need to pull door handle 2 twice to
unlock the vehicle and open the door).
Pressing the button 3 also unlocks all
the doors and the tailgate.
The hazard warning lights flash once
to indicate that the doors have been un-
locked.
Never leave your vehicle with the RENAULT card inside.
The flashing status of the hazard
warning lights informs you of the ve-
hicle status:
– one flash indicates that the vehi-
cle is unlocked;
– two flashes indicates that the
vehicle is locked.
1
23
Page 10 of 232
JauneNoir Noir texte
10
ENG_UD27276_6
Carte RENAULT en mode mains libres : utilisation (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_1

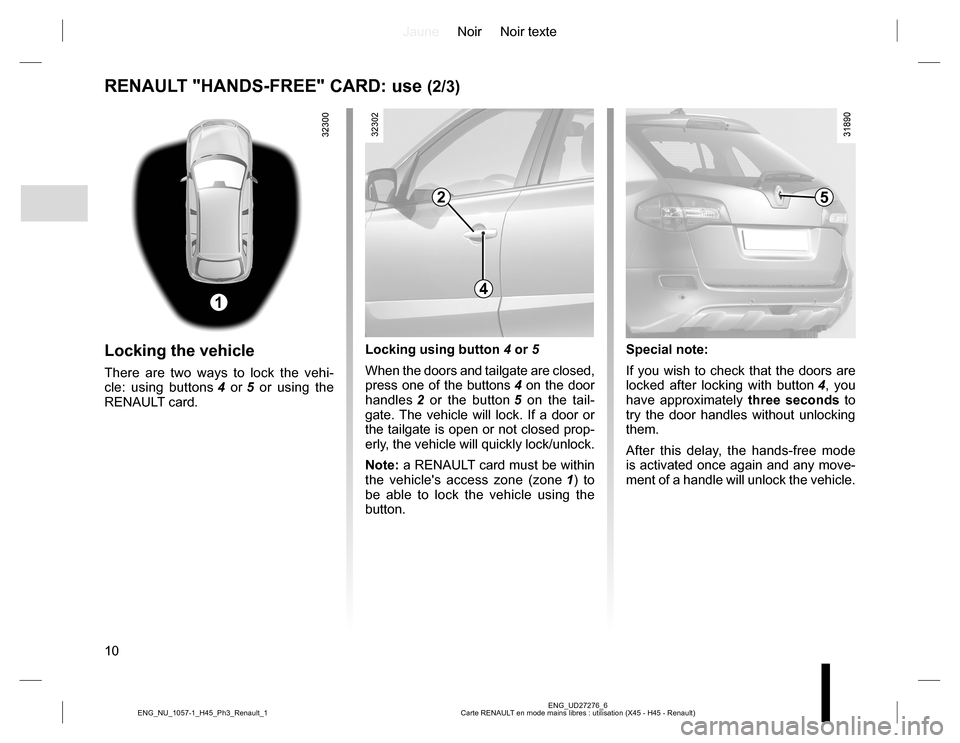

RENAULT "HANDS-FREE" CARD: use (2/3)
Locking the vehicle
There are two ways to lock the vehi-
cle: using buttons 4 or 5 or using the
RENAULT card.
Locking using button 4 or 5
When the doors and tailgate are closed,
press one of the buttons 4 on the door
handles 2 or the button 5 on the tail-
gate. The vehicle will lock. If a door or
the tailgate is open or not closed prop-
erly, the vehicle will quickly lock/unlock.
Note: a RENAULT card must be within
the vehicle's access zone (zone 1) to
be able to lock the vehicle using the
button.Special note:
If you wish to check that the doors are
locked after locking with button 4, you
have approximately three seconds to
try the door handles without unlocking
them.
After this delay, the hands-free mode
is activated once again and any move-
ment of a handle will unlock the vehicle.
1
2
4
5
