RENAULT MEGANE HATCHBACK 2016 X95 / 3.G Owners Manual

rear screen de-icing/demisting .............................. (current page)
windscreen de-icing/demisting .............................. (current page)
Jaune NoirNoir texte
3.9
ENG_UD14525_3
Air conditionné automatique (X95 - B95 - D95 - L38 - X38 - X32 - B32\
- Renault)
ENG_NU_837-8_BDK95_Renault_3

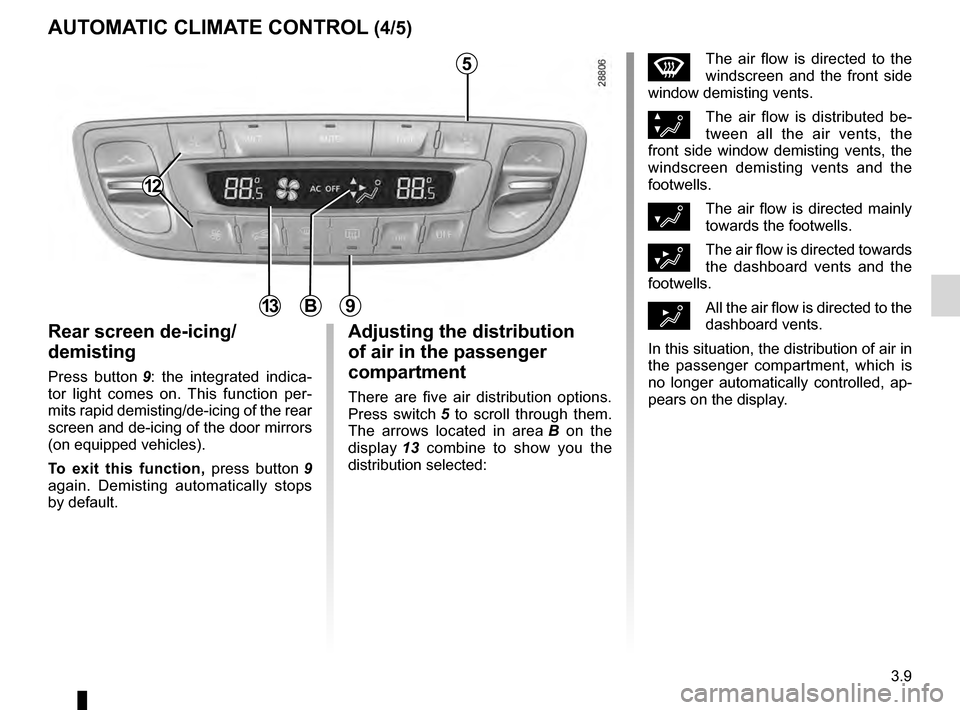

AuTo MATI c cl IMATE co NTR ol (4/5)
Rear screen de-icing/
demisting
Press button 9: the integrated indica-
tor light comes on. This function per-
mits rapid demisting/de-icing of the rear
screen and de-icing of the door mirrors
(on equipped vehicles).
To exit this function, press button
9


again. Demisting automatically stops
by default.
12
WThe air flow is directed to the
windscreen and the front side
window demisting vents.
×The air flow is distributed be-
tween all the air vents, the
front side window demisting vents, the
windscreen demisting vents and the
footwells.
¿The air flow is directed mainly
towards the footwells.
¾The air flow is directed towards
the dashboard vents and the
footwells.
½All the air flow is directed to the
dashboard vents.
In this situation, the distribution of air in
the passenger compartment, which is
no longer automatically controlled, ap-
pears on the display.9
Adjusting the distribution
of air in the passenger
compartment
There are five air distribution options.
Press switch 5
to scroll through them.
The arrows located in area
B

on the
display
1

3 combine to show you the
distribution selected:
5
B13

3.10
ENG_UD14525_3
Air conditionné automatique (X95 - B95 - D95 - L38 - X38 - X32 - B32\
- Renault)
ENG_NU_837-8_BDK95_Renault_3
Manual use
Pressing button
11 allows air recircula-
tion to be forced, in this case, the inte-
grated indicator comes on .
Prolonged use of this position may lead
to odours, caused by non-renewal of
air, and the formation of condensation
on the windows.
We therefore advise you to return to au-
tomatic mode as soon as the air recir-
culation function is no longer required,
by pressing button

1
1 again.Stopping the system
Press button 7 to switch off the system;
in this case “OFF” is shown on the dis-
play
13. To switch the system on, press
one of the
2, 3 or 4 switches.
Recycling
This function is controlled automati-
cally, but it can also be activated manu-
ally.
Note:
–

during
recirculation, air is taken from
the passenger compartment and
is recycled, with no air being taken
from outside the vehicle;
–

a
ir recirculation allows the external
atmosphere to be cut off (when driv-
ing in polluted areas, etc.);
–

l
owering the passenger compart-
ment temperature as quickly as pos-
sible.
AuTo MATI c cl IMATE co NTR ol (5/5)
The demisting/de-icing will still take
priority over the air recirculation.
11
234
713

air conditioning ..................................... (up to the end of the DU)
heating and air conditioning system ...................... (current page)
air conditioning ..................................... (up to the end of the DU)
3.11
ENG_UD10081_2
Air conditionné : informations et conseils d’utilisation (X91 - B\
91 - K91 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Air conditioning: information and advice on use
AIR coNDITIoNINg: information and advice on use
Fuel consumption
You will normally notice an increase
in fuel consumption (especially
when driving in town) when the air
conditioning is operating.
For vehicles fitted with manual air
conditioning, switch off the system
when it is not required.
Advice for reducing
consumption and therefore
helping to preserve the
environment:
Drive with the air vents open and
the windows closed.
If the vehicle has been parked in
the sun, open the doors for a few
moments to let the hot air escape
before starting the engine.
Maintenance
Refer to the Maintenance Service
Booklet for your vehicle for the in-
spection frequency.operating faults
As a general rule, contact your ap-
proved Dealer in the event of an op-
erating fault:
–

r
eduction in de-icing, demist-
ing or air conditioning per-
formance. This may be caused
by the passenger compartment
filter cartridge becoming clogged;
–

no
cold air is being produced.
Check that the controls are set
correctly and that the fuses are
sound. Otherwise, switch off the
system.
Advice on use
In some situations, (air conditioning
off, air recirculation activated, venti-
lation speed at zero or low, etc.) you
may notice that condensation starts
to form on the windows and wind-
screen.
If there is condensation, use the
“
c lear View” function to remove it,
then use the air conditioning in auto-
matic mode to stop it forming again.
If the condensation does not clear,
use the FAST programme.
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.
Note
Presence of water under the ve-
hicle. After prolonged use of the air
conditioning system, it is normal for
water to be present under the vehi-
cle. This is caused by condensation.

electric windows ................................... (up to the end of the DU)
child safety............................................................. (current page)
children (safety) ..................................................... (current page)
sunroof.................................................. (up to the end of the DU)
3.12
ENG_UD18900_4
Lève-vitres électriques (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Jaune NoirNoir texte
These systems operate with the igni-
tion on or off, until one of the front doors
is opened (limited to about 3 minutes).
From the driver’s seat, use switch: 1
for the driver ’s side;
2


for the front passenger side; 3


and
5 for the rear passenger win-
dows.
From the passenger seats, use
switch
6.
Note: if the window detects resistance
when closing (e.g.: fingers, branch of
a tree, etc.) it stops and then lowers
again by a few centimetres.
Electric windows/Electric sunroof
ElEcTRIc wINDowS/ElEcTRIc PANoRAMIc SuNRooF (1/3)
Electric windows
Press or pull the switch to raise or lower
a window to the desired height (the rear
windows do not open fully);
o
ne-touch mode
This mode works in addition to the
operation of the electric windows de-
scribed previously. It either operates on
the front windows only, or on all the win-
dows.
Briefly press or pull the window switch
fully: the window is fully lowered or
raised. Pressing the switch again stops
the window moving.
1
2
34
5
6
Safety of rear occupants
The driver can disable op-
eration of the electric win-
dows and, depending on
the vehicle, the rear doors, by
pressing switch
4 .

The indicator
light integrated in the switch lights
up to confirm that the locks have
been activated.
Driver’s responsibility
Never leave your vehicle with the
RENAULT card inside and never
leave a child (or a pet) unsuper-
vised, even for a short while. They
may pose a risk to themselves or to
others by starting the engine, acti-
vating equipment such as the elec-
tric windows or by locking the doors.
If any part of the body becomes
trapped, reverse the direction of the
window immediately by pressing the
relevant switch.
Risk of serious injury.
Avoid resting any objects against
a half-open window: there is a risk
that the electric window could be
damaged.

JauneNoirNoir texte
3.13
ENG_UD18900_4
Lève-vitres électriques (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
ElEcTRIc wINDowS/ElEcTRIc PANoRAMIc SuNRooF (2/3)
Sunroof
– open the sun blind
–
T
o open slightly: turn button
9

to
position

A
;
–

T
o open fully: turn button
9

to po-
sition
B , C

or
D,

depending on the
opening position required;
–

T
o close: turn button 9 to position 0.
Sun blind
– to open: push handle 7 upwards
and guide the blind as it retracts;
–

to
close: pull handle
7
until it clicks
into the catch.
Special noteYour vehicle is equipped with an antip-
inch facility: when the sunroof encoun-
ters resistance whilst closing, (some-
body’s fingers, etc.) it stops and then
moves back several centimetres.
Driver’s responsibility
Never leave your vehicle
with the RENAULT card
inside and never leave a
child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child
may endanger himself or others by
starting the engine, activating equip-
ment such as the window winders
for example, or locking the doors.
If a body part gets trapped, reverse
the direction of travel as soon as
possible by turning button
9 fully to
the right (position

D
).
Risk of serious injury.
70
AB
c
D
98

3.14
ENG_UD18900_4
Lève-vitres électriques (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
ElEcTRIc wINDowS/ElEcTRIc PANoRAMIc SuNRooF (3/3)
Precautions during use
– check that the sunroof is properly
closed before leaving your vehicle;
–

c
lean the seal every three months
using products recommended by our
Technical Department;
–

d
o not open the sunroof immedi-
ately after the vehicle has been in
the rain or after your car has been
washed.
–

V
ehicle with roof bars
As a general rule, if there is a load
on the roof, use of the sunroof is not
recommended.
Before using the sunroof, check the
objects and/or accessories (bike
racks, roof boxes, etc.) attached to
the roof bars: they should be prop-
erly arranged and secured and
should not interfere with the opera-
tion of the sunroof.
Contact your approved Dealer for
details of possible conversions.
operating faults
Electric windows
In case of a fault when closing a window,
the system reverts to normal mode:
pull the switch concerned up as often
as necessary to fully close the window
(the window will close gradually), hold
the switch (still on the closure side) for
three seconds then lower and raise the
window fully to reinitialise the system.
If necessary, contact your approved
Dealer.
Electric sunroof
If the roof does not close, turn button
9
to the position 0
and then press button 8
until the roof is fully closed: consult an
approved Dealer.
Remote control window
closing
(for vehicles with one-touch windows
on all windows).
When you lock the doors from the out-
side, press the locking button on the
RENA
u

l
T
card twice in quick suc-
cession, or on the driver's door in
hands-free mode, and all the windows
will close automatically.
It is recommended that the user only
operates the system when the vehi-
cle can be seen clearly and no one is
inside.
Note: locking the doors using the
RENAULT card deactivates hands-free
mode.
Closing windows can cause
serious injury.
If the vehicle is equipped
with this function, this action
will activate deadlocking.
Check that there is no-one
still inside the vehicle
Important: during this operation,
the sunroof anti-pinch facility is de-
activated. Contact your approved
dealer as soon as possible.

lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
map reading lights ................................ (up to the end of the DU)
3.15
ENG_UD18902_3
Eclairage intérieur (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Manual window winders
Interior lighting
MANuAl w IND ow w INDERS/I NTERI o R l I gh TIN g (1/2)
When the doors or luggage com-
partment are unlocked and opened
the courtesy and footwell lights
come on temporarily.
234
courtesy light
Tilt switch 3 to move it to the position
for:
–

permanent lighting;
–


i
ntermittent lighting, which comes
on when a door is opened. This
switches off after a time delay, once
the doors concerned have been
closed correctly;
–

immediate switching of
f.
Map reading lights(depending on vehicle)
Tilt switches 2 or 4.
Front door lights
Light 5 comes on when the door is
opened.
5
Manual window winders
Turn handle 1 .
1

sun visor ................................................................ (current page)
courtesy mirrors ..................................................... (current page)
3.16
ENG_UD18902_3
Eclairage intérieur (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
luggage compartment light 9
Depending on the vehicle, light 9 ,
c omes on when the luggage compart-
ment is opened.
Sun visor
INTERIoR lIghTINg (2/2)/SuN VISoR
9
Sun visor
Lower the sun visor 7 over the wind-
screen or unclip it and turn it over the
side window.
courtesy mirrors
Slide cover 8 , depending on the vehi-
cle, and the mirror is lit.
78
glove box light 6
Light 6 comes on when the cover is
opened.
6

storage compartments .......................... (up to the end of the DU)
storage compartment............................ (up to the end of the DU)
fittings ................................................... (up to the end of the DU)
3.17
ENG_UD11880_3
Rangements / aménagements habitacle (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Passenger compartment storage space and fittings
Door pockets 1
PASSEN g ER co MPARTMENT STo RA g E SPA c E AND FITTIN g S (1/4)
1
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Driver and passenger
underfloor storage
compartments
2
This storage compartment can be used
to hold the vehicle documentation, etc.
2
Sun visor storage 3
This can be used for storing motorway
tickets, cards, etc.
3
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.

armrest:front .................................................................. (current page)
3.18
ENG_UD11880_3
Rangements / aménagements habitacle (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Jaune NoirNoir texte
centre console storage
compartments 6Front centre armrest storage
compartment A
Press button 4 and lift the cover 5.
PASSENg ER co MPARTMENT STo RA g E SPA c E AND FITTIN g S (2/4)
Passenger storage
compartment
Pull handle 7 to open it.
The glove box can hold A4-size docu-
ments, a large bottle of water, etc.
The storage compartment is ventilated
and refrigerated.
7
45
A
6
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
