RENAULT SCENIC 2006 J84 / 2.G Tyre Pressure Monitoring Workshop Manual
Manufacturer: RENAULT, Model Year: 2006, Model line: SCENIC, Model: RENAULT SCENIC 2006 J84 / 2.GPages: 37, PDF Size: 0.15 MB
Page 1 of 37
Chassis
JM0B - JM0C - JM0F - JM0G - JM0H - JM0J - JM0U
77 11 322 262
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The methods may be modified as a result of changes introduced by the manufacturer
in the production of the various component units and accessories from which his
vehicles are constructed."
FEBRUARY 2006
All rights reserved by Renault s.a.s.
Edition Anglaise
Copying or translating, in part or in full, of this document or use of the service part
reference numbering system is forbidden without the prior written authority of
Renault s.a.s.
© Renault s.a.s. 2006
TYRE PRESSURE MONITOR
Program No.: 350 and higher
Vdiag: 48 - 4C - 4D - 4F - 50
EDITION 4
Abbreviations 35B-1
Introduction 35B-2
Fault finding log 35B-7
System operation 35B-9
Replacement of components 35B-13
Configuration and programming 35B-14
Conformity check 35B-18
Interpretation of statuses 35B-23
Interpretation of parameters 35B-27
Customer complaints 35B-29
Fault finding chart 35B-30
35B
Page 2 of 37
TYRE PRESSURE MONITOR
ABBREVIATIONS
35B
35B-1
UCH
Program no.: 350 and higher
Vdiag No: 48-4C-4D-4F-50
135BTYRE PRESSURE MONITOR
ABBREVIATIONS
ABBREVIATIONS MEANING OF ABBREVIATION
ABSAnti-lock braking system
ALPFault Finding Chart
APCAfter ignition
AVCBefore ignition
BVAAutomatic gearbox
BVMManual gearbox
BVRSequential gearbox
CANController Area Network
ACAir conditioning
CDCompact disc
PASPower assisted steering (hydraulic)
EPASElectric power assisted steering
DVDDigital versatile disc
DTCFault finding code
EGRExhaust gas recirculation
ESPElectronic Stability Program
GMVMotor-driven fan assembly
CNGCompressed natural gas
LPGLiquefied petroleum gas
HLEHigh yield strength
MAGMetal active gas (for welding steel)
MIGMetal inert gas (for welding aluminium)
MRWorkshop repair manual
TNTechnical Note
OBDOn board diagnostics
SERResistance welding
SSPPTyre pressure monitoring system
THLEVery high yield strength
TMLabour time
UCHPassenger Compartment Unit
UPCProtection and Switching Unit
UCTRoof control unit
UHLEUltra high yield strength
VINVehicle identification number
Page 3 of 37
TYRE PRESSURE MONITOR
Fault finding - Introduction
35B
35B-2
UCH
Program no.: 350 and higher
Vdiag No: 48-4C-4D-4F-50
135BTYRE PRESSURE MONITOR
Fault finding - Introduction
1. SCOPE OF THE DOCUMENT
This document presents the fault finding procedure applicable to all computers with the following specifications:
2. PREREQUISITES FOR FAULT FINDING
Documentation type
Fault finding procedures (this document):
–Assisted fault finding (integrated into the diagnostic tool), Dialogys.
Wiring diagrams:
–Visu-Schéma (CD-ROM).
Diagnostic tools type:
–CLIP
Special tooling required:
3. REMINDERS
Procedure
To run fault finding on the vehicle's computers, switch on the ignition in fault finding mode (forced + after ignition
feed).
Proceed as follows:
–vehicle card in reader,
–Press and hold start button (longer than 5 seconds) with start-up conditions not fulfilled,
–Then connect the diagnostic tool and perform the desired operations. Vehicle(s): SCENIC II
Function concerned: Tyre Pressure MonitorName of computer: UCH
Program no.: 0350 and higher
Vdiag No: 48, 4C, 4D, 4F, 50
Special tooling required
Multimeter
Elé. 1681Universal bornier
Ms. 1607Valve exciter
Pressure gauge
Tyre inflation system
SSPP_V48_PRELI /SSPP_V4C_PRELI/SSPP_V4D_PRELI/SSPP_V4F_PRELI/SSPP_V50_PRELI
Edition 4
Page 4 of 37
TYRE PRESSURE MONITOR
Fault finding - Introduction
35B
35B-3
UCH
Program no.: 350 and higher
Vdiag No: 48-4C-4D-4F-50
To cut off + after ignition, proceed as follows:
–Disconnect the diagnostic tool.
–Press the Start button twice briefly (less than 3 seconds),
–See that the + after ignition feed has been cut off by checking that the computer warning lights on the
instrument panel have gone out.
Faults
The current status of faults must be considered when the diagnostic tool is used following switching to + after
ignition (with no action on the system components).
For a present fault, handle the fault according to the procedure listed in the section on Interpretation of faults in
Workshop Repair Manual 372 Section 87B Passenger compartment connection unit.
There is no stored fault on the tyre pressure monitor.
Conformity check
The aim of the conformity check is to check statuses and parameters that do not produce a fault display on the
diagnostic tool when they are inconsistent. Therefore, this stage is used to:
–carry out fault finding on faults that do not have a fault display, and which may correspond to a customer
complaint.
–check that the system is operating correctly and that there is no risk of a fault recurring after repairs.
This section features the fault finding procedure for statuses and parameters, and the conditions for checking them.
If a status is not operating normally or a parameter is outside permitted tolerance values, you should consult the
corresponding fault finding page.
Customer complaints - Fault finding chart
If the check using the diagnostic tool is satisfactory but the customer complaint is still present, the fault should be
treated as a customer complaint.
A summary of the overall procedure to follow is provided on the following page
in the form of a flow chart.
Edition 4
Page 5 of 37
TYRE PRESSURE MONITOR
Fault finding - Introduction
35B
35B-4
UCH
Program no.: 350 and higher
Vdiag No: 48-4C-4D-4F-50
4. FAULT FINDING PROCEDURE
Procedure to be carried out before entering fault finding mode with the tool:
–Are the faulty wheels equipped with tyre pressure monitor wheel sensors, or were they so at the time of
the fault?
–Check the position of the wheels on the vehicle (wheel sensor colour code). Put the wheels back in
position and program the codes of the four wheel sensors if the wheels are not in their original position.
–Check the wheel pressures with a pressure gauge. Do they correspond to the pressures noted inside
the door or in the driver's handbook for that size of tyres?
A summary of the overall procedure to follow is provided on the following page
in the form of a flow chart.
Edition 4
Page 6 of 37
TYRE PRESSURE MONITOR
Fault finding - Introduction
35B
35B-5
UCH
Program no.: 350 and higher
Vdiag No: 48-4C-4D-4F-50
4. FAULT FINDING PROCEDURE (continued)
Check the battery charge and the
condition of the fuses
Print the system fault finding log
(available on CLIP and in the
Workshop Repair Manual or
Technical Note)
Connect CLIP
Dialogue
with UCH?no
yes
Read the faults
Faults
presentno
yes
Deal with present faults
Deal with stored faults
The cause is
still presentno
Fault
solved
yes
Perform a
prediagnostic; see
system operation.
See ALP 1
Conformity check
The cause is
still presentno
Fault
solved
Use fault finding charts (ALPs)
The cause is
still presentno
Fault
solved
Contact Techline with the
completed fault finding log
Edition 4
Page 7 of 37
TYRE PRESSURE MONITOR
Fault finding - Introduction
35B
35B-6
UCH
Program no.: 350 and higher
Vdiag No: 48-4C-4D-4F-50

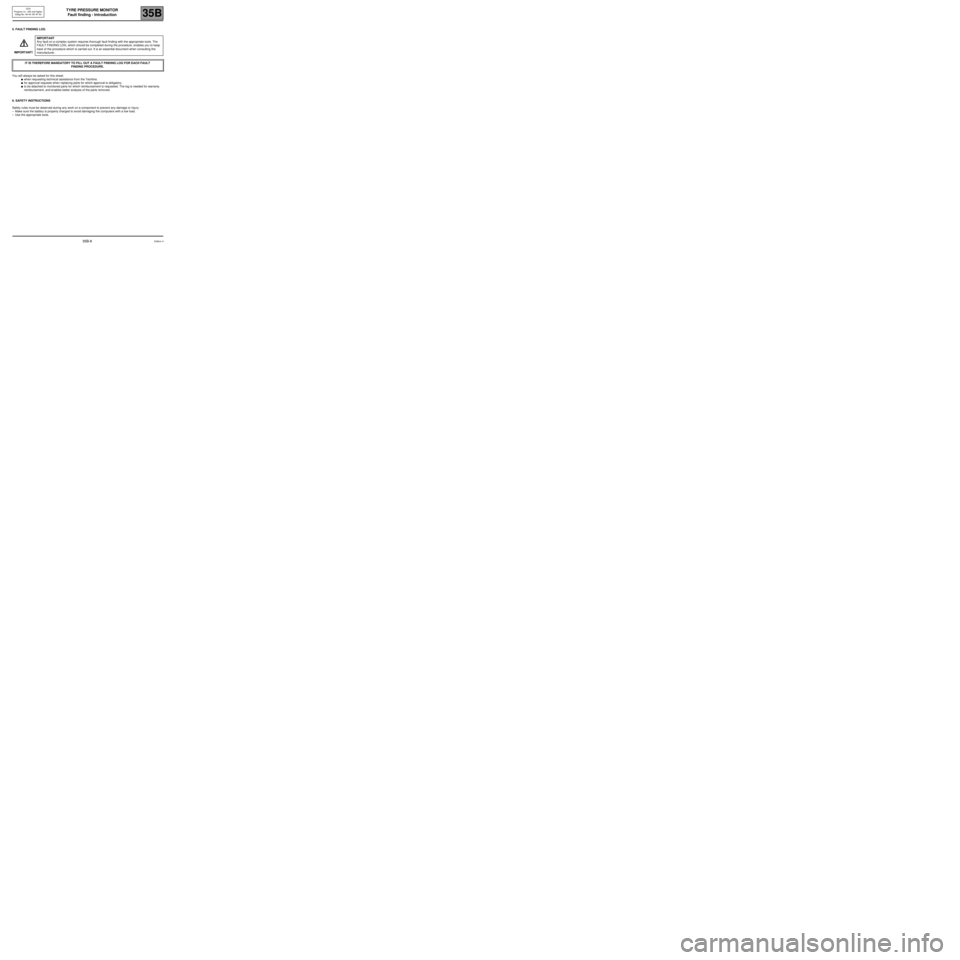

5. FAULT FINDING LOG
You will always be asked for this sheet:
●when requesting technical assistance from the Techline.
●for approval requests when replacing parts for which approval is obligatory.
●to be attached to monitored parts for which reimbursement is requested. The log is needed for warranty
reimbursement, and enables better analysis of the parts removed.
6. SAFETY INSTRUCTIONS
Safety rules must be observed during any work on a component to prevent any damage or injury:
–Make sure the battery is properly charged to avoid damaging the computers with a low load.
–Use the appropriate tools. IMPORTANT!IMPORTANT
Any fault on a complex system requires thorough fault finding with the appropriate tools. The
FAULT FINDING LOG, which should be completed during the procedure, enables you to keep
track of the procedure which is carried out. It is an essential document when consulting the
manufacturer.
IT IS THEREFORE MANDATORY TO FILL OUT A FAULT FINDING LOG FOR EACH FAULT
FINDING PROCEDURE.
Edition 4
Page 8 of 37
List of monitored parts: Computer, valves, receivers
FAULT FINDING LOG
System: Tyre Pressure MonitorPage 1 / 2
●Administrative identification
Date 2 0
Log completed by
VIN
Engine
Diagnostic tool CLIP
Update version
●Customer complaint
1794 Tyre Pressure Monitor
orange warning light flashing:
text or icon
1797 Tyre Pressure Monitor
orange warning light lit
continuously: text or icon
1795 Puncture red warning light
lit: text or icon
1798 No pressure display 1796 Faulty display
1793 Wheels disappear from the display 1792 Wheels flashing on the display
OtherYour comments: (specify the tyre affected by the customer complaint):
●Conditions under which the customer complaint occurs
001 When cold 002 When warm 003 When stationary
004 Intermittently 005 While driving 009 Sudden fault
011 When ignition is switched on
OtherYour comments:
●
Documentation used in fault finding
Fault finding procedure used
Type of fault finding manual:Workshop Repair Manual: Technical Note Assisted fault finding
ALP followed: no...
Fault finding manual no:
Wiring diagram used
Wiring Diagram Technical Note No:
Other documentation
Title and/or part number:
FD 23
Fault finding log
page to print or photocopy - page to print or photocopy - page to print or photocopy
Page 9 of 37
To be read with the diagnostic tool (Identification screen):
FAULT FINDING LOG
System: Tyre Pressure MonitorPage 2 / 2
●Computer identification and parts exchanged for the system
Part 1 part no.
Part 2 part no.
Part 3 part no.
Part 4 part no.
Part 5 part no.
Computer part no.
Supplier no.
Program no.
Software version
Calibration number
VDIAG
●
Faults read with diagnostic tool before operation
Fault no. Present Stored Fault name Specification
●
Conditions under which fault occurs
Status or parameter no. Parameter name Value Unit
●
System-specific information
Description:
●
Additional information
What other parts were replaced?
What factors led you to replace the part(s)?
For Laguna II, Vel Satis and Espace IV vehicles, has trigger
threshold command VP 017 been correctly executed?
What was the vehicle's mileage when the customer complaint
occurred?
What is the size of the wheel rims and the size of the tyres?
FIC No. (Customer Fault Sheet)
FD 23
Fault finding log
page to print or photocopy - page to print or photocopy - page to print or photocopy
Page 10 of 37
TYRE PRESSURE MONITOR
Fault finding - System operation
35B
UCH
Program no.: 350 and higher
Vdiag No: 48-4C-4D-4F-50TYRE PRESSURE MONITOR
Fault finding - System operation
SYSTEM COMPOSITION
The tyre pressure monitor system consists of the following components:
–four sensors (one on each wheel but not on the emergency spare wheel)
–a computer (UCH)
–a receiver aerial (17-cm bare wire connected to the UCH)
–an instrument panel display for the driver
In addition to these components, the PAX system is comprised of four special tyres with a support ring to allow flat
tyre driving following a puncture over a maximum distance of 120 miles (200 km), at a maximum speed of 48 mph
(80 km/h).
WARNING
It is forbidden to install PAX System tyres on a vehicle without PAX System tyres as standard.
Edition 435B-9
