RENAULT SCENIC 2008 J84 / 2.G Electrical Equipment - Instrument Panel Workshop Manual

83A-21
MR-372-J84-83A000$441.mif
V8
83A
INSTRUMENT PANEL
Fault finding - Conformity check

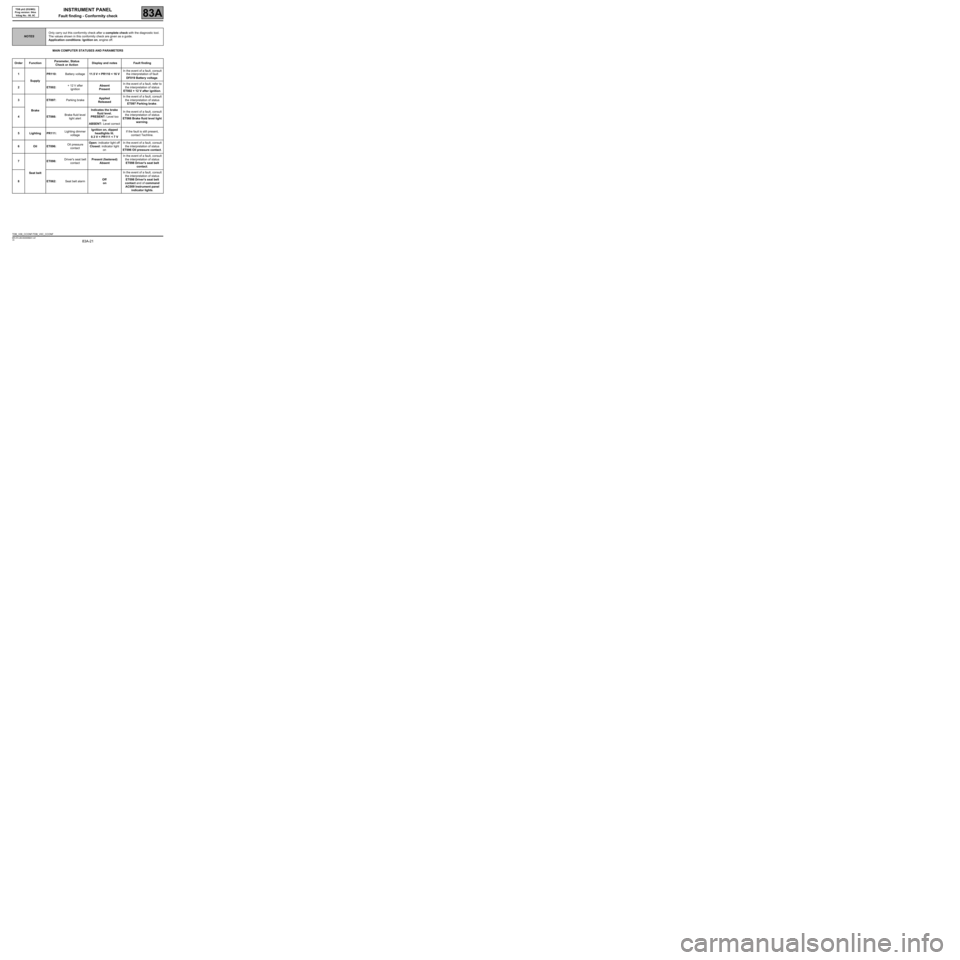

MAIN COMPUTER STATUSES AND PARAMETERS
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application conditions: Ignition on, engine off.
Order FunctionParameter, Status
Check or ActionDisplay and notes Fault finding
1
SupplyPR110:Battery voltage11.5 V < PR110 < 16 VIn the event of a fault, consult
the interpretation of fault
DF019 Battery voltage.
2ET002:+ 12 V after
ignitionAbsent
PresentIn the event of a fault, refer to
the interpretation of status
ET002 + 12 V after ignition.
3
BrakeET097:Parking brakeApplied
ReleasedIn the event of a fault, consult
the interpretation of status
ET097 Parking brake.
4ET066:Brake fluid level
light alertIndicates the brake
fluid level.
PRESENT: Level too
low
ABSENT: Level correctIn the event of a fault, consult
the interpretation of status
ET066 Brake fluid level light
warning.
5Lighting PR111:Lighting dimmer
voltageIgnition on, dipped
headlights lit.
0.3 V < PR111 < 7 VIf the fault is still present,
contact Techline.
6Oil ET096:Oil pressure
contactOpen: indicator light off
Closed: indicator light
onIn the event of a fault, consult
the interpretation of status
ET096 Oil pressure contact.
7
Seat beltET098:Driver's seat belt
contactPresent (fastened)
AbsentIn the event of a fault, consult
the interpretation of status
ET098 Driver's seat belt
contact.
8ET062:Seat belt alarmOff
onIn the event of a fault, consult
the interpretation of status
ET098 Driver's seat belt
contact and of command
AC009 Instrument panel
indicator lights.
TDB_V08_CCONF /TDB_V0C_CCONFTDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C
MR-372-J84-83A000$441.mif

83A-22
MR-372-J84-83A000$441.mif
V8
INSTRUMENT PANEL
Fault finding - Conformity check83A
TDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C

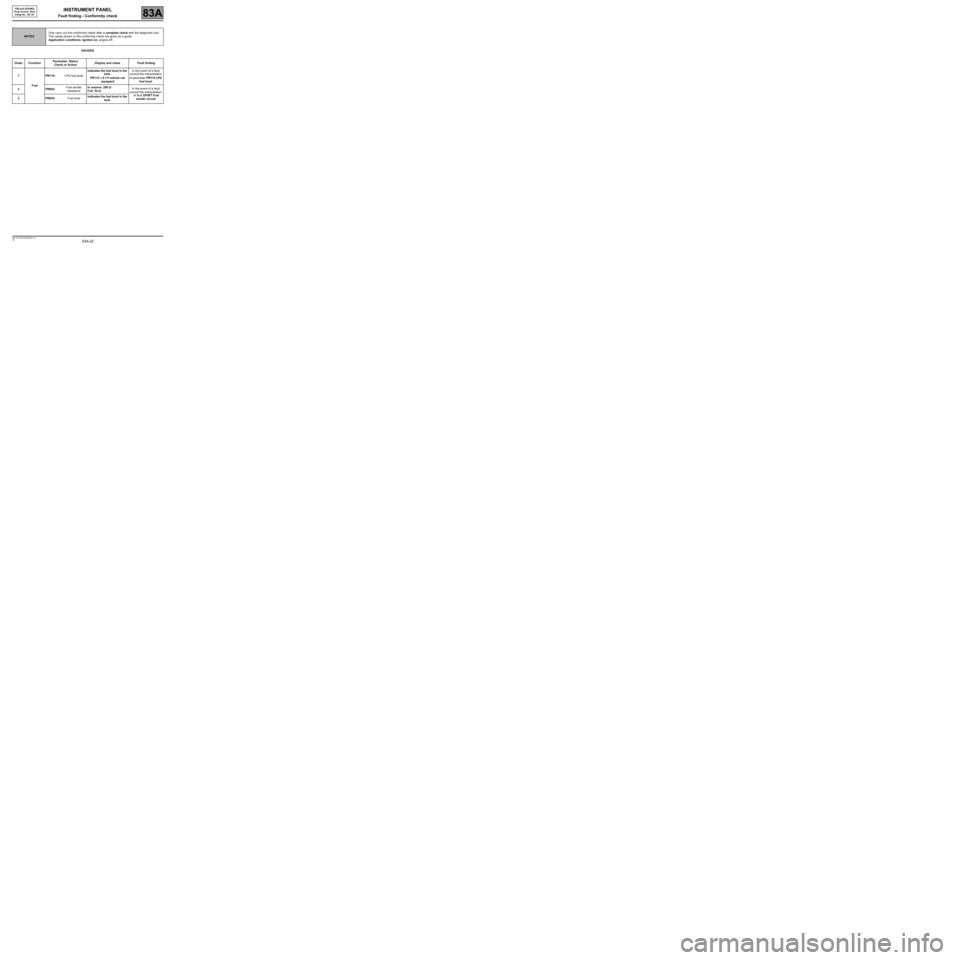

GAUGES
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application conditions: Ignition on, engine off.
Order FunctionParameter, Status
Check or ActionDisplay and notes Fault finding
1
FuelPR115:LPG fuel levelIndicates the fuel level in the
tank.
PR115 = 0 l if vehicle not
equippedIn the event of a fault,
consult the interpretation
of parameter PR115 LPG
fuel level.
2PR002:Fuel sender
resistance In reserve: 290 ΩΩ Ω Ω
Full: 54 ΩΩ Ω ΩIn the event of a fault,
consult the interpretation
of fault DF007 Fuel
sender circuit. 3PR035:Fuel levelIndicates the fuel level in the
tank.

83A-23
MR-372-J84-83A000$441.mif
V8
INSTRUMENT PANEL
Fault finding - Conformity check83A
TDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C

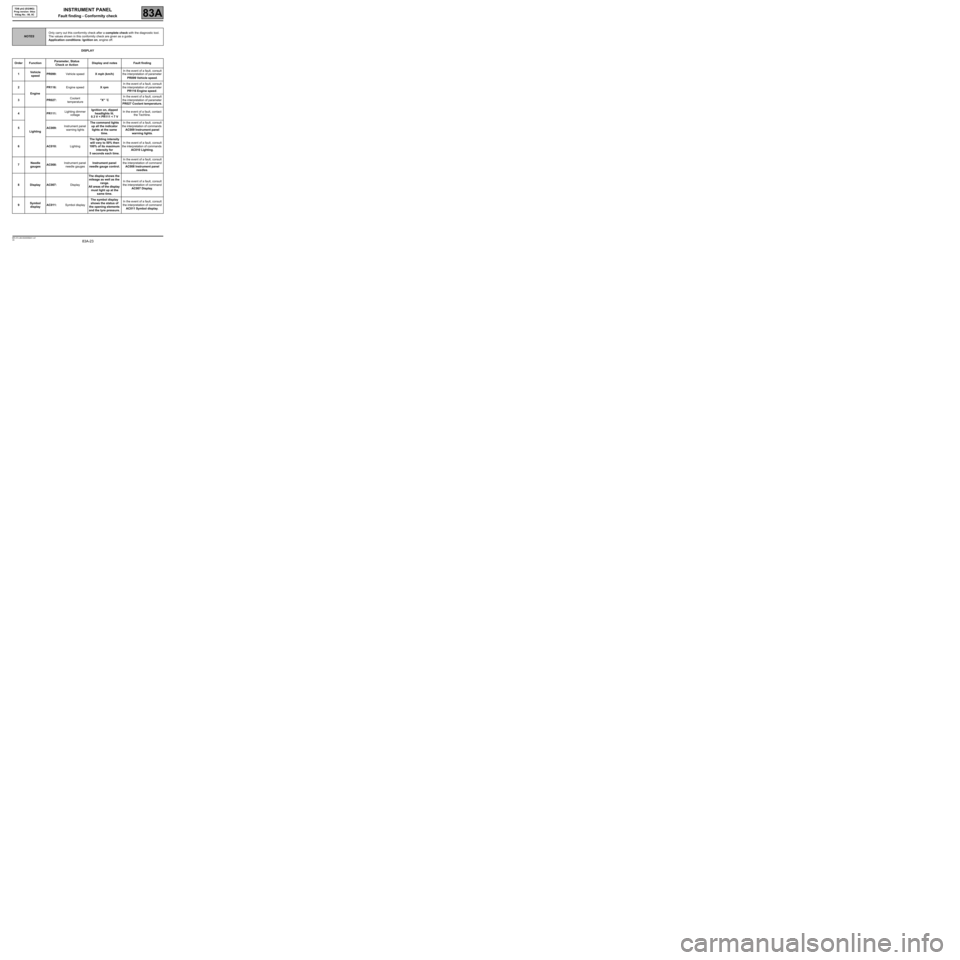

DISPLAY
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application conditions: Ignition on, engine off.
Order FunctionParameter, Status
Check or ActionDisplay and notes Fault finding
1Vehicle
speedPR099:Vehicle speedX mph (km/h)In the event of a fault, consult
the interpretation of parameter
PR099 Vehicle speed.
2
EnginePR116:Engine speedX rpmIn the event of a fault, consult
the interpretation of parameter
PR116 Engine speed.
3PR027:Coolant
temperature"X" ˚CIn the event of a fault, consult
the interpretation of parameter
PR027 Coolant temperature.
4
LightingPR111:Lighting dimmer
voltageIgnition on, dipped
headlights lit.
0.3 V < PR111 < 7 VIn the event of a fault, contact
the Techline.
5AC009:Instrument panel
warning lightsThe command lights
up all the indicator
lights at the same
time.In the event of a fault, consult
the interpretation of commands
AC009 Instrument panel
warning lights.
6AC010:LightingThe lighting intensity
will vary to 50% then
100% of its maximum
intensity for
5 seconds each time.In the event of a fault, consult
the interpretation of commands
AC010 Lighting.
7 Needle
gaugesAC008:Instrument panel
needle gaugesInstrument panel
needle gauge control.In the event of a fault, consult
the interpretation of command
AC008 Instrument panel
needles.
8Display AC007:DisplayThe display shows the
mileage as well as the
range.
All areas of the display
must light up at the
same time.In the event of a fault, consult
the interpretation of command
AC007 Display.
9Symbol
displayAC011:Symbol displayThe symbol display
shows the status of
the opening elements
and the tyre pressure.In the event of a fault, consult
the interpretation of command
AC011 Symbol display.

83A-24
MR-372-J84-83A000$441.mif
V8
INSTRUMENT PANEL
Fault finding - Conformity check83A
TDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C

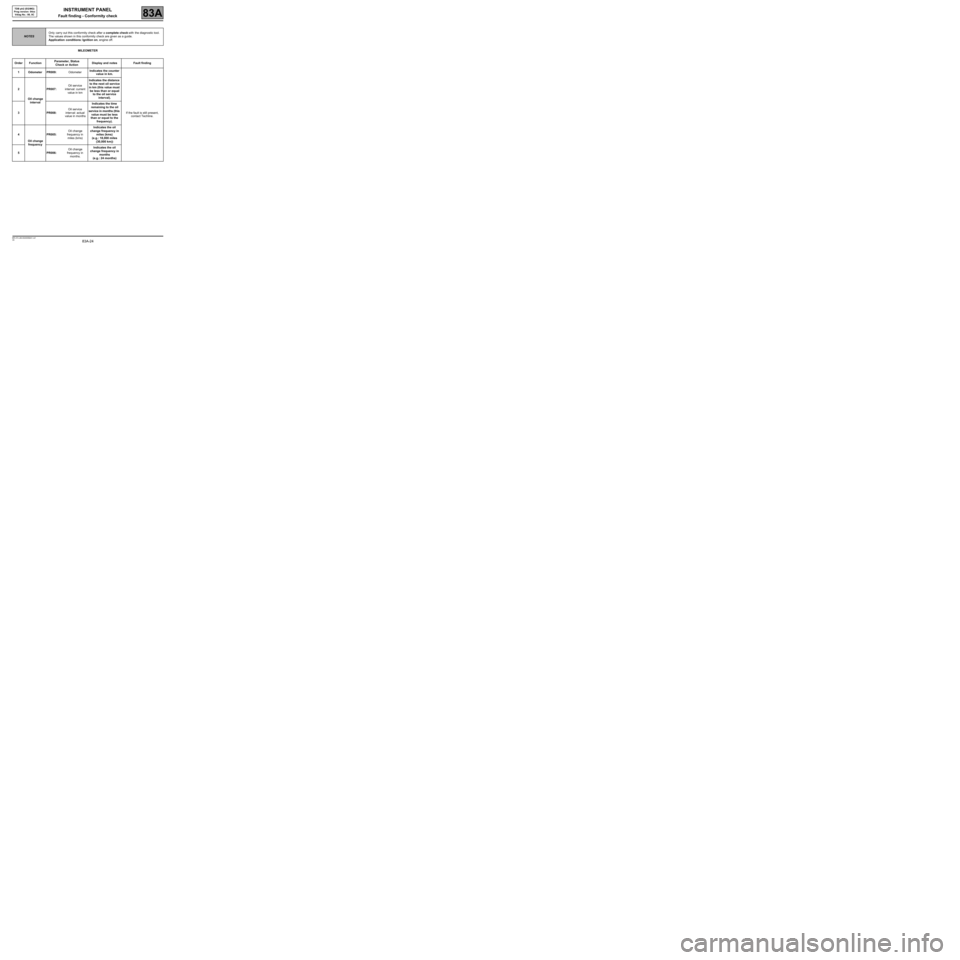

MILEOMETER
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application conditions: Ignition on, engine off.
Order FunctionParameter, Status
Check or ActionDisplay and notes Fault finding
1Odometer PR009:OdometerIndicates the counter
value in km.
If the fault is still present,
contact Techline. 2
Oil change
intervalPR007:Oil service
interval: current
value in kmIndicates the distance
to the next oil service
in km (this value must
be less than or equal
to the oil service
interval).
3PR008:Oil service
interval: actual
value in monthsIndicates the time
remaining to the oil
service in months (this
value must be less
than or equal to the
frequency).
4
Oil change
frequencyPR005:Oil change
frequency in
miles (kms)Indicates the oil
change frequency in
miles (kms)
(e.g.: 18,000 miles
(30,000 km))
5PR006:Oil change
frequency in
months.Indicates the oil
change frequency in
months
(e.g.: 24 months)

83A-25
MR-372-J84-83A000$441.mif
V8
INSTRUMENT PANEL
Fault finding - Conformity check83A
TDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C

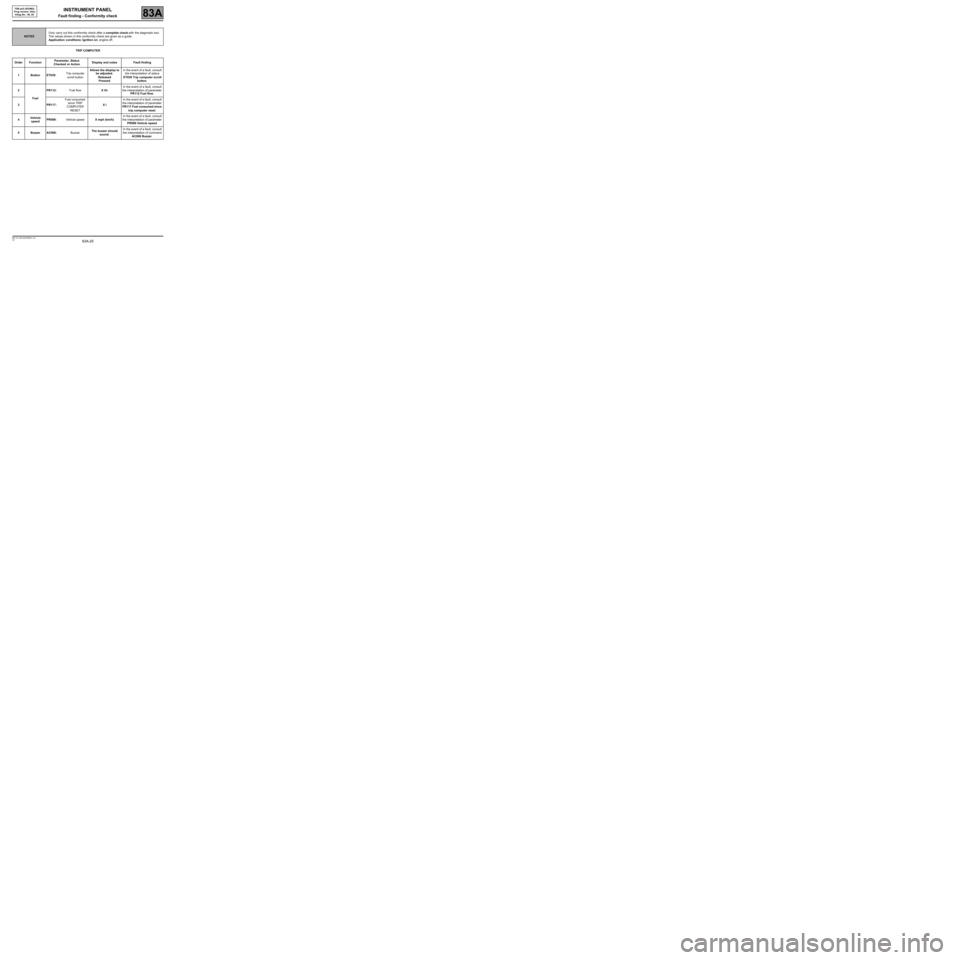

TRIP COMPUTER
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
The values shown in this conformity check are given as a guide.
Application conditions: Ignition on, engine off.
Order FunctionParameter, Status
Checked or ActionDisplay and notes Fault finding
1Button ET030:Trip computer
scroll buttonAllows the display to
be adjusted.
Released
PressedIn the event of a fault, consult
the interpretation of status
ET030 Trip computer scroll
button.
2
FuelPR112:Fuel flowX l/hIn the event of a fault, consult
the interpretation of parameter
PR112 Fuel flow.
3PR117:Fuel consumed
since TRIP
COMPUTER
RESETX lIn the event of a fault, consult
the interpretation of parameter
PR117 Fuel consumed since
trip computer reset.
4Vehicle
speedPR099:Vehicle speedX mph (km/h)In the event of a fault, consult
the interpretation of parameter
PR099 Vehicle speed.
5Buzzer AC006:BuzzerThe buzzer should
sound.In the event of a fault, consult
the interpretation of command
AC006 Buzzer.

83A-26
MR-372-J84-83A000$504.mif
V8
83A
INSTRUMENT PANEL

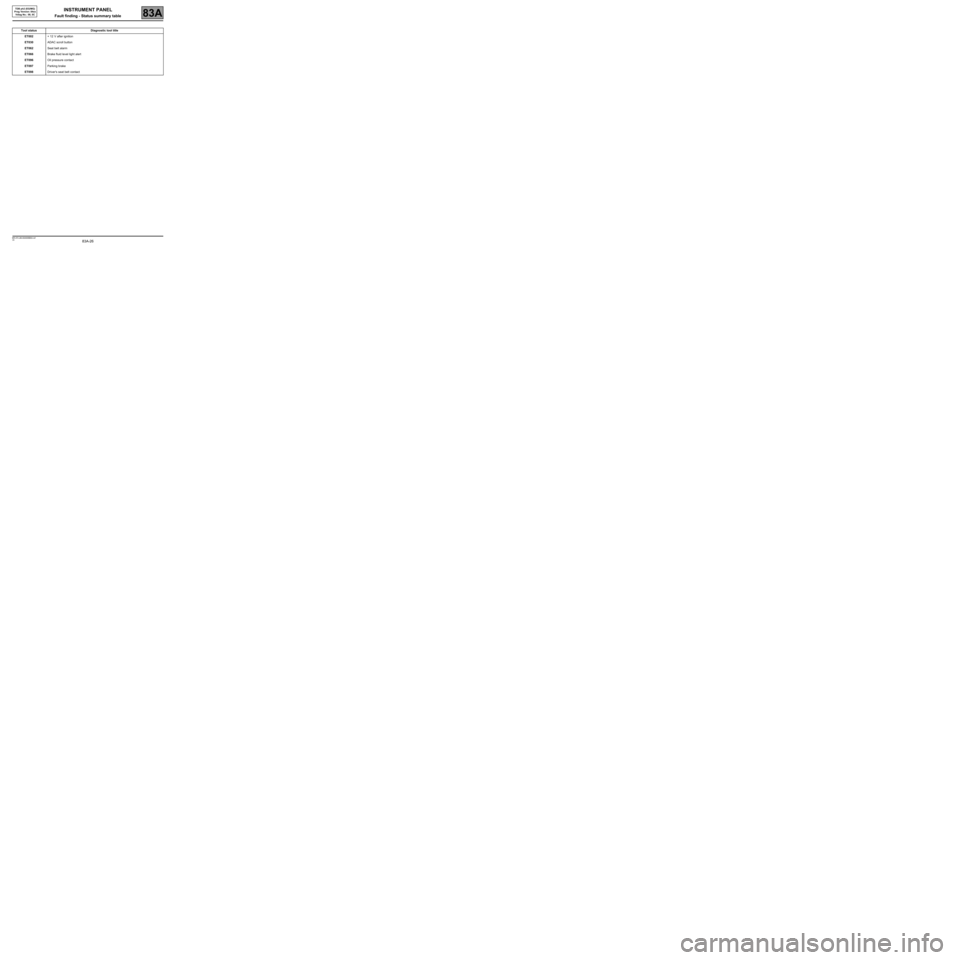

Fault finding - Status summary table
Tool status Diagnostic tool title
ET002+ 12 V after ignition
ET030ADAC scroll button
ET062Seat belt alarm
ET066Brake fluid level light alert
ET096Oil pressure contact
ET097Parking brake
ET098Driver's seat belt contact
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
MR-372-J84-83A000$504.mif

83A-27
MR-372-J84-83A000$567.mif
V8
83A
INSTRUMENT PANEL
Fault finding - Interpretation of statuses

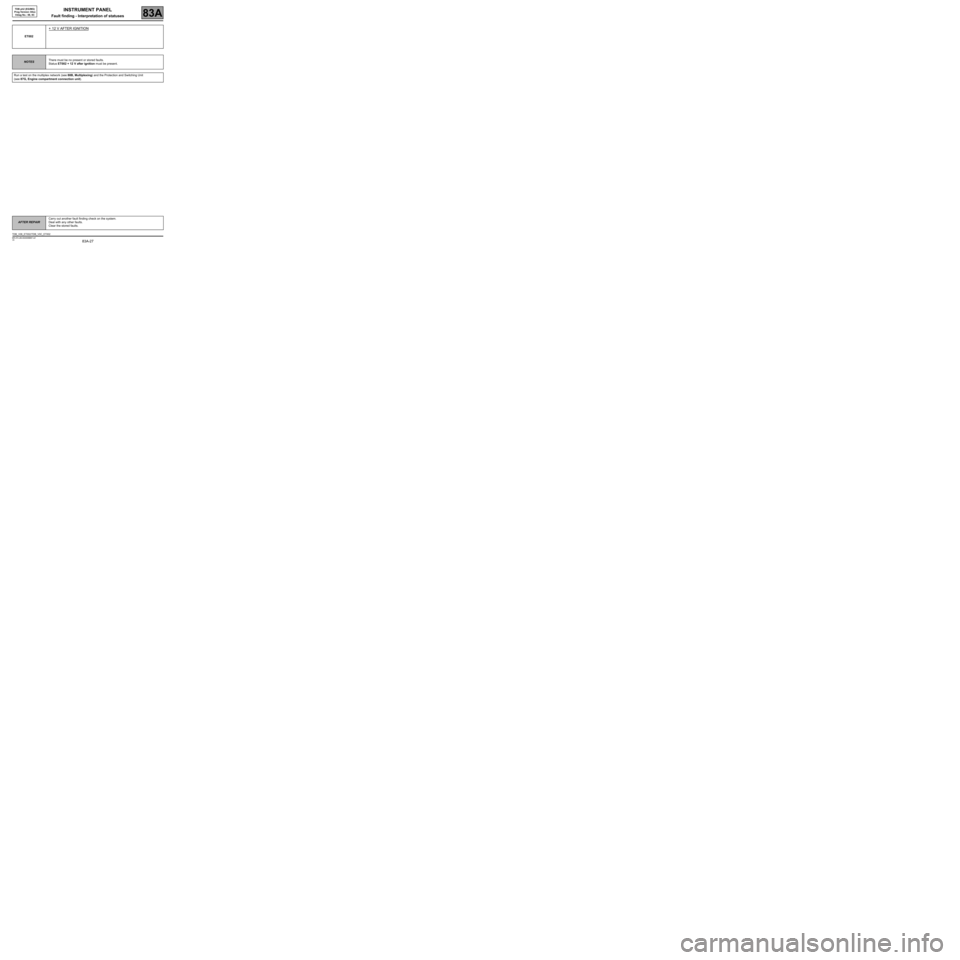

TDB_V08_ET002/TDB_V0C_ET002
ET002
+ 12 V AFTER IGNITION
NOTESThere must be no present or stored faults.
Status ET002 + 12 V after ignition must be present.
Run a test on the multiplex network (see 88B, Multiplexing) and the Protection and Switching Unit
(see 87G, Engine compartment connection unit).
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
MR-372-J84-83A000$567.mif

83A-28
MR-372-J84-83A000$567.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of statuses83A
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
ET030
ADAC SCROLL BUTTON
NOTESThere must be no present or stored faults.
Press the button: the status should be Pressed.
Carry out a test on the multiplex network (see 88B, Multiplexing) and the UCH (see 87B, Passenger
compartment connection unit).
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
TDB_V08_ET030/TDB_V0C_ET030

83A-29
MR-372-J84-83A000$567.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of statuses83A
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
ET066
BRAKE FLUID LEVEL LIGHT WARNING
NOTESThere must be no present or stored faults.
Check the brake fluid level in the reservoir.
If status ET066 Brake fluid level warning light is PRESENT and the level is correct, disconnect the connector
on the brake fluid reservoir level switch.
If the status ET066 Brake fluid level warning light becomes ABSENT, replace the switch.
Check the insulation and continuity of the connection between:
Grey connector level sensor track 2 track 20 of the instrument panel connector
If there is a repair method (see Technical note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair) repair the wiring, otherwise replace it.
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
TDB_V08_ET066/TDB_V0C_ET066

83A-30
MR-372-J84-83A000$567.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of statuses83A
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
ET096
OIL PRESSURE CONTACT
NOTESThere must be no present or stored faults.
Check the oil level. Top up if necessary.
Test the Protection and Switching Unit (see 87G, Engine compartment connection unit).
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any other faults.
Clear the stored faults.
TDB_V08_ET096/TDB_V0C_ET096
