DIESEL INJECTION
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
Fault finding – Introduction 13B - 2
Fault finding – Cleanliness guidelines 13B - 7
Fault finding – List and location of components 13B - 9
Fault finding – Operating diagram 13B - 12
Fault finding – Function 13B - 13
Fault finding – Defect and safe modes 13B - 25
Fault finding – Replacement of components 13B - 26
Fault finding – Configurations and programming 13B - 30
Fault finding – Fault summary table 13B - 31
Fault finding – Interpretation of faults 13B - 35
Fault finding – Conformity check 13B - 124
Fault finding – Status summary table 13B - 125
Fault finding – Interpretation of statuses 13B - 127
Fault finding – Parameter summary table 13B - 186
Fault finding – Interpretation of parameters 13B - 189
Fault finding – Interpretation of commands 13B - 258
Fault finding – Customer complaints 13B - 271
Fault finding – Fault Finding Chart 13B - 273
Fault finding – Tests 13B - 301

13B-2
MR-372-J84-13B050$039.mif
V17
13B
DIESEL INJECTION
Fault finding – Introduction
1. SCOPE OF THIS DOCUMENT
This document presents the fault finding procedure applicable to all computers with the following specifications:
2. PREREQUISITES FOR FAULT FINDING
Documentation type
Fault finding procedures (this manual):
– Assisted fault finding (integrated into the diagnostic tool), Dialogys.
Wiring Diagrams:
–Visu-Schéma.
Type of diagnostic tools
–CLIP
Special tooling required
3. REMINDERS
Procedure
To run fault finding on the vehicle computers, switch on the ignition.
Depending on the type of vehicle equipment, proceed as follows:
For vehicles with key-operated/radio frequency remote control, use the key to switch on the ignition.
For vehicles with a Renault card
– with the vehicle card in the card reader,
– press and hold the Start button (longer than 5 seconds) with start-up conditions not fulfilled,
– connect the diagnostic tool and perform the required operations.
To cut off the + after ignition feed, proceed as follows:Vehicle(s): Clio III, Modus, Mégane II ph2,
Scénic II ph2 and Kangoo II.Computer name: Injection SID301 and SID304
Engines concerned:
K9K732, K9K734, K9K764, K9K772
K9K804, K9K806Program No.: B1, B2
Function concerned: High pressure direct diesel
injection (Siemens SID 301 and SID 304)Vdiag No.: 44-45-48-49-4D-4C
Special tooling required
Diagnostic tool
Elé. 1681Universal bornier
Multimeter.
SID301_V44_PRELI / SID304_V45_PRELI / SID301_V48_PRELI / SID304_V49_PRELI / SID304_V4D_PRELI / SID301_V4C_PRELI
MR-372-J84-13B050$039.mif
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2

13B-3
MR-372-J84-13B050$039.mif
V17
DIESEL INJECTION
Fault finding – Introduction
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
For vehicles with key/radio frequency remote control, use the key to switch off the ignition.
For vehicles with a Renault card:
– press the Start button twice briefly (less than 3 seconds),
– ensure that the + after ignition feed has been cut off by checking that the computer warning lights on the
instrument panel have gone out.
Faults
Faults are declared present or stored (depending on whether they appeared in a certain context and have
disappeared since, or whether they remain present but are not diagnosed within the current context).
The present or stored status of faults should be considered when using the diagnostic tool after the + after ignition
feed is switched on (without any action on the system components).
For a present fault, apply the procedure described in the Interpretation of faults section.
For a stored fault, note the faults displayed and apply the instructions in the Notes section.
If the fault is confirmed when the instructions are applied, the fault is present. Deal with the fault.
If the fault is not confirmed, check:
– the electrical lines which correspond to the fault,
– the connectors on these lines (corrosion, bent pins, etc.),
– the resistance of the faulty component,
– the condition of the wires (melted or split insulation, wear).
Conformity check
The aim of the conformity check is to check data that does not produce a fault on the diagnostic tool when the
data is inconsistent. Therefore, this stage is used to:
– carry out fault finding on faults that do not have a fault display, and which may correspond to a customer
complaint,
– check that the system is operating correctly and that there is no risk of a fault recurring after repairs.
This section gives the fault finding procedures for statuses and parameters and the conditions for checking them.
If a status is not behaving normally or a parameter is outside the permitted tolerance values, consult the
corresponding fault finding page.
Customer complaints - Fault finding chart
If the test with the diagnostic tool is OK but the customer complaint is still present, the fault should be processed
bycustomer complaints.
A synopsis of the general procedure to follow is provided on the following page in the
form of a flow chart.

13B-4
MR-372-J84-13B050$039.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – Introduction13B
4. FAULT FINDING PROCEDURE
Perform a pre-diagnostic on the
system
Print the system fault finding log
(available on CLIP and in the
Workshop Repair Manual or
Technical Note)
Connect CLIP
No
Dialogue with
computer?
Yes
Read the faults
No
Faults present
Yes
Deal with present faults
Deal with stored faults
No
The cause is still
presentFault
solved
Yes
See ALP no. 1
Conformity check
No
The cause is still
presentFault
solved
Yes
Use fault finding charts (ALPs)
No
The cause is still
presentFault
solved
Yes
Contact the Techline with the
completed fault finding log

13B-5
MR-372-J84-13B050$039.mif
V17
DIESEL INJECTION
Fault finding – Introduction
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
4. FAULT FINDING PROCEDURE (continued)
Wiring check
Fault finding problems
Disconnecting the connectors and/or manipulating the wiring may temporarily remove the cause of a fault.
Electrical measurements of voltage, resistance and insulation are generally correct, especially if the fault is not
present when the analysis is made (stored fault).
Visual inspection
Look for damage under the bonnet and in the passenger compartment.
Carefully check the fuses, insulators and wiring harness routing.
Look for signs of oxidation.
Physical inspection
While manipulating the wiring, use the diagnostic tool to note any change in fault status from stored to present.
Make sure that the connectors are properly locked.
Apply light pressure to the connectors.
Twist the wiring harness.
If there is a change in status, try to locate the source of the fault.
Inspection of each component
Disconnect the connectors and check the appearance of the clips and tabs, as well as the crimping (no crimping on
the insulating section).
Make sure that the clips and tabs are properly locked in the sockets.
Check that no clips or tabs have been dislodged during connection.
Check the clip contact pressure using an appropriate model of tab.
Resistance check
Check the continuity of entire lines, then section by section.
Look for a short circuit to earth, to + 12 V or to another wire.
If a fault is detected, repair or replace the wiring harness.

13B-6
MR-372-J84-13B050$039.mif
V17
DIESEL INJECTION
Fault finding – Introduction
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B

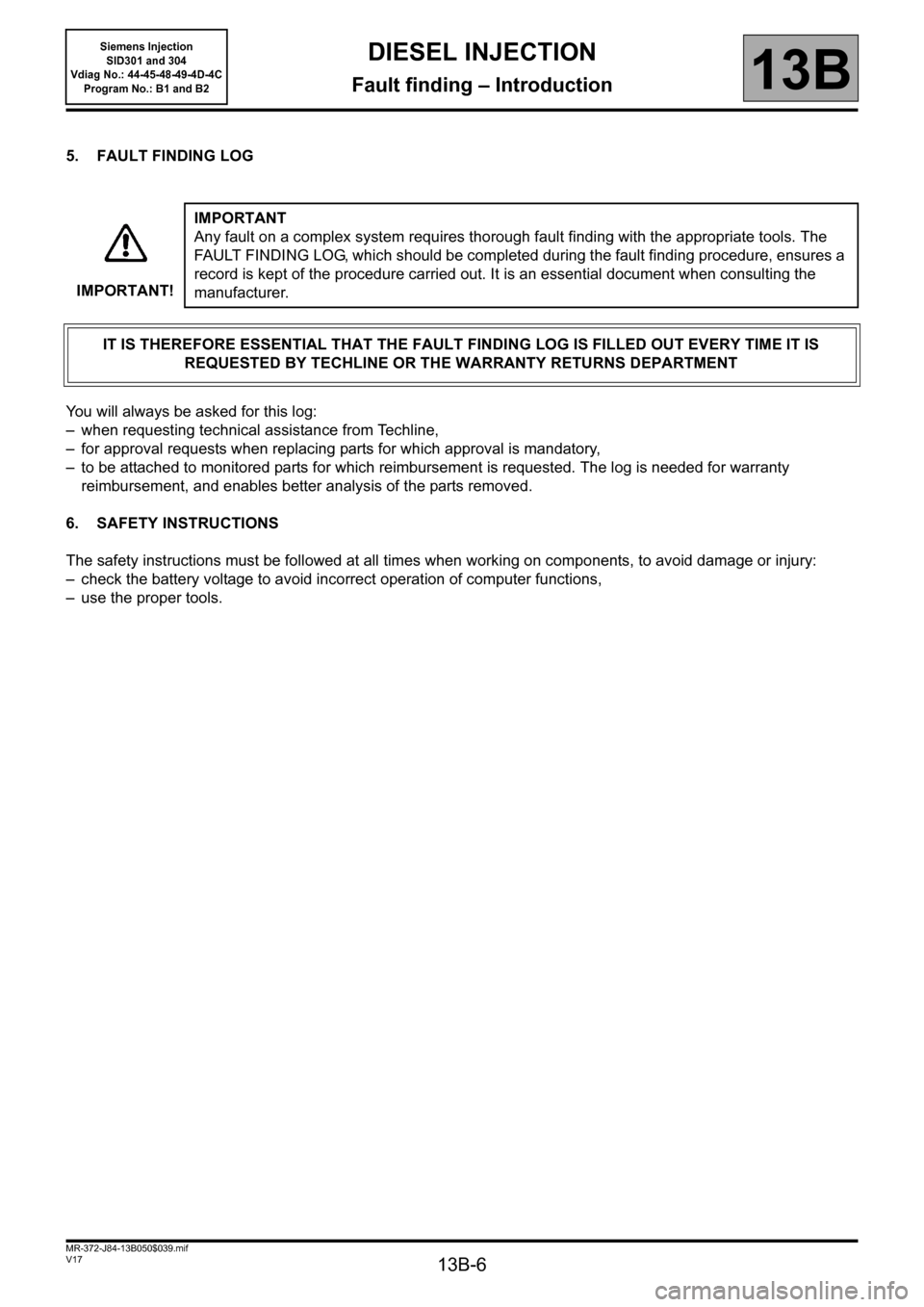

5. FAULT FINDING LOG
You will always be asked for this log:
– when requesting technical assistance from Techline,
– for approval requests when replacing parts for which approval is mandatory,
– to be attached to monitored parts for which reimbursement is requested. The log is needed for warranty
reimbursement, and enables better analysis of the parts removed.
6. SAFETY INSTRUCTIONS
The safety instructions must be followed at all times when working on components, to avoid damage or injury:
– check the battery voltage to avoid incorrect operation of computer functions,
– use the proper tools.IMPORTANT!IMPORTANT
Any fault on a complex system requires thorough fault finding with the appropriate tools. The
FAULT FINDING LOG, which should be completed during the fault finding procedure, ensures a
record is kept of the procedure carried out. It is an essential document when consulting the
manufacturer.
IT IS THEREFORE ESSENTIAL THAT THE FAULT FINDING LOG IS FILLED OUT EVERY TIME IT IS
REQUESTED BY TECHLINE OR THE WARRANTY RETURNS DEPARTMENT

13B-7
MR-372-J84-13B050$078.mif
V17
13B
DIESEL INJECTION
Fault finding – Cleanliness guidelines
I - HAZARDS ASSOCIATED WITH CONTAMINATION
The high pressure direct injection system is highly sensitive to contamination. The risks associated with
contamination are:
– damage to or destruction of the high pressure injection system,
– components jamming,
– a component leaking.
All After-Sales operations must be performed under very clean conditions. This means that no impurities (particles a
few microns in size) should have entered the system during dismantling.
The cleanliness principle must be applied from the filter to the injectors.
What are the sources of contamination?
– metal or plastic swarf,
– paint,
–fibres:
– from cardboard,
– from brushes,
– from paper,
– from clothing,
– from cloths,
– foreign bodies such as hair,
–ambient air
–etc.
II - INSTRUCTIONS TO BE FOLLOWED PRIOR TO ALL OPERATIONS
Check that you have plugs for the unions to be opened (set of plugs available from the Parts Department). The plugs
are single-use only. After use, they must be discarded (once used they are soiled and cleaning is not sufficient to
make them reusable). Unused plugs must be discarded.IMPORTANT
Cleaning the engine using a high pressure washer is prohibited because of the risk of damaging connections. In
addition, moisture may collect in the connectors and create electrical connection faults.
IMPORTANT
Before any work is carried out on the high pressure injection system, protect:
– the accessories and timing belts,
– the electrical accessories, (starter, alternator, electric power-assisted steering pump),
– the flywheel surface, to prevent any diesel from running onto the clutch friction plate.
MR-372-J84-13B050$078.mif
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2

13B-8
MR-372-J84-13B050$078.mif
V17
DIESEL INJECTION
Fault finding – Cleanliness guidelines
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2
13B
Check that you have hermetically resealable plastic bags for storing removed parts. Parts stored in this way will be
less susceptible to the risk of contamination. The bags are to be used once only, and discarded after use.
Use lint-free cleaning cloths (cloth part number 77 11 211 707). Using normal cloth or paper is prohibited. They are
not lint-free and could contaminate the fuel circuit. Each cloth should only be used once.
Use fresh cleaning agent for each operation (used cleaning agent is contaminated). Pour it into an uncontaminated
container.
For each operation, use a clean brush in good condition (the brush must not shed its bristles).
Use a brush and cleaning agent to clean the unions to be opened.
Blast compressed air over the cleaned parts (tools, workbench, the parts, unions and injection system zones).
Check that no bristles remain.
Wash your hands before and during the operation if necessary.
When wearing leather protective gloves cover them with latex gloves to prevent contamination.
III - INSTRUCTIONS TO BE FOLLOWED DURING THE OPERATION
As soon as the circuit is open, all openings must be plugged to prevent impurities from entering the system. The
plugs to be used are available from the Parts Department. The plugs must not be reused under any circumstances.
Seal the pouch shut, even if it has to be opened shortly afterwards. Ambient air carries contamination.
All components removed from the injection system must be stored in a hermetically sealed plastic bag once they
have been plugged.
Using a brush, cleaning agent, air gun, sponge or normal cloth is strictly prohibited once the circuit has been
opened. These items could allow contamination to enter the system.
A new component replacing an old one must not be removed from its packaging until it is to be fitted to the vehicle.

13B-9
MR-372-J84-13B050$117.mif
V17
13B
DIESEL INJECTION
Fault finding – List and location of components
High pressure pump:
The high pressure pump is located upstream of the common rail.
Rail pressure sensor:
The sensor is fitted to the common rail.
Rail pressure regulator:
The regulator is fitted on the high pressure pump.
Fuel flow regulator:
The regulator is fitted on the high pressure pump.
Piezoelectric injectors:
The injectors are fitted on the cylinder head after the common rail.
Vacuum pump:
The vacuum pump is fitted at the end of the camshaft.
Control solenoid valve:
The solenoid valve is located on the turbocharger.
Turbocharger:
The turbocharger is located after the exhaust manifold.
Intake air pressure sensor:
The sensor is integrated into the injection computer.
Turbocharger pressure sensor:
The turbocharger pressure sensor is located on the air circuit between the turbocharger and the damper valve.
Air mass flow meter:
The air mass flow meter is located at the air circuit inlet and integrates the air temperature sensor.
EGR valve:
The EGR valve is located between the inlet manifold and the exhaust manifold.
EGR position sensor:
The sensor is integrated into the EGR valve.
Damper valve:
The damper valve is located before the inlet manifold (Vdiag 44, 45, 48, 49 and 4D only).
Particle filter:
The filter is located on the exhaust pipe after the catalytic converter.
TDC sensor:
The sensor is located on the flywheel.
Camshaft sensor:
The sensor is located at the end of the camshaft.
Electric coolant pump:
The electric coolant pump is located between the heating elements and the turbocharger (only on vehicles equipped
with a particle filter).
Refrigerant pressure sensor:
The sensor is located on the coolant circuit.
MR-372-J84-13B050$117.mif
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2

13B-10
MR-372-J84-13B050$117.mif
V17
Siemens Injection
SID301 and 304
Vdiag No.: 44-45-48-49-4D-4C
Program No.: B1 and B2DIESEL INJECTION
Fault finding – List and location of components13B
Heating elements:
The heating elements are located in the cooling circuit before the additional coolant pump which cools the
turbocharger (Vdiag 45, 49 and 4D only).
Coolant temperature sensor:
The sensor is located on the cylinder head near the engine water chamber.
Air temperature sensor:
The air temperature sensor is located at the air circuit inlet, integrated into the air flowmeter.
Turbocharging pressure sensor solenoid valve:
The solenoid valve is located on the turbocharger.
Catalytic converter:
The catalytic converter is located upstream of the exhaust system and downstream of the turbocharger.
Fuel temperature sensor:
The sensor is located near the injection pump and injector return.
Catalytic converter downstream temperature sensor:
The sensor is located after the catalytic converter.
Turbine upstream temperature sensor:
This sensor is located between the exhaust pipe and the turbocharger.
Cruise control/speed limiter on/off switch:
This switch is located in the passenger compartment to the left of the steering wheel near the lighting dimmer.
Water in diesel fuel sensor (optional):
This sensor is located in the diesel filter.
Fan unit relay:
The relay is located on the cooling radiator.
Accelerator potentiometer:
The potentiometer is located on the accelerator pedal.
Brake pedal switch:
The switch is located on the brake pedal.
Clutch pedal switch:
The switch is located on the clutch pedal.
Heater plugs:
The heater plugs are located on the cylinder head.
Particle filter injector:
The injector is located between the particle filter injector fuel pump and the exhaust pipe. (Vdiag 45, 49 and 4D only)
Electric fuel pump:
The pump is located between the tank and the particle filter injector fuel filter. (Vdiag 45, 49 and 4D only)
