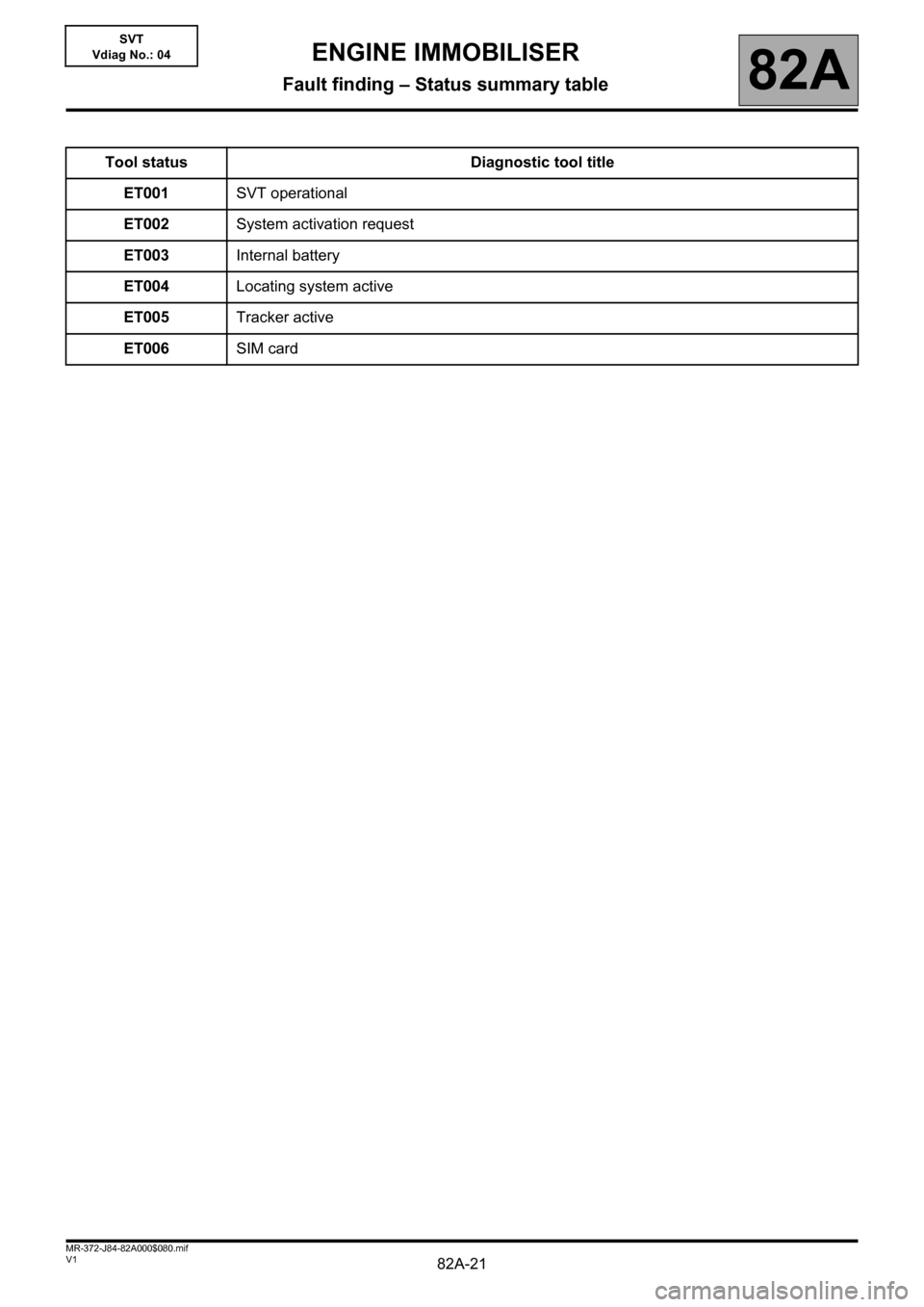

Page 21 of 37
82A-21V1 MR-372-J84-82A000$080.mif
82A
SVT
Vdiag No.: 04
Tool status Diagnostic tool title
ET001SVT operational
ET002System activation request
ET003Internal battery
ET004Locating system active
ET005Tracker active
ET006SIM card
ENGINE IMMOBILISER
Fault finding – Status summary table

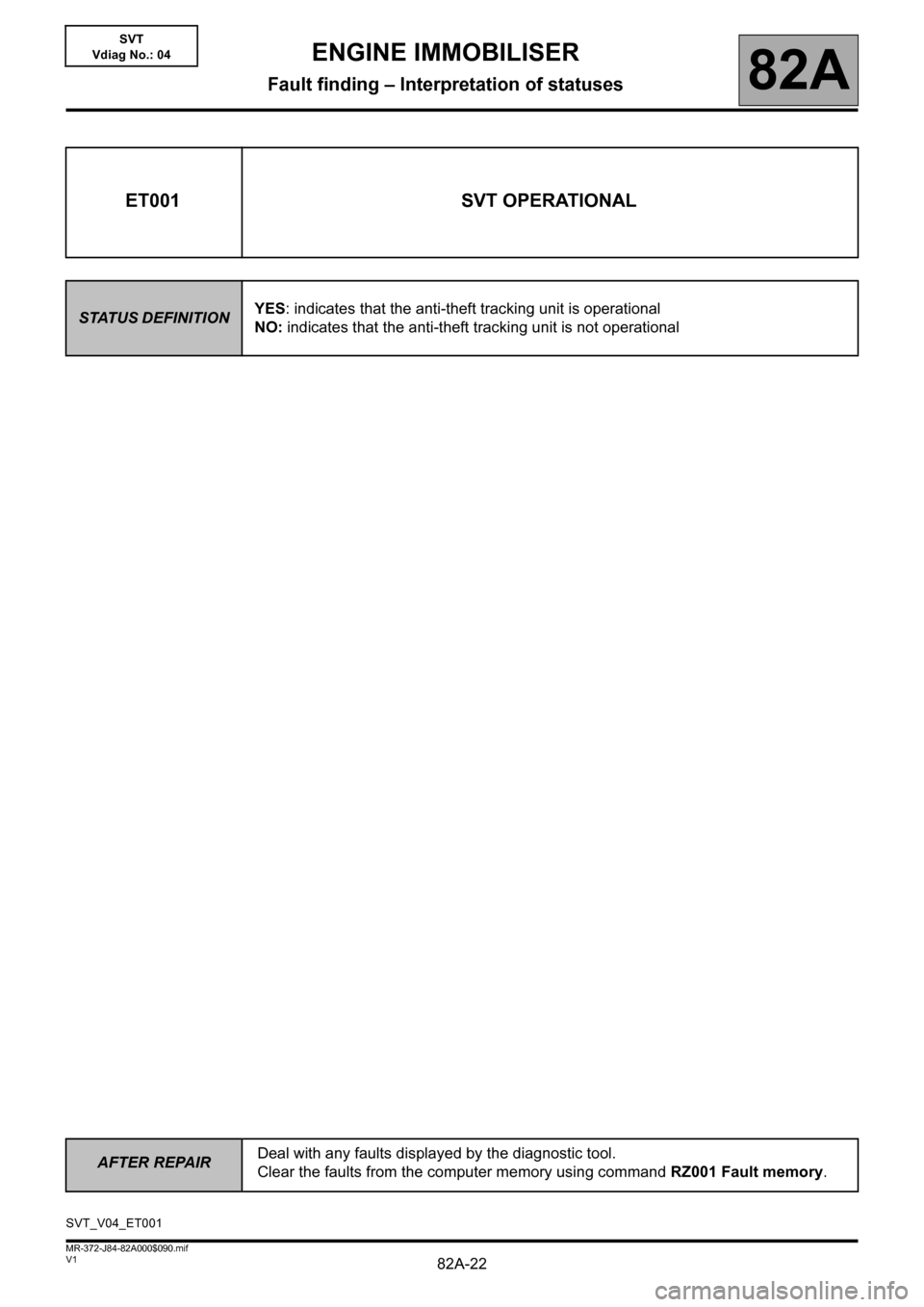

Page 22 of 37
82A-22
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the faults from the computer memory using command RZ001 Fault memory.
V1 MR-372-J84-82A000$090.mif
82A
SVT
Vdiag No.: 04
ET001 SVT OPERATIONAL
STATUS DEFINITIONYES: indicates that the anti-theft tracking unit is operational
NO: indicates that the anti-theft tracking unit is not operational
SVT_V04_ET001
ENGINE IMMOBILISER
Fault finding – Interpretation of statuses

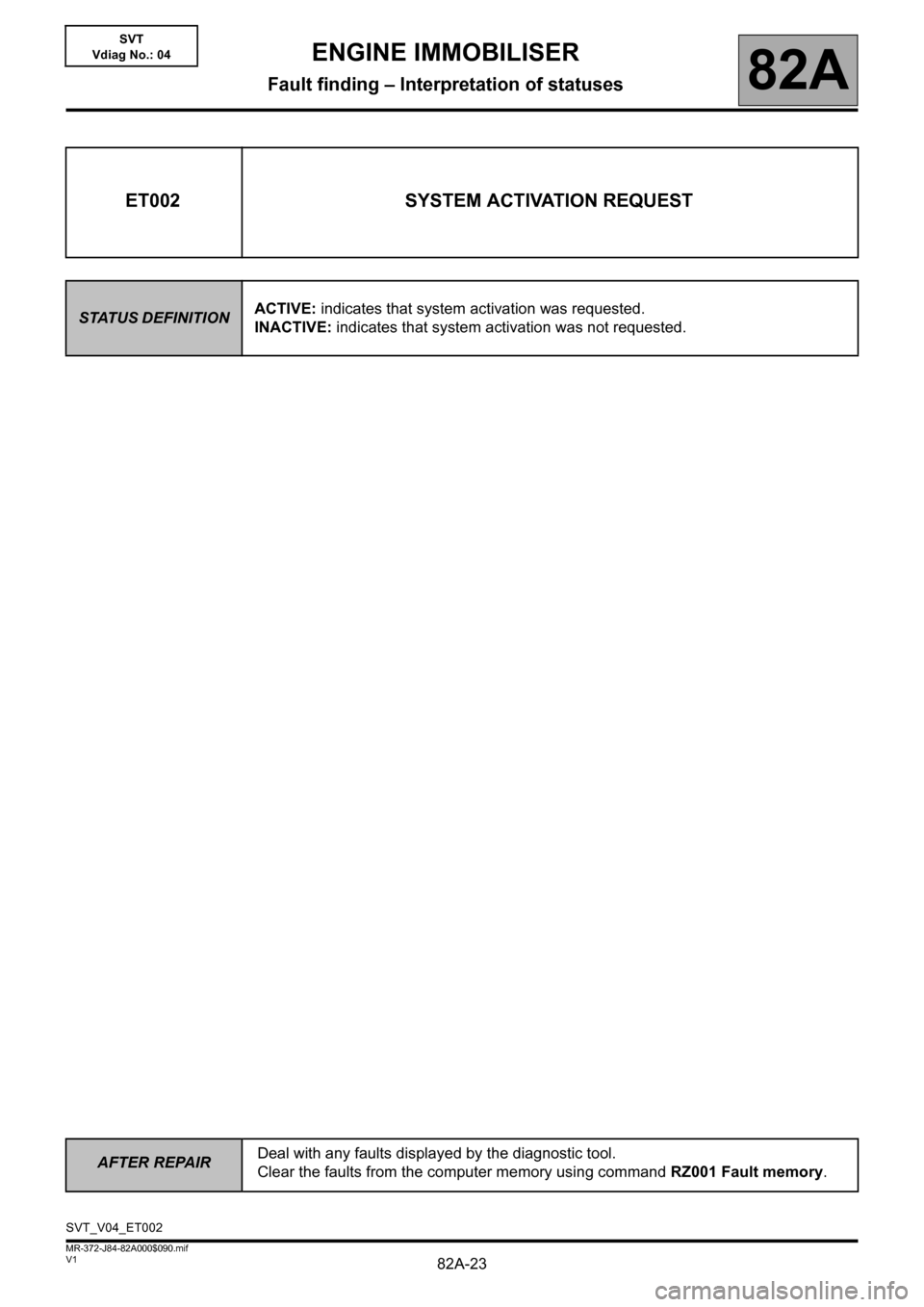

Page 23 of 37
82A-23
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the faults from the computer memory using command RZ001 Fault memory.
V1 MR-372-J84-82A000$090.mif
ENGINE IMMOBILISER
Fault finding – Interpretation of statuses82A
SVT
Vdiag No.: 04
ET002 SYSTEM ACTIVATION REQUEST
STATUS DEFINITIONACTIVE: indicates that system activation was requested.
INACTIVE: indicates that system activation was not requested.
SVT_V04_ET002

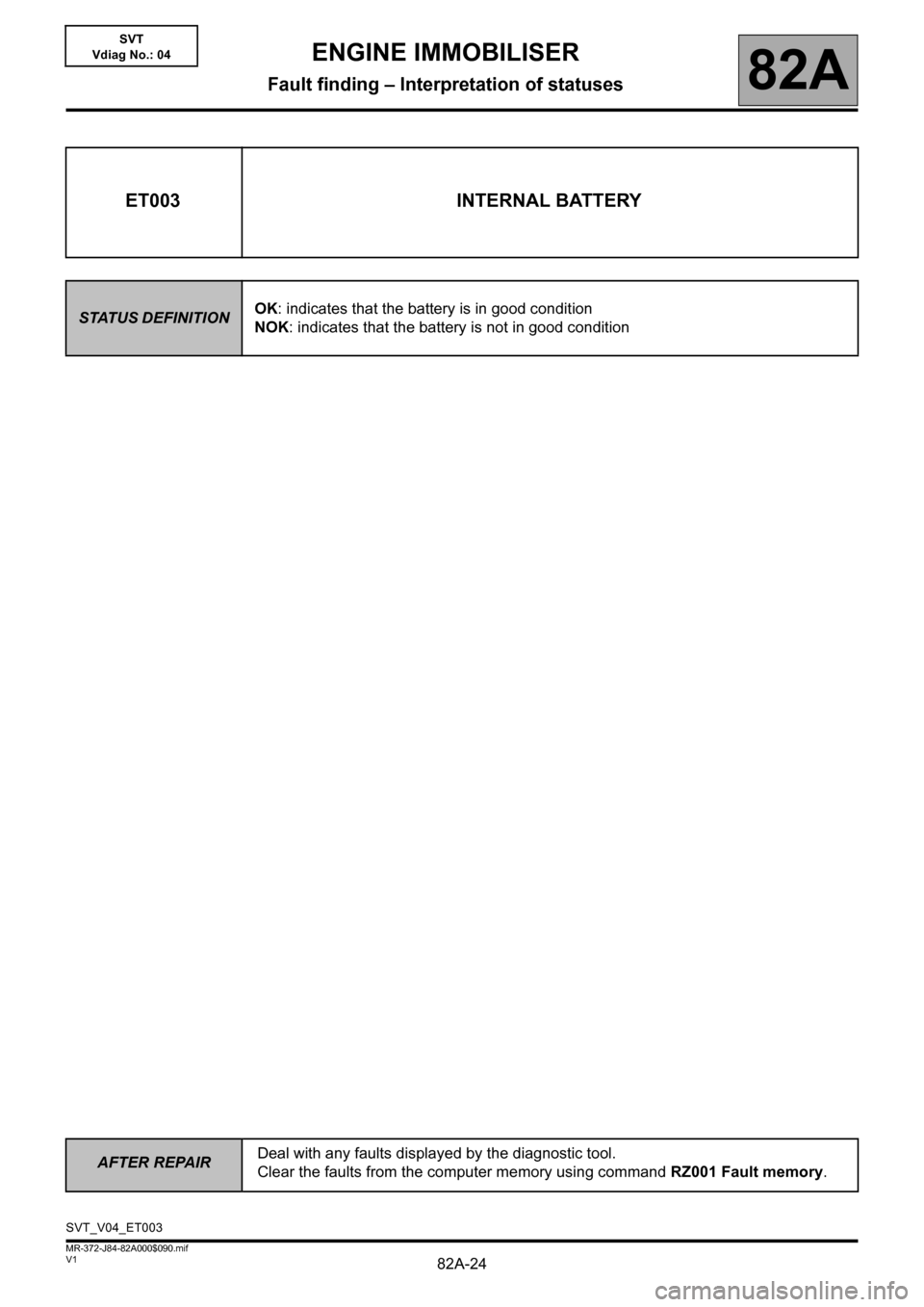

Page 24 of 37
82A-24
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the faults from the computer memory using command RZ001 Fault memory.
V1 MR-372-J84-82A000$090.mif
ENGINE IMMOBILISER
Fault finding – Interpretation of statuses82A
SVT
Vdiag No.: 04
ET003 INTERNAL BATTERY
STATUS DEFINITIONOK: indicates that the battery is in good condition
NOK: indicates that the battery is not in good condition
SVT_V04_ET003
Page 25 of 37
82A-25
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the faults from the computer memory using command RZ001 Fault memory.
V1 MR-372-J84-82A000$090.mif
ENGINE IMMOBILISER
Fault finding – Interpretation of statuses82A
SVT
Vdiag No.: 04
ET004 LOCATING SYSTEM ACTIVE
STATUS DEFINITIONYES: indicates that the locating system is active
NO: indicates that the locating system is not active
SVT_V04_ET004

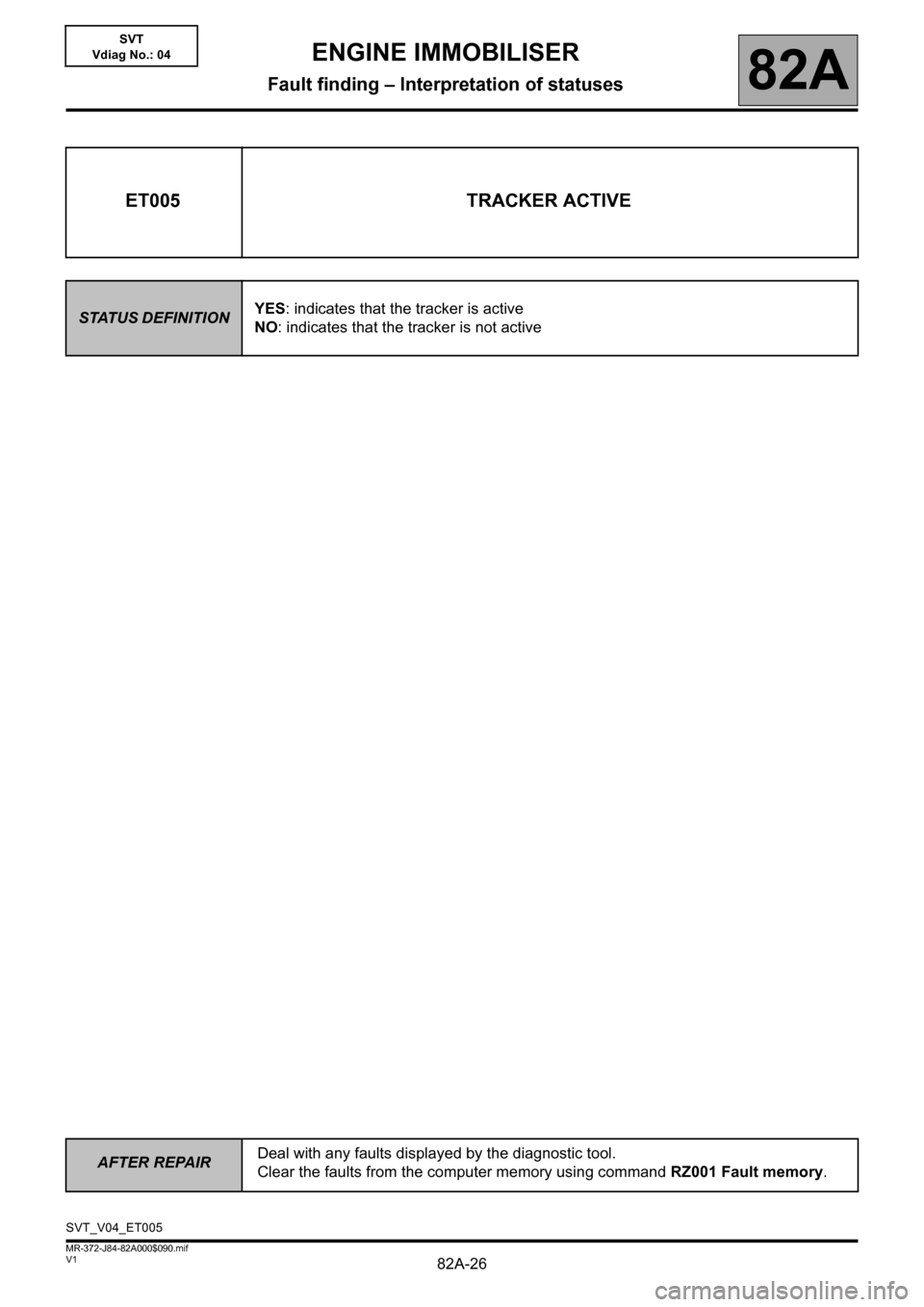

Page 26 of 37
82A-26
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the faults from the computer memory using command RZ001 Fault memory.
V1 MR-372-J84-82A000$090.mif
ENGINE IMMOBILISER
Fault finding – Interpretation of statuses82A
SVT
Vdiag No.: 04
ET005 TRACKER ACTIVE
STATUS DEFINITIONYES: indicates that the tracker is active
NO: indicates that the tracker is not active
SVT_V04_ET005

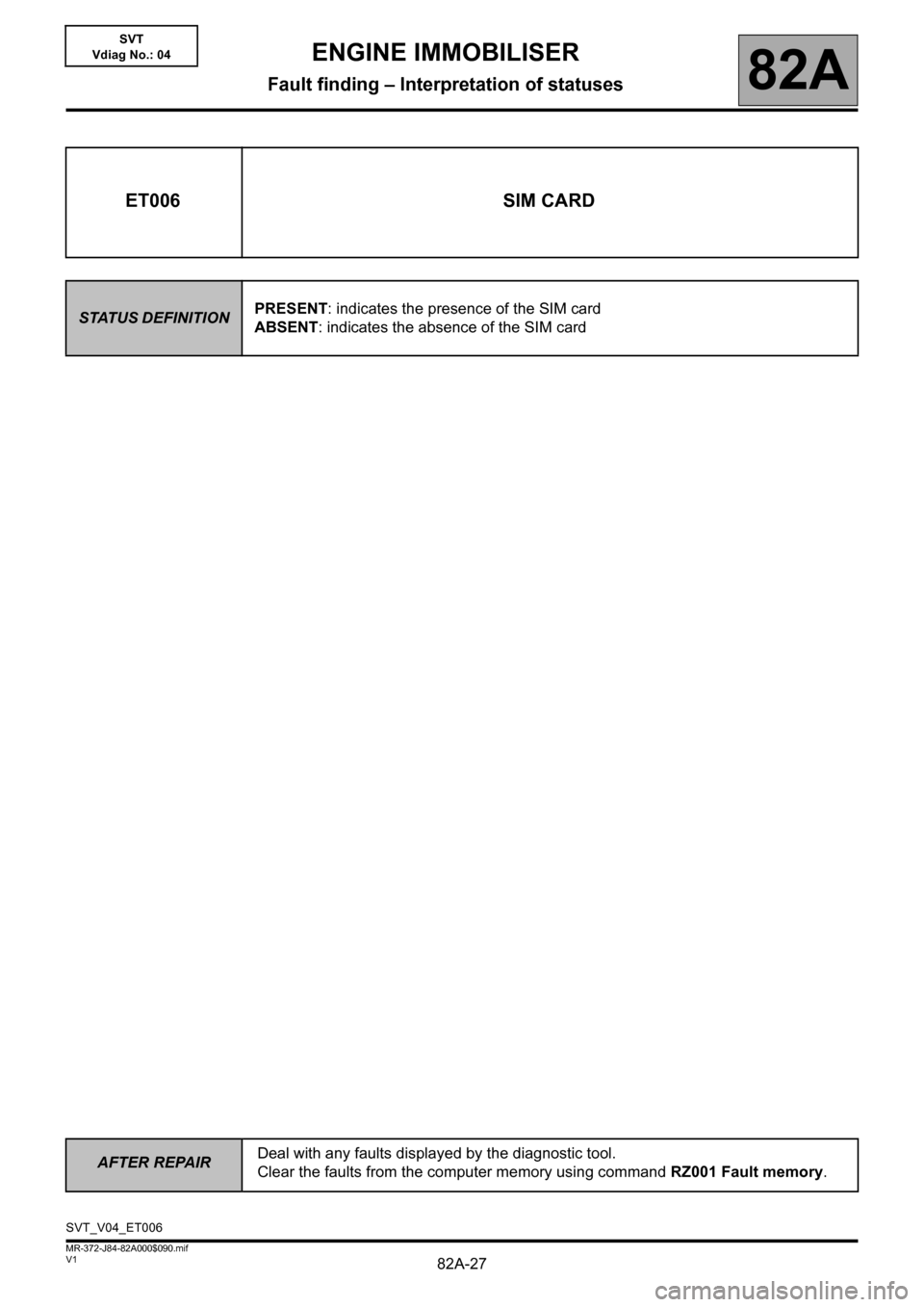

Page 27 of 37
82A-27
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the faults from the computer memory using command RZ001 Fault memory.
V1 MR-372-J84-82A000$090.mif
ENGINE IMMOBILISER
Fault finding – Interpretation of statuses82A
SVT
Vdiag No.: 04
ET006 SIM CARD
STATUS DEFINITIONPRESENT: indicates the presence of the SIM card
ABSENT: indicates the absence of the SIM card
SVT_V04_ET006

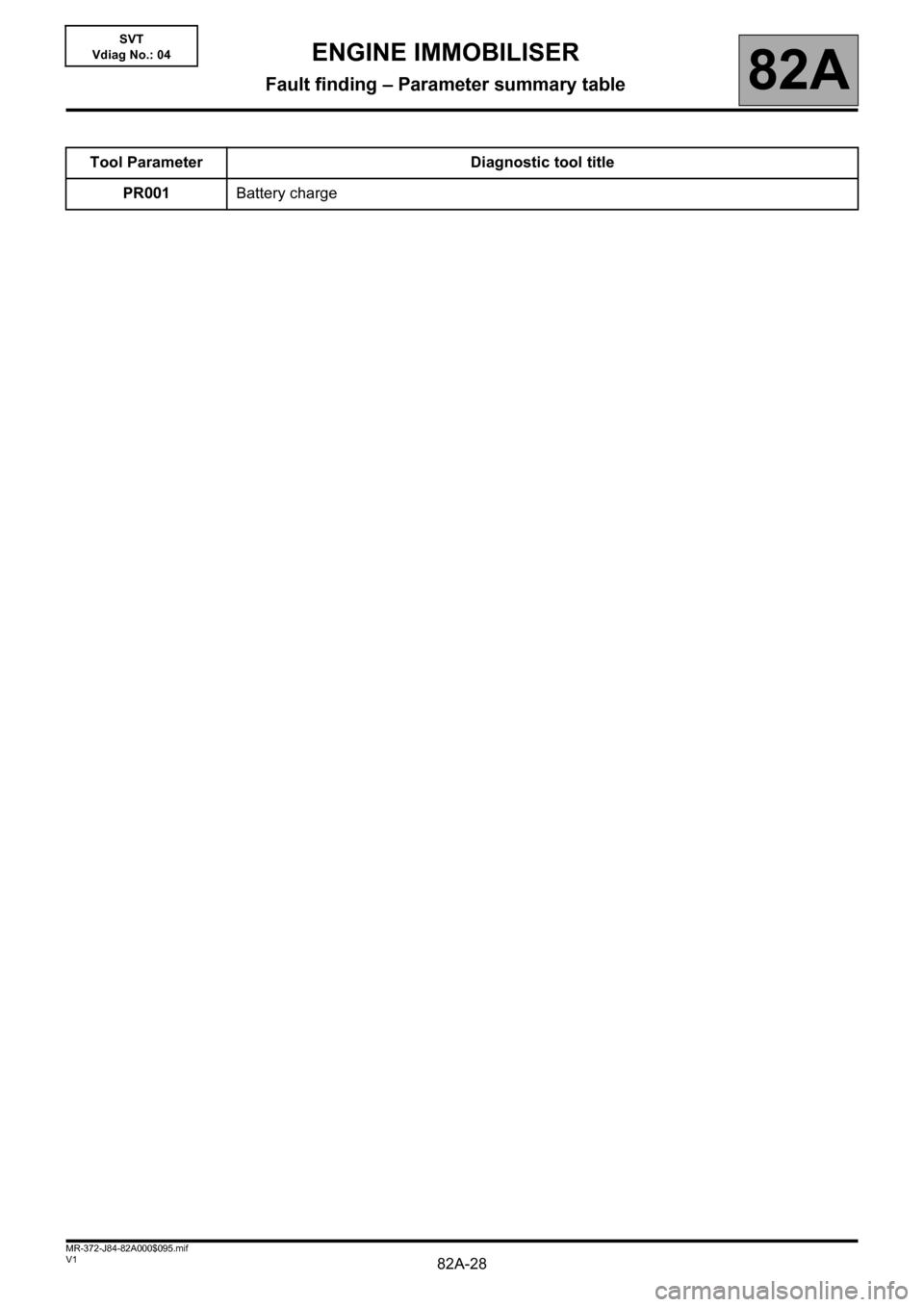

Page 28 of 37
82A-28V1 MR-372-J84-82A000$095.mif
82A
SVT
Vdiag No.: 04
Tool Parameter Diagnostic tool title
PR001Battery charge
ENGINE IMMOBILISER
Fault finding – Parameter summary table
Page 29 of 37
82A-29
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the faults from the computer memory using command RZ001 Fault memory.
V1 MR-372-J84-82A000$096.mif
82A
SVT
Vdiag No.: 04
PR001SWITCH ON THE VEHICLE + AFTER IGNITION FEED.
NOTESThis parameter indicates the internal voltage of the battery.
NOTESNone.
The value of PR001 must be between 3.5 V PR001 4.5 V.
SVT_V04_PR001
ENGINE IMMOBILISER
Fault finding – Interpretation of parameters

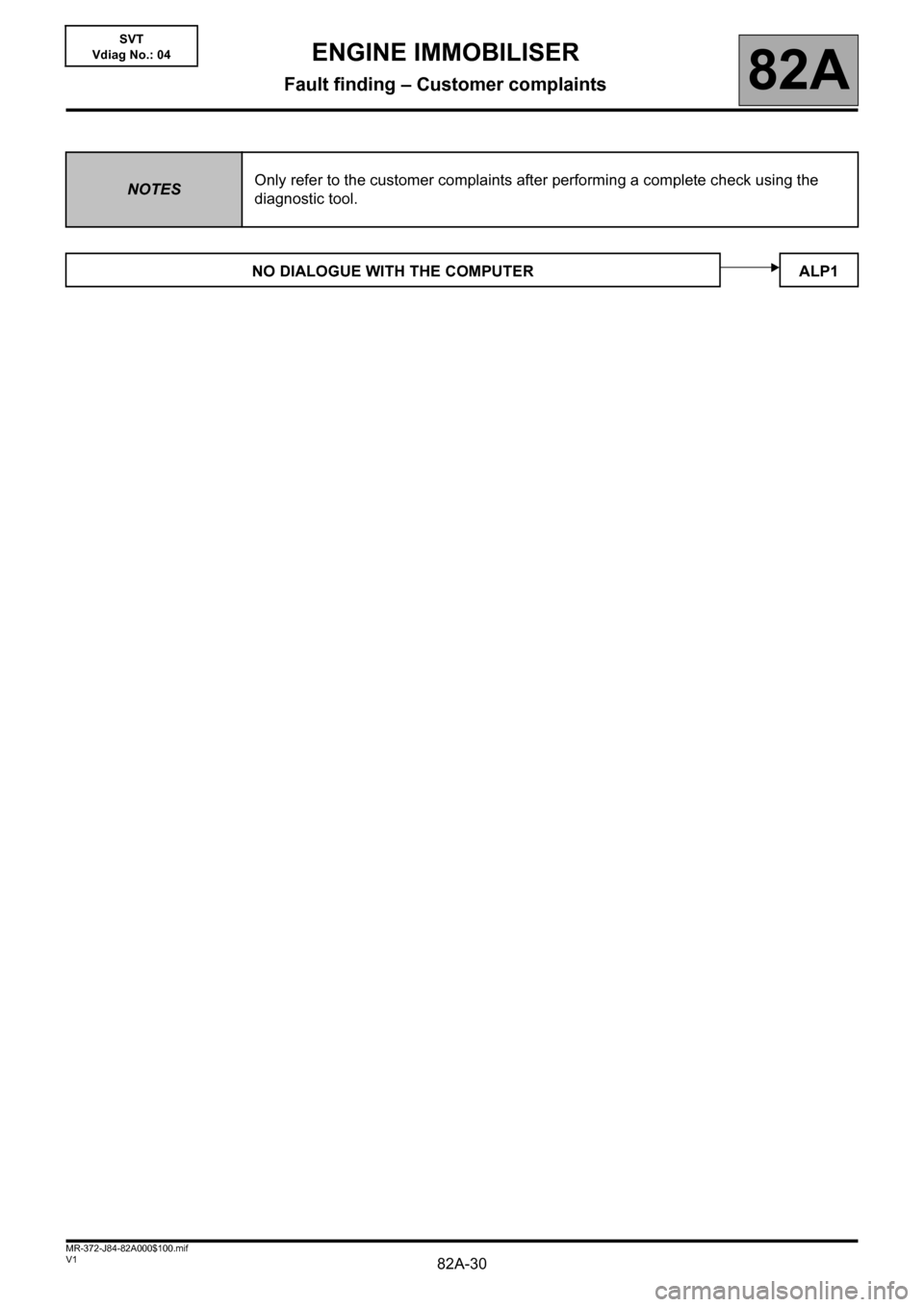

Page 30 of 37
82A-30V1 MR-372-J84-82A000$100.mif
82A
SVT
Vdiag No.: 04
NOTESOnly refer to the customer complaints after performing a complete check using the
diagnostic tool.
NO DIALOGUE WITH THE COMPUTER ALP1
ENGINE IMMOBILISER
Fault finding – Customer complaints
