37B-11
MR-372-J84-37B000$144.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – System operation
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
WARNING LIGHT MANAGEMENT
Indications of a level 1 fault:
–Check Parking Brake message on the instrument panel display.
–orange warning light (P in a triangle) on the instrument panel comes on.
–SERVICE warning light comes on.
Indications of a level 2 fault:
–Parking brake defective message on the instrument panel display.
–1-second audible warning (from the instrument panel),
–orange warning light (P in a triangle) on the instrument panel comes on.
–SERVICE warning light comes on,
–Red indicator light (brake pad light) on the instrument panel comes on.
– parking brake control lever indicator light flashes.
Warning occurs:
– when the door is opened and a gear is engaged on an automatic transmission,
– when the vehicle is moving, despite the parking brake being applied,
– when the door is opened, with the engine running and the parking brake released,
– when the door is opened, with the engine stopped and the parking brake released, Note:
When the lever warning light stops flashing, the instrument panel message disappears. If the system has a level 2
fault, whenever the lever is used, the indicator light on the lever starts flashing again and the fault message
reappears.
Page 12 of 115
37B-12
MR-372-J84-37B000$216.mif
V11
37B
ELECTRONIC PARKING BRAKE
Fault finding – Allocation of computer tracks

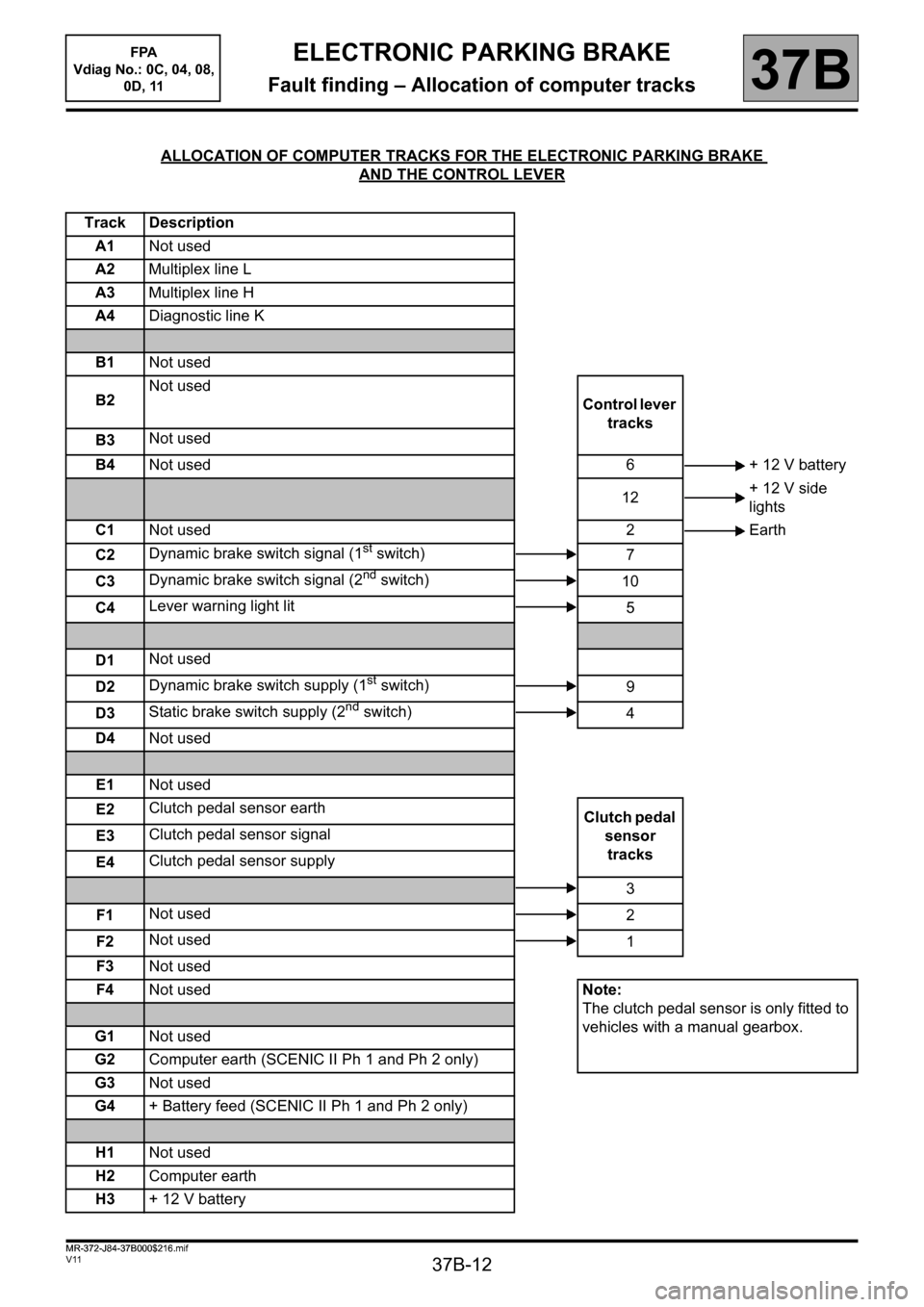

ALLOCATION OF COMPUTER TRACKS FOR THE ELECTRONIC PARKING BRAKE
AND THE CONTROL LEVER
Track Description
A1Not used
A2Multiplex line L
A3Multiplex line H
A4Diagnostic line K
B1Not used
B2Not used
Control lever
tracks
B3Not used
B4Not used 6 + 12 V battery
12+12V side
lights
C1Not used 2 Earth
C2Dynamic brake switch signal (1
stswitch)
7
C3Dynamic brake switch signal (2
ndswitch)
10
C4Lever warning light lit
5
D1Not used
D2Dynamic brake switch supply (1
stswitch)
9
D3Static brake switch supply (2
ndswitch)
4
D4Not used
E1Not used
E2Clutch pedal sensor earth
Clutch pedal
sensor
tracks E3Clutch pedal sensor signal
E4Clutch pedal sensor supply
3
F1Not used
2
F2Not used
1
F3Not used
F4Not usedNote:
The clutch pedal sensor is only fitted to
vehicles with a manual gearbox.
G1Not used
G2Computer earth (SCENIC II Ph 1 and Ph 2 only)
G3Not used
G4+ Battery feed (SCENIC II Ph 1 and Ph 2 only)
H1Not used
H2Computer earth
H3+ 12 V battery
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
MR-372-J84-37B000$216.mif
Page 13 of 115
37B-13
MR-372-J84-37B000$288.mif
V11
37B
ELECTRONIC PARKING BRAKE
Fault finding – Replacement of components

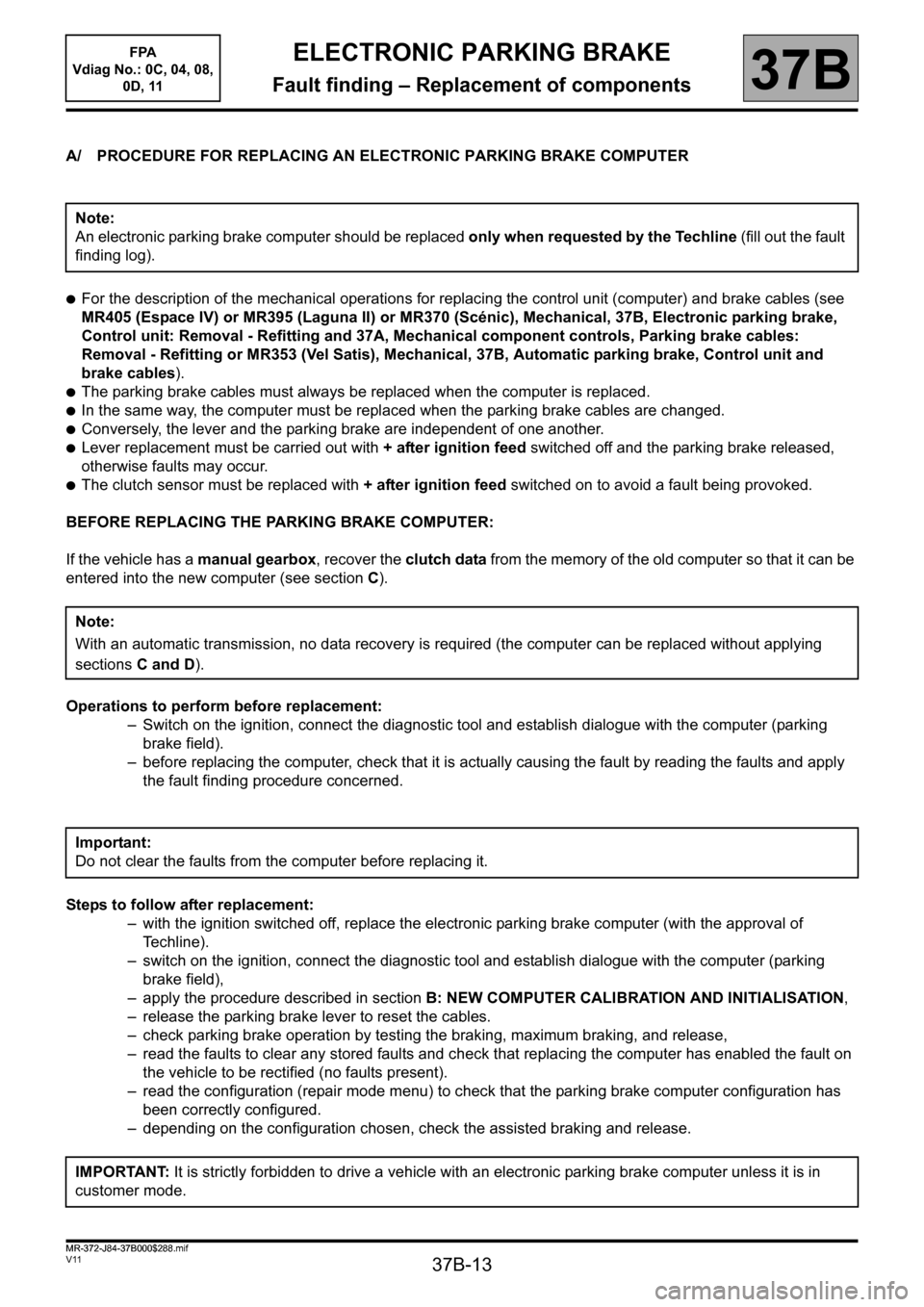

A/ PROCEDURE FOR REPLACING AN ELECTRONIC PARKING BRAKE COMPUTER
●For the description of the mechanical operations for replacing the control unit (computer) and brake cables (see
MR405 (Espace IV) or MR395 (Laguna II) or MR370 (Scénic), Mechanical, 37B, Electronic parking brake,
Control unit: Removal - Refitting and 37A, Mechanical component controls, Parking brake cables:
Removal - Refitting or MR353 (Vel Satis), Mechanical, 37B, Automatic parking brake, Control unit and
brake cables).
●The parking brake cables must always be replaced when the computer is replaced.
●In the same way, the computer must be replaced when the parking brake cables are changed.
●Conversely, the lever and the parking brake are independent of one another.
●Lever replacement must be carried out with + after ignition feed switched off and the parking brake released,
otherwise faults may occur.
●The clutch sensor must be replaced with + after ignition feed switched on to avoid a fault being provoked.
BEFORE REPLACING THE PARKING BRAKE COMPUTER:
If the vehicle has a manual gearbox, recover the clutch data from the memory of the old computer so that it can be
entered into the new computer (see section C).
Operations to perform before replacement:
– Switch on the ignition, connect the diagnostic tool and establish dialogue with the computer (parking
brake field).
– before replacing the computer, check that it is actually causing the fault by reading the faults and apply
the fault finding procedure concerned.
Steps to follow after replacement:
– with the ignition switched off, replace the electronic parking brake computer (with the approval of
Te c h l i n e ) .
– switch on the ignition, connect the diagnostic tool and establish dialogue with the computer (parking
brake field),
– apply the procedure described in section B: NEW COMPUTER CALIBRATION AND INITIALISATION,
– release the parking brake lever to reset the cables.
– check parking brake operation by testing the braking, maximum braking, and release,
– read the faults to clear any stored faults and check that replacing the computer has enabled the fault on
the vehicle to be rectified (no faults present).
– read the configuration (repair mode menu) to check that the parking brake computer configuration has
been correctly configured.
– depending on the configuration chosen, check the assisted braking and release. Note:
An electronic parking brake computer should be replaced only when requested by the Techline (fill out the fault
finding log).
Note:
With an automatic transmission, no data recovery is required (the computer can be replaced without applying
sections C and D).
Important:
Do not clear the faults from the computer before replacing it.
IMPORTANT: It is strictly forbidden to drive a vehicle with an electronic parking brake computer unless it is in
customer mode.
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
MR-372-J84-37B000$288.mif
Page 14 of 115
37B-14
MR-372-J84-37B000$288.mif
V11
FPA
Vdiag No.: 0C, 04, 08,
0D, 11ELECTRONIC PARKING BRAKE
Fault finding – Replacement of components37B
B/ COMMISSIONING A NEW COMPUTER
1/ COMPUTER CONFIGURATION
– Carry out configuration in accordance with the customer's request (see Configurations and
programming).
2/ VEHICLE IDENTIFICATION NUMBER ENTRY
– run command VP004 Write VIN.
– enter the vehicle identification number using the diagnostic tool keypad,
–confirm.
3/ COMPUTER CALIBRATION AND COMMISSIONING
–In + after ignition feed, run command VP011 Computer calibration and initialisation and carry out
the following 4 steps.
STEP 1 VEHICLE MASS CALIBRATION
Screen 1:
With the dropdown menu, enter the following information:
– vehicle type,
– engine type,
– gearbox type,
– type of driving style,
– equipment level (for Vdiag 04),
– confirm the operation by pressing Next.
Screen 2:
– reread the highlighted information.
– If the highlighted information does not match the vehicle, return to the selection screen by pressing Back,
– if the highlighted information is correct, continue with step 2 by pressing Next.
STAGE 2 INITIALISING A NEW PARKING BRAKE
– Initialise the brake by pressing YES (you should hear a noise as the brake is applied and then released).
– Proceed to step 3 by pressing Next.
STEP 3 SLOPE INITIALISATION
– Calibrate the slope sensor by pressing Confirm. Proceed to step 4 by pressing Next.
STEP 4 INITIALISING ASSISTED BRAKING
– Carry out initialisation by pressing Confirm.
– Return to the selection list screen by pressing Finish. Note:
If the vehicle identification number is not entered and command CF007 Vehicle configuration is not run, step 3
of initialising the computer will not work.
WARNING
To initialise the computer, the vehicle must be on a horizontal surface with the brake cables correctly fitted
(connected to the rear brake callipers) and nobody must be working on the vehicle.
Page 15 of 115
37B-15
MR-372-J84-37B000$288.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Replacement of components
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B

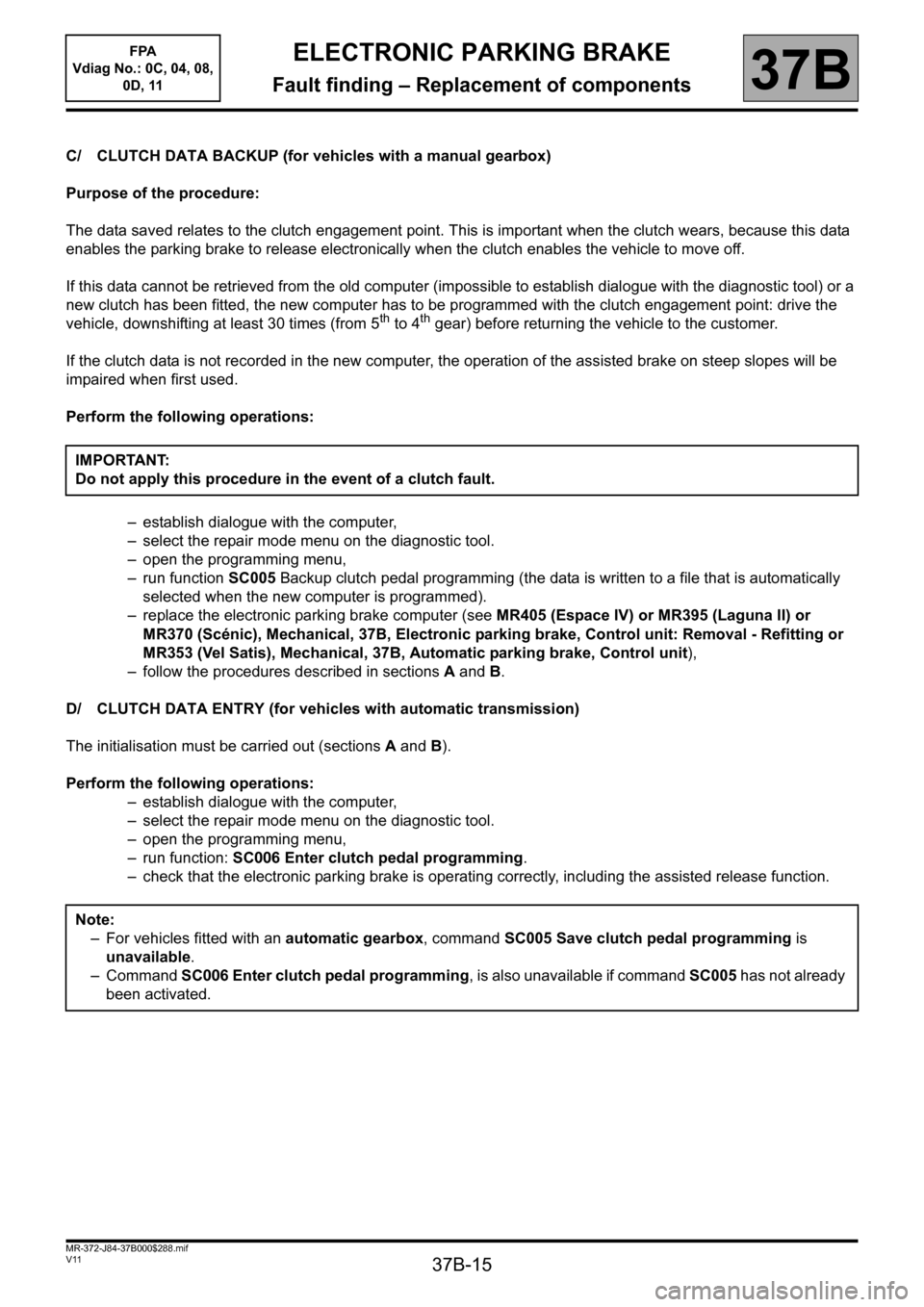

C/ CLUTCH DATA BACKUP (for vehicles with a manual gearbox)
Purpose of the procedure:
The data saved relates to the clutch engagement point. This is important when the clutch wears, because this data
enables the parking brake to release electronically when the clutch enables the vehicle to move off.
If this data cannot be retrieved from the old computer (impossible to establish dialogue with the diagnostic tool) or a
new clutch has been fitted, the new computer has to be programmed with the clutch engagement point: drive the
vehicle, downshifting at least 30 times (from 5
th to 4th gear) before returning the vehicle to the customer.
If the clutch data is not recorded in the new computer, the operation of the assisted brake on steep slopes will be
impaired when first used.
Perform the following operations:
– establish dialogue with the computer,
– select the repair mode menu on the diagnostic tool.
– open the programming menu,
– run function SC005 Backup clutch pedal programming (the data is written to a file that is automatically
selected when the new computer is programmed).
– replace the electronic parking brake computer (see MR405 (Espace IV) or MR395 (Laguna II) or
MR370 (Scénic), Mechanical, 37B, Electronic parking brake, Control unit: Removal - Refitting or
MR353 (Vel Satis), Mechanical, 37B, Automatic parking brake, Control unit),
– follow the procedures described in sections A and B.
D/ CLUTCH DATA ENTRY (for vehicles with automatic transmission)
The initialisation must be carried out (sections A and B).
Perform the following operations:
– establish dialogue with the computer,
– select the repair mode menu on the diagnostic tool.
– open the programming menu,
– run function: SC006 Enter clutch pedal programming.
– check that the electronic parking brake is operating correctly, including the assisted release function. IMPORTANT:
Do not apply this procedure in the event of a clutch fault.
Note:
– For vehicles fitted with an automatic gearbox, command SC005 Save clutch pedal programming is
unavailable.
– Command SC006 Enter clutch pedal programming, is also unavailable if command SC005 has not already
been activated.
Page 16 of 115
37B-16
MR-372-J84-37B000$360.mif
V11
37B
ELECTRONIC PARKING BRAKE
Fault finding – Configurations and programming
CONFIGURATIONS:
Two functions can be turned off by configuration: assisted application and release.
Special note:
Assisted application and release are configured by default when a new computer is initialised. This configuration is
accessible in the log book.
To carry out configuration, select the diagnostic tool's Repair mode menu.
CF007 Vehicle configuration
This configuration turns electronic parking brake application on or off when the engine is stopped.
In cold countries or regions, assisted braking should preferably be inhibited to avoid brake cables becoming frozen
in the applied position.
– Select the type of configuration:
–NORMAL (with assisted braking when the engine is stopped).
–COLD CLIMATE (without assisted braking when the engine is stopped).
– Confirm the operation.
– Make sure the configuration has been properly entered by reading configuration LC009 Vehicle
configuration.
– Make sure the assisted braking function works.
PROGRAMMING:
– Refer to the configuration check.
Note:
When a new computer is initialised, the angle sensor is calibrated by running command VP011 Computer
calibration and initialising.
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
MR-372-J84-37B000$360.mif
Page 17 of 115
37B-17
MR-372-J84-37B000$432.mif
V11
37B
ELECTRONIC PARKING BRAKE
Fault finding – Fault summary table
Tool faultAssociated
DTCDiagnostic tool title

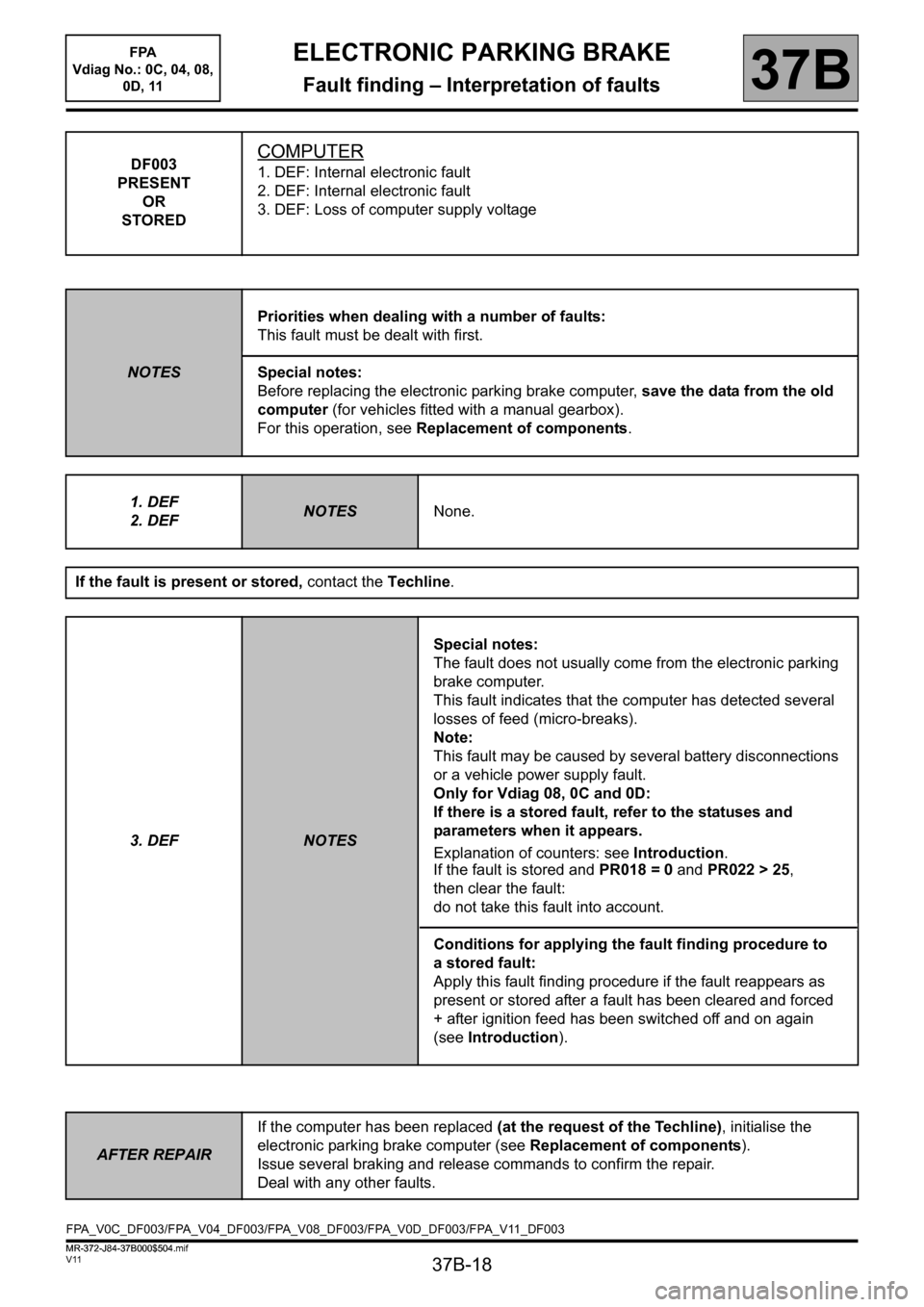

DF003 50C3Computer

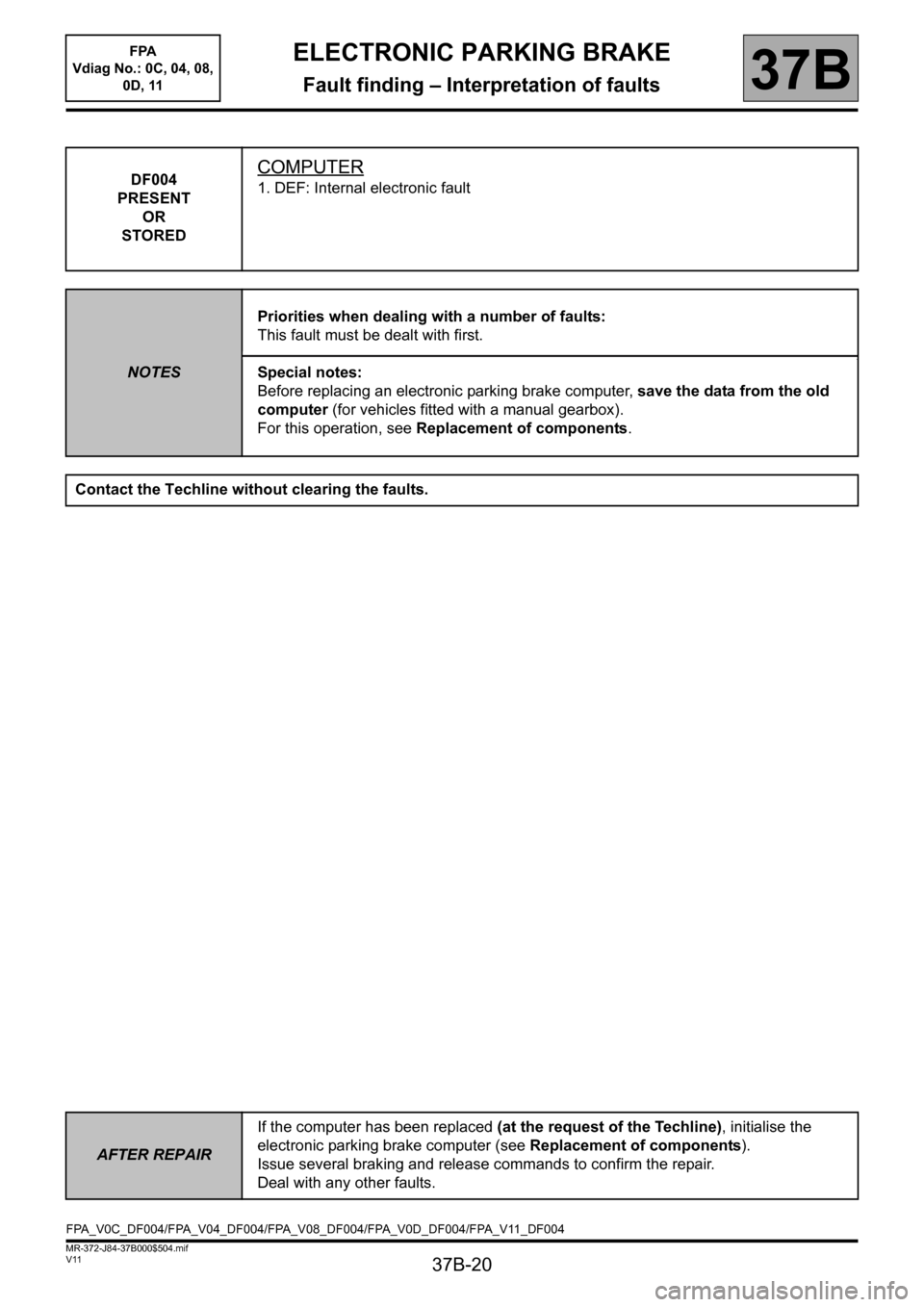

DF004 50CAComputer
DF006 50C5Computer configuration
DF015 5166Clutch position sensor circuit
DF016 50 CBWarning light circuit
DF025 5168Vehicle movement with maximum application
DF028 517EComputer
DF029 517BComputer
DF035 5170Undervoltage
DF036 5180No injection multiplex signal
DF037 5181No ABS system multiplex signal
DF038 5188No automatic transmission multiplex signal
DF039 5183No UCH multiplex signal
DF041 5160Angle sensor (internal)
DF042 5161Force sensor (internal)
DF043 5162Parking brake motor
DF044 516CBrake switch
DF045 5172Redundant brake switch
DF046 516FBrake motor/cables connection
DF047 5171Manual control
DF048 5173Release switch
DF049 5175Braking
DF050 5178Mechanical jamming (internal)
DF051 5176System fault after computer replacement
DF052 516DMultiplex network
DF054 50C1Battery overvoltage
DF055 50C0Battery voltage too low
DF056 5163Brake cables incorrectly fitted
DF057 517AComputer internal temperature sensor
DF058 5177Parking brake motor current (internal)
DF059 5194No Protection and Switching Unit multiplex signal
DF073 5174Computer
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
MR-372-J84-37B000$432.mif
Page 18 of 115
37B-18
MR-372-J84-37B000$504.mif
V11
37B
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA_V0C_DF003/FPA_V04_DF003/FPA_V08_DF003/FPA_V0D_DF003/FPA_V11_DF003
DF003
PRESENT
OR
STOREDCOMPUTER
1. DEF: Internal electronic fault
2. DEF: Internal electronic fault
3. DEF: Loss of computer supply voltage
NOTESPriorities when dealing with a number of faults:
This fault must be dealt with first.
Special notes:
Before replacing the electronic parking brake computer, save the data from the old
computer (for vehicles fitted with a manual gearbox).
For this operation, see Replacement of components.
1. DEF
2. DEF
NOTESNone.
If the fault is present or stored, contact the Techline.
3. DEF
NOTESSpecial notes:
The fault does not usually come from the electronic parking
brake computer.
This fault indicates that the computer has detected several
losses of feed (micro-breaks).
Note:
This fault may be caused by several battery disconnections
or a vehicle power supply fault.
Only for Vdiag 08, 0C and 0D:
If there is a stored fault, refer to the statuses and
parameters when it appears.
Explanation of counters: see Introduction.
If the fault is stored and PR018 = 0 and PR022 > 25,
then clear the fault:
do not take this fault into account.
Conditions for applying the fault finding procedure to
a stored fault:
Apply this fault finding procedure if the fault reappears as
present or stored after a fault has been cleared and forced
+ after ignition feed has been switched off and on again
(seeIntroduction).
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
MR-372-J84-37B000$504.mif
Page 19 of 115
37B-19
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF003
CONTINUED
Disconnect the electronic parking brake computer connector (under the body near the rear axle) to check the
conformity of the power supply (this must equal the voltage measured at the battery terminals ± 0.5 V).
Check the insulation, continuity and the absence of interference resistance on the following connections:
Electronic parking brake computer connector
track H4
(except Laguna II, Vel Satis and Espace IV)
track G4+12V
track H2
(except Laguna II, Vel Satis and Espace IV)
track G2earth
Note:
If the electrical supply is correct, check that the supply has not been cut off by moving the electrical harness
(near to the intermediate connector under the front left-hand seat at the computer connector).
Repair if necessary (see the vehicle wiring diagram).
If the fault persists, contact the Techline.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
Page 20 of 115
37B-20
MR-372-J84-37B000$504.mif
V11
ELECTRONIC PARKING BRAKE
Fault finding – Interpretation of faults
FPA
Vdiag No.: 0C, 04, 08,
0D, 11
37B
DF004
PRESENT
OR
STOREDCOMPUTER
1. DEF: Internal electronic fault
NOTESPriorities when dealing with a number of faults:
This fault must be dealt with first.
Special notes:
Before replacing an electronic parking brake computer, save the data from the old
computer (for vehicles fitted with a manual gearbox).
For this operation, see Replacement of components.
Contact the Techline without clearing the faults.
AFTER REPAIRIf the computer has been replaced (at the request of the Techline), initialise the
electronic parking brake computer (see Replacement of components).
Issue several braking and release commands to confirm the repair.
Deal with any other faults.
FPA_V0C_DF004/FPA_V04_DF004/FPA_V08_DF004/FPA_V0D_DF004/FPA_V11_DF004
