5

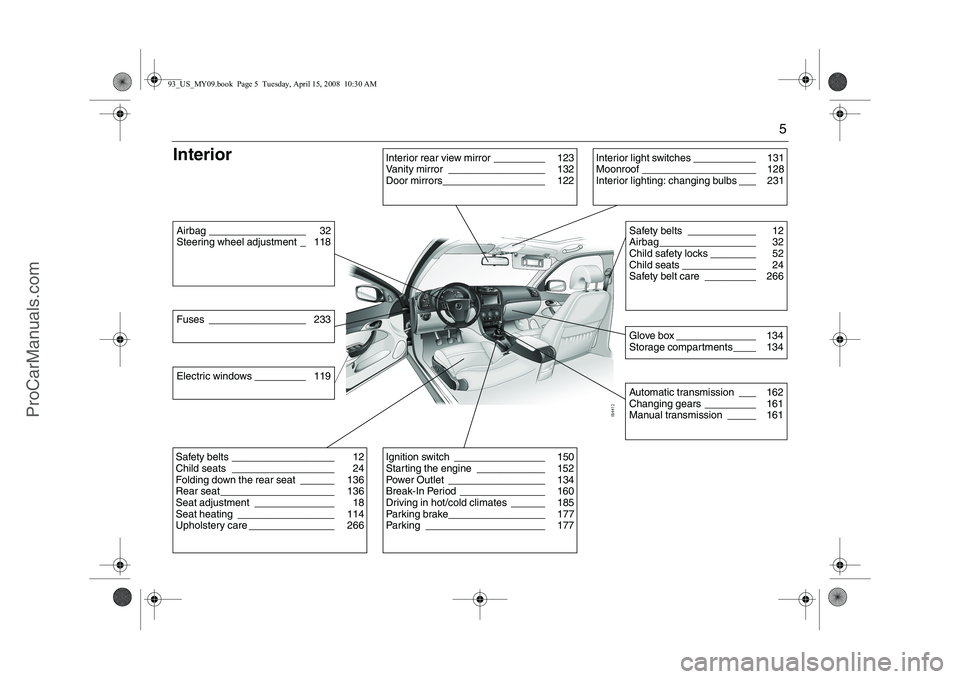

InteriorAirbag _________________ 32
Steering wheel adjustment _ 118
Interior rear view mirror _________ 123
Vanity mirror _________________ 132
Door mirrors__________________ 122
Safety belts ____________ 12
Airbag_________________ 32
Child safety locks ________ 52
Child seats _____________ 24
Safety belt care _________ 266Glove box ______________ 134
Storage compartments ____ 134Automatic transmission ___ 162
Changing gears _________ 161
Manual transmission _____ 161
Safety belts __________________ 12
Child seats __________________ 24
Folding down the rear seat ______ 136
Rear seat ____________________ 136
Seat adjustment ______________ 18
Seat heating _________________ 114
Upholstery care _______________ 266
Interior light switches ___________ 131
Moonroof ____________________ 128
Interior lighting: changing bulbs ___ 231
Ignition switch ________________ 150
Starting the engine ____________ 152
Power Outlet _________________ 134
Break-In Period _______________ 160
Driving in hot/cold climates ______ 185
Parking brake_________________ 177
Parking _____________________ 177
Fuses _________________ 233Electric windows _________ 11993_US_MY09.book Page 5 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

6Engine bay, 4-cylColor code______________ 292
Engine number __________ 292
Gearbox number _________ 292
Warning labels __________ 8
Vehicle identification number 292Ignition system __________ 287
Alternator_______________ 215
Drive belt _______________ 215
Exhaust emission control __ 154
Simple troubleshooting (ACC) 273
Spark plugs _____________ 287
Turbo gauge ____________ 88Engine oil: checking level __ 208Automatic transmission _________ 162
Manual transmission ___________ 161
Battery ______________________ 214
Jump starting _________________ 197
Battery charge ________________ 214
Oil grade and viscosity__________ 286
Engine: description ____________ 203
Engine: technical data __________ 286
Important considerations for driving 153
Wash/wipe stalk switch____ 103
Washer fluid ____________ 217
Washer jets ____________ 217
Topping-up fluid _________ 217
Power steering ________________ 213
Fluid: checking/topping up _______ 213
Coolant: checking/topping-up ____ 210
Driving in hot climates __________ 187
Radiator _____________________ 286
Temperature gauge ____________ 88
Fuse table _____________ 238
Changing a fuse _________ 233
Fuses _________________ 233
Relays ________________ 238ABS brakes_____________ 170
Brake pads _____________ 212
Brake system ___________ 287
Brake fluid______________ 212
93_US_MY09.book Page 6 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

7
Engine bay, 2.8 V6Power steering___________ 213
Fluid: checking/topping up__ 213Vehicle identification
number ________________ 292
Color code ______________ 292
Engine number __________ 292
Warning labels___________ 8
Gearbox number _________ 292Ignition system __________ 287
Exhaust emission control __ 154
Drive belt _______________ 215
Simple troubleshooting (ACC) 273
Alternator_______________ 215
Turbo gauge ____________ 88
Spark plugs _____________ 287Automatic transmission _________ 162
Manual transmission ___________ 161
Oil grade and viscosity__________ 286
Engine: description ____________ 203
Engine oil: topping up __________ 208
Engine: technical data __________ 286
Important considerations
for driving ___________________ 153Engine oil: checking level________ 208
Battery ______________________ 214
Jump starting _________________ 197
Battery charge ________________ 214
Wash/wipe stalk switch ____ 103
Topping-up fluid _________ 217
Washer jets_____________ 217
Washer fluid ____________ 217Fuse table ______________ 235
Changing a fuse _________ 235
Fuses _________________ 233
Relays ________________ 238ABS brakes_____________ 171
Brake pads _____________ 287
Brake system ___________ 170
Brake fluid______________ 212
Cooling system, coolant capacity__ 286
Coolant: checking/topping-up ____ 210
Driving in hot climates __________ 187
Temperature gauge ____________ 88
93_US_MY09.book Page 7 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

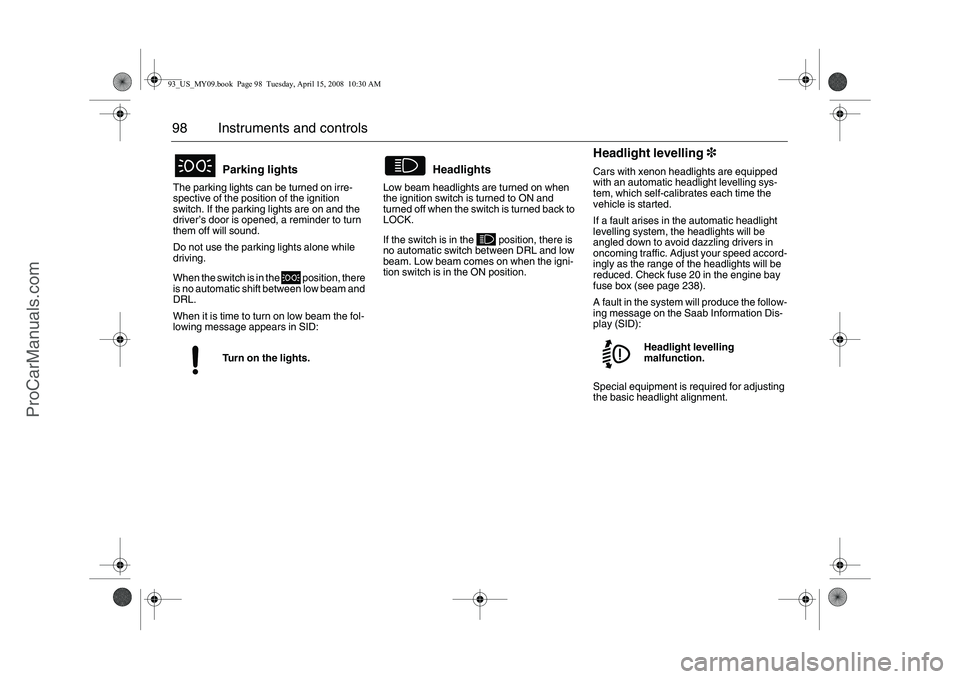

98 Instruments and controlsThe parking lights can be turned on irre-
spective of the position of the ignition
switch. If the parking lights are on and the
driver’s door is opened, a reminder to turn
them off will sound.
Do not use the parking lights alone while
driving.
When the switch is in the position, there
is no automatic shift between low beam and
DRL.
When it is time to turn on low beam the fol-
lowing message appears in SID:Low beam headlights are turned on when
the ignition switch is turned to ON and
turned off when the switch is turned back to
LOCK.
If the switch is in the position, there is
no automatic switch between DRL and low
beam. Low beam comes on when the igni-
tion switch is in the ON position.
Headlight levelling3Cars with xenon headlights are equipped
with an automatic headlight levelling sys-
tem, which self-calibrates each time the
vehicle is started.
If a fault arises in the automatic headlight
levelling system, the headlights will be
angled down to avoid dazzling drivers in
oncoming traffic. Adjust your speed accord-
ingly as the range of the headlights will be
reduced. Check fuse 20 in the engine bay
fuse box (see page 238).
A fault in the system will produce the follow-
ing message on the Saab Information Dis-
play (SID):
Special equipment is required for adjusting
the basic headlight alignment.
Parking lightsTurn on the lights.
Headlights
Headlight levelling
malfunction.
93_US_MY09.book Page 98 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

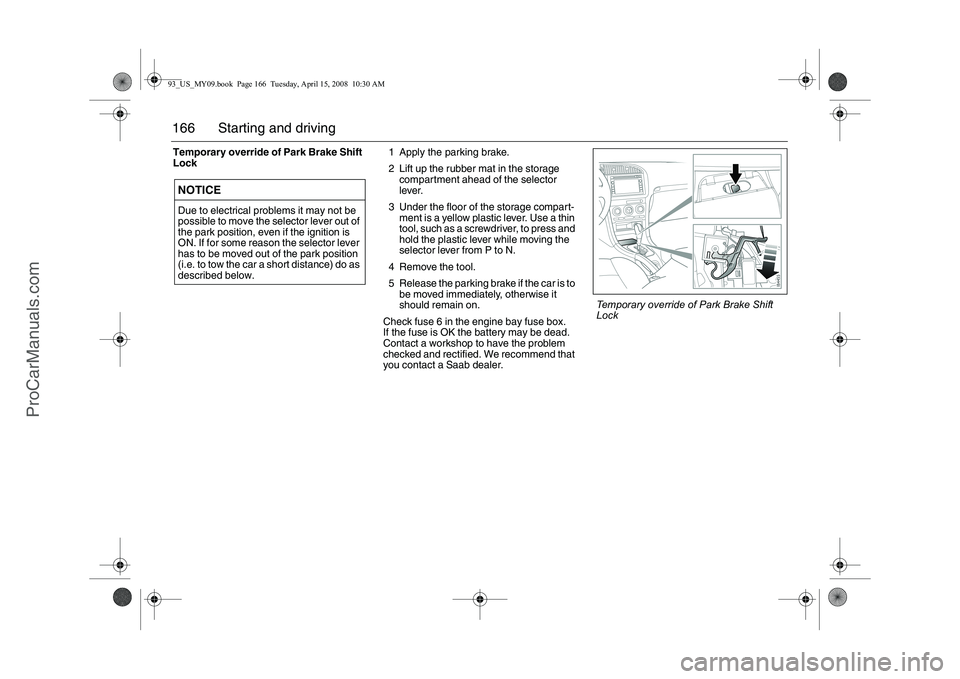

166 Starting and drivingTemporary override of Park Brake Shift
Lock1 Apply the parking brake.
2 Lift up the rubber mat in the storage
compartment ahead of the selector
lever.
3 Under the floor of the storage compart-
ment is a yellow plastic lever. Use a thin
tool, such as a screwdriver, to press and
hold the plastic lever while moving the
selector lever from P to N.
4 Remove the tool.
5 Release the parking brake if the car is to
be moved immediately, otherwise it
should remain on.
Check fuse 6 in the engine bay fuse box.
If the fuse is OK the battery may be dead.
Contact a workshop to have the problem
checked and rectified. We recommend that
you contact a Saab dealer.NOTICEDue to electrical problems it may not be
possible to move the selector lever out of
the park position, even if the ignition is
ON. If for some reason the selector lever
has to be moved out of the park position
(i.e. to tow the car a short distance) do as
described below.
Temporary override of Park Brake Shift
Lock
93_US_MY09.book Page 166 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

199 Starting and driving
Using a battery charger3/starter
unitTo avoid damaging the car’s electrical
system and electronics, the following rules
must be followed when charging the battery
or jump starting the car.
 If the charger or starter unit can be set to
different voltages (6 V/12 V/18 V/24 V),
12V must be selected.
 Follow the manufacturer’s instructions
supplied with the charger or starter unit.
 No other apparatus that are grounded or
connected to the mains must be
connected to the car during charging or
jump starting.
 The charger or starter unit must under no
conditions produce a voltage greater
than:
 16 V continuous
 18 V for 60 minutes.
If you are unsure about the charge rating of
the unit, disconnect the battery clamp from
the positive terminal before connecting the
unit to the battery.
For long tripsBefore starting off on a long journey, it is
advisable to have your car inspected by
your Saab dealer.
Obtain a few important items to take along
on your journey, such as spare bulbs, wiper
blades, fuses, a drive belt (poly-V-belt) and
the like.
You can check some points yourself before-
hand:
 Check that no oil or fuel leaks out of the
engine or gearbox/transmission.
 Check the coolant and power steering
fluid levels. Check also for leaks.
 Inspect the drive belt (poly-V-belt) and
replace if it shows any signs of wear.
 Check the battery charge.
 Check the tires for tread pattern and air
pressure, including the compact spare
tire.
 Take an extra remote control and keep it
separate.
 Check the brakes.
 Check all bulbs.
 Check for the presence of the tool kit and
jack in the car.
93_US_MY09.book Page 199 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

206 Car care
1 Oil filler cap
2 Coolant reservoir
3 Brake and clutch fluid reservoir
4Battery
5 Fuse box
6 Washer-fluid reservoir
7 Power-steering fluid reservoir
8 Engine-oil dipstick
Engine bay, 4-cyl engine93_US_7carcare_MY09.fm Page 206 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

207
Car care
1 Power-steering fluid reservoir
2 Coolant reservoir
3 Brake and clutch fluid reservoir
4Battery
5 Fuse box
6 Washer-fluid reservoir
7 Oil filler cap
8 Engine-oil dipstick
Engine bay, V6 engine93_US_7carcare_MY09.fm Page 207 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

219
Car care
Wrong bulb fitted
If a low or main beam bulb of too high a
rating is fitted, a bulb failure message will be
shown on the SID (a too high wattage bulb
can damage the reflector).
If the following message is displayed but the
bulb shines, it is most likely that an incorrect
bulb has been fitted.
Note
When changing bulbs, fit the same type of
bulb (e.g. Long-Life) as that removed.
Headlight aiming , page 274.
Xenon headlights 3Xenon headlights produce roughly two
times as much light as halogen bulbs and
have a significantly longer service life.
The lamp units consist of a gas discharge
lamp containing xenon. When the lights are
switched on a very hi gh voltage activates
the xenon gas. The lamps soon reach full
intensity.
Cars with xenon headlights have automatic
levelling. The levelling system is comprised
of two sensors, one on the front suspension
and one on the rear suspension, and a con-
trol unit by the engine bay fuse box. Head-
light alignment is adjus ted automatically to
the car’s load to prevent dazzling drivers in
oncoming traffic.
If a fault is detected in the system, the fol-
lowing message will be displayed on the
SID:
Right high beam failure.
WARNING
Xenon headlights are high tension. All
work on xenon headlights, including
changing bulbs, must be carried out by
dealer personnel.
Headlight levelling
malfunction.
We recommend you to contact a Saab
dealer to have a xenon headlight changed
93_US_7carcare_MY09.fm Page 219 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

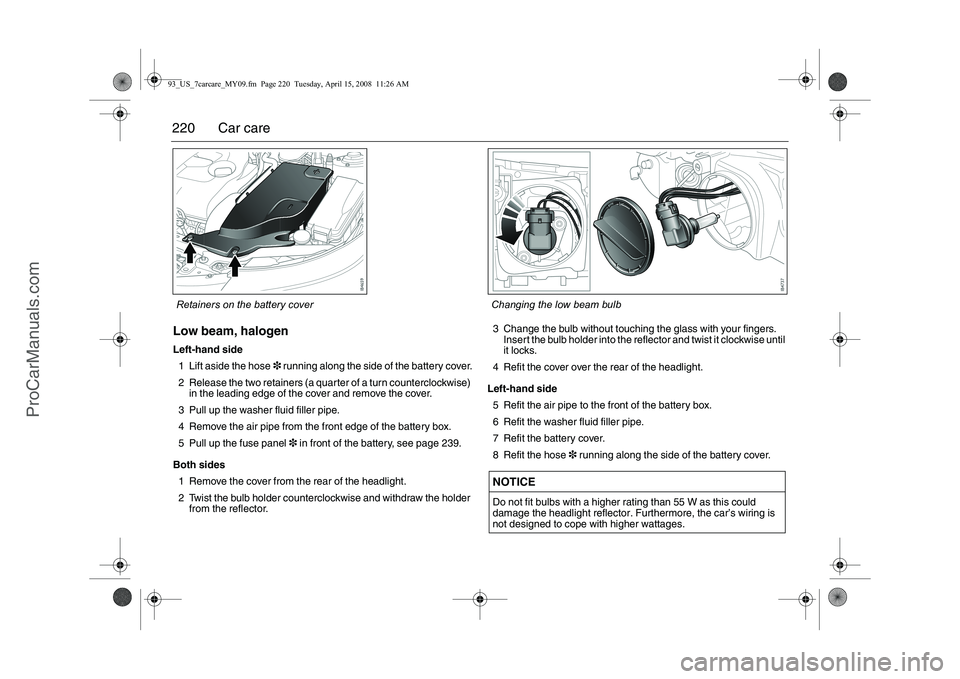

220 Car careLow beam, halogenLeft-hand side1 Lift aside the hose 3 running along the side of the battery cover.
2 Release the two retainers (a quarter of a turn counterclockwise) in the leading edge of the cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge of the battery box.
5 Pull up the fuse panel 3 in front of the battery, see page 239.
Both sides 1 Remove the cover from t he rear of the headlight.
2 Twist the bulb holder counterclockwise and withdraw the holder from the reflector. 3 Change the bulb without touching the glass with your fingers.
Insert the bulb holder into the reflector and twist it clockwise until
it locks.
4 Refit the cover over th e rear of the headlight.
Left-hand side 5 Refit the air pipe to th e front of the battery box.
6 Refit the washer fluid filler pipe.
7 Refit the battery cover.
8 Refit the hose 3 running along the side of the battery cover.
NOTICEDo not fit bulbs with a higher rating than 55 W as this could
damage the headlight reflector. Furthermore, the car’s wiring is
not designed to cope with higher wattages.
Retainers on the battery cover Changing the low beam bulb93_US_7carcare_MY09.fm Page 220 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com
