Page 171 of 285

Seat Alhambra 2009  Owners Manual Driving169
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l  D a t a

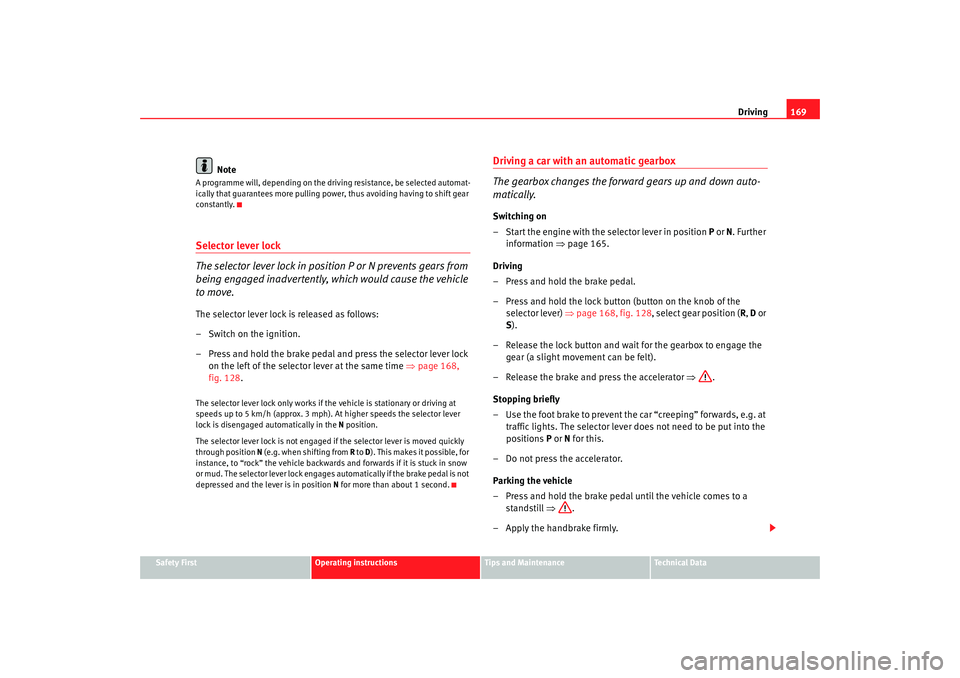

Note
A programme will, depending on the driving resistance, be selected automat-
ically that guarantees mo

Page 172 of 285

Seat Alhambra 2009  Owners Manual Driving
170

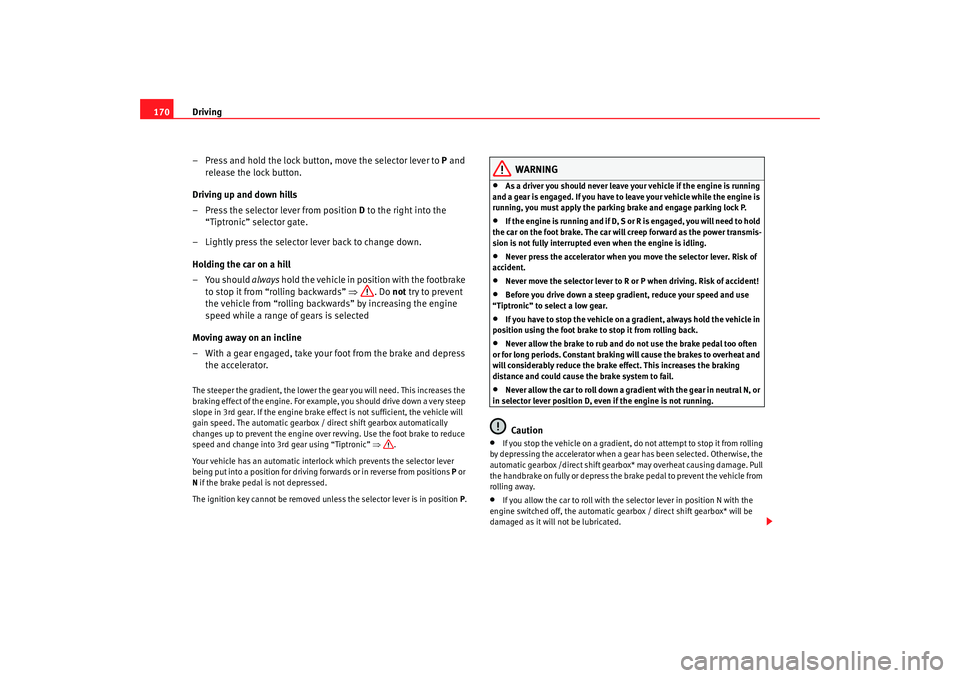

– Press and hold the lock button, move the selector lever to  P and
release the lock button.
Driving up and down hills
– Press the selector lever from position  D to the right into th

Page 173 of 285

Seat Alhambra 2009  Owners Manual Driving171
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l  D a t a
Note

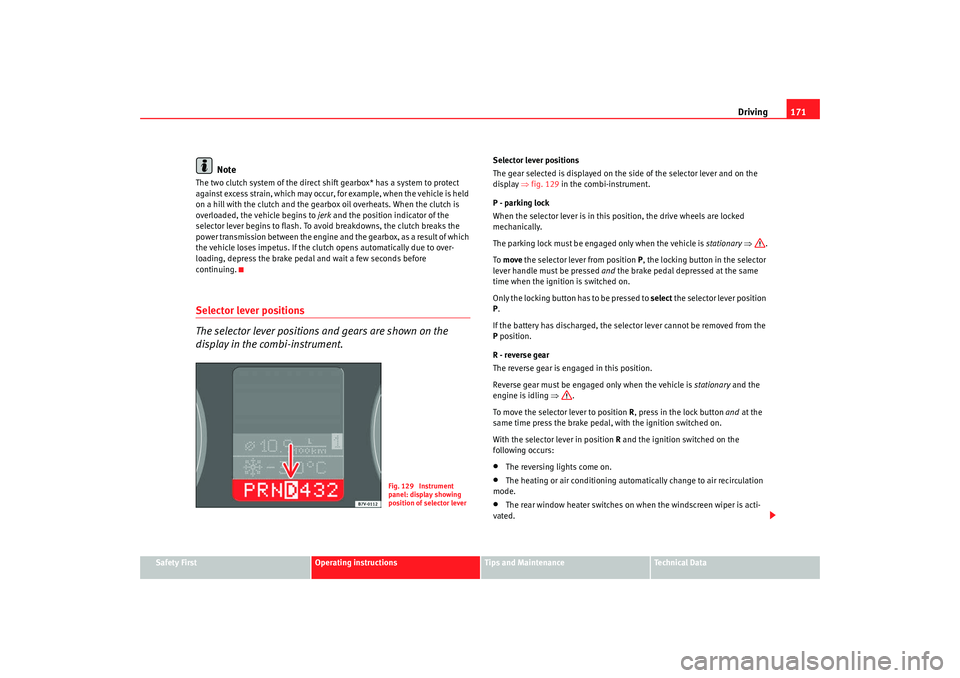

The two clutch system of the direct shift gearbox* has a system to protect
against excess strain, wh

Page 174 of 285

Seat Alhambra 2009  Owners Manual Driving

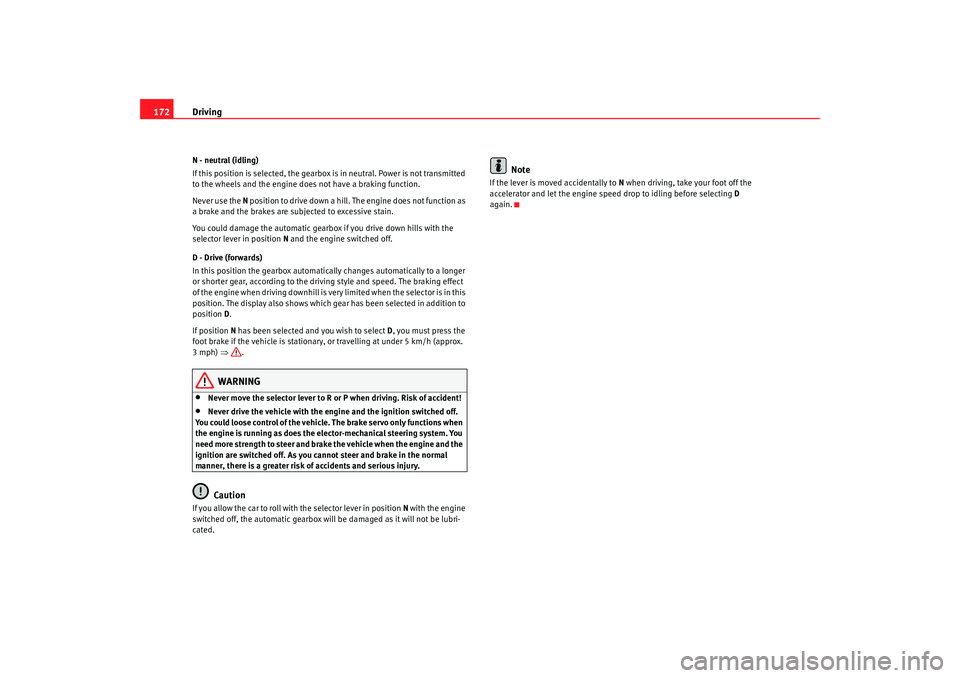

172N - neutral (idling)
If this position is selected, the gearbox is in neutral. Power is not transmitted
to the wheels and the engine does not have a braking function.
Never use the  N posit

Page 175 of 285

Seat Alhambra 2009  Owners Manual Driving173
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l  D a t a

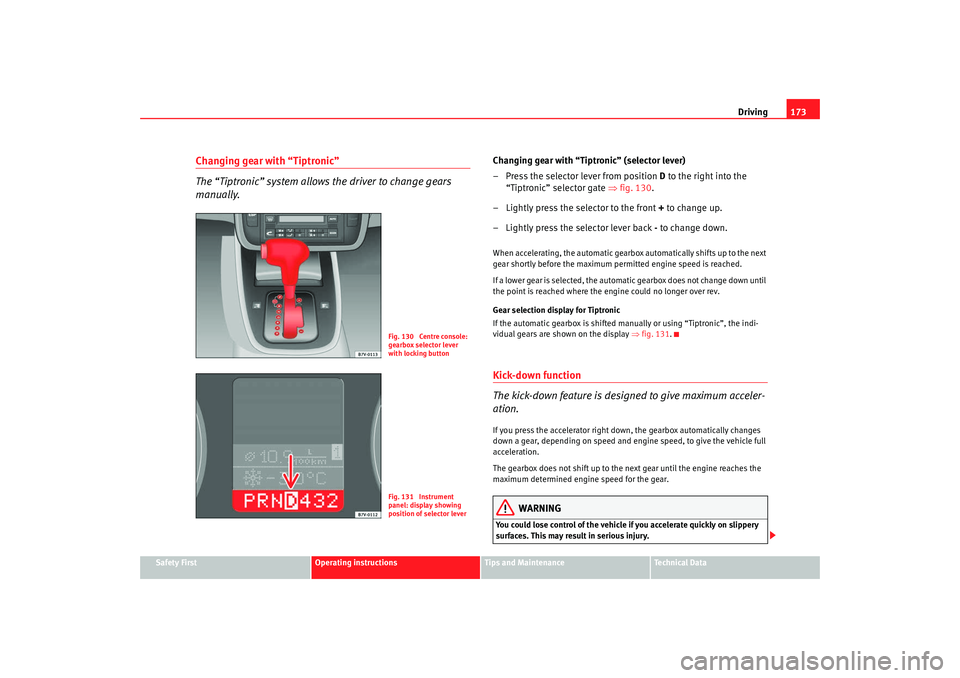

Changing gear with “Tiptronic”
The “Tiptronic” system allows the driver to change gears
manually.

Page 176 of 285

Seat Alhambra 2009  Owners Manual Driving
174•

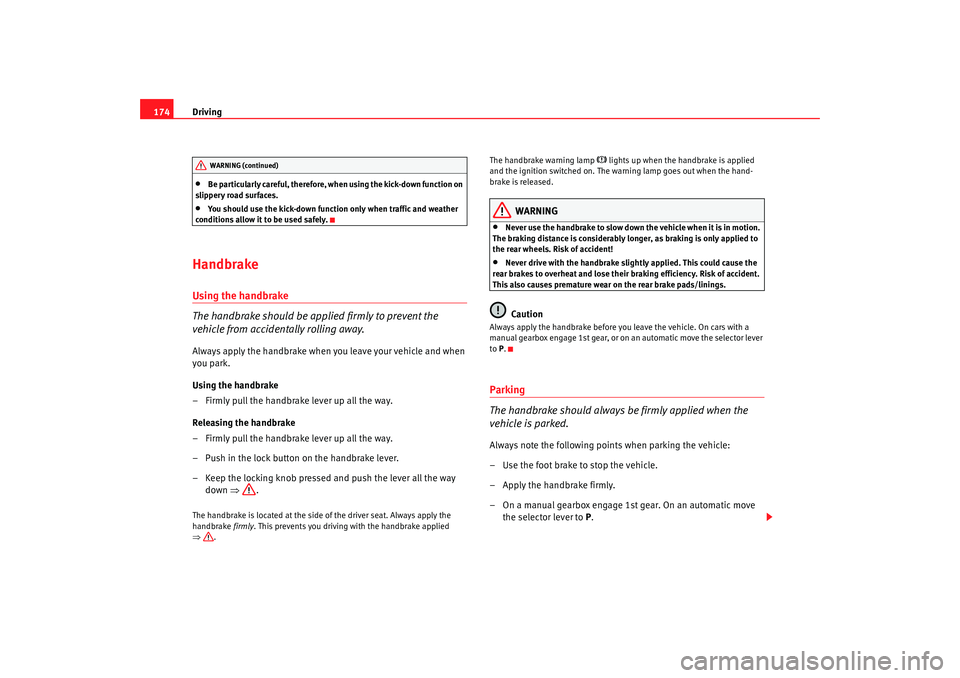

Be particularly careful, therefore, when using the kick-down function on
slippery road surfaces.
•
You should use the kick-down function only when traffic and weather
conditions all

Page 177 of 285

Seat Alhambra 2009  Owners Manual Driving175
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l  D a t a
– Switch off the engine and remove the key from the ignition lock.
Turn the steering wheel slightly to

Page 178 of 285

Seat Alhambra 2009  Owners Manual Driving
176Switching the parking distance warning system on and offSwitching on the parking distance warning system
The parking distance warning system is activated by either pressing the
button  ⇒

Page 179 of 285

Seat Alhambra 2009  Owners Manual Driving177
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l  D a t a
Cruise control system (CCS)Cruise control operation
The cruise control system(CCS) is able to maintain the

Page 180 of 285

Seat Alhambra 2009  Owners Manual Driving

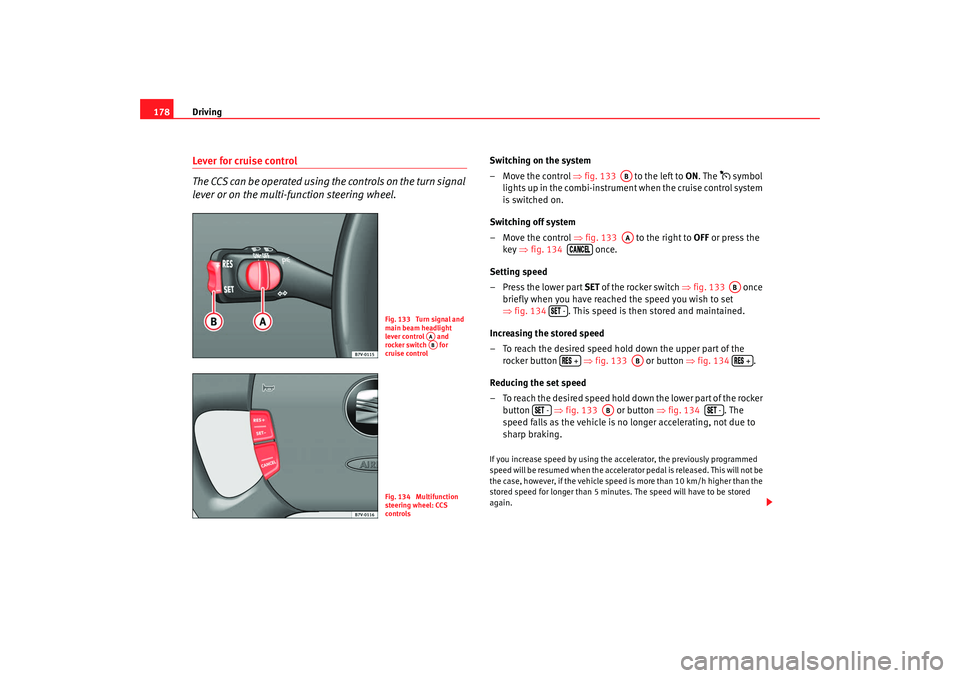

178Lever for cruise control
The CCS can be operated using the controls on the turn signal
lever or on the multi-function steering wheel.
Switching on the system
– Move the control  ⇒fig.
