Seat Alhambra 2015 Owner's Manual

Technical specificationsPerformanceAutomatic
5 seats7 seats
Weights (in kg)
Gross vehicle weight2,3602,530
Weight in running order (with driver)1,7901,838
Gross front axle weight1,210/1,2601,220/1,270
Gross rear axle weight1,100/1,1501,260/1,310
Permitted roof load100100
Maximum trailer weights (in kg)
Trailer without brakes750
Trailer with brakes, gradients up to 8%2,200
Trailer with brakes, gradients up to 12%2,000

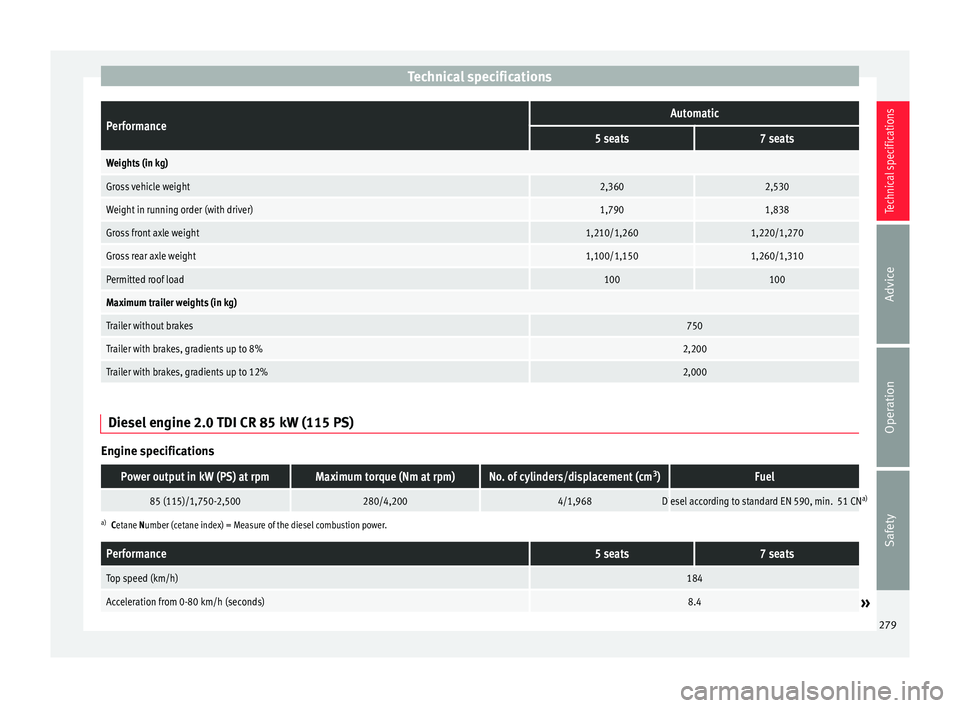

Diesel engine 2.0 TDI CR 85 kW (115 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
85 (115)/1,750-2,500280/4,2004/1,968Diesel according to standard EN 590, min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance5 seats7 seats
Top speed (km/h)184
Acceleration from 0-80 km/h (seconds)8.4» 279
Technical specifications
Advice
Operation
Safety

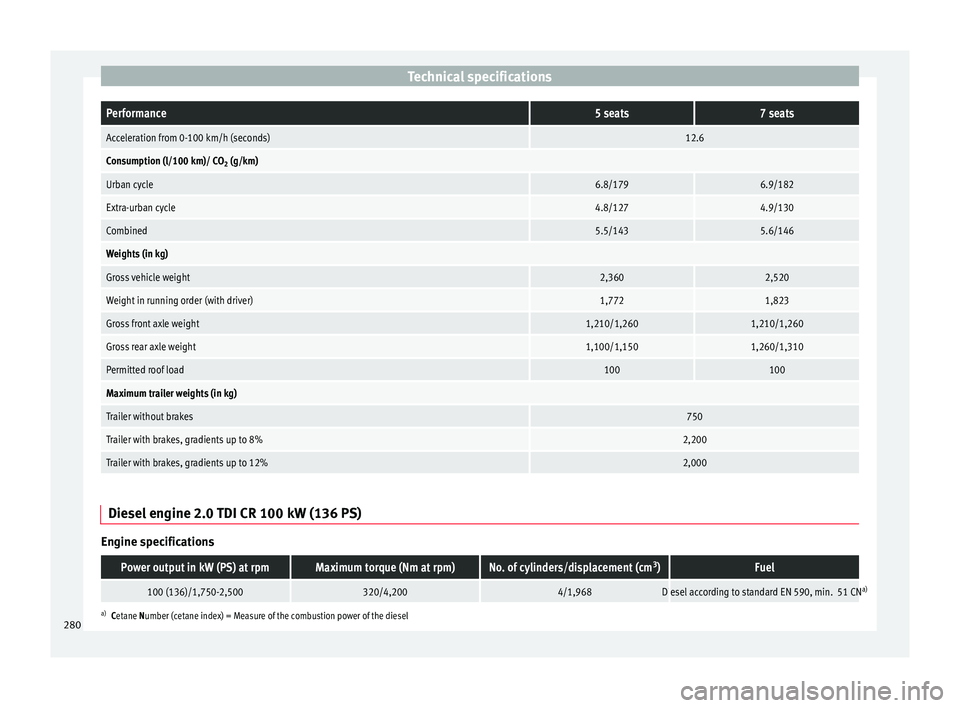

Technical specificationsPerformance5 seats7 seats
Acceleration from 0-100 km/h (seconds)12.6
Consumption (l/100 km)/ CO
2 (g/km)
Urban cycle6.8/1796.9/182
Extra-urban cycle4.8/1274.9/130
Combined5.5/1435.6/146
Weights (in kg)
Gross vehicle weight2,3602,520
Weight in running order (with driver)1,7721,823
Gross front axle weight1,210/1,2601,210/1,260
Gross rear axle weight1,100/1,1501,260/1,310
Permitted roof load100100
Maximum trailer weights (in kg)
Trailer without brakes750
Trailer with brakes, gradients up to 8%2,200
Trailer with brakes, gradients up to 12%2,000 Diesel engine 2.0 TDI CR 100 kW (136 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
100 (136)/1,750-2,500320/4,2004/1,968Diesel according to standard EN 590, min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel280

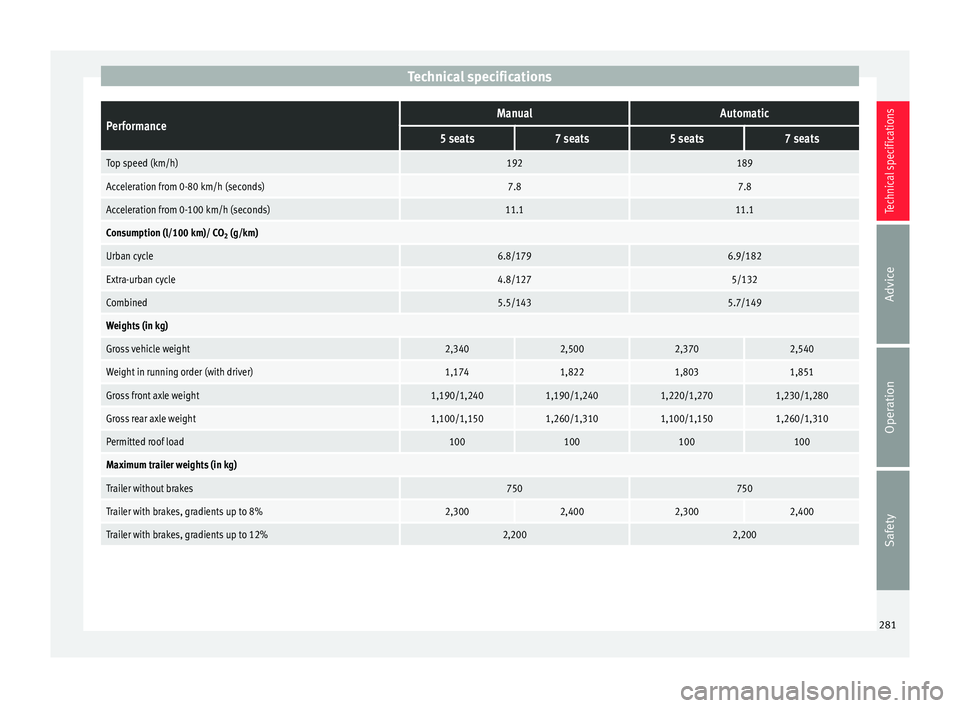

Technical specificationsPerformanceManualAutomatic
5 seats7 seats5 seats7 seats
Top speed (km/h)192189
Acceleration from 0-80 km/h (seconds)7.87.8
Acceleration from 0-100 km/h (seconds)11.111.1
Consumption (l/100 km)/ CO
2 (g/km)
Urban cycle6.8/1796.9/182
Extra-urban cycle4.8/1275/132
Combined5.5/1435.7/149
Weights (in kg)
Gross vehicle weight2,3402,5002,3702,540
Weight in running order (with driver)1,1741,8221,8031,851
Gross front axle weight1,190/1,2401,190/1,2401,220/1,2701,230/1,280
Gross rear axle weight1,100/1,1501,260/1,3101,100/1,1501,260/1,310
Permitted roof load100100100100
Maximum trailer weights (in kg)
Trailer without brakes750750
Trailer with brakes, gradients up to 8%2,3002,4002,3002,400
Trailer with brakes, gradients up to 12%2,2002,200 281
Technical specifications
Advice
Operation
Safety

Technical specifications

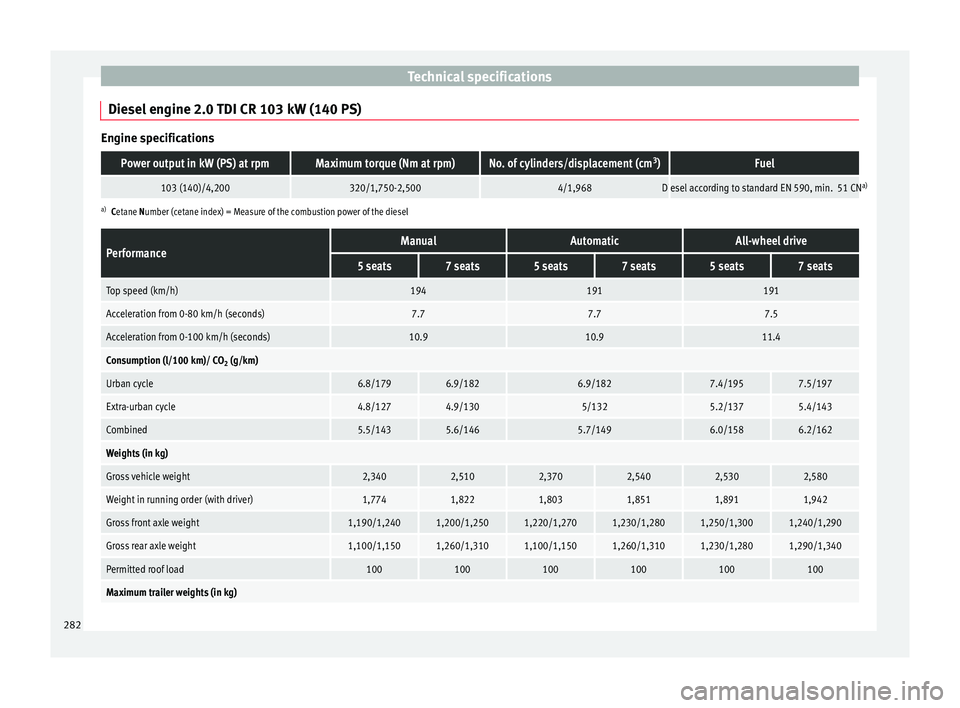

Diesel engine 2.0 TDI CR 103 kW (140 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
103 (140)/4,200320/1,750-2,5004/1,968Diesel according to standard EN 590, min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
PerformanceManualAutomaticAll-wheel drive
5 seats7 seats5 seats7 seats5 seats7 seats
Top speed (km/h)194191191
Acceleration from 0-80 km/h (seconds)7.77.77.5
Acceleration from 0-100 km/h (seconds)10.910.911.4
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle6.8/1796.9/1826.9/1827.4/1957.5/197
Extra-urban cycle4.8/1274.9/1305/1325.2/1375.4/143
Combined5.5/1435.6/1465.7/1496.0/1586.2/162
Weights (in kg)
Gross vehicle weight2,3402,5102,3702,5402,5302,580
Weight in running order (with driver)1,7741,8221,8031,8511,8911,942
Gross front axle weight1,190/1,2401,200/1,2501,220/1,2701,230/1,2801,250/1,3001,240/1,290
Gross rear axle weight1,100/1,1501,260/1,3101,100/1,1501,260/1,3101,230/1,2801,290/1,340
Permitted roof load100100100100100100
Maximum trailer weights (in kg) 282

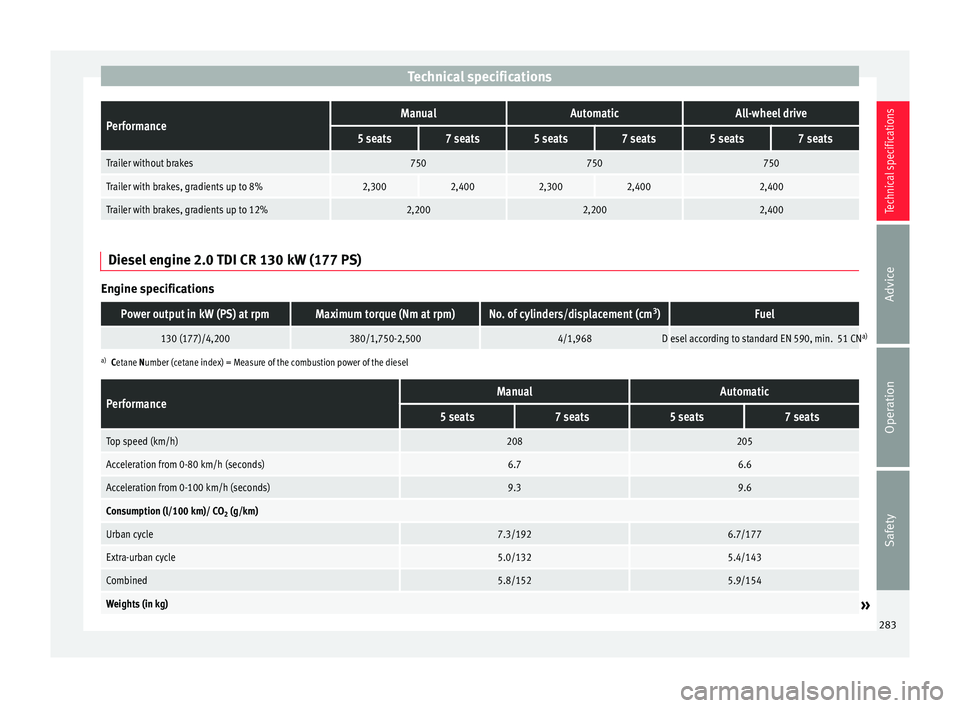

Technical specificationsPerformanceManualAutomaticAll-wheel drive
5 seats7 seats5 seats7 seats5 seats7 seats
Trailer without brakes750750750
Trailer with brakes, gradients up to 8%2,3002,4002,3002,4002,400
Trailer with brakes, gradients up to 12%2,2002,2002,400
Diesel engine 2.0 TDI CR 130 kW (177 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
130 (177)/4,200380/1,750-2,5004/1,968Diesel according to standard EN 590, min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
PerformanceManualAutomatic
5 seats7 seats5 seats7 seats
Top speed (km/h)208205
Acceleration from 0-80 km/h (seconds)6.76.6
Acceleration from 0-100 km/h (seconds)9.39.6
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle7.3/1926.7/177
Extra-urban cycle5.0/1325.4/143
Combined5.8/1525.9/154
Weights (in kg)» 283
Technical specifications
Advice
Operation
Safety

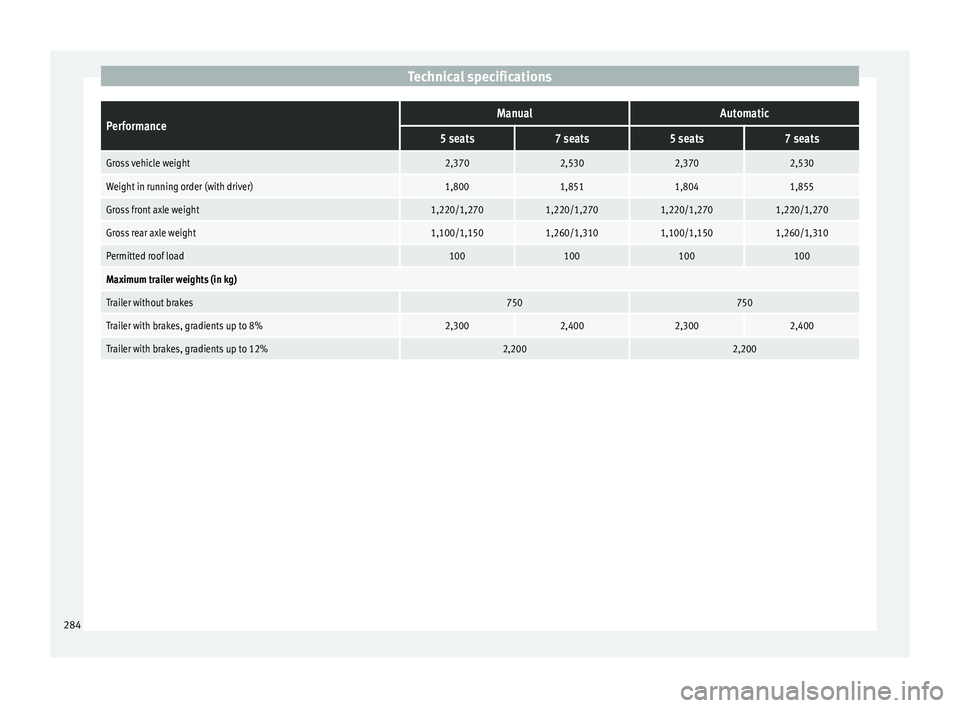

Technical specificationsPerformanceManualAutomatic
5 seats7 seats5 seats7 seats
Gross vehicle weight2,3702,5302,3702,530
Weight in running order (with driver)1,8001,8511,8041,855
Gross front axle weight1,220/1,2701,220/1,2701,220/1,2701,220/1,270
Gross rear axle weight1,100/1,1501,260/1,3101,100/1,1501,260/1,310
Permitted roof load100100100100
Maximum trailer weights (in kg)
Trailer without brakes750750
Trailer with brakes, gradients up to 8%2,3002,4002,3002,400
Trailer with brakes, gradients up to 12%2,2002,200
284

Technical specifications

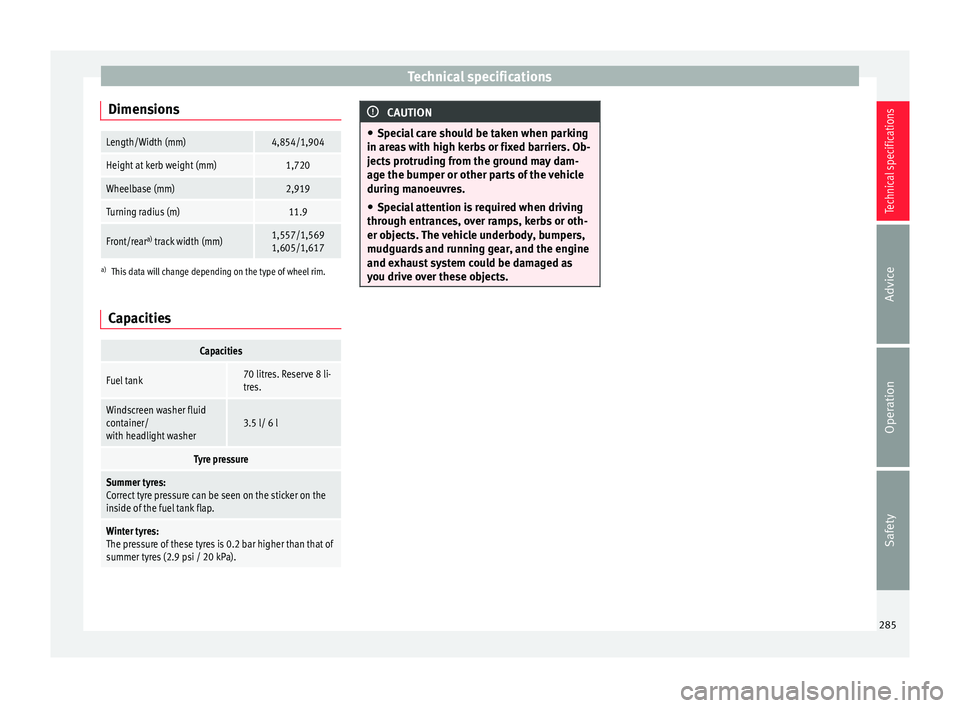

DimensionsLength/Width (mm)4,854/1,904
Height at kerb weight (mm)1,720
Wheelbase (mm)2,919
Turning radius (m)11.9
Front/rear a)
track width (mm)1,557/1,569
1,605/1,617
a) This data will change depending on the type of wheel rim.
Capacities
Capacities
Fuel tank 70 litres. Reserve 8 li-
tres.
Windscreen washer fluid
container/
with headlight washer 3.5 l/ 6 l
Tyre pressure
Summer tyres:
Correct tyre pressure can be seen on the sticker on the
inside of the fuel tank flap.
Winter tyres:
The pressure of these tyres is 0.2 bar higher than that of
summer tyres (2.9 psi / 20 kPa). CAUTION
● Special care should be taken when parking
in areas with high kerbs or fixed barriers. Ob-
jects protruding from the ground may dam-
age the bumper or other parts of the vehicle
during manoeuvres.
● Special attention is required when driving
through entrances, over ramps, kerbs or oth-
er objects. The vehicle underbody, bumpers,
mudguards and running gear, and the engine
and exhaust system could be damaged as
you drive over these objects. 285
