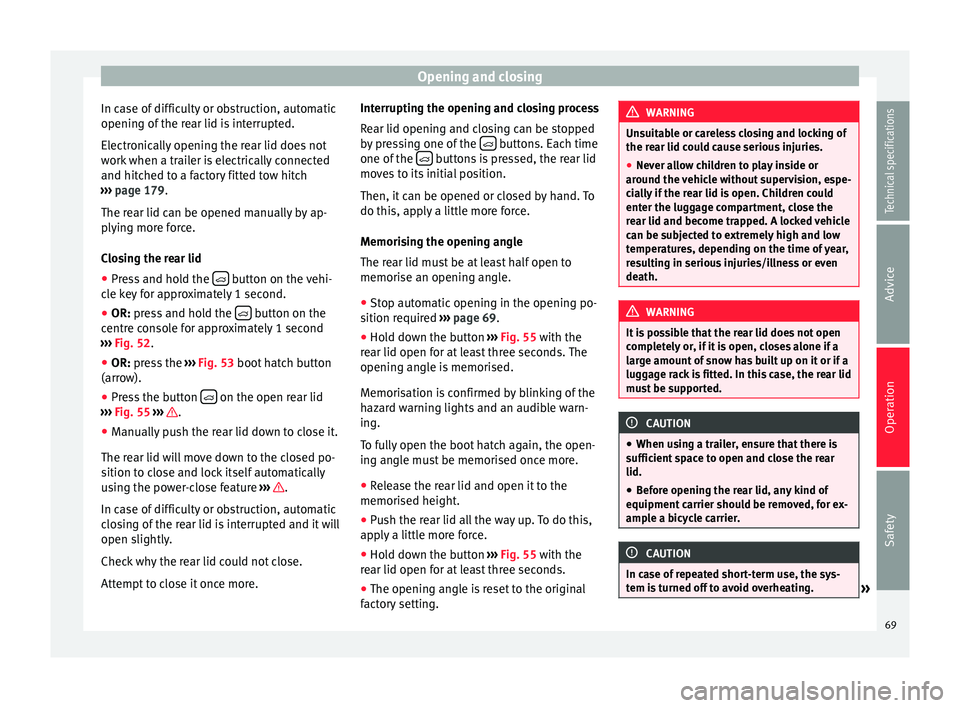

Seat Alhambra 2015 Manual PDF

Opening and closing
In case of difficulty or obstruction, automatic
opening of the rear lid is interrupted.
Electronically opening the rear lid does not
work when a trailer is electrically connected
and hitched to a factory fitted tow hitch
››› page 179 .
The r e
ar lid can be opened manually by ap-
plying more force.
Closing the rear lid
● Press and hold the  button on the vehi-
cle key for approximately 1 second.
● OR: press and hold the  button on the
centre console for approximately 1 second
››› Fig. 52 .
● OR: press the ›
›› Fig. 53
boot hatch button
(arro
w).
● Press the button  on the open rear lid
››› Fig. 55
›
›› .
● Manually push the rear lid down to close it.
The rear lid will move down to the closed po-
sition to close and lock itself automatically
using the power-close feature ››› .
In case of difficulty or obstruction, automatic
closing of the rear lid is interrupted and it will
open slightly.
Check why the rear lid could not close.
Attempt to close it once more. Interrupting the opening and closing process
Rear lid opening and closing can be stopped
by pressing one of the
 buttons. Each time
one of the  buttons is pressed, the rear lid
moves to its initial position.
Then, it can be opened or closed by hand. To
do this, apply a little more force.
Memorising the opening angle
The rear lid must be at least half open to
memorise an opening angle.
● Stop automatic opening in the opening po-
sition required ››› page 69 .
● Ho l

d down the button ››› Fig. 55
with the
rear lid open for at least three seconds. The
opening angle is memorised.
Memorisation is confirmed by blinking of the
hazard warning lights and an audible warn-
ing.
To fully open the boot hatch again, the open-
ing angle must be memorised once more.
● Release the rear lid and open it to the
memorised height.
● Push the rear lid all the way up. To do this,
apply a little more force.
● Hold down the button ››› Fig. 55
with the
rear lid open for at least three seconds.
● The opening angle is reset to the original
factory setting. WARNING
Unsuitable or careless closing and locking of
the rear lid could cause serious injuries.
● Never allow children to play inside or
around the vehicle without supervision, espe-
cially if the rear lid is open. Children could
enter the luggage compartment, close the
rear lid and become trapped. A locked vehicle
can be subjected to extremely high and low
temperatures, depending on the time of year,
resulting in serious injuries/illness or even
death. WARNING
It is possible that the rear lid does not open
completely or, if it is open, closes alone if a
large amount of snow has built up on it or if a
luggage rack is fitted. In this case, the rear lid
must be supported. CAUTION
● When using a trailer, ensure that there is
sufficient space to open and close the rear
lid.
● Before opening the rear lid, any kind of
equipment carrier should be removed, for ex-
ample a bicycle carrier. CAUTION
In case of repeated short-term use, the sys-
tem is turned off to avoid overheating. » 69
Technical specifications
Advice
Operation
Safety

Operation
●
When it has cooled, it may be used once
again. During this time, the rear lid may be
manually opened or closed applying a little
more effort.
● If the vehicle battery is disconnected or the
fuse blows when the rear lid is open, the rear
lid system must be re-initialised. To do this,
close the rear lid. Note
Before closing the rear lid, make sure that the
key has not been left inside the luggage com-

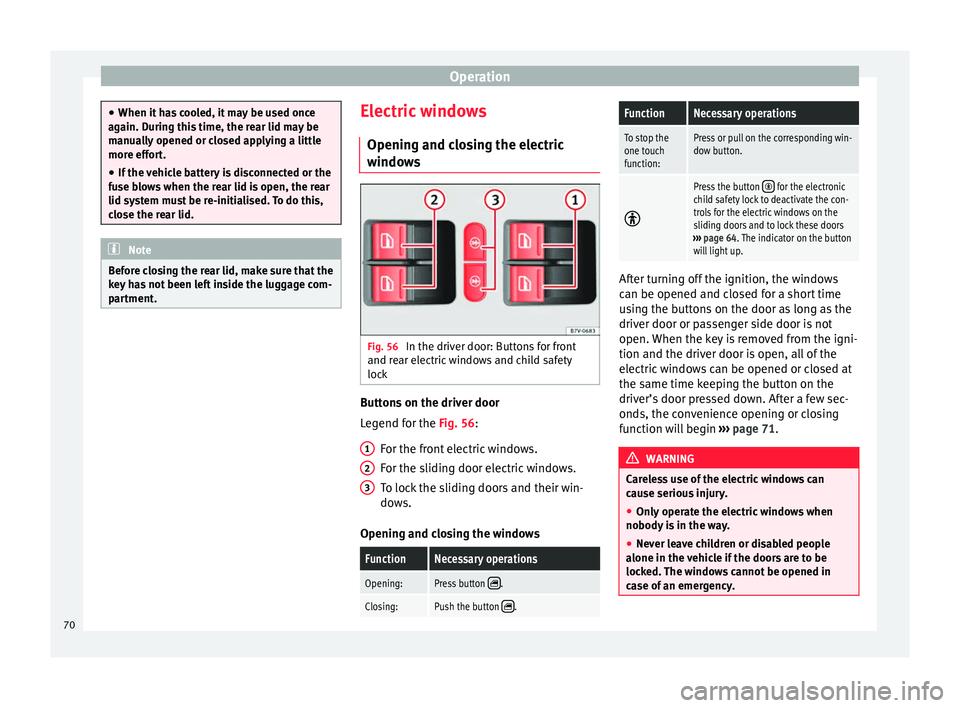

partment. Electric windows
Opening and closing the electric
windows Fig. 56
In the driver door: Buttons for front
and rear electric windows and child safety
lock Buttons on the driver door
Legend for the
Fig. 56
:
F
or the front electric windows.
For the sliding door electric windows.
To lock the sliding doors and their win-
dows.
Opening and closing the windows
FunctionNecessary operations
Opening:Press button .
Closing:Push the button . 1
2
3
FunctionNecessary operations
To stop the
one touch
function:Press or pull on the corresponding win-
dow button. 
Press the button  for the electronic
child safety lock to deactivate the con-
trols for the electric windows on the
sliding doors and to lock these doors
››› page 64. The indicator on the button
will light up. After turning off the ignition, the windows
can be opened and closed for a short time
using the buttons on the door as long as the
driver door or passenger side door is not
open. When the key is removed from the igni-
tion and the driver door is open, all of the
electric windows can be opened or closed at
the same time keeping the button on the
driver’s door pressed down. After a few sec-
onds, the convenience opening or closing
function will begin
›››
page 71. WARNING
Careless use of the electric windows can
cause serious injury.
● Only operate the electric windows when
nobody is in the way.
● Never leave children or disabled people
alone in the vehicle if the doors are to be
locked. The windows cannot be opened in
case of an emergency. 70

Opening and closing
●
Always take all the keys with you whenever
you leave the vehicle. After turning off the ig-
nition, the windows can be opened and
closed for a short time using the buttons on
the door as long as the driver door or passen-
ger side door is not open.
● When transporting children in the rear
seats, always deactivate the rear electric win-
dows with the child safety lock so that they

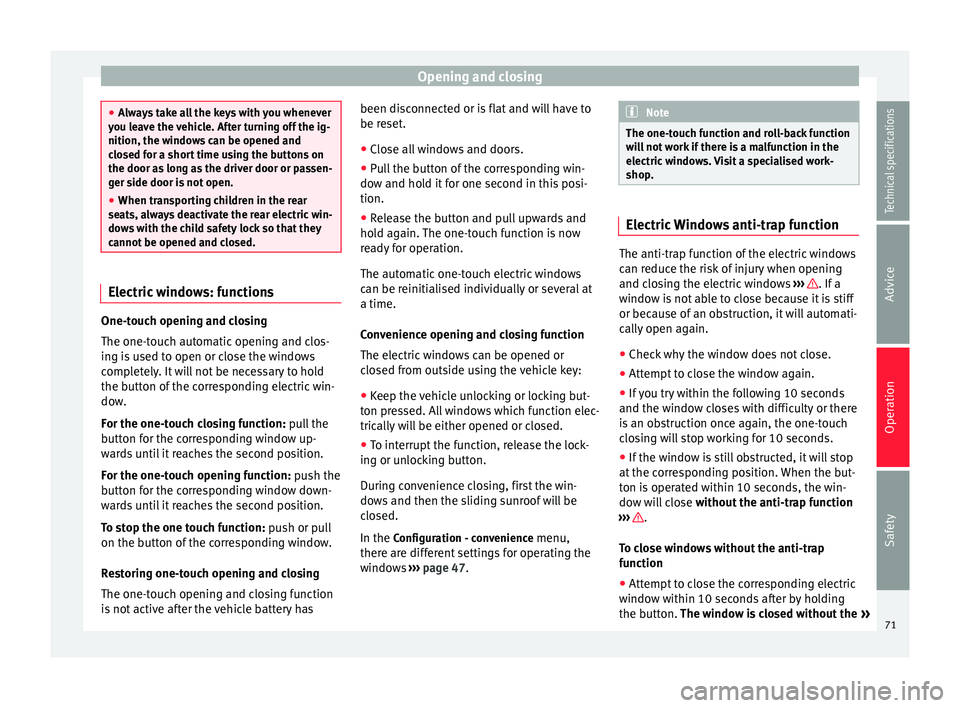

cannot be opened and closed. Electric windows: functions
One-touch opening and closing
The one-touch automatic opening and clos-
ing is used to open or close the windows
completely. It will not be necessary to hold
the button of the corresponding electric win-
dow.
For the one-touch closing function: pull the
button for the corresponding window up-
wards until it reaches the second position.
For the one-touch opening function:
push the
b utt
on for the corresponding window down-
wards until it reaches the second position.
To stop the one touch function:
push or pull
on the button of the corresponding window.
Restoring one-touch opening and closing
The one-touch opening and closing function
is not active after the vehicle battery has been disconnected or is flat and will have to
be reset.
● Close all windows and doors.
● Pull the button of the corresponding win-
dow and hold it for one second in this posi-
tion.
● Release the button and pull upwards and
hold again. The one-touch function is now
ready for operation.
The automatic one-touch electric windows
can be reinitialised individually or several at
a time.
Convenience opening and closing function
The electric windows can be opened or
closed from outside using the vehicle key:
● Keep the vehicle unlocking or locking but-
ton pressed. All windows which function elec-
trically will be either opened or closed.
● To interrupt the function, release the lock-
ing or unlocking button.
During convenience closing, first the win-
dows and then the sliding sunroof will be
closed.
In the Configuration - convenience menu, there are different settings for operating the
windows ››› page 47. Note
The one-touch function and roll-back function
will not work if there is a malfunction in the
electric windows. Visit a specialised work-
shop. Electric Windows anti-trap function
The anti-trap function of the electric windows
can reduce the risk of injury when opening
and closing the electric windows
››› . If a
window is not able to close because it is stiff
or because of an obstruction, it will automati-
cally open again.
● Check why the window does not close.
● Attempt to close the window again.
● If you try within the following 10 seconds
and the window closes with difficulty or there
is an obstruction once again, the one-touch
closing will stop working for 10 seconds.
● If the window is still obstructed, it will stop
at the corresponding position. When the but-
ton is operated within 10 seconds, the win-
dow will close without the anti-trap function
››› .
To close windows without the anti-trap
function
● Attempt to close the corresponding electric
window within 10 seconds after by holding
the button. The window is closed without the
»
71
Technical specifications
Advice
Operation
Safety

Operation
anti-trap function, deactivated for a short
time.
● After more than 10 seconds, the anti-trap
function is reactivated. The window will stop
once again if there is another difficulty or ob-
stacle.
● If the window will still not close, visit a spe-
cialised workshop. WARNING
Closing the electric windows without the an-
ti-trap function can cause serious injury.
● Always close the electric windows careful-
ly.
● Nobody should be in the way of the electric
windows, especially when the anti-trap func-
tion is deactivated.
● The anti-trap function does not prevent fin-
gers or other parts of the body getting
pinched against the window frame and caus-
ing injury. Note
The anti-trap function also operates if the
windows are closed from the outside of the
vehicle using the ignition key for convenience

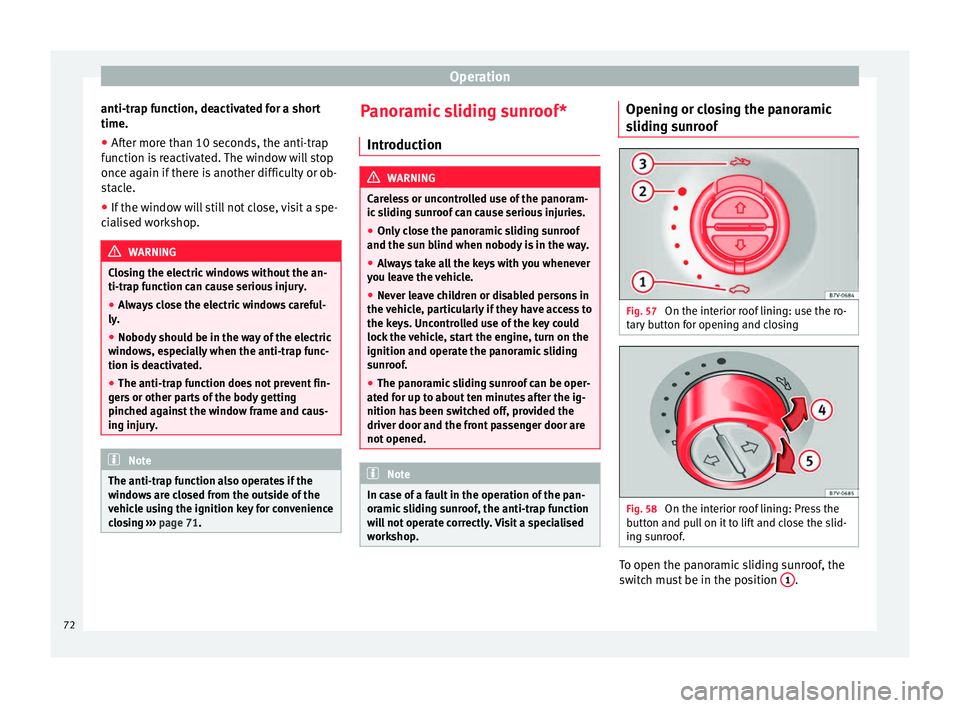

closing ››› page 71. Panoramic sliding sunroof*
Introduction WARNING
Careless or uncontrolled use of the panoram-
ic sliding sunroof can cause serious injuries.
● Only close the panoramic sliding sunroof
and the sun blind when nobody is in the way.
● Always take all the keys with you whenever
you leave the vehicle.
● Never leave children or disabled persons in
the vehicle, particularly if they have access to
the keys. Uncontrolled use of the key could
lock the vehicle, start the engine, turn on the
ignition and operate the panoramic sliding
sunroof.
● The panoramic sliding sunroof can be oper-
ated for up to about ten minutes after the ig-
nition has been switched off, provided the
driver door and the front passenger door are
not opened. Note
In case of a fault in the operation of the pan-
oramic sliding sunroof, the anti-trap function
will not operate correctly. Visit a specialised
workshop. Opening or closing the panoramic
sliding sunroof
Fig. 57
On the interior roof lining: use the ro-
tary button for opening and closing Fig. 58
On the interior roof lining: Press the
button and pull on it to lift and close the slid-
ing sunroof. To open the panoramic sliding sunroof, the
switch must be in the position
1 .
72

Opening and closingFunctionSwitch
settingNecessary opera-
tions
››› Fig. 57
Completely open-
ing the tilting sunroof:3
Rotate the switch to
the required posi-
tion.To choose the
convenience po-
sition for the slid- ing sunroof:
2
Completely clos-ing the tilting sunroof:1
››› Fig. 58
To completely de-
ploy the tilting sunroof:4Briefly push the
switch back (arrow).
To stop automatic operation:4 or 5Briefly push back the
button again or pull
it.
To completely
close the tilting sunroof:5Briefly push the
switch back (arrow).
To set the inter-
mediate position:4 or 5
Pull the button or
hold it back until the
roof is in the required
position. The panoramic sliding sunroof will only work
with the ignition on. It can be opened or
closed for a few minutes after the ignition has been switched off, provided the driver
door and the front passenger door are not
opened.
Opening or closing the sun blind Fig. 59
On the interior roof lining: switches
for the sun blind
FunctionNecessary operations
To open com-
pletely (automat- ic):Press button ››› Fig. 59 1 briefly.
To stop automatic
operation:Briefly press the button ››› Fig. 59
1 o ››› Fig. 59 2.
To set the inter-
mediate position:Hold the button ››› Fig. 59 1or
››› Fig. 59 2 until the required
position is reached.
To close com-
pletely (automat- ic):Press button ››› Fig. 59 2 briefly. The panoramic sliding sunroof can be operat-
ed for up to about ten minutes after the igni-
tion has been switched off, provided the driv-
er door and the front passenger door are not
opened.
Panoramic sliding sunroof: operation Convenience open/close function
The panoramic sliding sunroof can be
opened or closed from outside the vehicle
using the vehicle key:
● Keep the vehicle unlocking or locking but-
ton pressed. The panoramic sliding sunroof
is adjusted or closes.
● Release the unlock or lock button to stop
the function.
During convenience closing, first the win-
dows and then the panoramic sliding sunroof
will be closed. Note
The rotary button of the panoramic sliding
sunroof remains in the last position selected
if the roof is closed using convenience clos-
ing from outside the vehicle, and will have to
be re-positioned the next time you drive. 73
Technical specifications
Advice
Operation
Safety

Operation

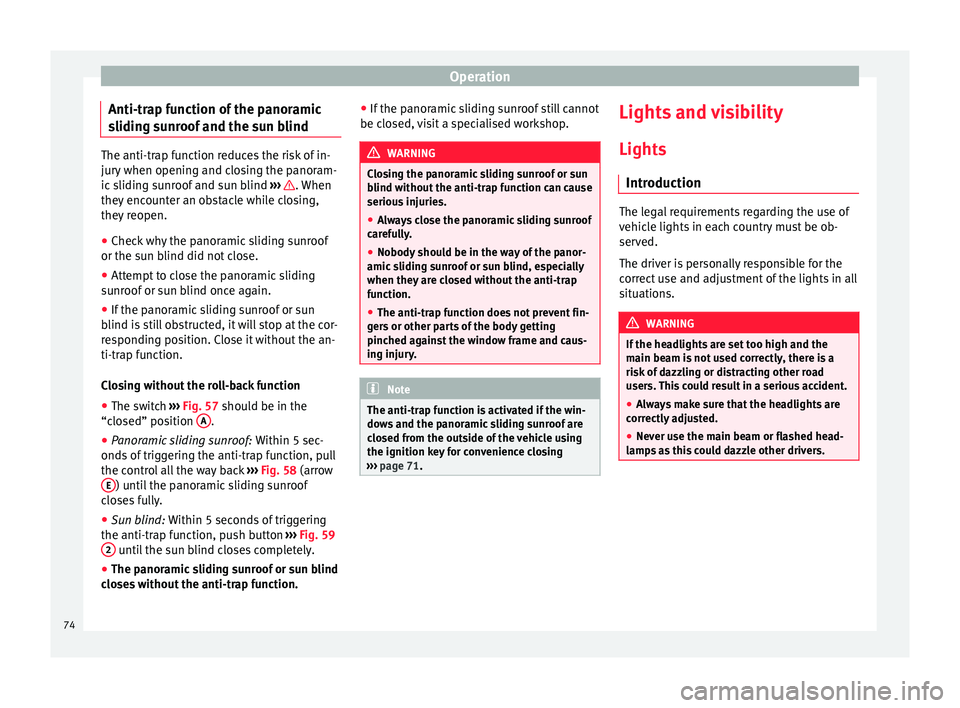

Anti-trap function of the panoramic
sliding sunroof and the sun blind The anti-trap function reduces the risk of in-
jury when opening and closing the panoram-
ic sliding sunroof and sun blind
››› . When
they encounter an obstacle while closing,
they reopen.
● Check why the panoramic sliding sunroof
or the sun blind did not close.
● Attempt to close the panoramic sliding
sunroof or sun blind once again.
● If the panoramic sliding sunroof or sun
blind is still obstructed, it will stop at the cor-
responding position. Close it without the an-
ti-trap function.
Closing without the roll-back function
● The switch ›››
Fig. 57 should be in the
“c lo
sed” position A .
● Panoramic sliding sunroof: Within 5 sec-
onds of triggering the anti-trap function, pull
the control all the way back ›››
Fig. 58 (arrow
E ) until the panoramic sliding sunroof
closes fully.
● Sun blind: Within 5 seconds of triggering
the anti-tr ap f

unction, push button ›››
Fig. 59
2 until the sun blind closes completely.
● The panoramic sliding sunroof or sun blind
closes without the anti-trap function. ●
If the panoramic sliding sunroof still cannot
be closed, visit a specialised workshop. WARNING
Closing the panoramic sliding sunroof or sun
blind without the anti-trap function can cause
serious injuries.
● Always close the panoramic sliding sunroof
carefully.
● Nobody should be in the way of the panor-
amic sliding sunroof or sun blind, especially
when they are closed without the anti-trap
function.
● The anti-trap function does not prevent fin-
gers or other parts of the body getting
pinched against the window frame and caus-
ing injury. Note
The anti-trap function is activated if the win-
dows and the panoramic sliding sunroof are
closed from the outside of the vehicle using
the ignition key for convenience closing
››› page 71. Lights and visibility
Lights Introduction The legal requirements regarding the use of
vehicle lights in each country must be ob-
served.
The driver is personally responsible for the
correct use and adjustment of the lights in all
situations.
WARNING
If the headlights are set too high and the
main beam is not used correctly, there is a
risk of dazzling or distracting other road
users. This could result in a serious accident.
● Always make sure that the headlights are
correctly adjusted.
● Never use the main beam or flashed head-
lamps as this could dazzle other drivers. 74

Lights and visibility
Control lampsIt lights upPossible causeSolution 
Driving light totally
or partially faulty.
Replace the corre-
sponding bulb
››› page 266.
If all the bulbs are
OK, the vehicle
should be taken to
a specialised work-
shop if necessary.
Fault in adaptive
light.››› page 77. 
Rear fog light
switched on.
›››
page 75. Front fog lights
switched on

Left or right turn
signal.
The control lamp
flashes twice as
fast when a vehicle
or trailer turn signal
is faulty.
If necessary, check
the vehicle and
trailer lighting.

Main beam on or
flasher on.›››
page 76. 
Headlight adjust-
ment (Light Assist)
on.›››
page 76.
FlashesPossible causeSolution 
Fault in the adap-
tive light system.Contact a special-
ised workshop
››› page 76. Several warning and control lamps light up
for a few seconds when the ignition is switch-
ed on, signalling that the function is being
verified. They will switch off after a few sec-
onds.
WARNING
Observe the safety warnings ››› in Control
and warning lamps on page 47. Turning lights on and off
Fig. 60
Next to the steering wheel: diagram
of some of the types of light switch The legal requirements regarding the use of
vehicle lights in each country must be ob-
served.
In vehicles with
tow hitch fitted as standard:
if the trailer is connected electrically and is
fitted with a rear fog light, the vehicle’s fog
light is automatically switched off.
Turn the light switch to the required position
››› Fig. 60 :
When the igni-
tion is switched
offWhen the ignition
is on 
Fog lights, dipped
beam and side
lights off.Lights off or daytime
driving light on.

The guidance lights
may be switched
on.Automatic dipped
beam control or day-
time driving light on.

Side light on.Side light on.

Dipped beam off; if
necessary, the side
light comes on for a
time.Dipped beam switch-
ed on.
Fog lights
The warning lamps
 or  on the light
switch also indicate that the fog lights are
switched on. »
75
Technical specifications
Advice
Operation
Safety

Operation
● Switching on the front fog lights : Turn
the sw it
ch to position  or pull out  to the
first stop.
● Switching on the rear fog light : turn the
light sw

itch to position  or pull out  to
the maximum.
● To switch off the fog lights, press the light
switch or turn it to position 
.
Audible warnings to advise the driver that
the lights have not been switched off
If the key is not in the ignition and the driver
door is open, an audible warning signal is
heard in the following cases: this is a remind-
er to turn off the lights.
● When the parking light is on ››› page 76.
● When the light switch is in position .WARNING
The side lights or daytime driving lights are
not bright enough to illuminate the road
ahead and to ensure that other road users are
able to see you.
● Always use your dipped beam head lights if
it is raining or if visibility is poor. Turn signal and main beam lever
Fig. 61
Turn signal and main beam lever Move the lever to the required position:
Right turn signal. Right-hand parking
light (ignition switched off) ››› page 76.
Left turn signal. Left-hand parking light
(ignition switched off) ››› page 76.
Main beam switched on ››› . The control
lamp  will light up on the instrument
panel.
Flashing the headlights. The flashed
beam comes on if the lever is pressed.
The c ontr

ol lamp  lights up.
Push the lever all the way down to turn off
the corresponding function.
Convenience turn signals
For the convenience turn signals, move the
lever as far as possible upwards or down- 1 2
3
4 wards and release the lever. The turn signal
will flash three times.
The control turn signals are switched on and
off from the menu
Lights & Visibility on the in-
strument panel display ››› page 47. This func-
tion can be disconnected at a specialised
workshop for those vehicles which do not
have the menu Lights & Visibility
. WARNING
Incorrect use of the headlights may cause ac-
cidents and serious injury, as the main beam
may distract or dazzle other drivers. Note
● The turn signal only works when the igni-
tion is switched on. The hazard warning
lights also work when the ignition is switch-
ed off ››› page 242.
● If a t

urn signal on the vehicle or trailer is
faulty, the warning lamp flashes twice as fast
as usual.
● The main beam headlights can only be
sw

itched on if the dipped beam headlights
are already on. Lights and visibility: functions
Parking light
When the parking light is switched on, (right
or left turn signal), the front side light and
76

Lights and visibility
the rear light on the corresponding side of
the vehicle stay lit. The parking lights will on-
ly work with the ignition off.
Daytime driving light
The daytime light reduces the risk of acci-
dents by increasing the visibility of the vehi-
cle. These are independent lights which are
built into the headlights and which come on
each time the ignition is turned on if the light
switch is in position  or 0
.
When the light
switch is in position , a
photo sensor automatically turns the instru-
ment and switch lighting on and off.
Automatic dipped beam control 
The automatic dipped beam control is merely
intended as an aid and is not able to recog-
nise all driving situations.
When the light switch is in position  , the
vehicle lights and the instrument panel and
switch lighting switch on and off automatical-
ly in the following situations ››› :
Automatic switching
onAutomatic switching
off or switch to day-
time running lighting
The photo sensor detects
darkness, for example,
when driving through a
tunnel.When adequate lighting is
detected.
Automatic switching
onAutomatic switching
off or switch to day-
time running lighting
The rain sensor detects
rain and activates the
windscreen wipers.When the windscreen wip-
er has been inactive for a
few minutes. Adaptive headlights (AFS)
The adaptive headlights only operate when
the dipped beam is on and at speeds of over
10 km/h (6 mph). On bends, the adaptive
headlights automatically improve lighting on
the road ahead.
The adaptive headlights can be switched on
and off from the infotainment system.
Static turning lights
When turning slowly to change direction or
going round a tight bend, the static cornering
lights automatically come on. The static cor-
nering lights only work at speeds of less than
40 km/h (25 mph).
The static cornering lights may be incorpora-
ted into the fog lights or the front headlights,
depending upon the equipment.
WARNING
If the road is not well lit and other road users
cannot see the vehicle well enough or at all,
accidents may occur. ●
The automatic dipped beam control ( )
only switches on the dipped beam when
there are no changes in brightness, and not,
for example when it is foggy.
● Never drive with daytime lights if the road
is not well lit due to weather or lighting con-
ditions. Daytime lights do not provide
enough light to illuminate the road properly
or be seen by other road users.
● The rear lights do not come on with the
daytime driving light. A vehicle which does
not have the rear lights on may not be visible
to other drivers in the darkness, if it is rain-
ing or in conditions of poor visibility. Headlight adjustment
Headlight adjustment (Light Assist)
The headlight adjustment automatically con-
nects and disconnects these lights depend-
ing on the environmental and traffic condi-
tions and on the speed, within the limitations
of the system
››› . This is monitored by a
sensor located on the inside of the wind-
screen, above the interior rear vision mirror.
The automatic headlight adjustment auto-
matically switches on the lights depending
on the vehicles travelling in front and in the
opposite direction, and on other environmen-
tal and traffic conditions from an approxi-
mate speed of 60 km/h (37 mph) and turns »
77
Technical specifications
Advice
Operation
Safety

Operation

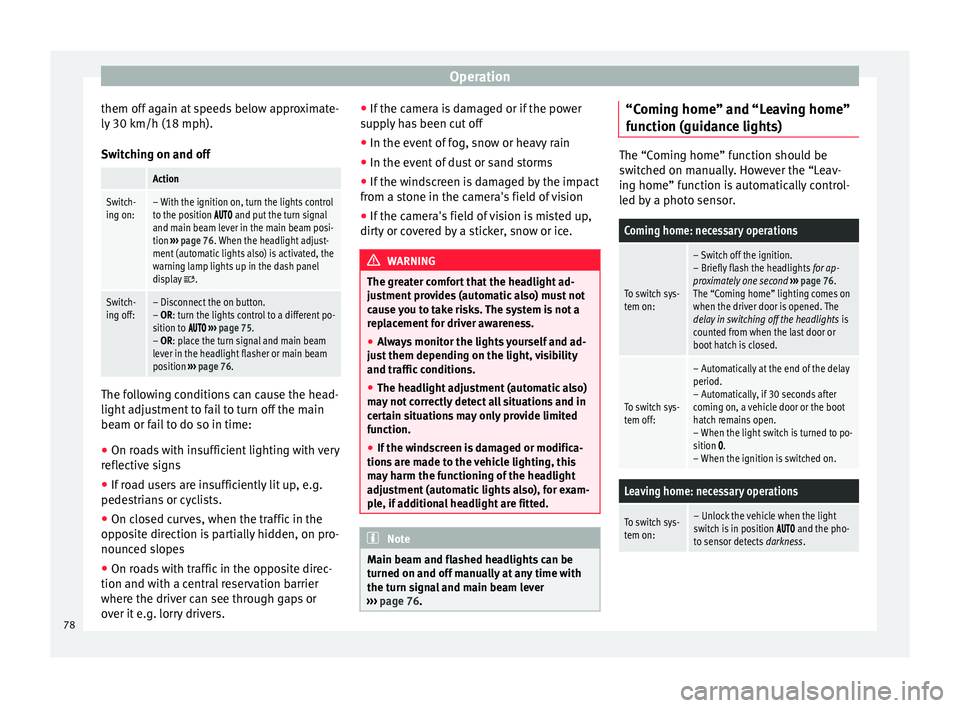

them off again at speeds below approximate-
ly 30 km/h (18 mph).
Switching on and off Action
Switch-
ing on:– With the ignition on, turn the lights control
to the position  and put the turn signal
and main beam lever in the main beam posi-
tion ››› page 76. When the headlight adjust-
ment (automatic lights also) is activated, the
warning lamp lights up in the dash panel
display
.
Switch-
ing off:– Disconnect the on button.
– OR: turn the lights control to a different po-
sition to
 ››› page 75.
– OR: place the turn signal and main beam
lever in the headlight flasher or main beam
position ››› page 76. The following conditions can cause the head-
light adjustment to fail to turn off the main
beam or fail to do so in time:
●
On roads with insufficient lighting with very
reflective signs
● If road users are insufficiently lit up, e.g.
pedestrians or cyclists.
● On closed curves, when the traffic in the
opposite direction is partially hidden, on pro-
nounced slopes
● On roads with traffic in the opposite direc-
tion and with a central reservation barrier
where the driver can see through gaps or
over it e.g. lorry drivers. ●
If the camera is damaged or if the power
supply has been cut off
● In the event of fog, snow or heavy rain
● In the event of dust or sand storms
● If the windscreen is damaged by the impact
from a stone in the camera's field of vision
● If the camera's field of vision is misted up,
dirty or covered by a sticker, snow or ice. WARNING
The greater comfort that the headlight ad-
justment provides (automatic also) must not
cause you to take risks. The system is not a
replacement for driver awareness.
● Always monitor the lights yourself and ad-
just them depending on the light, visibility
and traffic conditions.
● The headlight adjustment (automatic also)
may not correctly detect all situations and in
certain situations may only provide limited
function.
● If the windscreen is damaged or modifica-
tions are made to the vehicle lighting, this
may harm the functioning of the headlight
adjustment (automatic lights also), for exam-
ple, if additional headlight are fitted. Note
Main beam and flashed headlights can be
turned on and off manually at any time with
the turn signal and main beam lever
››› page 76. “Coming home” and “Leaving home”
function (guidance lights)
The “Coming home” function should be
switched on manually. However the “Leav-
ing home” function is automatically control-
led by a photo sensor.
Coming home: necessary operations
To switch sys-
tem on:
– Switch off the ignition.
– Briefly flash the headlights
for ap-
proximately one second ››› page 76.
The “Coming home” lighting comes on
when the driver door is opened. The
delay in switching off the headlights is
counted from when the last door or
boot hatch is closed.
To switch sys-
tem off:
– Automatically at the end of the delay
period.
– Automatically, if 30 seconds after
coming on, a vehicle door or the boot
hatch remains open.
– When the light switch is turned to po-
sition
.
– When the ignition is switched on.
Leaving home: necessary operations
To switch sys-
tem on:– Unlock the vehicle when the light
switch is in position  and the pho-
to sensor detects darkness.78
