Technical Data

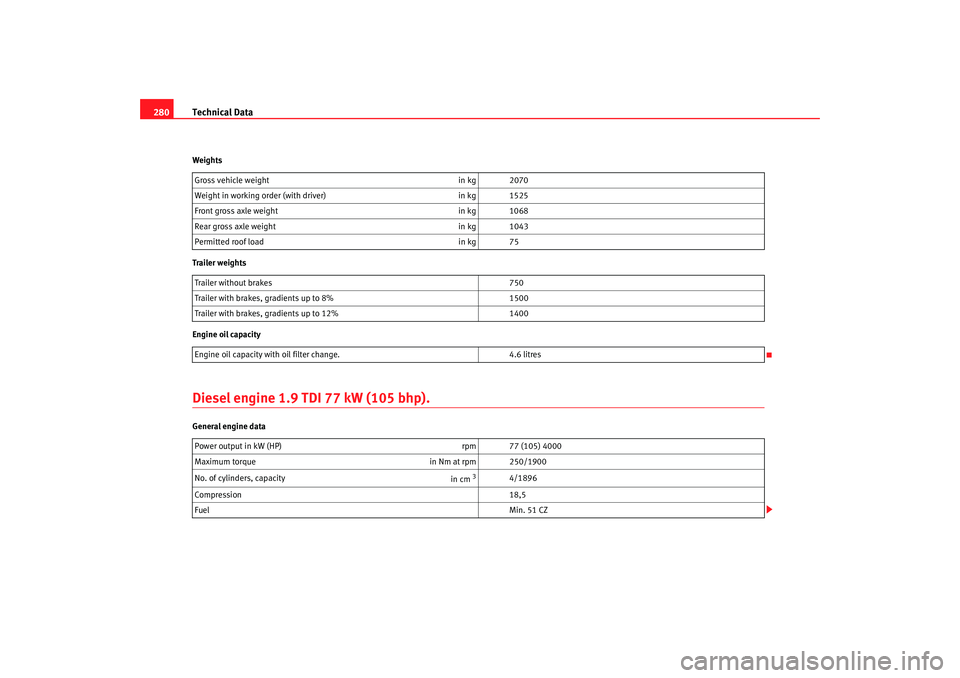

280Weights
Trailer weights
Engine oil capacityDiesel engine 1.9 TDI 77 kW (105 bhp).General engine data Gross vehicle weight
in kg 2070
Weight in working order (with driver) in kg 1525
Front gross axle weight in kg 1068
Rear gross axle weight in kg 1043
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4.6 litres
Power output in kW (HP) rpm 77 (105) 4000
Maximum torque in Nm at rpm 250/1900
No. of cylinders, capacity in cm
3
4/1896
Compression 18,5
Fuel Min. 51 CZ
AlteaXL_EN.book Seite 280 Montag, 2. Februar 2009 12:26 12

Technical Data281
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

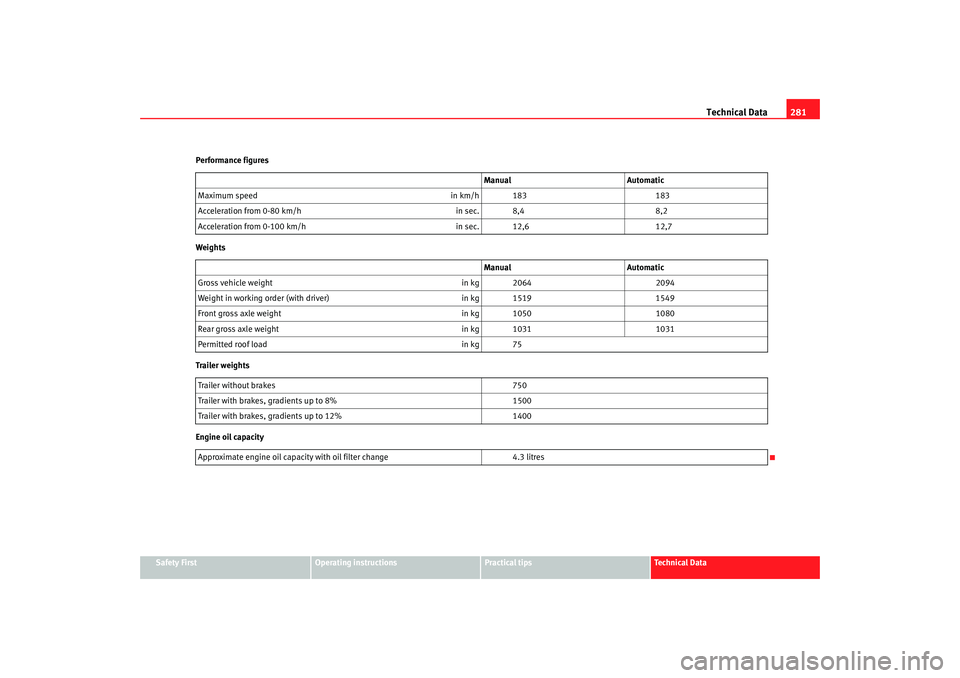

Performance figures
Weights
Trailer weights
Engine oil capacity
Manual
Automatic
Maximum speed in km/h 183183
Acceleration from 0-80 km/h in sec. 8,48,2
Acceleration from 0-100 km/h in sec. 12,612,7
Manual Automatic
Gross vehicle weight in kg 20642094
Weight in working order (with driver) in kg 15191549
Front gross axle weight in kg 10501080
Rear gross axle weight in kg 10311031
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
AlteaXL_EN.book Seite 281 Montag, 2. Februar 2009 12:26 12

Technical Data

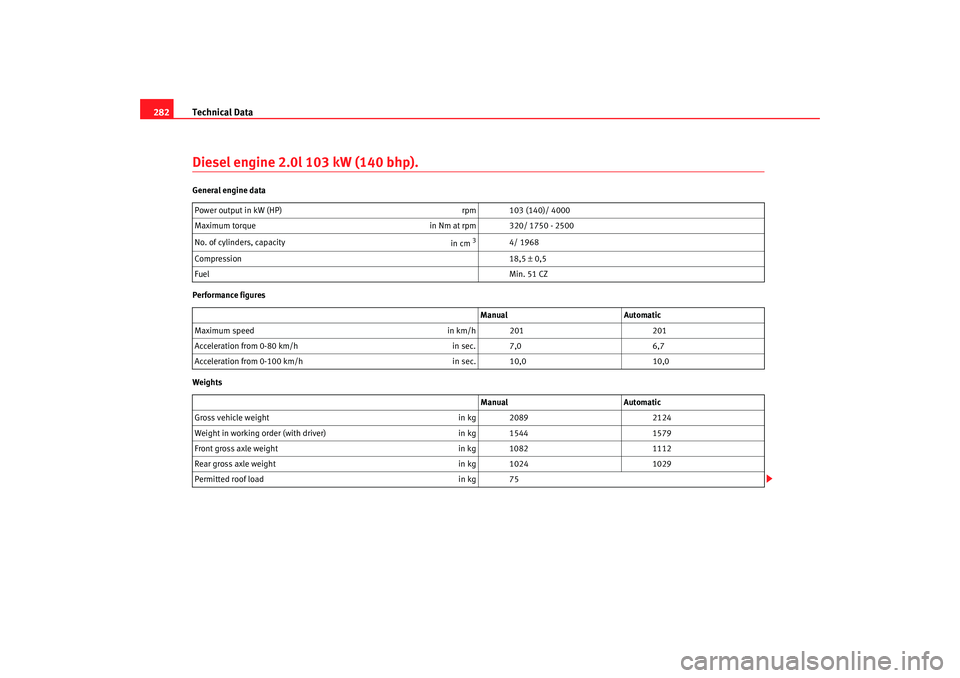

282Diesel engine 2.0l 103 kW (140 bhp).General engine data
Performance figures
Weights Power output in kW (HP)
rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min. 51 CZ
Manual Automatic
Maximum speed in km/h 201201
Acceleration from 0-80 km/h in sec. 7,06,7
Acceleration from 0-100 km/h in sec. 10,010,0
Manual Automatic
Gross vehicle weight in kg 20892124
Weight in working order (with driver) in kg 15441579
Front gross axle weight in kg 10821112
Rear gross axle weight in kg 10241029
Permitted roof load in kg 75
AlteaXL_EN.book Seite 282 Montag, 2. Februar 2009 12:26 12

Technical Data283
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Trailer weights
Engine oil capacity
Diesel engine 2.0l 125 kW (170 bhp)General engine data
Performance figures
Trailer without brakes
750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/ 1750-2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 16,5
Fuel Min. 51 CZ
Maximum speed in km/h 211
Acceleration from 0-80 km/h in sec. 6,2
Acceleration from 0-100 km/h in sec. 8,7
AlteaXL_EN.book Seite 283 Montag, 2. Februar 2009 12:26 12

Technical Data

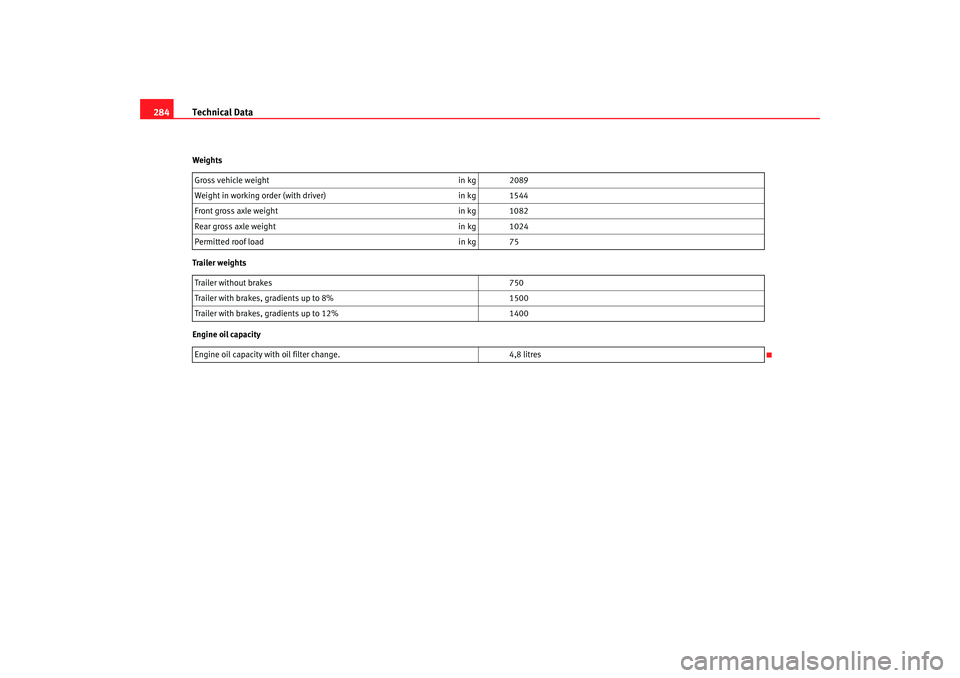

284Weights
Trailer weights
Engine oil capacity Gross vehicle weight
in kg 2089
Weight in working order (with driver) in kg 1544
Front gross axle weight in kg 1082
Rear gross axle weight in kg 1024
Permitted roof load in kg 75
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 4,8 litres
AlteaXL_EN.book Seite 284 Montag, 2. Februar 2009 12:26 12

Technical Data285
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

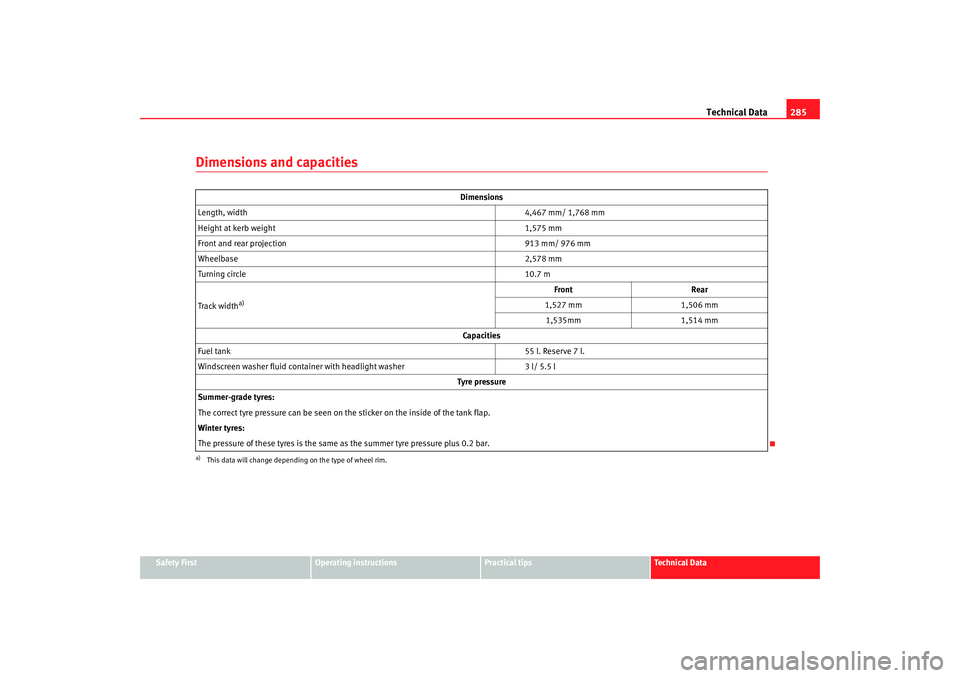

Dimensions and capacities
Dimensions
Length, width 4,467 mm/ 1,768 mm
Height at kerb weight 1,575 mm
Front and rear projection 913 mm/ 976 mm
Wheelbase 2,578 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,527 mm 1,506 mm
1,535mm 1,514 mm
Capacities
Fuel tank 55 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
AlteaXL_EN.book Seite 285 M ontag, 2. Februar 2009 12:26 12

AlteaXL_EN.book Seite 286 Montag, 2. Februar 2009 12:26 12

Index287
Index
AABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 165
Adjusting the seat belt height . . . . . . . . . . . . . . 26
AFS (curve lights) . . . . . . . . . . . . . . . . . . . . . . . . 113
Air conditioner* 2C-Climatronic* . . . . . . . . . . . . . . . . . . . . . . 157
Air conditioning system General notes . . . . . . . . . . . . . . . . . . . . . . . . 161
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . 153
Air recirculation mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 161
Manual air conditioning . . . . . . . . . . . . . . . 155
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 40
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 33
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 30
Alarm system Switching off . . . . . . . . . . . . . . . . . . . . . . . . 100
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 78
Ambient temperature display . . . . . . . . . . . . 62, 69 Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 184
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Anti-puncture tyres . . . . . . . . . . . . . . . . . . . . . . 233
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . 100 Switching off . . . . . . . . . . . . . . . . . . . . . . . . 100
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 242
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Automatic anti-dazzle interior mirror* Activating the anti-dazzle function . . . . . . 125
Deactivating anti-dazzle function . . . . . . . . 125
Automatic car wash tunnel . . . . . . . . . . . . . . . . 200
Automatic gearbox / DS G automatic gearbox . 170
Automatic lighting . . . . . . . . . . . . . . . . . . . . . . . 110
Automatic mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 159
Automatic wiper/wash function for the rear window 124
Auxiliary audio connection: AUX-IN . . . . . . . . . 146
BBall coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183 Battery
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Winter conditions . . . . . . . . . . . . . . . . . . . . 227
Belt tension device Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 30
Belt tension devices . . . . . . . . . . . . . . . . . . . . . . 27
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Brake assist system . . . . . . . . . . . . . . . . . . . . . 183
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226 Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Brake servo . . . . . . . . . . . . . . . . . . . . . . . 183, 190
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 226 Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 188
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 79
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 190
Bulb changes general notes . . . . . . . . . . . . . . . . . . . . . . . . 253
Bulb defect warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 79
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116, 165
AlteaXL_EN.book Seite 287 M ontag, 2. Februar 2009 12:26 12

Index

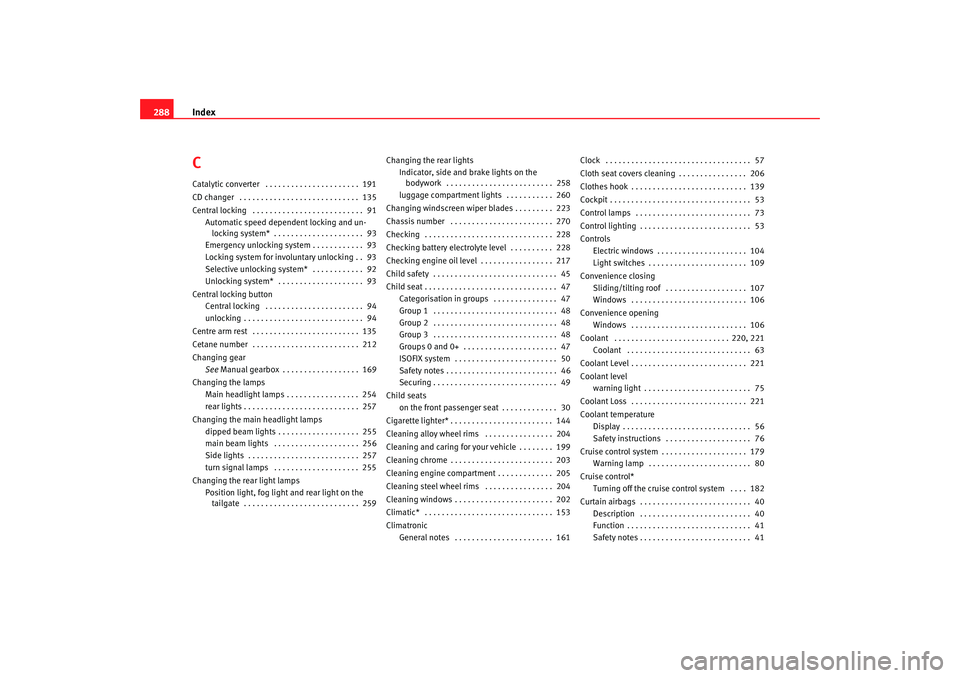

288CCatalytic converter . . . . . . . . . . . . . . . . . . . . . . 191
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 93
Emergency unlocking system . . . . . . . . . . . . 93
Locking system for invo luntary unlocking . . 93
Selective unlocking system* . . . . . . . . . . . . 92
Unlocking system* . . . . . . . . . . . . . . . . . . . . 93
Central locking button Central locking . . . . . . . . . . . . . . . . . . . . . . . 94
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Centre arm rest . . . . . . . . . . . . . . . . . . . . . . . . . 135
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 212
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 169
Changing the lamps Main headlight lamps . . . . . . . . . . . . . . . . . 254
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Changing the main headlight lamps
dipped beam lights . . . . . . . . . . . . . . . . . . . 255
main beam lights . . . . . . . . . . . . . . . . . . . . 256
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 257
turn signal lamps . . . . . . . . . . . . . . . . . . . . 255
Changing the r ear light lamps
Position light, fog light and rear light on the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 259 Changing the rear lights
Indicator, side and brake lights on the bodywork . . . . . . . . . . . . . . . . . . . . . . . . . 258
luggage compartment lights . . . . . . . . . . . 260
Changing windscreen wiper blades . . . . . . . . . 223
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 270
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Checking battery electrolyte level . . . . . . . . . . 228
Checking engine oil level . . . . . . . . . . . . . . . . . 217
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Categorisation in groups . . . . . . . . . . . . . . . 47
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 47
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 50
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Child seats on the front passenger seat . . . . . . . . . . . . . 30
Cigarette lighter* . . . . . . . . . . . . . . . . . . . . . . . . 144
Cleaning alloy wheel rims . . . . . . . . . . . . . . . . 204
Cleaning and caring for your vehicle . . . . . . . . 199
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 203
Cleaning engine compartment . . . . . . . . . . . . . 205
Cleaning steel wheel rims . . . . . . . . . . . . . . . . 204
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 202
Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Climatronic General notes . . . . . . . . . . . . . . . . . . . . . . . 161 Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Cloth seat covers cleaning . . . . . . . . . . . . . . . . 206
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Controls
Electric windows . . . . . . . . . . . . . . . . . . . . . 104
Light switches . . . . . . . . . . . . . . . . . . . . . . . 109
Convenience closing Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 107
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 220, 221 Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 75
Coolant Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Coolant temperature Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Safety instructions . . . . . . . . . . . . . . . . . . . . 76
Cruise control system . . . . . . . . . . . . . . . . . . . . 179 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 80
Cruise control* Turning off the cruise control system . . . . 182
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 41
AlteaXL_EN.book Seite 288 M ontag, 2. Februar 2009 12:26 12

Index289
DDanger of fitting a child seat on the front passenger
seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dash panel cleaning . . . . . . . . . . . . . . . . . . . . . 206
Daytime lights . . . . . . . . . . . . . . . . . . . . . . . . . . 111 activating . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
deactivating . . . . . . . . . . . . . . . . . . . . . . . . . 111
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 213
Diesel engine particulate filter . . . . . . . . . . . . . 192
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . 186
Differential lock fault (EDL) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . 109
Disabling front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Disabling the airbag Disabling front passenger airbag . . . . . . . . . 43
Display (without warning or information texts) . 58
Displays in the Multi-function display Memory displays . . . . . . . . . . . . . . . . . . . . . . 61
Disposal Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 203
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 53
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . . . 96
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 80 Drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Drinks holders at the front . . . . . . . . . . . . . . . . 140
Drive wheels traction control system . . . . . . . . 184
Driveshaft differential
XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 194
Economical/ Environtmental . . . . . . . . . . . 192
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 196
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Driving programmes . . . . . . . . . . . . . . . . . . . . . 170
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving with an automati c gearbox / DSG automatic
gearbox* . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Dynamic curve lights . . . . . . . . . . . . . . . . . . . . . 113
Dynamic headlight range control . . . . . . . . . . . 113
EEcological driving . . . . . . . . . . . . . . . . . . . . . . . 192
Economical driving . . . . . . . . . . . . . . . . . . . . . . 192
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
EDS Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Electric steering system warning light . . . . . . . . . . . . . . . . . . . . . . . . . 80
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . . 145 Electronic differential lock . . . . . . . . . . . . . . . . 186
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
Electronic immobiliser . . . . . . . . . . . . . . . . 82, 166
Electronic stabilisation program . . . . . . . . . . . 185
Electronic stabilisation programme . . . . . . . . . . 81 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Warning light . . . . . . . . . . . . . . . . . . . . . . . . 165
Electronic stabilisation programme (ESP) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Emergency braking function . . . . . . . . . . 115, 183
emergency manual locking . . . . . . . . . . . . . . . . . 95
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Emission control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Engine compartment Working in the engine compartment . . . . . 213
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Engine fault Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Checking level . . . . . . . . . . . . . . . . . . . . . . . 217
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 217
Specifications . . . . . . . . . . . . . . . . . . . . . . . 216
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . 217
AlteaXL_EN.book Seite 289 M ontag, 2. Februar 2009 12:26 12
