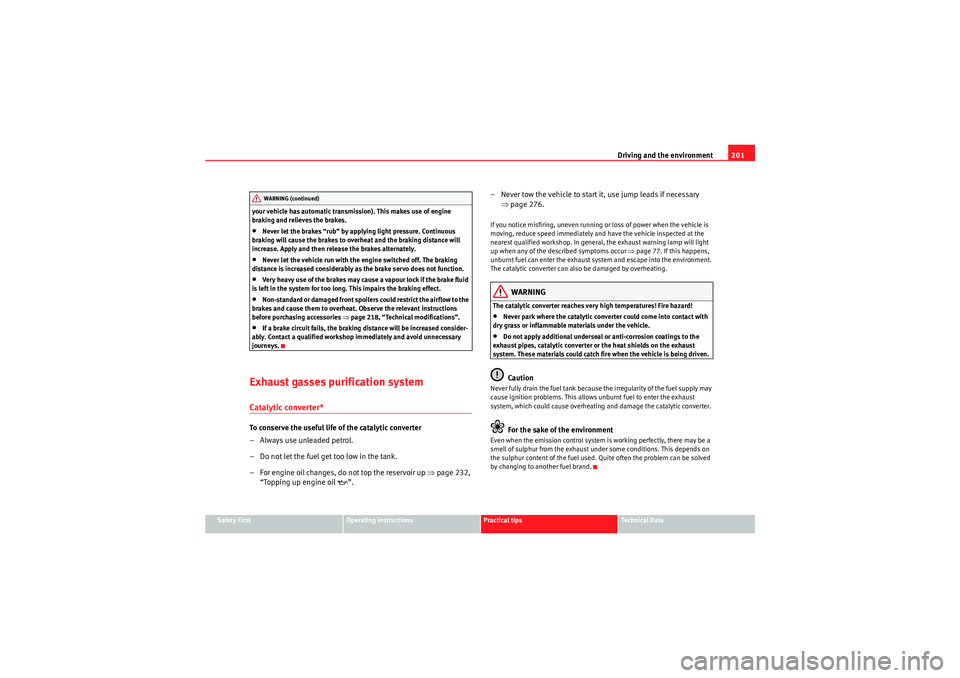

Driving and the environment201
Safety First
Operating instructions
Practical tips
Technical Data
your vehicle has automatic transmission). This makes use of engine
braking and relieves the brakes.
•Never let the brakes “rub” by applying light pressure. Continuous
braking will cause the brakes to overheat and the braking distance will
increase. Apply and then release the brakes alternately.•Never let the vehicle run with the engine switched off. The braking
distance is increased considerably as the brake servo does not function.•Very heavy use of the brakes may cause a vapour lock if the brake fluid
is left in the system for too long. This impairs the braking effect.•Non-standard or damaged front spoilers could restrict the airflow to the
brakes and cause them to overheat. Observe the relevant instructions
before purchasing accessories ⇒page 218, “Technical modifications”.•If a brake circuit fails, the braking distance will be increased consider-
ably. Contact a qualified workshop immediately and avoid unnecessary
journeys.
Exhaust gasses purification systemCatalytic converter*To conserve the useful life of the catalytic converter
– Always use unleaded petrol.
– Do not let the fuel get too low in the tank.
– For engine oil changes, do not top the reservoir up ⇒page 232,
“Topping up engine oil ”. – Never tow the vehicle to start it, use jump leads if necessary
⇒page 276.
If you notice misfiring, uneven running or loss of power when the vehicle is
moving, reduce speed immediately and have the vehicle inspected at the
nearest qualified workshop. In general, the exhaust warning lamp will light
up when any of the described symptoms occur ⇒page 77. If this happens,
unburnt fuel can enter the exhaust system and escape into the environment.
The catalytic converter can also be damaged by overheating.
WARNING
The catalytic converter reaches very high temperatures! Fire hazard!•Never park where the catalytic converter could come into contact with
dry grass or inflammable materials under the vehicle.•Do not apply additional underseal or anti-corrosion coatings to the
exhaust pipes, catalytic converter or the heat shields on the exhaust
system. These materials could catch fire when the vehicle is being driven.Caution
Never fully drain the fuel tank because the irregularity of the fuel supply may
cause ignition problems. This allows unburnt fuel to enter the exhaust
system, which could cause overheating and damage the catalytic converter.
For the sake of the environment
Even when the emission control system is working perfectly, there may be a
smell of sulphur from the exhaust under some conditions. This depends on
the sulphur content of the fuel used. Quite often the problem can be solved
by changing to another fuel brand.
WARNING (continued)
AlteaXL_EN.book Seite 201 Dienstag, 1. September 2009 10:37 10

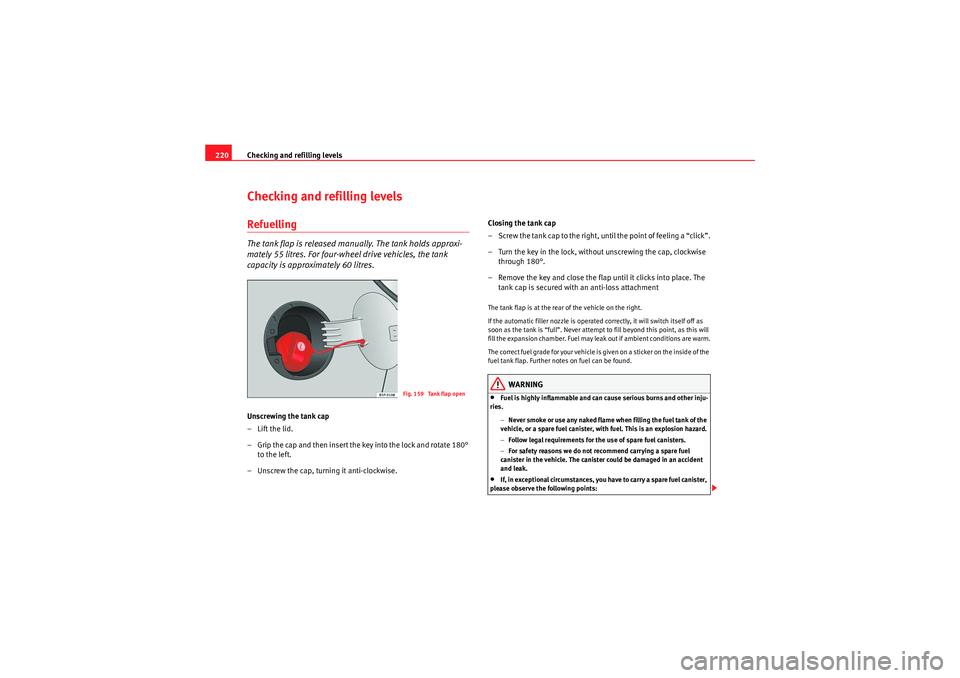

Checking and refilling levels
220Checking and refilling levelsRefuellingThe tank flap is released manually. The tank holds approxi-
mately 55 litres. For four-wheel drive vehicles, the tank
capacity is approximately 60 litres.Unscrewing the tank cap
– Lift the lid.
– Grip the cap and then insert the key into the lock and rotate 180°
to the left.
– Unscrew the cap, turning it anti-clockwise. Closing the tank cap
– Screw the tank cap to the right, until the point of feeling a “click”.
– Turn the key in the lock, without unscrewing the cap, clockwise
through 180°.
– Remove the key and close the flap until it clicks into place. The tank cap is secured with an anti-loss attachment
The tank flap is at the rear of the vehicle on the right.
If the automatic filler nozzle is operated correctly, it will switch itself off as
soon as the tank is “full”. Never attempt to fill beyond this point, as this will
fill the expansion chamber. Fuel may leak out if ambient conditions are warm.
T he co rr ec t fu el g rad e fo r you r v eh icle is giv en on a sti cker o n th e i nsid e of the
fuel tank flap. Further notes on fuel can be found.
WARNING
•Fuel is highly inflammable and can cause serious burns and other inju-
ries.
−Never smoke or use any naked flame when filling the fuel tank of the
vehicle, or a spare fuel canister, with fuel. This is an explosion hazard.
− Follow legal requirements for the use of spare fuel canisters.
− For safety reasons we do not recommend carrying a spare fuel
canister in the vehicle. The canister could be damaged in an accident
and leak.•If, in exceptional circumstances, you have to carry a spare fuel canister,
please observe the following points:
Fig. 159 Tank flap open
AlteaXL_EN.book Seite 220 Dienstag, 1. September 2009 10:37 10

Index307
Safety notes
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Belt tension devices . . . . . . . . . . . . . . . . . . . 28
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 42
Disabling front passenger airbag . . . . . . . . . 45
frontal airbags . . . . . . . . . . . . . . . . . . . . . . . . 37
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using child seats . . . . . . . . . . . . . . . . . . . . . . 47
Using seat belts . . . . . . . . . . . . . . . . . . . . . . . 23
Safety system- safe . . . . . . . . . . . . . . . . . . . . . . . 96
Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Seat adjustment . . . . . . . . . . . . . . . 132, 135, 137
Seat belt position Pregnant women . . . . . . . . . . . . . . . . . . . . . . 26
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Seat belt release . . . . . . . . . . . . . . . . . . . . . . . . . 27
Seat belt warning lamp . . . . . . . . . . . . . . . . . . . . 19
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Incorrectly fastened . . . . . . . . . . . . . . . . . . . . 28
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 19
Seat belts cleaning . . . . . . . . . . . . . . . . . . . . . . 217
Seat belts protection . . . . . . . . . . . . . . . . . . . . . . 23
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selective opening* . . . . . . . . . . . . . . . . . . . . . . . 96
Selector lever locking . . . . . . . . . . . . . . . . . . . . 179
Selector lever positions . . . . . . . . . . . . . . . . . . . 178
Service interval display . . . . . . . . . . . . . . . . . . . . 62 servotronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Sitting position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front passenger . . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . . 15
Passengers . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sitting position, occupants . . . . . . . . . . . . . . . . . 10
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . . . 110
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Soot accumulation in the diesel engine particulate filter
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Spare wheel* . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Starting Petrol engines . . . . . . . . . . . . . . . . . . . 171
Starting the engine . . . . . . . . . . . . . . . . . 170, 171 After the fuel tank has been run dry . . . . . . 171
Start-Stop deactivating and activating . . . . . . . . . . . . 176
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Steam jets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 Steering lock . . . . . . . . . . . . . . . . . . . . . . . . 169
Steering wheel audio controls audio + telephone version . . . . . . . . . . . . . . 87
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 87 Steering wheel height adjustment . . . . . . . . . . 167
Stowage area
Centre arm rest . . . . . . . . . . . . . . . . . . . . . . 139
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Other stowage areas . . . . . . . . . . . . . . . . . . 143
Stowage compartment Front passenger side . . . . . . . . . . . . . . . . . . 139
Stowage in the luggage compartment . . . . . . . 142
Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Sunroof blind Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 111
Switch Hazard warning lights . . . . . . . . . . . . . . . . . 118
Switches Electric windows . . . . . . . . . . . . . . . . . . . . . 108
Electrical exterior mirrors . . . . . . . . . . . . . . 130
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 110
Switching off the engine . . . . . . . . . . . . . . . . . . 172
TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 Emergency opening . . . . . . . . . . . . . . . . . . . 107
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 84
Tank fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
reserve indicator . . . . . . . . . . . . . . . . . . . . . . 58
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 58
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
