technical data Seat Cordoba 2006 User Guide

Technical Data225
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.2 47 kW (64 CV)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 47 (64)/ 5000
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders, capacity in cm
3
3/ 1198
Compression 10.4
Fuel Super 95 RON
a)/Normal 91 RON
a) b)
a)Research-O ctane-Number = Mea sure of the pr
edetonation power of the petrol.
b)With a slight power lossMaximum speed in km/h 168
Acceleration from 0-80 km/h in sec. 10.3
Acceleration from 0-100 km/h in sec. 15.7
Urban cycle 7.6/ 182 7.7/ 185
Extra urban cycle 5.1/ 122 5.1/ 122
Combined 5.9/ 142 6.0/ 144
cordoba_ingles Seite 225 Freitag, 7. Oktober 2005 6:00 18

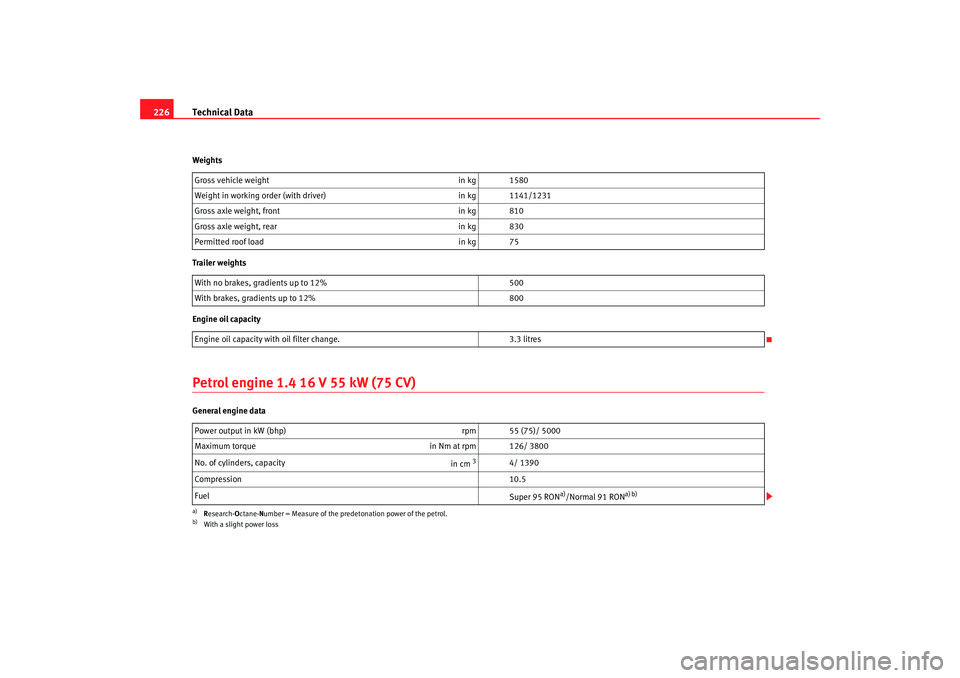

Technical Data
226Weights
Trailer weights
Engine oil capacityPetrol engine 1.4 16 V 55 kW (75 CV)General engine data Gross vehicle weight
in kg 1580
Weight in working order (with driver) in kg 1141/1231
Gross axle weight, front in kg 810
Gross axle weight, rear in kg 830
Permitted roof load in kg 75
With no brakes, gradients up to 12% 500
With brakes, gradients up to 12% 800
Engine oil capacity with oil filter change. 3.3 litres
Power output in kW (bhp) rpm 55 (75)/ 5000
Maximum torque in Nm at rpm 126/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compre ssion 10.5
Fuel Super 95 RON
a)/Normal 91 RON
a) b)
a)Research-Octane-Number = Measure of the predetonation power of the petrol.
cordoba_ingles Seite 226 Freitag, 7. Oktober 2005 6:00 18
b)With a slight power loss

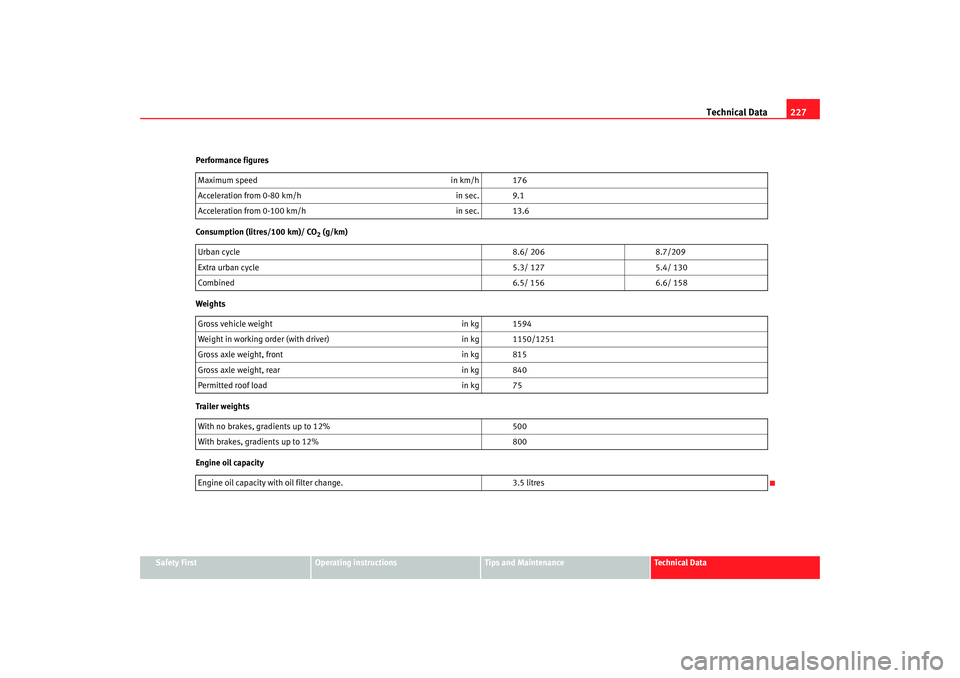

Technical Data227
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 176
Acceleration from 0-80 km/h in sec. 9.1
Acceleration from 0-100 km/h in sec. 13.6
Urban cycle 8.6/ 206 8.7/209
Extra urban cycle 5.3/ 127 5.4/ 130
Combined 6.5/ 156 6.6/ 158
Gross vehicle weight in kg 1594
Weight in working order (with driver) in kg 1150/1251
Gross axle weight, front in kg 815
Gross axle weight, rear in kg 840
Permitted roof load in kg 75
With no brakes, gradients up to 12% 500
With brakes, gradients up to 12% 800
Engine oil capacity with oil filter change. 3.5 litres
cordoba_ingles Seite 227 Freitag, 7. Oktober 2005 6:00 18

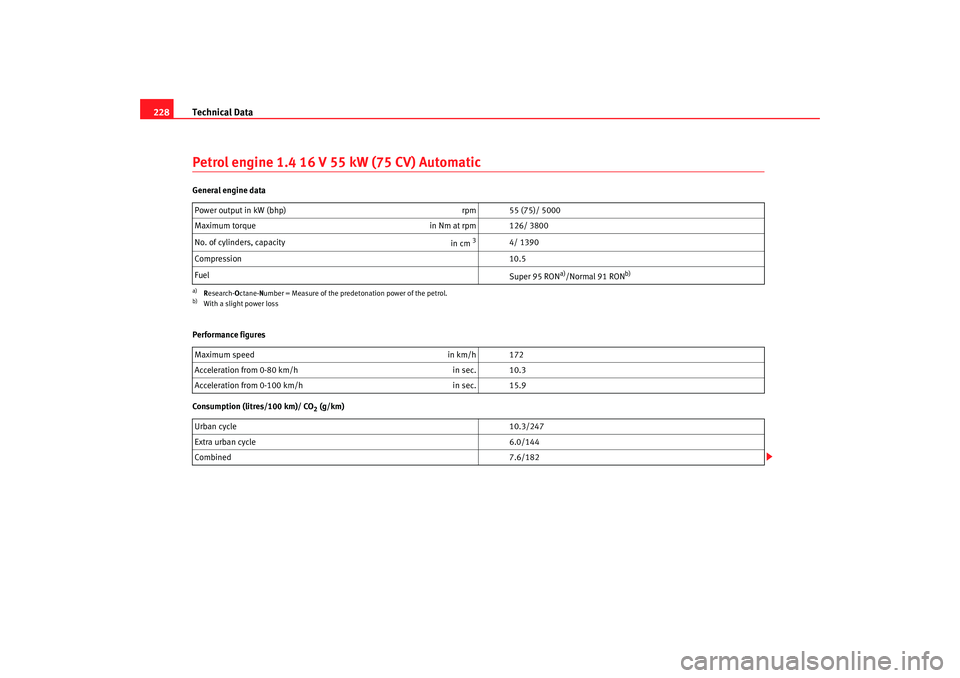

Technical Data
228Petrol engine 1.4 16 V 55 kW (75 CV) AutomaticGeneral engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 55 (75)/ 5000
Maximum torque in Nm at rpm 126/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compre ssion 10.5
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Resear ch-Octane-N um
ber = Measure of the p redetonation power of the pet rol.
b)With a slight power lossMaximum speed in km/h 172
Accelera tion from 0-80 km/h in sec. 10.3
Accelera tion from 0-100 km/h in sec. 15.9
Urban cycle 10.3/247
Extra urban cycle 6.0/144
Combined 7.6/182
cordoba_ingles Seite 228 Freitag, 7. Oktober 2005 6:00 18

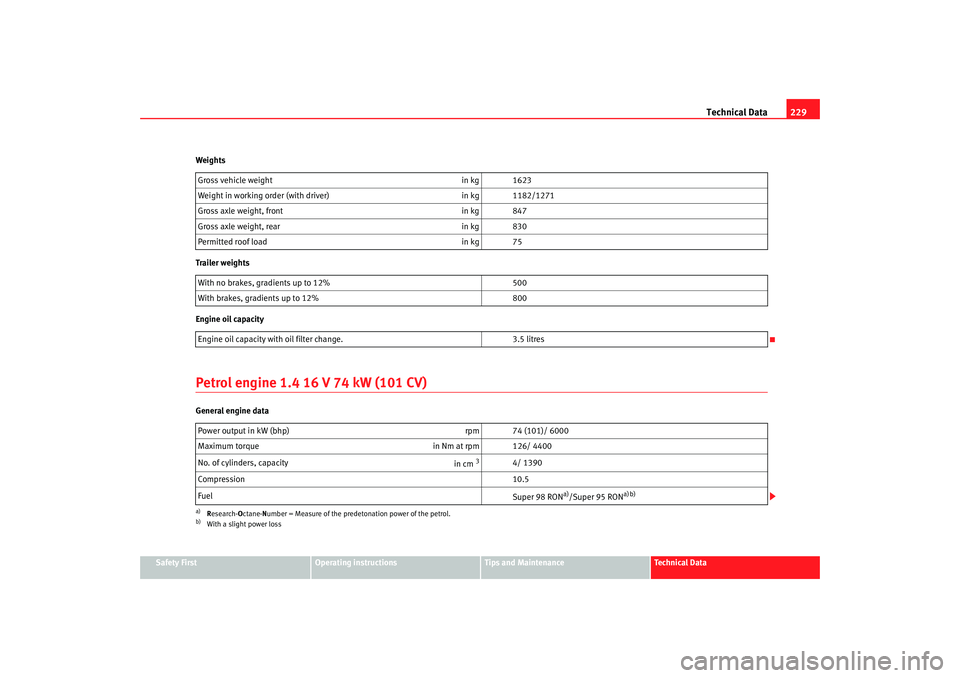

Technical Data229
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Petrol engine 1.4 16 V 74 kW (101 CV)General engine data
Gross vehicle weight
in kg 1623
Weight in working order (with driver) in kg 1182/1271
Gross axle weight, front in kg 847
Gross axle weight, rear in kg 830
Permitted roof load in kg 75
With no brakes, gradients up to 12% 500
With brakes, gradients up to 12% 800
Engine oil capacity with oil filter change. 3.5 litres
Power output in kW (bhp) rpm 74 (101)/ 6000
Maximum torque in Nm at rpm 126/ 4400
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10.5
Fuel Super 98 RON
a)/Super 95 RON
a) b)
a)Research-O ctane-Number = Mea sure of the pr
edetonation power of the petrol.
b)With a slight power loss
cordoba_ingles Seite 229 Freitag, 7. Oktober 2005 6:00 18

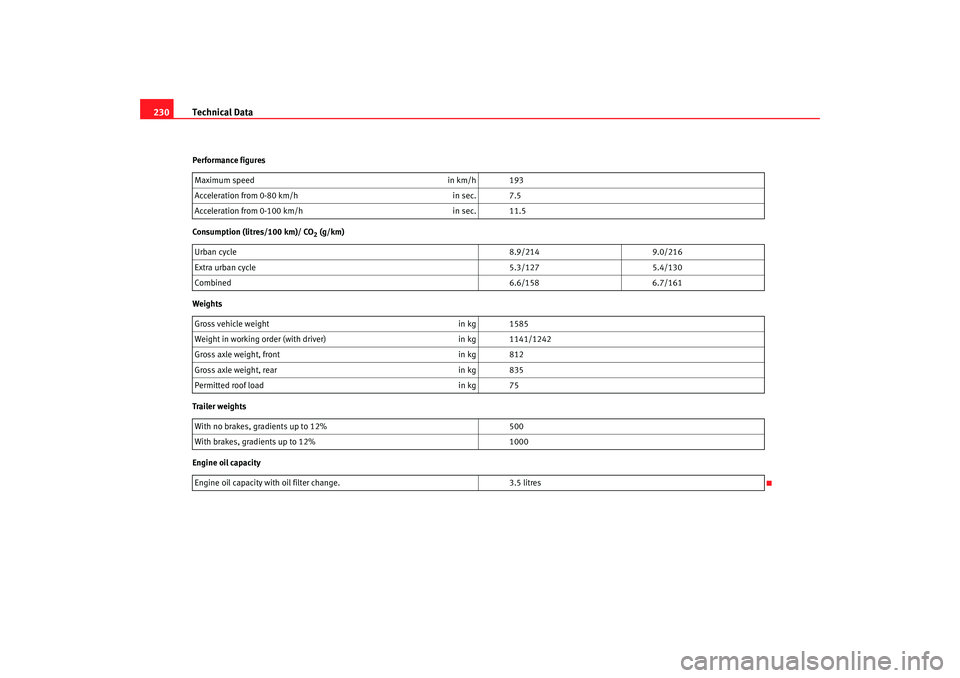

Technical Data
230Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 193
Accelera tion from 0-80 km/h in sec. 7.5
Accelera tion from 0-100 km/h in sec. 11.5
Urban cycle 8.9/214 9.0/216
Extra urban cycle 5.3/127 5.4/130
Combined 6.6/158 6.7/161
Gross vehicle weight in kg 1585
Weight in working order (with driver) in kg 1141/1242
Gross axle weight, front in kg 812
Gross axle weight, rear in kg 835
Permitted roof load in kg 75
With no brakes, gradients up to 12% 500
With brakes, gradients up to 12% 1000
Engine oil capacity with oil filter change. 3.5 litres
cordoba_ingles Seite 230 Freitag, 7. Oktober 2005 6:00 18

Technical Data231
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 2.0 85 kW (115 CV)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 85 (115)/ 5400
Maximum torque in Nm at rpm 170/ 2400
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10.5 ± 0.5
Fuel Super 95 RO

N
a)/Normal 91 RON
b)
Maximum speed in km/h 200
Acceleration from 0-80 km/h in sec. 7.1
Acceleration from 0-100 km/h in sec. 10.4
Urban cycle 10.9/262 11.0/264
Extra urban cycle 5.9/142 6.0/144
Combined 7.7/185 7.8/187
cordoba_ingles Seite 231 Freitag, 7. Oktober 2005 6:00 18
a)Research-O ctane-Number = Mea sure of the predetonation power of the petrol.b)With a slight power loss

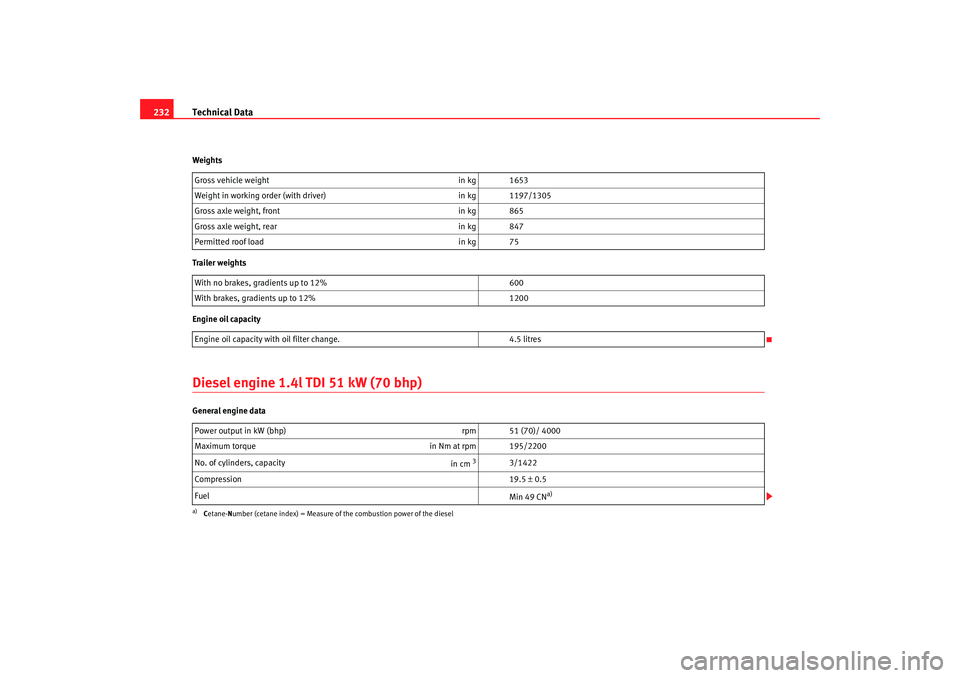

Technical Data
232Weights
Trailer weights
Engine oil capacityDiesel engine 1.4l TDI 51 kW (70 bhp)General engine data Gross vehicle weight
in kg 1653
Weight in working order (with driver) in kg 1197/1305
Gross axle weight, front in kg 865
Gross axle weight, rear in kg 847
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Engine oil capacity with oil filter change. 4.5 litres
Power output in kW (bhp) rpm 51 (70)/ 4000
Maximum torque in Nm at rpm 195/2200
No. of cylinders, capacity in cm
3
3/1422
Compre ssion 19.5 ± 0.5
Fuel Min 49 CN
a)
a)Cetane-Number (cetane index) = Measure of the co mbustion power of the diesel
cordoba_ingles Seite 232 Freitag, 7. Oktober 2005 6:00 18

Technical Data233
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 167
Acceleration from 0-80 km/h in sec. 9.8
Acceleration from 0-100 km/h in sec. 15.2
Urban cycle 5.9/159 6.0/162
Extra urban cycle 4.1/111 4.2/113
Combined 4.7/127 4.8/130
Gross vehicle weight in kg 1662
Weight in working order (with driver) in kg 1219/1318
Gross axle weight, front in kg 887
Gross axle weight, rear in kg 840
Permitted roof load in kg 75
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Engine oil capacity with oil filter change. 3.8 litres
cordoba_ingles Seite 233 Freitag, 7. Oktober 2005 6:00 18

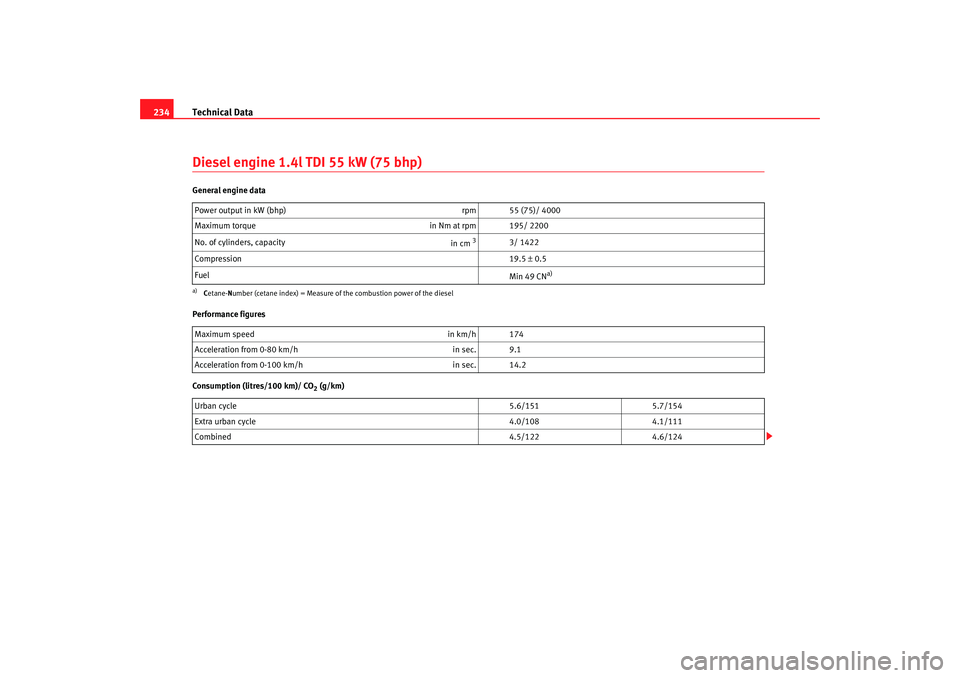

Technical Data
234Diesel engine 1.4l TDI 55 kW (75 bhp)General engine data
Performance figures
Consumption (litres/100 km)/ CO
2 (g/km)
Power output in kW (bhp)
rpm 55 (75)/ 4000
Maximum torque in Nm at rpm 195/ 2200
No. of cylinders, capacity in cm
3
3/ 1422
Compre ssion 19.5 ± 0.5
Fuel Min 49 CN
a)
a)Cetane-Number (cetane index) = Measure of the co mbustion power of the dieselMaximum speed in km/h 174
Ac celera tion from 0 -80
km/h in sec. 9
.1
Ac celera tion from 0 -100
km/h in sec. 14
.2
Urban cycle 5.

6/151 5.
7/154
Ext ra urban cyc le 4.0/108
4.1/111
Combined 4.5/122 4.6/124
cordoba_ingles Seite 234 Freitag, 7. Oktober 2005 6:00 18
