Page 145 of 310
Seats and stowage143
Safety First
Controls and equipment
Practical tips
Technical Data

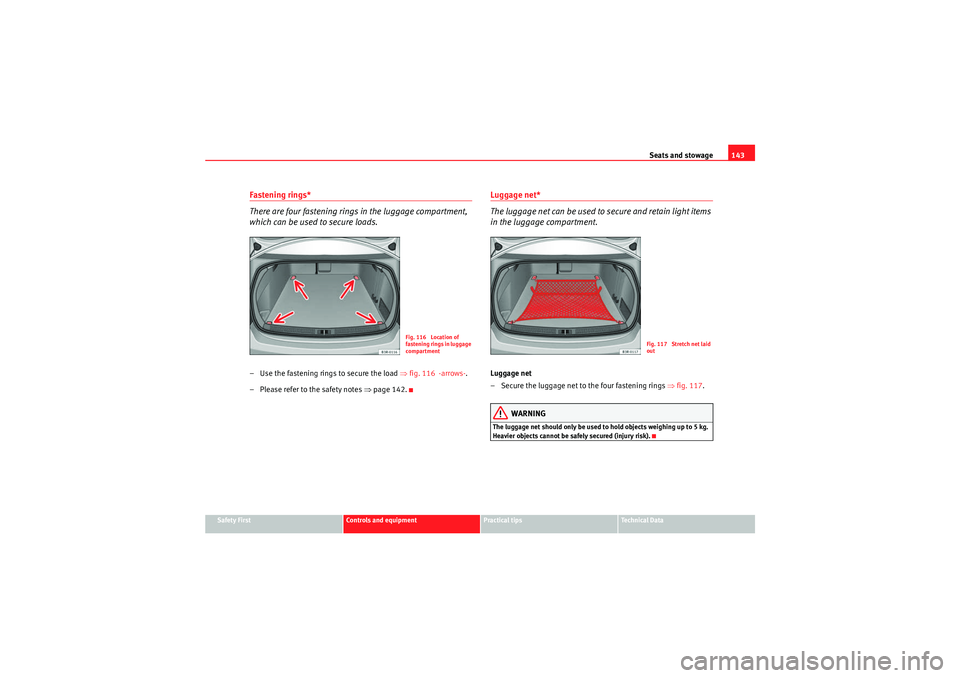

Fastening rings*
There are four fastening rings in the luggage compartment,
which can be used to secure loads.– Use the fastening rings to secure the load ⇒fig. 116 -arrows- .
– Please refer to the safety notes ⇒page 142.
Luggage net*
The luggage net can be used to secure and retain light items
in the luggage compartment.Luggage net
– Secure the luggage net to the four fastening rings ⇒fig. 117 .
WARNING
The luggage net should only be used to hold objects weighing up to 5 kg.
Heavier objects cannot be safely secured (injury risk).
Fig. 116 Location of
fastening rings in luggage
compartment
Fig. 117 Stretch net laid
out
Exeo_EN.book Seite 143 Freitag, 28. August 2009 10:14 10
Page 147 of 310
Seats and stowage145
Safety First
Controls and equipment
Practical tips
Technical Data

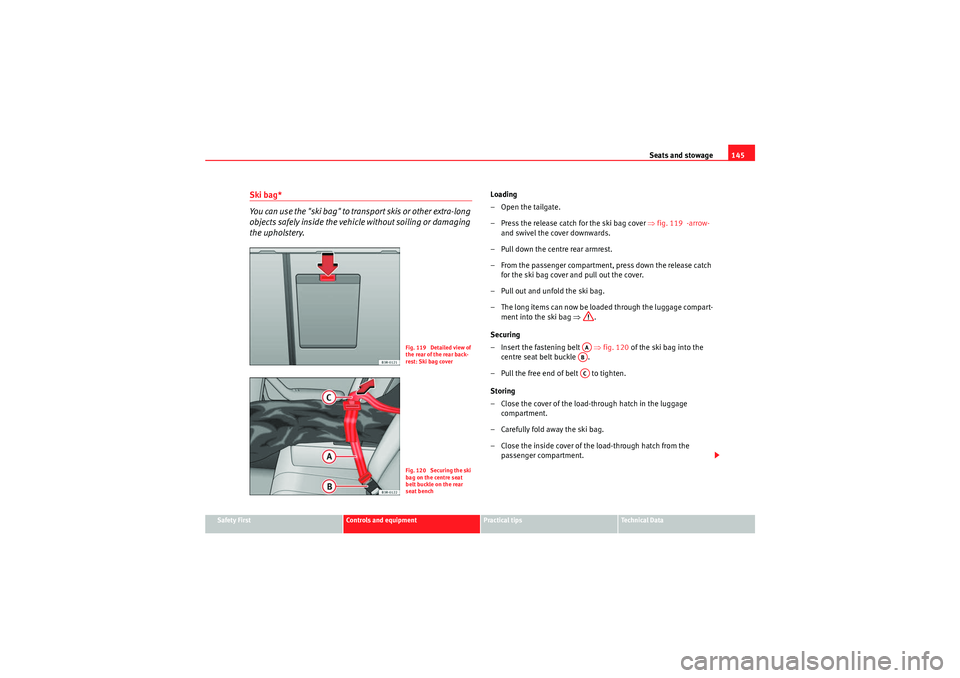

Ski bag*
You can use the "ski bag" to transport skis or other extra-long
objects safely inside the vehicle without soiling or damaging
the upholstery.
Loading
–Open the tailgate.
– Press the release catch for the ski bag cover ⇒fig. 119 -arrow-
and swivel the cover downwards.
– Pull down the centre rear armrest.
– From the passenger compartment, press down the release catch for the ski bag cover and pull out the cover.
– Pull out and unfold the ski bag.
– The long items can now be loaded through the luggage compart- ment into the ski bag ⇒.
Securing
– Insert the fastening belt ⇒fig. 120 of the ski bag into the
centre seat belt buckle .
– Pull the free end of belt to tighten.
Storing
– Close the cover of the load-through hatch in the luggage compartment.
– Carefully fold away the ski bag.
– Close the inside cover of the load-through hatch from the passenger compartment.
Fig. 119 Detailed view of
the rear of the rear back-
rest: Ski bag coverFig. 120 Securing the ski
bag on the centre seat
belt buckle on the rear
seat bench
AAABAC
Exeo_EN.book Seite 145 Freitag, 28. August 2009 10:14 10
Page 149 of 310
Seats and stowage147
Safety First
Controls and equipment
Practical tips
Technical Data

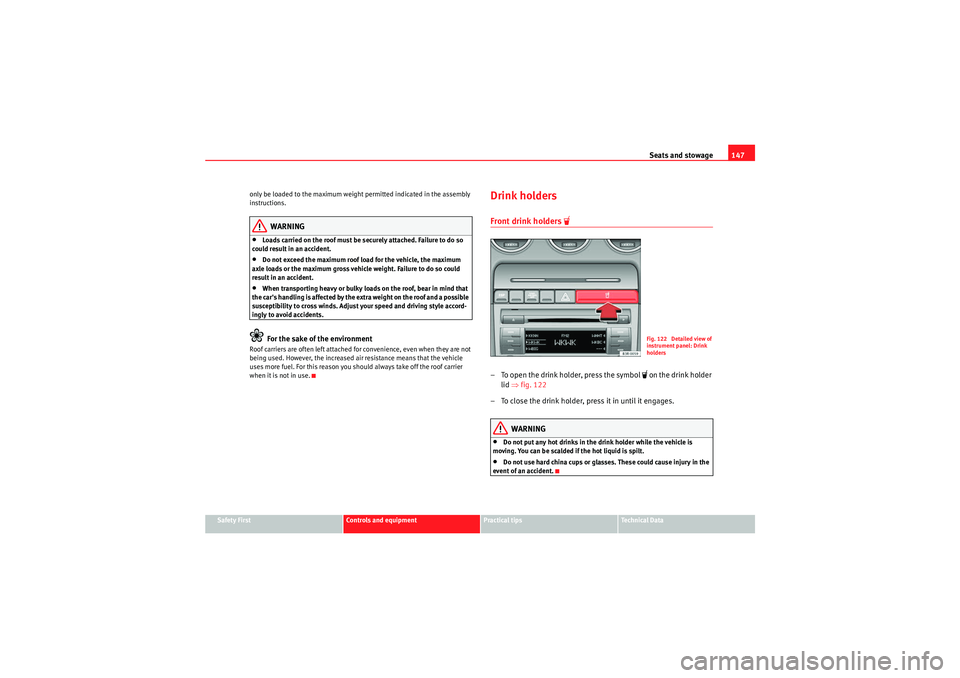

only be loaded to the maximum weight permitted indicated in the assembly
instructions.
WARNING
•Loads carried on the roof must be securely attached. Failure to do so
could result in an accident.•Do not exceed the maximum roof load for the vehicle, the maximum
axle loads or the maximum gross vehicle weight. Failure to do so could
result in an accident.•When transporting heavy or bulky loads on the roof, bear in mind that
the car's handling is affected by the extra weight on the roof and a possible
susceptibility to cross winds. Adjust your speed and driving style accord-
ingly to avoid accidents.For the sake of the environment
Roof carriers are often left attached for convenience, even when they are not
being used. However, the increased air resistance means that the vehicle
uses more fuel. For this reason you should always take off the roof carrier
when it is not in use.
Drink holdersFront drink holders
– To open the drink holder, press the symbol
on the drink holder
lid ⇒fig. 122
– To close the drink holder, press it in until it engages.
WARNING
•Do not put any hot drinks in the drink holder while the vehicle is
moving. You can be scalded if the hot liquid is spilt.•Do not use hard china cups or glasses. These could cause injury in the
event of an accident.
Fig. 122 Detailed view of
instrument panel: Drink
holders
Exeo_EN.book Seite 147 Freitag, 28. August 2009 10:14 10
Page 151 of 310
Seats and stowage149
Safety First
Controls and equipment
Practical tips
Technical Data

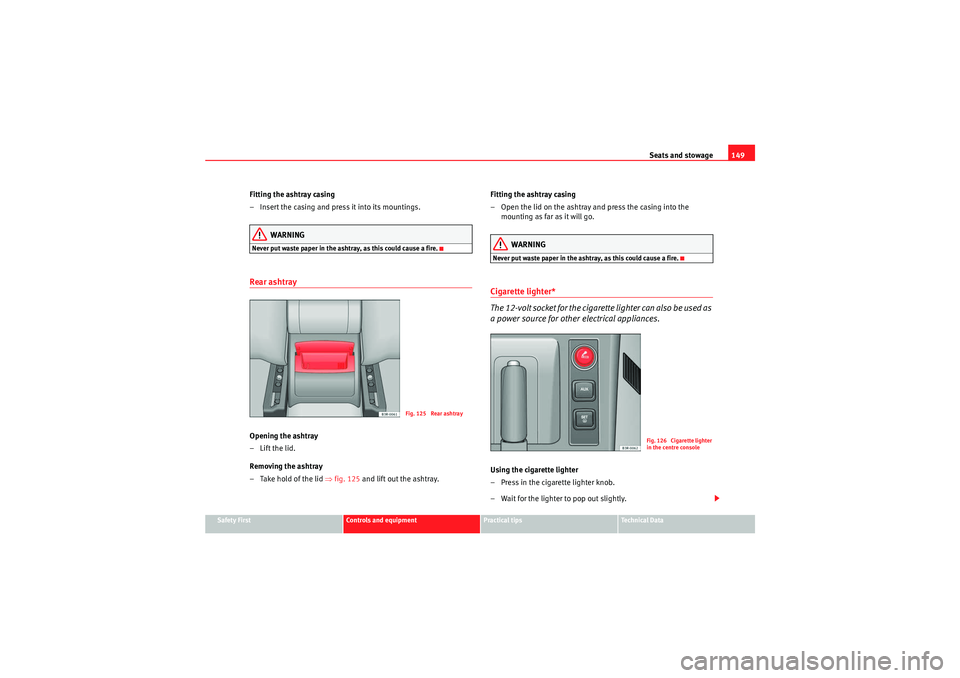

Fitting the ashtray casing
– Insert the casing and press it into its mountings.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.Rear ashtrayOpening the ashtray
– Lift the lid.
Removing the ashtray
– Take hold of the lid ⇒ fig. 125 and lift out the ashtray. Fitting the ashtray casing
– Open the lid on the ashtray and press the casing into the
mounting as far as it will go.
WARNING
Never put waste paper in the ashtray, as this could cause a fire.Cigarette lighter*
The 12-volt socket for the cigarette lighter can also be used as
a power source for other electrical appliances.Using the cigarette lighter
–Press in the ciga rette lighter knob.
– Wait for the lighter to pop out slightly.
Fig. 125 Rear ashtray
Fig. 126 Cigarette lighter
in the centre console
Exeo_EN.book Seite 149 Freitag, 28. August 2009 10:14 10
Page 153 of 310
Seats and stowage151
Safety First
Controls and equipment
Practical tips
Technical Data

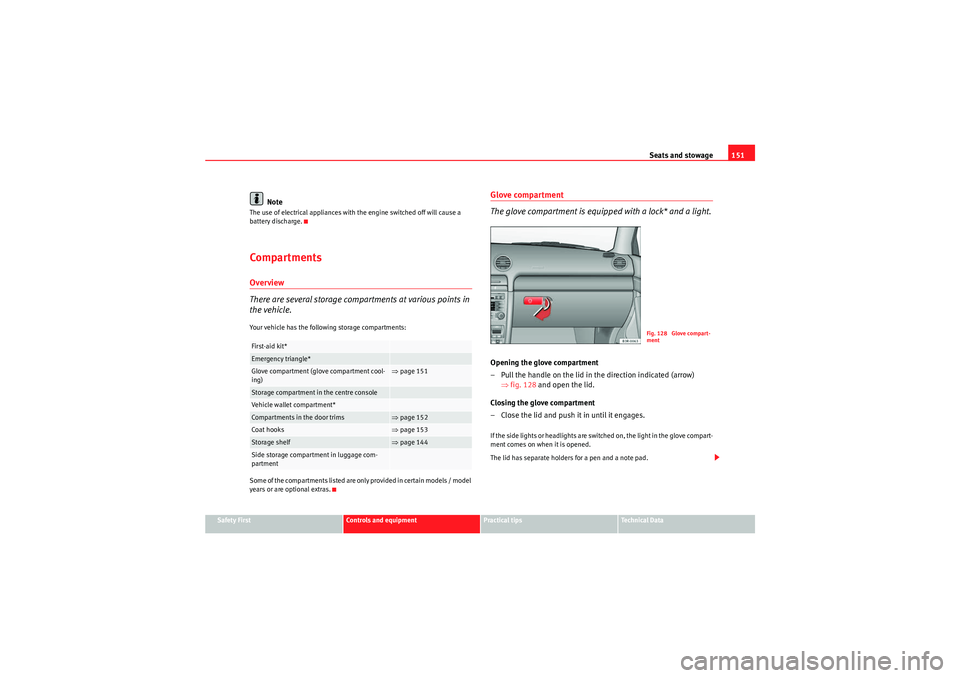

Note
The use of electrical appliances with the engine switched off will cause a
battery discharge.CompartmentsOverview
There are several storage compartments at various points in
the vehicle.Your vehicle has the following storage compartments:
Some of the compartments listed are only provided in certain models / model
years or are optional extras.
Glove compartment
The glove compartment is equipped with a lock* and a light.Opening the glove compartment
– Pull the handle on the lid in the direction indicated (arrow)
⇒fig. 128 and open the lid.
Closing the glove compartment
– Close the lid and push it in until it engages.If the side lights or headlights are switched on, the light in the glove compart-
ment comes on when it is opened.
The lid has separate holders for a pen and a note pad.
First-aid kit*Emergency triangle*Glove compartment (glove compartment cool-
ing)
⇒ page 151
Storage compartment in the centre consoleVehicle wallet compartment*Compartments in the door trims
⇒page 152
Coat hooks
⇒page 153
Storage shelf
⇒page 144
Side storage compartment in luggage com-
partment
Fig. 128 Glove compart-
ment
Exeo_EN.book Seite 151 Freitag, 28. August 2009 10:14 10

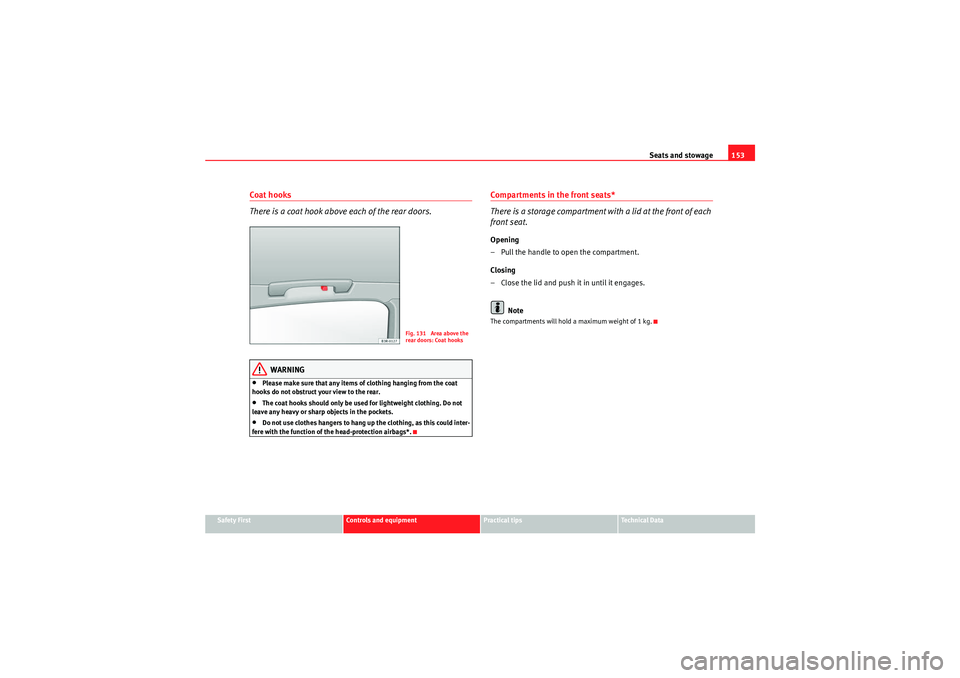

Page 155 of 310
Seats and stowage153
Safety First
Controls and equipment
Practical tips
Technical Data
Coat hooks
There is a coat hook abov e each of the rear doors.
WARNING
•Please make sure that any items of clothing hanging from the coat
hooks do not obstruct your view to the rear.•The coat hooks should only be used for lightweight clothing. Do not
leave any heavy or sharp objects in the pockets.•Do not use clothes hangers to hang up the clothing, as this could inter-
fere with the function of the head-protection airbags*.
Compartments in the front seats*
There is a storage compartment with a lid at the front of each
front seat.Opening
– Pull the handle to open the compartment.
Closing
– Close the lid and push it in until it engages.
NoteThe compartments will hold a maximum weight of 1 kg.
Fig. 131 Area above the
rear doors: Coat hooks
Exeo_EN.book Seite 153 Freitag, 28. August 2009 10:14 10
Page 157 of 310
Heating, Ventilation and Air conditioning155
Safety First
Controls and equipment
Practical tips
Technical Data

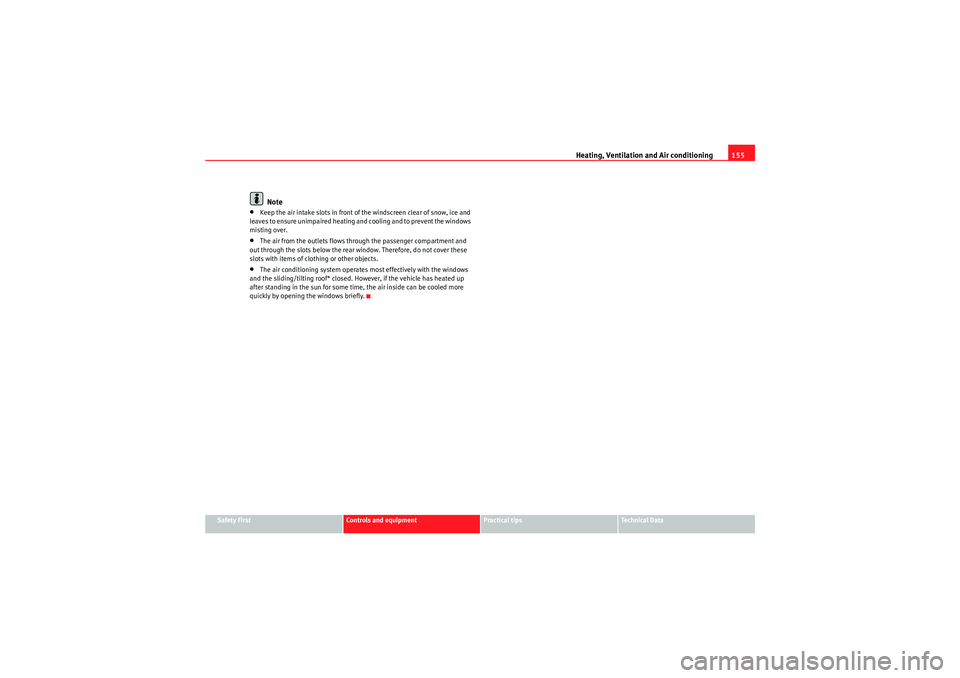

Note
•Keep the air intake slots in front of the windscreen clear of snow, ice and
leaves to ensure unimpaired heating and cooling and to prevent the windows
misting over.•The air from the outlets flows through the passenger compartment and
out through the slots below the rear window. Therefore, do not cover these
slots with items of clothing or other objects.•The air conditioning system operates most effectively with the windows
and the sliding/tilting roof* closed. However, if the vehicle has heated up
after standing in the sun for some time, the air inside can be cooled more
quickly by opening the windows briefly.
Exeo_EN.book Seite 155 Freitag, 28. August 2009 10:14 10
Page 159 of 310
Heating, Ventilation and Air conditioning157
Safety First
Controls and equipment
Practical tips
Technical Data
The , and buttons (which regulate air distribution) can either be
selected individually or in combination.
Automatic mode
Standard setting for all seasons.Switching on automatic mode
– Select a temperature between +18°C (64°F) and +29°C (86°F).
– Press the button
⇒page 156, fig. 132 .The automatic mode maintains a constant temperature inside the vehicle and
dehumidifies the air. Air temperature, air delivery and air distribution are
regulated automatically to reach the desired interior temperature as quickly
as possible, and then to maintain this temperature. The system automatically
compensates for any variations in the outside temperature and for the effect
of direct sunlight.
The automatic temperature regulation only operates at temperature settings
between +18°C and +29°C. If a temperature below +18°C is selected, LO
appears on the display. If a temperature is selected which is higher than
+29°C, the display will show HI. In the two extreme settings, the climate
control operates continuously with maximum cooling or heating output and the temperature is not regulated automatically. The temperature is not regu-
lated.
Note
By keeping the button on the driver's side pressed for several seconds,
the temperature of the passenger's side can be set to the temperature of the
driver's side or vice versa. The display indicates the new temperature value.Selecting the temperature
Separate temperatures can be selected for the driver's and
front passenger's side.– Press the or buttons below the displays
⇒page 156,
fig. 132 until the desired temperature is selected for the driver's
side or front passenger's side.The currently selected temperature setting is shown in the display above the
buttons.
By keeping the button on the driver's side pressed for several seconds,
the temperature of the passenger's side can be set to the temperature of the
driver's side or vice versa. The display indicates the new temperature value.
The previous temperature setting can be restored by resetting the display on
the driver's or passenger's side as required.
(centre buttons)
Adjusts blower speedAir to the windowsAir from the dashboard outletsAir to the footwells
Button(s)
Meaning
-+
AUTO
AUTO
AUTO
-+
-
+
AUTO
Exeo_EN.book Seite 157 Freitag, 28. August 2009 10:14 10
Page 161 of 310
Heating, Ventilation and Air conditioning159
Safety First
Controls and equipment
Practical tips
Technical Data
due to a defect in one of the climate control components. If a malfunction
should occur, please contact a specialist garage.

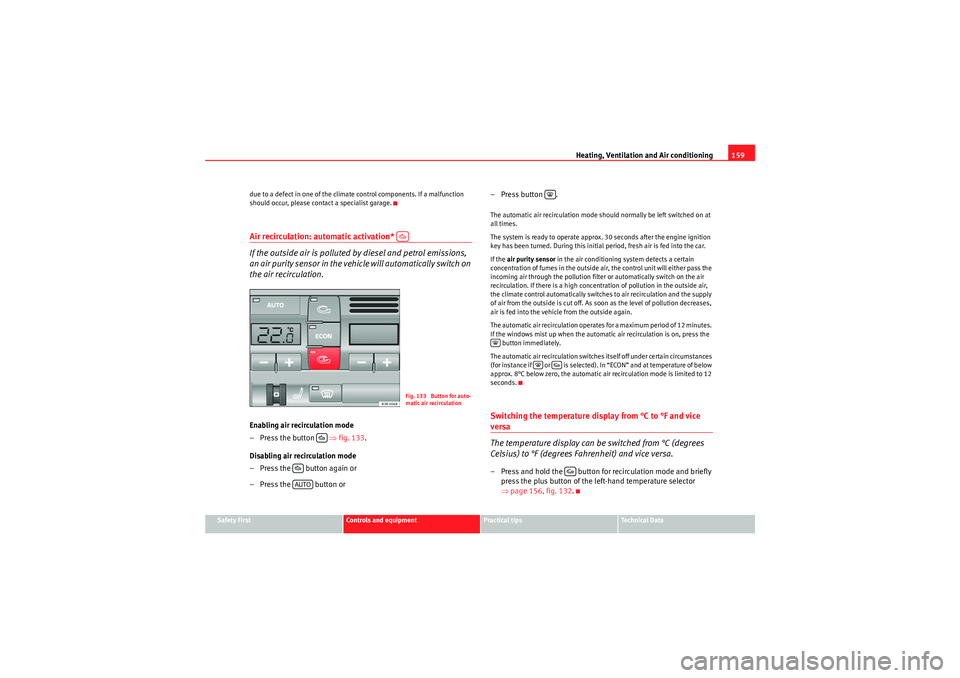

Air recirculation: automatic activation*
If the outside air is polluted by diesel and petrol emissions,
an air purity sensor in the vehicle will automatically switch on
the air recirculation.Enabling air recirculation mode
– Press the button
⇒fig. 133 .
Disabling air recirculation mode
– Press the button again or
– Press the button or – Press button .
The automatic air recirculation mode should normally be left switched on at
all times.
The system is ready to operate approx. 30 seconds after the engine ignition
key has been turned. During this initial period, fresh air is fed into the car.
If the
air purity sensor in the air conditioning system detects a certain
concentration of fumes in the outside air, the control unit will either pass the
incoming air through the pollution filter or automatically switch on the air
recirculation. If there is a high concentration of pollution in the outside air,
the climate control automatically switches to air recirculation and the supply
of air from the outside is cut off. As soon as the level of pollution decreases,
air is fed into the vehicle from the outside again.
The automatic air recirculation operates for a maximum period of 12 minutes.
If the windows mist up when the automatic air recirculation is on, press the button immediately.
The automatic air recirculation switches itself off under certain circumstances
(for instance if or is selected). In “ECON” and at temperature of below
approx. 8°C below zero, the automatic air recirculation mode is limited to 12
seconds.Switching the temperature displa y from °C to °F and vice versa
The temperature display can be switched from °C (degrees
Celsius) to °F (degrees Fahrenheit) and vice versa.– Press and hold the button for recirculation mode and briefly
press the plus button of the left-hand temperature selector
⇒ page 156, fig. 132 .
Fig. 133 Button for auto-
matic air recirculation
AUTO
Exeo_EN.book Seite 159 Freitag, 28. August 2009 10:14 10
Page 163 of 310
Heating, Ventilation and Air conditioning161
Safety First
Controls and equipment
Practical tips
Technical Data
Air outletsThe air outlets ⇒fig. 134 and can be operated as follows:
Outlets and
– The outlets can be opened and closed by turning the left thum- bwheels.
– The direction of air delivery from the outlets can be varied as re quire d using the adjuster in the ce n tre o f ea ch o u t let g rille. The
direction of air flow can be adjusted horizontally and vertically as
desired.The flow of air from the outlets is controlled either automatically or manually,
depending on the operating mode selected. All the outlets can provide air
that is either heated, unheated or cooled.
The heater outlets for the rear footwells are located under the front seats.
They are controlled together with outlets .
Note
The cool air provided by the climate control is mainly issued from outlets
and . To ensure adequate cooling, outlets and should therefore
never be closed completely.Air distribution
The automatically-programmed air distribution can be
altered manually.The buttons , and can be operated either separately or in combi-
nation. To return to automatically controlled air distribution, switch off the
selected functions separately or press the button

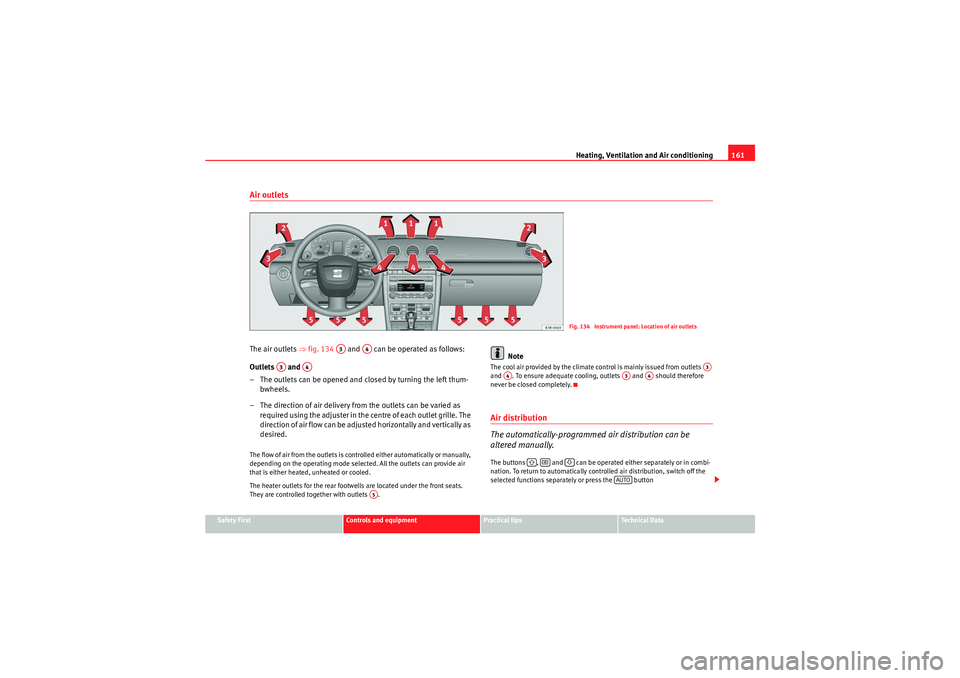

Fig. 134 Instrument panel: Location of air outlets
A3
A4
A3
A4
A5
A3
A4
A3
A4
AUTO
Exeo_EN.book Seite 161 Freitag, 28. August 2009 10:14 10
