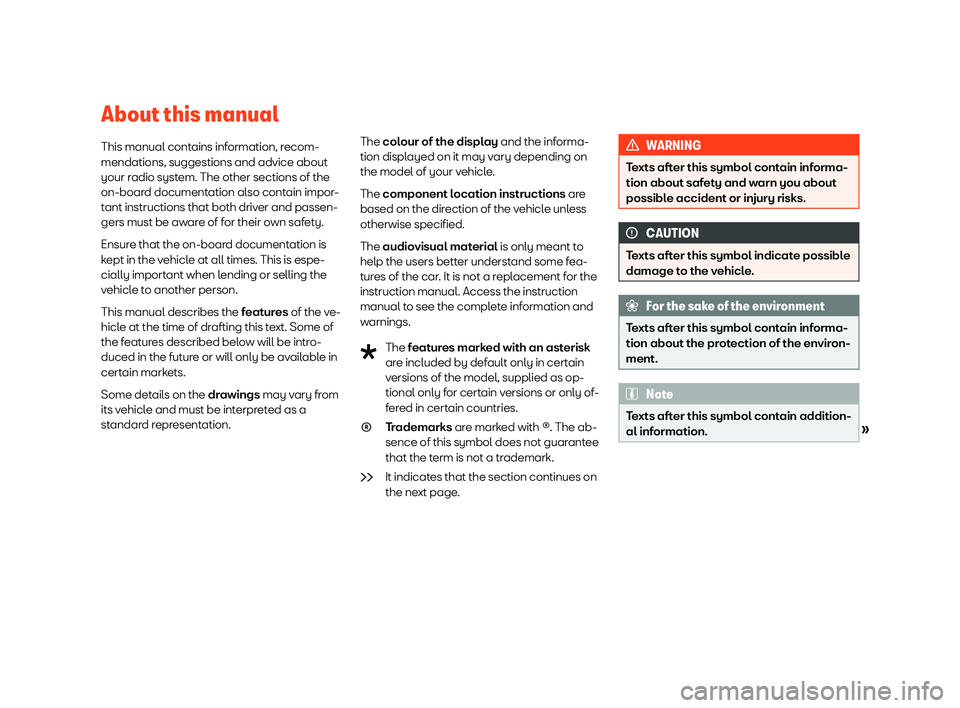

About this manualThis manual contains information, recom-mendations, suggestions and advice about
your radio system. The other sections of the
on-board documentation also contain impor-
tant instructions that both driver and passen-
gers must be aware of for their own safety.
Ensure that the on-board documentation is kept in the vehicle at all times. This is espe-cially important when lending or selling thevehicle to another person.
This manual describes the features of the ve-
hicle at the time of drafting this text. Some of
the features described below will be intro- duced in the future or will only be available incertain markets.
Some details on the drawings may vary from
its vehicle and must be interpreted as a
standard representation.
The colour of the display and the informa-
tion displayed on it may vary depending on
the model of your vehicle.
The component location instructions are
based on the direction of the vehicle unless otherwise specified.
The audiovisual material is only meant to
help the users better understand some fea-
tures of the car. It is not a replacement for the
instruction manual. Access the instructionmanual to see the complete information andwarnings.
The features marked with an asterisk
are included by default only in certain
versions of the model, supplied as op-
tional only for certain versions or only of-
fered in certain countries.
Trademarks are marked with

IntroductionDisplay and function buttons: operation
and effectPress it on some lists to move up a level, one by one.BACK

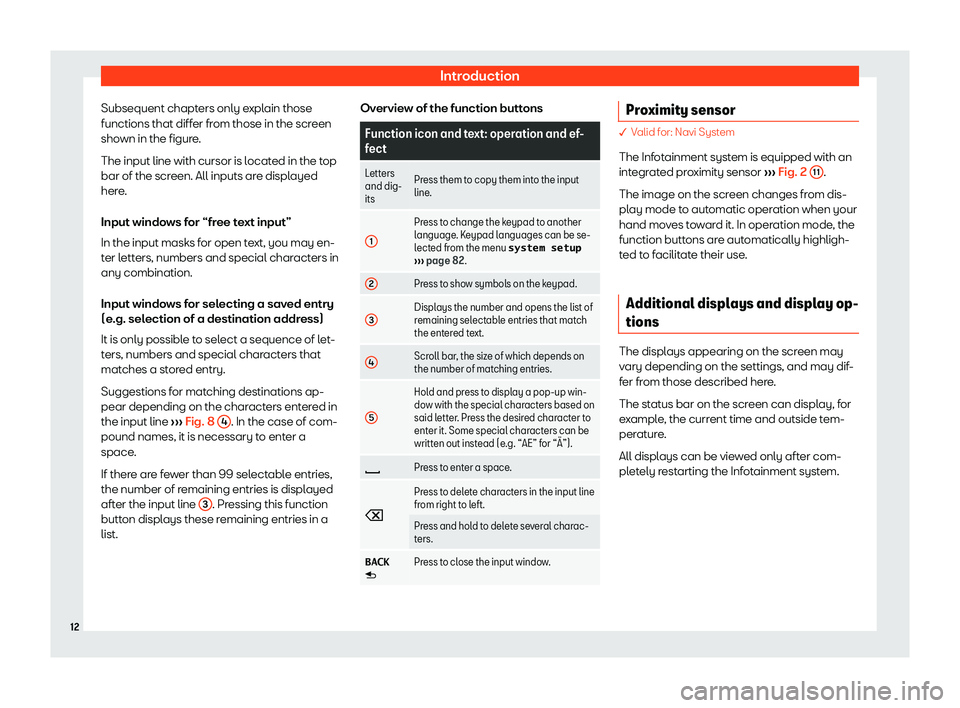

IntroductionSubsequent chapters only explain thosefunctions that differ from those in the screenshown in the figure.
The input line with cursor is located in the top
bar of the screen. All inputs are displayed here.
Input windows for “free text input” In the input masks for open text, you may en-
ter letters, numbers and special characters in
any combination.
Input windows for selecting a saved entry
(e.g. selection of a destination address)
It is only possible to select a sequence of let-
ters, numbers and special characters that
matches a stored entry.
Suggestions for matching destinations ap- pear depending on the characters entered inthe input line

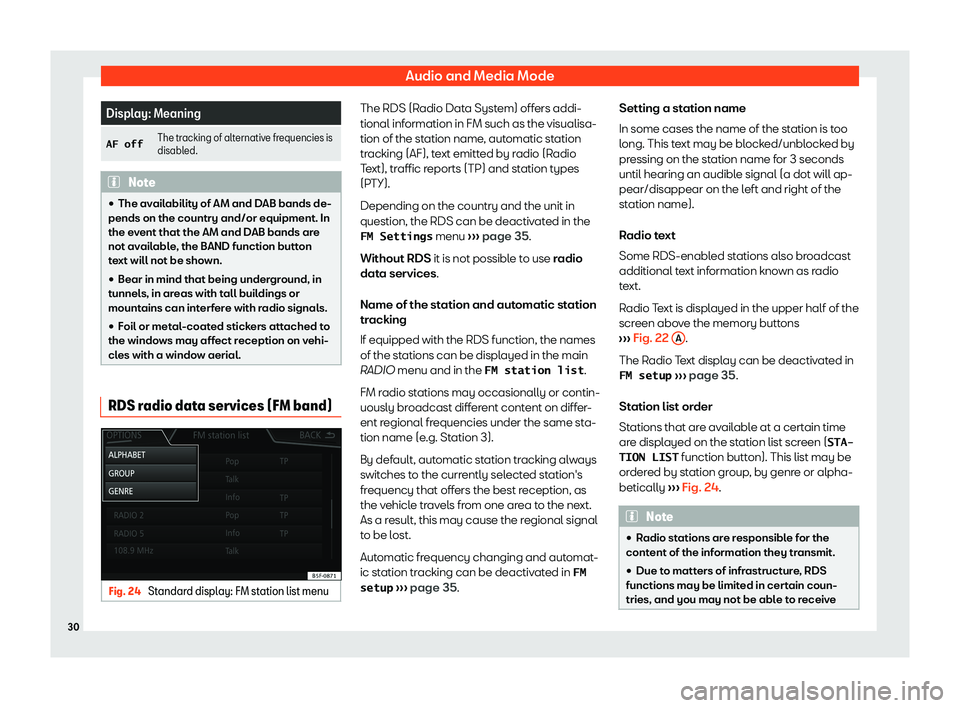

Audio and Media ModeDisplay: MeaningAFoffThe tracking of alternative frequencies isdisabled.Note

Audio and Media Modetraffic announcements, automatic stationtracking (AF) or programme types (PTY).

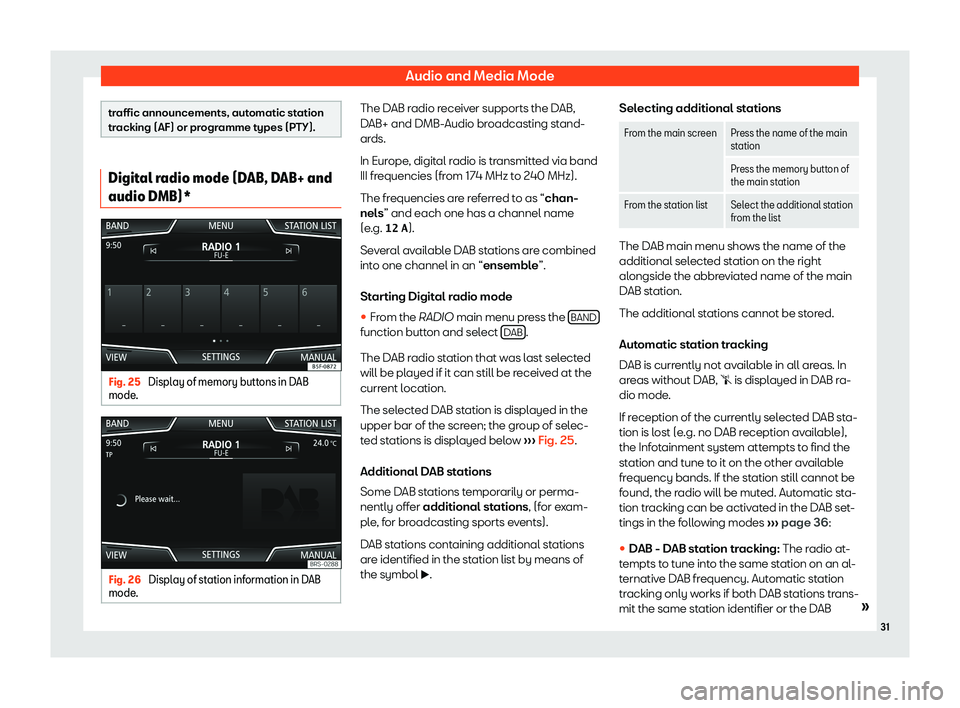

Digital radio mode (DAB, DAB+ and
audio DMB)*
Fig. 25
Display of memory buttons in DAB
mode.
Fig. 26
Display of station information in DAB
mode.
The DAB radio receiver supports the DAB,
DAB+ and DMB-Audio broadcasting stand- ards.
In Europe, digital radio is transmitted via band
III frequencies (from 174 MHz to 240 MHz).
The frequencies are referred to as “ chan-
nels ” and each one has a channel name
(e.g. 12
A
).
Several available DAB stations are combined into one channel in an “ ensemble”.
Starting Digital radio mode

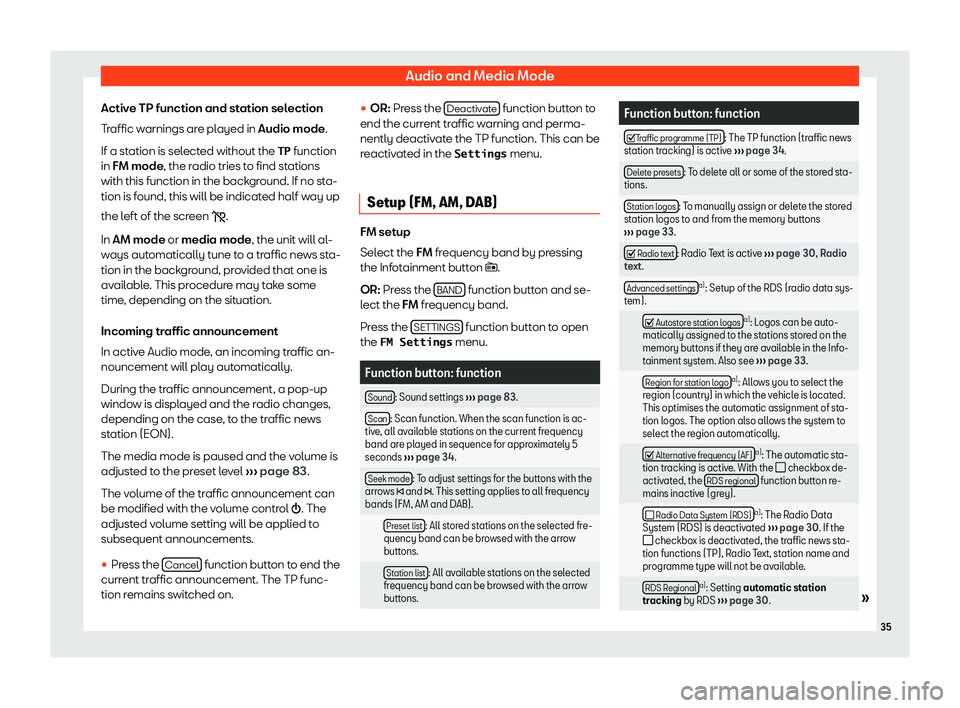

Audio and Media ModeActive TP function and station selection
Traffic warnings are played in Audio mode.
If a station is selected without the TP
function
in FM mode , the radio tries to find stations
with this function in the background. If no sta- tion is found, this will be indicated half way up
the left of the screen .
In AM mode or media mode , the unit will al-
ways automatically tune to a traffic news sta- tion in the background, provided that one isavailable. This procedure may take some
time, depending on the situation.
Incoming traffic announcement
In active Audio mode, an incoming traffic an-
nouncement will play automatically.
During the traffic announcement, a pop-up
window is displayed and the radio changes,
depending on the case, to the traffic news
station (EON).
The media mode is paused and the volume is adjusted to the preset level

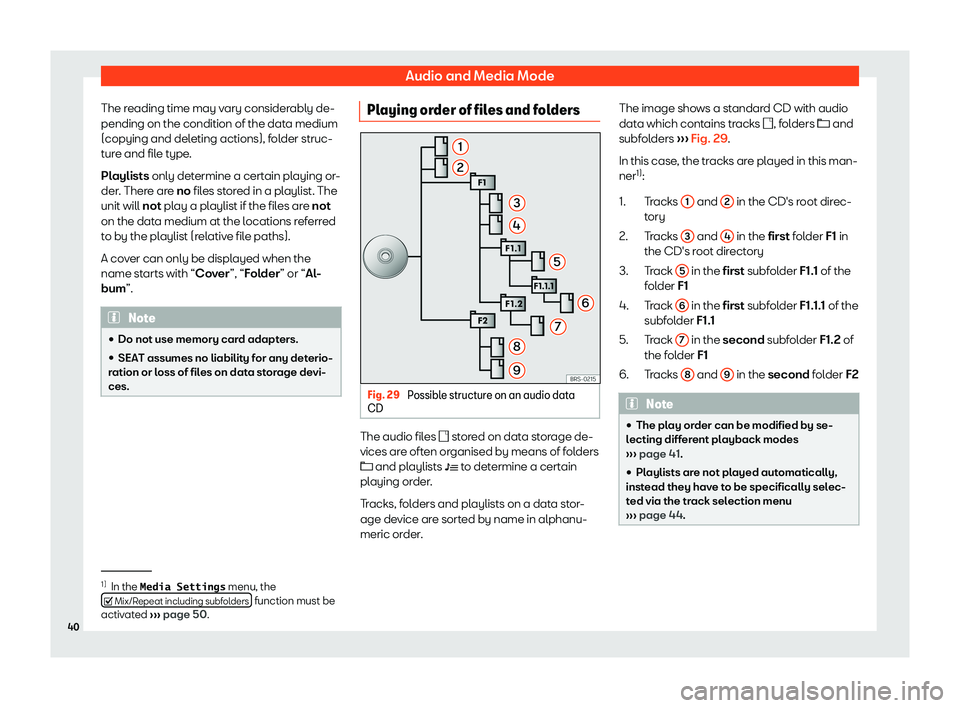

Audio and Media ModeThe reading time may vary considerably de-pending on the condition of the data medium
(copying and deleting actions), folder struc- ture and file type.
Playlists only determine a certain playing or-
der. There are no files stored in a playlist. The
unit will not play a playlist if the files are not
on the data medium at the locations referred
to by the playlist (relative file paths).
A cover can only be displayed when the name starts with “ Cover”, “Folder ” or “Al-
bum ”.Note

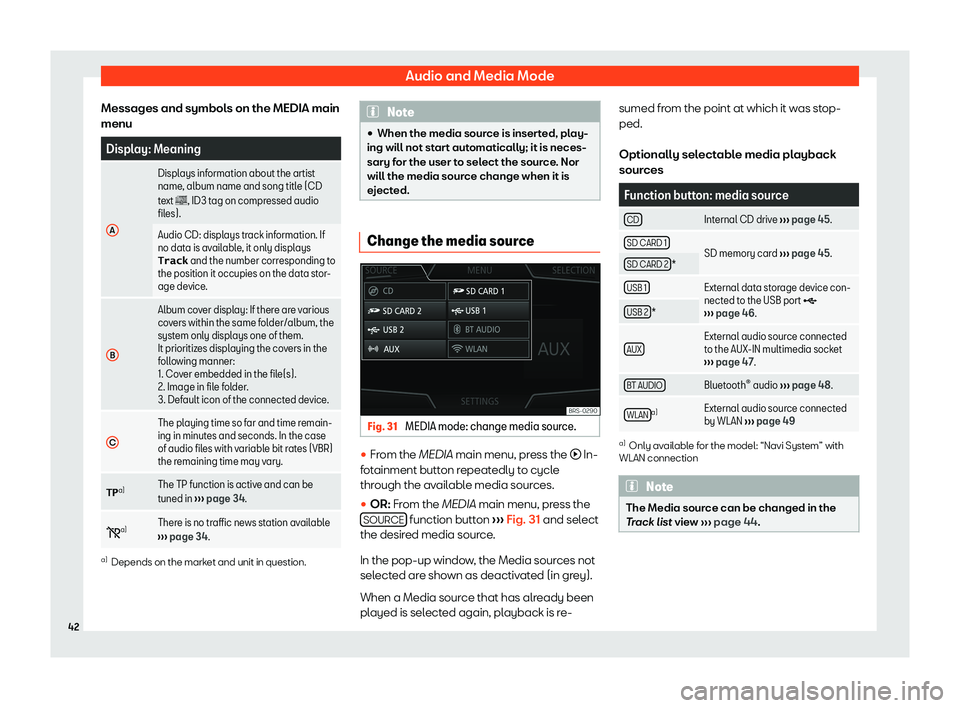

Audio and Media ModeMessages and symbols on the MEDIA main
menuDisplay: MeaningADisplays information about the artist
name, album name and song title (CD
text , ID3 tag on compressed audio
files).Audio CD: displays track information. If no data is available, it only displays
Track and the number corresponding to
the position it occupies on the data stor- age device.BAlbum cover display: If there are various
covers within the same folder/album, the
system only displays one of them.It prioritizes displaying the covers in the following manner:
1. Cover embedded in the file(s).
2. Image in file folder.
3. Default icon of the connected device.CThe playing time so far and time remain- ing in minutes and seconds. In the case
of audio files with variable bit rates (VBR)the remaining time may vary.TP a)The TP function is active and can be
tuned in

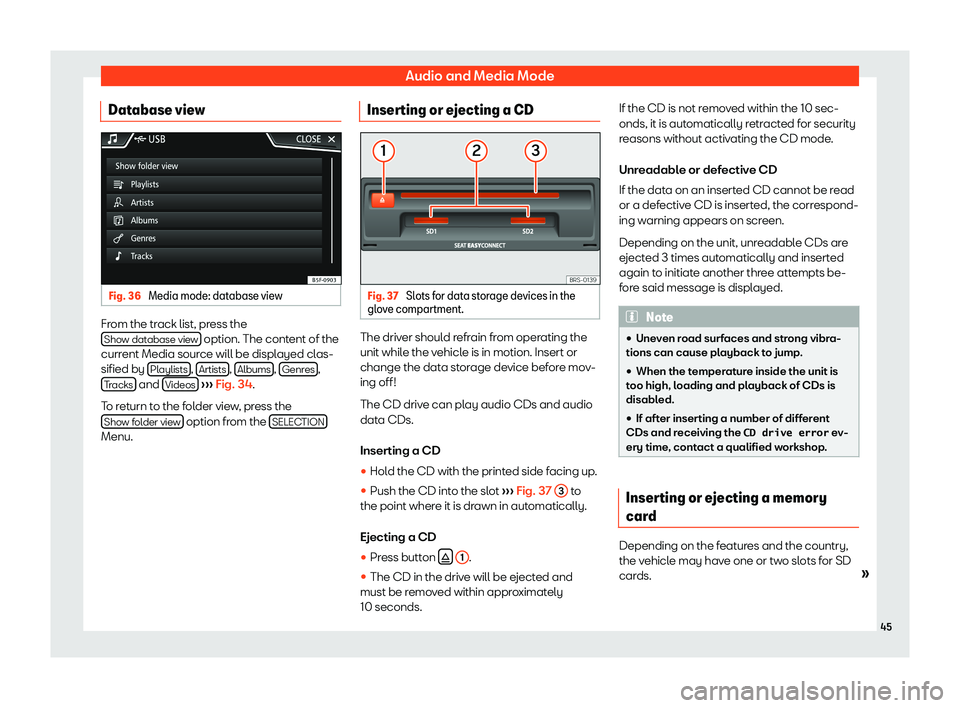

Audio and Media ModeDatabase viewFig. 36
Media mode: database view
From the track list, press theShow database view option. The content of the
current Media source will be displayed clas-
sified by Playlists
, Artists, Albums, Genres,
Tracks and Videos

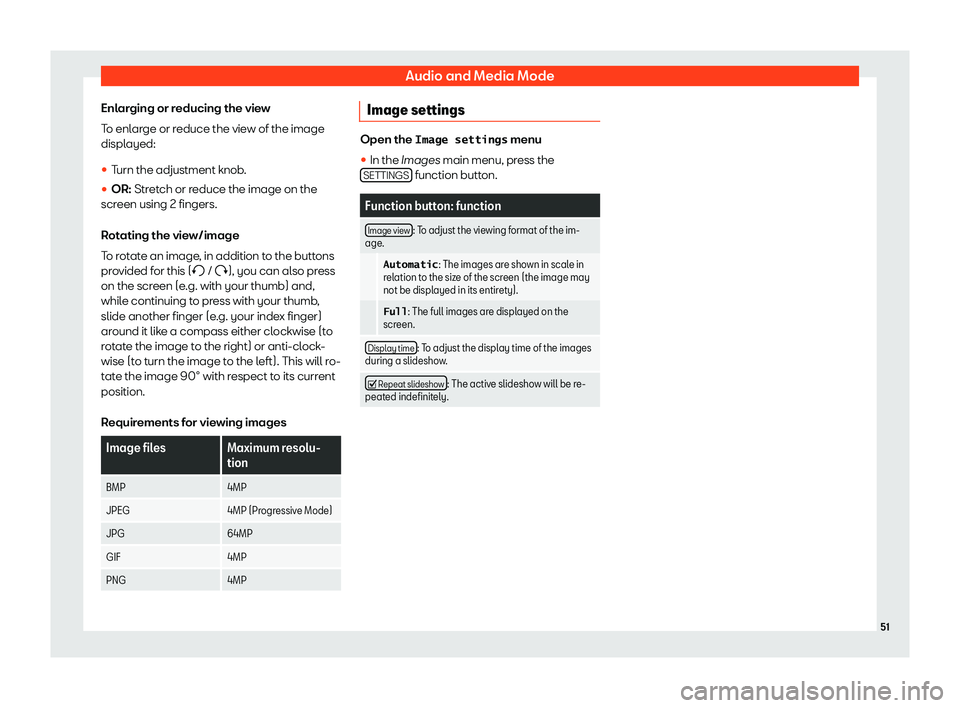

Audio and Media ModeEnlarging or reducing the view
To enlarge or reduce the view of the image
displayed:
