General notes on the technical data 239
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

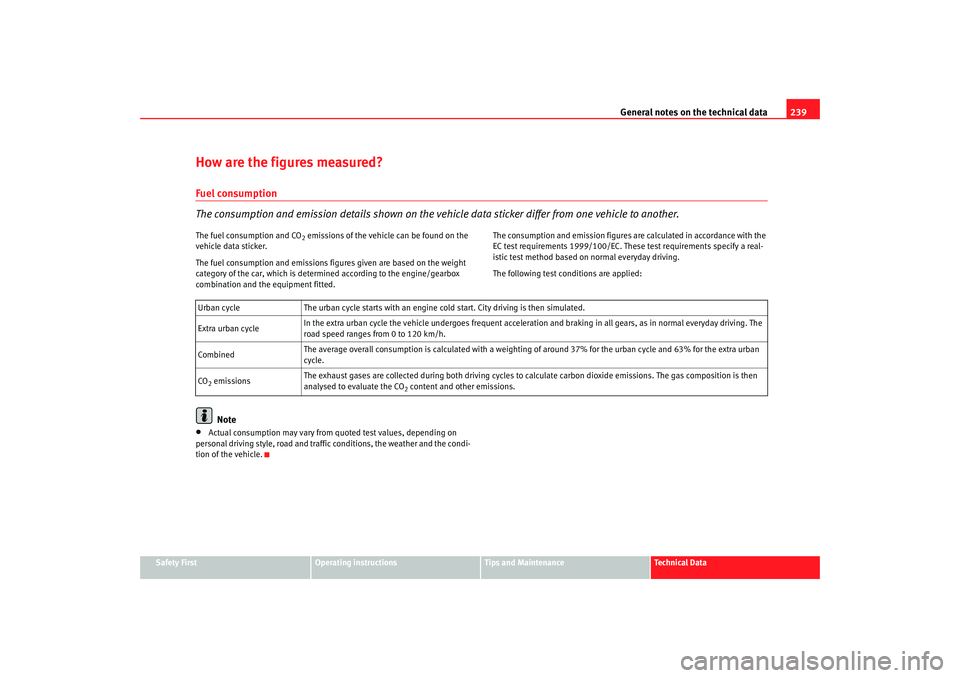

How are the figures measured?Fuel consumption
The consumption and emission details shown on the vehi cle data sticker differ from one vehicle to another.The fuel consumption and CO
2 emissions of the vehicle can be found on the
vehicle data sticker.
The fuel consumption and emissions figures given are based on the weight
category of the car, which is determined according to the engine/gearbox
combination and the equipment fitted. The consumption and emission figures are calculated in accordance with the
EC test requirements 1999/100/EC. The
se test requirements specify a real-
istic test method based on normal everyday driving.
The following test conditions are applied:
Note
•
Actual consumption may vary from quoted test values, depending on
personal driving style, road and traffic conditions, the weather and the condi-
tion of the vehicle. Urban cycle
The urban cycle starts with an engine cold start. City driving is then simulated.
Extra urban cycle In the extra urban cycle the vehicle undergoes frequent acceleration
and braking in all gears, as in normal everyday driving. The
road speed ranges from 0 to 120 km/h.
Combined The average overall consumption is calculat
ed with a weighting of around 37% for the urban cycle and 63% for the extra urban
cycle.
CO2 emissions The exhaust gases are collected during both driving cycles to calculate carbon dioxide emissions. The gas composition is then
analysed to evaluate the CO
2 content and other emissions.
IBI_ANG_0707 Seite 239 Montag, 6. August 2007 3:59 15

General notes on the technical data

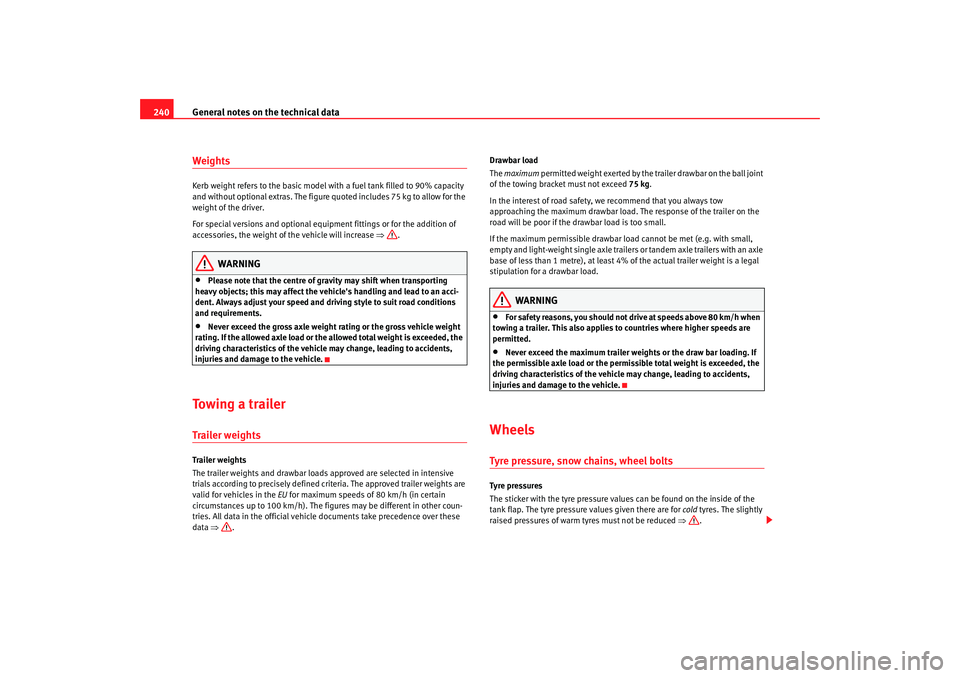

240WeightsKerb weight refers to the basic model with a fuel tank filled to 90% capacity
and without optional extras. The figure quoted includes 75 kg to allow for the
weight of the driver.
For special versions and optional equipment fittings or for the addition of
accessories, the weight of the vehicle will increase ⇒.
WARNING
•
Please note that the centre of gravity may shift when transporting
heavy objects; this may affect the vehi cle's handling and lead to an acci-
dent. Always adjust your speed and dr iving style to suit road conditions
and requirements.
•
Never exceed the gross axle weight rating or the gross vehicle weight
rating. If the allowed axle load or the allowed total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
To w i n g a t r a i l e rTrailer weightsTrailer weights
The trailer weights and drawbar loads approved are selected in intensive
trials according to precisely defined criteria. The approved trailer weights are
valid for vehicles in the EU for maximum speeds of 80 km/h (in certain
circumstances up to 100 km/h). The figu res may be different in other coun-
tries. All data in the official vehicl e documents take precedence over these
data ⇒ . Drawbar load
The
maximum permitted weight exerted by the trailer drawbar on the ball joint
of the towing bracket must not exceed 75 kg.
In the interest of road safety, we recommend that you always tow
approaching the maximum drawbar load. The response of the trailer on the
road will be poor if th e drawbar load is too small.
If the maximum permissible drawbar load cannot be met (e.g. with small,
empty and light-weight single axle trailers or tandem axle trailers with an axle
base of less than 1 metre), at least 4% of the actual trailer weight is a legal
stipulation for a drawbar load.
WARNING
•
For safety reasons, you should not drive at speeds above 80 km/h when
towing a trailer. This also applies to countries where higher speeds are
permitted.
•
Never exceed the maximum trailer weights or the draw bar loading. If
the permissible axle load or the perm issible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
WheelsTyre pressure, snow chains, wheel boltsTyre pressures
The sticker with the tyre pressure values can be found on the inside of the
tank flap. The tyre pressure values given there are for cold tyres. The slightly
raised pressures of warm tyres must not be reduced ⇒.
IBI_ANG_0707 Seite 240 Montag, 6. August 2007 3:59 15

General notes on the technical data 241
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

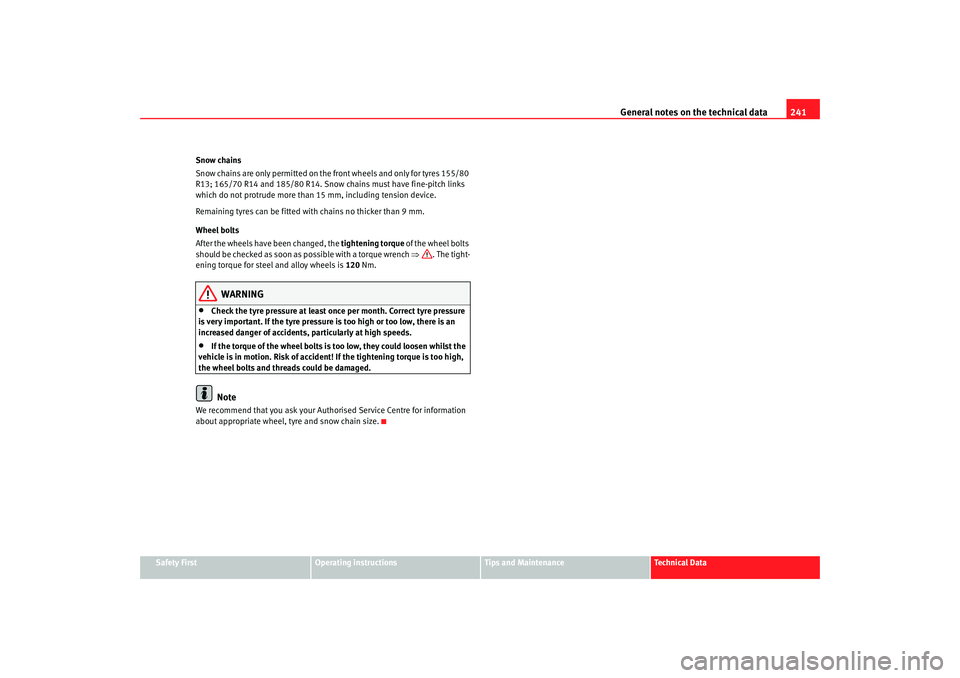

Snow chains
Snow chains are only permitted on the front wheels and only for tyres 155/80
R13; 165/70 R14 and 185/80 R14. Snow ch
ains must have fine-pitch links
which do not protrude more than 15 mm, including tension device.
Remaining tyres can be fitted with chains no thicker than 9 mm.
Wheel bolts
After the wheels have been changed, the tightening torque of the wheel bolts
should be checked as soon as possible with a torque wrench ⇒. The tight-
ening torque for steel and alloy wheels is 120 Nm.
WARNING
•
Check the tyre pressure at least once per month. Correct tyre pressure
is very important. If the tyre pressure is too high or too low, there is an
increased danger of accidents, particularly at high speeds.
•
If the torque of the wheel bolts is too low, they could loosen whilst the
vehicle is in motion. Risk of accident! If the tightening torque is too high,
the wheel bolts and threads could be damaged.Note
We recommend that you ask your Authorised Service Centre for information
about appropriate wheel, tyre and snow chain size.
IBI_ANG_0707 Seite 241 Montag, 6. August 2007 3:59 15

Technical Data
242Te c h n i c a l D a t aChecking fluid levelsFrom time to time, the levels of the different fluids in the
vehicle must be checked. Never fi ll with incorrect fluids, to do
so may cause serious damage to the engine.
Radiator expansion tank
Engine oil dipstick.
Engine oil filler cap
Brake fluid reservoir
Battery
Windscreen washer fluid container
The checking and replenishment of the service fluids are carried out on the
components mentioned above. These operations are described in the
⇒ page 180. Overview
Further explanations, instructions and restrictions on the technical data are
contained as of
⇒page 237.
Note
The layout of parts may vary according to engine.
Fig. 177 Diagram for the
location of the various
elements
A1A2A3A4A5A6
IBI_ANG_0707 Seite 242 Montag, 6. August 2007 3:59 15

Technical Data243
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

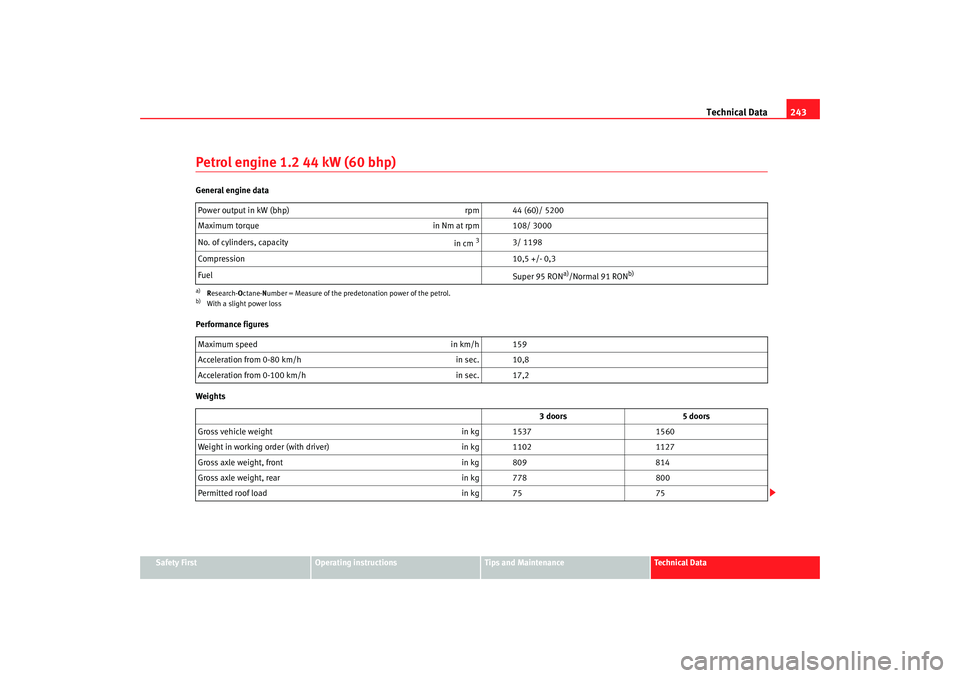

Petrol engine 1.2 44 kW (60 bhp)General engine data
Performance figures
WeightsPower output in kW (bhp)
rpm 44 (60)/ 5200
Maximum torque in Nm at rpm 108/ 3000
No. of cylinders, capacity in cm
3
3/ 1198
Compression 10,5 +/- 0,3
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)With a slight power lossMaximum speed in km/h 159
Acceleration from 0-80 km/h in sec. 10,8
Acceleration from 0-100 km/h in sec. 17,2
3 doors 5 doors
Gross vehicle weight in kg 15371560
Weight in working order (with driver) in kg 11021127
Gross axle weight, front in kg 809814
Gross axle weight, rear in kg 778800
Permitted roof load in kg 7575
IBI_ANG_0707 Seite 243 Montag, 6. August 2007 3:59 15

Technical Data
244Trailer weights

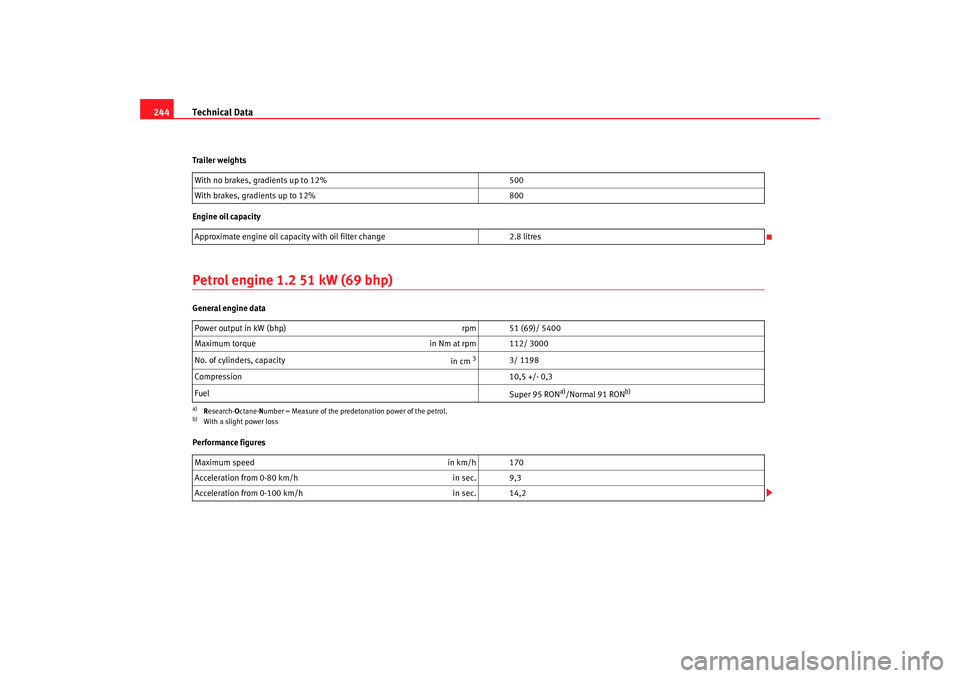

Engine oil capacityPetrol engine 1.2 51 kW (69 bhp)General engine data
Performance figures With no brakes, gradients up to 12%
500
With brakes, gradients up to 12% 800
Approximate engine oil capacity with oil filter change 2.8 litres
Power output in kW (bhp) rpm 51 (69)/ 5400
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders, capacity in cm
3
3/ 1198
Compression 10,5 +/- 0,3
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)With a slight power lossMaximum speed in km/h 170
Acceleration from 0-80 km/h in sec. 9,3
Acceleration from 0-100 km/h in sec. 14,2
IBI_ANG_0707 Seite 244 Montag, 6. August 2007 3:59 15

Technical Data245
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil capacity
Petrol engine 1.4 63 kW (86 bhp)General engine data
3 doors
5 doors
Gross vehicle weight in kg 15371560
Weight in working order (with driver) in kg 11021127
Gross axle weight, front in kg 809814
Gross axle weight, rear in kg 778800
Permitted roof load in kg 7575
With no brakes, gradients up to 12% 500
With brakes, gradients up to 12% 800
Approximate engine oil capacity with oil filter change 3.2 litres
Power output in kW (bhp) rpm 63 (86)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5 +/- 0,3
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.
IBI_ANG_0707 Seite 245 Montag, 6. August 2007 3:59 15
b)Slight power loss

Technical Data
246Performance figures
Weights
Trailer weights
Engine oil capacity Maximum speed
in km/h 180
Acceleration from 0-80 km/h in sec. 8,1
Acceleration from 0-100 km/h in sec. 11,9
3 doors 5 doors
Gross vehicle weight in kg 15421567
Weight in working order (with driver) in kg 11031128
Gross axle weight, front in kg 815820
Gross axle weight, rear in kg 775795
Permitted roof load in kg 7575
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1000
Approximate engine oil capacity with oil filter change 3.2 litres
IBI_ANG_0707 Seite 246 Montag, 6. August 2007 3:59 15

Technical Data247
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.4 litre 55 kW (75 hp). AutomaticGeneral engine data
Performance figures
WeightsPower output in kW (bhp)
rpm 55 (75)/ 5000
Maximum torque in Nm at rpm 126/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5
Fuel Super 95 RON
a)/Normal 91 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)Slight power lossMaximum speed in km/h 169
Acceleration from 0-80 km/h in sec. 10,1
Acceleration from 0-100 km/h in sec. 15,6
3 doors 5 doors
Gross vehicle weight in kg 15621589
Weight in working order (with driver) in kg 11421169
Gross axle weight, front in kg 855860
Gross axle weight, rear in kg 770795
Permitted roof load in kg 7575
IBI_ANG_0707 Seite 247 Montag, 6. August 2007 3:59 15

Technical Data
248Trailer weights

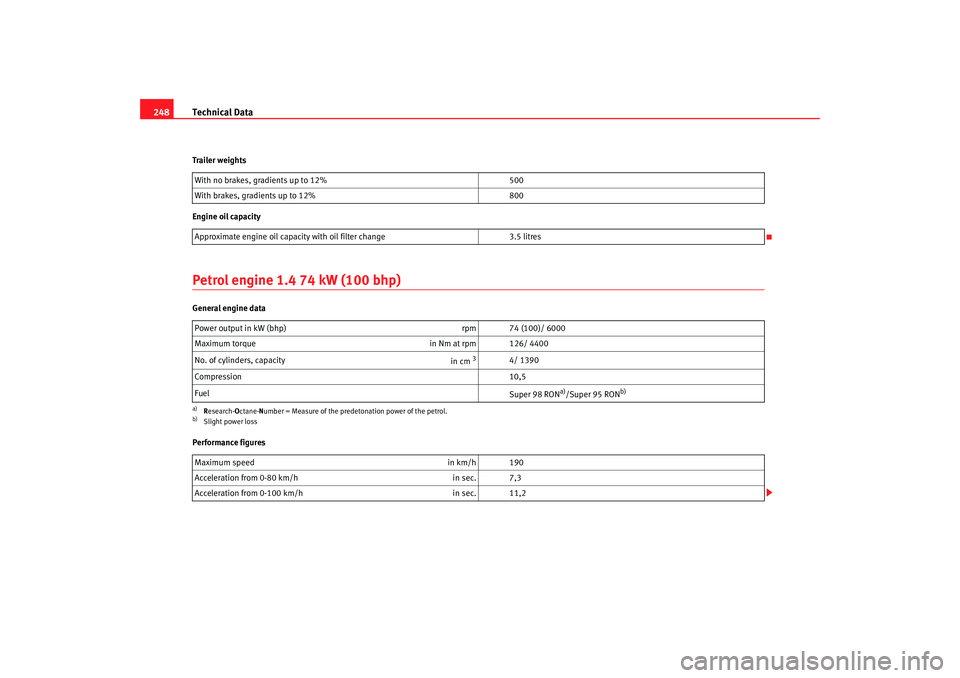

Engine oil capacityPetrol engine 1.4 74 kW (100 bhp)General engine data
Performance figures With no brakes, gradients up to 12%
500
With brakes, gradients up to 12% 800
Approximate engine oil capacity with oil filter change 3.5 litres
Power output in kW (bhp) rpm 74 (100)/ 6000
Maximum torque in Nm at rpm 126/ 4400
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5
Fuel Super 98 RON
a)/Super 95 RON
b)
a)Research- Octane- Number = Measure of the predetonation power of the petrol.b)Slight power lossMaximum speed in km/h 190
Acceleration from 0-80 km/h in sec. 7,3
Acceleration from 0-100 km/h in sec. 11,2
