SKODA FABIA 2007 1.G / 6Y SymphonyCD Car Radio Manual

S I M P LY C L E V E R
ŠkodaFabia AUTORÁDIO SYMPHONY S CD
AUTORADIO SYMPHONY MIT CD
CAR RADIO SYMPHONY WITH CDwww.skoda-auto.cz
www.skoda-auto.com Autorádio Symphony
Škoda Auto 08.05S00.5610.15.99
6Y0 012 095 DF

GB
1
Table of Contents
Information
Dear customer,
If you did not receive any appliance-
specific security code, your vehicle is
equipped with a comfort coding
system for which you do not require
any code. If disconnecting and
reconnecting the battery, first switch
on the ignition with the key in the igni-
tion switch and only then turn on the
radio. If you nevertheless still wish to
have the code, please ask your Skoda
Dealer.
The appliance conforms to EMC Safety
requirements (EC directive 89/336 EEC,
and 93/68/EEC) in compliance with the
European standards EN 55013 and EN
55020.General view 2
Brief outline of operation 3
Important information 4
General functions 5
Radio operation 6
CD operation 10
Set-up menu 12
Security code 17
Guarantee 18
Brief technical description 19
Key word index 20
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 1

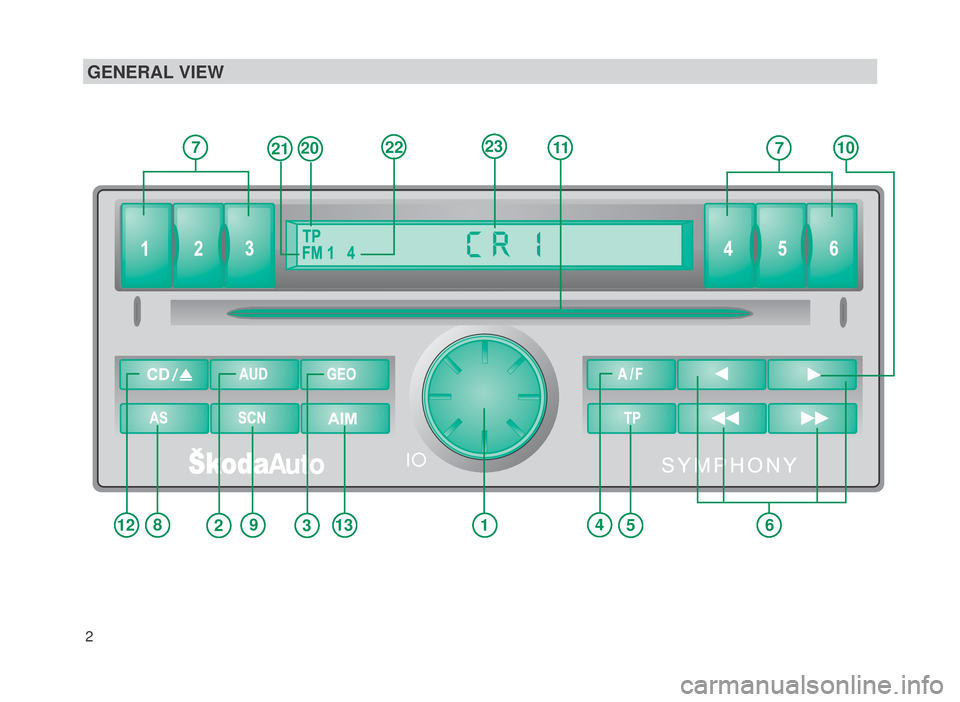

GENERAL VIEW
2
FM1 4
TP
1212313 22
11
23
20 7
9
8
64
5
21107
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 2

GB
3
Brief outline of operation
Push / turning knob
- Turning on and off (press). . . . . . 5
- Volume control (turn) . . . . . . . . . 5
- More setting functions in diverse menus
AUD
- Sound setting for treble and bass. . . . . . . . . . . . . . 5
GEOmetry
- Sound tone (balance, fader) . . . . 5
A/F - AM / FM band change . . . . . . . . 6
- Memory range switching . . . . . . . 7
TP
- Radio traffic service . . . . . . . . . 6,9
- Calling up the set-up menu . . . . 12 Control buttons



- Station scan up / down . . . . . . . . 7
- Menu up / down . . . . . . . . . . . . 12
- CD control . . . . . . . . . . . . . . . . 10
1....6
- Radio station buttons . . . . . . . . . 7
- CD changer control . . . . . . . . . . 11
AS
- Automatic store . . . . . . . . . . . . . 7
SCN
- Wavelength range scan . . . . . . . 8
- CD scan . . . . . . . . . . . . . . . 10,11
Flashing LED
. . . . . . . . . . 4, 13, 17
CD Shaft . . . . . . . . . . . . . . . . . . 10
CD
- CD operation / CD ejection . . . . 11 AIM
- TIM (Traffic Information Memory) 8
Anti-theft security
. . . . . . . . 4,17
Display indications:
TP: Traffic program stations set 6
FM 1 VHF memory locations 1-6 6
FM 2 VHF memory locations 7-12. 6
AM 1 LW / MW
Memory locations 1-6 . . . . . . . . . 6
AM 2 LW / MW Memory locations 7-12 . . . . . . . . 6
Radio traffic service range
Memory locations 1-6 . . . . . . . . . 6
Station numbers . . . . . . . . . . . . . 7
Program name / Frequency . . . . 9
Item Function Page
Item Function Page
Item Function Page











 \b

20
21
21
21
21
21
22
23
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 3

Important Information
Caution!!!
When driving a vehicle, always
remember that your concentration
should be focussed on the road
traffic!!!
Modern road traffic always requires the
full concentration of the traffic partici-
pants.
The extensive equipment details in
modern car radios offer not only enter-
tainment but also a variety of information
about the traffic situation, weather condi-
tions etc.
Please remember only to operate the
car radio when the traffic situation
really permits.
Please observe the following instruc-
tions!!!
• Familiarise yourself with the extensive functions in your car radio before start-
ing to drive and refer to the instruction
manual when necessary.
• The more complicated settings, e.g. those in the set-up menu which are
usually only necessary once or rarely,
should be done while the vehicle is still
stationary before you start to drive. • If during the drive you are unclear
about functions in the car radio or if
unexpected effects set in, check these
when the vehicle is stationary and refer
to the instruction manual if necessary.
• Select a volume which allows acoustic sounds from outside to be heard in the
vehicle at all times.
Comfort radio coding
• Your car radio is equipped with an appliance-specific security code. The
security code need only be entered
when the radio is used for the first time
in the vehicle. After the first input of the
code number, the radio "gets to know”
its vehicle. Accordingly, it is not neces-
sary to enter the code number after an
interruption of vehicle voltage either.
The radio automatically checks the
vehicle’s data when turned on after the
ignition has been switched on. It is only
necessary to enter the code number if
it becomes apparent that the radio is in
another vehicle. If you did not receive any appliance-
specific security code, your vehicle is
equipped with a comfort coding
system for which you do not require
any code. If disconnecting and
reconnecting the battery, first switch
on the ignition with the key in the igni-
tion switch and only then turn on the
radio. If you nevertheless still wish to
have the code, please ask your Skoda
Dealer.
The code number should not be kept
in the vehicle but left in a safe place at
home.
Since the appliance is only able to func-
tion if the correct code is entered, it is
useless after theft and therefore protec-
ted against theft.
When the appliance is turned off and the
ignition is switched off, a flashing LED

located in button
indicates anti-theft
protection.
4
Operating the radio Comfort radio coding
while driving
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 4

GB
General functions
Turning on and off
By pressing the button
you switch the
radio on and off. When switched on, the
appliance assumes the parameters last
heard for treble, bass, balance etc. Only the
radio volume may be reduced to the
maximum volume in the set-up menu when
the radio is turned on.
V olume control
When on, the on / off button
sticks out of
the front, which makes it possible to set the
volume.
T urn the button
to the right or left to set
the required volume.
Setting the sound
Y ou can set the sound tone of the radio to
suit your requirements. Please note that
the radio receiver, CD player, CD changer,
TIM playback and telephone allow sepa-
rate settings and storing.
Proceed as follows:
Bass setting:
• Press the AUDbutton
. The indication
BASS appears in the display with the
current scale value.
• Use the control

to set the required
bass setting from -9 to +9.
T reble setting:
• Press the AUDbutton
(if you wish to
select treble regulation from normal op-
eration, press button
twice to go to the
treble setting. The indication TRE
appears in the display with the current
scale value.
• Use the control

to set the required
treble setting from -9to +9.
5 seconds after the last setting or when
the button
is pressed again, the car
radio switches back to normal operation
and stores the set values.
Geometry (balance and fader)
Y ou can set the geometry of the sound tone
to suit your requirements.
Proceed as follows:
Balance:
• Press the GEObutton .
The indication BAL appears in the display
with the current scale value.
• Use the control
to set the required
balance setting from LEFT 9 via CENTER
to RIGHT 9.
Fader:
• By pressing the GEO button again (if
you wish to select fader control from nor-
mal operation, you must press button
twice), you go to fader control. The indica-
tion FA D appears in the display with the
current scale value.
• Use the control
to set the required fader
setting from REAR 9 via CENTER to
FRONT 9.
5 seconds after the last setting or when
the button
is pressed again, the car
radio switches over automatically to normal
operation and stores the set values.
5
T urning on and off Sound setting Geometry
V olume control
132
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 5

Radio operation
Switching range
Your radio is equipped with a receiver for the
FM and AM bands. There are 6 memory
locations in the FM 1, FM 2 and TP ranges
and in the AM range there are 6 memory
locations each in AM 1 and AM 2. The selec-
ted range is shown in the display, item .
When the AM band is scanned, stations are
sought on the LW band and the MW band
successively.
Switch-over AM - FM:
• By depressing A/F button \b for a few
moments, switches your appliance
between the bands AM and FM. In each
case the last program heard is set.
Switching between FM 1 and FM 2
(Display = FM) :
• Press the A/Fbutton \bbriefly to switch
between the ranges FM 1 (memory loca-
tions 1 to 6) and FM 2 (memory locations
7 to 12). Here the program last heard in
this range is set.
Switching between AM 1- AM 2
(Display = AM):
• Press the A/Fbutton \bbriefly to switch
between the AM 1 and AM 2 ranges.
Here, the program in this range which was
last heard is set.
Switching to TP (radio traffic service
active, display ):
• Press the TPbutton briefly to switch to
the TP Range (Traffic Program). In this
range only programs with radio traffic ser-
vice (TP programs) can be set. Traffic
announcements are broadcast always in a
minimum volume which can be set in the
set-up menu. The reports also interrupt
the CD playback. After the traffic report,
the appliance switches back to the pre-
vious operating state. TP programs are indicated in the display

by "TP”. The broadcasting of a traffic report
is indicated in the display by
"
INFOPRGNAME”. If there is no longer any
reception for the set TP program, the
appliance switches automatically to the next
TP Program with clear reception. "
NO TPTP
SEEK“ then appears in the display. If you
do not wish to receive any traffic report,
listen to the program you wish in one of the
FM ranges: FM 1 or FM 2.
6
FM1 4
TP
2120
45
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 6

GB
Radio operation
Program selection Storing
7
with the station button
• Press a station button briefly to set the
stored frequency. The selected station is
shown in the display .
Search
• Press the control button

or
to start the search in the selected direc-
tion.
The appliance now seeks the next sta-
tion with reception in the set range, FM,
AM or TP. Only TP stations are set in
the TP range.
Manual tuning
• Press the control button
or  .
If the button is pressed briefly, the set
frequency is shown. If the button is
depressed for longer, the frequency of
the selected direction is changed accor-
dingly upwards or downwards until you
release the button again.
Scan
• By pressing the SCNbutton , all sta-
tions in the range just set are played
briefly one after the other.
If the button is pressed again, this func-
tion ends and the current program
remains set.
Storing
A maximum of 30 programs can be set
with six station buttons in the respective
wavelength ranges:
AM 1 + AM 2 range =12 programs
FM 1 + FM 2 range =12 programs
TP range = 6 programs
Stored programs can be called up by
briefly pressing the respective station but-
ton.
Manual storing
• When the required station button is
depressed for a few moments, the pro-
gram just set is stored in the respective
program location in the set range AM 1,
AM 2, FM 1, FM 2 or TP. If you have activated "Beep” in the set-up menu, the
storing process is acoustically con-
firmed. This stored program can now be
called up again and again by pressing
the respective station button
.
Automatic storing
(only applies to the ranges FM 2,
AM 2, TP)
• By pressing the
ASbutton , the auto-
matic storing function is started. In this
process the six programs with the clear-
est reception in the selected ranges
FM 2, TP or AM 2 are automatically
stored. The function is indicated in the
display by STORE.
FM1 4
TP
2221
89
77
6
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 7

Radio operation
TIM Function
(Traffic Information Memory)
With the TIM Function, up to 9 traffic anno-
uncements with a total length of a maxi-
mum 4 minutes are automatically
stored by means of a built-in memory.
The recording is automatic if the set pro-
gram transmits traffic broadcasts (recognisa-
ble by the indication "TP"  in the display).
Standby Recording
Standby recordings take place when the
appliance is switched OFF for a limited
time.
These recordings are deleted 6 hours after
the time has run down. Switching on the
appliance ends the readiness to record. 2-hour recording
If the TP range was selected before the
appliance was switched off, all following
traffic announcements are recorded auto-
matically in the next two hours. This is brief-
ly indicated in the display by the message
"
TIM2 h
".
Recording for 24 hours
By pressing the AIM button when the
appliance is switched off, a 24-hour record-
ing mode is activated. The last heard pro-
gram and "
TIM24 h" are briefly indicated in
the display. If the last heard program was
not a TP program, a TP program is set
automatically.
Information:
• If the memory is full, the next report is recorded over the first recorded report.
• If a traffic report is longer than 4 minutes, it starts to record over the beginning of the
report recording.
• If the radio is switched on during the recording of a report, the recording is
stopped. T
raffic announcements played back
chronologically
When the AIM button is pressed, the
most recent report is played back. The
recording number and the time of the re-
spective report are shown in the display, for
example "
TIM3 15:05". In this way all stored
reports are played back one after another.
By pressing the AIM button again, the
appliance is switched back to the original
state.
Repeating the traffic report
If the control button
is pressed once
during the TIM playback, the current traffic
report is repeated.
T raffic announcements played back in
any sequence
Press the control button
briefly twice
during the TIM playback. Now by pressing
the control button
or  you can
switch up and down between the recorded
reports.
Fast forward and backward winding
Keep the control button

or
depressed until the required point is found
in the report.
8
FM1 4
TP
13
20
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 8

Radio operation
RDS functions
RDS, (Radio Data System) makes it pos-
sible to show the name of the program
received
23.
During the drive RDS automatically as-
sumes the function of seeking and if
necessary setting alternative frequencies
for the set program to ensure the best
possible reception within a transmitting
range even under unfavourable condi-
tions
23.
Storing RDS Programs
When storing RDS programs, the corre-
sponding station button must not be
pressed until its program name is shown
in the display. This ensures to a large
extent that all RDS data can be evaluated
and stored if required.
T ake care also that no "scroll text” is
shown in the display when storing as this
will be stored instead of the program
name then.
When a stored RDS program is called up,
the corresponding program name appears
23in the display. If the reception of the
stored frequency is not good, the appli-
ance automatically selects an alternative
frequency (best station function) of the
same program.
General Information
In unfavourable conditions, e.g. on moun-
tainous stretches, the appliance checks
alternative frequencies very often. This
may cause momentary muting.
Mode of operation of RDS
In addition to the normal radio signal, an
inaudible digital flow of data is sent with
RDS. This flow contains among other
things the following data:
Program identification (PI Code):
With the PI code, the radio recognises the
program just received.
Program Service Name (PS code):
The PS code transmits the name which is
to be shown in the display
23.
The PS code is used by some programs
to transmit additional information which is
shown in the display.
Alternative frequencies (AF List):
A program is normally transmitted from
several broadcasting stations on different
frequencies. The AF list contains the fre-
quencies which this receiver can set for
this program. T
raffic Broadcast Code (TP
Code = Traffic
Program):
Code for a radio traffic service station.
Announcement Code (T
A =Traffic
Announcement):
With the TA Code, the appliance recog-
nises a radio traffic service announce-
ment. If necessary, the volume of the
appliance is raised and the CD operation
interrupted.
Music / Speech switchover (MS Code)
For spoken programs the MS code
switches the frequency to good speech
intelligibility.
Catastrophe reports
(RDS Code designation =PTY 31)
Catastrophe reports have priority above
all other functions.
EON (
Enhanced information concerning
Other Networks),
Programs which use EON take over traffic
announcements from other programs.
During a report the name of the other pro-
gram is shown
23in the display.
9
GB
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 9
