Fuses and light bulbs
259
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Fuse cover in engine compartment The fuse box in the engine comp
artment exists in two different
versions. You can determine which version your vehicle is fitted with after removing the fuse cover at the location of the fuses.On some vehicles, the battery cover
must be removed before removing
the fuse cover
⇒
page 232.
Removing fuse cover – Move the circlips
⇒
fig. 238
as far as the stop, the symbol

appears behind the circlip and remove the cover.
Installing fuse cover – Position the fuse cover on the fuse box and push the circlips as far
as the stop - the symbol
 is visible behind the circlip.
Caution
•
When unlocking and locking the fuse cover,
it must be pressed on the sides to
the box, otherwise damage can
occur to the locking mechanism.
•
Carefully position the fuse cover in th
e engine compartment. If the cover was
not correctly positioned, water can get into
the fuses and this results in a damage
to the vehicle!
Fuse assignment in engine compartmentCertain electrical components are only standard on certain vehicle model versions or only suppliable as optional
equipment for certain models.
Fig. 238 Fuse cover in engine compartment
AA
AA
No.
Power consumer
Amperes
F1
Not assigned
F2
Control unit for automatic gearbox DQ 200
30
F3
Measuring circuit
5
F4
Valves for ABS
30/20
F5
Control unit for automatic gearbox
15
F6
Instrument cluster, windshield
wiper lever and turn sig-
nal light lever
5
F7
Power suppy terminal 15, Starter
40
F8
Radio
15
F9
Phone
5
F10
Engine control unit, Main relay
5/10
F11
Control unit for auxiliary heating
20
F12
Control unit for CAN databus
5
Fig. 239 Schematic repre- sentation of fuse carrier in engine compartment
se0.1.book Page 259 Frida
y, April 10, 2009 3:19 PM

Fuses and light bulbs
261
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Electrically adjustable
seats are protected by
automatic circuit breakers
, which
switch on again automatically after a fe
w seconds after the overload has been
eliminated.BulbsChanging bulbsThe relevant lamp must always be switch
ed off before a light bulb is replaced.
Defect light bulbs should only be replaced
with light bulbs of the same type. The
designation is located on the light socket or the glass bulb. Changing certain bulbs is not something wh
ich you can do yourself, but requires to
be done by a specialist. Other parts of the vehicle must be removed in order to
12
Central locking control unit
10
13
Diagnostic socket, Light switch
10
14
Control unit for automatic gearbox, Selector lever lock
5
15
Central control unit - interior lights
5
16
Climatronic
10
17
Not assigned
18
Not assigned
19
Control unit for trailer detection
5
20
Not assigned
21
Cornering lights for the left and right side
10
22
Air blower for Climatronic
40
23
Front power window
30
24
Cigarette lighter
25
25
Rear window heaterRear window heater, Auxiliar
y heating (auxiliary heating
and ventilation)
2530
26
Power socket in the luggage compartment
20
27
Fuel pump relay, Injection valves (diesel engine)
15
28
Not assigned
29
Engine control unit, Crankcase ventilation heater
10
30
Control unit for automatic gearbox
20
31
Vacuum pump
20
32
Rear power window
30
33
Electric sliding/tilting roof
25
34
Control unit for convenience functions
20
35
Anti-theft alarm system
5
No.
Power consumer
Amperes
36
Headlight cleaning system
20
37
Front seat heating
30
38
Heated rear seats
30
39
Not assigned
40
Air blower for heating and air conditioning
40
41
Rear window wiper
15
42
Not assigned
43
Towing device
15
44
Towing device
20
45
Towing device
15
46
Heated windscreen washer nozzles
5
47
Relay for auxiliary heating
5
48
Not assigned
49
Light switch
5
No.
Power consumer
Amperes
se0.1.book Page 261 Frida
y, April 10, 2009 3:19 PM

Fuses and light bulbs
263
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING
•
Bulbs H7 and H1 are pressurised and
may burst when changing the bulb
- risk of injury!•
It is recommended to wear gloves
and eye protection
when changing a
light bulb.•
Gas discharge bulbs* (xenon bulbs) operate with a high voltage, profes-
sional knowledge is required - danger to life!
Caution
Do not take hold of the glass bulb with
naked fingers (even the smallest amount of
dirt reduces the working life of the light bu
lb). Use a clean cloth, serviette or some-
thing similar.
Note
This Owner's Manual only describes the replacement of bulbs where it is assumed that no major complications wi
ll arise. Other light bulbs should be replaced by your
specialist garage.Front headlight
Positions of the light bulbs in the front headlight
⇒fig. 241
.
- Front turn signal light - parking lights and low beam - main beam lightRemoving the headlightThe headlight must be removed in order to change the light bulb of the parking lights, low beam lights and main beam lights as well as the turn signal lights. Removing the headlight – Switch the ignition and all lights off. – Open the bonnet
⇒
page 224.
– Unscrew the plastic nut
⇒
fig. 242
.
– Pull the fuse in upward direction. – Pull the locking lever of the headlight as far as the stop in the direction
of arrow .
Fig. 241 Front headlight: Installing the light bulbs
AAABAC
Fig. 242 Front headlight: Installing the light bulbs
AA
AB
A1
se0.1.book Page 263 Frida
y, April 10, 2009 3:19 PM

Fuses and light bulbs
265
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Removing the light bulb for the low beam light – Switch the ignition and all lights off. – Remove the headlight
⇒
page 263.
– Remove the protective cap
⇒
page 263, fig. 241
.
– Turn the connector with the light bulb up to the stop towards the
left and remove
⇒
page 264, fig. 244
.
– Replace the lamp, insert the connector with the new lamp and turn to
the right up to the stop.
– Insert the protective cap.
Note
•
In order to facilitate the removal of the socket with the bulb for the parking light,
we recommend to remove first of al
l the bulb for the low beam light.
•
We recommend that you have the headli
ght setting checked by a specialist
garage after installing the headlight.Main beam light– Switch the ignition and all lights off.
– Remove the headlight
⇒
page 263.
– Remove the protective cap
⇒
page 263, fig. 241
.
– Unplug plug
⇒
fig. 245
.
– Press the wire clamps in the direction of the headlight and then
unhook them to the side.
– Remove the light bulb and insert the new light bulb in such a way
that the fixing lugs of the light bulb
socket fit into the recesses at the
reflector.
Installation takes place in the reverse order.
Note
We recommend that you have the headlight setting checked by a specialist garage after installing the headlight.Fog lights and daylight driving lights*
AB
AB
Fig. 245 Removing the light bulb for the main beam light
AC
AA
ABAC
Fig. 246 Front bumper: Protective grille
se0.1.book Page 265 Frida
y, April 10, 2009 3:19 PM

Fuses and light bulbs
267
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Removing the cover - Octavia RS – Switch the ignition and all lights off. – Guide one finger into the opening
⇒
page 266, fig. 248
and remove
the cover.
Removing the cover - Octavia Scout – Switch the ignition and all lights off. – Guide the wire clamp from the vehi
cle tool kit into
the opening above
the fog light
⇒
page 266, fig. 249
and remove the cover.
Fog lights Octavia RS, Octavia Scout
Removing the fog light – Screw out the screws with the aid of the screwdriver*, which is part of
the vehicle tool kit
24) ⇒
fig. 250
.
– Take out the fog light. Changing the bulb and installing the fog light – Press the locking button
⇒
fig. 251
of the plug and remove the
plug from the socket .
– Turn the socket with the bulb to the left up to the stop and take it
out.
– Change the bulb, insert again the socket with the new bulb and turn it
to the right up to the stop.
– Connect the plug to the socket . – Screw in the screws again and insert
the cover. The cover must engage
firmly.
Fig. 250 Front bumper: Fog lights
24)Valid for Octavia RS and Octavia Scout.
Fig. 251 Fog lights: Changing the bulb
A1
AA
AB
ABAA
AB
se0.1.book Page 267 Frida
y, April 10, 2009 3:19 PM

Fuses and light bulbs
269
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Changing light bulbs in the lamp holder – Switch the ignition and all lights off. – Remove the side compartment cover by turning the locks in the direc-
tion of arrow
⇒
page 268, fig. 254
.
– Take out the cover of the lamp holder on the luggage compartment
side.
– Take out the light bulbs of the tail light (arrow and )
⇒
fig. 255
.
– Press the catches in the directio
n of arrow and take out the lamp
holder.
– Press the defective light bulb into
the socket, turn to the left and
remove.
– Press a new light bulb into the socket and turn the light bulb to the
right as far as the stop.
Change the light bulb for the parking light – Switch the ignition and all lights off. – Remove the side compartment cover by turning the locks in the direc-
tion of arrow
⇒
page 268, fig. 254
.
– Take out the cover of the lamp holder on the luggage compartment
side.
– Take the defective light bulb (arrow or
⇒
page 268, fig. 253
) out
of the housing and replace it with a new one.
– Remove the lamp holder cover on the luggage compartment side and
close the side compartment.
Fig. 255 Removing the lamp holderA1
A2
A1
A2
se0.1.book Page 269 Frida
y, April 10, 2009 3:19 PM

Technical Data
271
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Technical DataTechnical DataGeneral informationThe details given in the official vehicle
registration document
s always take prece-
dence over the details in th
e Owner's Manual. Please refe
r to the official vehicle
registration documents or consult an auth
orised Škoda Service Partner concerning
the engine with which yo
ur vehicle is equipped.
Used abbreviations
PerformancesThe listed performance values were de
termined without pe
rformance-reducing
equipment, e.g. air conditioning system.WeightThe loading capacity is reduced in line with the range of the special equipment. The unloaden weight contains a fu
el tank topped up to 90%. A driver with a weight of
75 kg is also included in the value.
Abbreviation
Importance
kW
Kilowatt, measuring unit
for the engine output
rpm
Engine revolutions per minute
Nm
Newton meter, measuring unit for the engine torque
g/km
discharged quantity of carbon dioxide in grams per driven kilometer
RON
Research octane number, me
asuring unit for the knock-
ing resistance of petrol
TSI
Petrol engine with a turbocharger and a direct fuel injec- tion system
TDI PD
Diesel engine with turbocharger and injection system unit injector
TDI CR
Diesel engine with turbocharger and injection system Common Rail
M5 / M6
5-speed/6-speed manual gearbox
AG6
6-speed automatic gearbox
DQ6/DQ7
6 speed-/7 speed automatic gearbox DSG
DPF
Diesel particle filter
Abbreviation
Importance
se0.1.book Page 271 Frida
y, April 10, 2009 3:19 PM

Technical Data
272
Identification detailsVehicle data sticker The vehicle data sticker
⇒fig. 256
is located on the floor of the luggage compart-
ment and is also stated in the Service schedule. The vehicle data sticker co
ntains the following data:
Vehicle identification number (VIN) Vehicle type Gearbox code, paint number, interior
equipment number, engine output,
engine code Partial description of the vehicle 7GG, 7MB, 7MG - vehicles with DPF
⇒page 200
Vehicle identification number (VIN) The vehicle identification num
ber - VIN (vehicle body number) is stamped into the
engine compartment on the right hand shoc
k absorber dome. This number is also
located on a sign on the lower left hand edge below the windscreen. Engine number The engine number is stamped into the engine block. Type plate (production plate) The type plate is located in the lower area of the left centre column.
Homologation sign The homologation sign is located on the in
side of the bonnet next to the lock. Vehi-
cles for certain countries do no
t have an homologation sign.
Sticker on inside of fuel filler flap The stickers are affixed to the inside of the fuel filler flap and contain the following information:•
The prescribed types of fuel,
•
Tyre s iz e ,
•
Tyre pressure.
Fuel consumption according to the regulations (99/100/EU)Depending on the range of the special equipment, style of driving, traffic situation, weather influences and vehi
cle condition, the consumpt
ion values which in prac-
tice result when using the vehicle ca
n deviate from the indicated values.
Urban traffic The consumption measurement in urban traf
fic begins with starting of the cold
engine. Afterwards the normal
urban traffic is simulated.
Non-urban traffic For the consumption measurement in non-ur
ban traffic the vehicle, as in daily
motoring, is accelerated and braked several times in all gears. The vehicle speed changes within the range from 0 to 120 km/h. Combined traffic The consumption value in the combined traf
fic consists of 37%
from the value for
the urban traffic and of 63% from
the value for the non-urban traffic.
Fig. 256 Vehicle data sticker
A1A2A3A4A5se0.1.book Page 272 Frida
y, April 10, 2009 3:19 PM

Technical Data
273
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
DimensionsDimensions (mm)
OCTAVIA
OCTAVIA RS
COMBI
CO M B I R S
COMBI 4x4
SCOUT
Length
4569
4597
4569
4599
4569
4584
Width
1769
1769
1769
1769
1769
1784
Width including
exterior mirror
2018
2018
2018
2018
2018
2018
Height
1462 1485
a)
1449
b)
a)The value corresponds to the status with rough road package.b)The value corresponds to the status with SPORT package.
1447
14681490
a)
1455
b)
1451
14951520
a)
1533
Clearance
140/164
a)/125
b)
127
140/164
a)/125
b)
128
138/163
a)
179
Wheel base
2578
2578
2578
2578
2578
2578
Tr a c k g a u g e f r o n t / r e a r
1541/1514
1528/1508
1541/1514
1528/1508
1541/1514
1531/1500
se0.1.book Page 273 Frida
y, April 10, 2009 3:19 PM

Technical Data
274

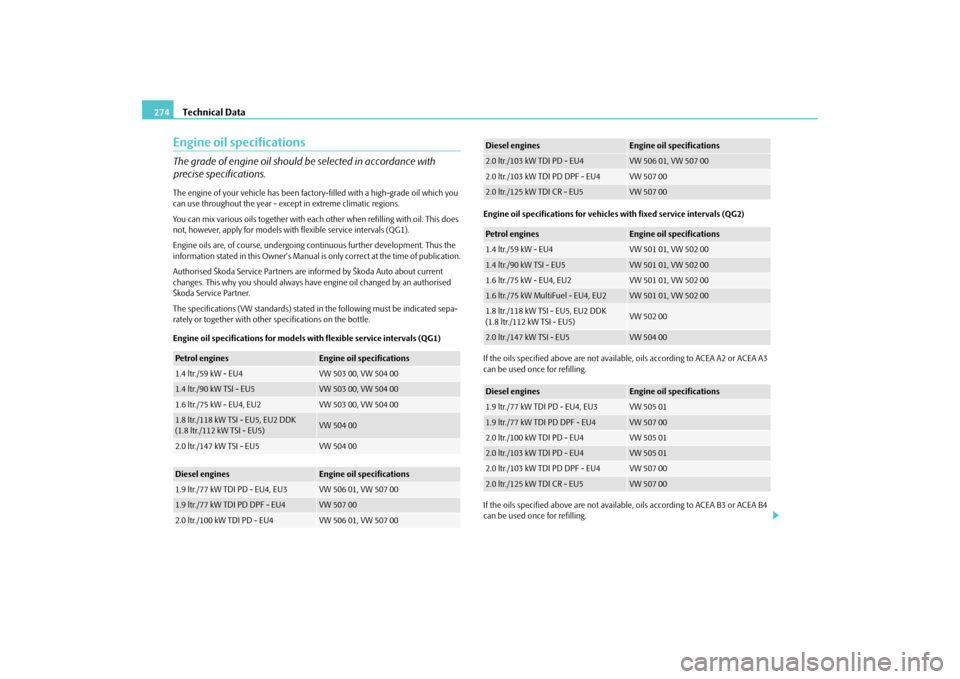

Engine oil specificationsThe grade of engine oil should be selected in accordance with precise specifications.The engine of your vehicle has been fact
ory-filled with a high-grade oil which you
can use throughout the year - exce
pt in extreme climatic regions.
You can mix various oils together with each other when refilling with oil. This does not, however, apply for models with
flexible service intervals (QG1).
Engine oils are, of course, undergoing co
ntinuous further deve
lopment. Thus the
information stated in this Owner's Manual is only correct at the time of publication. Authorised Škoda Service Partners are informed by Škoda Auto about current changes. This why you should always have
engine oil changed by an authorised
Škoda Service Partner. The specifications (VW standards) stated in the following must be indicated sepa- rately or together with other specifications on the bottle. Engine oil specifications for models with flexible service intervals (QG1)
Engine oil specifications for vehicles with fixed service intervals (QG2) If the oils specified above are not available,
oils according to ACEA A2 or ACEA A3
can be used once for refilling. If the oils specified above are not available,
oils according to ACEA B3 or ACEA B4
can be used once for refilling.
Petrol engines
Engine oil specifications
1.4 ltr./59 kW - EU4
VW 503 00, VW 504 00
1.4 ltr./90 kW TSI - EU5
VW 503 00, VW 504 00
1.6 ltr./75 kW - EU4, EU2
VW 503 00, VW 504 00
1.8 ltr./118 kW TSI - EU5, EU2 DDK(1.8 ltr./112 kW TSI - EU5)
VW 504 00
2.0 ltr./147 kW TSI - EU5
VW 504 00
Diesel engines
Engine oil specifications
1.9 ltr./77 kW TDI PD - EU4, EU3
VW 506 01, VW 507 00
1.9 ltr./77 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./100 kW TDI PD - EU4
VW 506 01, VW 507 00
2.0 ltr./103 kW TDI PD - EU4
VW 506 01, VW 507 00
2.0 ltr./103 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./125 kW TDI CR - EU5
VW 507 00
Petrol engines
Engine oil specifications
1.4 ltr./59 kW - EU4
VW 501 01, VW 502 00
1.4 ltr./90 kW TSI - EU5
VW 501 01, VW 502 00
1.6 ltr./75 kW - EU4, EU2
VW 501 01, VW 502 00
1.6 ltr./75 kW MultiFuel - EU4, EU2
VW 501 01, VW 502 00
1.8 ltr./118 kW TSI - EU5, EU2 DDK(1.8 ltr./112 kW TSI - EU)
VW 502 00
2.0 ltr./147 kW TSI - EU5
VW 504 00
Diesel engines
Engine oil specifications
1.9 ltr./77 kW TDI PD - EU4, EU3
VW 505 01
1.9 ltr./77 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./100 kW TDI PD - EU4
VW 505 01
2.0 ltr./103 kW TDI PD - EU4
VW 505 01
2.0 ltr./103 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./125 kW TDI CR - EU5
VW 507 00
Diesel engines
Engine oil specifications
se0.1.book Page 274 Frida
y, April 10, 2009 3:19 PM
5
