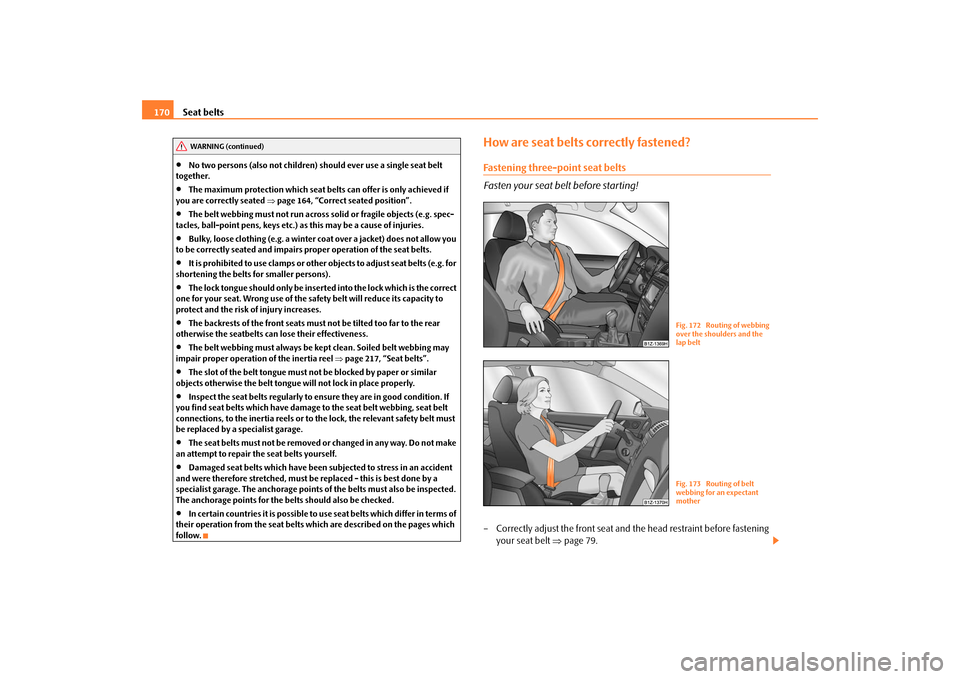

Seat belts
170
•
No two persons (also not children) should ever use a single seat belt
together.•
The maximum protection which seat belts can offer is only achieved if
you are correctly seated
⇒page 164, “Correct seated position”.
•
The belt webbing must no
t run across solid or fragile objects (e.g. spec-
tacles, ball-point pens, keys etc.) as this may be a cause of injuries.•
Bulky, loose clothing (e.g. a winter coat over a jacket) does not allow you
to be correctly seated and impairs proper operation of the seat belts.•
It is prohibited to use clamps or other objects to adjust seat belts (e.g. for
shortening the belts for smaller persons).•
The lock tongue should only be insert
ed into the lock which is the correct
one for your seat. Wrong use of the safety belt will reduce its capacity to protect and the risk of injury increases.•
The backrests of the front seats must not be tilted too far to the rear
otherwise the seatbelts can
lose their effectiveness.
•
The belt webbing must always be ke
pt clean. Soiled belt webbing may
impair proper operation of the inertia reel
⇒page 217, “Seat belts”.
•
The slot of the belt tongue must not be blocked by paper or similar
objects otherwise the belt tongue will not lock in place properly.•
Inspect the seat belts regu
larly to ensure they are
in good condition. If
you find seat belts which have damage to the seat belt webbing, seat belt connections, to the inertia reels or to the lock, the relevant safety belt must be replaced by a specialist garage.•
The seat belts must not be removed or changed in any way. Do not make
an attempt to repair the seat belts yourself.•
Damaged seat belts which have been subjected to stress in an accident
and were therefore stretched, must be replaced - this is best done by a specialist garage. The anchorage points
of the belts must also be inspected.
The anchorage points for the be
lts should also be checked.
•
In certain countries it is possible to use seat belts which differ in terms of
their operation from the seat belts wh
ich are described on the pages which
follow.
How are seat belts correctly fastened?Fastening three-point seat belts Fasten your seat belt before starting!– Correctly adjust the front seat and
the head restraint before fastening
your seat belt
⇒
page 79.
WARNING (continued)
Fig. 172 Routing of webbing over the shoulders and the lap beltFig. 173 Routing of belt webbing for an expectant mother
se0.1.book Page 170 Frida
y, April 10, 2009 3:19 PM

Breakdown assistance
251
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Raise vehicle You have to raise the vehicle with the lifting jack* in order to be able to take off the wheel.Position the lifting jack* by selecting the jacking point which is closest to the wheel to be removed
⇒
fig. 228
. The jacking point is located directly
below the engraving in the lower sill. The engraving is only visible after opening the door. – Position the lifting jack* below the jacking point and move it up until
its claw is positioned di
rectly below the vertical web of the lower sill.
– Align the lifting jack* so that its claw grasps the web of the lower sill
and the base plate is resting flat on the floor.
– Turn the lifting jack* up further until the wheel is just clear of the
ground.
Ground which is soft and slippery
below the lifting jack* can cause the vehicle to
slip off the lifting jack*. It is therefore al
ways necessary to place the lifting jack* on
a solid surface or use a wide and stable ba
se. Use a non-slip base (e.g. a rubber foot
mat) if the
surface is smooth
, such as cobbled stones, a tiled floor, etc.
WARNING
•
Always raise the vehicle with the doors closed - risk of injury!
•
Take suitable measures to prevent the
base of the lifting jack from slip-
ping off - risk of injury!•
Not positioning the lifting jack* at
the specified points can result in
damage to the vehicle. The lifting jack* ca
n also slip off if it does not have
sufficient grip - risk of injury!•
It is important to support the vehicle with suitable supporting blocks if
you wish to work under the lifted vehicle - risk of injury!Securing wheels against being stolen* You need a special adapter for slackening the safety wheel bolts.– Pull off the full wheel trim/cap from the wheel hub or cap from the
safety wheel bolt.
– Insert the adapter with its toothed side fully into the inner toothing
of the safety wheel bolt right down in such a way that only the outer hexagon is jutting out
⇒
fig. 229
.
– Insert the wheel wrench* fully onto the adapter . – Slacken the wheel bolt, or tighten it firmly
⇒
page 250.
Fig. 228 Changing a wheel: Points for positioning car jac
kAA
AB
Fig. 229 Safety wheel bolt with adapter
AB
AA
AB
se0.1.book Page 251 Frida
y, April 10, 2009 3:19 PM

Index297
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Engine oil level
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . 18
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Environmental compatibility . . . . . . . . . . . . . 202, 206
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Exhaust gas
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Exhaust gas inspection
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Exterior mirror heater . . . . . . . . . . . . . . . . . . . . . . . . . . 73
FFirst-aid box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Fixing net
Combi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Octavia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fog lights with the function Corner . . . . . . . . . . . . . 62
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Diesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Fuel consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fuel reserve
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Full wheel trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
GGauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Gearbox
mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
General view
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
GSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142, 152HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Hazard warning light system . . . . . . . . . . . . . . . . . . . 64
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Head restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Headlight cleaning system . . . . . . . . . . . . . . . . . . . . . 70
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65Headlights
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Headlight cleaning system . . . . . . . . . . . . . . . . . 70
Heated windscreen washer nozzles . . . . . . . . . . . . 69
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Auxiliary heating (auxiliary heating) . . . . . . . . 119
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . 110
Recirculated air mode . . . . . . . . . . . . . . . . . . . . 111
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
IIgnition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Information display . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Interior light
Luggage compartment . . . . . . . . . . . . . . . . . . . . 66
Interior lighting
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Interior monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Intermittent wiping . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190JJacking points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
