service indicator SKODA YETI 2013 1.G / 5L User Guide

Always check the inflation pressure when the tyres are cold. Do not reduce the
higher pressure of warm tyres.
With greater additional load, adjust the tyre inflation pressure accordingly.
Driving style
Fast cornering, sharp acceleration and braking increase the wear of your tyres.
Balancing wheels
The wheels of a new vehicle are balanced. When driving, however, there are a
range of factors that may result in an imbalance. This may become apparent by a
“vibration” in the steering.
Have the wheels rebalanced after replacing the tyres.
Wheel alignment errors
Incorrect wheel alignment at the front or rear leads to excess wear of the tyres.
Tyre damage
Drive over kerbs and other such obstacles slowly and perpendicularly wherever
possible in order to avoid damage to tyres and wheel trims.
We recommend checking your tyres and wheel rims for damage (punctures, cuts,
splits and bulges, etc.) on a regular basis. Remove foreign bodies (e.g. small
stones) from the tyre tread immediately.
Replacing wheels
If significantly greater wear is present on the front tyres, we recommend replac-
ing the front wheels with the rear wheels as shown in the diagram » Fig. 166. You
will then obtain approximately the same life for all the tyres.
We recommend that you swap the tyres every 10,000 km in order to achieve even
wear on all tyres and to ensure optimal service life for the tyres.
Storing tyres
Identify disassembled tyres so that the previous direction of rotation can be
maintained if the tyres are reassembled.
Always store wheels or tyres in a cool, dry place that is as dark as possible. Tyres
which are not fixed to a wheel trim should be stored upright.
Wear indicators
The base of the tread of the tyres has 1.6 mm high wear indicators installed. These wear indicators are located multiple times depending on the make and are evenly spaced around the circumference of the tyre » Fig. 165 - 
. Markings on
the walls of the tyres through the letters “TWI”, triangular symbols or other sym- bols identify the position of the wear indicators.Tyre age
Tyres age and lose their original characteristics, even if they are not being used.
Therefore, we recommend not using summer or winter tyres older than 6 or 4 years old respectively.
New tyres
First read and observe the introductory information and safety warn-
ings
on page 212.
Only use radial tyres of the same type, size (rolling circumference) and tread pat-
tern on one axle on all four wheels.
The tyre/wheel combinations which are approved for your vehicle are indicated in
your vehicle documents.
Where possible, replace tyres by axle. Always fit the tyres with the deeper tread
depth to the front wheels.
Explanation of tyre markings
225/50R 17 91 T
What this means is:
CaptionMeaning225Tyre width in mm » Fig. 165 on page 213 - 50Height/width ratio in % » Fig. 165 on page 213 - RCode letter for the type of tyre – Radial » Fig. 165 on page 213 - 17Diameter of wheel in inches » Fig. 165 on page 213 - 91Load index » TSpeed symbol »
The date of manufacture is stated on the tyre wall (possibly on the inside). e.g.
DOT ... 10 13...
means, for example, that the tyre was manufactured in the 10th week of 2013.
Load index
This indicates the maximum permissible load for each individual tyre. 580 kg
615 kg
630 kg 

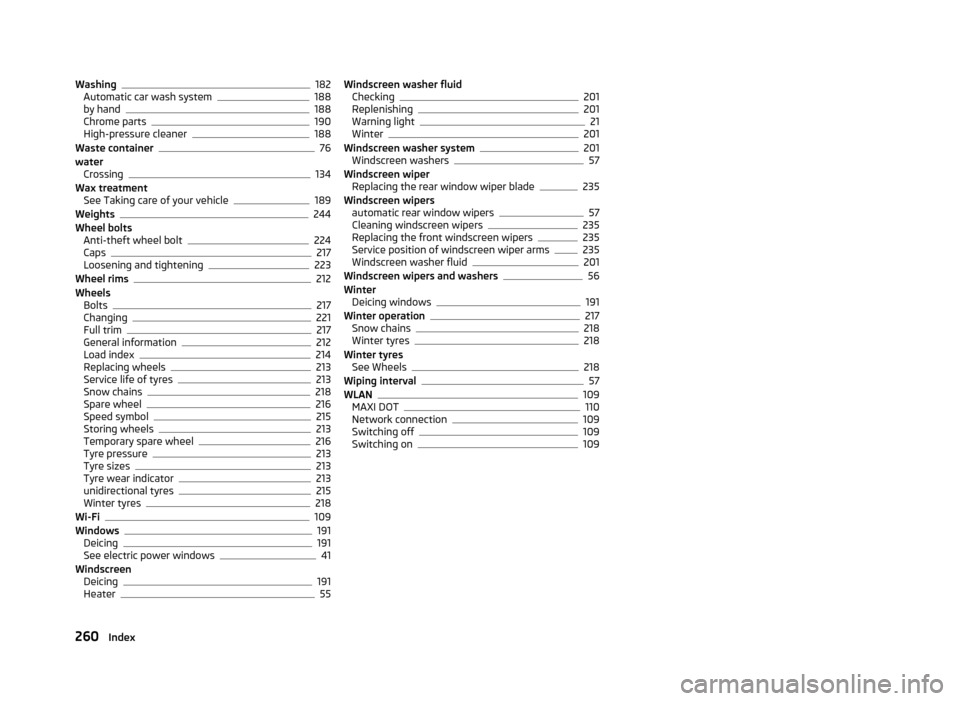

899192214General Maintenance

Washing182
Automatic car wash system188
by hand188
Chrome parts190
High-pressure cleaner188
Waste container76
water Crossing
134
Wax treatment See Taking care of your vehicle
189
Weights244
Wheel bolts Anti-theft wheel bolt
224
Caps217
Loosening and tightening223
Wheel rims212
Wheels Bolts
217
Changing221
Full trim217
General information212
Load index214
Replacing wheels213
Service life of tyres213
Snow chains218
Spare wheel216
Speed symbol215
Storing wheels213
Temporary spare wheel216
Tyre pressure213
Tyre sizes213
Tyre wear indicator213
unidirectional tyres215
Winter tyres218
Wi-Fi109
Windows191
Deicing191
See electric power windows41
Windscreen Deicing
191
Heater55
Windscreen washer fluid Checking201
Replenishing201
Warning light21
Winter201
Windscreen washer system201
Windscreen washers57
Windscreen wiper Replacing the rear window wiper blade
235
Windscreen wipers automatic rear window wipers
57
Cleaning windscreen wipers235
Replacing the front windscreen wipers235
Service position of windscreen wiper arms235
Windscreen washer fluid201
Windscreen wipers and washers56
Winter Deicing windows
191
Winter operation217
Snow chains218
Winter tyres218
Winter tyres See Wheels
218
Wiping interval57
WLAN109
MAXI DOT110
Network connection109
Switching off109
Switching on109
260Index
