Rear quarter combination lamp
Design changed
Rear view ▶
High-mounted
stop lamp
Rear combination lamp
Reflex reflector lamp
Turn signal lamp
(12V-27W)
Stop lamp
(12V-8W)
Tail lamp
(12V-8W)Turn signal lamp
(PY21W)Stop lamp and tail
lamp (P21/5W)
High-mounted
stop lamp
Rear combination lamp
Reflex reflector lamp
(Rear fog lamp)
High-mounted stop lamp
High mounted stop lamp design changed due to spoiler modification

07-6
Rear Tailgate Combination Lamp
Design changed
Side view ▶
Backup lamp
Stop lamp and tail
lamp (P21/5W)
Backup lamp (W16W)
Reflex reflector lamp (Rear fog lamp)
Design change due to changed rear bumper
Side repeater lamp design changed

07-78310-01
Head lamp
1. CONFIGURATION FOR EXTERIOR LAMP
Front / Side ▶
Front fog lampSide repeater lamp (side)
H16 WY5W
DRL (Day Time Running Light) ▶
The day time running lamp (DRL) comes on when starting the engine without intervention of light
switch. It goes out when turning on the headlamp low beam. DRL is optional only for EU market.
Low beam
(H7-55W)
Tail lamp (W5W)Turn signal
lamp (P21W)
High beam + DRL
(EU: 55W+15W, GEN: 55W)

07-8
Rear quarter combination lamp Rear tailgate combination lamp
Rear side ▶
High mounted stop lamp
License plate lampReflex reflector lamp
(Rear fog lamp)
Stop/tail lamp
(P21/5W)
Turn signal
indicator
(PY21W)Stop/tail lamp
(P21/5W)
Backup lamp
(W16)
12V-5W (5EA)
12V-5W (1 on each side)

07-98310-01
2. CONFIGURATION FOR INTERIOR LAMP
Front room lampGlove box lamp
Side (rear 1st row
and 2nd row)
room lampDoor courtesy
lamp
Rear room lampCenter console
rear lamp

07-10
3. CIRCUIT DIAGRAM
1) Interior Lamp

07-118310-01
2) External Lamp

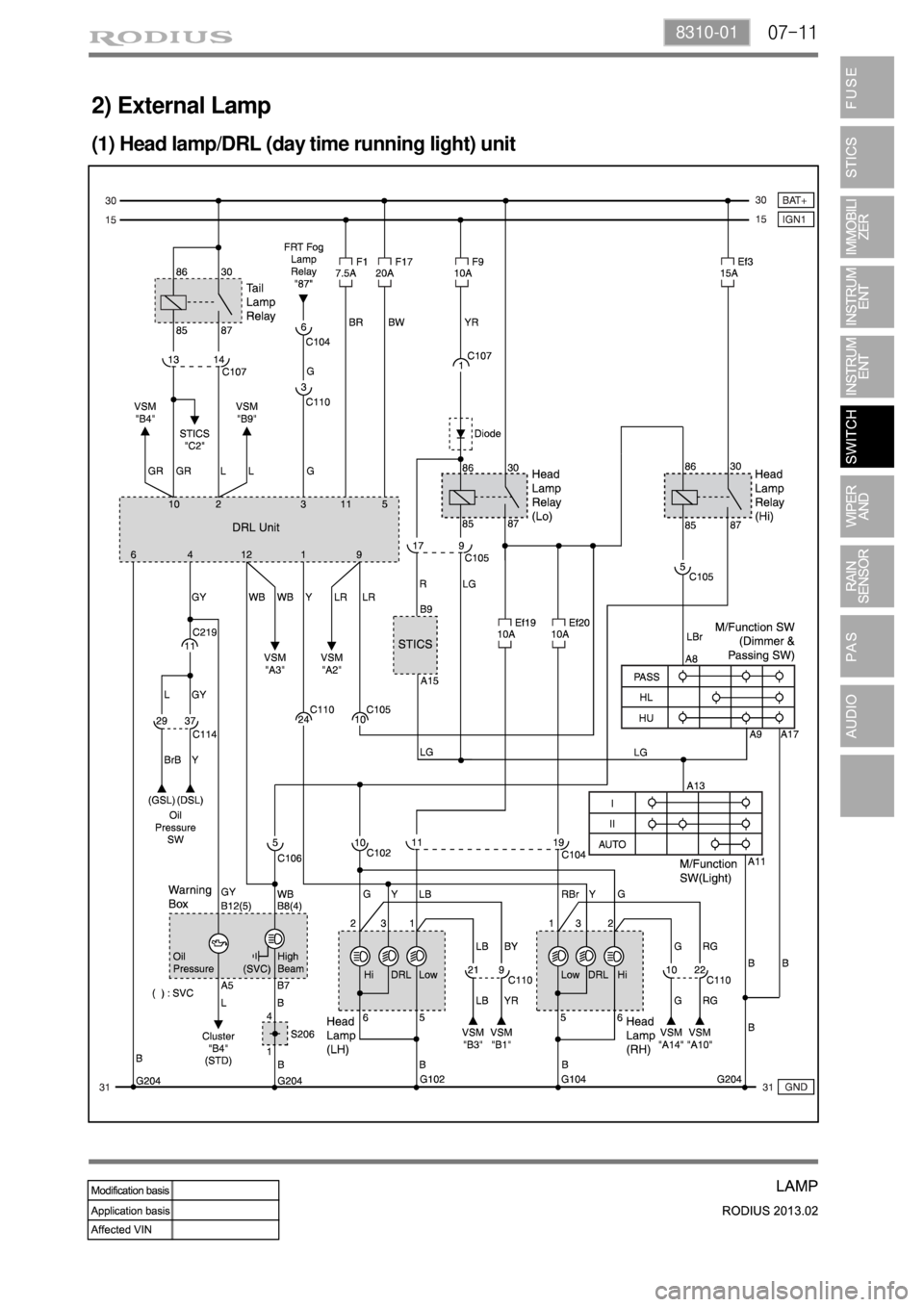

(1) Head lamp/DRL (day time running light) unit

07-12
(2) Head lamp leveling device

07-138310-01

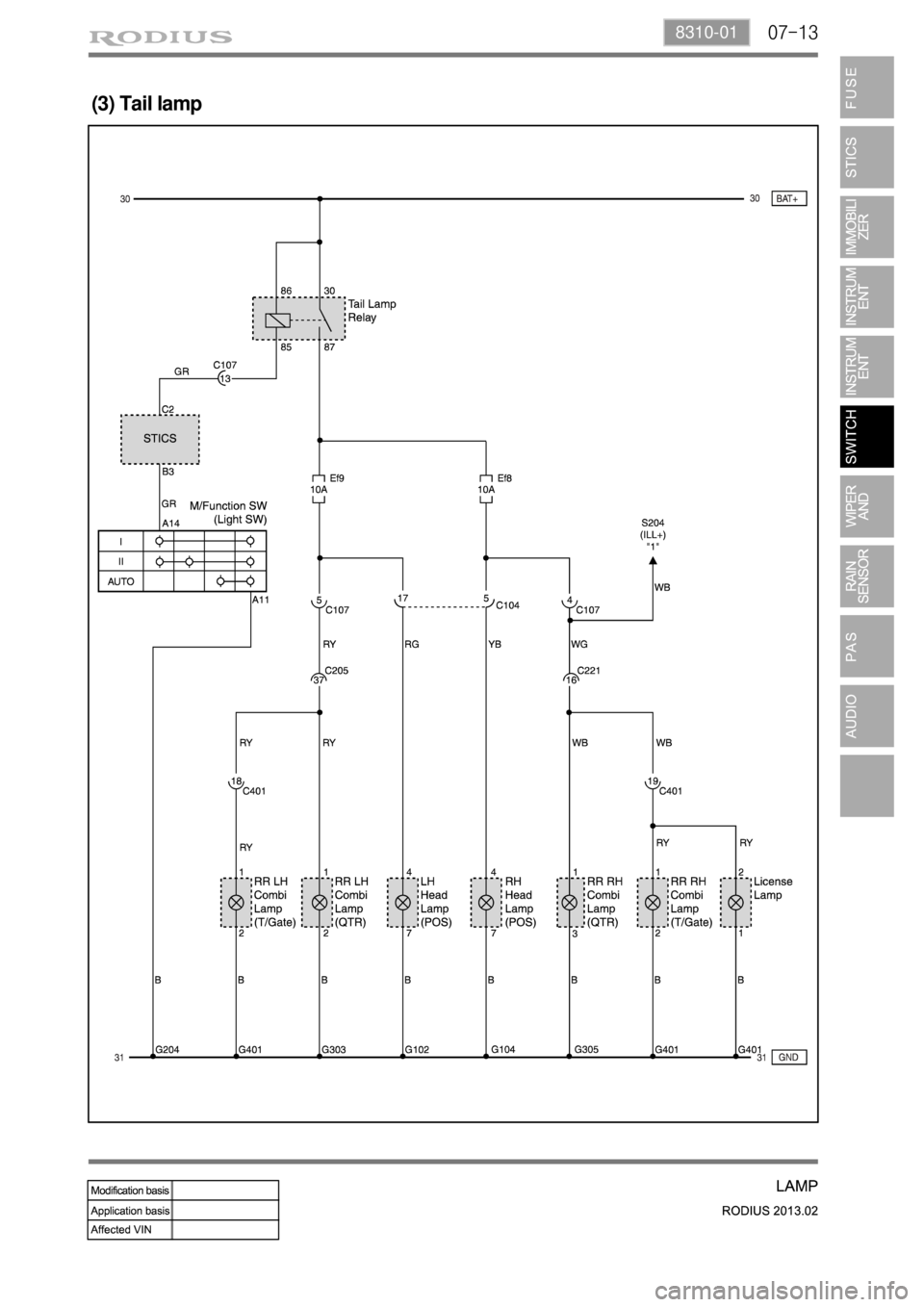

(3) Tail lamp

07-158310-01

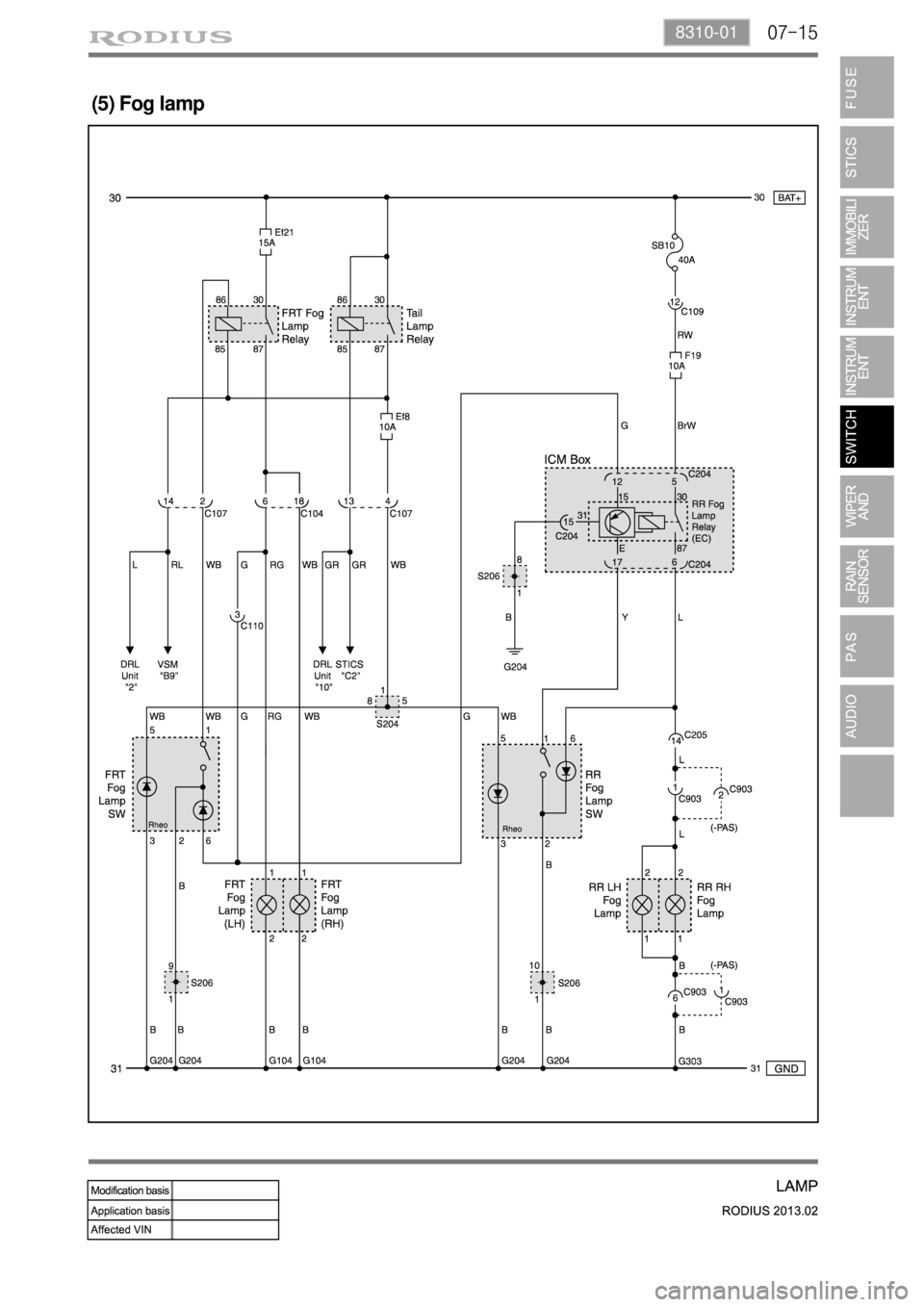

(5) Fog lamp
