SSANGYONG TURISMO 2013 Service Manual

07-14
(4) Turn signal, hazard lamp

07-16

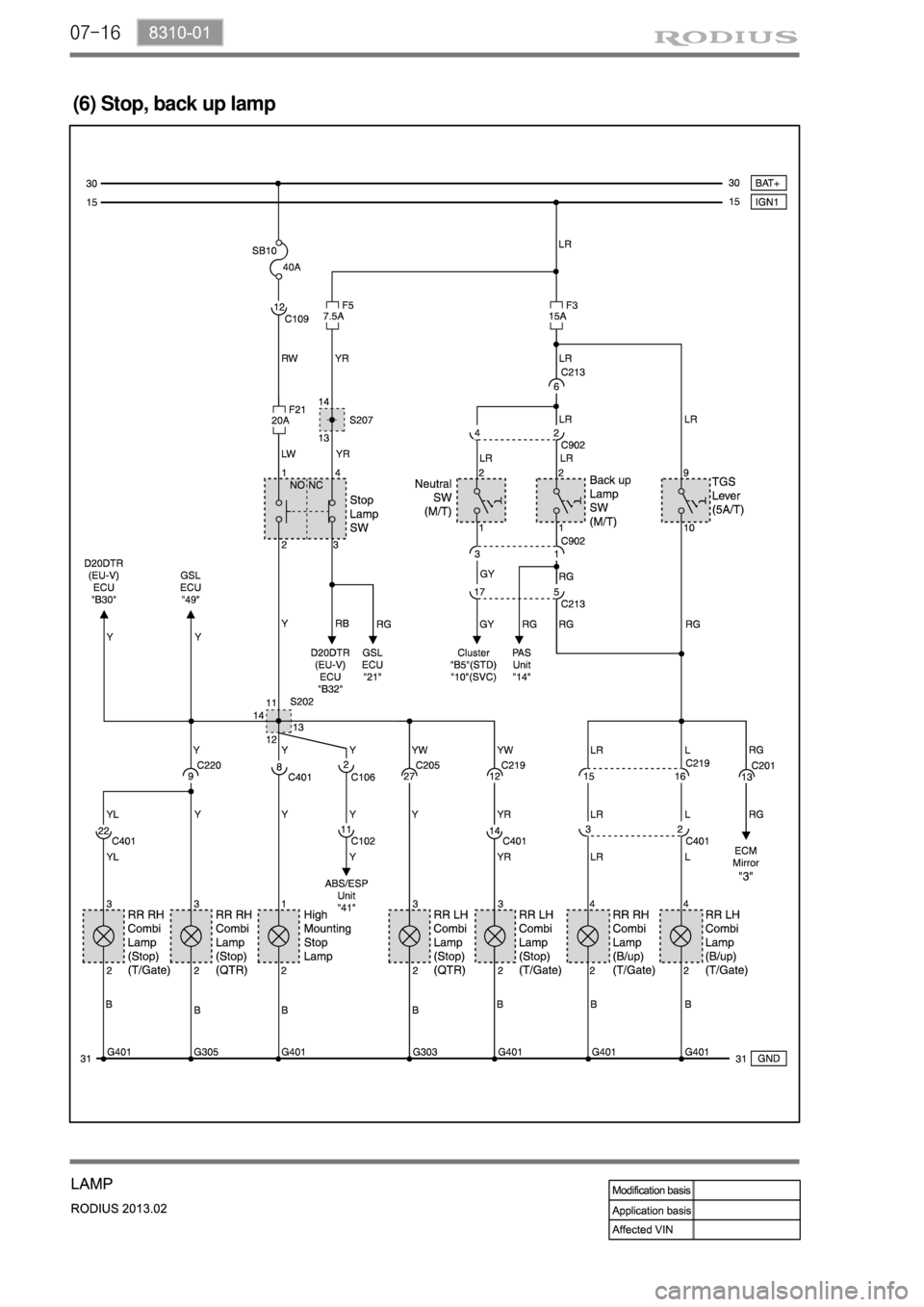

(6) Stop, back up lamp

06-38510-00
1. SPECIFICATIONS
1) Center Fascia Switch
Item Specifications
Center fascia switch &
bezel assemblyHazard warning flasher switch DC 12 V 10 A(lamp load)
Windshield heated glass switch
DC 12 V 1 A(inductive load) Rear heated glass switch
ESP OFF switch
Driver/front passenger seat warmer
switch
Fog lamp switch
2) 4WD Switch & HLLD Switch & Rear Wiper Operation Switch
Item Specifications
4WD switch &
HLLD switch &
rear wiper operation
switch assemblyWasher switch DC 12 V 3.8 A(lamp load)
Wiper switch DC 12 V 3.0 A (max. 10 A)
4WD switch DC 12 V 300 mA
HLLD switch DC 12 V 1 A (inductive load)
3) Steering Wheel Switch
Item Specifications
Steering wheel switch Rated voltage DC 5 V 0.1 A(rated load)
Operation temperature-30℃~+80℃

06-4
4) Multifunction Switch
Description Description
Multifunction
switchRated voltage DC 12 V
Operating temperature-30℃~+80℃
Rated loadLight switch ON: 1A (Relay load)
Dimmer and passing switch High beam/low beam/passing:
0.3 A (Relay load)
Turn signal switch6.6±0.5 A (Lamp load)
Wiper switchLow: 5 A (Motor load)
High: 7 A (Motor load)
Auto: 0.22±0.05 A (Relay load)
Fixed: max. 28 A (Motor load)
Washer switch 4 A (Motor load)
Intermittent wiper switch max. 25 mA
Mist switch 5 A (Motor load)

06-58510-00
2. MAJOR CHANGES
Center fascia switch
- Design changed
Steering wheel switch assembly
- Power button deleted, steering wheel heating (option) switch added
- Design changed
Multifunction switch assembly
- Connector pin layout changed due to newly added steering wheel heating (option) circuit
- Contact coil and steering wheel angle sensor changed

06-6
Overhead console switch
- Multimeter function deleted (maintain digital clock)
Digital clock

06-8
Outside Rearview
Mirror Adjusting/
Folding Switches
Window switch
Steering Wheel Audio/Heating Switch & Gear Shift Switch (A/T)
Multifunction Switch and Steering
Wheel Angle Sensor
4WD Switch, Headlamp
Leveling Switch, Rear Wiper
Switch
1. LAYOUT
Seek button
Volume button Manual gear shift down
switchManual gear shift up switch
Mode button
Bluetooth handsfree
Steering wheel heating switch
With audio OFF: press the MUTE
button briefly to switch on
With audio ON: press and hold the
MUTE button to switch off
MUTE button -
-
-

06-98510-00
Center fascia switch
Passenger’s Window Switch
(same with rear window
switches)
Overhead console switch
Auto light sensor
Cigarette lighter
Power outlet socket
Driver’s seat
warmer switch
Rear fog lamp
switchESP OFF switch
Defogger switch
Passenger’s seat
warmer switch Front fog lamp switch
Front room lamp switch
Sunroof switch
Door coupled room lamp switch
Hazard warning
flasher switch

07-37810-01
1. SPECIFICATIONS OF WIPER
