SUBARU BAJA 2005 1.G Owners Manual

2-12
Keys and doors
2. Open the driver’s door and sit in the driver’s seat.
3. Close the driver’s door.
1) ON
2) LOCK
4. Place the ignition key into the ignition switch and
cycle the switch from LOCK to ON ten times within 15
seconds . Be sure to stop at the LOCK position. The
horn will sound once to indicate that you are in the
transmitter programming mode.
NOTE
You must finish the next step (opening the driver’s
door) within 45 seconds of starting this proce-
dures.
3
2
HS2019BD
1
2
HS2020BB

2-13
Keys and doors
– CONTINUED –
To program the transmitters:0
1. Open the driver’s door.
2. Close the driver’s door. 1) Press any button.
3. Press and release any button on the transmitter
that you wish to program into the system. The horn will
sound twice to indicate that the transmitter has been
programmed.
Any additional transmitters can also be programmed
at this time. Repeat steps 1 through 3 for an additional
transmitter.
To exit the programming mode:
1. After all of your transmitters are programmed, re-
move the key from the ignition switch.
The horn will sound three times to indicate that the
1
2
HS2019BE
1
HS2016DB

2-14
Keys and doors
system has exited the programming mode.
2. Make sure that the keyless entry system properly
operates by operating each transmitter. T
Deleting old transmitter codes
The control unit of the keyless entry system has four
memory locations to store transmitter codes, giving it
the ability to operate with up to four transmitters. When
you lose a transmitter, the lost transmitter’s code re-
mains in the memory. For security reasons, lost trans-
mitter codes should be deleted from the memory.
To delete old transmitter codes, program four trans-
mitter codes into the system. If you have only one cur-
rent transmitter, program it four times. If you have two
current transmitters, program each one twice. If you
have three current transmitters, program two of them
once and the third one twice. This process will leave
only current transmitter codes in the system’s memo- ry.
NOTE
Make sure no one else is operating their keyless
entry system within range of your vehicle when
programming transmitters. If someone else were
to operate their remote transmitter while you are
programming your transmitters, it is possible that
their transmitter code will be programmed into
your system, allowing them unauthorized access to your vehicle.

2-15
Keys and doors
– CONTINUED –
Security system (if equipped)
The security system helps to protect your vehicle and
valuables from theft. The horn sounds and the turn
signal lights flash if someone attempts to break into
your vehicle. The starter motor is also interrupted to
prevent starting the vehicle without a key.
The system can be armed and disarmed with the re-
mote transmitter.
The system does not operate when the key is inserted
into the ignition switch. „System operation
The security system will give the following alarm indi-
cations when triggered: y The turn signal lights will flash and the horn will
sound intermittently. In addition, the starter motor will
not operate. y The alarm automatically resets after 30 seconds;
however, the alarm will reactivate if the vehicle is tam-
pered with again. The alarm will continue for six times
if any sensor continues to be activated.
The alarm is triggered by: y Opening a door.
y Application of physical shock to the vehicle (e.g. breaking glass or forced entry). Note that there are two
alarm levels for shock: warning and alarm. In warning
mode, the alarm detects lower level vibrations and
triggers 2 warning chirps on the horn and two flashes
on the lights as a deterrent to would be vandals. In
alarm mode, higher levels of shock are detected and
the system will go into full alarm. y
Ignition switch being turned on while in armed state.
NOTE yThe alarm will not be triggered by opening the
switchback door. y The alarm may not be triggered when the win-
dow is broken with a sharp-edged tool. y With the valet mode selected, the security sys-
tem does not operate and the turn signal lights do
not flash when the remote transmitter is used for
locking and unlocking.
The security system indicator light in the combi-
nation meter flashes twice per second to show
that the valet mode is selected.
For details, refer to “Valet mode” in this section. „ Arming the system
T To arm the system using remote transmitter
1. Close all windows and moonroof.

2-16
Keys and doors
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood and switchback
door are locked.
5. Close all doors.

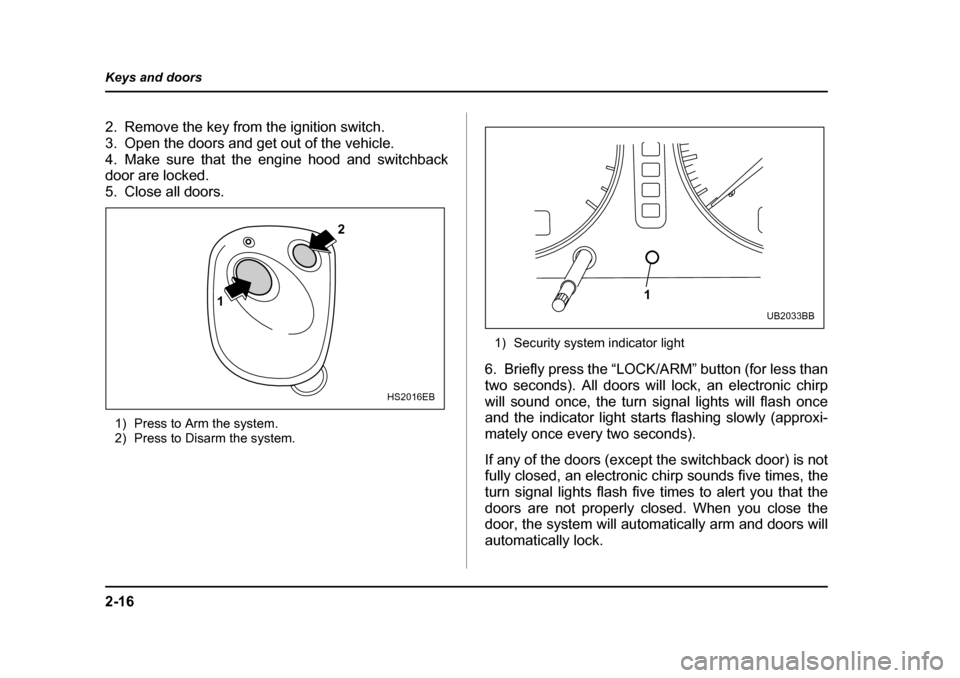

1) Press to Arm the system.
2) Press to Disarm the system. 1) Security system indicator light
6. Briefly press the “LOCK/ARM” button (for less than
two seconds). All doors will lock, an electronic chirp
will sound once, the turn signal lights will flash once
and the indicator light starts flashing slowly (approxi-
mately once every two seconds).
If any of the doors (except the switchback door) is not
fully closed, an electronic chirp sounds five times, the
turn signal lights flash five times to alert you that the
doors are not properly closed. When you close the
door, the system will automatically arm and doors will
automatically lock.
1 2
HS2016EB
1
UB2033BB

2-17
Keys and doors
– CONTINUED –
TTo arm the system using power door locking
switches
1. Close all windows and moonroof.
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood and switchback
door are locked.
5. Close the doors but leave only the driver’s door or
the front passenger’s door open.
6. Push the power door locking switch forward
(“LOCK” side) to set the door locks.
7. Close the door. An electronic chirp will sound once,
the turn signal lights will flash once and the indicator
light will start flashing slowly (approximately once ev- ery two seconds) to inform you that the system hasarmed.
NOTE
The system can be armed even if the engine hood,
the windows, the switchback door and/or moon-
roof are open. Always make sure that they are fully
closed before arming the system. „
Disarming the system
Briefly press the “UNLOCK/DISARM” button (for less
than two seconds) on the remote transmitter. The driv-
er’s door will unlock, an electronic chirp will sound
twice, the turn signal lights will flash twice and the in-
dicator light will go off.
To unlock all other doors, briefly press the “UNLOCK/
DISARM” button a second time. T Emergency disarming
If you cannot disarm the system using the transmitter
(i.e. the transmitter is lost, broken or the transmitter
battery is too weak), you can disarm the system with-
out using the transmitter. To disarm the system:
1. Unlock the door with the key and then open the
door.
6
7
UB2024CC

2-18
Keys and doors
2. The alarm will sound.
3. Insert the key into the ignition switch and cycle it
from “LOCK” to “ON” three (3) times
within 5 sec-
onds .
„ Sounding a panic alarm
To activate the alarm, keep the “LOCK/ARM” button
pressed for more than two seconds .
The horn will sound and the turn signal lights will flash.
To deactivate it, press the “LOCK/ARM” button or “UNLOCK/DISARM” button.
Unless a button on the remote is pressed, the alarm
will be deactivated after approximately 30 seconds. „ Valet mode
When you choose the valet mode, the security system
does not operate. In valet mode, the remote transmit-
ter is used only for locking and unlocking the doors
and panic activation.
To enter the valet mode, open the driver’s door and
keep the “UNLOCK/DISARM” button depressed for
more than two seconds . The security system indica-
tor light will continue to flash 2 times per second indi-
cating that the system is in the valet mode.
To exit valet mode, open the driver’s door and keep the “UNLOCK/DISARM” button pressed
for more
than two seconds . The indicator will stop flashing.
„ Passive arming
When passive arming mode has been programmed by
the dealer, arming of the system is automatically ac-
complished without using the remote transmitter. Note
that in this mode, DOORS MUST BE MANUALLYLOCKED. T To enter the passive mode
Since programming the passive arming mode is a
complicated procedure, have it done by your nearestSUBARU dealer. T Arming the system
In passive mode, the system will automatically activate the alarm but WILL NOT automatically
lock the doors. In order to lock the doors you
must either lock them as indicated in step 4 be-
low or with the key once they have been closed.
Failure to lock the doors manually will result in
a higher security risk.

2-19
Keys and doors
– CONTINUED –

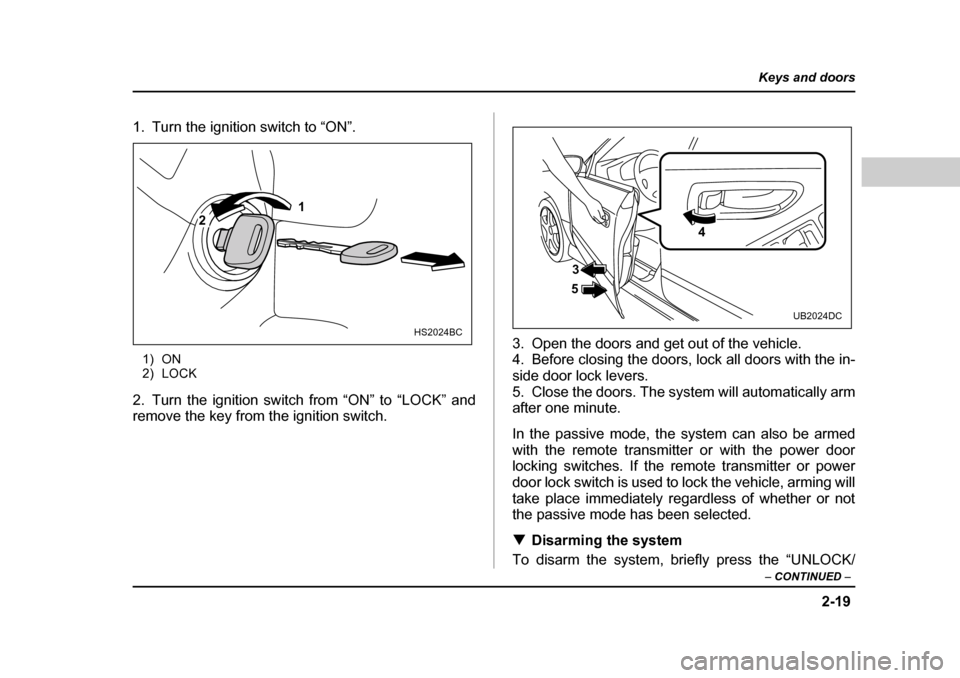

1. Turn the ignition switch to “ON”.
1) ON
2) LOCK
2. Turn the ignition switch from “ON” to “LOCK” and
remove the key from the ignition switch. 3. Open the doors and get out of the vehicle.
4. Before closing the doors, lock all doors with the in-
side door lock levers.
5. Close the doors. The system will automatically arm
after one minute.
In the passive mode, the system can also be armed
with the remote transmitter or with the power door
locking switches. If the remote transmitter or power
door lock switch is used to lock the vehicle, arming will
take place immediately regardless of whether or not
the passive mode has been selected. T
Disarming the system
To disarm the system, briefly press the “UNLOCK/
1
2
HS2024BC
4
3
5
UB2024DC

2-20
Keys and doors
DISARM” button on the transmitter. T
Tripped sensor identification
If an electronic chirp sounds four times and the turn
signal lights flash four times when you disarm the sys-
tem, this indicates that the alarm was triggered. The
number of times the indicator light flashes indicates
what sensor caused the alarm condition.
To enter identification mode:
1. Open the driver’s door and leave it open.
2. Turn the ignition switch to “ON” twice. (“LOCK”
“ON” “LOCK” “ON” “LOCK”)
3. The indicator light will start flashing.
The indicator light provides the following indications.
Flashing once: Any door has been opened.
Flashing three times: The impact sensor in the sys-
tem’s unit has been activated. This may indicate that
your vehicle has been shocked or tampered with by
some outside force and/or unauthorized person.
Flashing four times: The ignition switch has been
turned on or the battery has been disconnected.
NOTE
The battery must be reconnected before the indi-
cator light will flash.
To exit this mode, close the door and turn the ignition switch to “ON”.

2-21
Keys and doors
– CONTINUED –
Child safety locks
Always use the child safety lock whenever a
child rides in the rear seat. Serious injury could
result if a child accidentally opened the door
and fell out.
1) Lock
2) Unlock
Each rear door has a child safety lock that prevents the doors from being opened even if the inside door
handle is pulled.
When the child safety lock lever is in the lock position,
the door cannot be opened from inside regardless of
the position of the inner door handle lock lever. The
door can only be opened from the outside.
1
2
UB2002BB
