SUBARU BAJA 2005 1.G Owners Manual

6-18
Interior and exterior equipments
y
Remove the bed extender for vehicle “Off
Road” use. y To avoid creating a dangerous road hazard or
causing personal injury, cargo must not stick
out beyond the bed extender.y To avoid damage, the tailgate and bed ex-
tender must remain in the closed/inward posi-
tion when towing with a trailer hitch.y To avoid damage, clean the bed extender
only with soap, water and a soft brush.
„ Operation Open/Outward Position

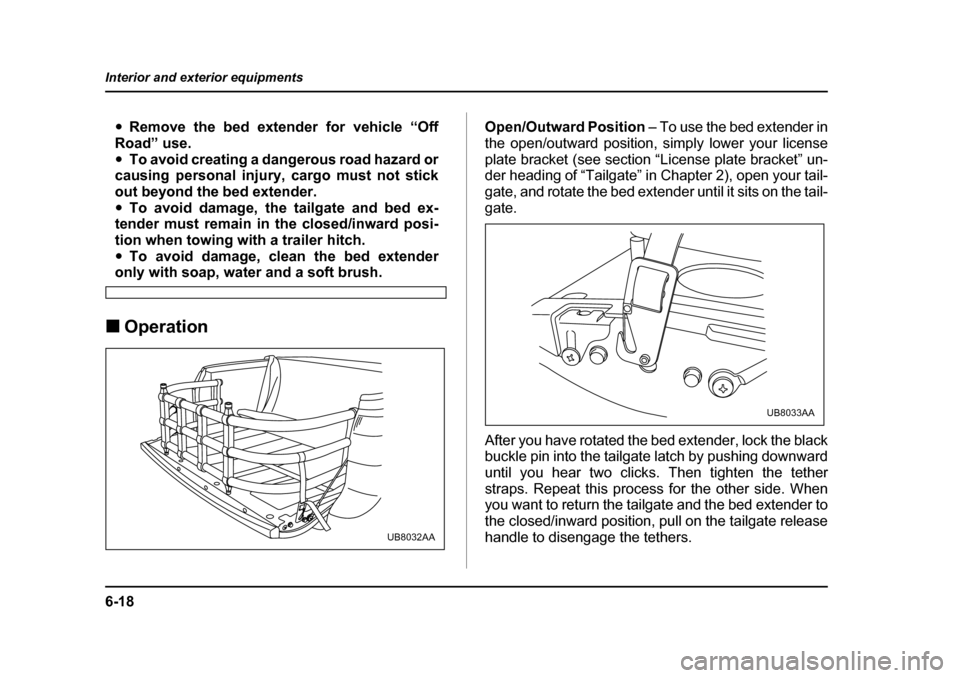

– To use the bed extender in
the open/outward position, simply lower your license
plate bracket (see section “License plate bracket” un-
der heading of “Tailgate” in Chapter 2), open your tail-
gate, and rotate the bed extender until it sits on the tail-gate.
After you have rotated the bed extender, lock the black
buckle pin into the tailgate latch by pushing downward
until you hear two clicks. Then tighten the tether
straps. Repeat this process for the other side. When
you want to return the tailgate and the bed extender to
the closed/inward position, pull on the tailgate release
handle to disengage the tethers.
UB8032AA
UB8033AA

6-19
Interior and exterior equipments
– CONTINUED –
NOTE
Use care when rotating bed extender. Do not per-
mit the buckles to come in contact with vehicle
sheet metal and bed trim.
Closed/Inward Position – With the tailgate closed
and the bed extender in the inward position, small
loads can be placed inside the vehicle bed between
the tailgate and the extender (groceries, ice chests, etc.).
The bed extender should be secured to the rear set of
vehicle cargo hooks. Latch the buckle onto the rear
cargo hooks and then tighten the tether straps. To dis-
engage the tethers, loosen the tether straps and de- press the latch pin. „
Bed extender removal

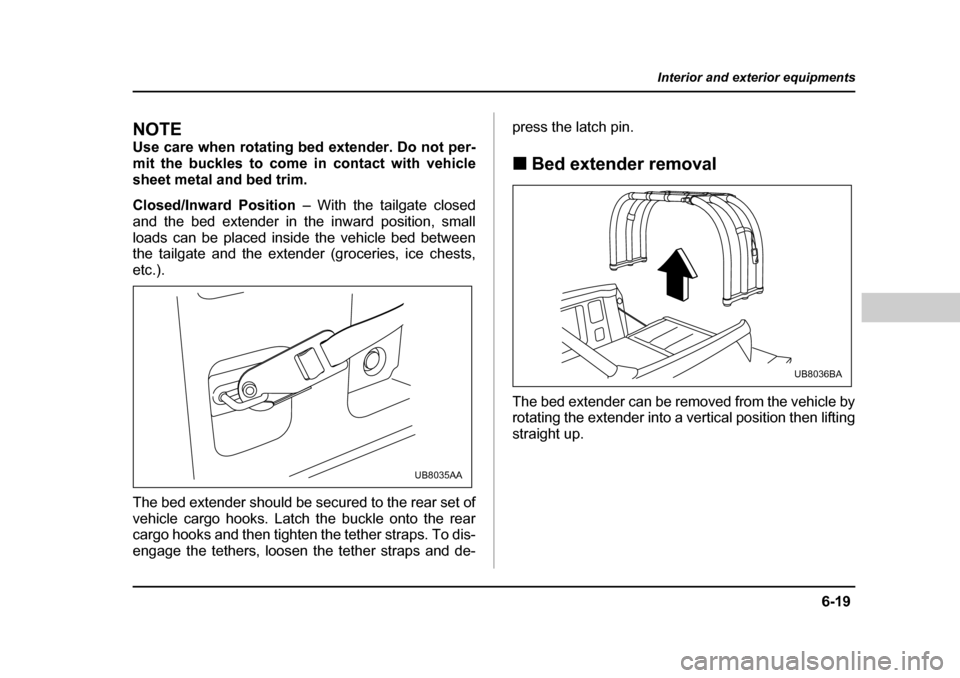

The bed extender can be removed from the vehicle by
rotating the extender into a vertical position then lifting
straight up.
UB8035AA
UB8036BA

6-20
Interior and exterior equipments
Cargo lamp

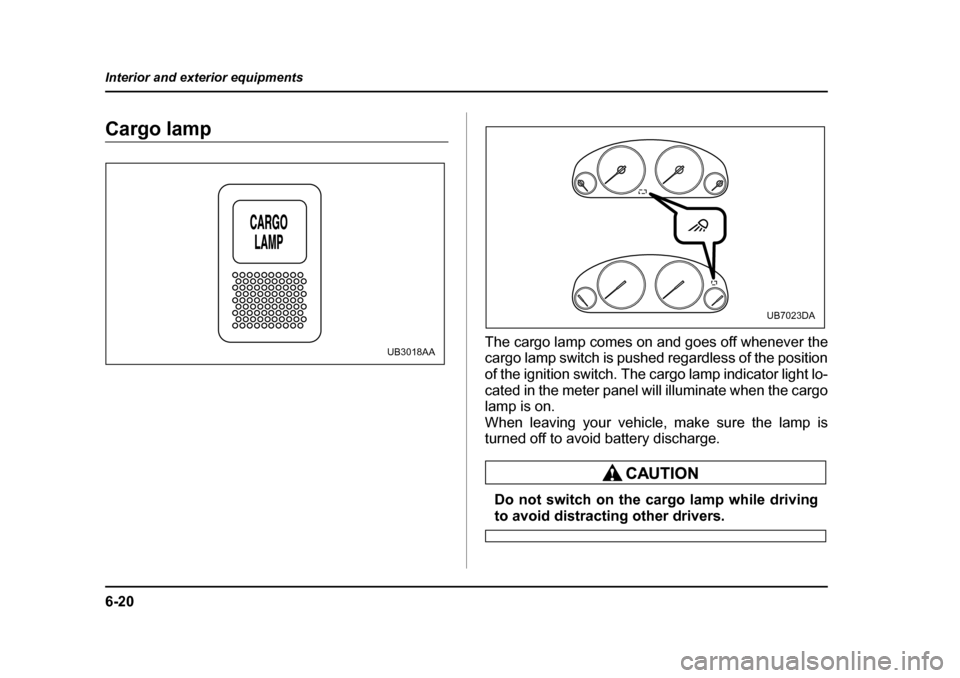

The cargo lamp comes on and goes off whenever the
cargo lamp switch is pushed regardless of the position
of the ignition switch. The cargo lamp indicator light lo-
cated in the meter panel will illuminate when the cargo
lamp is on.
When leaving your vehicle, make sure the lamp is
turned off to avoid battery discharge.
Do not switch on the cargo lamp while drivingto avoid distracting other drivers.
UB3018AA
UB7023DA

6-21
Interior and exterior equipments
– CONTINUED –
Soft bed cover (if equipped)
Before installing the soft bed cover, carefully
read the warning labels on the inside wall of the
cargo bed.
yDo not place cargo on top of the bed cover.
y Do not use the hard bed cover section as a
step. y
Do not use the bed cover to secure cargo.
y To avoid damage, clean the bed cover with
only soap, water and a soft brush. y Remove the soft portion of the bed cover be-
fore taking the vehicle through a car wash.
The bed cover is designed to cover the cargo area of

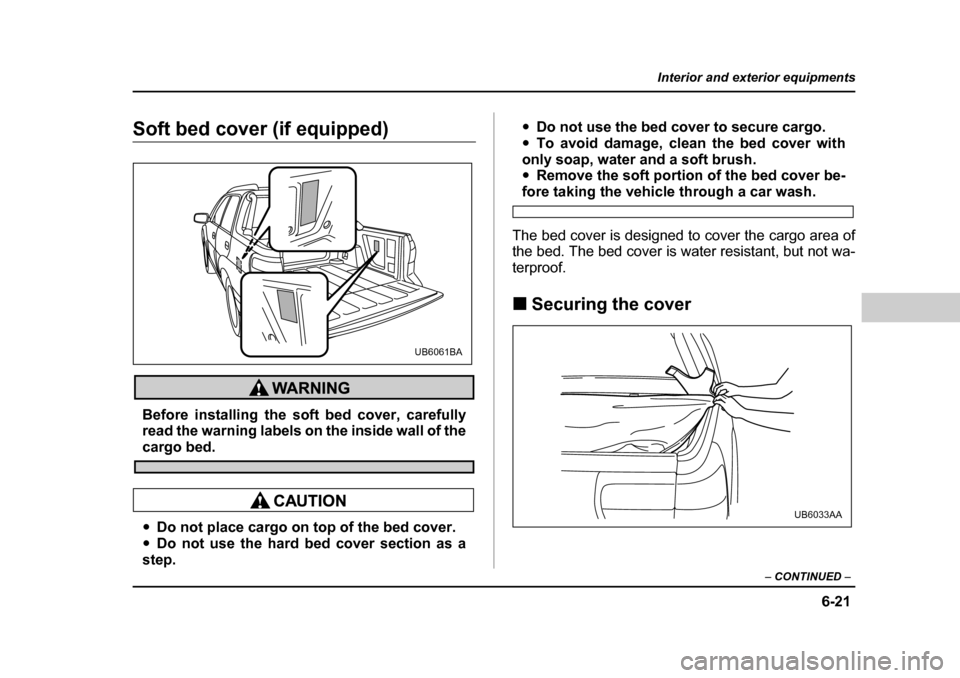

the bed. The bed cover is water resistant, but not wa- terproof. „ Securing the cover
UB6061BA
UB6033AA

6-22
Interior and exterior equipments

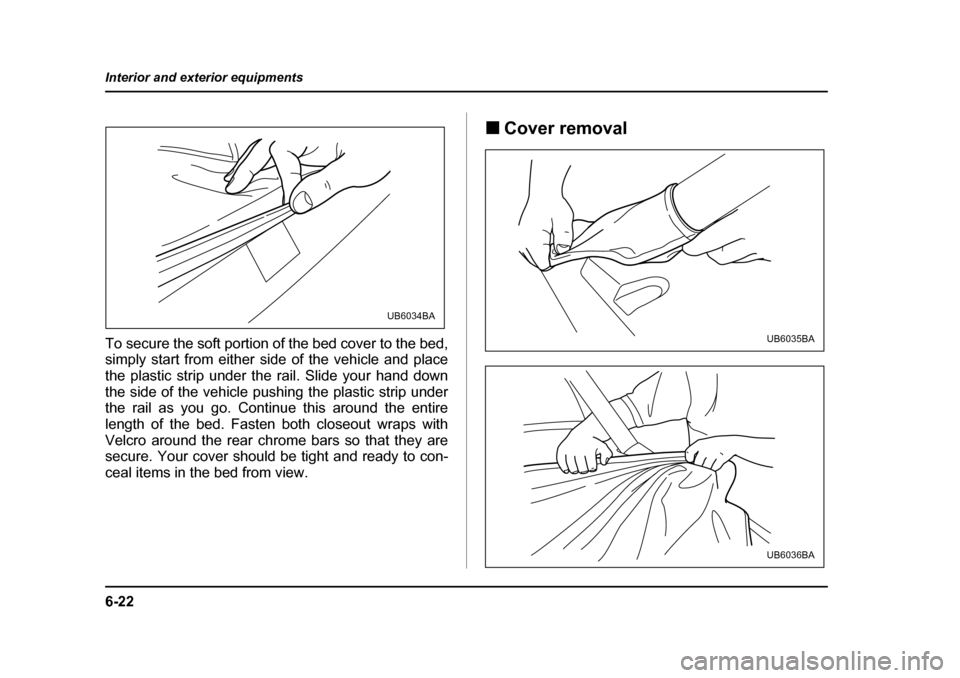

To secure the soft portion of the bed cover to the bed,
simply start from either side of the vehicle and place
the plastic strip under the rail. Slide your hand down
the side of the vehicle pushing the plastic strip under
the rail as you go. Continue this around the entire
length of the bed. Fasten both closeout wraps with
Velcro around the rear chrome bars so that they are
secure. Your cover should be tight and ready to con-
ceal items in the bed from view.
„
Cover removal
UB6034BA
UB6035BA
UB6036BA

6-23
Interior and exterior equipments
– CONTINUED –
The soft portion of the bed cover can be removed from
the bed cover’s hard section for cleaning or storage.
Unfasten the Velcro on the tube closeout wraps and
firmly pull the cover out to one side. „Cover reinstallation

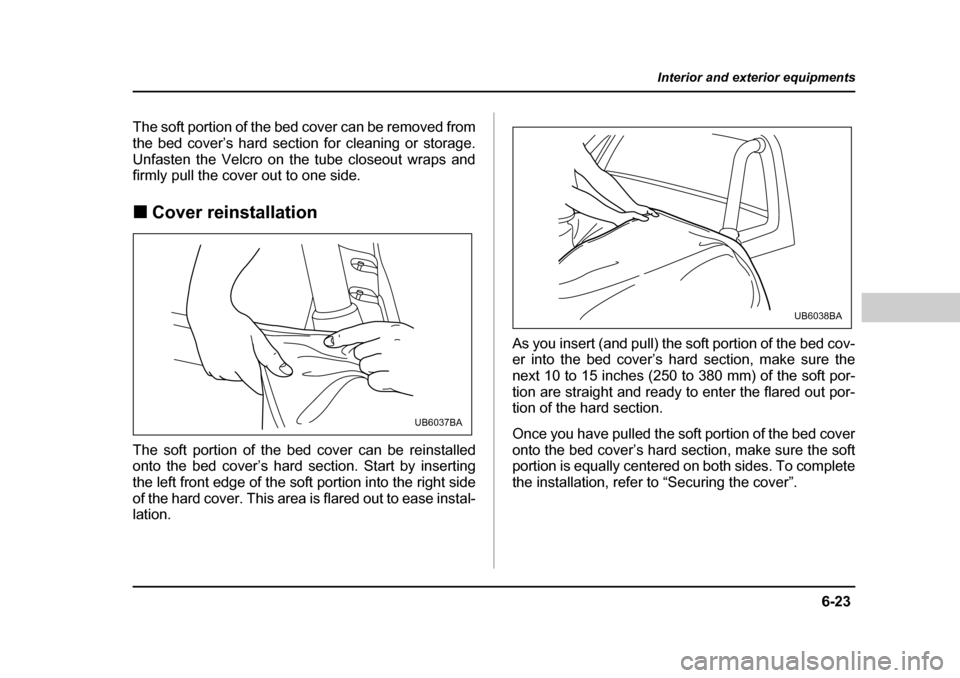

The soft portion of the bed cover can be reinstalled
onto the bed cover’s hard section. Start by inserting
the left front edge of the soft portion into the right side
of the hard cover. This area is flared out to ease instal-
lation. As you insert (and pull) the soft portion of the bed cov-
er into the bed cover’s hard section, make sure the
next 10 to 15 inches (250 to 380 mm) of the soft por-
tion are straight and ready to enter the flared out por-
tion of the hard section.
Once you have pulled the soft portion of the bed cover
onto the bed cover’s hard section, make sure the soft
portion is equally centered on both sides. To complete
the installation, refer to “Securing the cover”.
UB6037BA
UB6038BA

6-24
Interior and exterior equipments
Roof rail and crossbar
y
For cargo carrying purposes, the roof rail
must be used together with a roof crossbar kit
and the appropriate carrying attachment. The
roof rail must never be used alone to carry car-
go. Otherwise, damage to the roof or paint or a
dangerous road hazard due to loss of cargo
could result. y When using the roof crossbar kit, make sure
that the total weight of the crossbars, carrying
attachment and cargo does not exceed the
maximum load limit. Overloading may cause
damage to the vehicle and create a safety haz-
ard. 1) Crossbar kit
The roof rail is not designed to carry cargo by itself.
Cargo can be carried after securing the roof crossbar
kit to the roof rail and installing the appropriate carry-
ing attachment. When installing the roof crossbar kit,
follow the manufacturer’s instructions.
When you carry cargo on the roof using the roof cross-
bar kit and a carrying attachment, never exceed the
maximum load limit explained below. You should also
be careful that your vehicle does not exceed the Gross
Vehicle Weight Rating (GVWR) and front and rear
Gross Axle Weight Rating (GAWR). See the “Loading
your vehicle” section in Chapter 8 for information on
1
UB8037BB

6-25
Interior and exterior equipments
– CONTINUED –

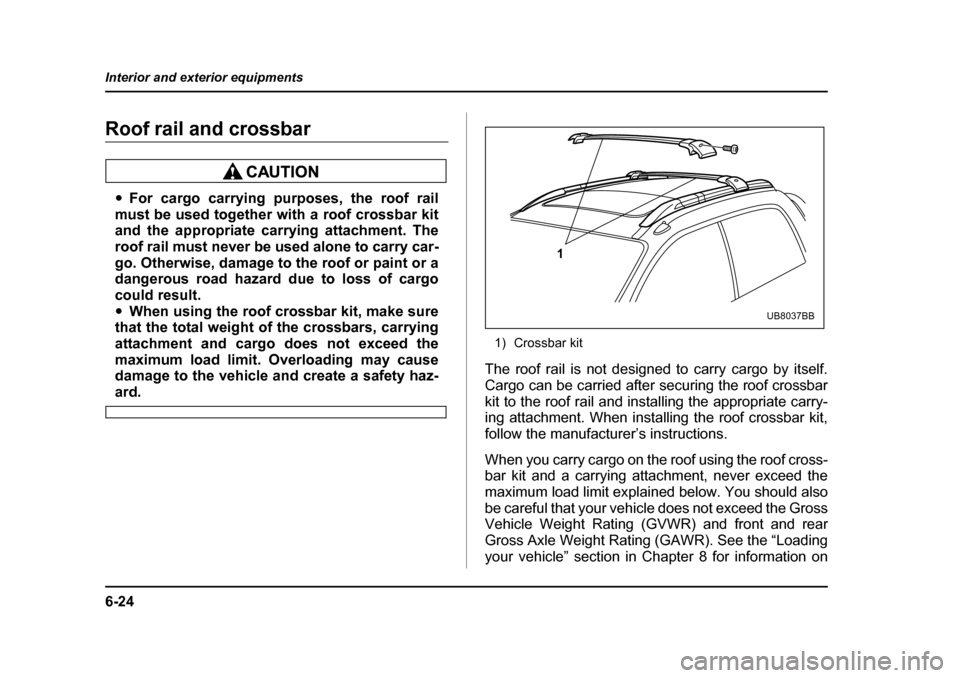

loading cargo into or onto your vehicle. The maximum
load limit of the cargo, crossbars and carrying attach-
ment must not exceed 100 lbs (45 kg). Place the
heaviest load at the bottom, nearest the roof, and
evenly distribute the cargo. Always properly secure all
cargo. „Installing carrying attachments on the crossbars
When installing any carrying attachment such as a
bike carrier, ski carrier, kayak carrier, cargo basket,
etc. on the crossbars, follow the manufacturer’s in-
structions and make sure that the attachment is se-
curely fixed to the crossbars. Use only attachments
designed specifically for the crossbars. A set of the
crossbars is designed to carry loads (cargo and at-
tachment) of not more than 100 lbs (45 kg). Before
operating the vehicle, make sure that the cargo is
properly secured on the attachment.
NOTE
Remember that the vehicle’s center of gravity is al-
tered with the weight of the load on the roof, thus
affecting the driving characteristics.
Drive carefully. Avoid rapid starts, hard cornering
and abrupt stops. Crosswind effects will be in-
creased. „
Removal and installation of the cross- bars
Do not carry cargo on the roof when the cross-
bars are removed. Luggage on the roof will be
thrown forward or backward in sudden stops or
rapid accelerations, resulting in a dangerous
road hazard.
The crossbars can be removed when you do not use
the roof to carry cargo.

6-26
Interior and exterior equipments
T

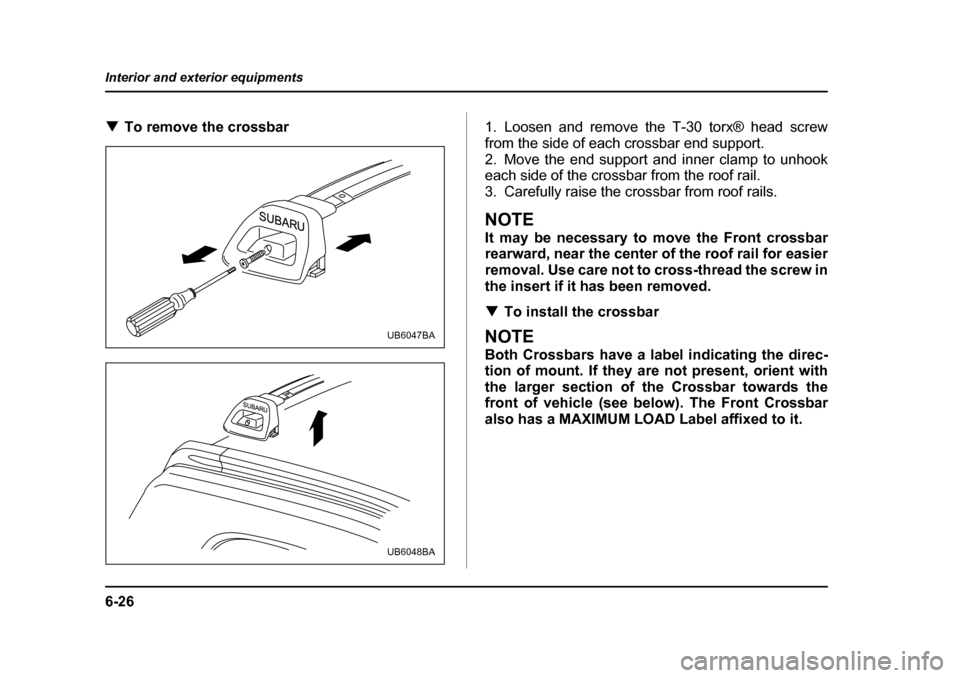

To remove the crossbar 1. Loosen and remove the T-30 torx® head screw
from the side of each crossbar end support.
2. Move the end support and inner clamp to unhook
each side of the crossbar from the roof rail.
3. Carefully raise the crossbar from roof rails.
NOTE
It may be necessary to move the Front crossbar
rearward, near the center of the roof rail for easier
removal. Use care not to cross-thread the screw in
the insert if it has been removed. TTo install the crossbar
NOTE
Both Crossbars have a label indicating the direc-
tion of mount. If they are not present, orient with
the larger section of the Crossbar towards the
front of vehicle (see below). The Front Crossbar
also has a MAXIMUM LOAD Label affixed to it. UB6047BA
UB6048BA

6-27
Interior and exterior equipments
– CONTINUED –

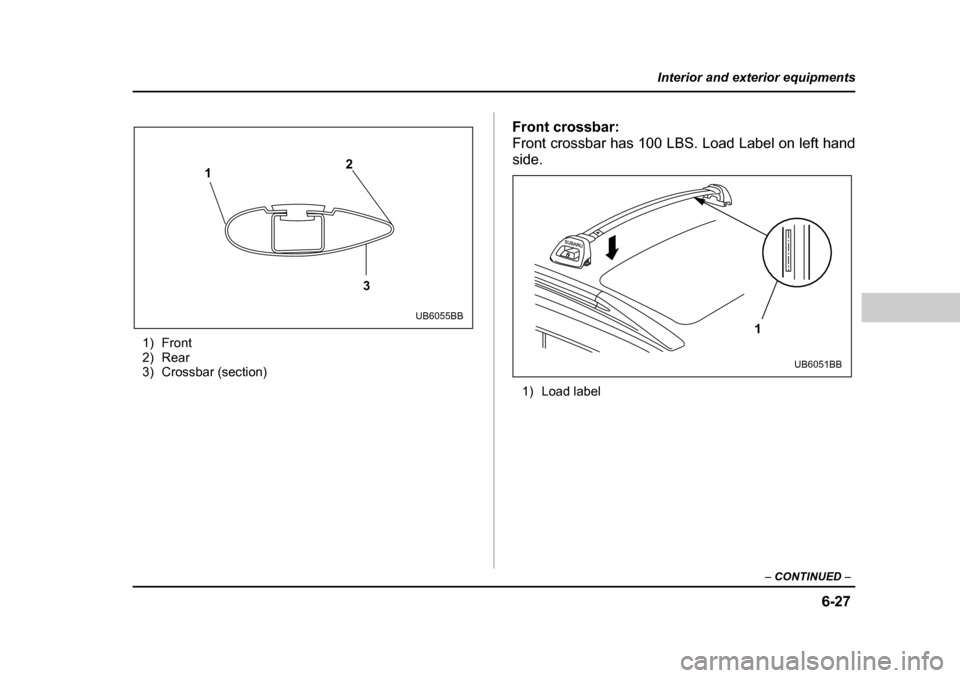

1) Front
2) Rear
3) Crossbar (section) Front crossbar:
Front crossbar has 100 LBS. Load Label on left handside.
1) Load label
1 2
3
UB6055BB1
UB6051BB
