Maintenance and service

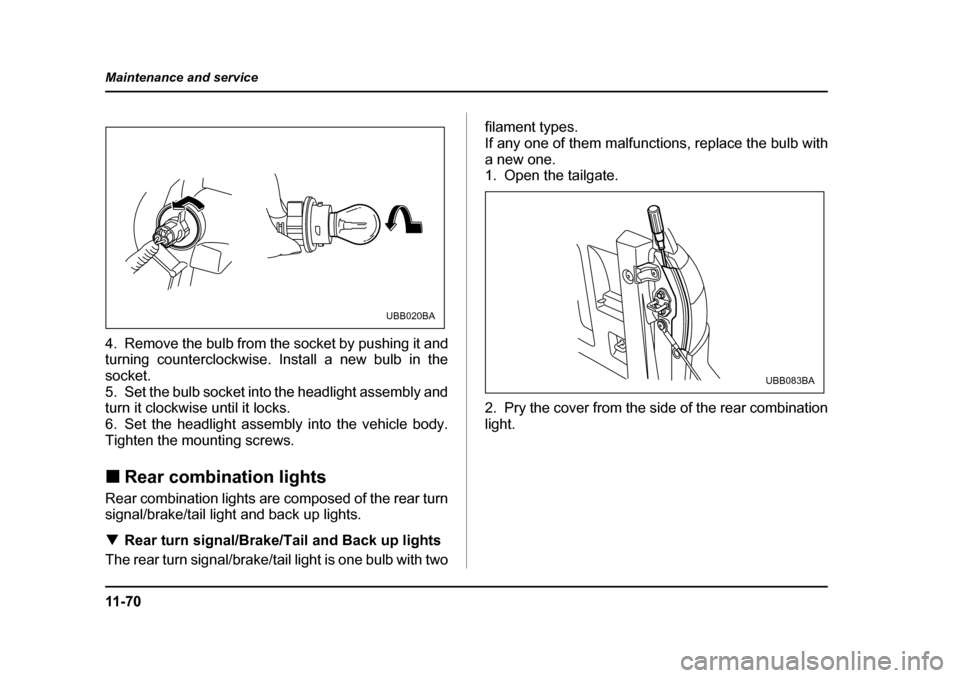

4. Remove the bulb from the socket by pushing it and
turning counterclockwise. Install a new bulb in the socket.
5. Set the bulb socket into the headlight assembly and
turn it clockwise until it locks.
6. Set the headlight assembly into the vehicle body.
Tighten the mounting screws. „
Rear combination lights
Rear combination lights are composed of the rear turn
signal/brake/tail light and back up lights. T Rear turn signal/Brake/Tail and Back up lights
The rear turn signal/brake/tail light is one bulb with two filament types.
If any one of them malfunctions, replace the bulb with
a new one.
1. Open the tailgate.
2. Pry the cover from the side of the rear combination
light.
UBB020BA
UBB083BA

11 -7 1
Maintenance and service
– CONTINUED –
3. Remove the rear combination light mounting bolts.
Then, slide the rear combination light assembly to the
rear and remove it from the vehicle. 1) Back up light bulb
2) Brake/turn/tail/light bulb

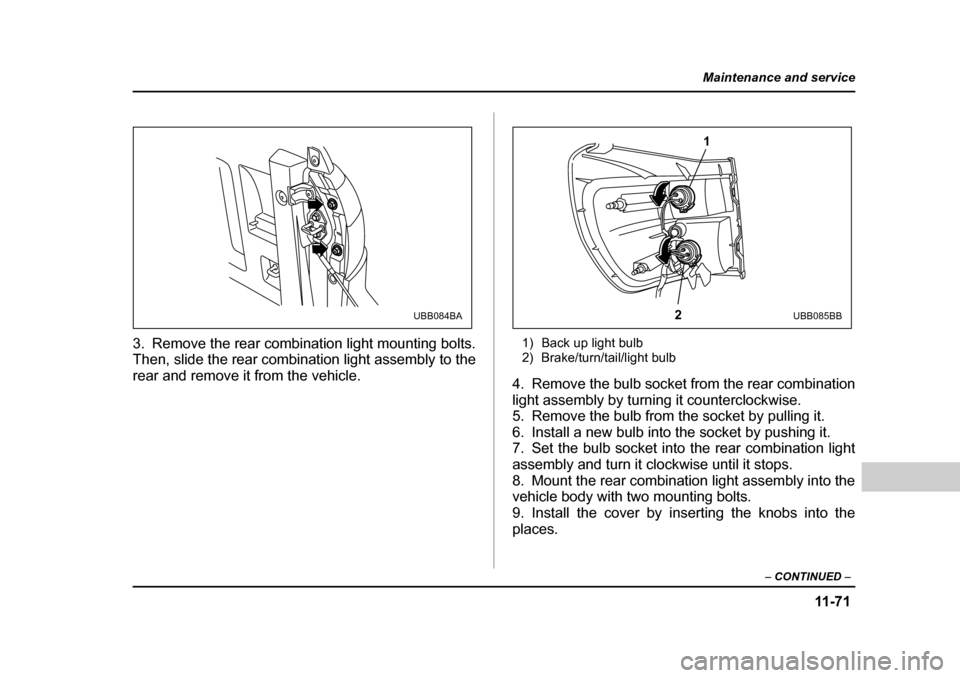

4. Remove the bulb socket from the rear combination
light assembly by turning it counterclockwise.
5. Remove the bulb from the socket by pulling it.
6. Install a new bulb into the socket by pushing it.
7. Set the bulb socket into the rear combination light
assembly and turn it clockwise until it stops.
8. Mount the rear combination light assembly into the
vehicle body with two mounting bolts.
9. Install the cover by inserting the knobs into the
places.
UBB084BA2
1
UBB085BB

11 - 7 2
Maintenance and service
„
Tail light (on the tailgate)
1. Open the tailgate.

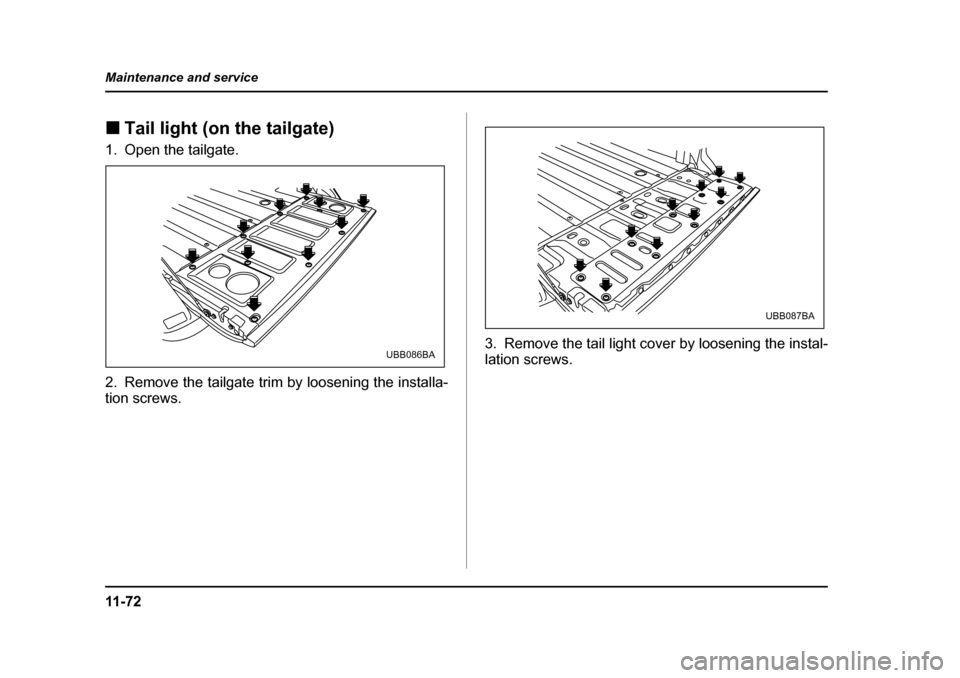

2. Remove the tailgate trim by loosening the installa- tion screws. 3. Remove the tail light cover by loosening the instal-
lation screws.
UBB086BA
UBB087BA

11 -7 3
Maintenance and service
– CONTINUED –

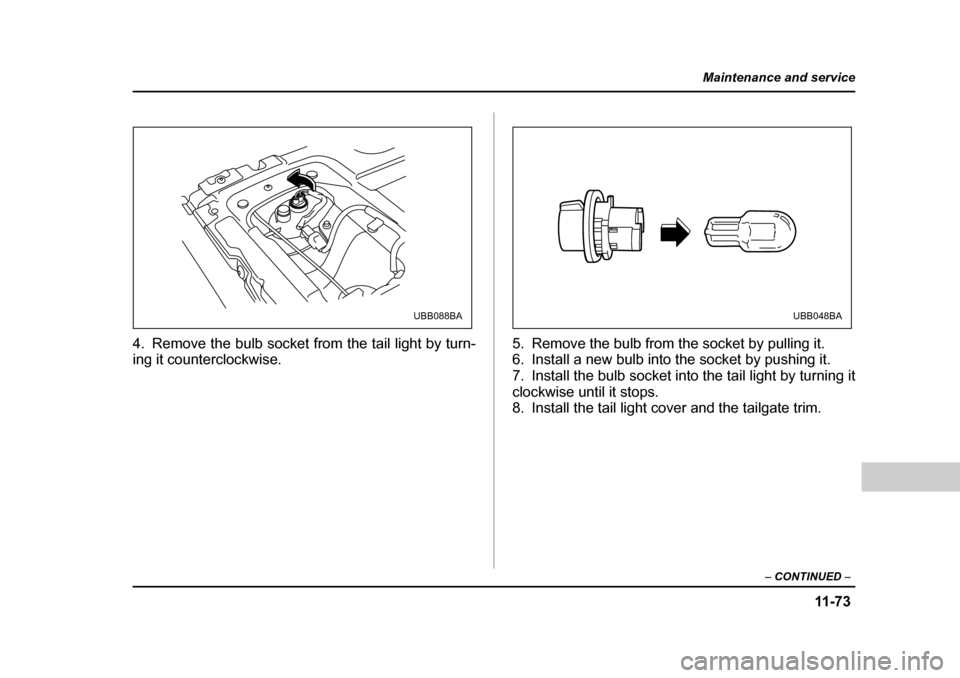

4. Remove the bulb socket from the tail light by turn-
ing it counterclockwise. 5. Remove the bulb from the socket by pulling it.
6. Install a new bulb into the socket by pushing it.
7. Install the bulb socket into the tail light by turning it
clockwise until it stops.
8. Install the tail light cover and the tailgate trim.
UBB088BAUBB048BA

11 - 7 4
Maintenance and service
„
License plate light0

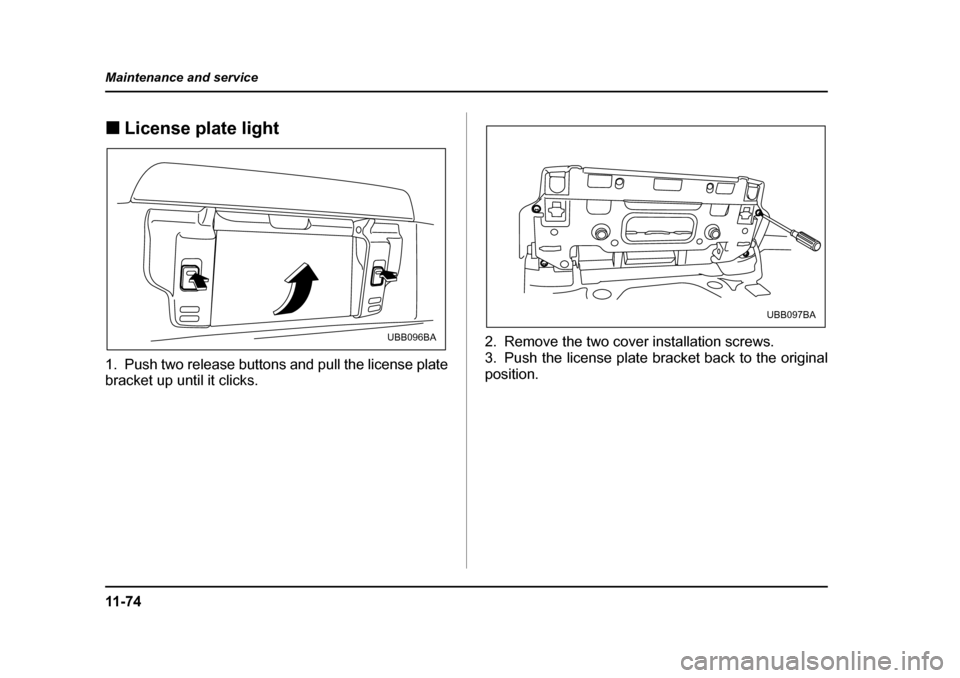

1. Push two release buttons and pull the license plate
bracket up until it clicks. 2. Remove the two cover installation screws.
3. Push the license plate bracket back to the original position.
UBB096BA
UBB097BA

11 -7 5
Maintenance and service
– CONTINUED –

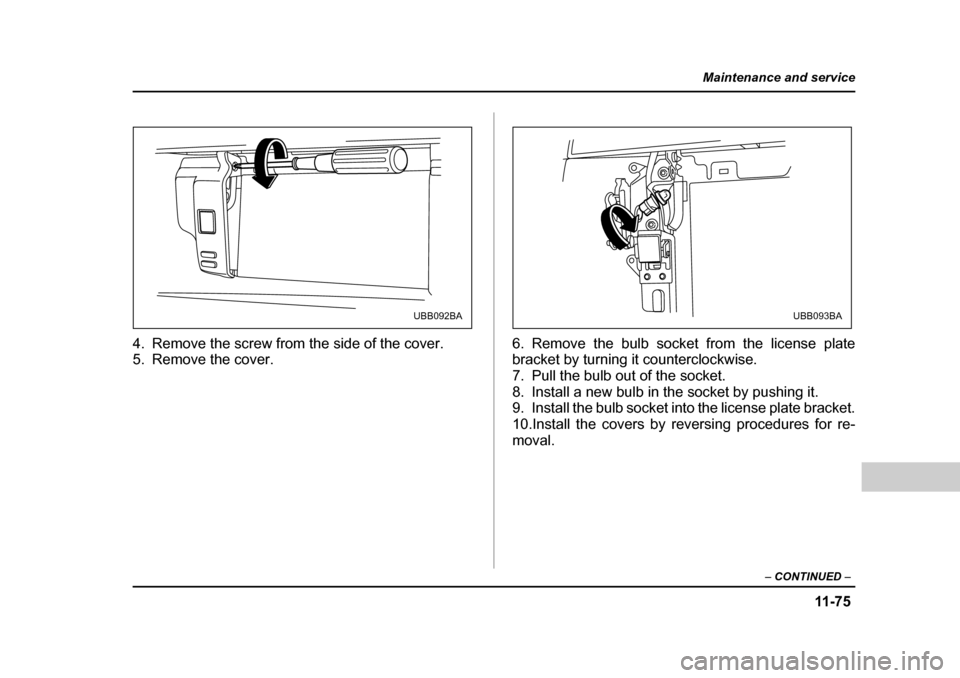

4. Remove the screw from the side of the cover.
5. Remove the cover. 6. Remove the bulb socket from the license plate
bracket by turning it counterclockwise.
7. Pull the bulb out of the socket.
8. Install a new bulb in the socket by pushing it.
9. Install the bulb socket into the license plate bracket.
10.Install the covers by reversing procedures for re-moval.
UBB092BAUBB093BA

11 - 7 6
Maintenance and service
„

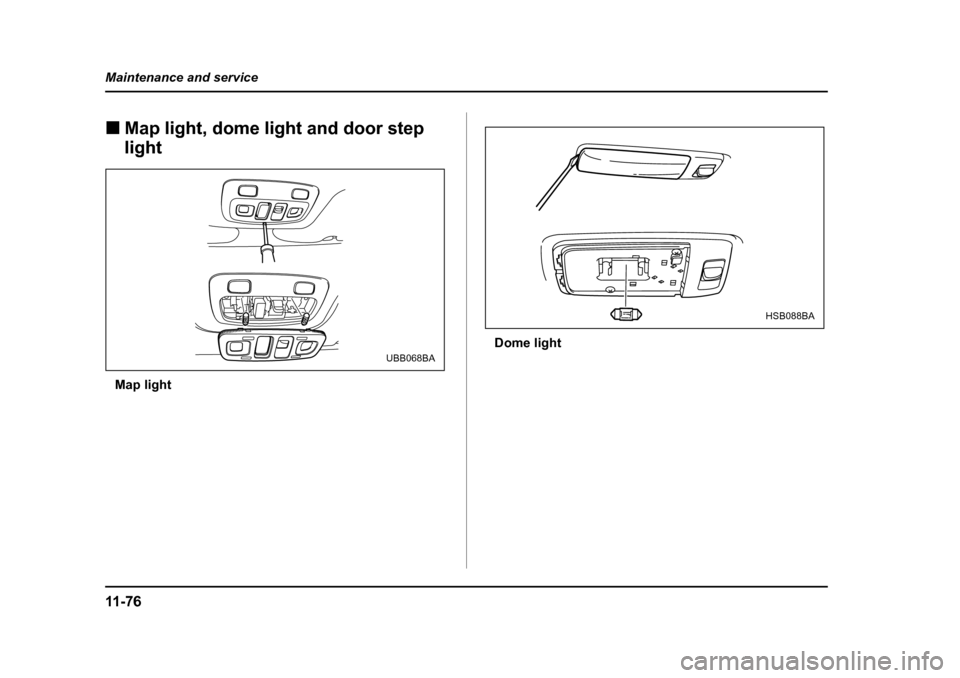

Map light, dome light and door step light
Map light Dome light
UBB068BA
HSB088BA

11 -7 7
Maintenance and service
– CONTINUED –
Door step light

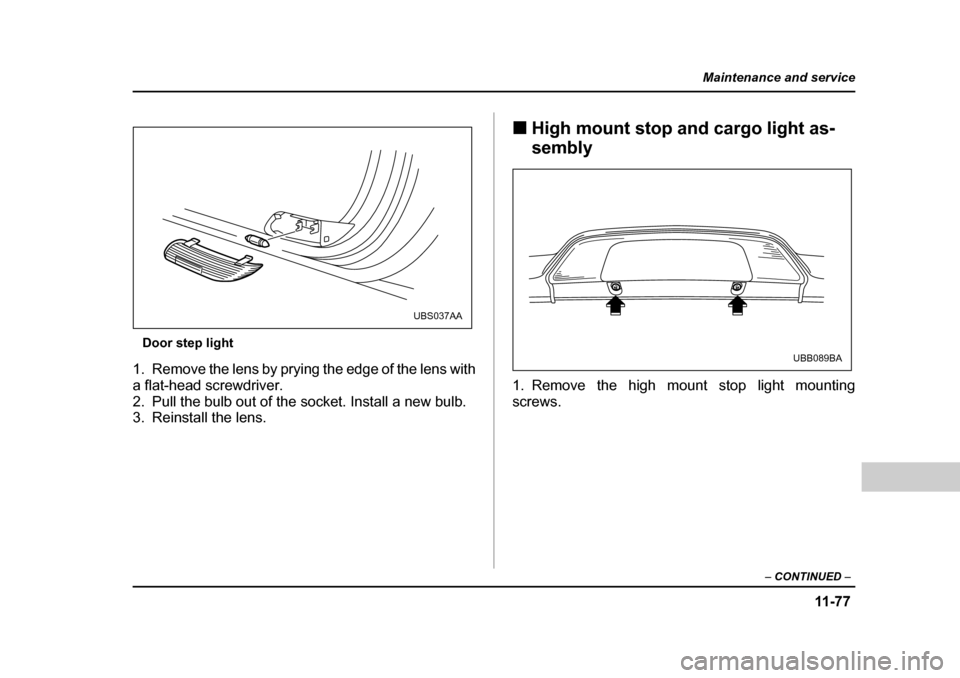

1. Remove the lens by prying the edge of the lens with
a flat-head screwdriver.
2. Pull the bulb out of the socket. Install a new bulb.
3. Reinstall the lens. „
High mount stop and cargo light as-
sembly
1. Remove the high mount stop light mounting screws.
UBS037AA
UBB089BA

11 - 7 8
Maintenance and service

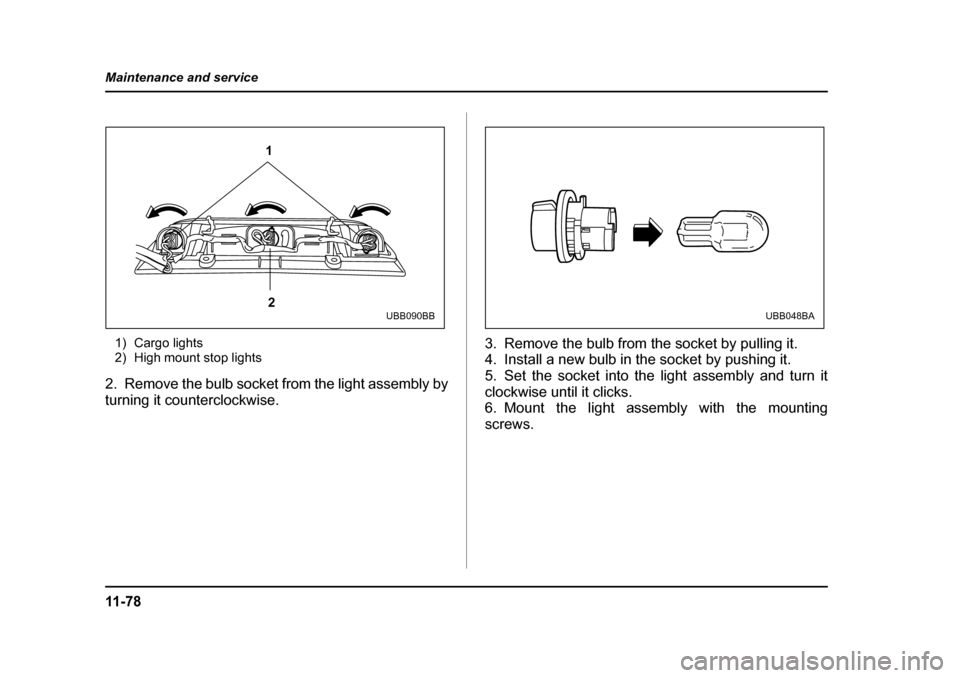

1) Cargo lights
2) High mount stop lights
2. Remove the bulb socket from the light assembly by
turning it counterclockwise. 3. Remove the bulb from the socket by pulling it.
4. Install a new bulb in the socket by pushing it.
5. Set the socket into the light assembly and turn it
clockwise until it clicks.
6. Mount the light assembly with the mounting screws.
1
2
UBB090BBUBB048BA

11 -7 9
Maintenance and service
– CONTINUED –
„Sport activity lights (if equipped)

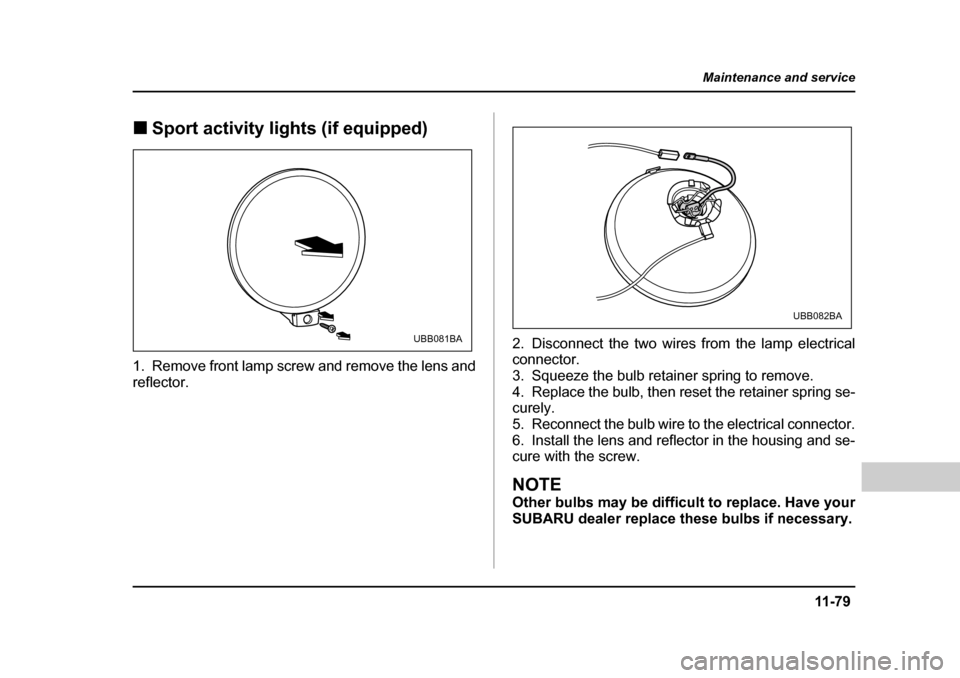

1. Remove front lamp screw and remove the lens and
reflector. 2. Disconnect the two wires from the lamp electrical
connector.
3. Squeeze the bulb retainer spring to remove.
4. Replace the bulb, then reset the retainer spring se- curely.
5. Reconnect the bulb wire to the electrical connector.
6. Install the lens and reflector in the housing and se-
cure with the screw.
NOTE
Other bulbs may be difficult to replace. Have your
SUBARU dealer replace these bulbs if necessary.
UBB081BA
