3
Ignition switch must be in ACC or ON.
1 Turn the control switch to the side that you want
to adjust. L is for the left mirror, R is for the right
mirror.
2 Move the control switch in the direction you want
to adjust the mirror.

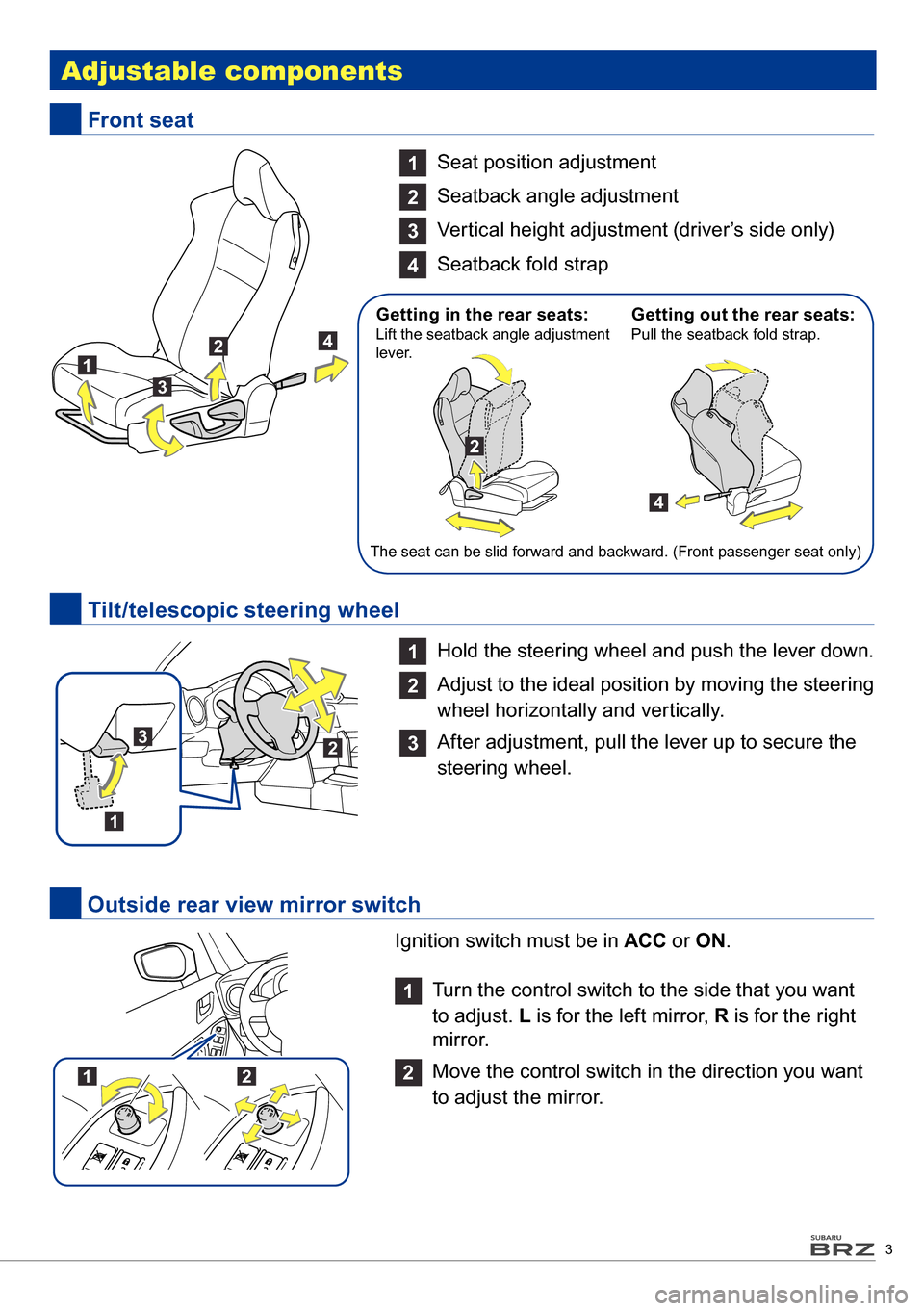

Adjustable components
1 Seat position adjustment
2 Seatback angle adjustment
3 Vertical height adjustment (driver’s side only)
4 Seatback fold strap
Front seat
Tilt/telescopic steering wheel
Outside rear view mirror switch
1 Hold the steering wheel and push the lever down.
2 Adjust to the ideal position by moving the steering
wheel horizontally and vertically.
3 After adjustment, pull the lever up to secure the
steering wheel.
1
23
12
124
3
2
4
Getting in the rear seats:Lift the seatback angle adjustment lever.
Getting out the rear seats:Pull the seatback fold strap.
The seat can be slid forward and backward. (Front passenger seat only)\

7
Windshield defogger/Rear window defogger switchG
Hazard warning flasher switchC
Instrument panel light control dialE
Seat heater switches (if equipped)D
Manual headlight leveling dialF
All the turn signal lights will flash.
Use the switch to warn other drivers.
Ty p e ATy p e B
1 Windshield defogger switch:
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to outside air mode if the recirculated air
mode is used. (It may switch automatically.)
2 Rear window defogger switch:
The rear window defogger and the outside rear view mirror defogger (if equipped) turns
on. The function will automatically turn off after approximately 15 min.
Press
Rapid heating
Normal heating
Brighter
Darker
Raise
Lower
1
2
1
2
