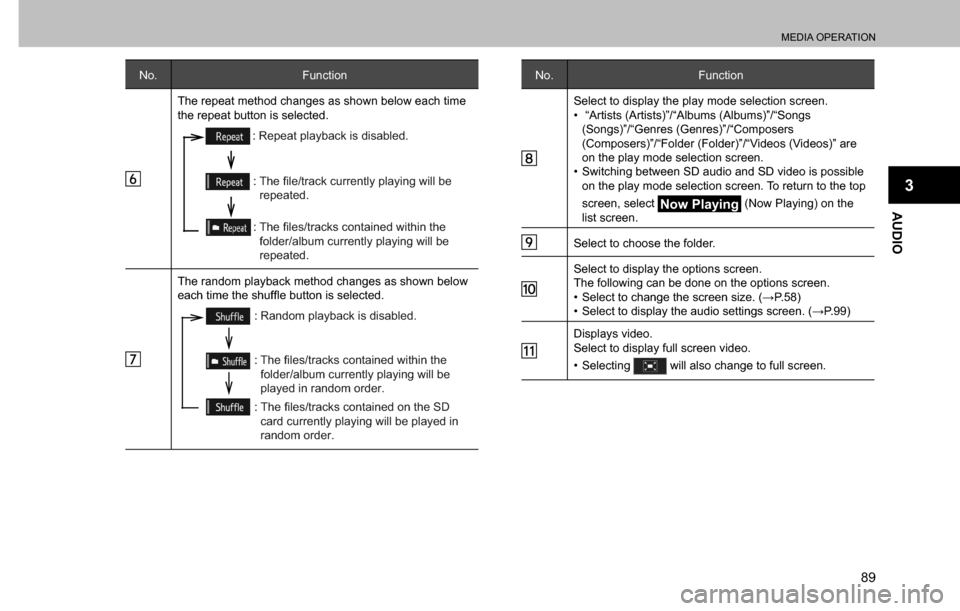

MEDIA OPERATION
89
AUDIO
3
No. Function
The repeat method changes as shown below each time
the repeat button is selected.
: Repeat playback is disabled.
: The file/track currently playing will be
repeated.
: The files/tracks contained within the
folder/album currently playing will be
repeated.
The random playback method changes as shown below
HDFKWLPHWKHVKXIÀHEXWWRQLVVHOHFWHG
: Random playback is disabled.
: The files/tracks contained on the SD
card currently playing will be played in
random order.
: The files/tracks contained within the
folder/album currently playing will be
played in random order.
No. Function
Select to display the play mode selection screen.
‡ “Artists (Artists)”/“Albums (Albums)”/“Songs
(Songs)”/“Genres (Genres)”/“Composers
(Composers)”/“Folder (Folder)”/“Videos (Videos)” are
on the play mode selection screen.
‡Switching between SD audio and SD video is possible
on the play mode selection screen. To return to the top
screen, select
Now Playing (Now Playing) on the
list screen.
Select to choose the folder.
Select to display the options screen.
The following can be done on the options screen.

MEDIA OPERATION
90 XControl screen (Photo)
No. Function
Select to set slideshow.
The slideshow displays the images contained within the
currently selected folder.
Select to set play time of slideshow.
Select to set random playback.
7KH¿OHVFDQEHVZLWFKHG
Select to display the microSD photo folder list selection
screen.
WARNING
ODo not operate the player’s controls or insertion and pulling
out the SD card while driving.
CAUTION
ODo not insert foreign objects into the SD card slot.
NOTE
OEnsure to engage the parking brake when watching video
content. If not, only a blue screen will be displayed. Audio,
however, can be heard normally.
O$XGLR

MEDIA OPERATION

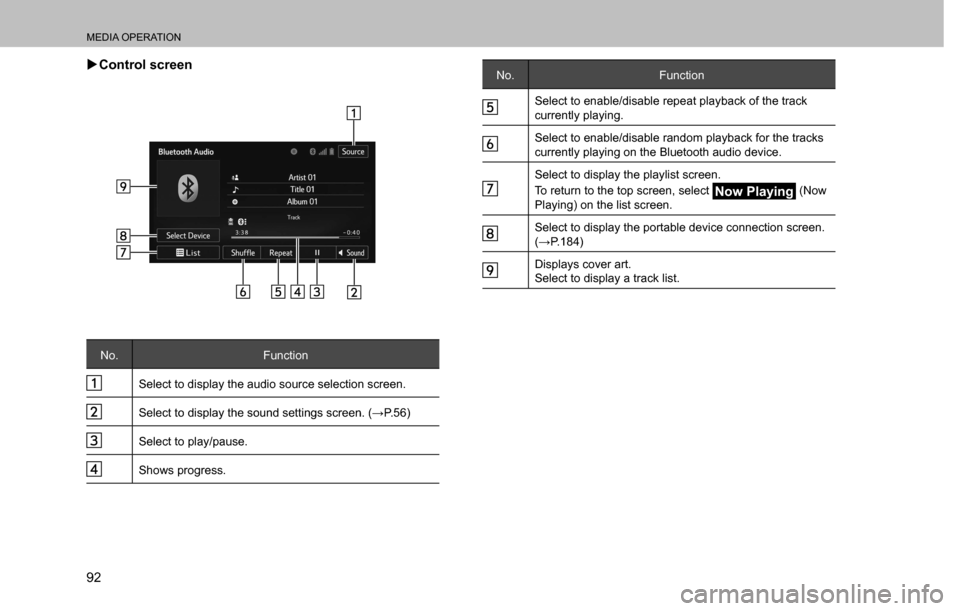

92 XControl screen
No. Function
Select to display the audio source selection screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVVFUHHQ
:3
Select to play/pause.
Shows progress.
No. Function
Select to enable/disable repeat playback of the track
currently playing.
Select to enable/disable random playback for the tracks
currently playing on the Bluetooth audio device.
Select to display the playlist screen.
To return to the top screen, select
Now Playing (Now
Playing) on the list screen.
Select to display the portable device connection screen.

:3
Displays cover art.
Select to display a track list.

MEDIA OPERATION
95
AUDIO
3
XControl screen
No. Function
Select to display the audio source selection screen.
6HOHFWWRGLVSOD\WKHVRXQGVHWWLQJVFUHHQ
:3
WARNING
ODo not operate the player’s controls or connect the portable
audio device while driving.
CAUTION
ODo not leave portable audio device in the vehicle. The
temperature inside the vehicle may become high, resulting in
damage to the player.
ODo not push down on or apply unnecessary pressure to
the portable audio device while it is connected as this may
damage the portable audio device or its terminal.
ODo not insert foreign objects into the port as this may damage
the portable audio device or its terminal.

AUDIO/VISUAL REMOTE CONTROLS
97
AUDIO
3
X“/ ” switch
Mode Operation Function
AM/FM Radio,
SiriusXM
®
Press Preset channel up/down
Press and hold Seek up/down continuously
ahaPress Content up/down
Press and holdRewind the current content
item for 15 seconds/ Fast
forward the current content
item for 30 seconds
Audio CD, MP3/
WMA/AAC disc,
SD*
1,USB, iPod,
Bluetooth audioPress6HOHFWDWUDFN¿OH
Press and hold Fast forward/rewind
Pandora*
2Press
Track up (“”only)
Press and hold Thumbs up/down
List screen Press Cursor left/right
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
XMute/enter switch
Mode Operation Function
Except list
screenPress Mute/unmute
List screen Press Select cursor entry
XBack switch
Mode Operation Function
AllPressReturn to the previous screen
when
is displayed on
the screen.
Press and holdReturn to the “HOME
(HOME)” screen
XList switch
Mode Operation Function
Audio screen,
Navigation*
screenPress Show list screen
*: With navigation function

SETUP
99
AUDIO
3

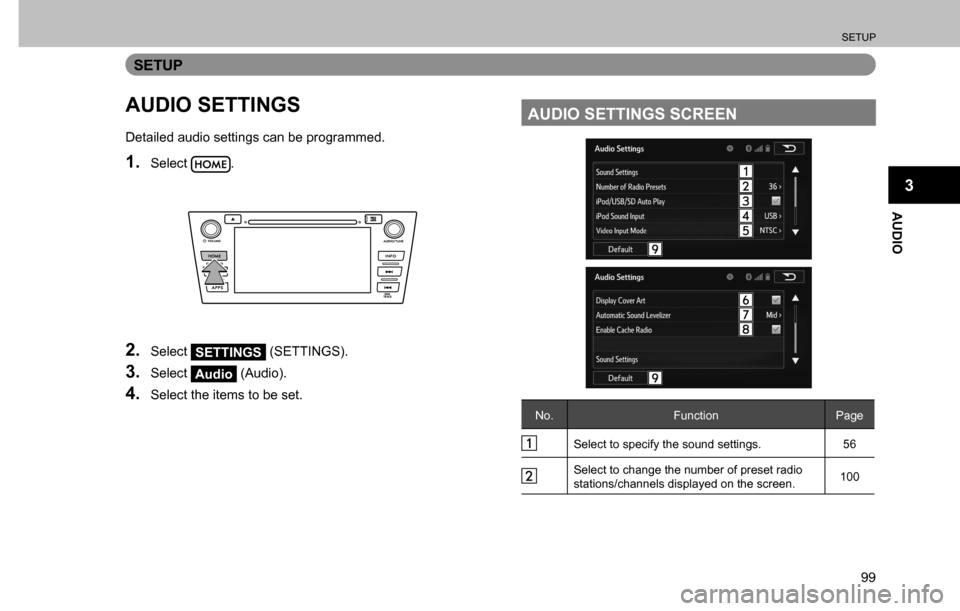

SETUP
AUDIO SETTINGS
Detailed audio settings can be programmed.
1. Select .
2. Select SETTINGS (SETTINGS).
3. Select Audio (Audio).
4. Select the items to be set.
AUDIO SETTINGS SCREEN
No. Function Page
Select to specify the sound settings. 56
Select to change the number of preset radio
stations/channels displayed on the screen.100

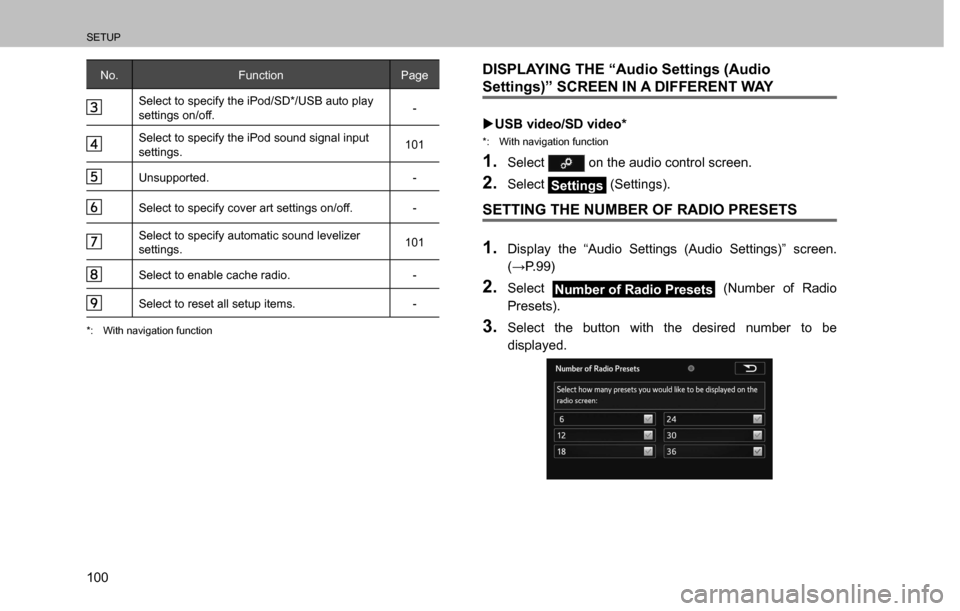

SETUP
100
No. Function Page
Select to specify the iPod/SD*/USB auto play
settings on/off.-
Select to specify the iPod sound signal input
settings.101
Unsupported. -
Select to specify cover art settings on/off. -
Select to specify automatic sound levelizer
settings.101
Select to enable cache radio. -
Select to reset all setup items. -
*: With navigation function
DISPLAYING THE “Audio Settings (Audio
Settings)” SCREEN IN A DIFFERENT WAY
XUSB video/SD video*
*: With navigation function
1. Select on the audio control screen.
2. Select Settings (Settings).
SETTING THE NUMBER OF RADIO PRESETS
1. Display the “Audio Settings (Audio Settings)” screen.

:3
2. Select Number of Radio Presets (Number of Radio
Presets).
3. Select the button with the desired number to be
displayed.

SETUP
101
AUDIO
3

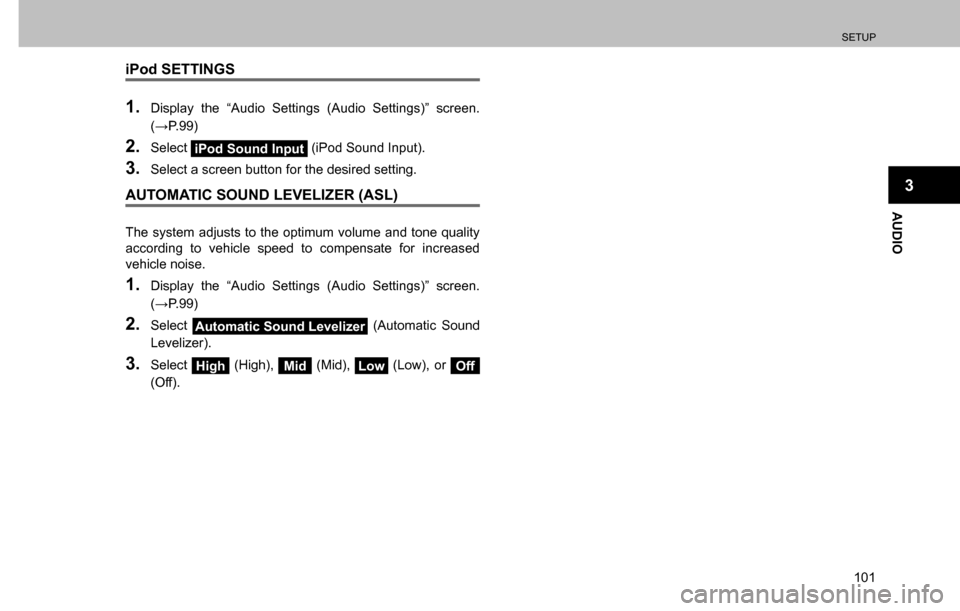

iPod SETTINGS
1. Display the “Audio Settings (Audio Settings)” screen.

:3
2. Select iPod Sound Input (iPod Sound Input).
3. Select a screen button for the desired setting.
AUTOMATIC SOUND LEVELIZER (ASL)
The system adjusts to the optimum volume and tone quality
according to vehicle speed to compensate for increased
vehicle noise.
1. Display the “Audio Settings (Audio Settings)” screen.

:3
2. Select Automatic Sound Levelizer (Automatic Sound
Levelizer).
3. Select High (High), Mid (Mid), Low (Low), or Off
(Off).

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 6
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
QUICK REFERENCE
The phone top screen can be used to make a phone call. To
display the hands-free operation screen, select
and
then select
PHONE (PHONE), select *, or press
the
switch on the steering wheel.
Several functions are available to operate on each screen
that is displayed by selecting the 4 tabs.
*: Without navigation function
Function Page
Phone
operationRegistering/connecting Bluetooth phone 176
Calling on the Bluetooth phone 121
Receiving on the Bluetooth phone 126
Talking on the Bluetooth phone 127
Message
functionUsing the Bluetooth phone message
function130
Setting up
a phonePhone settings 136
Bluetooth settings 181

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 8
NOTE
OKeep call volume down. Otherwise, the other party’s voice
may be audible outside the vehicle and voice echo may
increase. When talking on the phone, speak clearly towards the
microphone.
OThe other party may not hear you clearly when:
‡<00270055004c0059004c0051004a000300520051000300440051000300580051005300440059004800470003005500520044004700110003000b00300044004e004c0051004a00030048005b0046004800560056004c005900480003005700550044004900
bf0046000300510052004c005600480011000c>
‡Driving at high speeds.
‡Driving with a window open.
‡When air from the ventilator blows directly toward the
microphone.
‡The sound of the air conditioning fan is loud.
‡There is a negative effect on sound quality due to the phone
and/or network being used.
REGISTERING/CONNECTING A Bluetooth
PHONE
To use the hands-free system for cellular phones, it is
necessary to register a cellular phone with the system.

:3
Bluetooth PHONE CONDITION DISPLAY
The condition of the Bluetooth phone appears on the upper
ULJKWVLGHRIWKHVFUHHQ
:3
USING THE PHONE SWITCH/MICROPHONE
XSteering switch
By pressing the phone switch, a call can be received or
ended without taking your hands off the steering wheel.

”Ty p e A

”Type B
