BASIC FUNCTION
26
STATUS DISPLAY
The status of the Bluetooth connection and so on is
displayed on the screen.
No. Indicators Conditions
This icon is displayed when a disc has been
inserted.
This icon is displayed when audio is off or the steering switch is pressed.
No. Indicators Conditions

This icon is displayed when the Bluetooth
connection is established.
An antenna for the Bluetooth connection is
built into the instrument panel. The condition
of the Bluetooth connection may deteriorate
and the system may not function when a
Bluetooth device is used in the following
conditions and/or places:
The Bluetooth device is obstructed by certain
objects (such as when it is behind the seat or
in the glove box or console box).
The Bluetooth device is touching or is
covered with metal materials.
Leave the Bluetooth device in a place where
the condition of the Bluetooth connection is
good.
The
level of
receptionPoor
Excellent
The level of reception does not always
correspond with the level displayed on the
cellular phone. The level of reception may not
be displayed depending on the phone you
have.
“Rm” is displayed when receiving in a
roaming area. While roaming, display “Rm”
top-left on the icon.
The receiving area may not be displayed
depending on the type of phone you have.

BASIC INFORMATION BEFORE OPERATION
41
BASIC FUNCTION
2
UNLOADING A DISC
1. Press and remove the disc.
NOTE
ODiscs can be unloaded even when the engine switch is turned
off.
CONNECTING AND
DISCONNECTING A USB MEMORY/
PORTABLE DEVICE
CONNECTING A DEVICE
The device slot is located in the center at the bottom of the
instrument panel or inside the center console box.

”Turn on the power of the device if it is not turned on.
NOTE
O&RPSDWLEOH86%PHPRU\
:3
O&RPSDWLEOHL3RG
:3
OThis unit does not support commercially available USB hubs.
OBy connecting a device such as a cellular phone, charging starts
depending on the device.

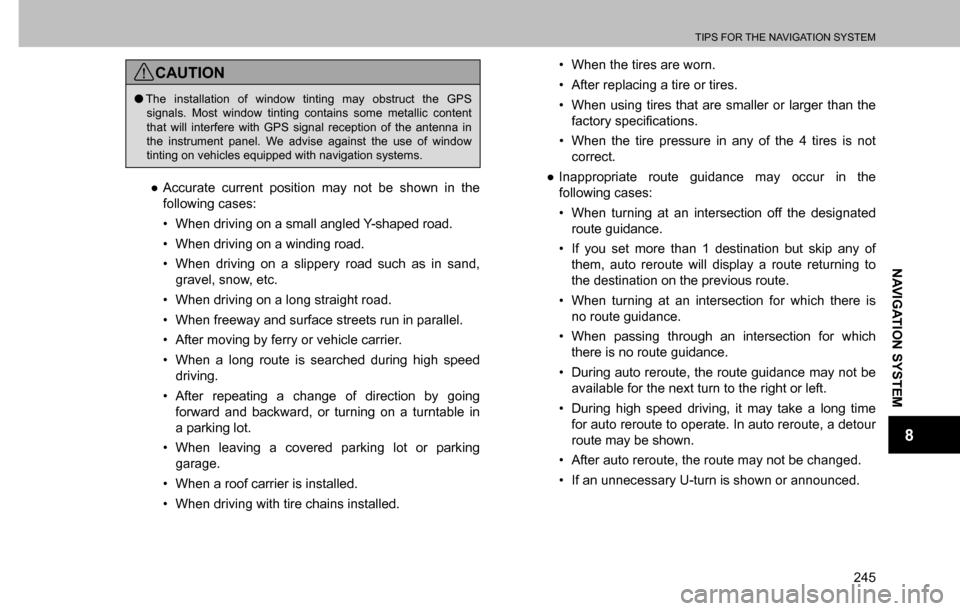

TIPS FOR THE NAVIGATION SYSTEM
245
NAVIGATION SYSTEM
8
CAUTION
OThe installation of window tinting may obstruct the GPS
signals. Most window tinting contains some metallic content
that will interfere with GPS signal reception of the antenna in
the instrument panel. We advise against the use of window
tinting on vehicles equipped with navigation systems.

”Accurate current position may not be shown in the
following cases:
‡When driving on a small angled Y-shaped road.
‡When driving on a winding road.
‡When driving on a slippery road such as in sand,
gravel, snow, etc.
‡When driving on a long straight road.
‡When freeway and surface streets run in parallel.
‡After moving by ferry or vehicle carrier.
‡When a long route is searched during high speed
driving.
‡After repeating a change of direction by going
forward and backward, or turning on a turntable in
a parking lot.
‡When leaving a covered parking lot or parking
garage.
‡When a roof carrier is installed.
‡When driving with tire chains installed.‡When the tires are worn.
‡After replacing a tire or tires.
‡When using tires that are smaller or larger than the
IDFWRU\VSHFL¿FDWLRQV
‡When the tire pressure in any of the 4 tires is not
correct.

”Inappropriate route guidance may occur in the
following cases:
‡When turning at an intersection off the designated
route guidance.
‡If you set more than 1 destination but skip any of
them, auto reroute will display a route returning to
the destination on the previous route.
‡When turning at an intersection for which there is
no route guidance.
‡When passing through an intersection for which
there is no route guidance.
‡During auto reroute, the route guidance may not be
available for the next turn to the right or left.
‡During high speed driving, it may take a long time
for auto reroute to operate. In auto reroute, a detour
route may be shown.
‡After auto reroute, the route may not be changed.
‡If an unnecessary U-turn is shown or announced.
